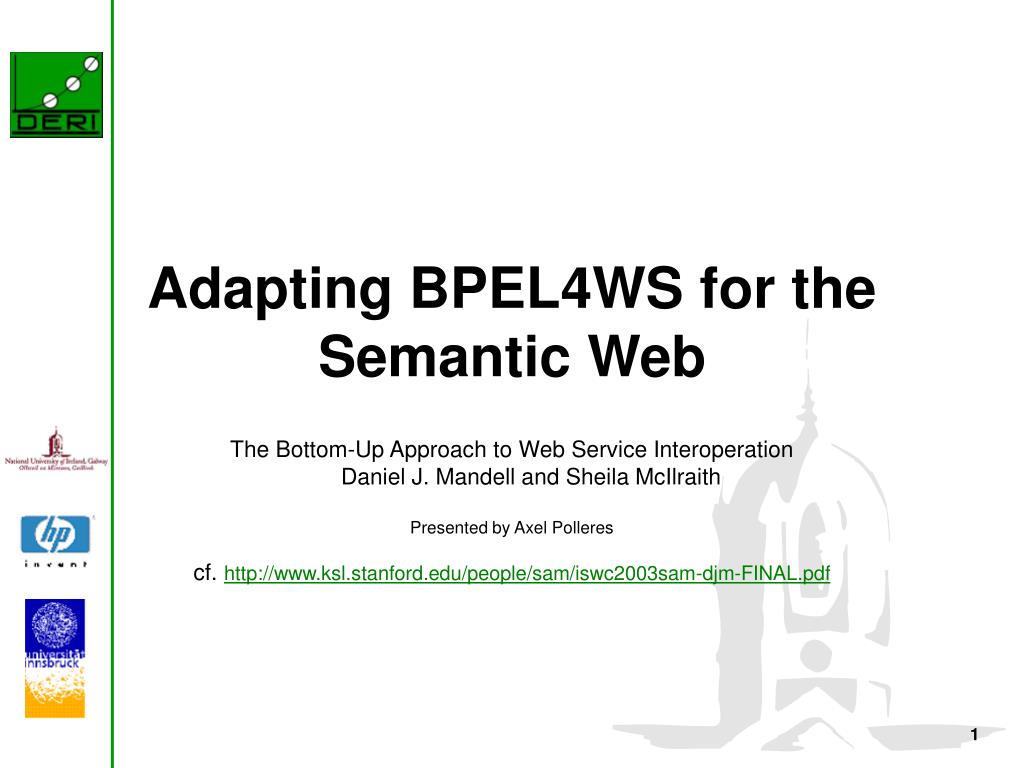

  1. Adapting BPEL4WS for the Semantic Web The Bottom-Up Approach to Web Service Interoperation Daniel J. Mandell and Sheila McIlraith Presented by Axel Polleres cf. http://www.ksl.stanford.edu/people/sam/iswc2003sam-djm-FINAL.pdf

  2. Overview • Bottom-Up approach to Web service interoperation • Motivating example • BPEL4WS and automated Web service execution • The Semantic Discovery Service (SDS) and automated Web service discovery, customization, and semantic translation

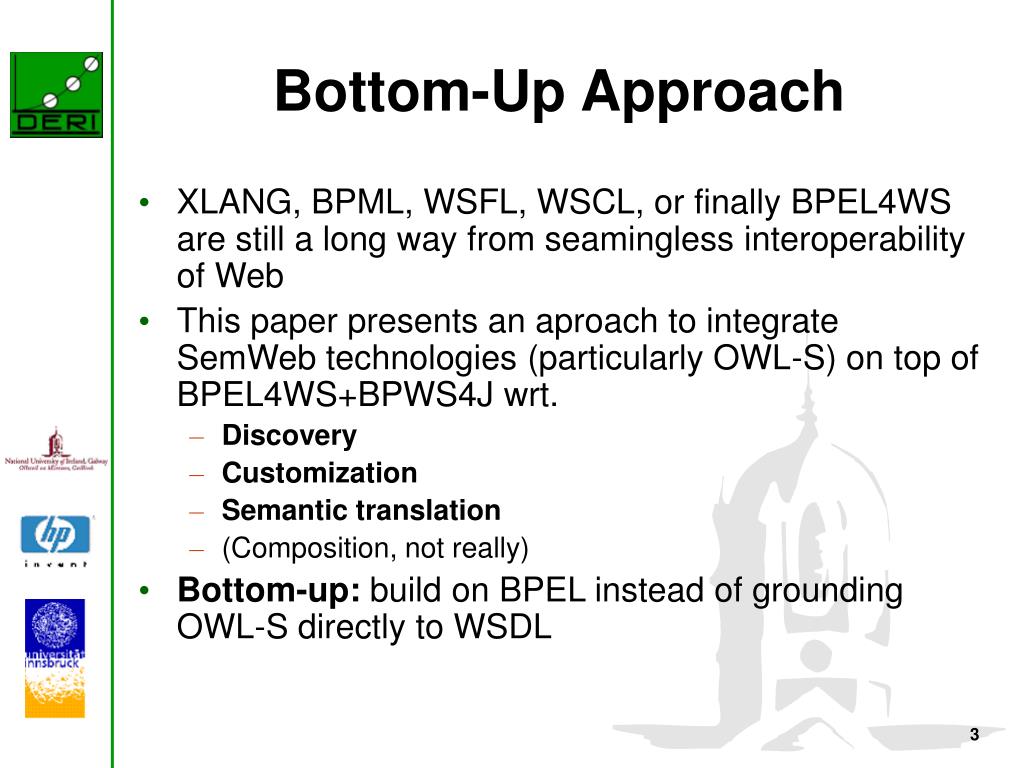

  3. Bottom-Up Approach • XLANG, BPML, WSFL, WSCL, or finally BPEL4WS are still a long way from seamingless interoperability of Web • This paper presents an aproach to integrate SemWeb technologies (particularly OWL-S) on top of BPEL4WS+BPWS4J wrt. • Discovery • Customization • Semantic translation • (Composition, not really) • Bottom-up: build on BPEL instead of grounding OWL-S directly to WSDL

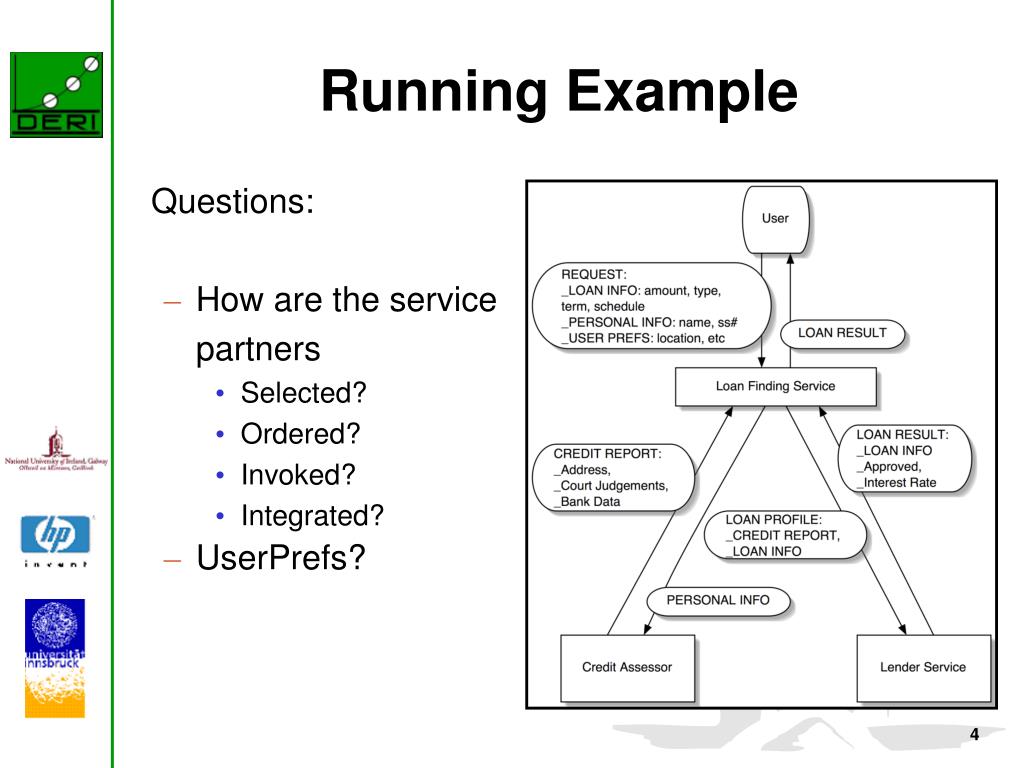

  4. Running Example Questions: • How are the service partners • Selected? • Ordered? • Invoked? • Integrated? • UserPrefs?

  5. BPEL4WS - Automatic Execution • WS modelled as business processes, based on workflow modelling • Traditional control structures such as if, then, else and while-loop • The communication layer is described in WSDL (partners, variables, fault handlers)

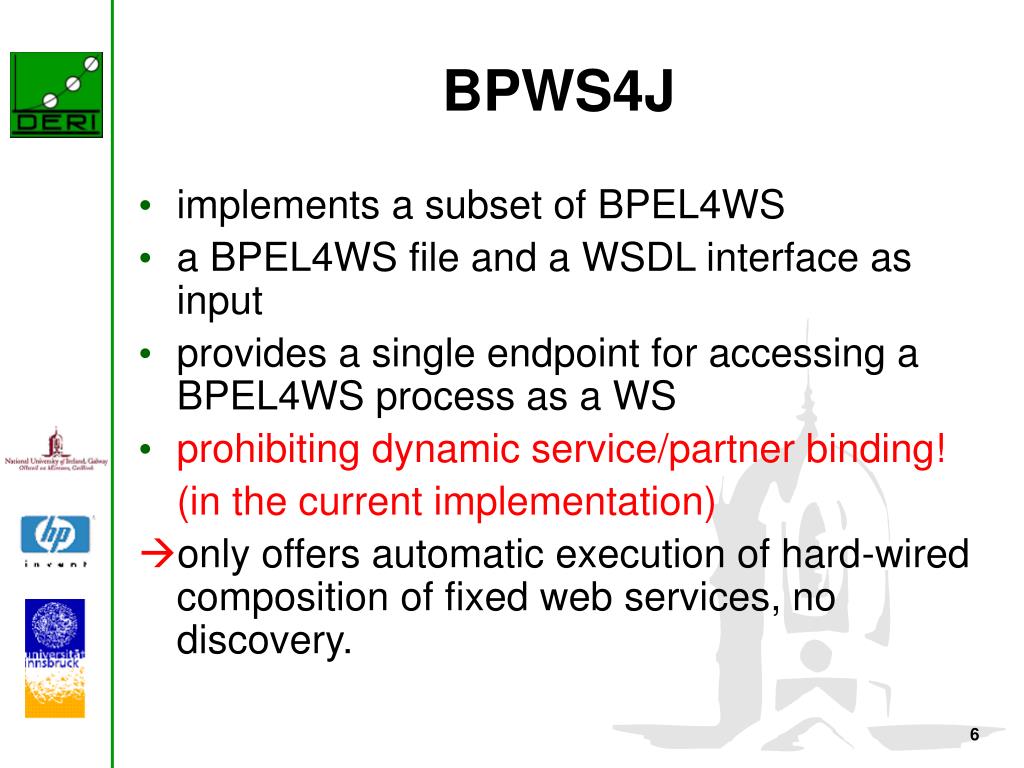

  6. BPWS4J • implements a subset of BPEL4WS • a BPEL4WS file and a WSDL interface as input • provides a single endpoint for accessing a BPEL4WS process as a WS • prohibiting dynamic service/partner binding! (in the current implementation) only offers automatic execution of hard-wired composition of fixed web services, no discovery.

  7. Restrictions on BPEL4WS itself • process descriptions are not declarative, purely syntactic. • Problem: syntactically matching WSDL interface might not match semantically and vice versa • Approach: “plug-in” Semantic Discovery Service

  8. Automated, Customized, Service Discovery with SDS • To alleviate shortcomings in BPEL4WS / BPWS4J, introduce a Semantic Discovery Service (SDS) to enable • automated service discovery • automated service customization • automated semantic translation • Use Semantic Web technologies to enable description of services in computer interpretable format and discovery of services with desirable properties

  9. Automated, Customized, Service Discovery with SDS • Supporting technologies • DAML-S: A well-defined ontology based on DAML+OIL, used to describe services • DAML Query Language (DQL): Language and protocol used for querying repositories of DAML-S service profiles. DQL server interfaces with automated reasoner operating over knowledge base (KB) of DAML-S profiles • Java Theorem Prover (JTP): Hybrid reasoning system based on FOL model elimination. Use as DQL server’s automated reasoner

  10. SDS: Approach • Describe known services as DAML-S service profiles • Store/query and reason about such descriptions: using DQL (query language, similar to QBE, OWL-”patterns” with variables: must-bind, may-bind and don't bind). Reasoner: JTP • Integrate SDS as a “proxy”: The SDS enables automated service customization and semantic translation

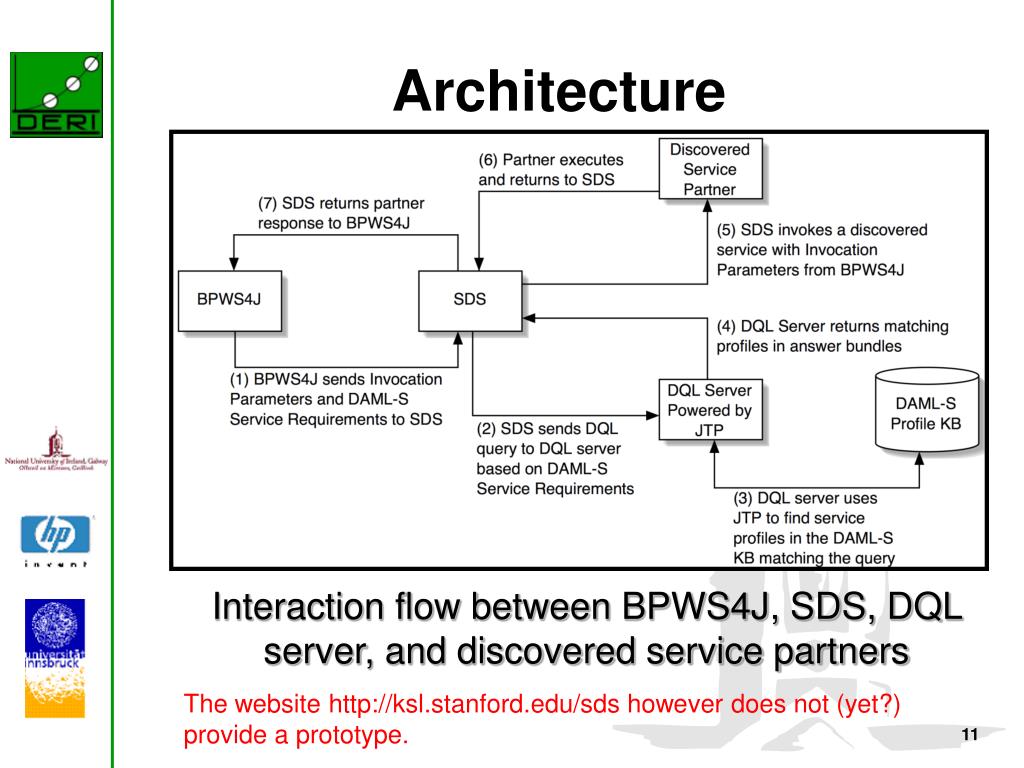

  11. Architecture Interaction flow between BPWS4J, SDS, DQL server, and discovered service partners The website http://ksl.stanford.edu/sds however does not (yet?) provide a prototype.

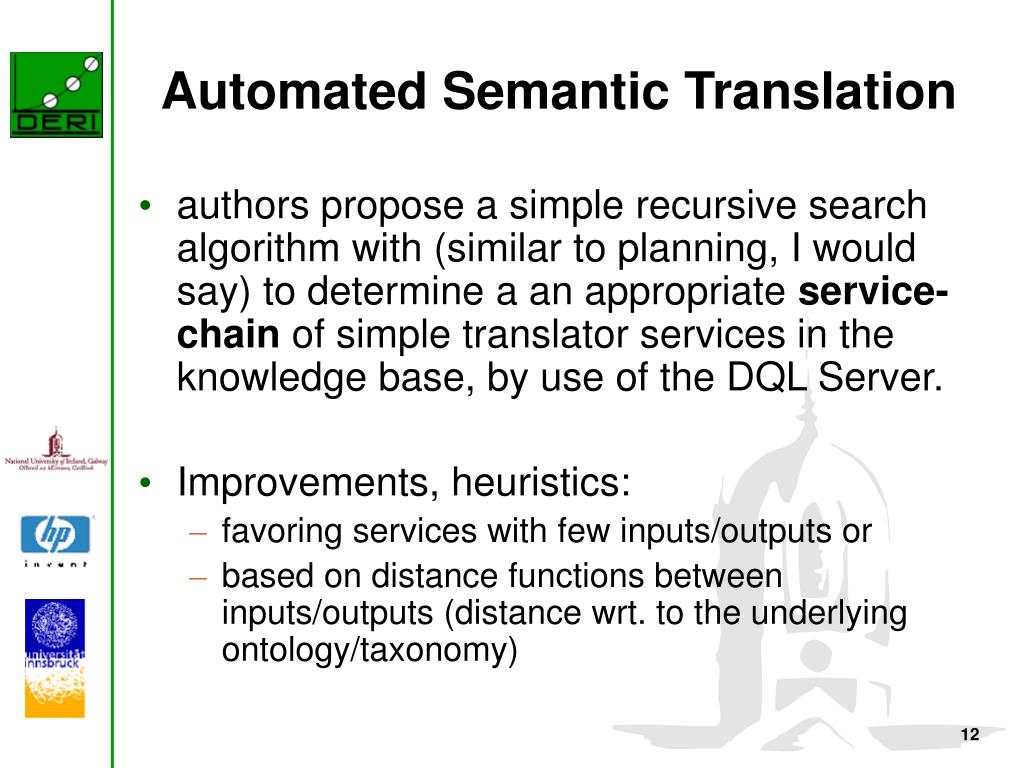

  12. Automated Semantic Translation • authors propose a simple recursive search algorithm with (similar to planning, I would say) to determine a an appropriate service-chain of simple translator services in the knowledge base, by use of the DQL Server. • Improvements, heuristics: • favoring services with few inputs/outputs or • based on distance functions between inputs/outputs (distance wrt. to the underlying ontology/taxonomy)

  13. This is NOT Composition! • BPEL4WS as such is not suitable for composition, since the composition (control flow) is already defined a priori and not declaratively. • if the SDS would try to recompose it would REPLACE the framework rather than complementing it.

  14. Discussion: • oes the suggested architecture work also for any service description formalism such as WSMO, i.e. would our framework fit in here? • In their "mediator-chain" search they do not really distinguish between mediators and services, why do we? • an the proposed mediator-chain finding algorithm be improved by common AI planning techniques? • not clear how the mediator-chain deals with SETS of outputs. Is the next service called for all or for some outputs only? How can this be extended to complex message patterns? • The use case proposed is very simple, does this scale?
