  1. Lecture 04Message Authentication and Hash Functions Asst.Prof.Supakorn Kungpisdan, Ph.D. supakorn@mut.ac.th

  2. NETE0519-ITEC4614 Outline • Authentication Requirements • Authentication Functions • Hash and MAC Algorithms

  3. NETE0519-ITEC4614 What is Authentication? • A procedure to verify that received messages come from the alleged sourced and have not been altered. • Digital Signature is one of the techniques including countermeasure of repudiation by either source or destination.

  4. NETE0519-ITEC4614 Authentication Requirements • Possible attacks • Disclosure • Traffic Analysis • Masquerade • Content Modification • Sequence Modification • Timing Modification • Repudiation: source and destination repudiation • Attacks#1-2-> Confidentiality • Attacks#3-7 -> Authentication • Especially #7 is related to Digital Signature

  5. NETE0519-ITEC4614 Authentication Functions • 3 Types of cryptographic operations related to authentication: • Message Encryption • Message Authentication Code (MAC) • Hash Function

  6. NETE0519-ITEC4614 Message Encryption • Conventional Encryption

  7. NETE0519-ITEC4614 Conventional Encryption (cont.) • Conventional encryption provides a weak form of authentication • If Bob can recover a message encrypted with a shared key between Alice and Bob, Bob knows that Alice sent this message. • If the message has been altered, Bob would not be able to read it.

  8. NETE0519-ITEC4614 Message Encryption (cont.) • Public-key Encryption

  9. NETE0519-ITEC4614 Confidentiality and Authentication Implications of Message Encryption

  10. NETE0519-ITEC4614 Confidentiality and Authentication Implications of Msg Encryption (cont.)

  11. NETE0519-ITEC4614 Message Authentication Codes (MACs) • MAC involves the use of a secret key to generate a small fixed-size block of data. • A MAC is known as a cryptographic checksum: MAC = CK(M) where M is a variable-length message, K is a secret key shared between sender and receiver, and CK is fixed-length authenticator • MAC is appended to the message and sent over to receiver.

  12. NETE0519-ITEC4614 Message Authentication Code • MAC is irreversible, but encryption isn’t. 1. Alice and Bob share the secret K1. 2. Alice calculates MAC1 = CK1(M) AliceBob: {M, MAC1} 3. Bob calculates MAC2 = CK1(M) If MAC2 = MAC1, M is sent from Alice and not altered • Confidentiality can be provided by encryption with another shared key. AliceBob: {M, MAC1}K2

  13. NETE0519-ITEC4614 Requirements for MACs • If an opponent observes M and CK(M), it should be computationally infeasible to construct M’ such that CK(M’) = CK(M). • CK(M) should be uniformly distributed in the sense that for randomly chosen messages, M and M’, the probability that CK(M) = CK(M’) is 2-n, where n is the number of bits in the MAC. • Let M’ be equal to some known transformation on M. That is, M’ = f(M). E.g. f may involve inverting one or more specific bits. In that case, Pr[CK(M) = CK(M’)] = 2-n.

  14. NETE0519-ITEC4614 Using Symmetric Ciphers for MACs • can use any block cipher chaining mode and use final block as a MAC • Data Authentication Algorithm (DAA) is a widely used MAC based on DES-CBC • using IV=0 and zero-pad of final block • encrypt message using DES in CBC mode • and send just the final block as the MAC • or the leftmost M bits (16≤M≤64) of final block • but final MAC is now too small for security

  15. NETE0519-ITEC4614 Data Authentication Algorithm

  16. NETE0519-ITEC4614 Hash Functions • A (one-way) hash function accepts a variable-size message M as input and produces a fixed-size hash code H(M) as output (called Message Digest) • Hash code provides error detection -> a change in one bit of message results in a change to the hash code.

  17. NETE0519-ITEC4614 Requirements for a Hash Functions • H can be applied to a block of data of any size. • H produces a fixed-length output. • It is easy to compute H(x) from any given x. • For any given h, computationally infeasible to find x, where H(x) = h (“one-way property”) • For any x, computationally infeasible to find y, y≠x, H(y) = H(x) (“weak collision resistance”) • Computationally infeasible to find any pair of (x, y) such than H(x) = H(y) (“strong collision resistance”)

  18. NETE0519-ITEC4614 Simple Hash Function • Bit-by-bit exclusive-OR (XOR) Ci = bi1 bi2  …  bim where Ci = ith bit of the hash code, 1 ≤ i ≤ n m = no. of n-bit blocks in the input bij = ith bit in jth block  = XOR operation

  19. NETE0519-ITEC4614 Basic Uses of Hash Functions Digital Signature

  20. NETE0519-ITEC4614 Basic Uses of Hash Functions (cont.) S is shared btw sender and receiver

  21. NETE0519-ITEC4614 Hash and MAC Algorithms • Hash Functions • condense arbitrary size message to fixed size • by processing message in blocks • through some compression function • either custom or block cipher based • Message Authentication Code (MAC) • fixed sized authenticator for some message • to provide authentication for message • by using block cipher mode or hash function

  22. NETE0519-ITEC4614 Roadmap • Authentication Requirements • Authentication Functions • Hash and MAC Algorithms • MD5 • SHA-1 • HMAC

  23. NETE0519-ITEC4614 General Structure of Hash Function f: compression function taking two inputs and producing n-bit output CV0 = IV = initial n-bit value CVi = f(CVi-1, Yi-1), 1 ≤ i ≤ L H(M) = CVL

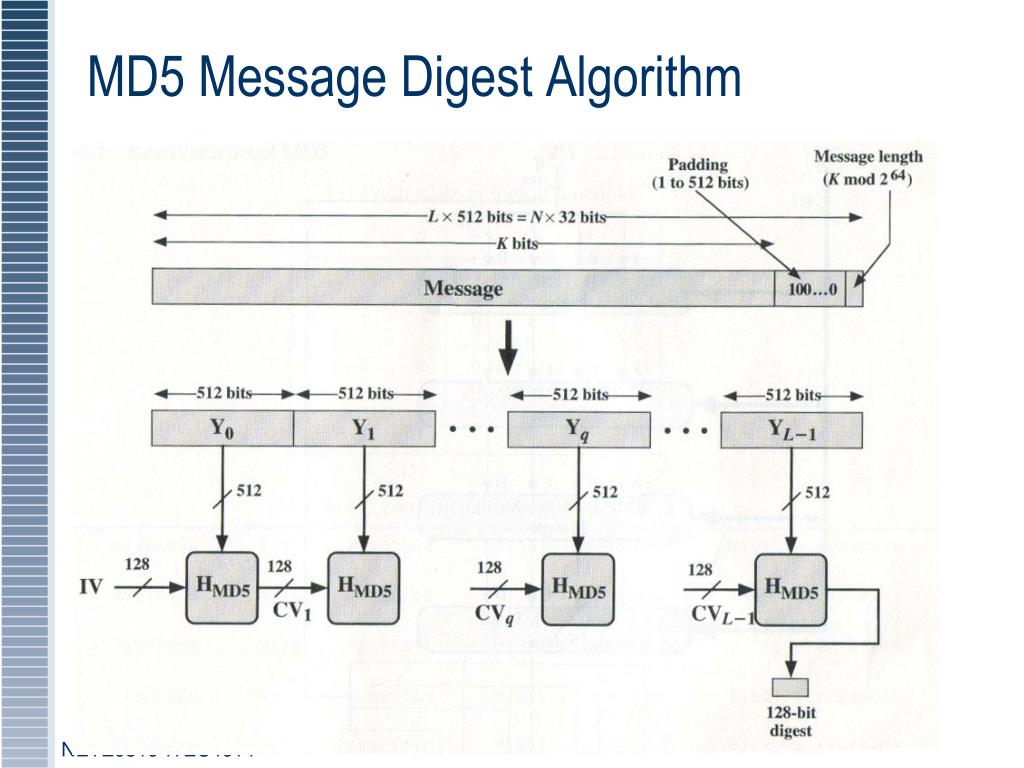

  24. NETE0519-ITEC4614 MD5 Message Digest Algorithm

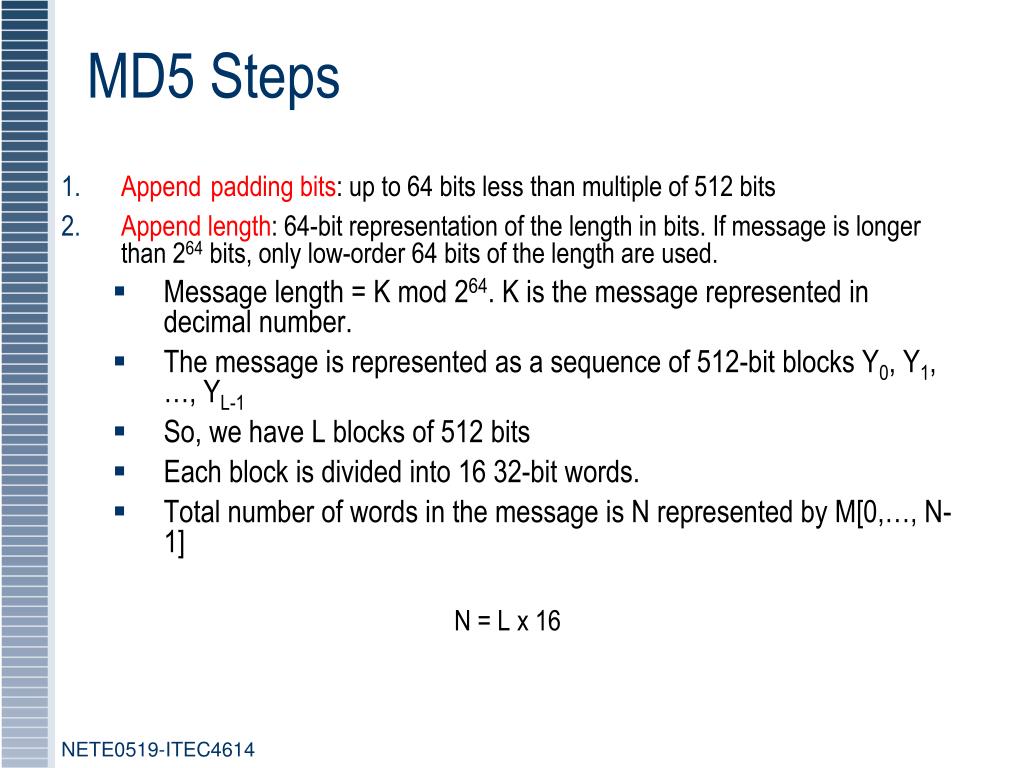

  25. NETE0519-ITEC4614 MD5 Steps • Appendpadding bits: up to 64 bits less than multiple of 512 bits • Append length: 64-bit representation of the length in bits. If message is longer than 264 bits, only low-order 64 bits of the length are used. • Message length = K mod 264. K is the message represented in decimal number. • The message is represented as a sequence of 512-bit blocks Y0, Y1, …, YL-1 • So, we have L blocks of 512 bits • Each block is divided into 16 32-bit words. • Total number of words in the message is N represented by M[0,…, N-1] N = L x 16

  26. NETE0519-ITEC4614 MD5 Steps (cont.) 3. Initialize MD buffer • The buffer is represented as 4 32-bit registers (A, B, C, D) • Initialization value (in HEX) A: 01 23 45 67 (32 bits) B: 89 AB CD EF C: FE DC BA 98 D: 76 54 32 10

  27. NETE0519-ITEC4614 MD5 Steps (cont.) 4. Process message in 512-bit (16-word) blocks

  28. NETE0519-ITEC4614

  29. NETE0519-ITEC4614 MD5 Steps (cont.) 5. Output CV0 = IV CVq+1 = SUM32(CVq,RFI[Yq,RFH[Yq,RFG[Yq,RFF[Yq,CVq]]]]) MD = CVL IV = initial value of ABCD buffer Yq = the qth 512-bit block of the message L = the number of blocks in the message CVq = chaining variable processed with qth message block RFx = round function using primitive function x MD = final message digest value SUM32 = Addition modulo 232 performed separately on each word of the pair of inputs

  30. NETE0519-ITEC4614 MD5 Compression Function S-bit circular left shift Addition modulo

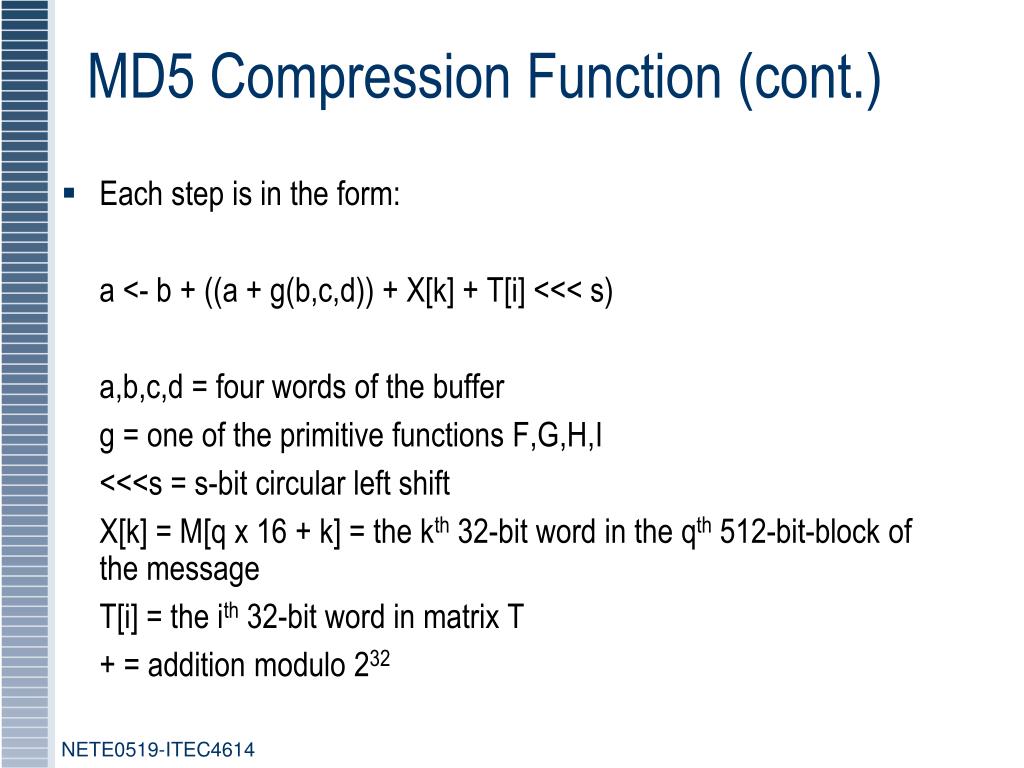

  31. NETE0519-ITEC4614 MD5 Compression Function (cont.) • Each step is in the form: a <- b + ((a + g(b,c,d)) + X[k] + T[i] <<< s) a,b,c,d = four words of the buffer g = one of the primitive functions F,G,H,I <<<s = s-bit circular left shift X[k] = M[q x 16 + k] = the kth 32-bit word in the qth 512-bit-block of the message T[i] = the ith 32-bit word in matrix T + = addition modulo 232

  32. NETE0519-ITEC4614 MD5 Update Algorithm L = N/16 1 block = 16 words

  33. NETE0519-ITEC4614 SHA-1 • MD5 accepts arbitrary length of input and produces 128-bit output. • SHA-1 accepts arbitrary length (less than 264 bits) of input and produces 160-bit output.

  34. NETE0519-ITEC4614 SHA-1 Steps • Append padding bits to 64 bits less than multiple of 512 bit (length  448 mod 512) • Append length: length of original message in binary (64 bits) • Initialize MD buffer (160 bits) Initialization value A: 67 45 23 01 B: EF CD AB 89 C: 98 BA DC FE D: 10 32 54 76 E: C3 D2 E1 F0

  35. NETE0519-ITEC4614 SHA-1 Steps (cont.) 4. Process message in 512-bit (16-word) blocks: for each 512-bit message to be processed, • 4 rounds, 20 steps each (compared to 16 steps each in MD5) • So, 80 steps for 4 rounds

  36. NETE0519-ITEC4614 SHA-1 Steps (cont.)

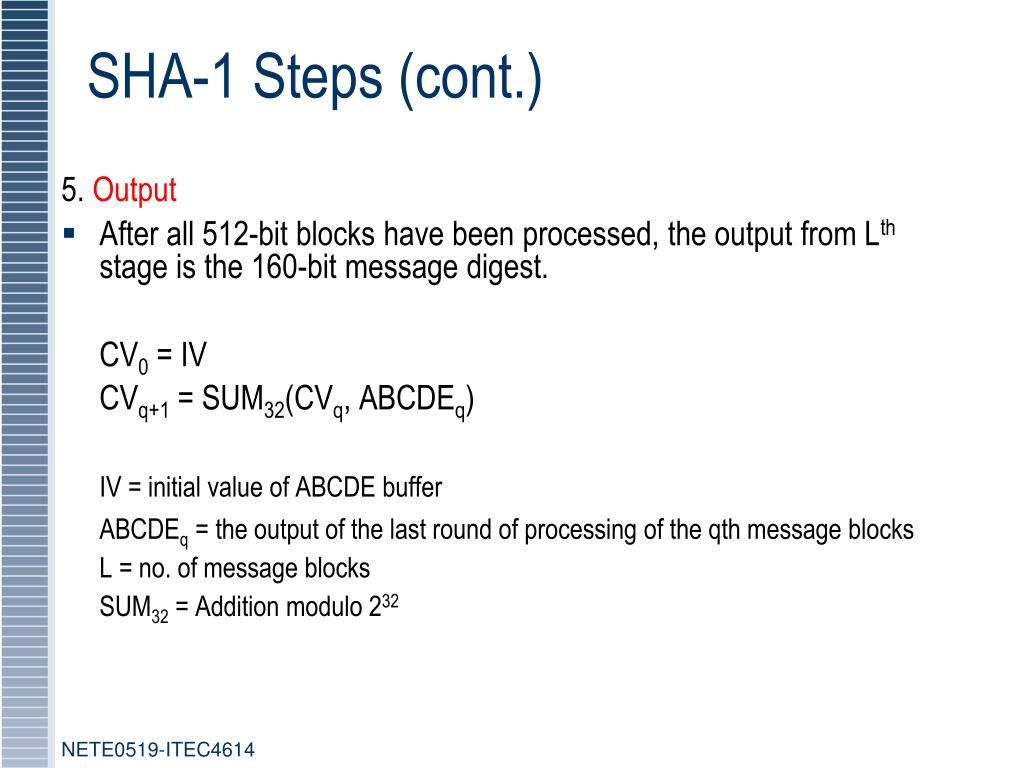

  37. NETE0519-ITEC4614 SHA-1 Steps (cont.) 5. Output • After all 512-bit blocks have been processed, the output from Lth stage is the 160-bit message digest. CV0 = IV CVq+1 = SUM32(CVq, ABCDEq) IV = initial value of ABCDE buffer ABCDEq = the output of the last round of processing of the qth message blocks L = no. of message blocks SUM32 = Addition modulo 232

  38. NETE0519-ITEC4614 SHA-1 Compression Function • In each of the 80 rounds of processing one 512-bit message block A,B,C,D,E <- (E + f(t, B, C, D) + S5(A)+ Wt + Kt), A, S30(B), C, D A,B,C,D,E = words of the buffer t = step number, 0 ≤ t ≤ 79 f(t,B,C,D) = primitive function for step t Sk = k-bit circular shift of the 32-bit argument Wt = a 32-bit word derived from the current 512-bit input block Kt = an additive constant for step t + = addition modulo 232

  39. NETE0519-ITEC4614 SHA-1 Compression Function (cont.)

  40. NETE0519-ITEC4614 SHA-1 Compression Function (cont.) Wt = S1(Wt-16 Wt-14  Wt-8  Wt-3)

  41. NETE0519-ITEC4614 SHA-1 VS MD5 • Security against brute-force attacks • Length of SHA-1 output is longer than that of MD5 • Security against cryptanalysis • Both MD5 and SHA-1 are reported collision • Speed • SHA-1 is slower than MD5  80 versus 64 steps each round • Simplicity and compactness • Both are simple

  42. NETE0519-ITEC4614 SHA-2 and SHA-3 • NIST issued revision FIPS 180-2 in 2002 • adds 3 additional versions of SHA • SHA-256, SHA-384, SHA-512 • designed for compatibility with increased security provided by the AES cipher • structure & detail is similar to SHA-1 • hence analysis should be similar • but security levels are rather higher • Now Keccak was named as SHA-3. It is not to replace SHA-2

  43. NETE0519-ITEC4614 SHA-512 Overview

  44. NETE0519-ITEC4614 Keyed Hash Functions as MACs • want a MAC based on a hash function • because hash functions are generally faster • code for crypto hash functions widely available • hash includes a key along with message • original proposal: KeyedHash = Hash(Key|Message) • some weaknesses were found with this • eventually led to development of HMAC

  45. NETE0519-ITEC4614 HMAC (Hashed MAC) • A MAC based on a cryptographic hash code • Motivations: • Executing a hash function faster than a symmetric encryption • Library code for hash functions is widely available. • No export restrictions from the US to other countries

  46. NETE0519-ITEC4614 HMAC • specified as Internet standard RFC2104 • uses hash function on the message: HMACK = Hash[(K+ XOR opad) || Hash[(K+ XOR ipad)||M)]] • where K+ is the key padded out to size • and opad, ipad are specified padding constants • overhead is just 3 more hash calculations than the message needs alone • any hash function can be used • eg. MD5, SHA-1, RIPEMD-160, Whirlpool

  47. NETE0519-ITEC4614 HMAC Algorithm H = hash function M = Message Yi = ith block of M, 0 ≤ i ≤ L-1 L = no. of blocks in M b = no. of bits in a block (based on chosen hash fn) n = length of hash code K = secret key K+ = K padded with zeros on the left so that the length is b bits ipad = 00110110 repeated b/8 times opad = 01011010 repeated b/8 times HMACK = H[(K+ opad)||H[(K+  ipad)||M]]

  48. NETE0519-ITEC4614 Advantages of HMAC • Existing hash function can be implemented in HMAC • Easy to replace with more secure or updated hash algorithm • HMAC is proven more secure than hash algorithms

  49. NETE0519-ITEC4614 HMAC Security • proved security of HMAC relates to that of the underlying hash algorithm • attacking HMAC requires either: • brute force attack on key used • birthday attack (but since keyed would need to observe a very large number of messages) • choose hash function used based on speed verses security constraints

  50. Questions?
