  1. Cryptography and Network Security Third Edition by William Stallings and by Lawrie Brown Modified without permission. Dr. M. Sakalli

  2. RSA Very Briefly: • Determine two large primes, p and q. • Find n=pq (the public modulus) and ø(n) = (p-1)(q-1). Euler’s Totient function. • Choose encryption key e (public key), coprime to n such that e < n. • Compute d private key such that e.d mod(ø(n))= 1 mod(ø(n)). • e is the public exponent and d is the private one. • p and q never revealed, preferably destroyed • PGP keeps p and q to speed up operations by use of the Chinese Remainder Theorem, but they are kept encrypted. • Public one segments the message into blocks smaller than n and then applies modular exponentiation to encipher with your public key, C = Pe mod(n) • And only key owner can decipher, P = Cd mod(n).

  3. The time to carry out modular exponentation increases with the number of bits set to one in the exponents. Encryption, an appropriate choice of e to reduce the computational burden required C = P mod n. • Popular choices e, Fermat’s primes 3, 17 and 65537, but all primes with only two bits set. • Fermat’s primes: a2j H, a=2, k:0.. • However, the bits in the decryption exponent d, will not be so convenient and so the time for decryption will take longer than encryption, with the standard modular exponentiation. • Don't make mistake of trying to contrive a small value for d; it comprises security. • An alternative method of representing the d uses Chinese Remainder Theorem (CRT). • d is represented as a quintuple (p, q, dP, dQ, and qInv), where p and q are prime factors of n, dP and dQ are known as the CRT exponents, and qInv is the CRT coefficient. The CRT method of decryption is four times faster overall than calculating P = Cd mod n. Pre-computed values along with p and q as the private key are: • dP = (1/e) mod (p-1) • dQ = (1/e) mod (q-1) • v = (1/q) mod p where p > q • To compute the message m for given CT • m1 = cdP mod p • m2 = cdQ mod q • h = v (m1 - m2) mod(p) • m = m2 + hq • Even though there are many steps in this procedure, the modular exponentation uses much shorter exponents and so it is less expensive overall. • A better approach to compute modular exponentiations use Montgomery's multiplications.

  4. Esoteric RSA Attacks. Chosen cipher-text attack • This attack is not a critical weakness to RSA itself, just for the protocol to be careful in the implementation stage. • An attacker snoofing on an insecure channel in which RSA messages are passed thr, collecting an encrypted messages CT. In here attacker simply wants to be able to read without giving a serious factoring effort, P = Cd. • To recover PT message, attacker uses target’s public key info, e and n, • chooses a random number, R < n, and multiplicative inverse of R, T=R-1 mod n. • encrypts X = Re mod n • Then computes Y = X C mod n • The attacker counts on the fact that: Target will try decipher Y, and return it back to clarify at least since it is not clear to the target. • For attacker X=Re mod n, and R=Xd mod n • Then the party attacked, receives Y, and signs with her private-key, (which actually decrypts y) U = Yd mod n, and sends U back. • Attacker computes TU, to eliminate random R, TU mod n = (R-1)(Yd) mod n, • TU mod n = (R-1)(Yd) mod n = (R-1)(XC)d mod n = (R-1)(RedCd) mod n • = (R-1)(RedCd) mod n = Cd mod n = M • To avoid this attack, do not sign some random document presented to you. Sign a one-way hash of the message instead. • Avoid, low encryption key, e=3, • M [for M < 3rdroot(N)]3 mod(N) will be equivalent to M3

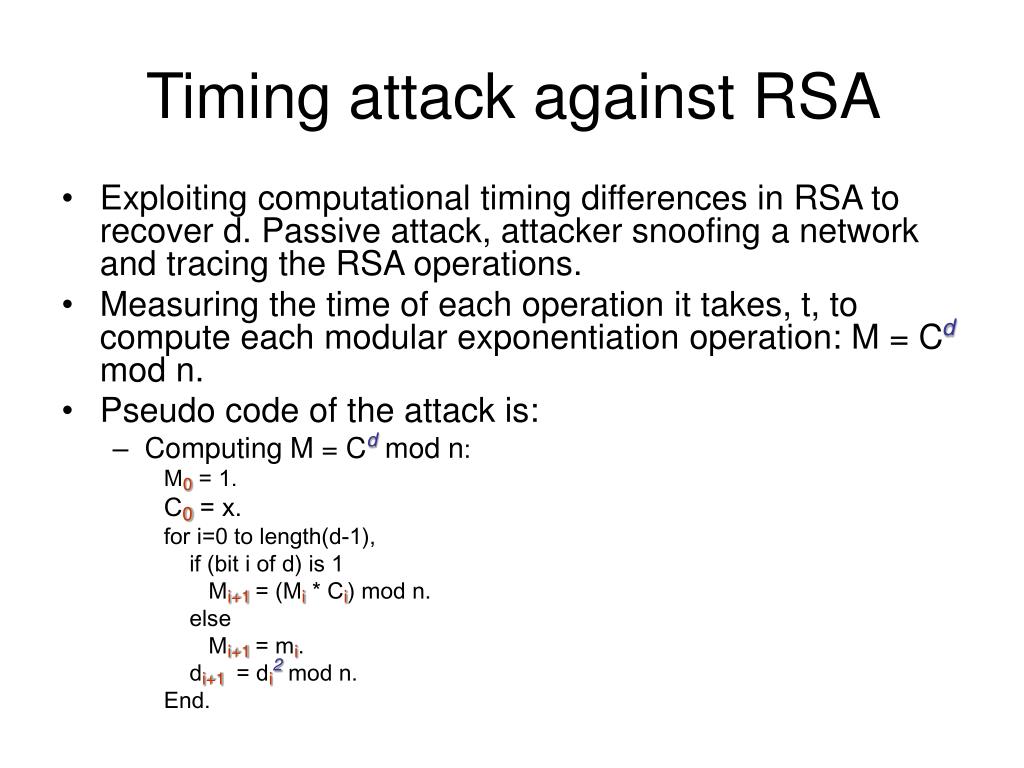

  5. Timing attack against RSA • Exploiting computational timing differences in RSA to recover d. Passive attack, attacker snoofing a network and tracing the RSA operations. • Measuring the time of each operation it takes, t, to compute each modular exponentiation operation: M = Cd mod n. • Pseudo code of the attack is: • Computing M = Cd mod n: M0 = 1. C0 = x. for i=0 to length(d-1), if (bit i of d) is 1 Mi+1 = (Mi * Ci) mod n. else Mi+1 = mi. di+1 = di2 mod n. End.

  6. Sun-Tsu’s Chinese Remainder Thr • To compute faster modular exponentiation (comprising security). • States that when the moduli of a system of linear congruencies are pairwise prime, there is a unique solution of the system modulo, the product of the moduli. • ax = b (mod m). The 1st Century CE (Common Era, ~400 AD), the Chinese mathematician Sun Tsu Suan-Ching asking the following problem: “There are certain things whose number is unknown. When divided by 3, the remainder is 2; when divided by 5, the remainder is 3; and when divided by 7, the remainder is 2. What will be the number of things?” Discrete Math Kenneth H Rosen, page 186. • x = 2 mod(3) • x = 3 mod(5) • x = 2 mod(7) Let m1, m2, …, mn be (pairwise) relatively prime numbers. Then the system: • x = a1 mod (m1) = a2 mod (m2) = …. = an mod (mn) • Has a unique solution modulo • M = m1m2 … mn. The CRT says that only one number of x mod(3x5x7) satisfies all eqns. x = 23 (mod 105),. x = 23 = 7*3 + 2 = 2 (mod 3), x = 23 = 4*5 + 3 = 3 (mod 5), x = 23 = 3*7 + 2 = 2 (mod 7)

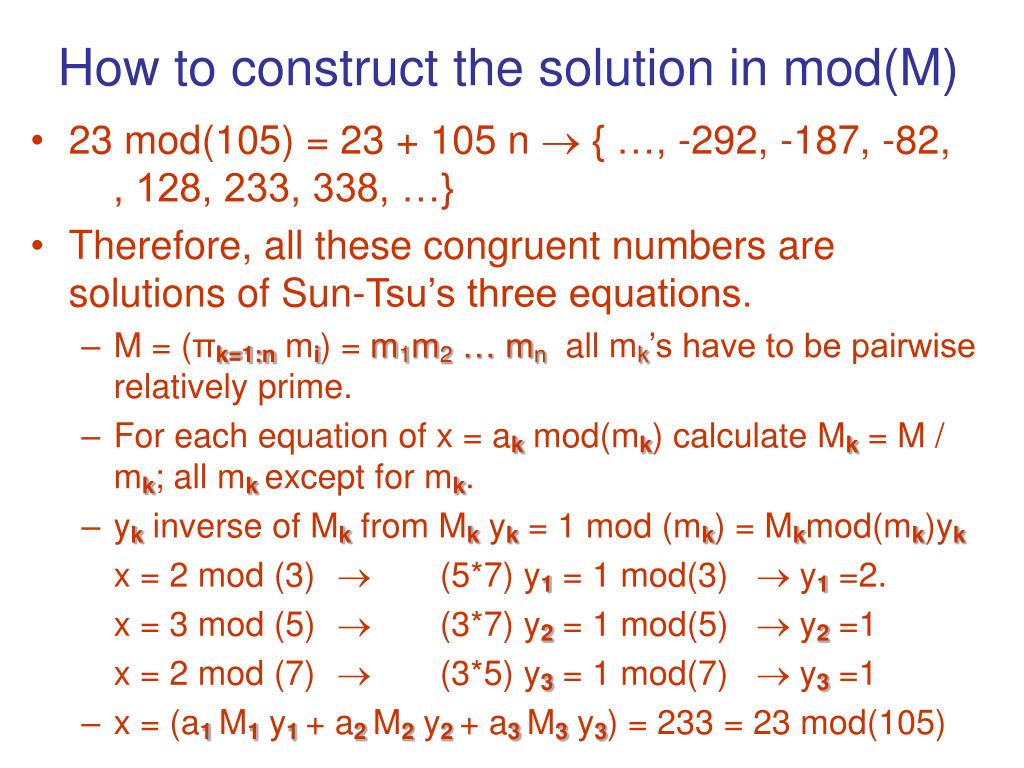

  7. How to construct the solution in mod(M) • 23 mod(105) = 23 + 105 n { …, -292, -187, -82, 23, 128, 233, 338, …} • Therefore, all these congruent numbers are solutions of Sun-Tsu’s three equations. • M = (πk=1:nmi) = m1m2 … mn all mk’s have to be pairwise relatively prime. • For each equation of x = ak mod(mk) calculate Mk = M / mk; all mk except for mk. • yk inverse of Mk from Mk yk = 1 mod (mk) = Mkmod(mk)yk x = 2 mod (3)  (5*7) y1 = 1 mod(3)  y1 =2. x = 3 mod (5)  (3*7) y2 = 1 mod(5)  y2 =1 x = 2 mod (7)  (3*5) y3 = 1 mod(7)  y3 =1 • x = (a1 M1 y1 + a2 M2 y2 + a3 M3 y3) = 233 = 23 mod(105)

  8. Why does this work? (without going into detail) Suppose I take the solution x and “mod” it by m1: M1y1 is equal to a1, since M1y1 = 1 mod (m1). M2y2, M3y3 , …, every other term is zero mod(m1), since MK is a multiple of m1. x = a1M1y1 + a2M2y2 + … + anMnyn. = 2 (5*7) 2 + 3 (3*7) 1 + 2 (3*5) 1 But it would be true for any of the mk. Therefore, x satisfies all of the equations.

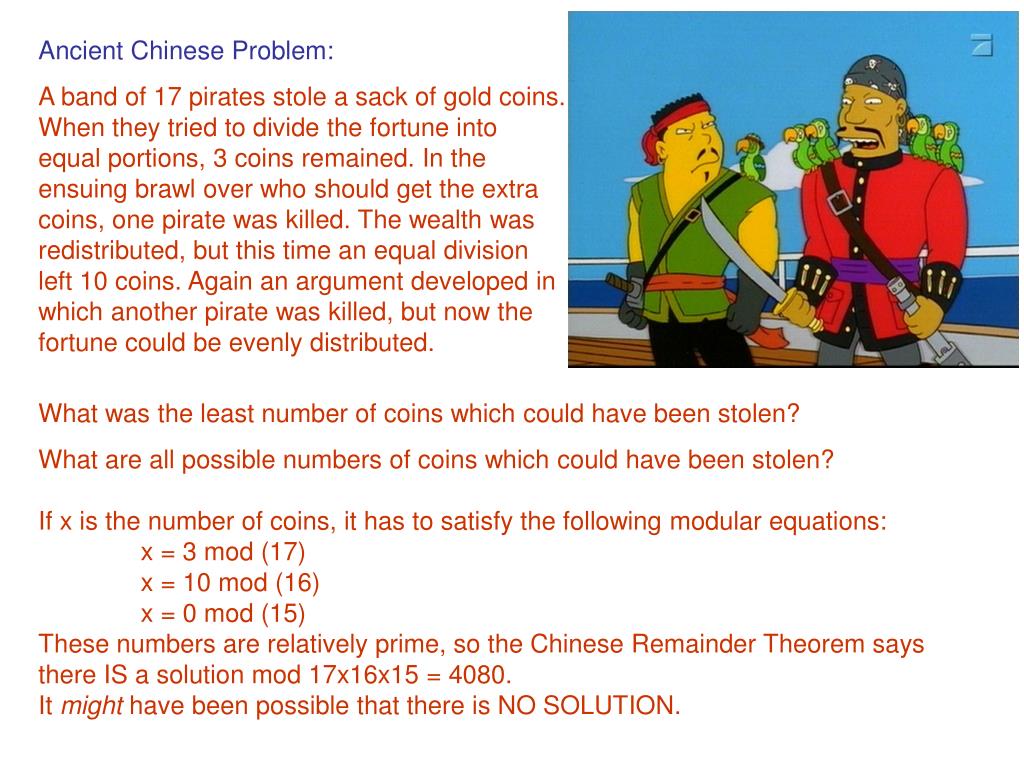

  9. Ancient Chinese Problem: A band of 17 pirates stole a sack of gold coins. When they tried to divide the fortune into equal portions, 3 coins remained. In the ensuing brawl over who should get the extra coins, one pirate was killed. The wealth was redistributed, but this time an equal division left 10 coins. Again an argument developed in which another pirate was killed, but now the fortune could be evenly distributed. What was the least number of coins which could have been stolen? What are all possible numbers of coins which could have been stolen? If x is the number of coins, it has to satisfy the following modular equations: x = 3 mod (17) x = 10 mod (16) x = 0 mod (15) These numbers are relatively prime, so the Chinese Remainder Theorem says there IS a solution mod 17x16x15 = 4080. It might have been possible that there is NO SOLUTION.

  10. Write down the equations for yk: x = 3 (mod 17)  (16 . 15) y1 =1 (mod 17) 240 y1 =1(mod 17) x = 10 (mod 16)  (17 . 15) y2 = 1 (mod 16) 255 y2 =1(mod 16) x = 0 (mod 15)  (17 . 16) y3 = 1 (mod 15) 272 y3 =1(mod 15) Solve the equations for yk by whatever way is easiest (brute force or by finding inverses): (16 . 15) y1 = 1 (mod 17)  2 y1 = 1  y1 = 9 (mod 17) (17 . 15) y2 = 1 (mod 16)  15 y2 = 1  y2 = 15 (mod 16) (17 . 16) y3 = 1 (mod 15)  2 y3 = 1  y3 = 8 (mod 15) Construct the solution x (mod 17x16x15): x = a1M1y1 + a2M2y2 + … + anMnyn. = 3 . (16 .15) . 9 + 10 . (17 . 15) . 15 + 0 . (17 . 16) . 8 = 44730 = 3930 (mod 105). 3930 = 231 . 17 + 3 = 3 (mod 17) = 245 . 16 + 10 = 10 (mod 16) = 262 . 15 = 0 (mod 15) Therefore the solution works What is the smallest number of coins which the pirates could have stolen? 3930. What other possible numbers of coins could the pirates have stolen? Any number which satisfies all of those equations is equal to 3930 (mod 4080). Therefore, Any number of the form 3930 + 4080n could have been stolen. N = { 3930, 8010, 12090, 16170, …}

  11. Systems of Linear Modular Equations: Suppose a system of n linear modular equations : a1x = b1 (mod m1) a2x = b2 (mod m2) …. anx = bn (mod mn) From the last section how to solve each equation aix = bi (mod mi) individually. (when the solution actually exists). a1x = b1 (mod m1) x = c1 (mod m1) a2x = b2 (mod m2) x = c2 (mod m2) …. …. anx = bn (mod mn) x = cn (mod mn) Solve the following set of simultaneous congruences: i) x = 5 (mod 6) iii) 2x = 1 (mod 5) x = 4 (mod 11) 3x = 9 (mod 6) x = 3 (mod 17) 4x = 1 (mod 7) 5x = 9 (mod 11) ii) x = 5 (mod 11) x = 14 (mod 29) x = 15 (mod 21) Question iii is a bit harder than I would probably ask on a test. How badly do you want an A+?

  12. Homeworks: Answer Brahmagupta’s question: (7th century AD) An old woman goes to market and a horse steps on her basket and crashes the eggs. The rider offers to pay for the damages and asks her how many eggs she had brought. She does not remember the exact number, but when she had taken them out two at a time, there was one egg left. The same happened when she picked them out three, four, five, and six at a time, but when she took them seven at a time they came out even. What is the smallest number of eggs she could have had? What other possible number of eggs could she have? [Hint: x = 1 (mod 2,3,4,5,6), x = 0 (mod 7).]

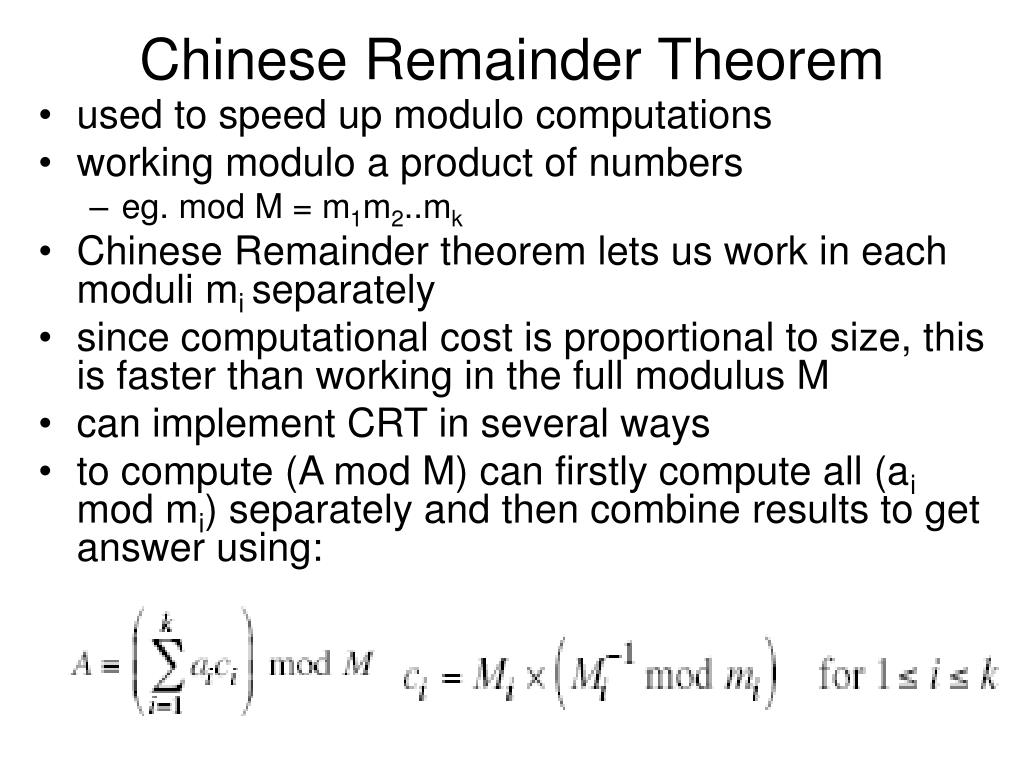

  13. Chinese Remainder Theorem • used to speed up modulo computations • working modulo a product of numbers • eg. mod M = m1m2..mk • Chinese Remainder theorem lets us work in each moduli mi separately • since computational cost is proportional to size, this is faster than working in the full modulus M • can implement CRT in several ways • to compute (A mod M) can firstly compute all (ai mod mi) separately and then combine results to get answer using:

  14. Euler Totient Function ø(n) • For p prime, Fermat;s little thr says a(p) = a mod(p)  a(p-1 = 1 mod(p). • a does not have a p as its product. • Its converse is not true, for example p=11*31 • The Sieve of Eratosthenes (κόσκινον Ἐρατοσθένους) • Euler generalizes Fermat’s thr, • aø(n)mod N = 1, where gcd(a,N)= 1, coprimes to nform a group • reduced set of residues is those numbers (residues) which are relatively prime to n • eg for n=10, complete set of residues is {0,1,2,3,4,5,6,7,8,9}  reduced set of residues is {1,3,7,9} • to compute ø(n): exclude every fold of its primes.. and count excluded ones.. • For coprimes of p.q, • for p (p prime) ø(p) = p-1 • for p.q (p,q prime) ø(p.q) = ø(q) ø(q)=(p-1)(q-1)

  15. Euler Totient Function ø(n) • Consider the # of integers that are not relatively prime in {0…(pq-1)}  {p,2 p,..., (q-1)p}, and {q,2 q,..., (p-1)q}, therefore • ø(p.q)= p.q-(p-1)-(q-1)-1 = p.q-p-q+1 = (p-1)(q-1) • eg. • ø(37) = 36 • ø(21) = (3–1)×(7–1) = 2×6 = 12 • For p prime, Φ(p) = p-1; and from Fermat’s thr a(p-1) = 1 mod(p)  a(p) = a mod(p). • eg. • a=3;n=10; ø(10)= (5-1)(2-1)=4; • hence 34 = 81 = 1 mod 10 • a=2;n=11; ø(11)=10; • hence 210 = 1024 = 1 mod 11

  16. Euler’s theorem • Corollary, n=pq, both primes, and 0<m<n, mΦ(n) = m(p-1)(q-1) =1 mod(n) holds. If gcd(m, n) =1, by virtue of Euler’s thr it holds. Suppose gcd(m,n) ≠ 1, then n= pq, means that, either p or q must divide m. If m=c1p, (or m=c2q, where c is integer and c>0) then m and n cannot be relative to each other, therefore gcd(m,n) ≠ 1. • Suppose p, q are primes, m = cp, and gcd(m, q)=1, from Euler’s thr mΦ(q) = 1 mod(q), [mΦ(q)]Φ(p) mod(q) = 1 mod(q) mΦ(n) mod(q) = 1 mod(q) mΦ(n) mod(q) = 1 + kq, k is an arbitrary constant, mΦ(n)+1 = m + mkq = m + kcpq = m + kcn mΦ(n)+1 = m mod(n) • Or an alternative way, mkΦ(n)+1 =[[mΦ(n) ]k + 1 ]mod(n)= [1k m] mod(q) =m mod(n)

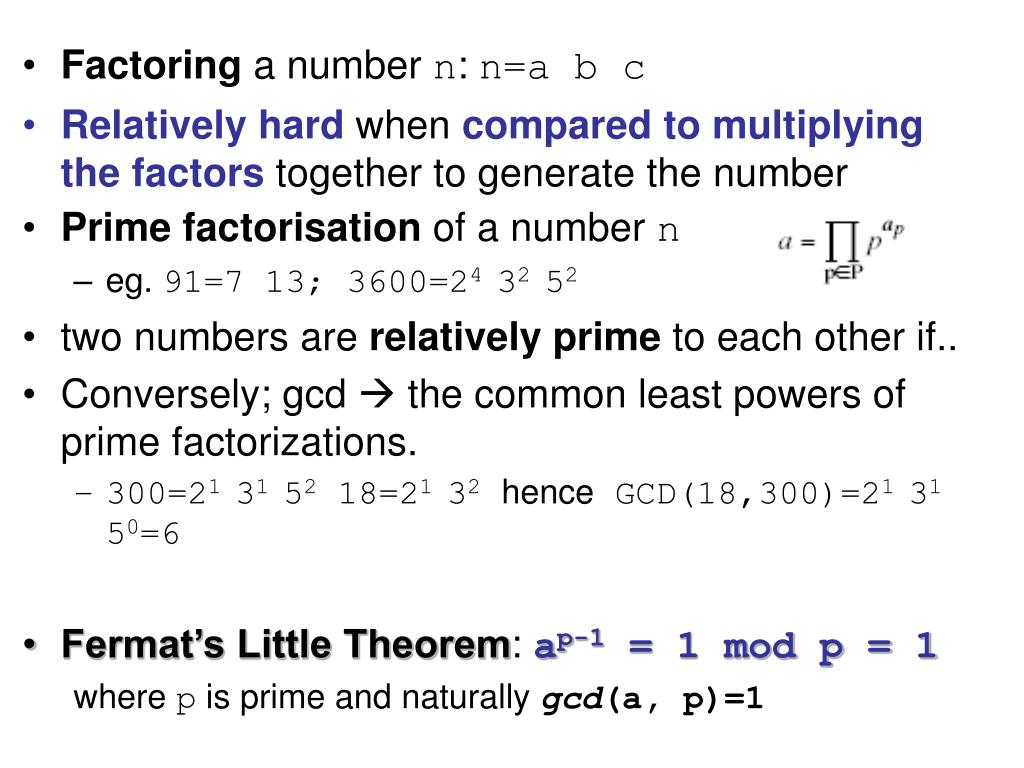

  17. Factoring a number n: n=a b c • Relatively hardwhen compared to multiplying the factors together to generate the number • Prime factorisation of a number n • eg. 91=7 13; 3600=24 32 52 • two numbers are relatively prime to each other if.. • Conversely; gcd  the common least powers of prime factorizations. • 300=21 31 52 18=21 32hence GCD(18,300)=21 31 50=6 • Fermat’s Little Theorem: ap-1 = 1 mod p = 1 where p is prime and naturally gcd(a, p)=1

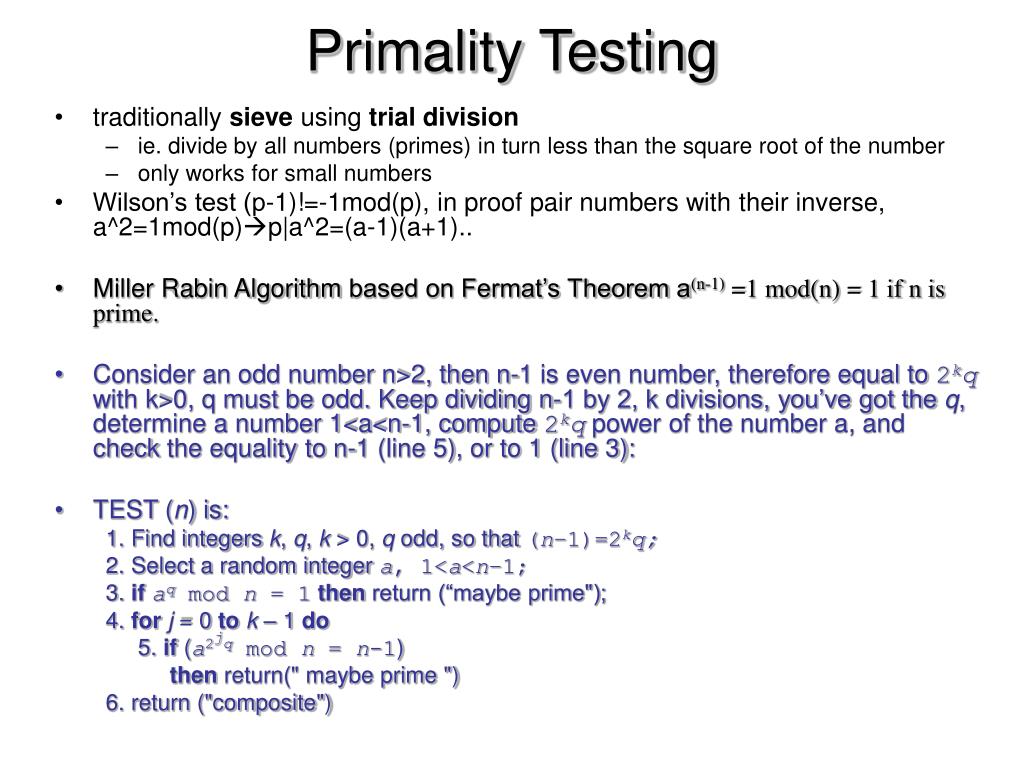

  18. Primality Testing • traditionally sieve using trial division • ie. divide by all numbers (primes) in turn less than the square root of the number • only works for small numbers • Wilson’s test (p-1)!=-1mod(p), in proof pair numbers with their inverse, a^2=1mod(p)p|a^2=(a-1)(a+1).. • Miller Rabin Algorithm based on Fermat’s Theorem a(n-1) =1 mod(n) = 1 if n is prime. • Consider an odd number n>2, then n-1 is even number, therefore equal to 2kq with k>0, q must be odd. Keep dividing n-1 by 2, k divisions, you’ve got the q, determine a number 1<a<n-1, compute 2kq power of the number a, and check the equality to n-1 (line 5), or to 1 (line 3): • TEST (n) is: 1. Find integers k, q, k > 0, q odd, so that (n–1)=2kq; 2. Select a random integer a, 1<a<n–1; 3. if aqmod n = 1then return (“maybe prime"); 4. for j = 0 to k – 1 do 5. if (a2jqmod n = n-1) then return(" maybe prime ") 6. return ("composite")

  19. Primality Testing If n is prime there is a smallest value of j, 0jk, such that a2jqmod n = 1. ??? For j=0, aq-1 = 0, or n|(aq-1). For 1jk, a2jqmod(n) = 1  (a2(j-1)q mod(n) - 1) * (a2(j-1)q mod(n) + 1) = 1 n divides either side, by assumption j is the smallest such that n does not divide (a2(j-1)q mod(n)-1), therefore n|(a2(j-1)q mod(n)-1). Or equivalently a^(2(j-1)q)mod(n)=(-1)mod(n)=n-1; line5.

  20. Probabilistic Considerations • Millar-Rabin test returns inconclusive for (n-1)/4 < ¼ • if Miller-Rabin returns “composite” the number is definitely not prime otherwise is a prime or a pseudo-prime chance it detects a pseudo-prime is < ¼ • Therefore if test returns inclusive t times in succession .. then probability n is prime is 1-4-t… • Prime distribution: Considering distribution of the primes, “prime number theorem states that the primes near n are spaced on the average one every ln(n) integers”, so the is on the order of ln(n), even integers and fold of 5 are rejected.. So, 0.4ln(n), for example if the order of prime number is 2200, 0.4ln(n)=55 trials. Closely located ones, 1.000.000.000.061, 1.000.000.000.063 are primes.

  21. Probabilistic Considerations of Miller-Rabin • n=29, 2kq=28=22 7, k=2; • a=10; • j=0, 107mod(29)=17, neither 28, nor 1.. • j=1, (107)2 mod(29)=28, inconclusive, may be pr.. • a=2, • j=0, 27mod(29)=12, • j=1, 214mod(29)=28, inc.. • For all a’s this will give inconclusive, so n is a prime.. • n=13*17=221, 2kq=220=22 55, k=2; • a=5; • j=0, 555mod(221)=112.. • j=1, (555)2 mod(221)=168, n returns composite.. • But if a would have been chosen as 21, • j=0, 217mod(221)=200.. • j=1, 2114mod(221)=220, returns inclusive, which points 221 as prime.. • In fact of the 220 integers, 1, 21, 47, 174, 200, 220 return inc..

  22. Primitive Roots

  23. Primitive Roots • From Euler’s theorem have aø(n)mod n=1 • consider ammod n=1, and (a, n) relative prime GCD(a,n)=1 • at least one positive m<n satisfying ammod n=1, for example m = ø(n) or may be smaller, this is called the order of a (mod n).. • once powers reach m, cycle will repeat • if smallest is m= ø(n) then corresponding a is called a primitive root • To check if a number x is primitive root, it suffices to check xm=1 mod p, *** • the order of any x coprime to p has to be a divisor of (p − 1) since xp-1=1 mod p, *** following words are not clear yet to me too but the statement written is valid** --- if n is not a primitive root, then there exists a strict positive divisor m of p-1, such that p-1, xm=1 mod p, so there the statement we made suffices.. --- • if p is prime, then successive powers of a "generate" the group mod p

  24. Primitive Roots • Example: from previous table, p=19, p-1 = 2.32, divisors 1, 2, 3, 6, 9, 18, check a=10, 102=5, 103=12, 103=5, 106=11, 109=18, 1018=1 mod(19), so the smallest power of x, such that xm=1 mod p is 18, hence ordp(a) = ord19(10)=18. • Check if the rule applies to a=5, 53=11, 59=1,.. Then will recycle the numbers periodically since 1018= 1 mod(19) .

  25. Primitive Roots • Similarly, you can do the rest of the homework by yourselves. The complete list of primitive roots is: • mod 3 : 2 • mod 5 : 2, 3 • mod 7 : 3, 5 • mod 11 : 2, 6, 7, 8 • mod 13 : 2, 6, 7, 11 • mod 17 : 3, 5, 6, 7, 10, 11, 12 • mod 19 : 2, 3, 10, 13, 14, 15 • Once you have found '(p − 1) many primitive roots mod p, you are done, because mod p there are exactly '(p − 1) distinct primitive roots.

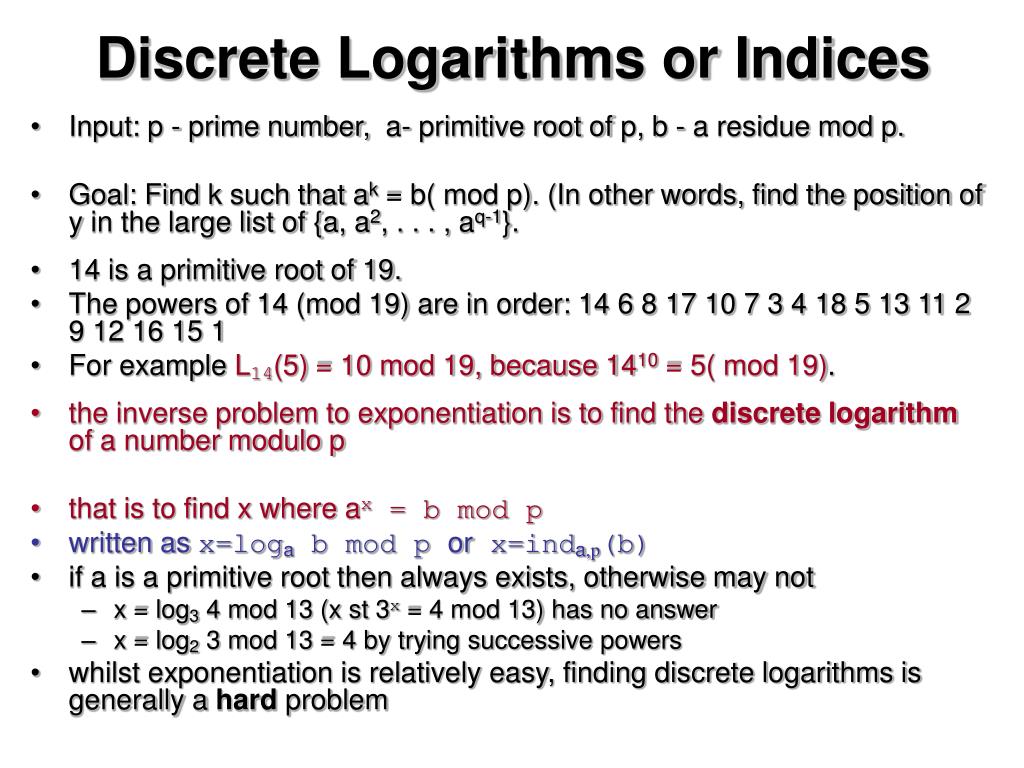

  26. Discrete Logarithms or Indices • Input: p - prime number, a- primitive root of p, b - a residue mod p. • Goal: Find k such that ak= b( mod p). (In other words, find the position of y in the large list of {a, a2, . . . , aq-1}. • 14 is a primitive root of 19. • The powers of 14 (mod 19) are in order: 14 6 8 17 10 7 3 4 18 5 13 11 2 9 12 16 15 1 • For example L14(5) = 10 mod 19, because 1410= 5( mod 19). • the inverse problem to exponentiation is to find the discrete logarithm of a number modulo p • that is to find x where ax = b mod p • written as x=loga b mod p or x=inda,p(b) • if a is a primitive root then always exists, otherwise may not • x = log3 4 mod 13 (x st 3x = 4 mod 13) has no answer • x = log2 3 mod 13 = 4 by trying successive powers • whilst exponentiation is relatively easy, finding discrete logarithms is generally a hard problem

  27. Diffie-Hellman, 1976, Section 10.2 of Stallings • Based on the difficulty of computing discrete logarithms of large numbers. • No known successful attack strategies. • Two numbers public: a prime p, a primitive root q of P. • User A chooses a random integer XA < q and computes YA = qXamod(p) for secret A (known only to itself) and similarly user B chooses XB < q and computes YB = qXbmod(p).. • Each exchanges YA and YB, while XA, XB remains private • Parties A and B compute K = YBXamod(p) and K= YAXbmod(p), respectively, • K= (YB)Xa mod p = (qXb)Xa mod p = (qXa)Xb mod p = (YA)Xb mod p • Attacking the secret key of user A for example will require opponent to calculate XA= indb,p(YA)= dlogb,p(YA)or the other way around. • Example p= 353 and a primitive root of 353, q = 3. Suppose A and B choose XA=97, XA= 233. • YA = 397mod(353) = 40, YB = 3233mod(353) = 248 • K= 160.. Attacker must 3Xamod(353) = 40 or 3Xbmod(353)=248..

  28. RSA is more convenient because there is no need to distribute keys. • DES is within two orders of magnitude faster. • A viable combination is to distribute the secret keys using RSA, and then, for the bulk data to use DES. • Similar combination is implemented in the Pretty Good Privacy (PGP) method. • A number of public-key ciphers are based on the use of an abelian group. For example, Diffie-Hellman key exchange involves multiplying pairs of nonzero integers modulo a prime number p. Keys are generated by exponentiation over the group, with exponentiation defined as repeated multiplication.

  29. Elliptic Curves Chapter 10.3 and 10.4.. • The same level of security but shorter key are possible. • An equation in two variables. For cryptography, the variables and coefficients are restricted to elements in a finite field, which results in the definition of a finite abelian group. • Elliptic curves are not ellipses. They are so named because described by cubic equations, similar to the circumference of an ellipse. In general, cubic equations for elliptic curves take the form of y2 + axy + by = x3 + cx2 + dx + e.. • Limiting attention (Stallings) to y2 = y3 + ax + b is sufficient. y = sqrt(y3 + ax + b)

  30. El Gamal public-key cryptosystem • Secure against CT only attacks. • Each party (say Bob) chooses the following parameters. • p, large prime number, q- primitive root of p, made public. • a random a {2, 3, . . . , p − 1}, private • ¯= qa(mod p), made public. • Encrypting: Choose a random k {1, 3, . . . , p − 1} (a). Suppose message is a number x < p. • Epublic−k(x) = {qk(mod p), x · ¯k( mod p)}. • Two numbers, the first one hides k, and the second one the message. • Decrypting:Dprivate−k(y1, y2) = y2· (y1a)-1(mod p) • y2· (y1a)-1 = x· ¯k(qak)-1 = x· = x· (qak)· (qak)-1(mod p) = x • Check example next slight.
