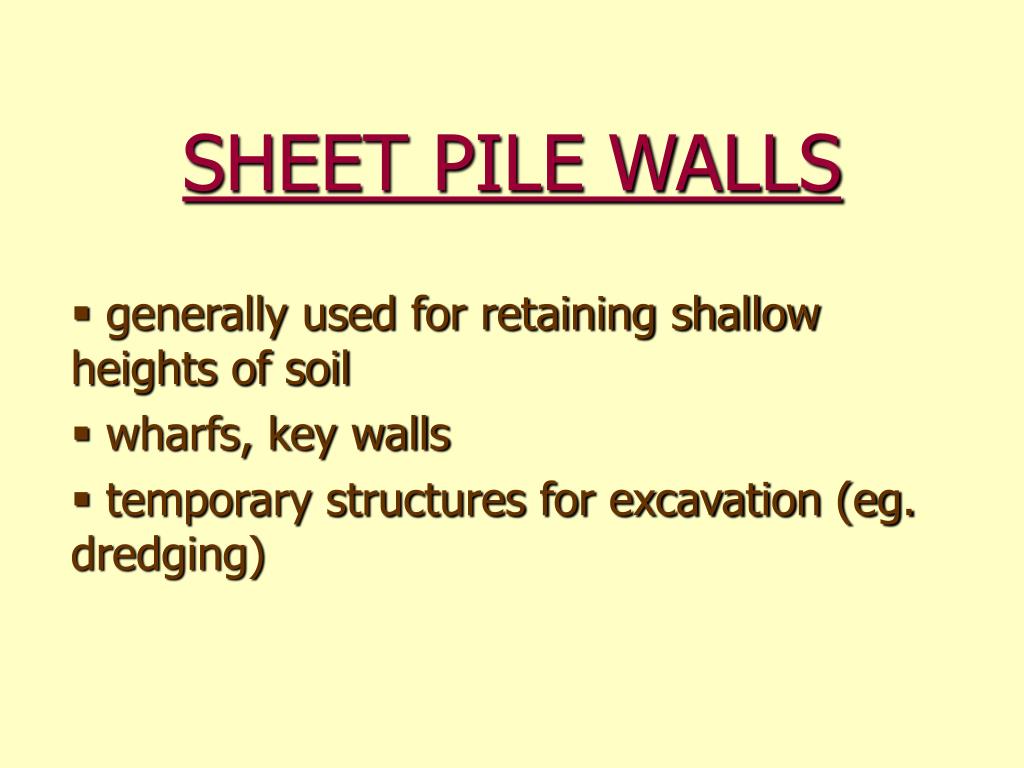

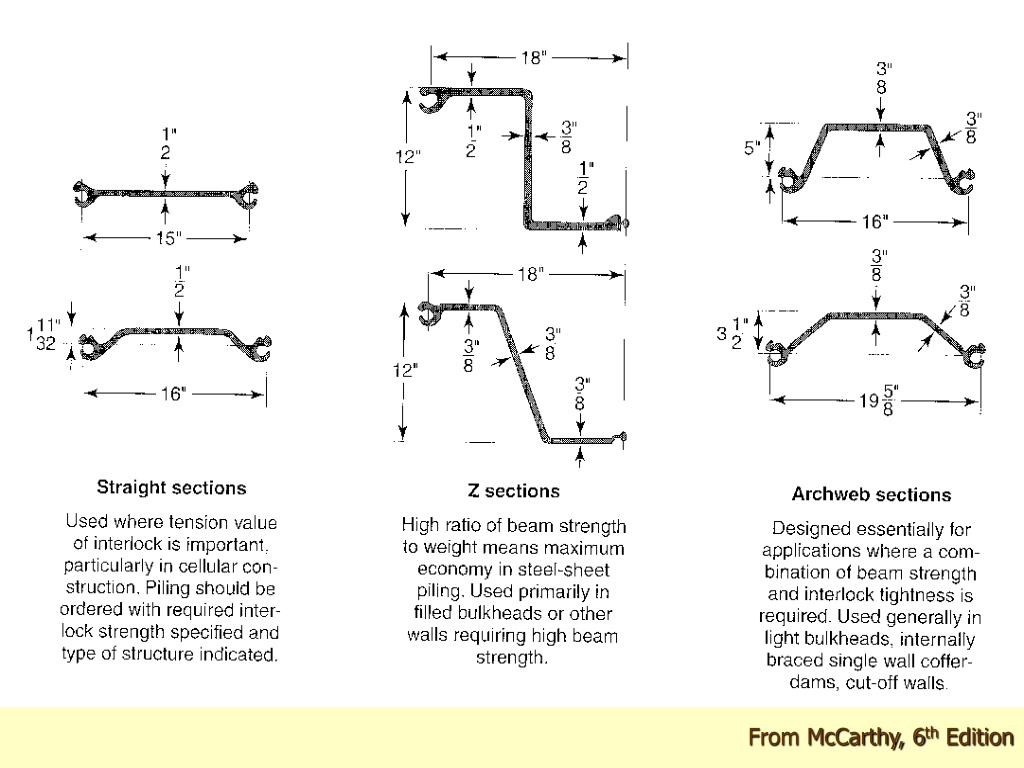

SHEET PILE WALLS

generally used for retaining shallow heights of soil

wharfs, key walls

temporary structures for excavation (eg. dredging)

cantilever sheet pile walls
Cantilever Sheet Pile Walls
  • stability depends on passive resistance developed below the lower soil surface
  • failure is by rotation about a point O near bottom of wall

Active E.P.

Depth of embedment, d

d

O

Passive E.P.

fixity

slide4

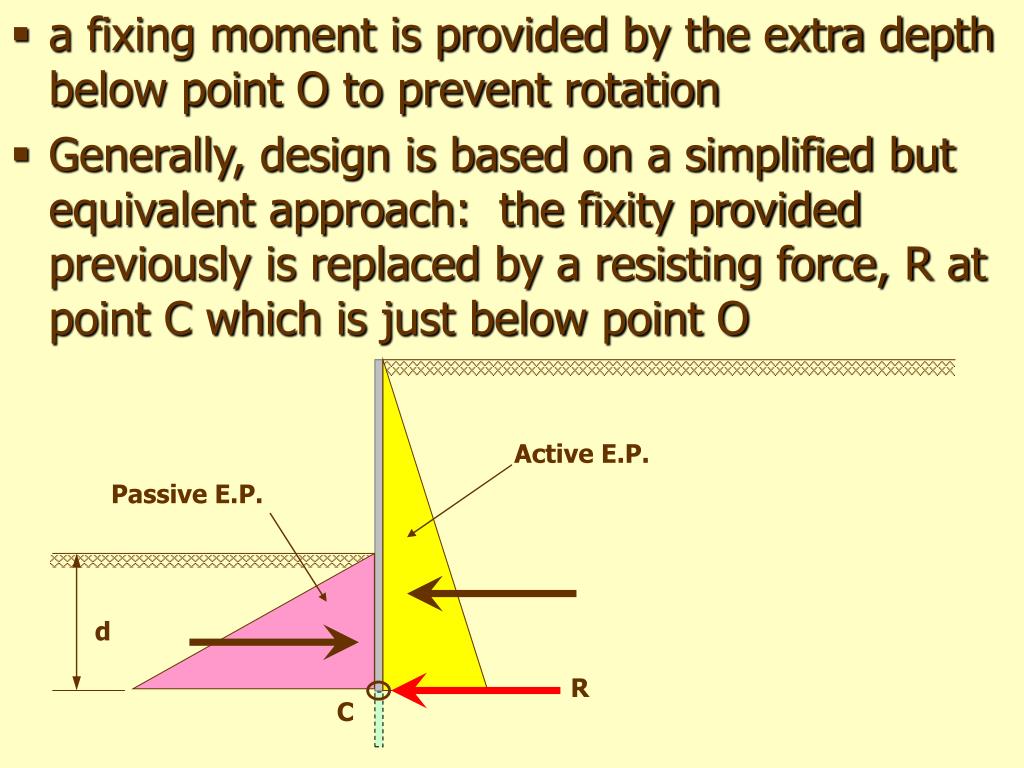

a fixing moment is provided by the extra depth below point O to prevent rotation
  • Generally, design is based on a simplified but equivalent approach: the fixity provided previously is replaced by a resisting force, R at point C which is just below point O

Active E.P.

Passive E.P.

d

R

C

danish rules

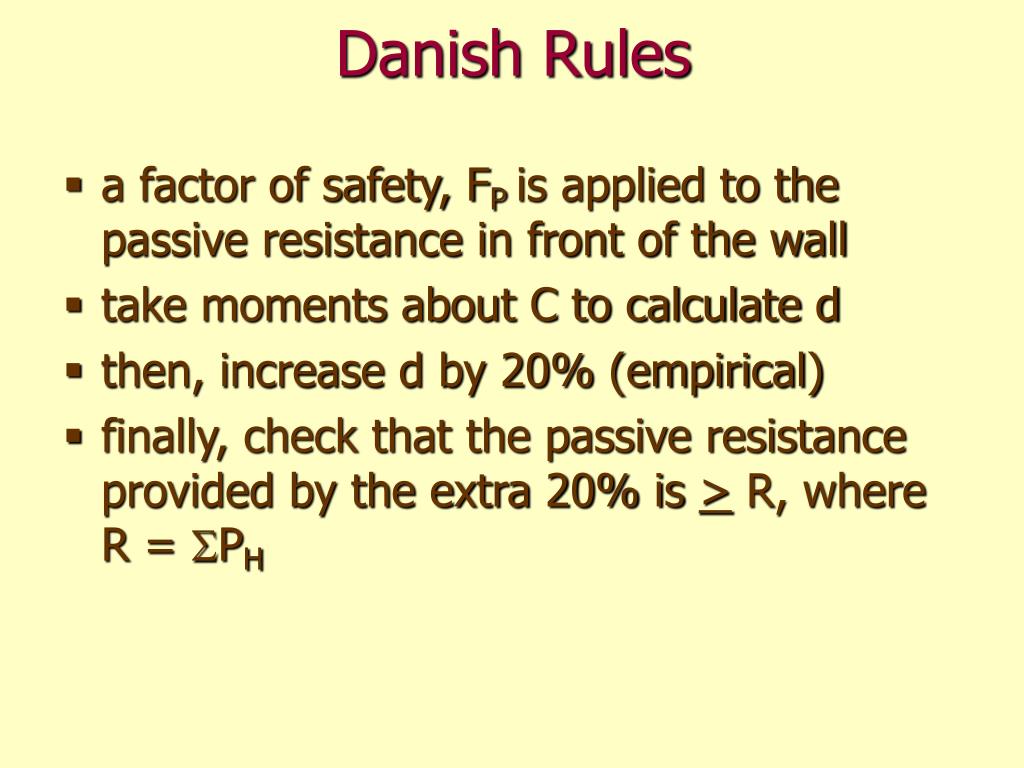

Danish Rules
  • a factor of safety, FPis applied to the passive resistance in front of the wall
  • take moments about C to calculate d
  • then, increase d by 20% (empirical)
  • finally, check that the passive resistance provided by the extra 20% is > R, where R = SPH
free earth support

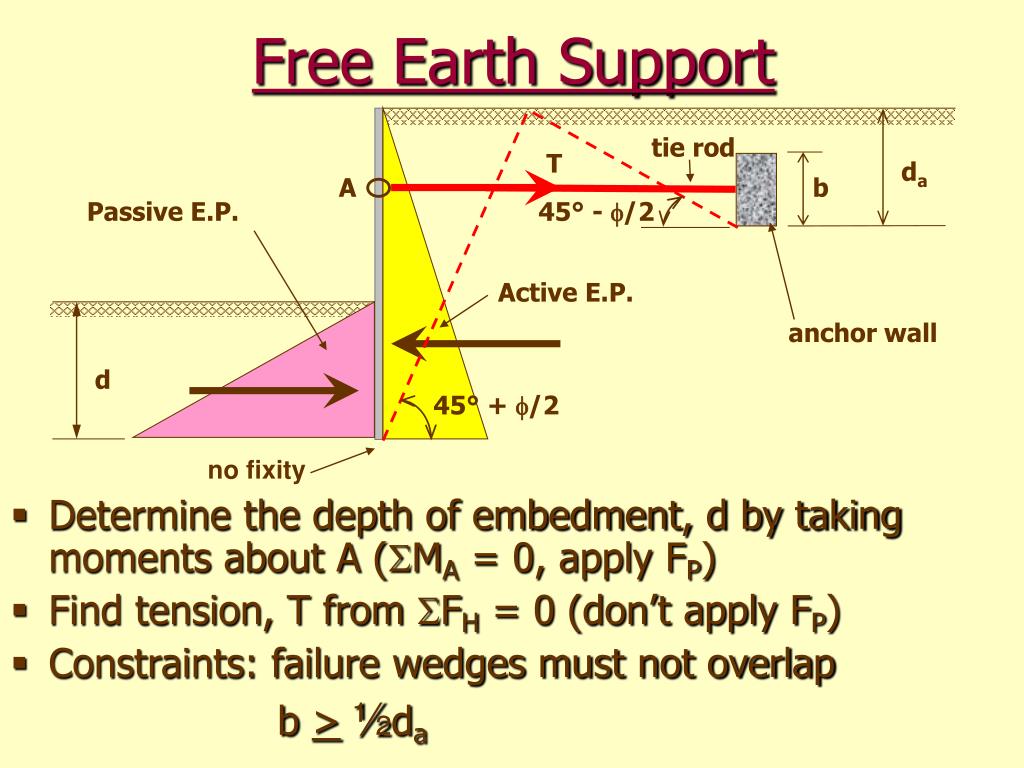

Free Earth Support

tie rod

T

da

A

b

  • Determine the depth of embedment, d by taking moments about A (SMA = 0, apply FP)
  • Find tension, T from SFH = 0 (don’t apply FP)
  • Constraints: failure wedges must not overlap

b >½da

Passive E.P.

45° - f/2

Active E.P.

anchor wall

d

45° + f/2

no fixity
