  1. Overview of the Climate System • Definition of climate • Climate system components • Earth’s energy balance & the greenhouse effect • Water and carbon cycles • Internal variability vs. forced variability (ENSO example) • Natural forcings vs. human-induced forcings Raymond Najjar Penn State Department of Meteorology

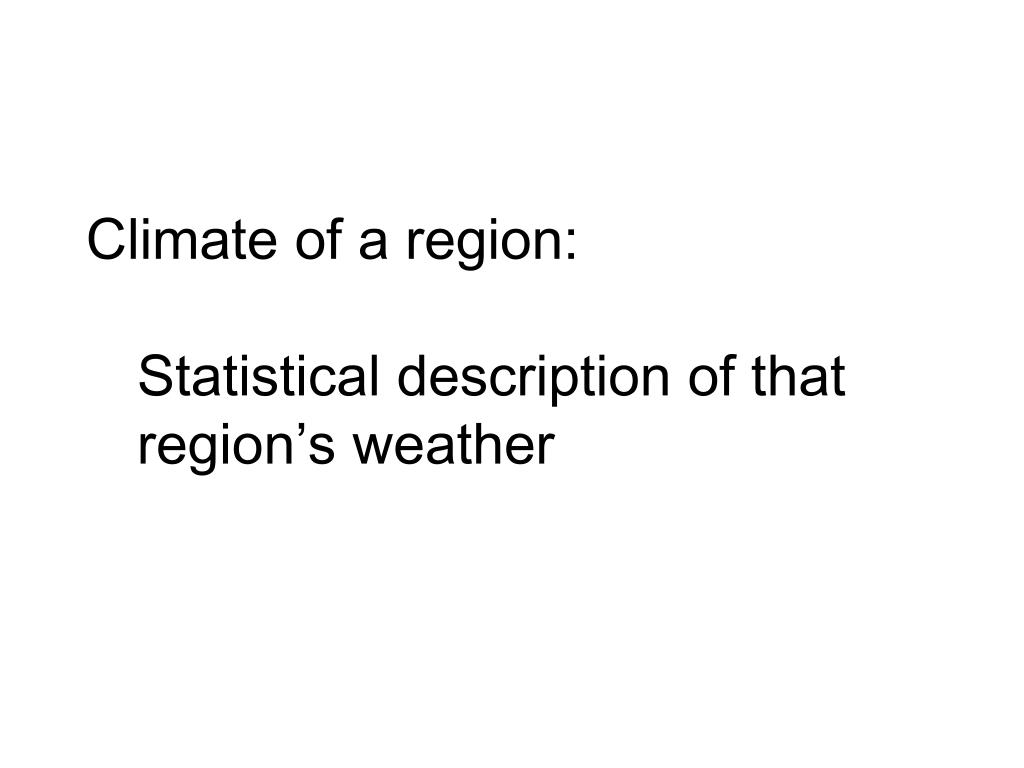

  2. Climate of a region:Statistical description of that region’s weather

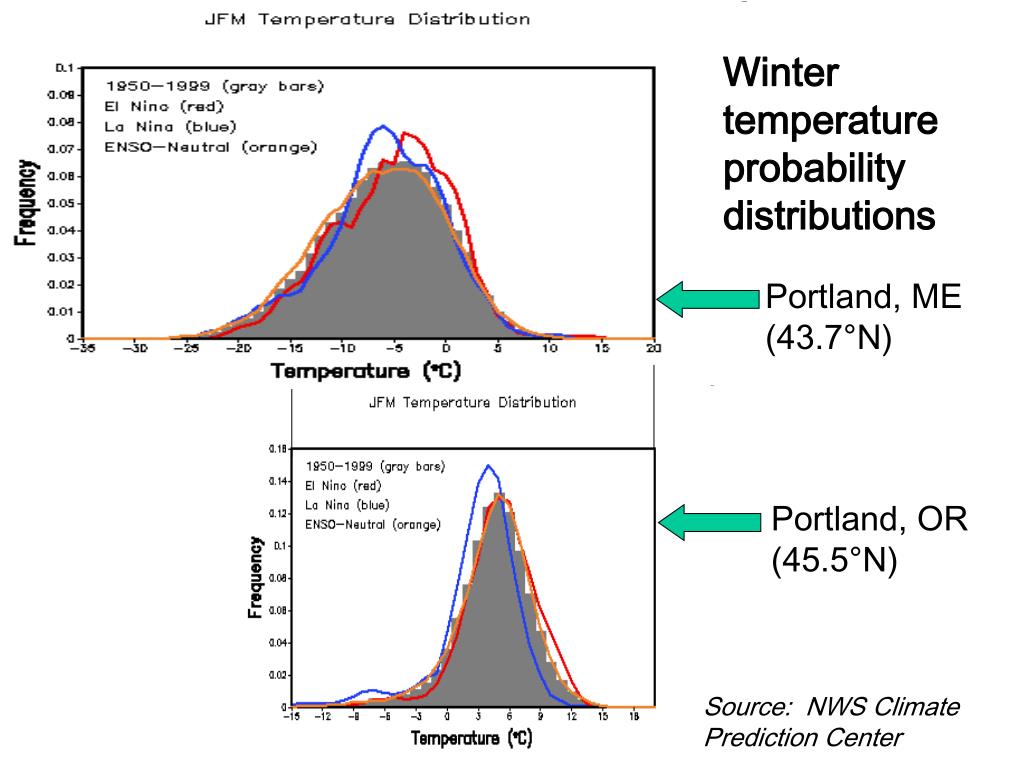

  3. Winter temperature probability distributions Portlands Portland, ME (43.7°N) Portland, OR (45.5°N) Source: NWS Climate Prediction Center

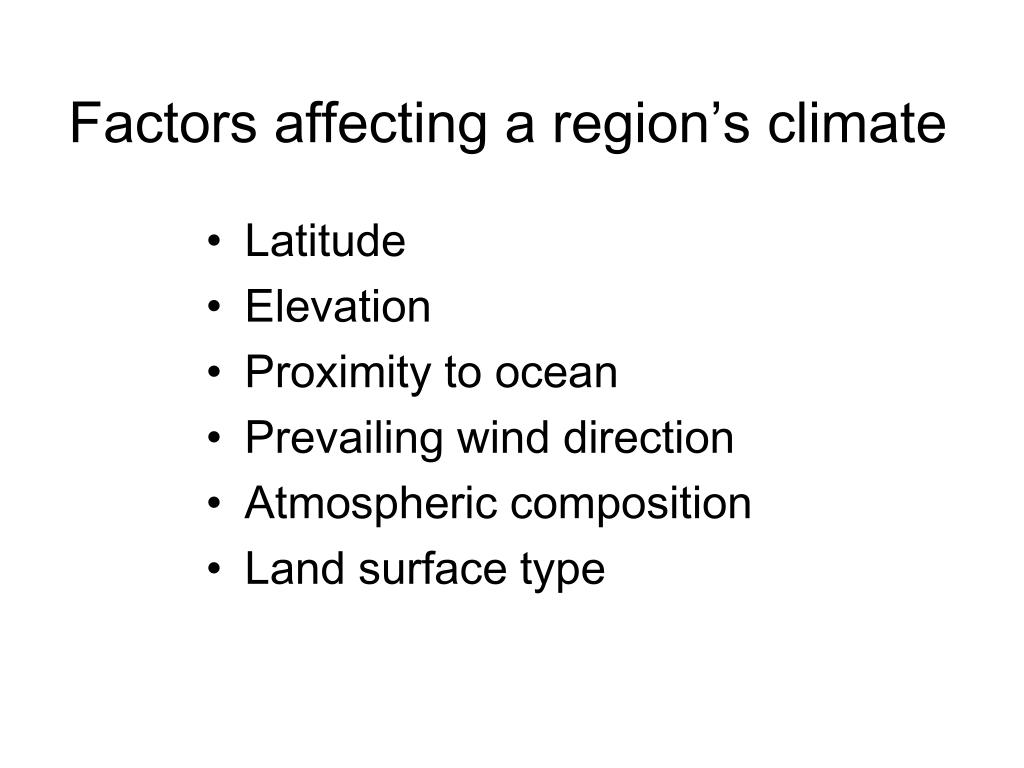

  4. Factors affecting a region’s climate • Latitude • Elevation • Proximity to ocean • Prevailing wind direction • Atmospheric composition • Land surface type

  5. Visible image Infrared image Minneapolis Minneapolis Source: Nese and Grenci (2010)

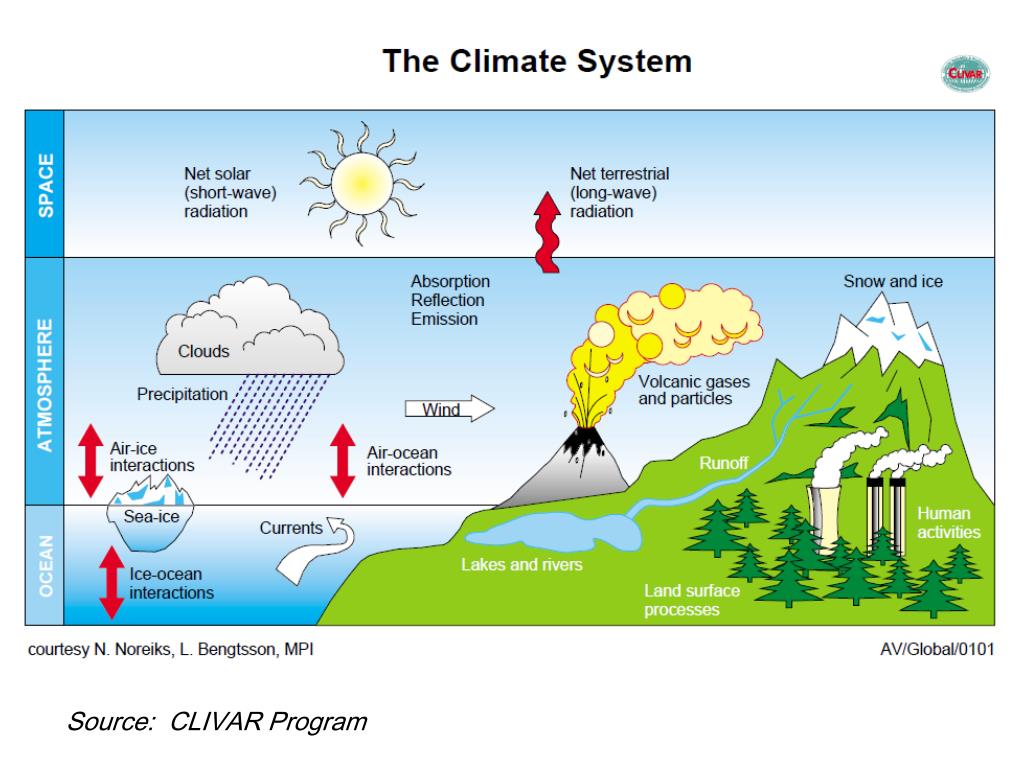

  6. Source: CLIVAR Program

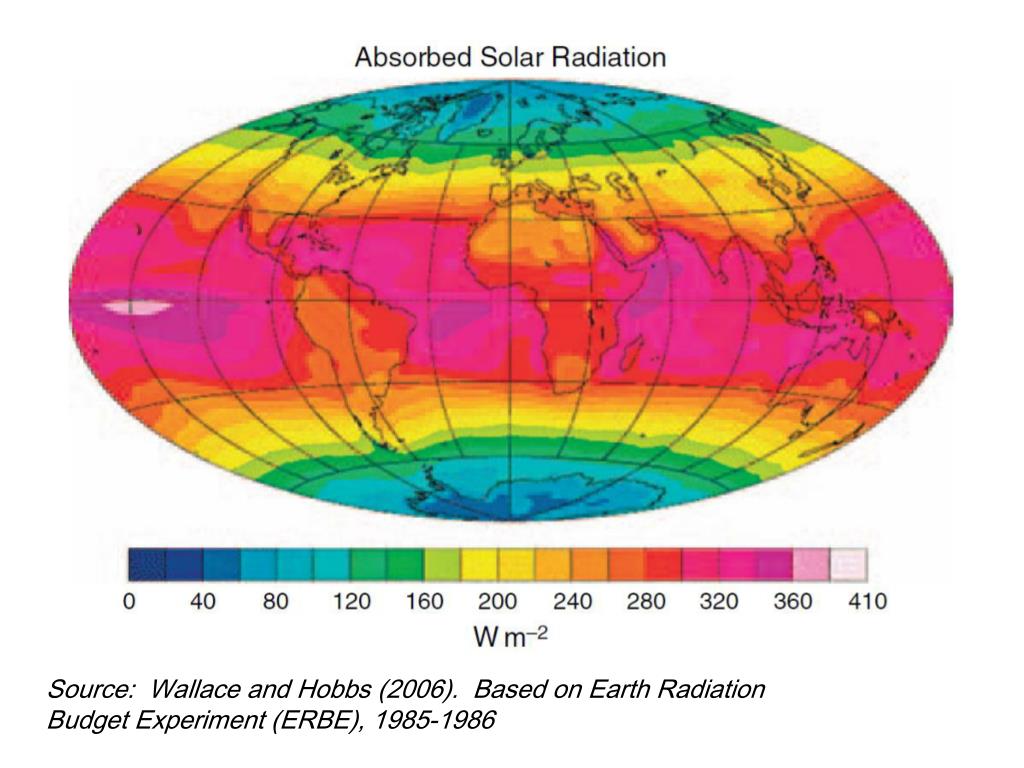

  7. Source: Wallace and Hobbs (2006). Based on Earth Radiation Budget Experiment (ERBE), 1985-1986

  8. Source: Wallace and Hobbs (2006). Based on Earth Radiation Budget Experiment (ERBE), 1985-1986

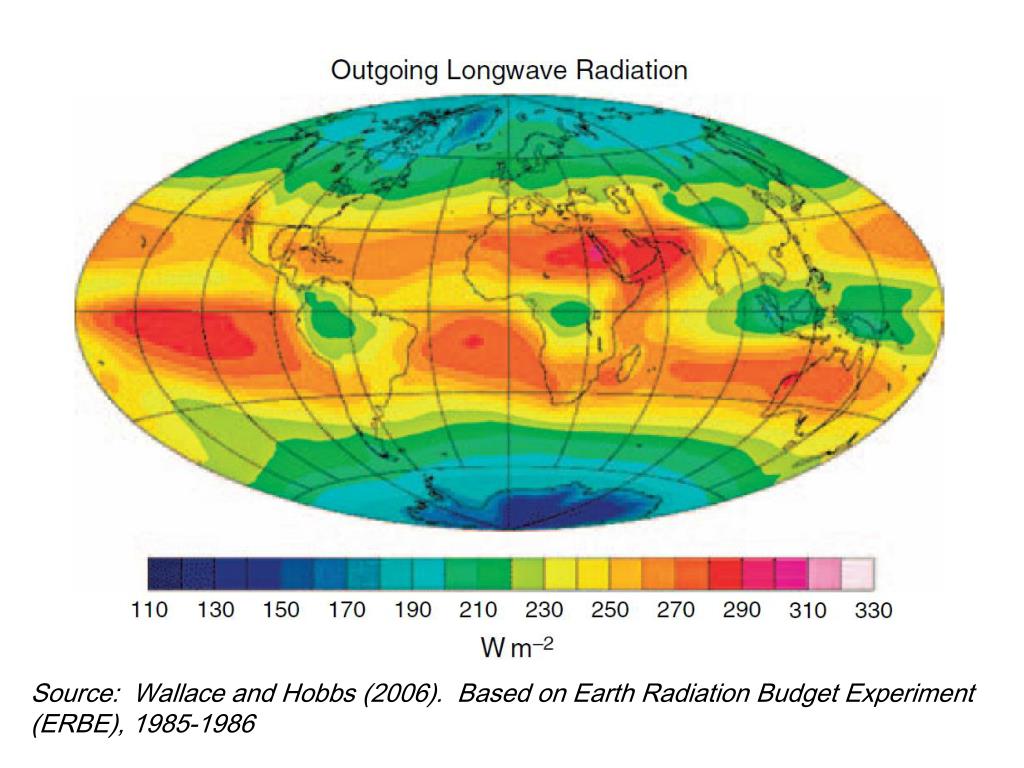

  9. Source: Wallace and Hobbs (2006). Based on Earth Radiation Budget Experiment (ERBE), 1985-1986

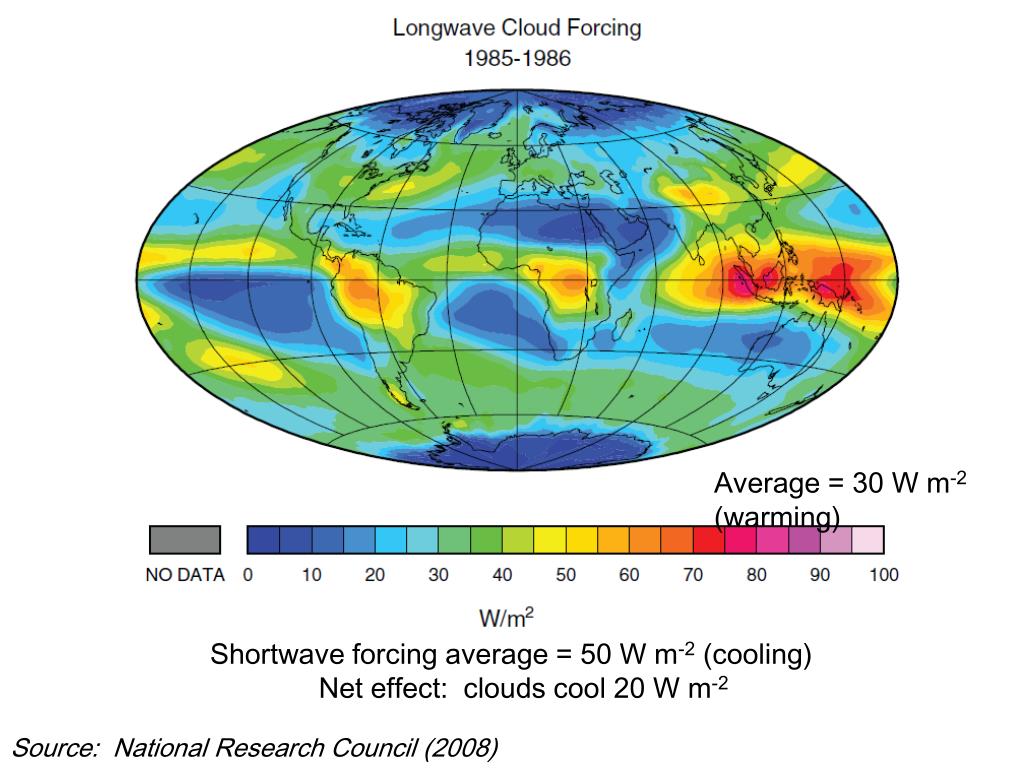

  10. Average = 30 W m-2 (warming) Shortwave forcing average = 50 W m-2 (cooling) Net effect: clouds cool 20 W m-2 Source: National Research Council (2008)

  11. Global energy balance Source: Kiehl & Trenberth (1997)

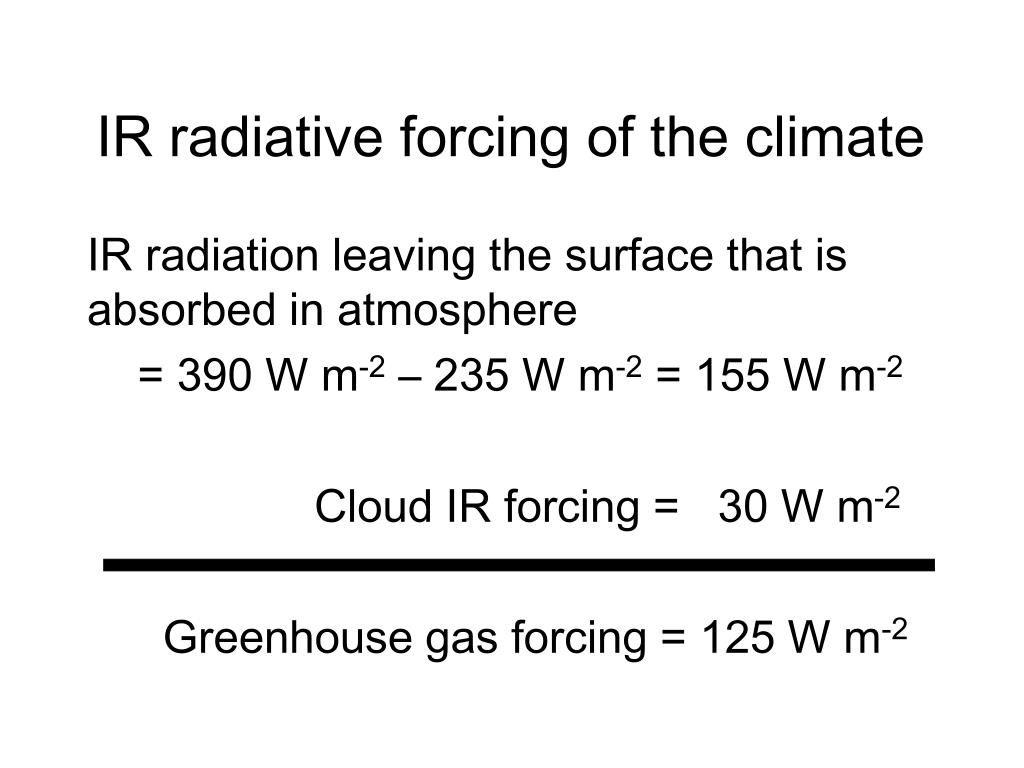

  12. IR radiative forcing of the climate IR radiation leaving the surface that is absorbed in atmosphere = 390 W m-2 – 235 W m-2 = 155 W m-2 Cloud IR forcing = 30 W m-2 Greenhouse gas forcing = 125 W m-2

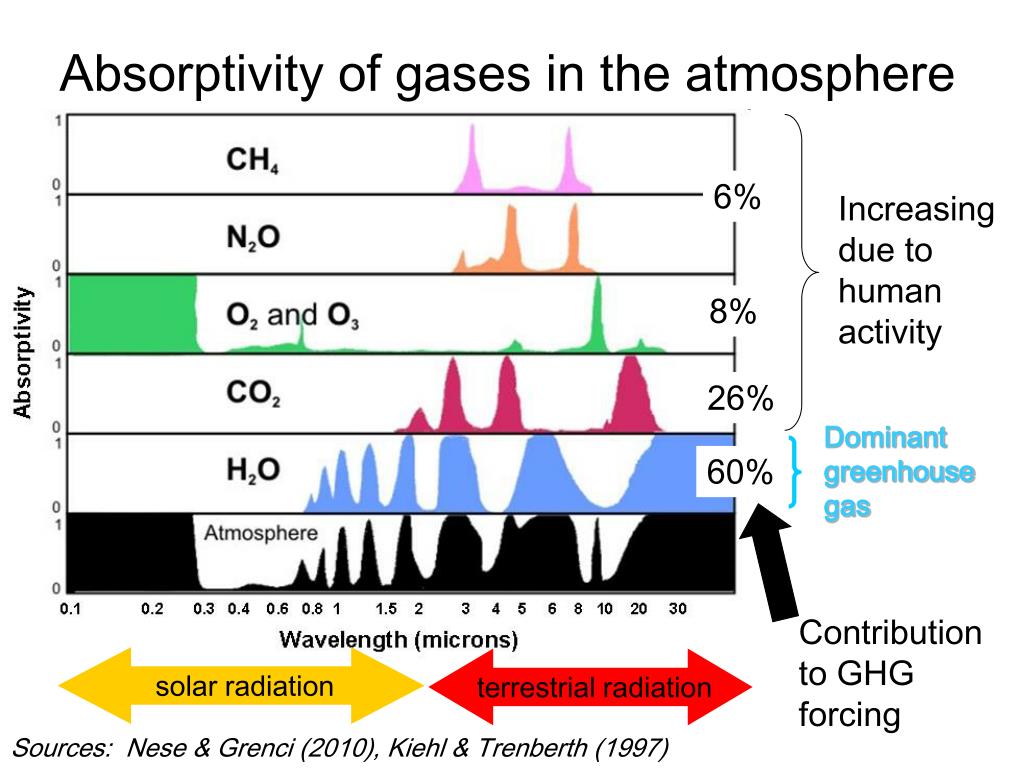

  13. Absorptivity of gases in the atmosphere 6% Increasing due to human activity 8% 26% Dominant greenhouse gas 60% Contribution to GHG forcing solar radiation terrestrial radiation Sources: Nese & Grenci (2010), Kiehl & Trenberth (1997)

  14. Calculation of surface temperature without greenhouse forcing Energy in = Energy out Incoming solar = reflected solar + outgoing IR 1366 W m-2 = (0.30)(1366 W m-2) + 4sT4 T = 254 K = -19° C = 2° F Greenhouse effect warms surface ~60° F

  15. The global water cycle Source: Trenberth et al. (2007)

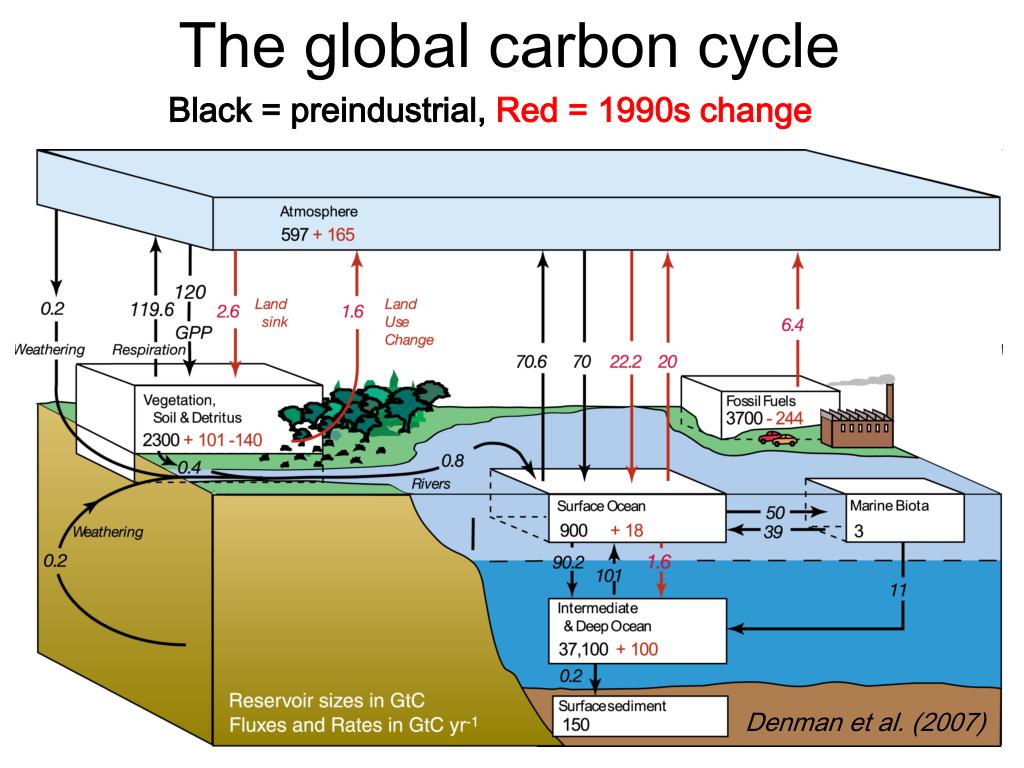

  16. The global carbon cycle Black = preindustrial, Red = 1990s change Denman et al. (2007)

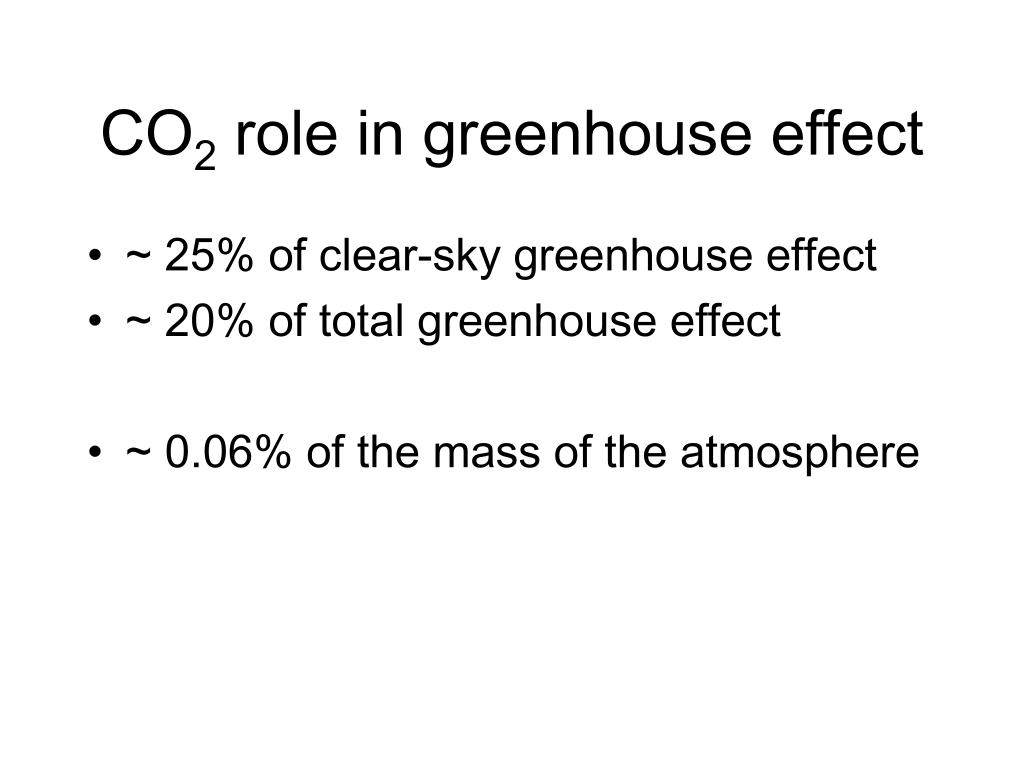

  17. CO2 role in greenhouse effect • ~ 25% of clear-sky greenhouse effect • ~ 20% of total greenhouse effect • ~ 0.06% of the mass of the atmosphere

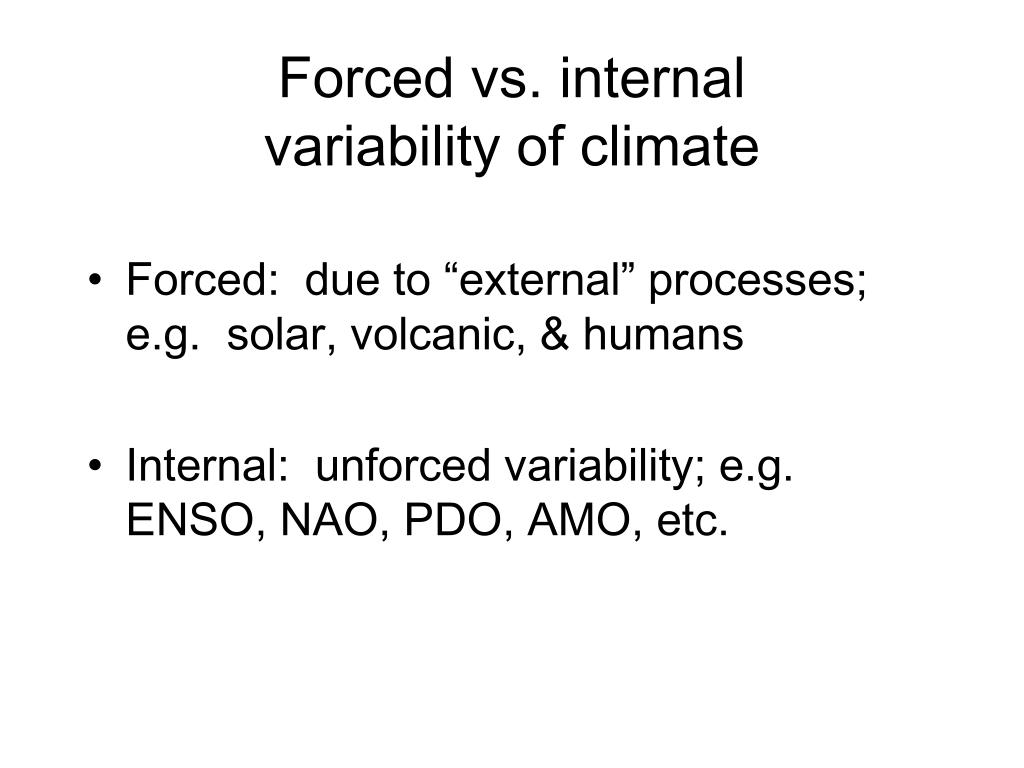

  18. Forced vs. internal variability of climate • Forced: due to “external” processes; e.g. solar, volcanic, & humans • Internal: unforced variability; e.g. ENSO, NAO, PDO, AMO, etc.

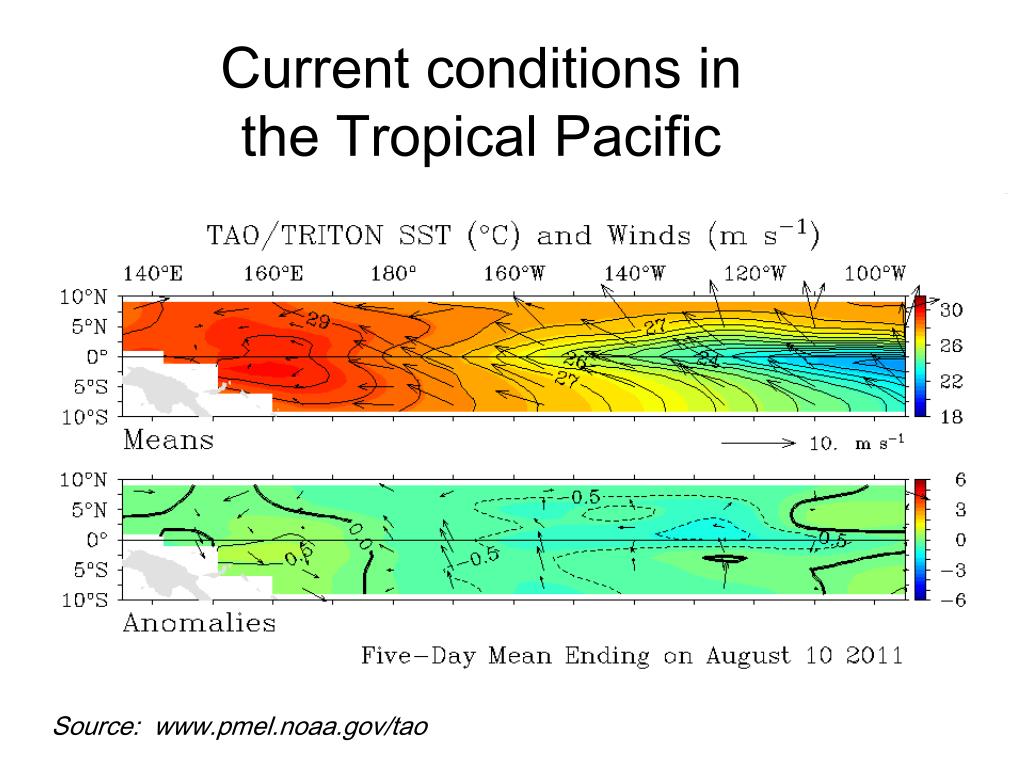

  19. Current conditions in the Tropical Pacific Source: www.pmel.noaa.gov/tao

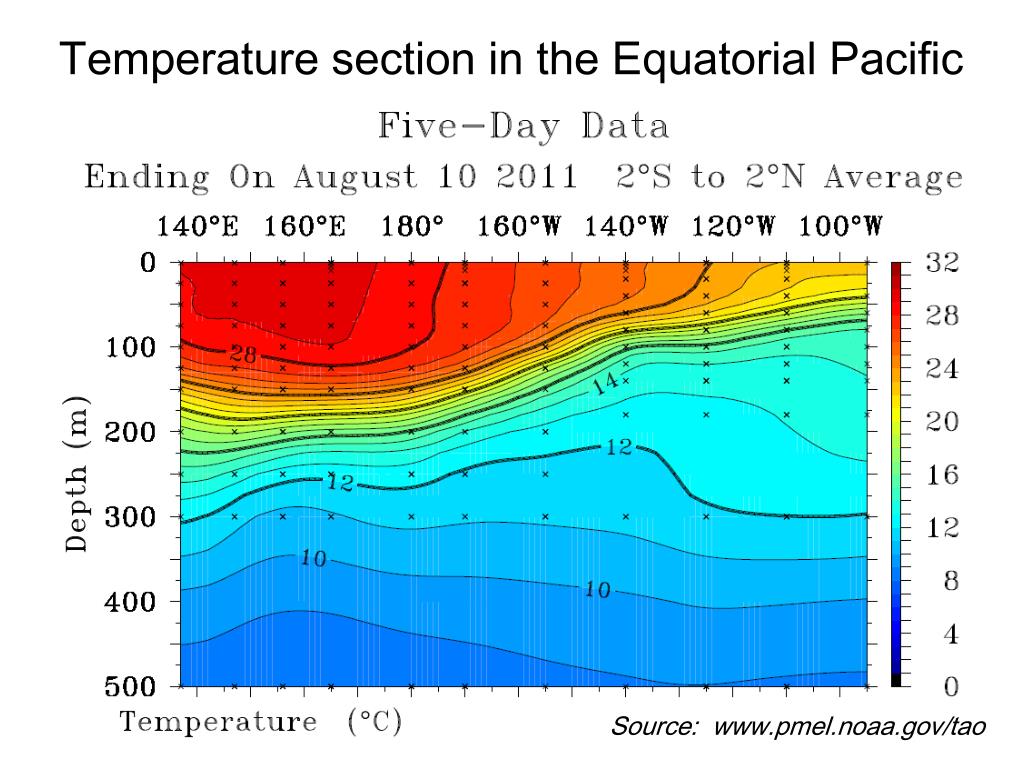

  20. Temperature section in the Equatorial Pacific Source: www.pmel.noaa.gov/tao

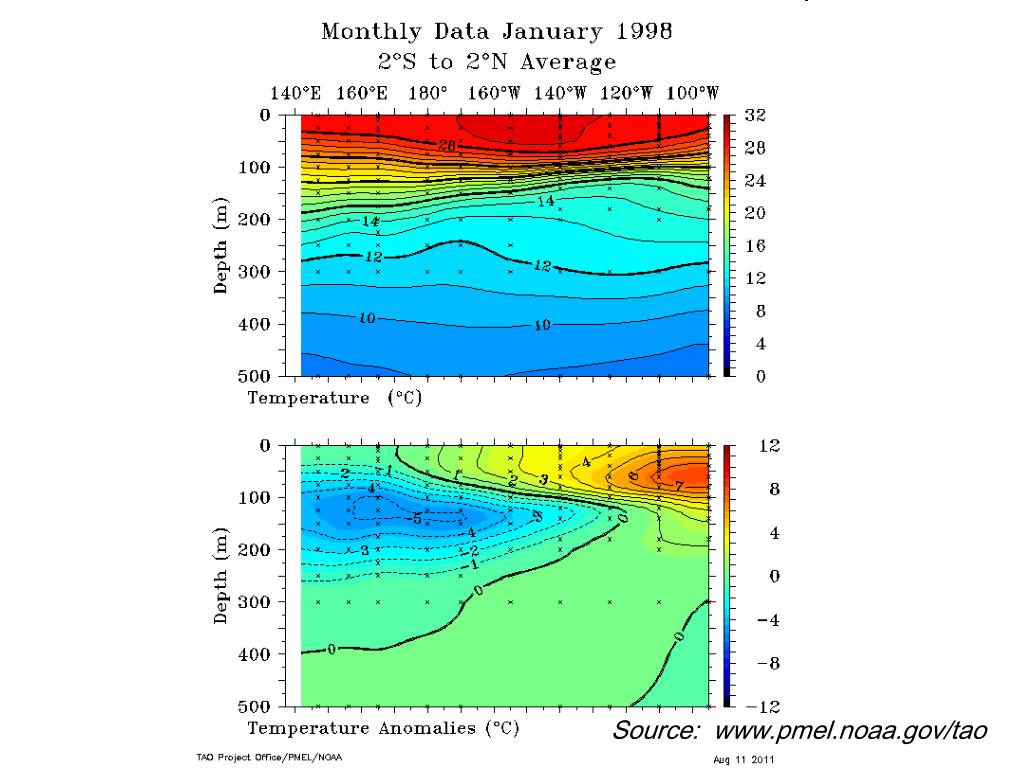

  21. Source: www.pmel.noaa.gov/tao

  22. Source: Nese and Grenci (2010)

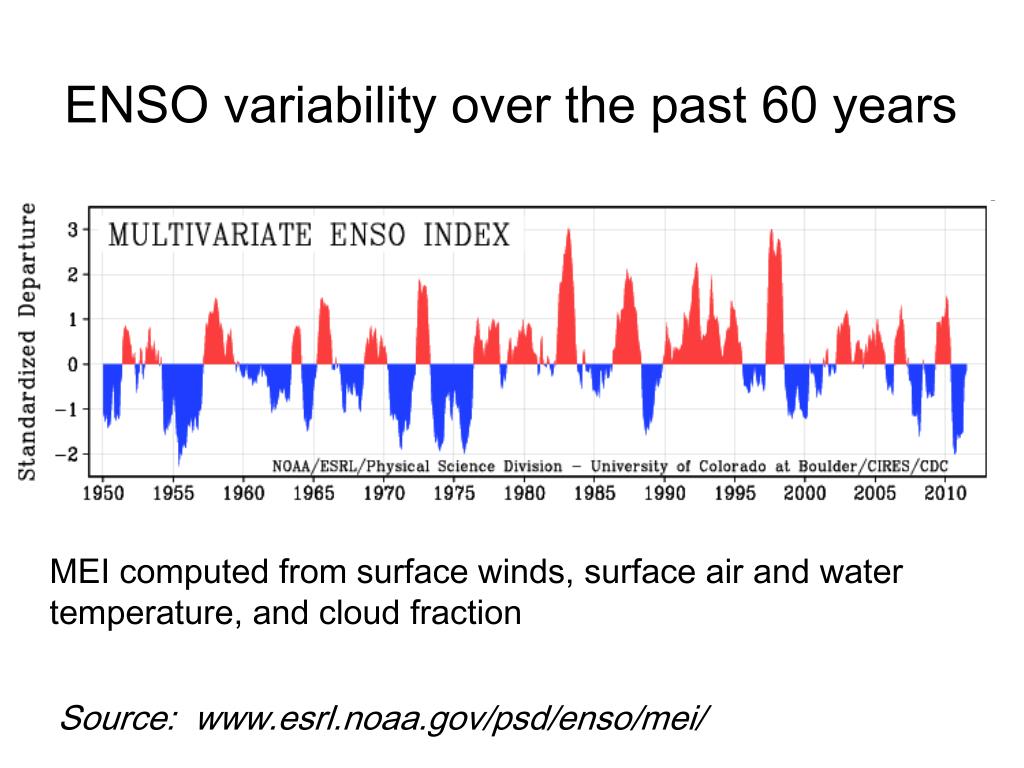

  23. ENSO variability over the past 60 years MEI computed from surface winds, surface air and water temperature, and cloud fraction Source: www.esrl.noaa.gov/psd/enso/mei/

  24. Natural vs. Human-induced forcing of climate • Natural: solar, earth-orbital, volcanic • Human-induced: land use change, greenhouse gases, aerosols, soot

  25. Discussion

  26. References Denman, K.L., Brasseur, G., Chidthaisong, A., Ciais, P., Cox, P.M., Dickinson, R.E., Hauglustaine, D., Heinze, C., Holland, E., Jacob, D., Lohmann, U., Ramachandran, S., da Silva Dia, P.L., Wofsy, S.C., Zhang, X., 2007. Couplings between changes in the climate system and biogeochemistry. In: S. Solomon, D. Qin, M. Manning, Z. Chen, M. Marquis, K.B. Averyt, T. Tignor, H.L. Miller (Editors), Climate Change 2007: The Physical Science Basis. Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change. Cambridge University Press, Cambridge University Press, Cambridge, United Kingdom and New York, NY, USA. Kiehl, J.T., Trenberth, K.E., 1997. Earth's annual global mean energy budget. Bulletin of the American Meteorological Society 78, 197-208. National Research Council Committee on Scientific Accomplishments of Earth Observations from Space, 2008. Earth Observations from Space: The First 50 Years of Scientific Achievements. The National Academies Press, Washington, D. C., 142 pp. Nese, J.M., Grenci, L.M., 2010. A World of Weather: Fundamentals of Meteorology, Fifth Edition. Kendall Hunt Publishing Company, Dubuque, Iowa, 794 pp. Trenberth, K.E., Smith, L., Qian, T., Dai, A., Fasullo, J., 2007. Estimates of the Global Water Budget and Its Annual Cycle Using Observational and Model Data. Journal of Hydrometeorology 8, 758-769. Wallace, J.M., Hobbs, P.V., 2006. Atmospheric Science: An Introductory Survey, Second Edition. Elsevier, Inc., Oxford, UK, 483 pp.

  27. Extra slides

  28. CO2 emissions from human activity (black) compared with the rate of increase in atmospheric CO2 (blue) Source: Global Carbon Project, www.globalcarbonproject.org/carbonbudget

  29. Source: Global Carbon Project
