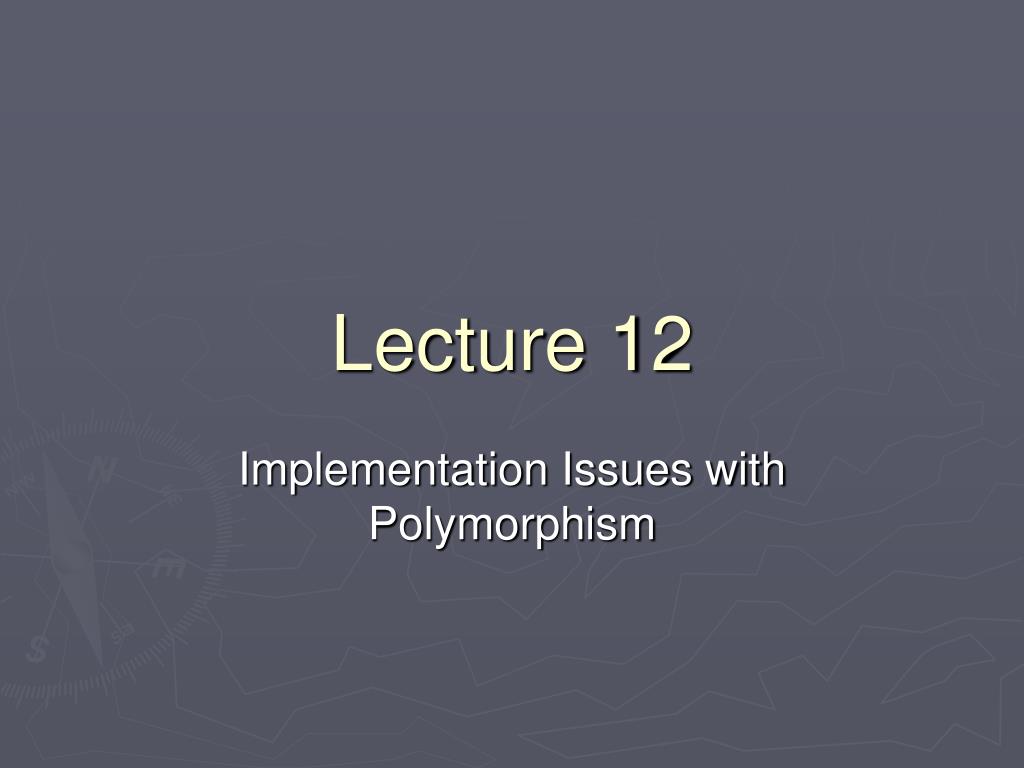

  1. Lecture 12 Implementation Issues with Polymorphism

  2. Memory Allocation • Consider the code class Professor: public Person{ public: virtual void f(); private: Classes c; } class Person{ public: virtual void f(); private: Name n; } Person per; Professor prof;

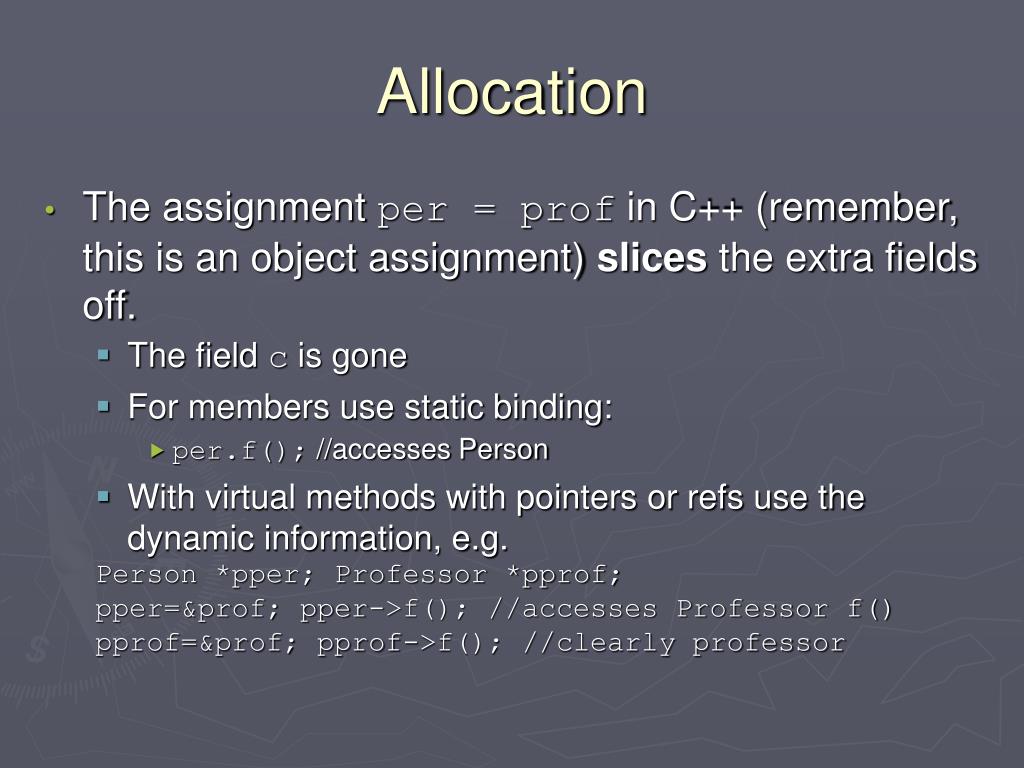

  3. Allocation • The assignment per = prof in C++ (remember, this is an object assignment) slices the extra fields off. • The field c is gone • For members use static binding: • per.f(); //accesses Person • With virtual methods with pointers or refs use the dynamic information, e.g. Person *pper; Professor *pprof; pper=&prof; pper->f(); //accesses Professor f() pprof=&prof; pprof->f(); //clearly professor

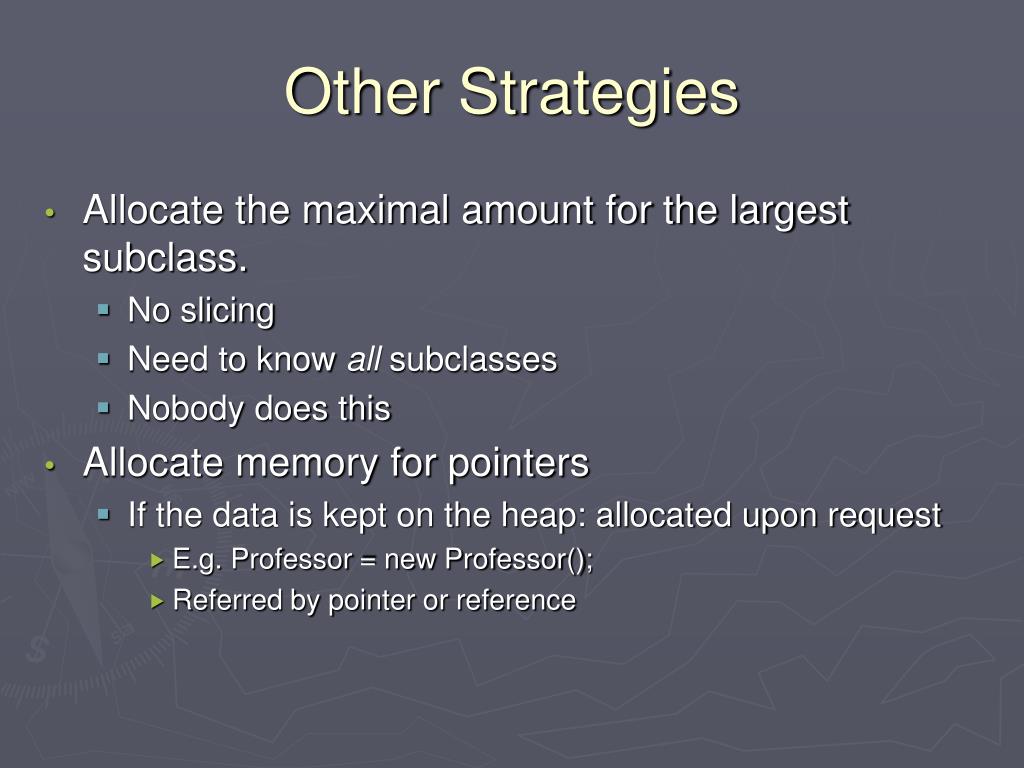

  4. Other Strategies • Allocate the maximal amount for the largest subclass. • No slicing • Need to know all subclasses • Nobody does this • Allocate memory for pointers • If the data is kept on the heap: allocated upon request • E.g. Professor = new Professor(); • Referred by pointer or reference

  5. Heap Allocation (ctd) • Data is anonymous • Assignment statements and equality tests are pointer/reference oriented • Copy semantics require new objects, pointer/reference not • In C++ the == operator can be overloaded to any meaning • Smalltalk & Java use pointer/reference semantics, but allow the use of clones

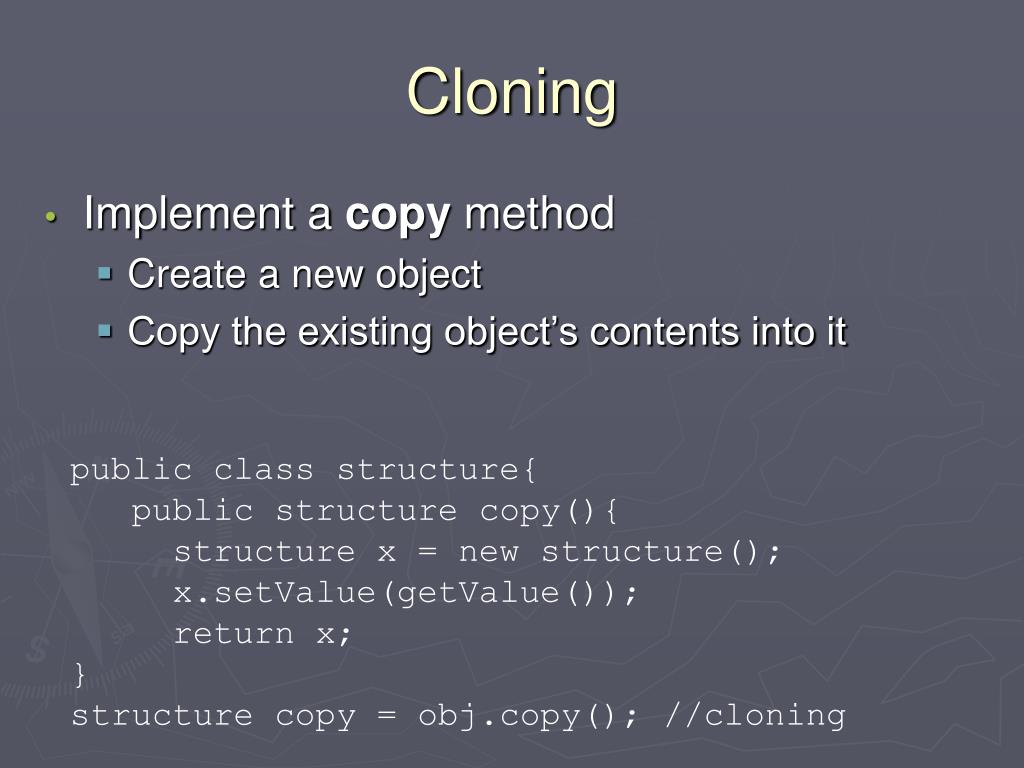

  6. Cloning • Implement a copy method • Create a new object • Copy the existing object’s contents into it public class structure{ public structure copy(){ structure x = new structure(); x.setValue(getValue()); return x; } structure copy = obj.copy(); //cloning

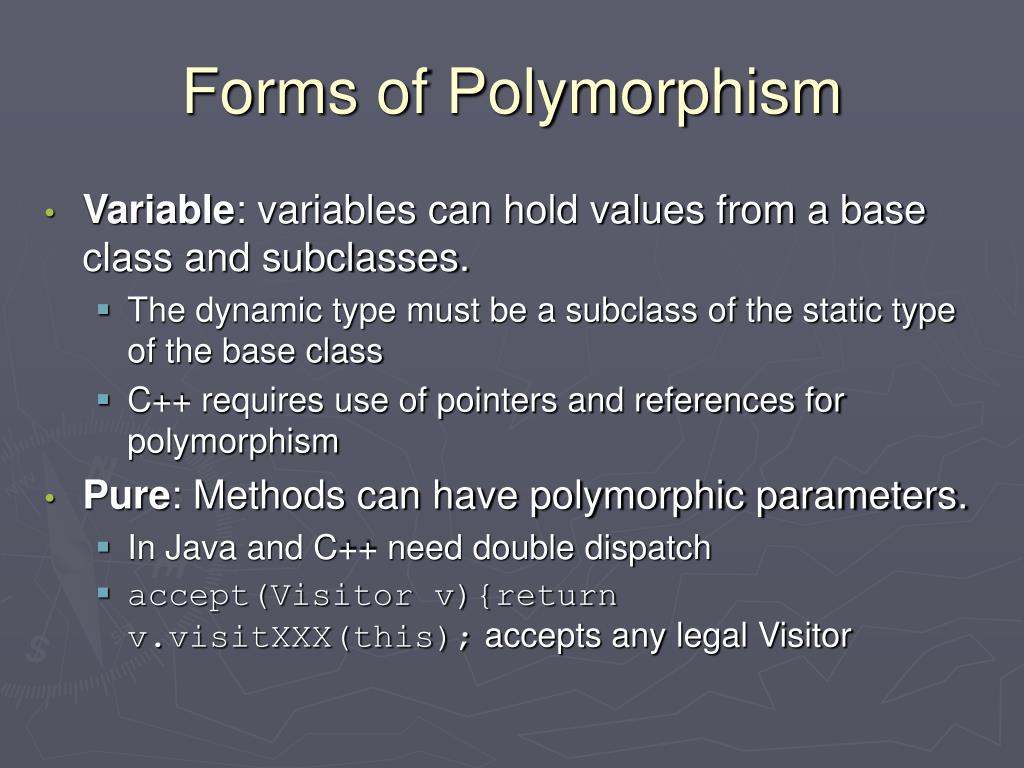

  7. Forms of Polymorphism • Variable: variables can hold values from a base class and subclasses. • The dynamic type must be a subclass of the static type of the base class • C++ requires use of pointers and references for polymorphism • Pure: Methods can have polymorphic parameters. • In Java and C++ need double dispatch • accept(Visitor v){return v.visitXXX(this); accepts any legal Visitor

  8. Other Types of Polymorphism • Overloading: Allow several function bodies, e.g. overloading “+” operator in C++ • The function signature determines the body • Can use static and dynamic signatures • Overriding: Change the semantics of the parent in the child • Different children can override in different ways • Ensures common interfaces

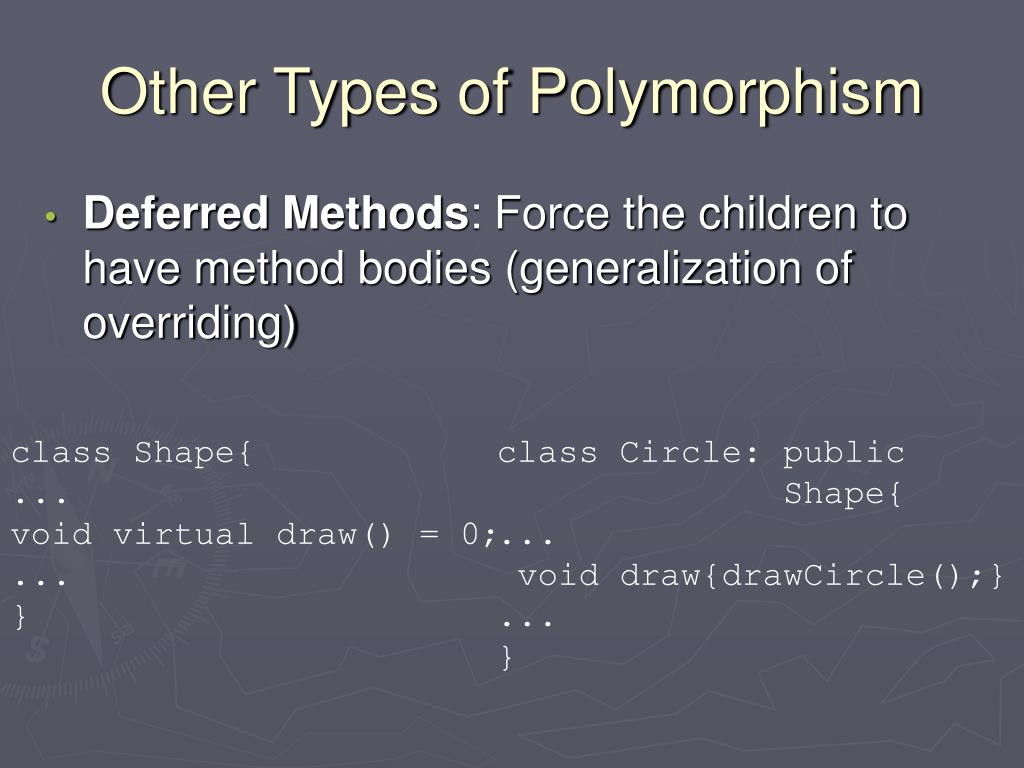

  9. Other Types of Polymorphism • Deferred Methods: Force the children to have method bodies (generalization of overriding) class Shape{ ... void virtual draw() = 0; ... } class Circle: public Shape{ ... void draw{drawCircle();} ... }

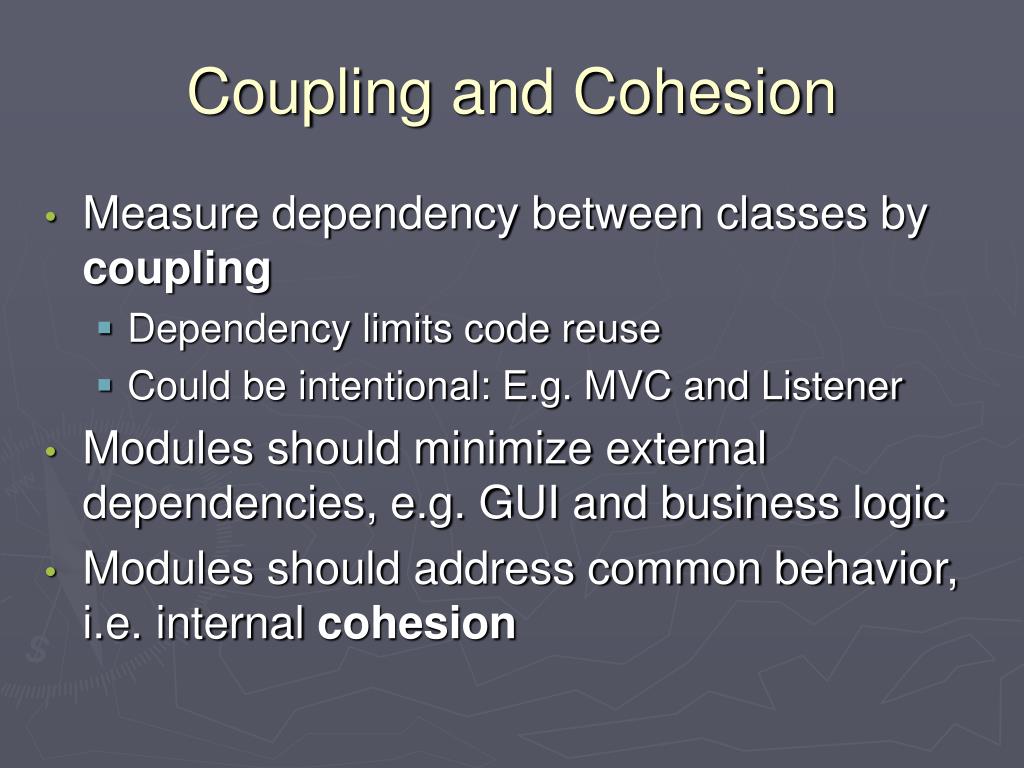

  10. Coupling and Cohesion • Measure dependency between classes by coupling • Dependency limits code reuse • Could be intentional: E.g. MVC and Listener • Modules should minimize external dependencies, e.g. GUI and business logic • Modules should address common behavior, i.e. internal cohesion

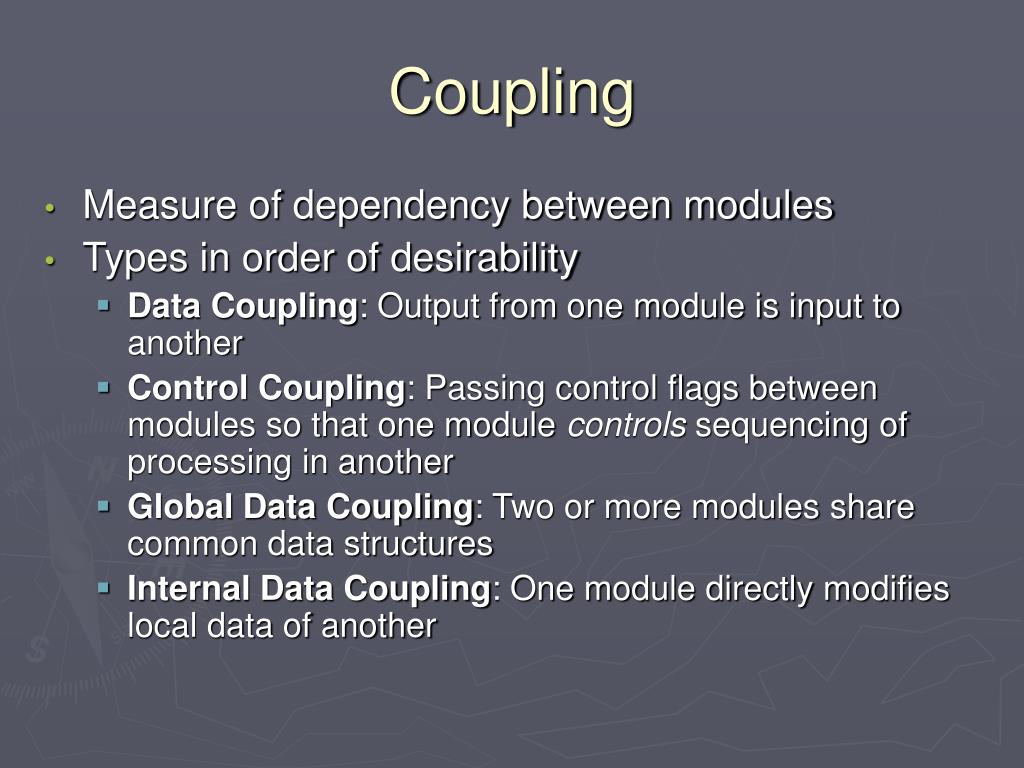

  11. Coupling • Measure of dependency between modules • Types in order of desirability • Data Coupling: Output from one module is input to another • Control Coupling: Passing control flags between modules so that one module controls sequencing of processing in another • Global Data Coupling: Two or more modules share common data structures • Internal Data Coupling: One module directly modifies local data of another

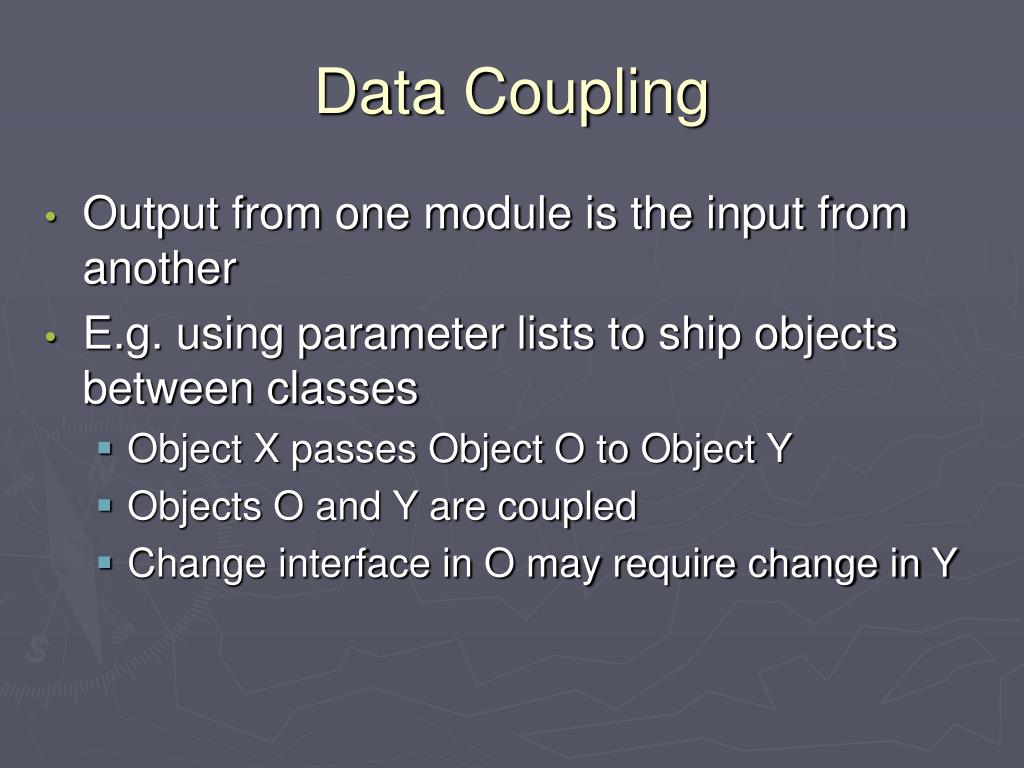

  12. Data Coupling • Output from one module is the input from another • E.g. using parameter lists to ship objects between classes • Object X passes Object O to Object Y • Objects O and Y are coupled • Change interface in O may require change in Y

  13. Example class Y{ public void funnyStuff(Object O){ ... O.doSomethingFunny(String t); ... } }

  14. Control Coupling • A sends a message to B • B returns control information to A class tryPrint{ public: int printFile(File toPrint){ if (toPrint is corrupt) return CORRUPTFLAG; else ... ... } } tryPrint when = new tryPrint(); int result = when.printFile(popQuiz); if (result == CORRUPTFLAG) ...

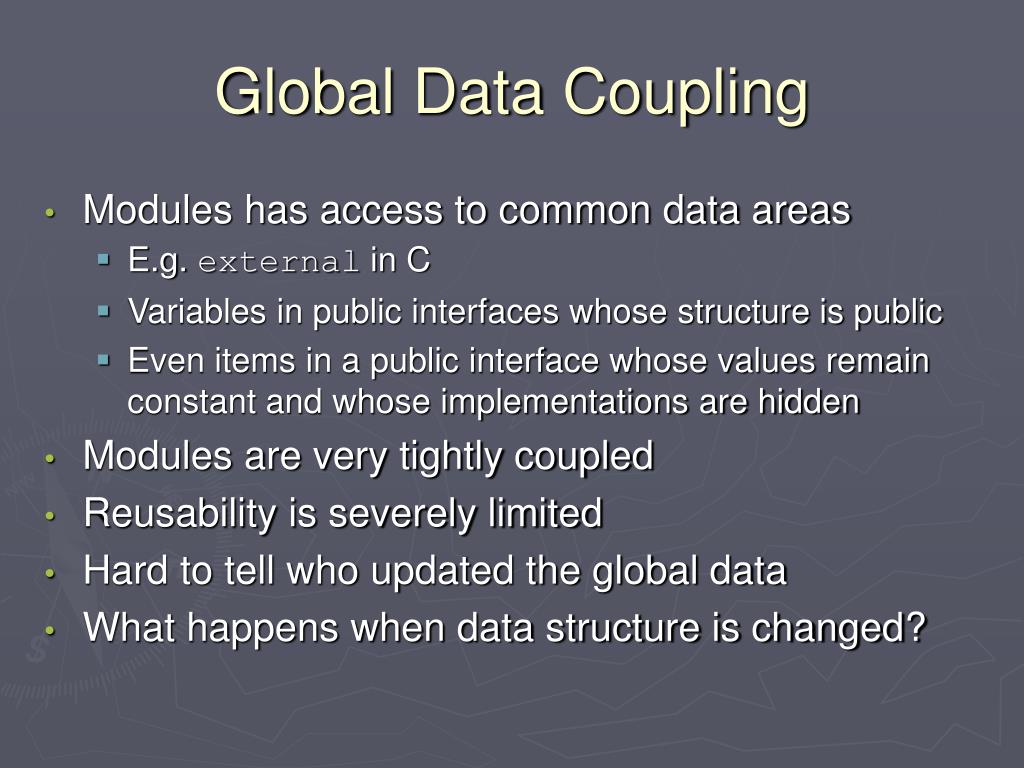

  15. Global Data Coupling • Modules has access to common data areas • E.g. external in C • Variables in public interfaces whose structure is public • Even items in a public interface whose values remain constant and whose implementations are hidden • Modules are very tightly coupled • Reusability is severely limited • Hard to tell who updated the global data • What happens when data structure is changed?

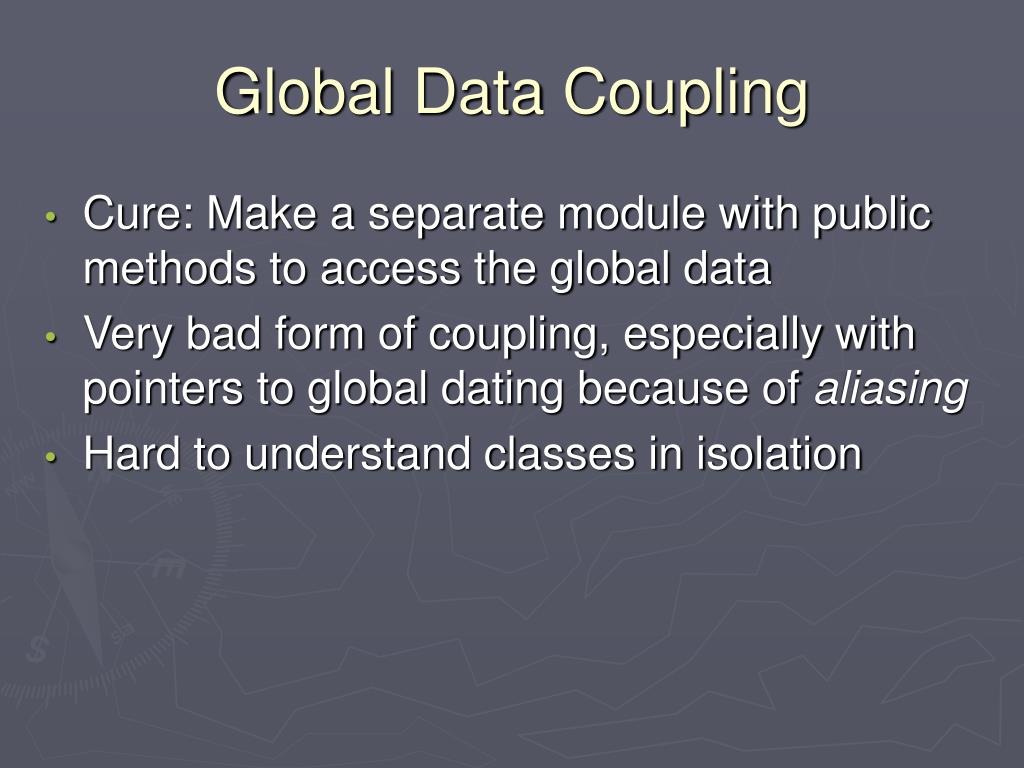

  16. Global Data Coupling • Cure: Make a separate module with public methods to access the global data • Very bad form of coupling, especially with pointers to global dating because of aliasing • Hard to understand classes in isolation

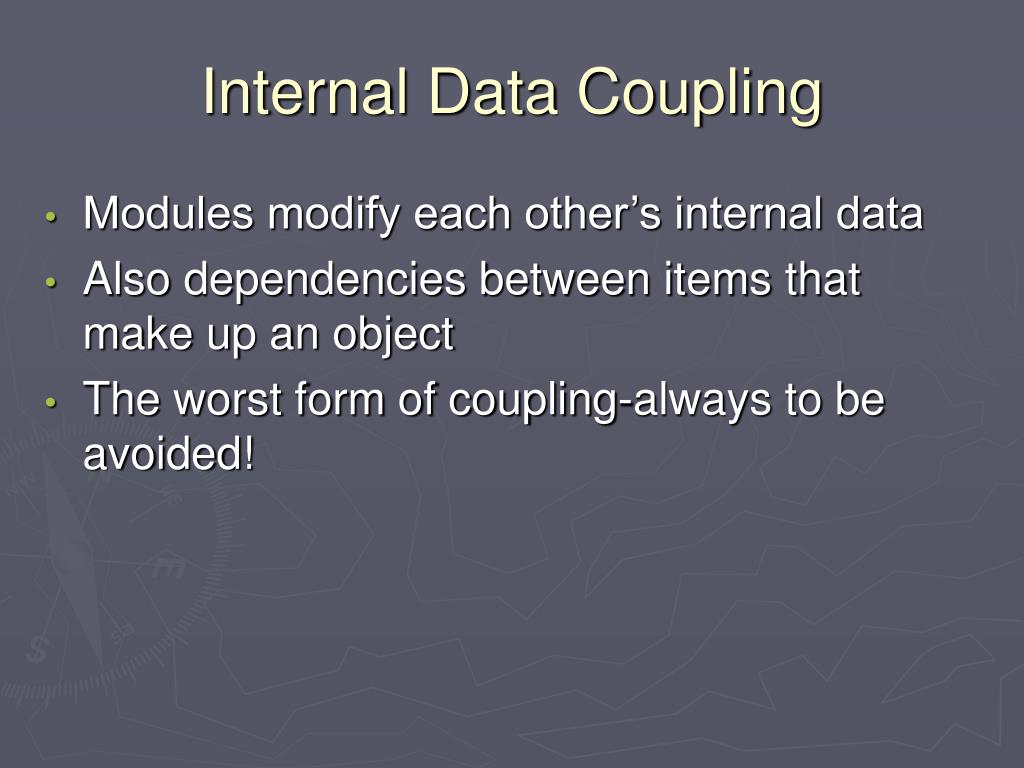

  17. Internal Data Coupling • Modules modify each other’s internal data • Also dependencies between items that make up an object • The worst form of coupling-always to be avoided!

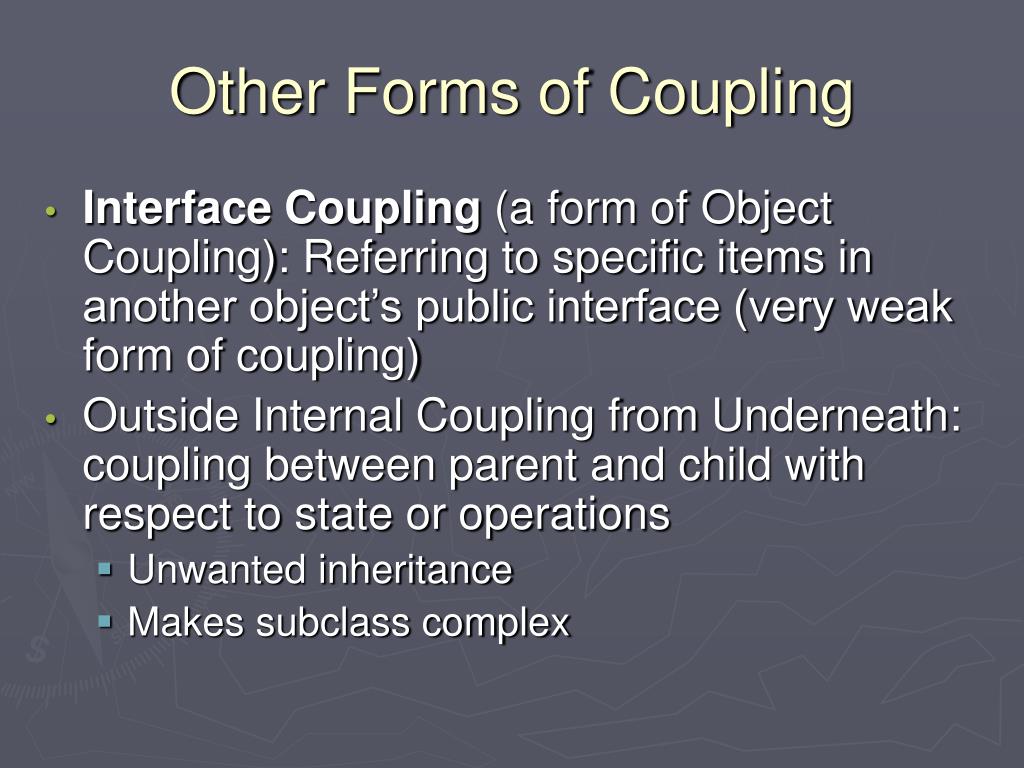

  18. Other Forms of Coupling • Interface Coupling (a form of Object Coupling): Referring to specific items in another object’s public interface (very weak form of coupling) • Outside Internal Coupling from Underneath: coupling between parent and child with respect to state or operations • Unwanted inheritance • Makes subclass complex
