General Ropework & Rigging. BLOCKS. EYE. CROWN. TALLY PLATE. SWALLOW. SHEAVE. CHEEK. TAIL or ARSE. BECKET. SNATCH BLOCK. A block with a gate held by a spring toggle Useful when a block needs to be clipped to a fixed line, e.g. RAS

deanna
Download Presentation

General Ropework & Rigging

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. General Ropework & Rigging

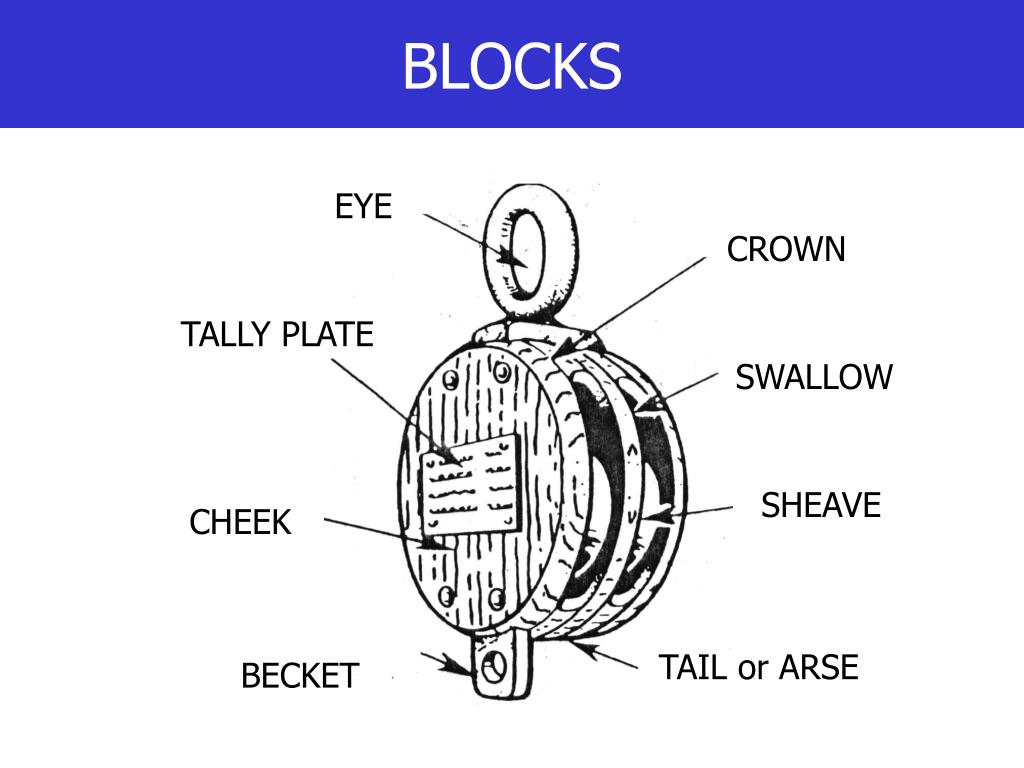

  2. BLOCKS EYE CROWN TALLY PLATE SWALLOW SHEAVE CHEEK TAIL or ARSE BECKET

  3. SNATCH BLOCK A block with a gate held by a spring toggle Useful when a block needs to be clipped to a fixed line, e.g. RAS Never to be used when a fixed block can be used - danger of failure

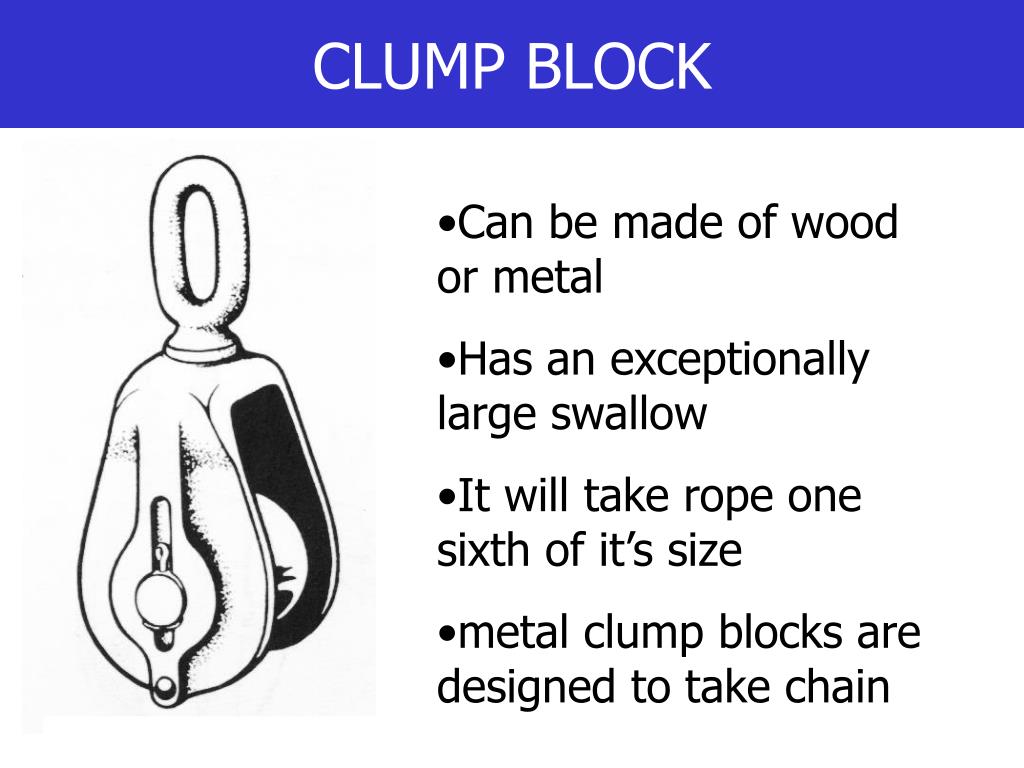

  4. CLUMP BLOCK • Can be made of wood or metal • Has an exceptionally large swallow • It will take rope one sixth of it’s size • metal clump blocks are designed to take chain

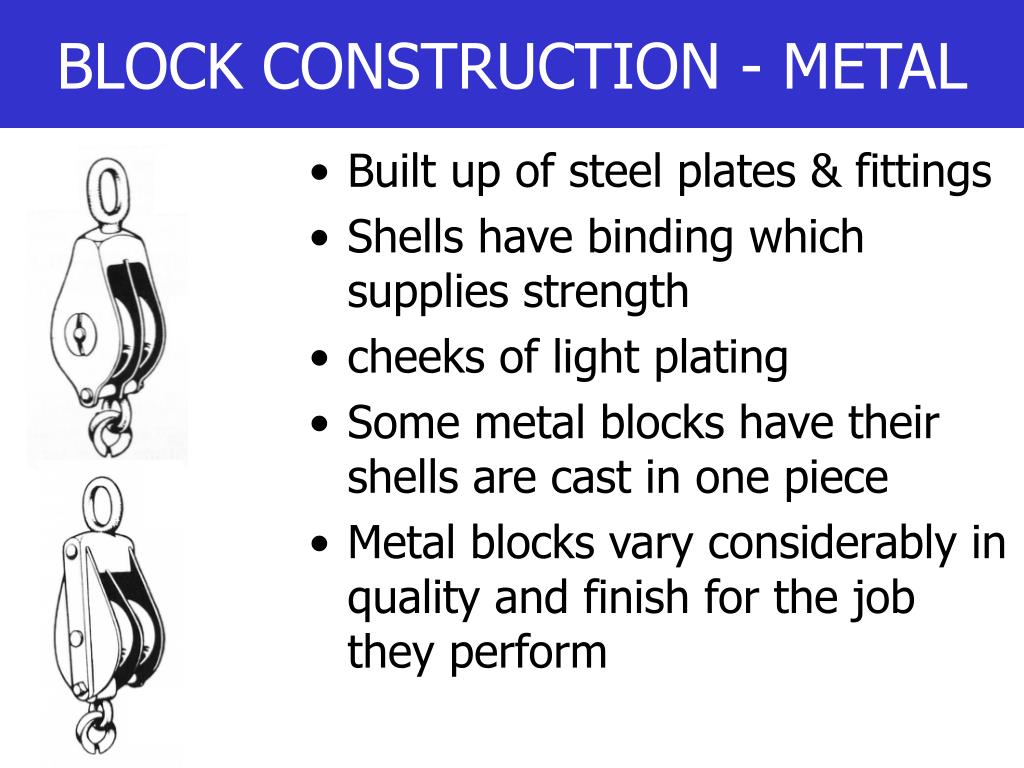

  5. BLOCK CONSTRUCTION - METAL • Built up of steel plates & fittings • Shells have binding which supplies strength • cheeks of light plating • Some metal blocks have their shells are cast in one piece • Metal blocks vary considerably in quality and finish for the job they perform

  6. BLOCK CONSTRUCTION – WOOD (Internal Bound)

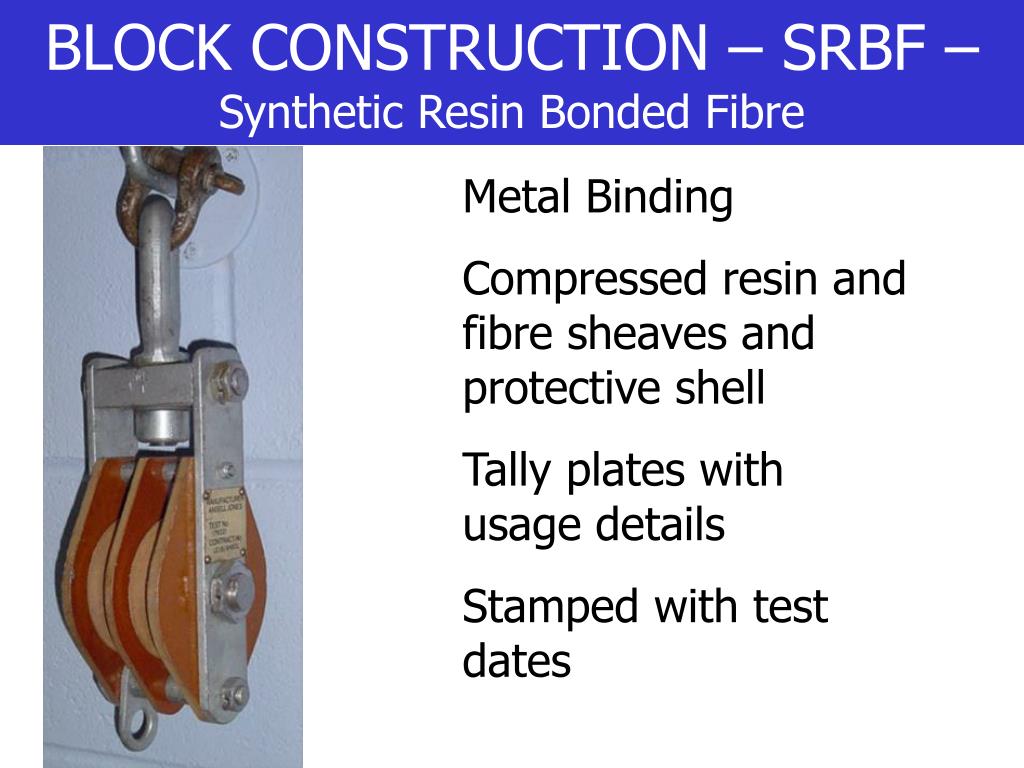

  7. BLOCK CONSTRUCTION – SRBF –Synthetic Resin Bonded Fibre Metal Binding Compressed resin and fibre sheaves and protective shell Tally plates with usage details Stamped with test dates

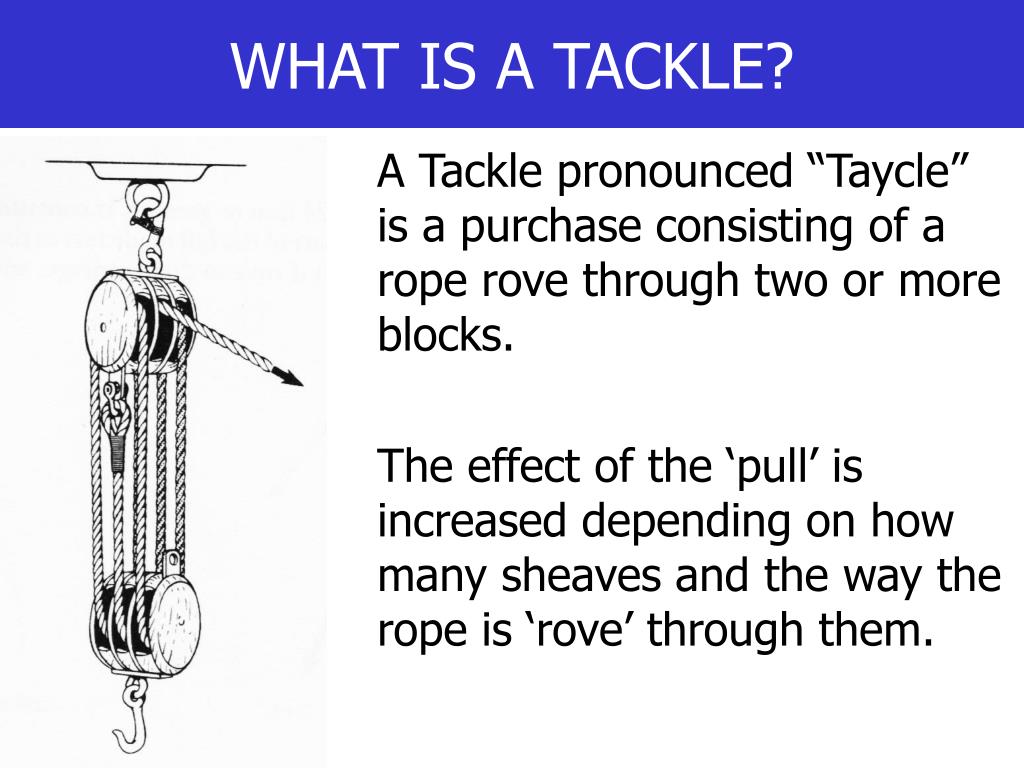

  8. WHAT IS A TACKLE? A Tackle pronounced “Taycle” is a purchase consisting of a rope rove through two or more blocks. The effect of the ‘pull’ is increased depending on how many sheaves and the way the rope is ‘rove’ through them.
