  1. V800 Series V800 / V801 V802 / V803 V830 / V831

  2. V800 / V801 • Top & Bottom Guided • V800 - push stem down to close • V801 - push stem down to open • Double seated • Semi-balanced • Dirty service • Size range: 1” – 12” • ANSI Class 150 – 1500

  3. V802 / V803 • Top & Bottom Guided • V802 - push stem down to close • V803 - push stem down to open • Single seated • Dirty service • Non-standard offering • No literature • Was 6” – 8” only Obsolete Product

  4. V830 3-Way Valve • Blending service • Size Range: ¾” – 10” • ANSI Class 150 – 600 • Full size trims only • Total Cv remains constant • Proportional flow • 70% upper + 30% lower • Use G130 to calculate Cv • Uses V802/V803 body

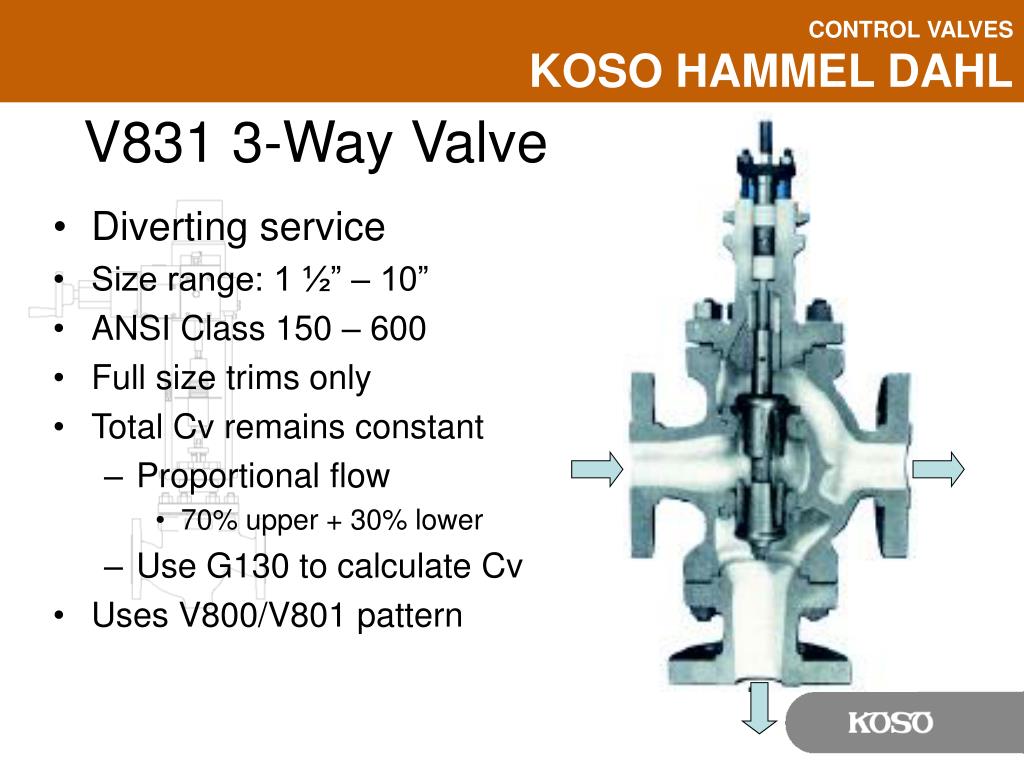

  5. V831 3-Way Valve • Diverting service • Size range: 1 ½” – 10” • ANSI Class 150 – 600 • Full size trims only • Total Cv remains constant • Proportional flow • 70% upper + 30% lower • Use G130 to calculate Cv • Uses V800/V801 pattern

  6. Masoneilan Offering • Double Seated T&B Guided • 10000 Series • Still offered • 3-Way Valve • 80000 Series

  7. Fisher Offering • Double seated T& B Guided • KB / KBR – obsolete product • 3-Way Valves • Y / YY – skirt-guided • YD / YS – cage trim design
