  1. Linux firewalls Massimo Ianigro - CNR Area di Ricerca - Bari Massimo.Ianigro@area.ba.cnr.it

  2. Introduzione ai firewalls Esistono diverse tipologie di firewalls: • Filtering firewalls: livello ‘network/transport’ • Proxy servers: livello ‘application’ • Application gateway (es. SQUID) • Socks proxy

  3. I meccanismi di packet filtering Application layer (server applicativi) Firewall TCP/UDP source/destination ports TCP connection state flags IP ICMP control codes Transport layer (TCP/UDP) Network layer (IP, ICMP) Data link layer (frame Ethernet,..) Physical layer

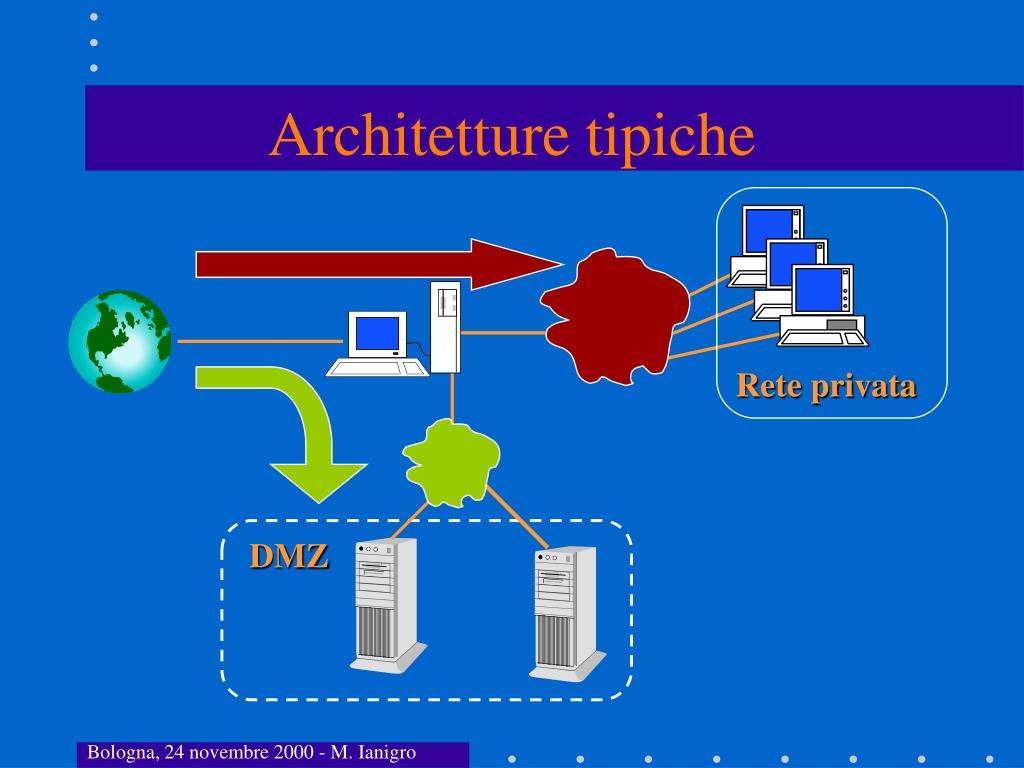

  4. Architetture tipiche Rete privata DMZ

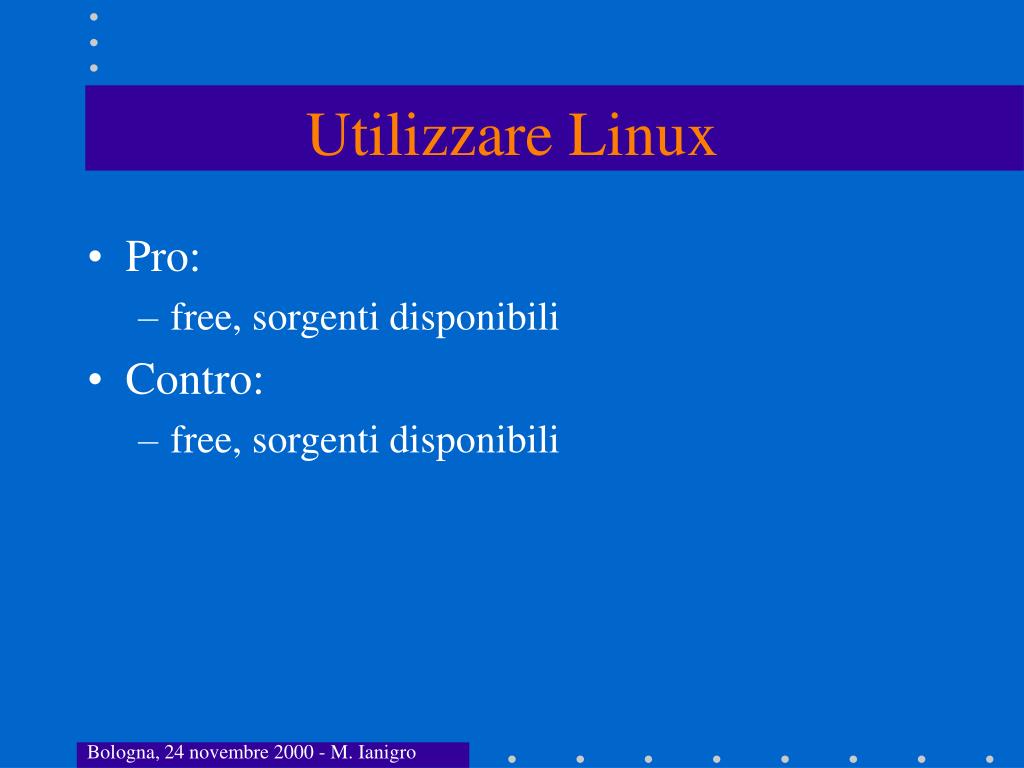

  5. Utilizzare Linux • Pro: • free, sorgenti disponibili • Contro: • free, sorgenti disponibili

  6. Packet filtering in linux • IPFWADM: kernel v. 2.1.101 e antecedenti • IPCHAINS: kernel v. 2.1.102 e successive • NetFilter: kernel v. 2.3x e seguenti • ...

  7. IPchains Meccanismo di filtering basato sul concetto di ‘chains’: Input, Forward, Output Pacchetto IP ?????????…. Forward Input 10001011…. Output Esempio: ipchains -A input -p tcp -s 0/0 -d 194.119.200.100/32 www -j ACCEPT -l

  8. Ipchains (2) Supporta la funzionalità di ‘masquerading’ (per alcuni protocolli richiede moduli specifici nel kernel: irc, real-audio,…) Indirizzo IP del firewall: 194.119.200.2 LAN interna Rete esterna Pacchetto IP Forward Input 192.168.1.x…. 194.119.200.2 …. Output ipchains -A forward -s 192.168.1.0/24 -d 0/0 -j MASQ

  9. Ipchains (3) E’ opportuno adottare oltre alle regole di filtering anche altri accorgimenti. Esempio: abilitare l’IP forwarding & defragment echo “1” > /proc/sys/net/ipv4/ip_forward echo “1” > /proc/sys/net/ipv4/ip_always_defrag

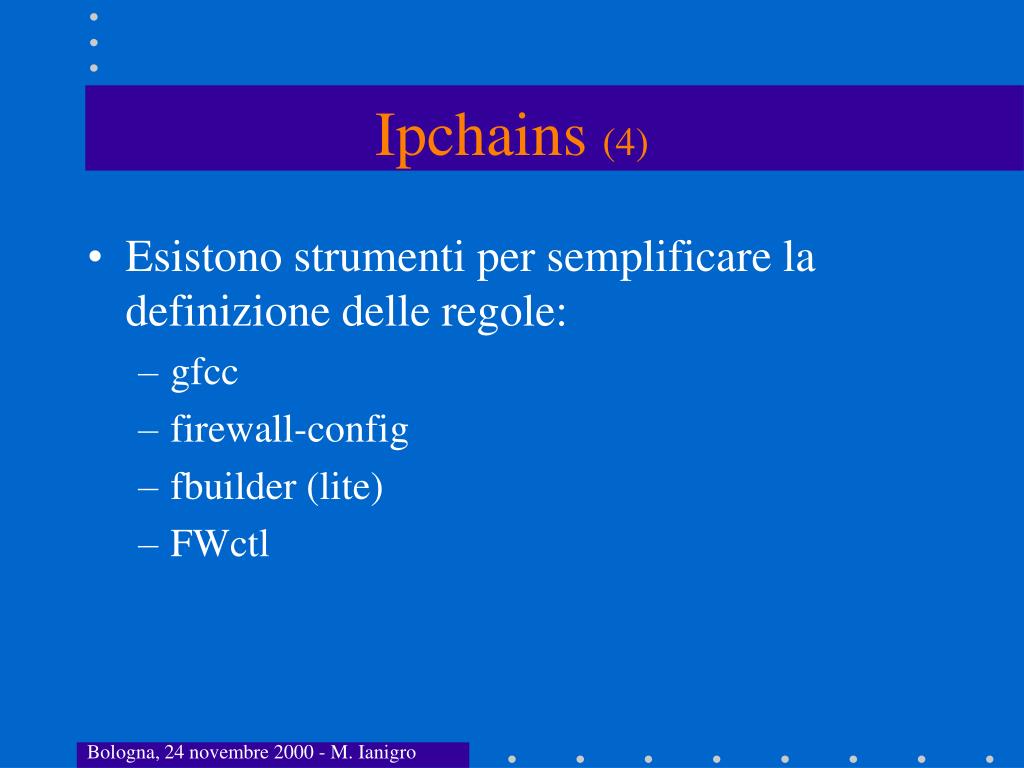

  10. Ipchains (4) • Esistono strumenti per semplificare la definizione delle regole: • gfcc • firewall-config • fbuilder (lite) • FWctl

  11. Proxy servers • Applicazioni separate per ogni servizio per il quale si offre il servizio di proxy. Esempio: • SQUID (WWW) • BNC (IRC) • … • Agiscono a livello ‘application’

  12. Altri accorgimenti • Rimuovere i vari servizi da /etc/(x)inetd.conf • Abilitare l’accesso via SSH • Prevedere eventualmente servizi dedicati solo per le macchine delle reti interne (es. DNS) • Logging remoto • …

  13. Link utili • HOW-Tos: www.linuxdoc.org • Linux IPCHAINS-HOWTO • Linux IP Masquerade HOWTO • Firewall and Proxy Server HOWTO • Tools per la configurazione di ipchains: www.linux.org (security/admin/firewalls)
