Presentation Transcript
digitaals steemide verifitseerimine

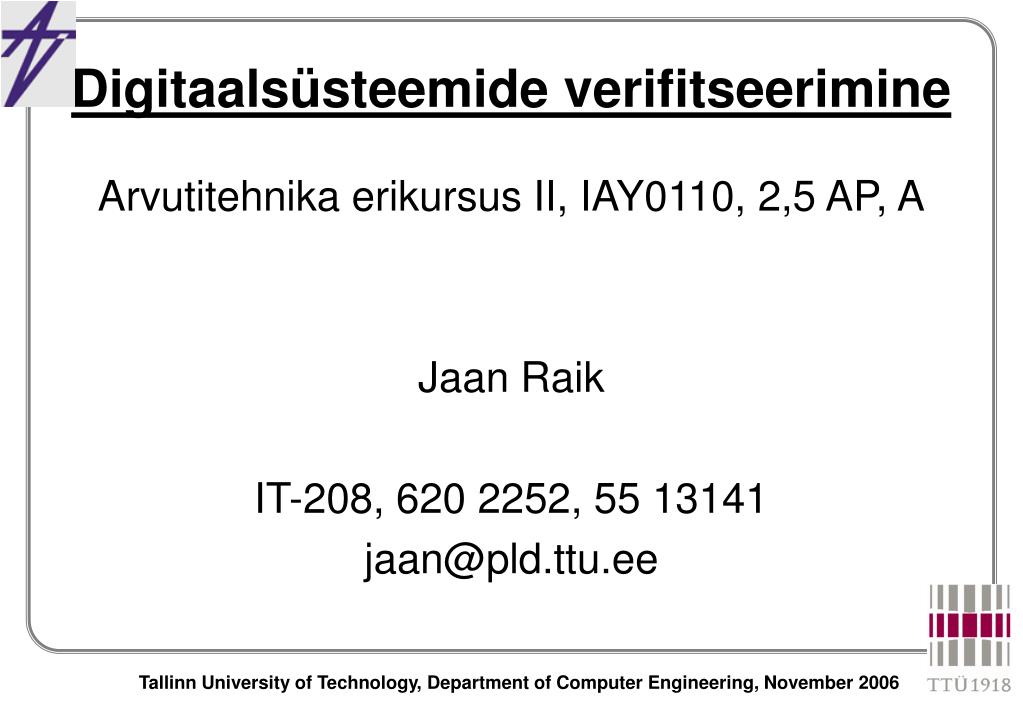

Digitaalsüsteemide verifitseerimine

Arvutitehnika erikursus II, IAY0110, 2,5 AP, A

Jaan Raik

IT-208, 620 2252, 55 13141

jaan@pld.ttu.ee

Tallinn University of Technology, Department of Computer Engineering, November 2006

digitaals steemide verifitseerimine1
Digitaalsüsteemide verifitseerimine

Õppematerjal:

Hardware Design Verification: Simulation and Formal Method-Based Approaches

William K. Lam, Sun Microsystems

...............................................

Publisher: Prentice Hall PTR

Pub Date: March 03, 2005

ISBN: 0-13-143347-4

Pages: 624

Tallinn University of Technology, Department of Computer Engineering, November 2006

digitaals steemide verifitseerimine2
Digitaalsüsteemide verifitseerimine

1. Sissejuhatus, verifitseerimise meetodid.(1.1-1.5)

2. Otsustudiagrammid ja ekvivalentsus. (8.1)

3. SAT, sümbolsimuleerimine. (8.4-8.5)

4. Väited ja SystemVerilog Assertions (5.4-5.5)

5. Verifitseerimise kattemõõdud (5.6)

6. Mudelikontroll (9)

7. DECIDER: mudelikontroll ja kattegeneraator

8. Verifitseerimine ja HDL (1.6, 2-4)

Tallinn University of Technology, Department of Computer Engineering, November 2006

decider as a model checker

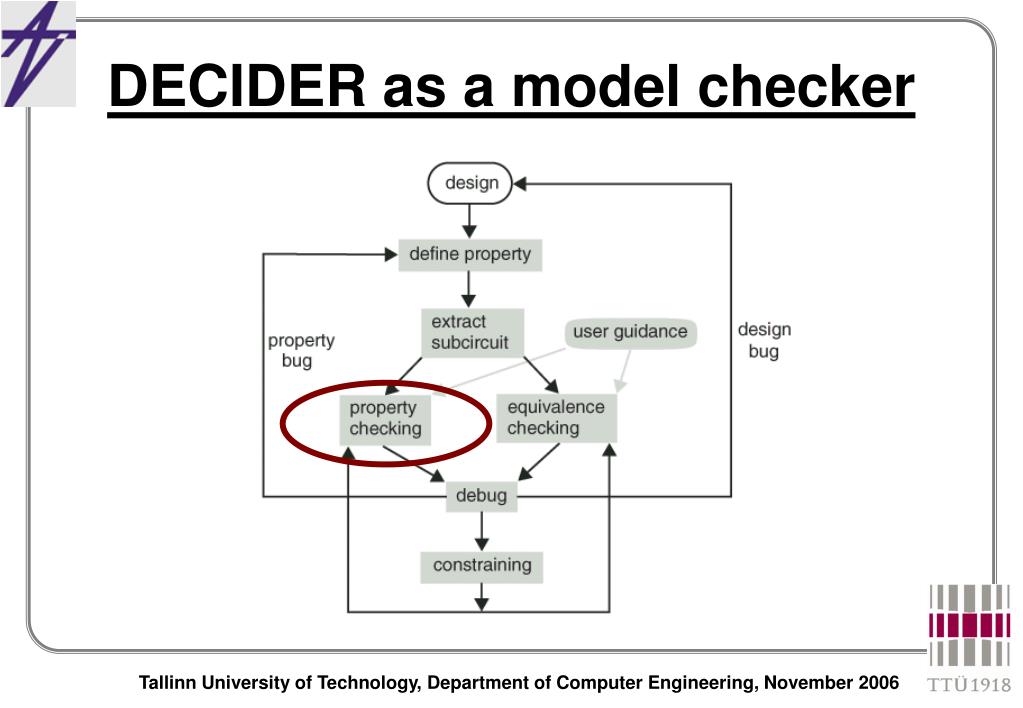

DECIDER as a model checker

Tallinn University of Technology, Department of Computer Engineering, November 2006

hldd coverage generation
HLDD Coverage Generation

Tallinn University of Technology, Department of Computer Engineering, November 2006

sequential atpg

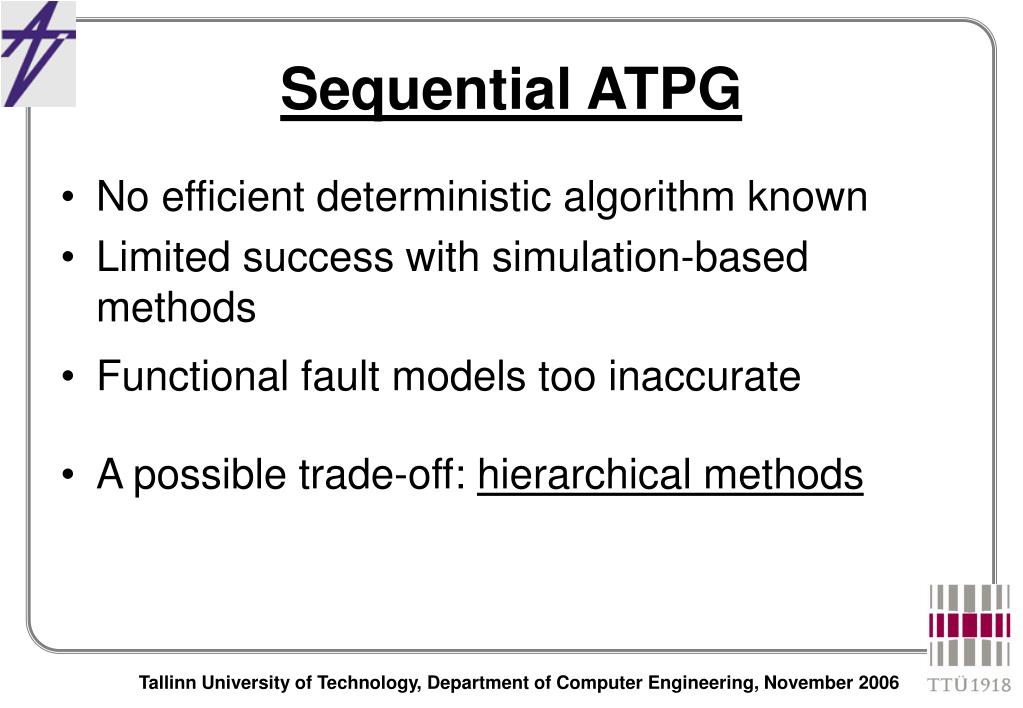

Sequential ATPG
  • No efficient deterministic algorithm known
  • Limited success with simulation-based methods
  • Functional fault models too inaccurate
  • A possible trade-off: hierarchical methods

Tallinn University of Technology, Department of Computer Engineering, November 2006

hierarchical methods
Hierarchical methods
  • Bottom-up approach (Murray, Hayes ITC’88)
    • tests generated at the lower level will be later assembled at the higher abstraction level
    • very fast but…
    • … incompleteness problem: constraints imposed by other modules may prevent test vectors from being assembled
  • Top-down approach (Lee, Patel TCAD’94)
    • constraints extracted at the higher level with the goal to be considered when deriving tests for modules at the lower level.

Tallinn University of Technology, Department of Computer Engineering, November 2006

recent works including dds
Recent works including DDs
  • Assignment Decision Diagrams + SAT (Ghosh, Fujita DAC’00; Zhang et al. ITC’03)
    • ADD combined with satisfiability methods
  • High-Level Decision Diagrams (Raik DATE’99)
    • HLDD based hierarchical ATPG DECIDER
    • Fault models for FUs and MUXes
  • Shortcomings:
    • Mainly FUs targeted, control part ignored...

Tallinn University of Technology, Department of Computer Engineering, November 2006

hldd versus add

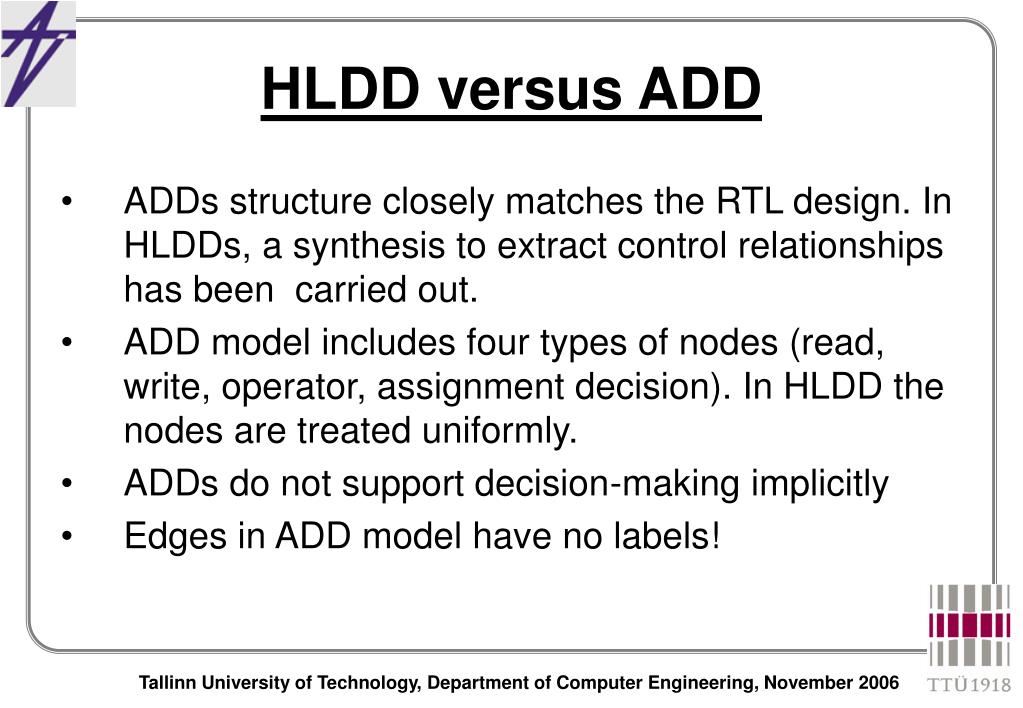

HLDD versus ADD
  • ADDs structure closely matches the RTL design. In HLDDs, a synthesis to extract control relationships has been carried out.
  • ADD model includes four types of nodes (read, write, operator, assignment decision). In HLDD the nodes are treated uniformly.
  • ADDs do not support decision-making implicitly
  • Edges in ADD model have no labels!

Tallinn University of Technology, Department of Computer Engineering, November 2006

high level decision diagrams
High-level decision diagrams

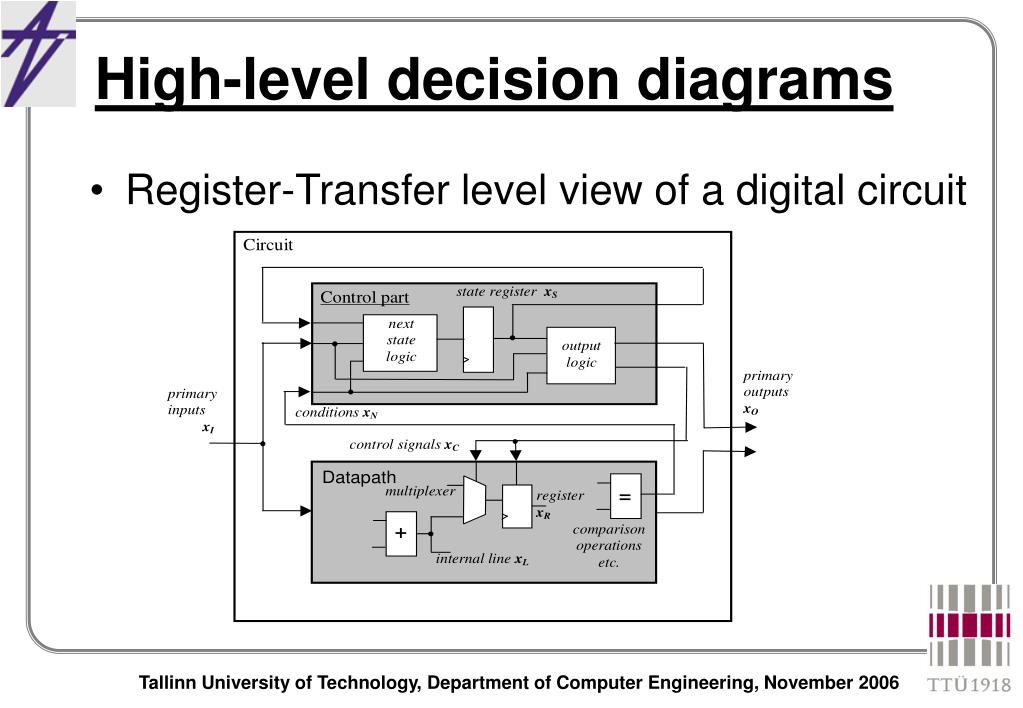

  • Register-Transfer level view of a digital circuit

Tallinn University of Technology, Department of Computer Engineering, November 2006

slide11

Decision diagrams for datapath

a) Datapath architecture

b) Decision diagram

Tallinn University of Technology, Department of Computer Engineering, November 2006

slide12

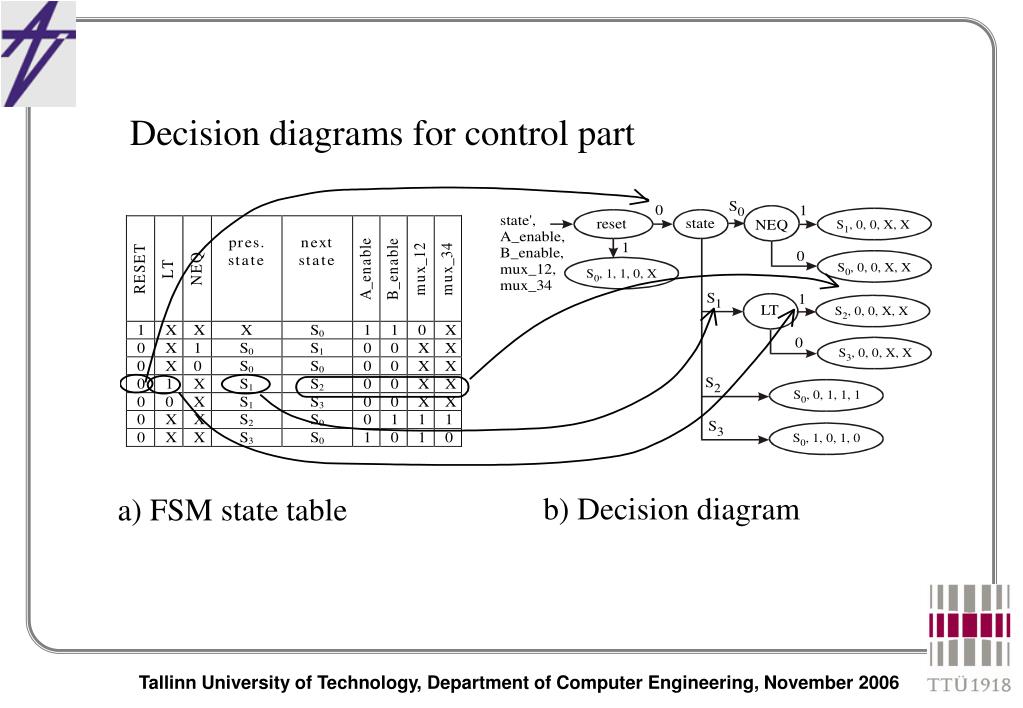

b) Decision diagram

a) FSM state table

Decision diagrams for control part

Tallinn University of Technology, Department of Computer Engineering, November 2006

decider algorithm
DECIDER algorithm
  • General flow

Tallinn University of Technology, Department of Computer Engineering, November 2006

decider algorithm1
DECIDER algorithm

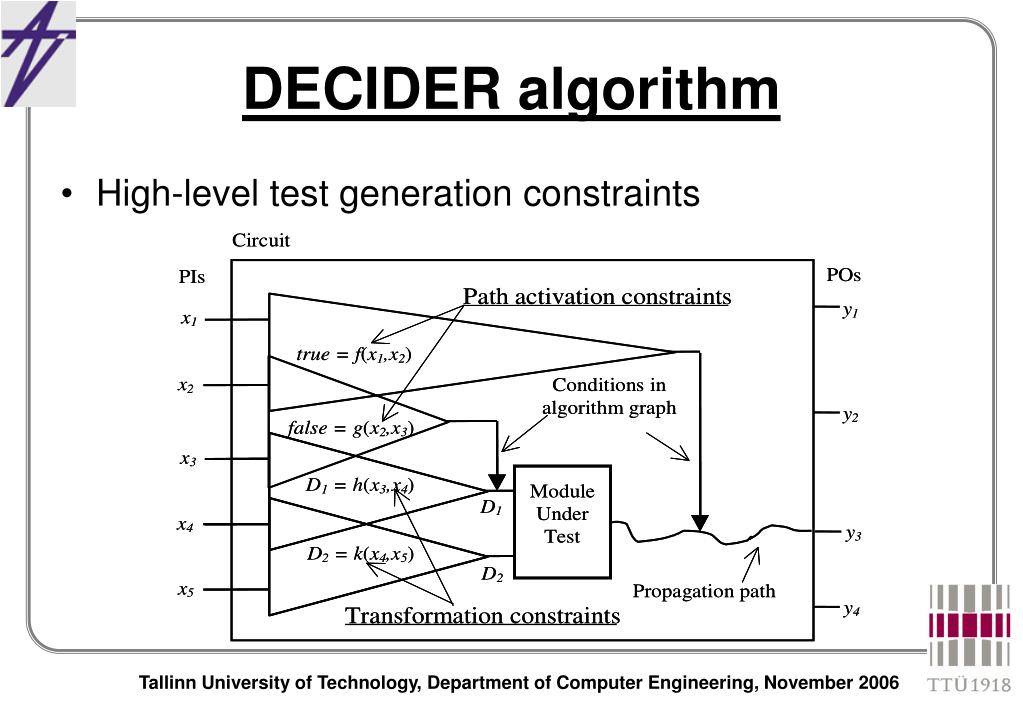

  • High-level test generation constraints

Tallinn University of Technology, Department of Computer Engineering, November 2006

decider algorithm2
DECIDER algorithm

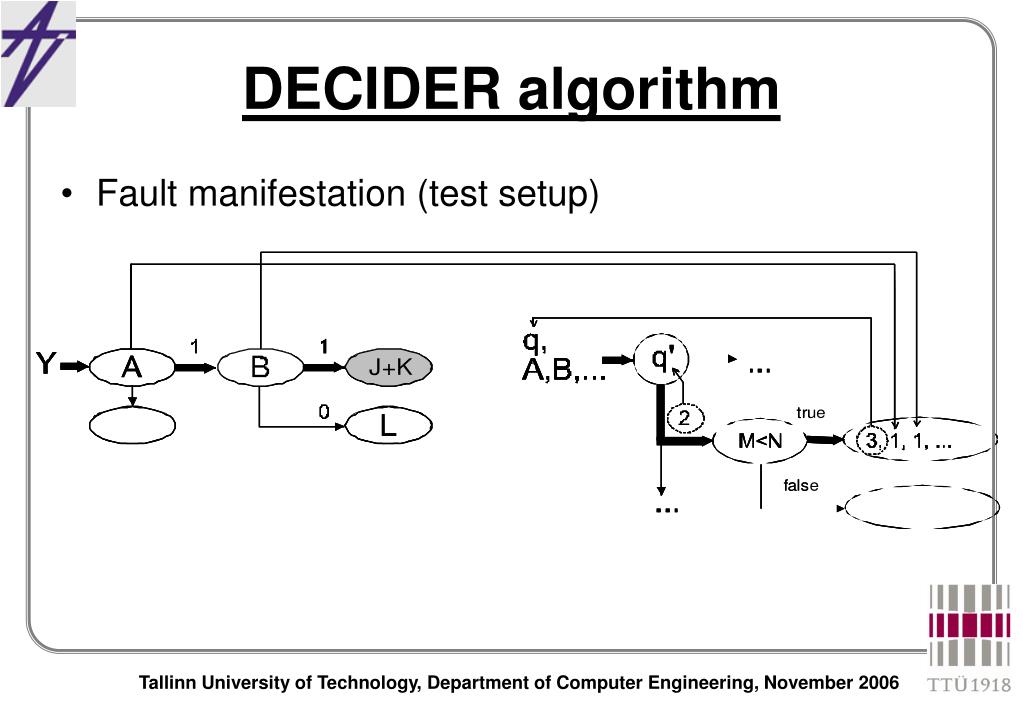

  • Fault manifestation (test setup)

Tallinn University of Technology, Department of Computer Engineering, November 2006

decider algorithm3
DECIDER algorithm
  • Fault effect propagation on HLDDs

Tallinn University of Technology, Department of Computer Engineering, November 2006

slide17

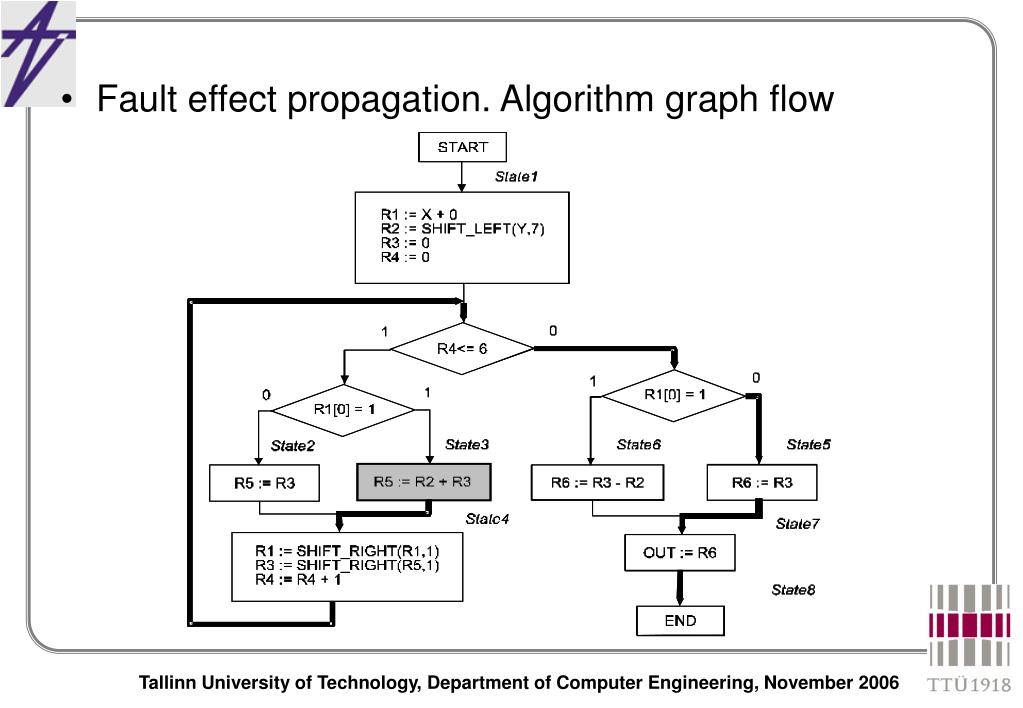

Fault effect propagation. Algorithm graph flow

Tallinn University of Technology, Department of Computer Engineering, November 2006

decider algorithm4
DECIDER algorithm

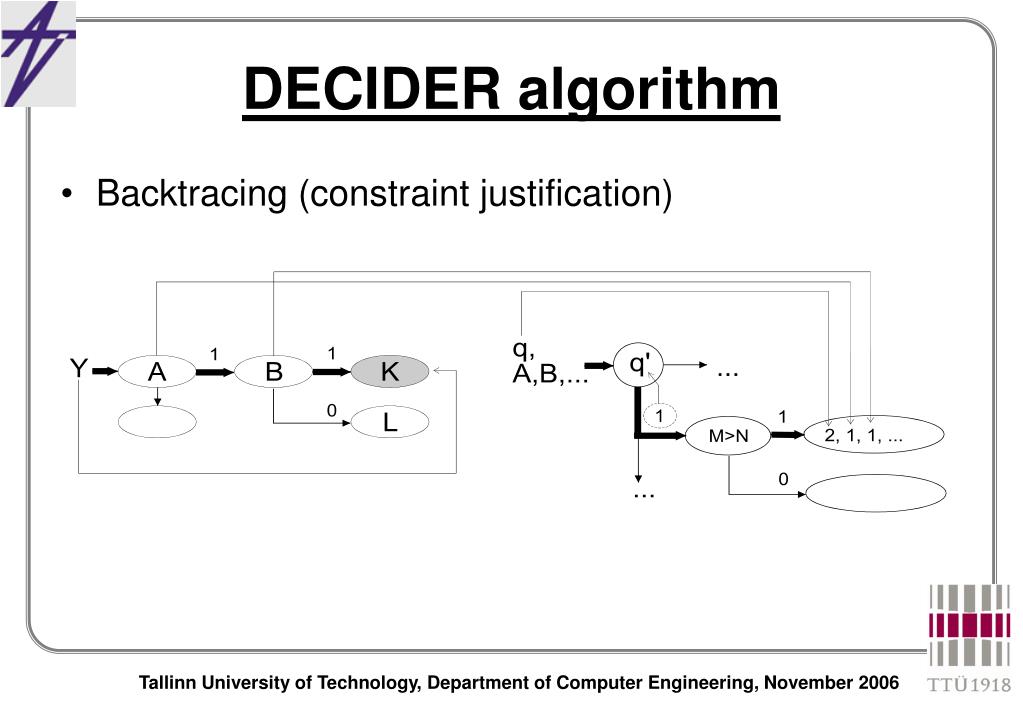

  • Backtracing (constraint justification)

Tallinn University of Technology, Department of Computer Engineering, November 2006

slide19
Backtrace (justification). Algorithm graph flow

Tallinn University of Technology, Department of Computer Engineering, November 2006

slide20

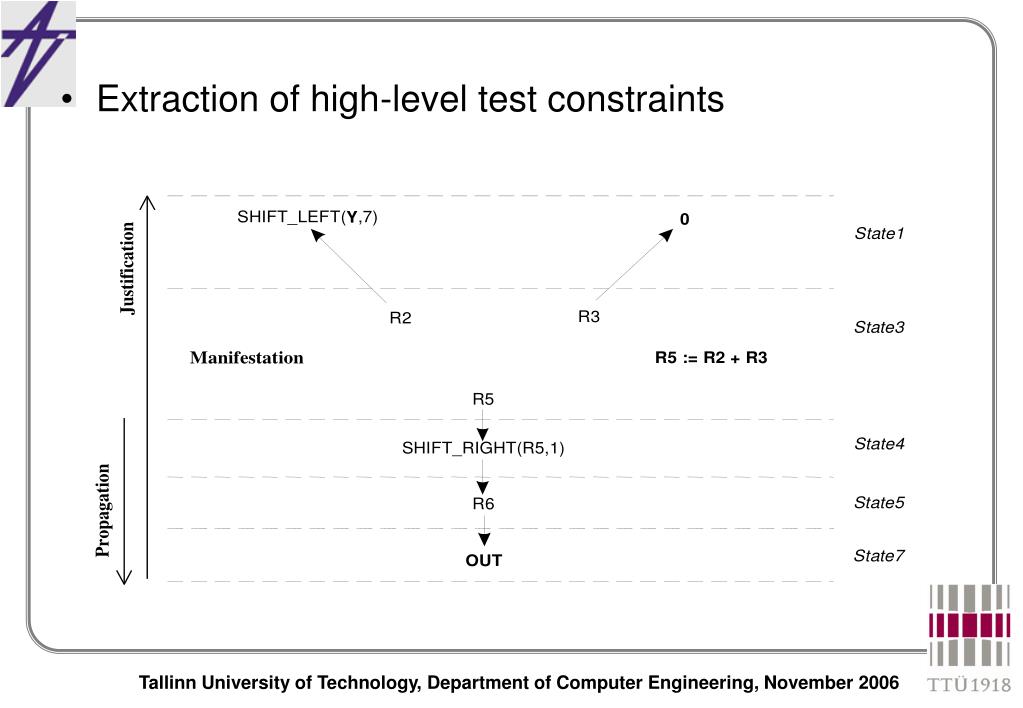

Extraction of high-level test constraints

Tallinn University of Technology, Department of Computer Engineering, November 2006

slide21

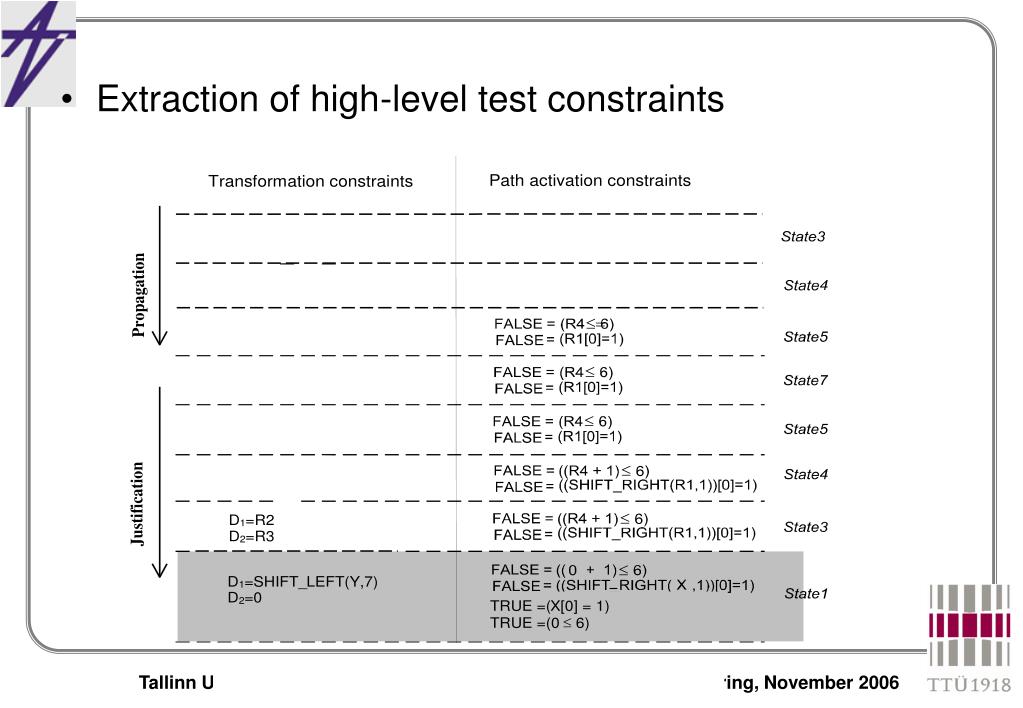

Extraction of high-level test constraints

Tallinn University of Technology, Department of Computer Engineering, November 2006

decider fault models

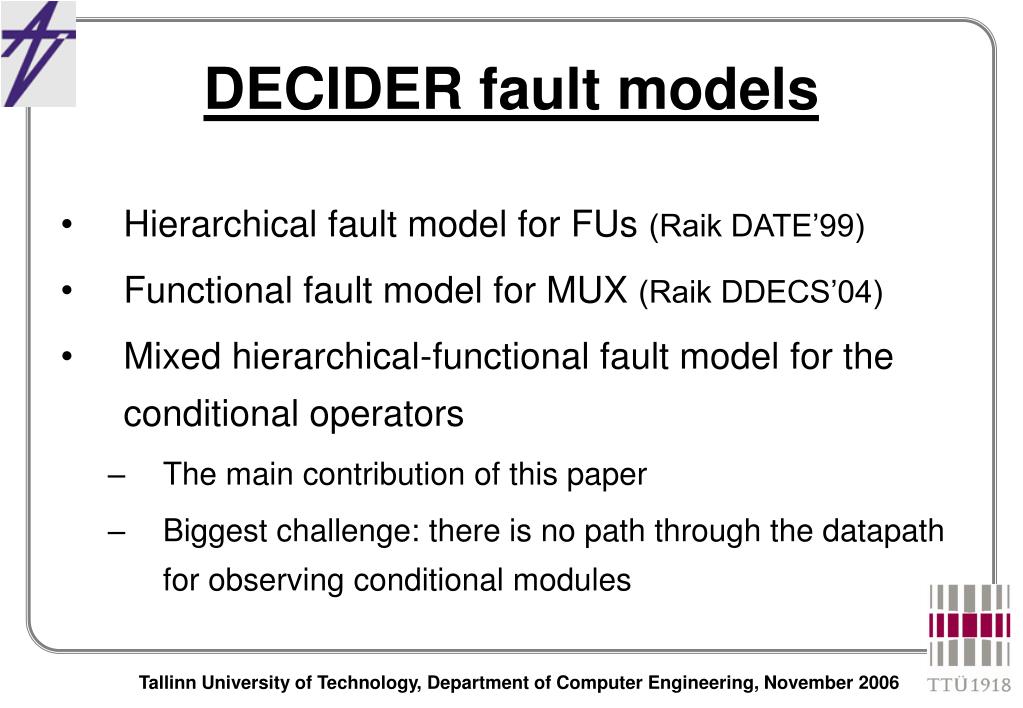

DECIDER fault models
  • Hierarchical fault model for FUs (Raik DATE’99)
  • Functional fault model for MUX (Raik DDECS’04)
  • Mixed hierarchical-functional fault model for the conditional operators
    • The main contribution of this paper
    • Biggest challenge: there is no path through the datapath for observing conditional modules

Tallinn University of Technology, Department of Computer Engineering, November 2006

fault model for conditions

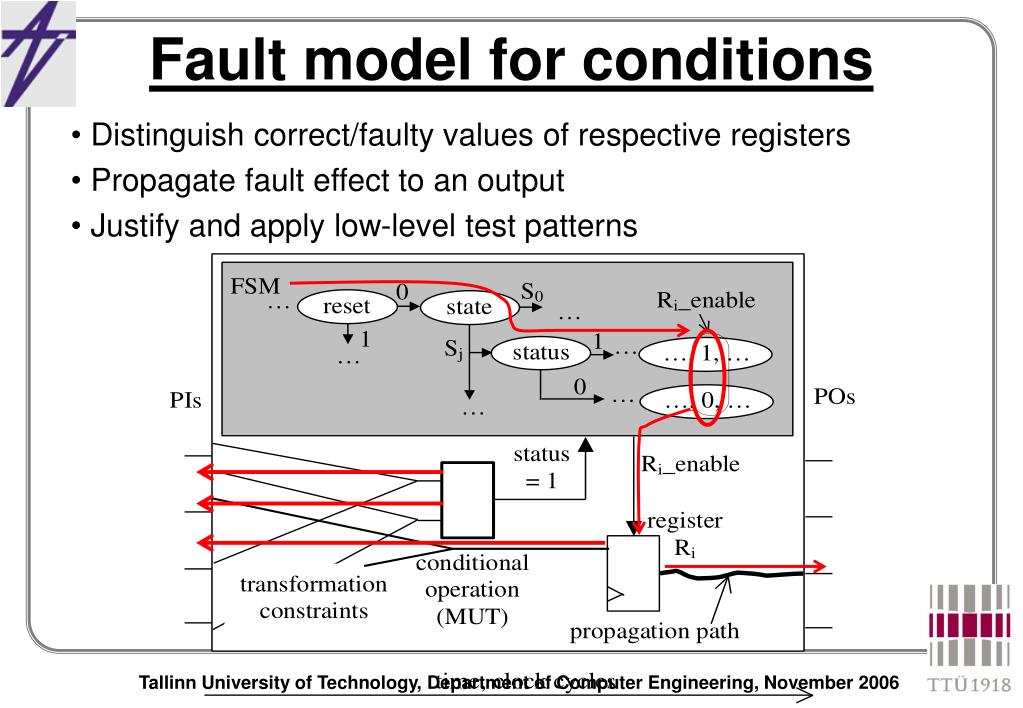

Fault model for conditions
  • Distinguish correct/faulty values of respective registers
  • Propagate fault effect to an output
  • Justify and apply low-level test patterns

Tallinn University of Technology, Department of Computer Engineering, November 2006

experimental results

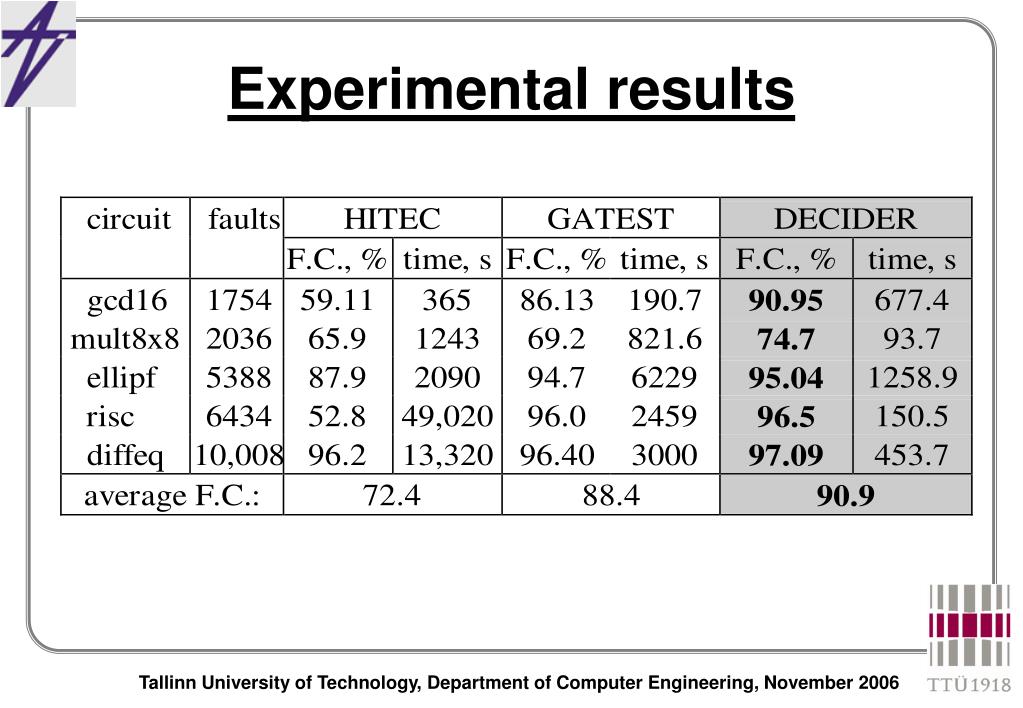

Experimental results

Tallinn University of Technology, Department of Computer Engineering, November 2006

experimental results1
Experimental results

Tallinn University of Technology, Department of Computer Engineering, November 2006

experimental results2
Experimental results

Tallinn University of Technology, Department of Computer Engineering, November 2006

experimental results3
Experimental results

Tallinn University of Technology, Department of Computer Engineering, November 2006

conclusions and future work

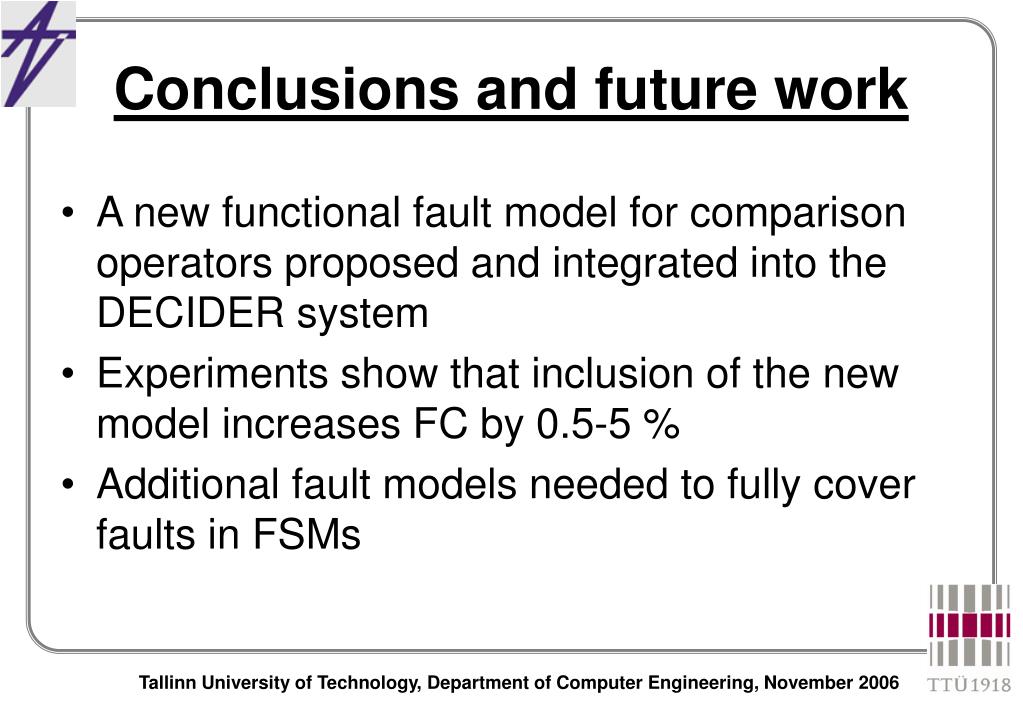

Conclusions and future work
  • A new functional fault model for comparison operators proposed and integrated into the DECIDER system
  • Experiments show that inclusion of the new model increases FC by 0.5-5 %
  • Additional fault models needed to fully cover faults in FSMs

Tallinn University of Technology, Department of Computer Engineering, November 2006

vertigo plans
VERTIGO plans

Tallinn University of Technology, Department of Computer Engineering, November 2006

co operation
Co-operation
  • Run Laerte++ and Decider on same bench-marks and investigate the covered fault sets
  • Pass information from Laerte++ to Decider to target hard faults or check partial solutions
  • To Do:
    • interface between the engines (var. names etc.)
    • a proper constraint solver for Decider
    • support for new fault models

Tallinn University of Technology, Department of Computer Engineering, November 2006
