Comprehensive Guide to Graphing Trigonometric Functions

Learn how to graph sine, cosine, tangent, cotangent, secant, and cosecant functions with step-by-step instructions and practical applications. Master different forms and understand amplitudes, periods, and phase shifts.

dboyce
Download Presentation

Comprehensive Guide to Graphing Trigonometric Functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 3Graphing Trigonometric Functions 3.1 Basic Graphics 3.2 Graphing y = k + A sin Bx and y = k +A cos Bx 3.3 Graphing y = k + A sin (Bx + C) and y = k +A cos (Bx + C) 3.4 Additional Applications 3.5 Graphing Combined Forms 3.6 Tangent, Cotangent, Secant, and Cosecant Functions Revisited

  2. 3.1 Basic Graphs • Graphs of y = sin x and y = cos x • Graphs of y = tan x and y = cot x • Graphs of y = csc x and y = sec x • Graphing with a graphing calculator

  3. y = sin x

  4. y = cos x

  5. y = tan x

  6. Other Graphs

  7. 3.2 Graphing y= k + A sin Bx and y = k + A cos Bx • Graphing y = A sin x and y = A cos x • Graphing y = sin Bx and y = cos Bx • Graphing y = A sin Bx and y = A cos Bx • Graphing y= k + A sin Bx and y = k + A cos Bx • Applications

  8. Comparing Amplitudes • Compare the graphs of y = 1/3 sin x and y = 3 sin x • The effect of A in y = A sin x is to increase or decrease the y values without affecting the x values.

  9. Comparing Periods • Compare the graphs of y = sin 2x and y = sin ½ x The graph shows the change in the period.

  10. Amplitude and Period For both y = A sin Bx and y = A cos Bx: Amplitude = |A| Period = 2p/B

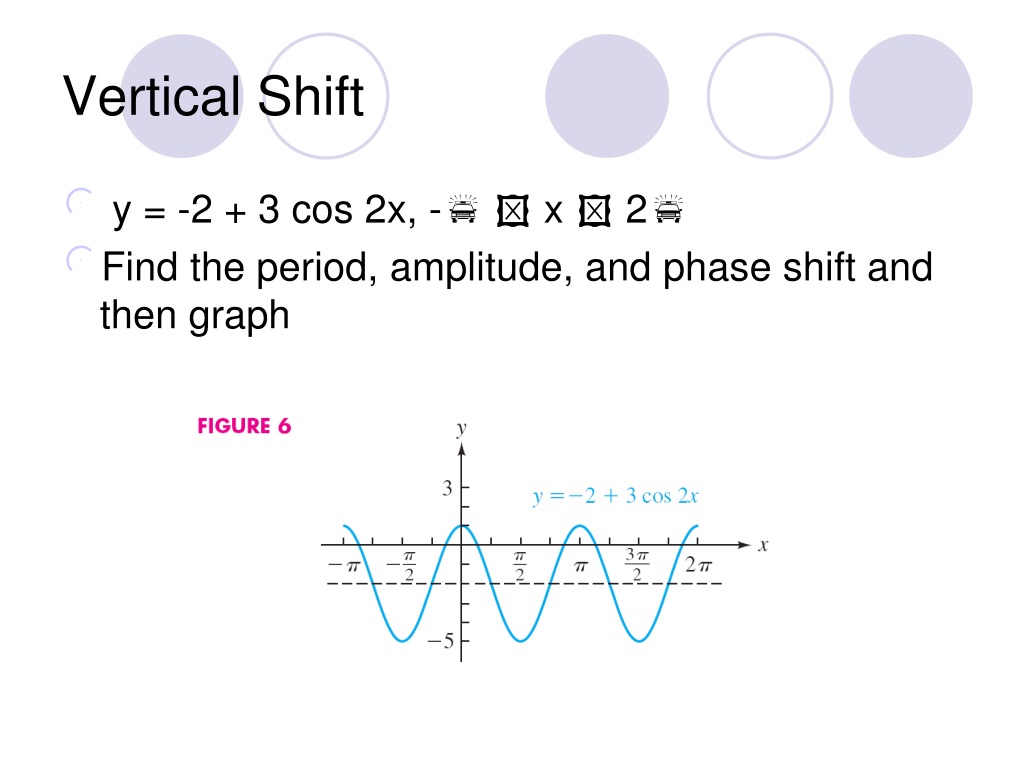

  11. Vertical Shift • y = -2 + 3 cos 2x, -p x  2p • Find the period, amplitude, and phase shift and then graph

  12. Period and Frequency • For any periodic phenomenon, if P is the period and f is the frequency, P = 1/f.

  13. 3.3 Graphing y = k + A sin (Bx + C) and y = k + A cos (Bx + C) • Graphing y = A sin (Bx + C) and y = A cos (Bx + C) • Graphing y = k + A sin (Bx + C) and y = k + A cos (Bx + C) • Finding the equation for the graph of a simple harmonic motion

  14. Finding Period and Phase Shift • y = A sin (Bx + C) and y = A cos (Bx + C) • These have the same general shape as y = A sin Bx and y = A cos Bx translated horizontally. • To find the translation: x = -C/B (phase shift) and x = -C/B + 2p/B

  15. Phase shift and Period • Find the period and phase shift of y = sin(2x + p/2) • The period is p. • The phase shift is –p/4.

  16. Steps for Graphing

  17. 3.4 Additional Applications • Modeling electric current • Modeling light and other electromagnetic waves • Modeling water waves • Simple and damped harmonic motion: resonance

  18. Alternating Current Generator • I = 35 sin (40pt – 10p) (current) • Amplitude = 35 • Phase shift: 40pt = 10p t = ¼ • Frequency = 1/Period = 20 Hz • Period = 1/20

  19. Electromagnetic Waves • E = A sin 2p(vt – r/l) • t = time, r = distance from the source, l is the wavelength, v is the frequency

  20. Water Waves • y = A sin 2p(f1t – r/l) • t = time, r = distance from the source, l is the wavelength, f1 is the frequency

  21. Damped Harmonic Motion • Y = (1/t)sin (p/2)t, 1  t  8 • First, graph y = 1/t. • Then, graph y = sin(pt/2) keeping high and low points within the envelope.

  22. 3.6 Tangent, Cotangent, Secant, and Cosecant Functions Revisited • Graphing y = A tan (Bx + C) and y = cot (Bx + c) • Graphing y = A sec (Bx + C) and y = csc (Bx + c)

  23. y = tan x

  24. y = cot x

  25. y = csc x

  26. Y = sec x

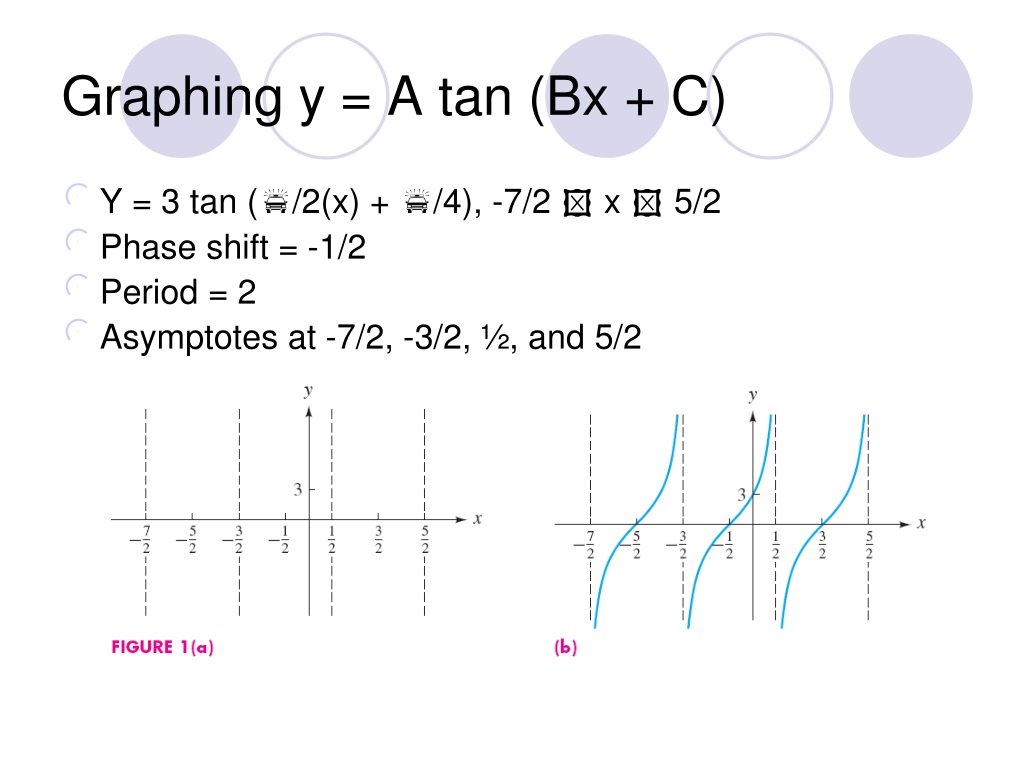

  27. Graphing y = A tan (Bx + C) • Y = 3 tan (p/2(x) + p/4), -7/2  x  5/2 • Phase shift = -1/2 • Period = 2 • Asymptotes at -7/2, -3/2, ½, and 5/2

  28. Graph of y = sec x • Graph y = 5 sec (1/2(x) + p) for -7p x  3p.

  29. Graphing y = A csc(Bx + C) • Graph y = 2 csc (p/2(x) = p) for -2 < x < 10
