MixersTheory and Applications




Slide4 l.jpg

Summary of our radio waveforms

Audio Frequency (AF)

Beat Frequency Oscillator (BFO)

Intermediate Frequency stage (IF)

Local Oscillator (LO)

Radio Frequency stage (RF).


Slide5 l.jpg

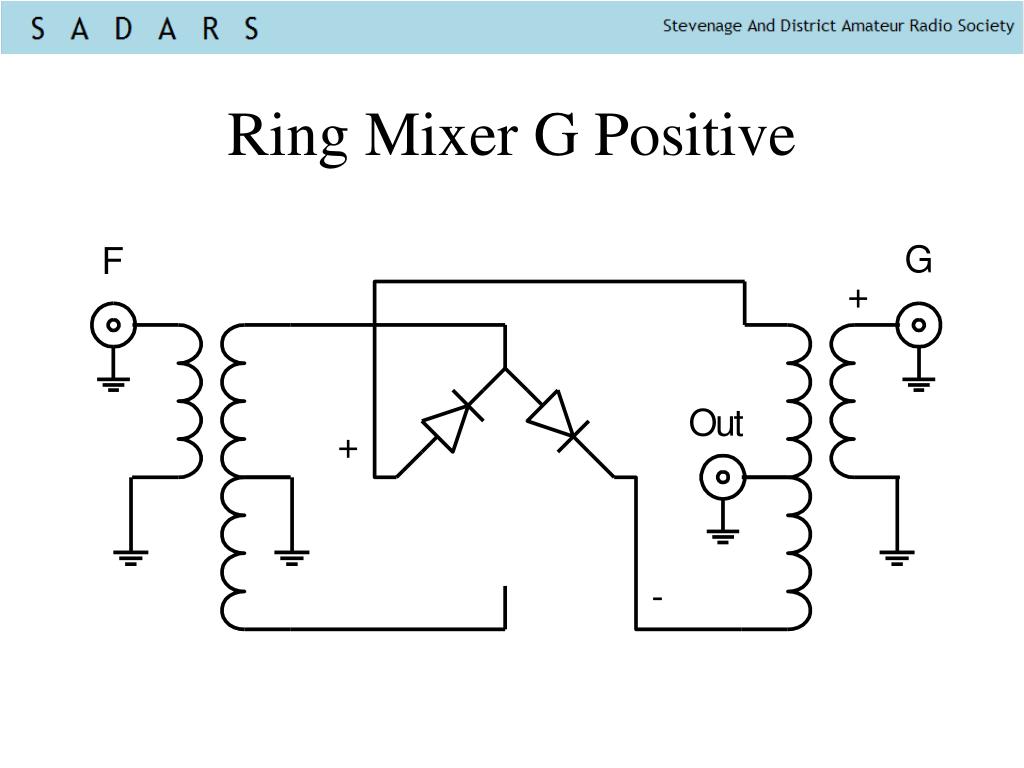

The ideal mixer (A reminder)

An ideal mixer multiplies rather than adds waveforms.

In a moment we will look at the electronics of mixers.

If you feed two sine waves at frequencies F and G into a multiplier you just get sine waves at frequencies F+G and F-G and no harmonics.

Lets remind ourselves what these waveforms are like before we look in more detail at real mixers.




Slide8 l.jpg

Some maths

Last time we noted that the output waveforms were 90 degree phase shifted sine waves of half the amplitude.

For many purposes this makes no difference. However we will look at this in more detail later in the talk (but avoiding maths).

Sin(f)* Sin(g) = Cos(f-g)/2 – Cos(f+g)/2



Diode characteristic l.jpg
Diode Characteristic

Voltage in volts

Current in milliamps

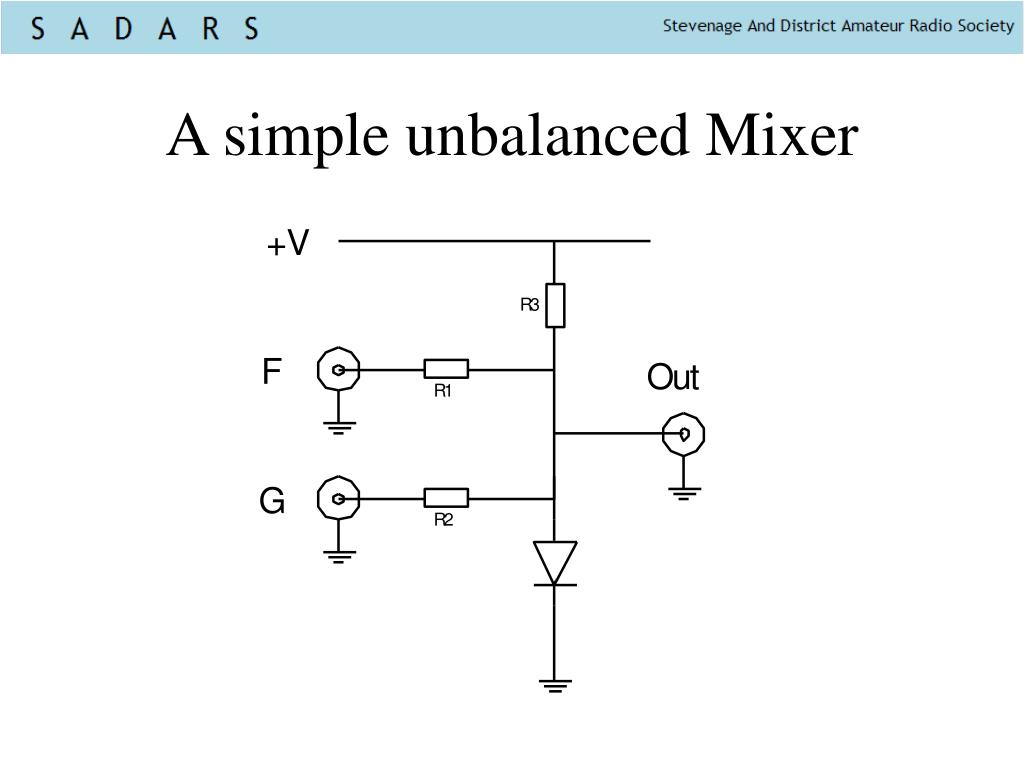

Disadvantages of the simple mixer l.jpg
Disadvantages of the simple mixer

  • No carrier rejection (G)

  • No input rejection (F)

  • High drive voltage needed on all inputs

  • Harmonic distortion on all signals

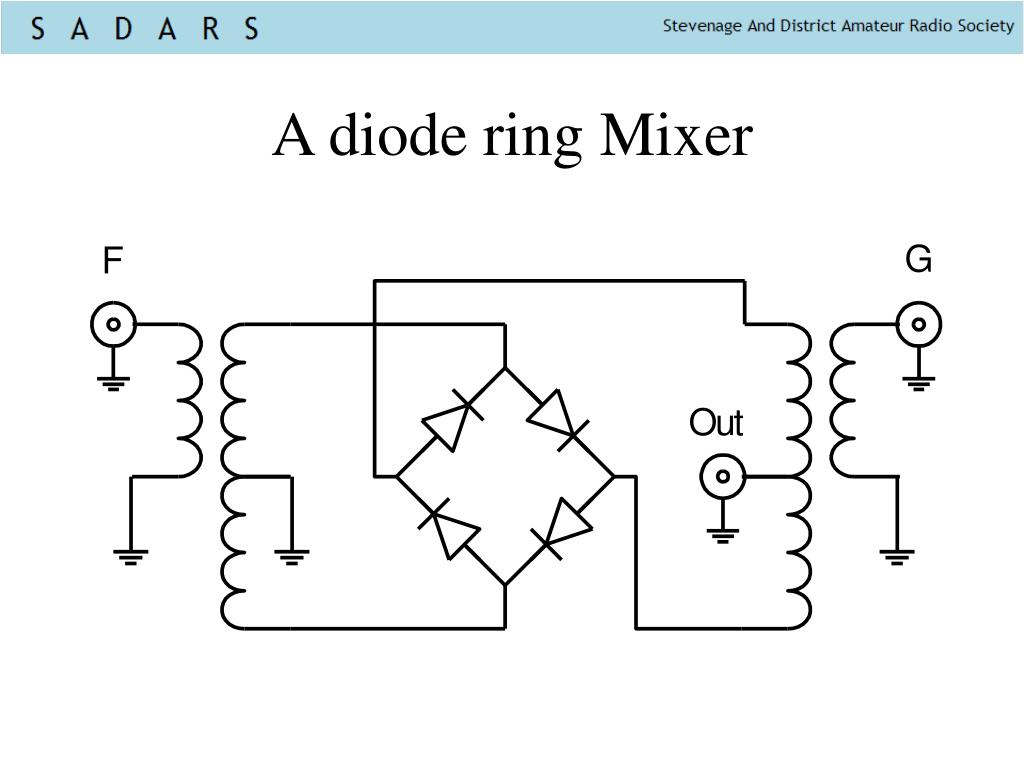

Advantages of the ring mixer l.jpg
Advantages of the ring mixer

  • Good carrier rejection

  • Good Input rejection


Disadvantages of the ring mixer l.jpg

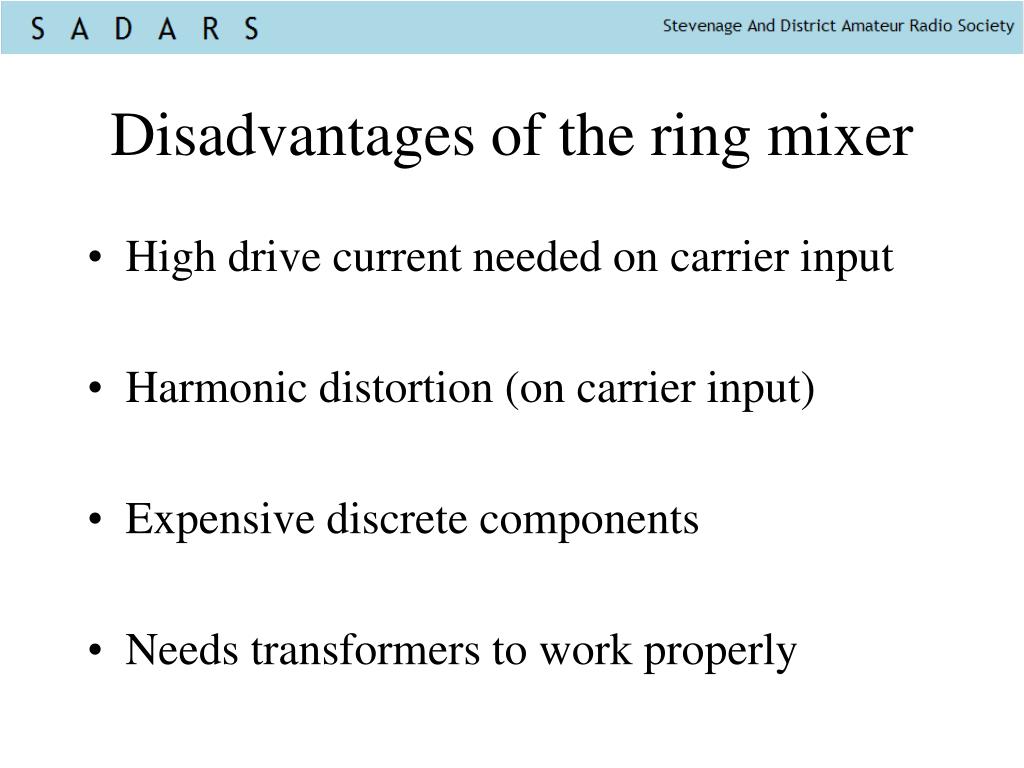

Disadvantages of the ring mixer

  • High drive current needed on carrier input

  • Harmonic distortion (on carrier input)

  • Expensive discrete components

  • Needs transformers to work properly

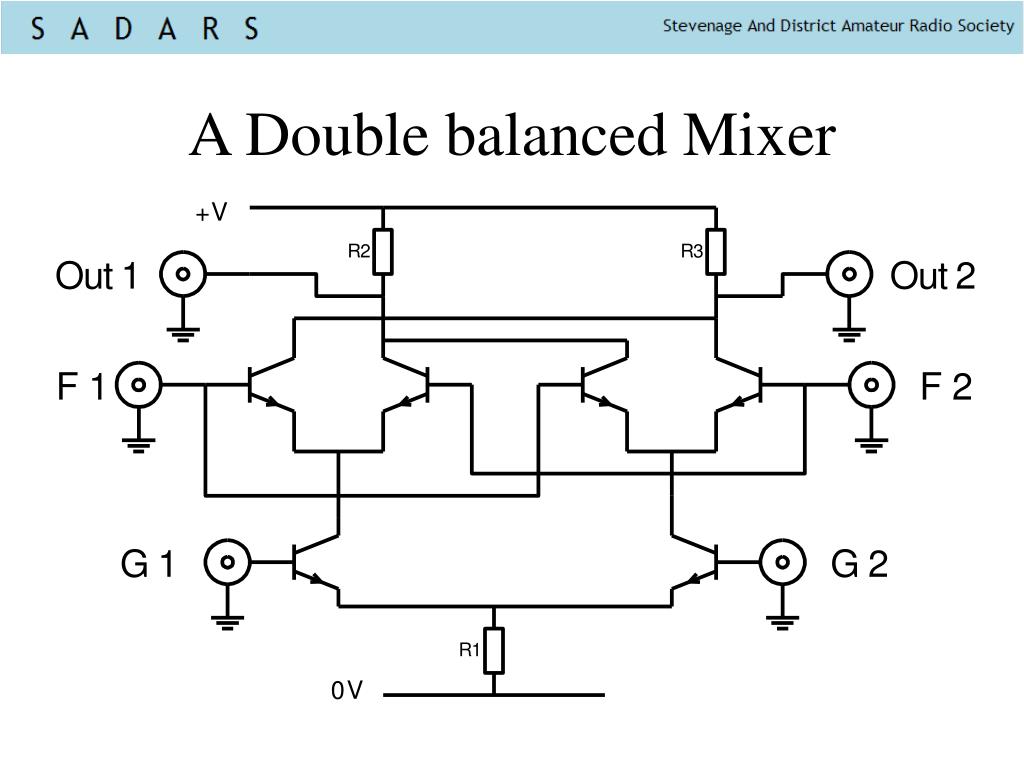

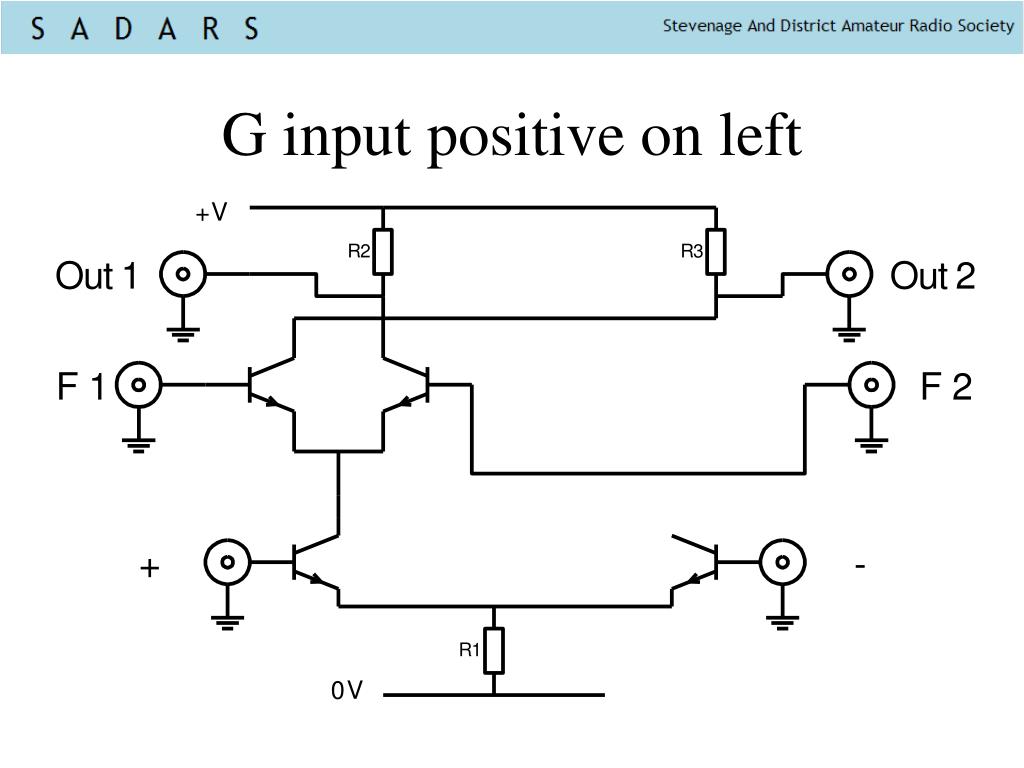

Advantages of the double balanced mixer l.jpg

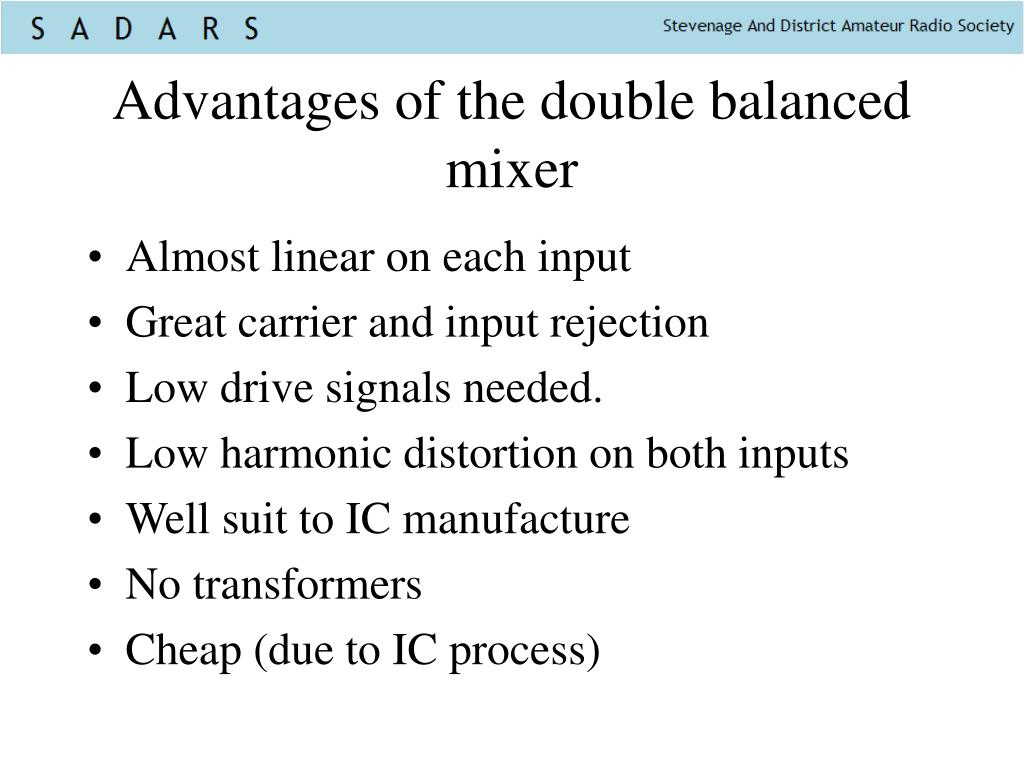

Advantages of the double balanced mixer

  • Almost linear on each input

  • Great carrier and input rejection

  • Low drive signals needed.

  • Low harmonic distortion on both inputs

  • Well suit to IC manufacture

  • No transformers

  • Cheap (due to IC process)




Slide24 l.jpg

Orthogonality

Two things are orthogonal if changing one doesn’t change the other. In geometry this is a right angle.

For example: Latitude, Longitude and Altitude over sea are orthogonal. Over land they are not.

Sine waves of different frequencies are Orthogonal.

Most other waveforms are not orthogonal.


Slide25 l.jpg

Orthogonality Example

If you feed sine waves at frequencies F and G into a mixer you get sine waves at frequencies F+G and F-G.

If F=G then you get 2F and DC out

So if you take the DC average of the output you will get zero unless F=G. (Only true for orthogonal waveforms such as sine waves)

So if we use an accurate signal generator for G then the DC value is a measure of the harmonic of F at G


Slide26 l.jpg

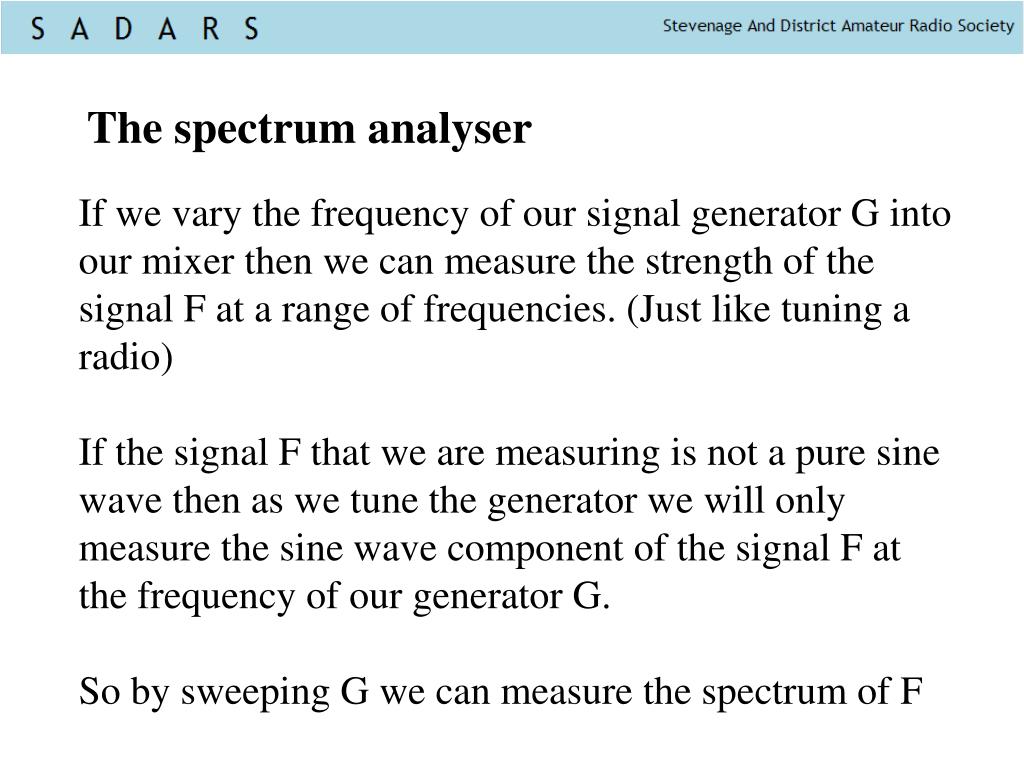

The spectrum analyser

If we vary the frequency of our signal generator G into our mixer then we can measure the strength of the signal F at a range of frequencies. (Just like tuning a radio)

If the signal F that we are measuring is not a pure sine wave then as we tune the generator we will only measure the sine wave component of the signal F at the frequency of our generator G.

So by sweeping G we can measure the spectrum of F


Slide27 l.jpg

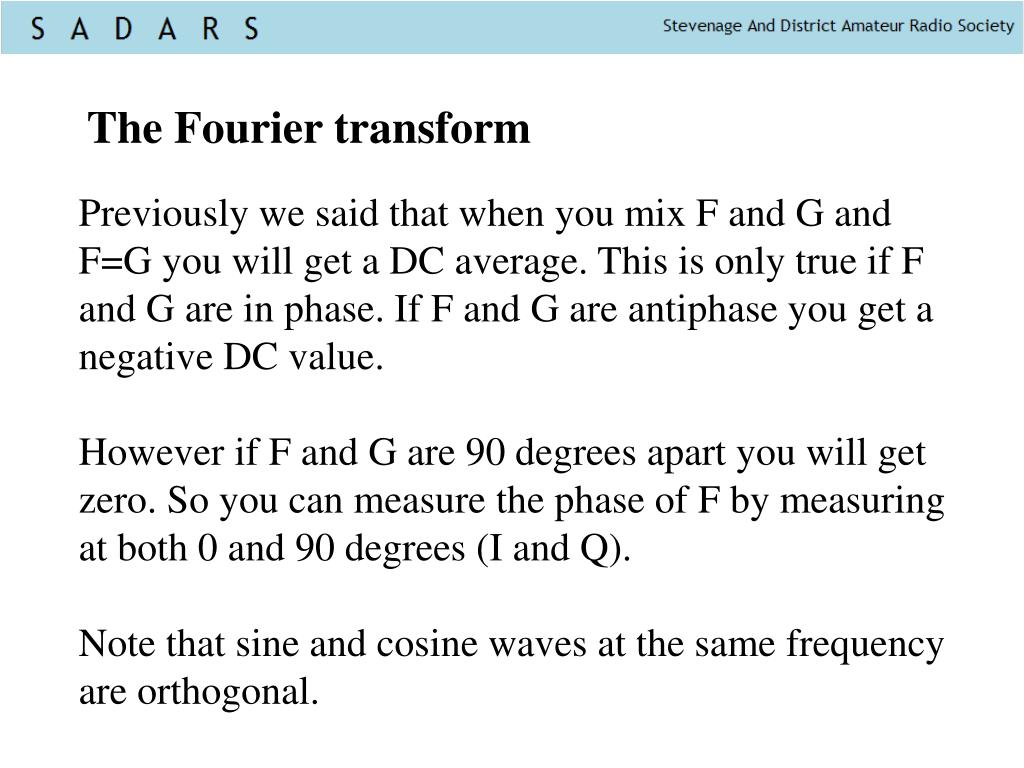

The Fourier transform

Previously we said that when you mix F and G and F=G you will get a DC average. This is only true if F and G are in phase. If F and G are antiphase you get a negative DC value.

However if F and G are 90 degrees apart you will get zero. So you can measure the phase of F by measuring at both 0 and 90 degrees (I and Q).

Note that sine and cosine waves at the same frequency are orthogonal.


Slide28 l.jpg

The Fourier transform

A Fourier transform is like a spectrum analyser.

Multiply the original waveform by sine waves of each harmonic in turn and take the DC averages. These give you the sine wave harmonics.

Now do the same thing with cosine waves, This gives you the cosine wave harmonics. (90 degrees shifted)

We will see that for a Square wave you get the 1/3, 1/5 1/7 ratios (odd harmonics) we used in the signals talk.




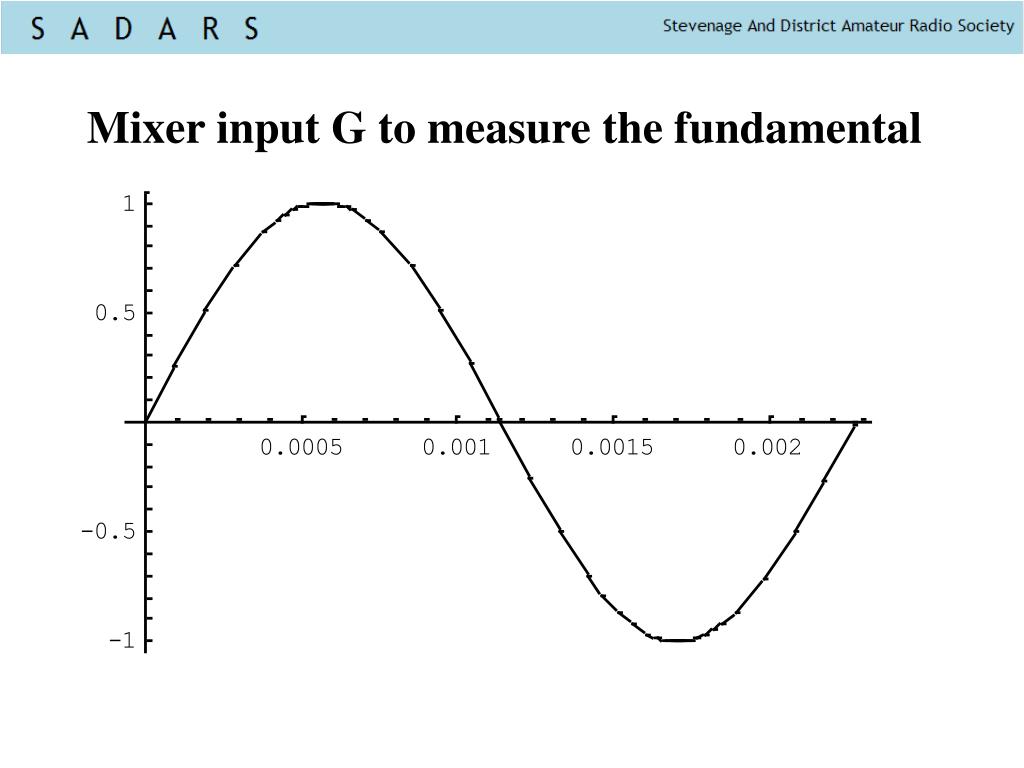

Slide31 l.jpg

Mixer output for the fundamental

Note the strong positive DC average


Slide32 l.jpg

Mixer output for the 2nd harmonic

Note the average is zero (even harmonic)


Slide33 l.jpg

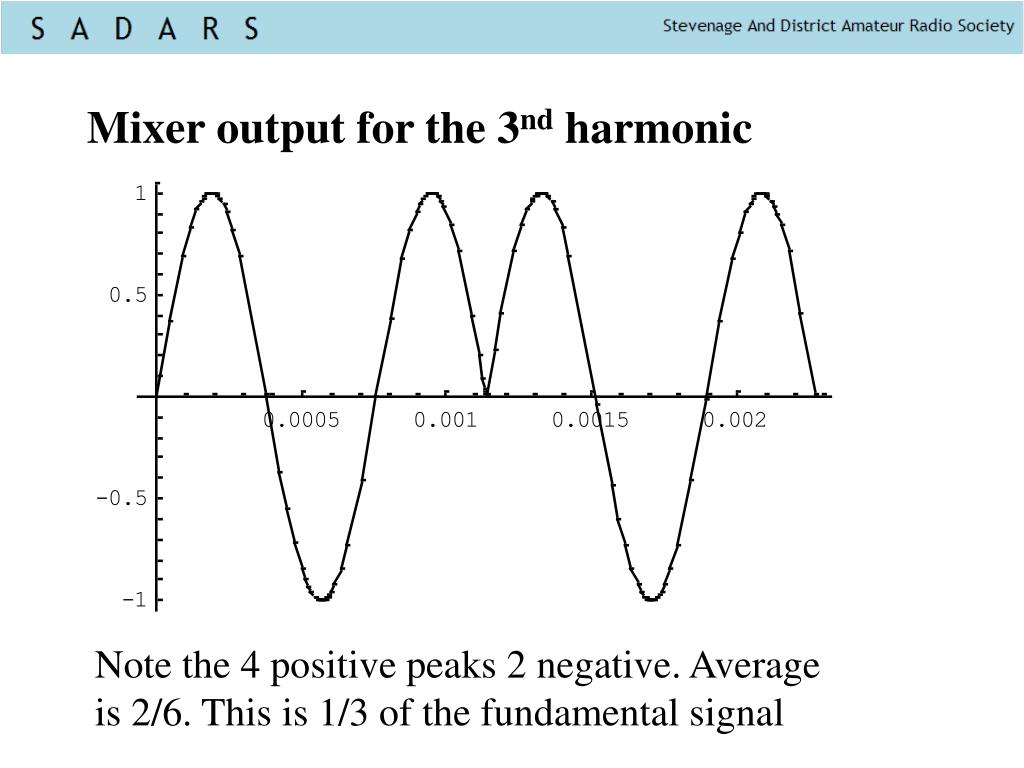

Mixer output for the 3nd harmonic

Note the 4 positive peaks 2 negative. Average is 2/6. This is 1/3 of the fundamental signal


Slide34 l.jpg

Mixer output for the 4th harmonic

Note the average is zero (even harmonic)


Slide35 l.jpg

Mixer output for 5nd harmonic

Note the 6 positive peaks 4 negative. Average is 2/10. This is 1/5 of the fundamental signal


Slide36 l.jpg

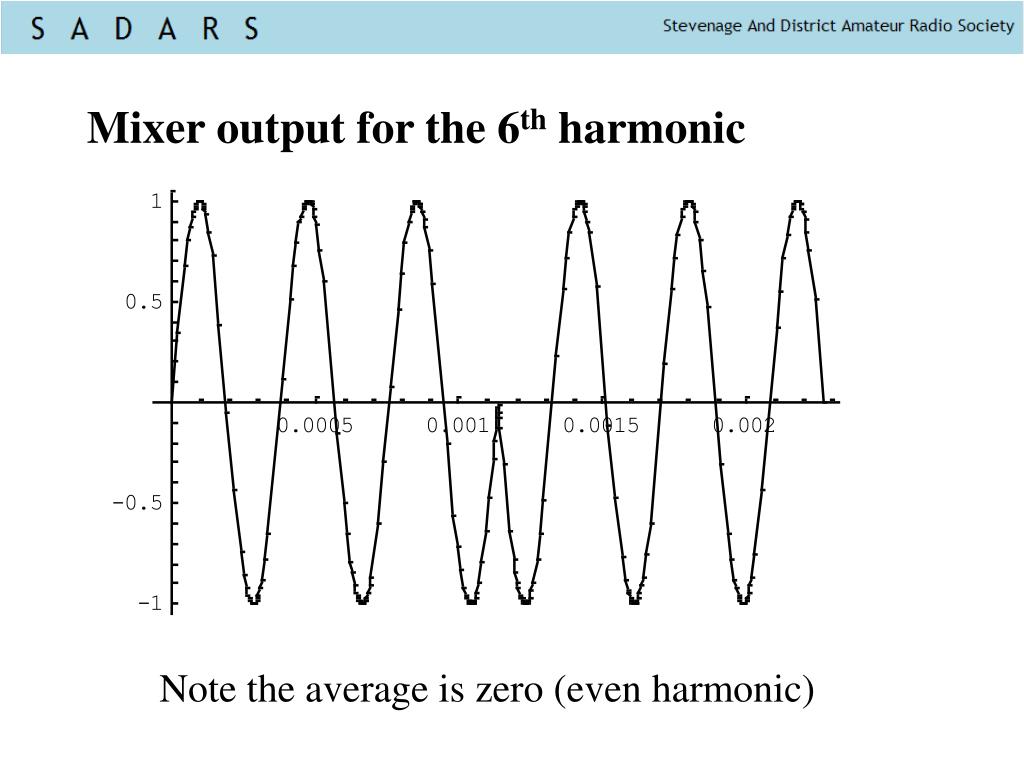

Mixer output for the 6th harmonic

Note the average is zero (even harmonic)


Slide37 l.jpg

Mixer output for 7nd harmonic

Note the 8 positive peaks 6 negative. Average is 2/14. This is 1/7 of the fundamental signal


Slide38 l.jpg

But what about the cosine components?

So far we have only looked at the sine wave (in phase) components. We should check if there are any Cosine (90 degree phase shifted) components.

Note the Cosine is symmetric about the centre


Slide39 l.jpg

Mixer output for the Fundamental Cosine

Note the average is zero (anti-symmetric about centre)


Slide40 l.jpg

Mixer output for the 2nd Harmonic Cosine

Note the average is zero (anti-symmetric about centre)


Slide41 l.jpg

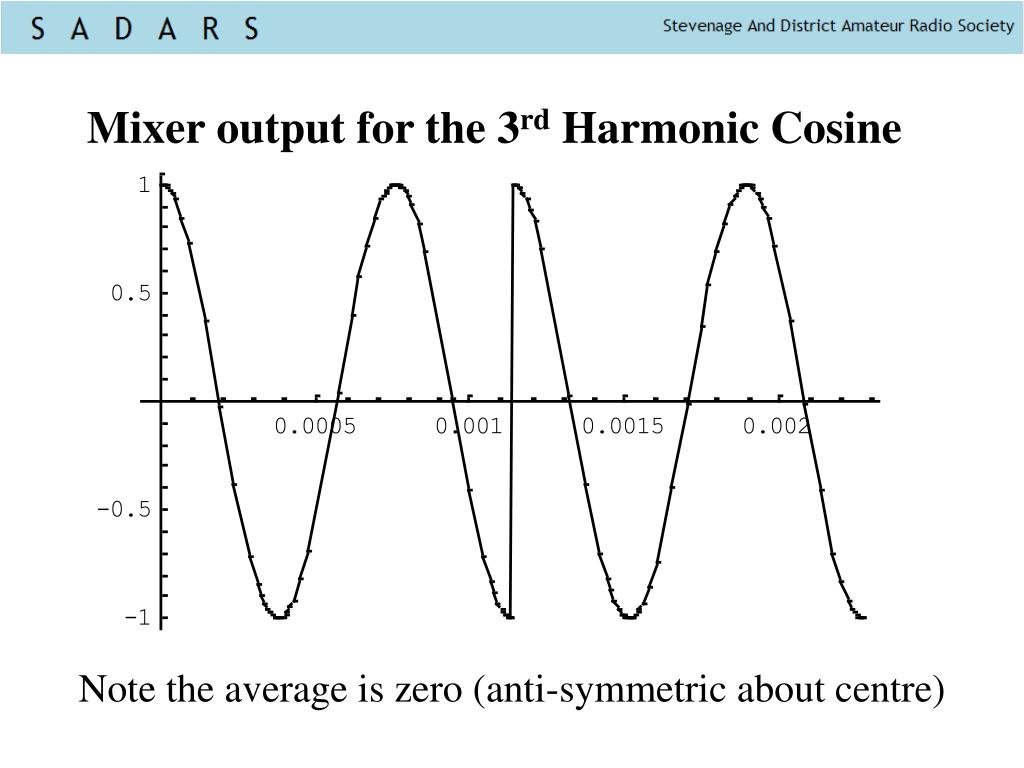

Mixer output for the 3rd Harmonic Cosine

Note the average is zero (anti-symmetric about centre)


Slide42 l.jpg

Summary of the components of a Square wave

We have seen that you do get the 1/3, 1/5 1/7 ratios (odd harmonics) we used in the signals talk.

The even Sine harmonics have equal numbers of plus and minus (half wave) peaks so are zero

Odd Sine harmonics all have two more positive peaks than negative out of a total of double their harmonic number. Hence the 1/3, 1/5, 1/7 etc. ratios.

Cosine harmonics are all anti-symmetric and thus zero


Slide43 l.jpg

The Inverse Fourier transform

In the signals talk we took the harmonics of a square wave and combined them.

This was an Inverse Fourier transform!

(If done correctly these transforms are reversible and lossless)

We may look at the Fast Fourier transform (FFT) in a later talk. Its just a quicker way of doing Fourier transforms.
