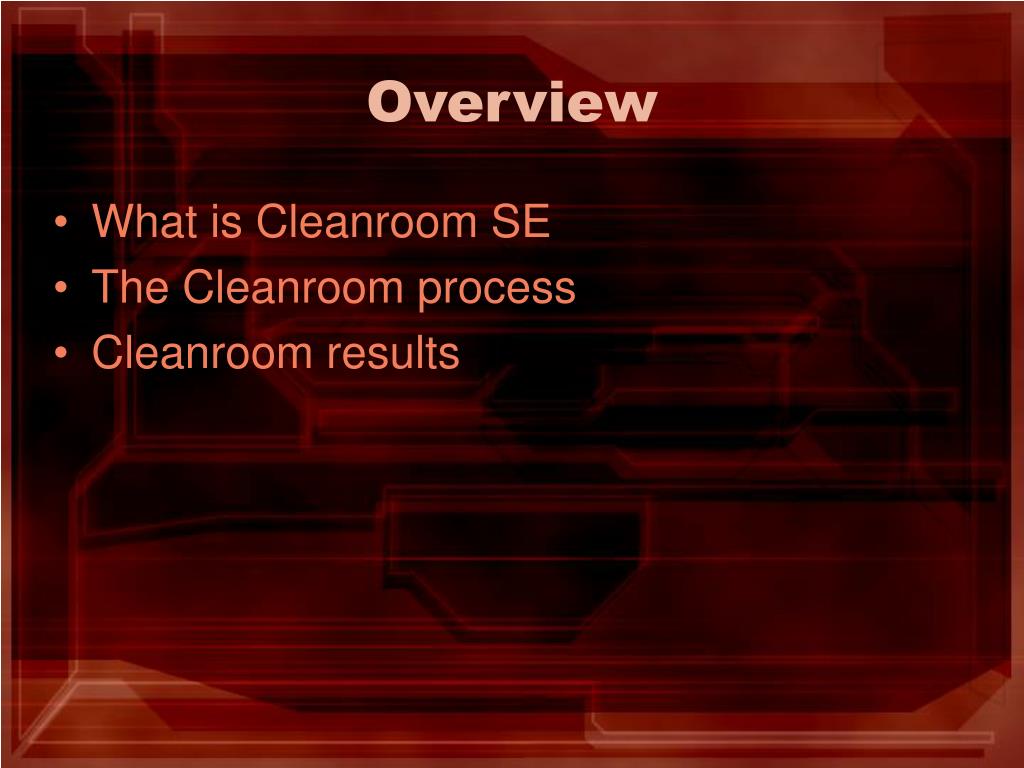

Overview
  • What is Cleanroom SE
  • The Cleanroom process
  • Cleanroom results
what is cleanroom se
Created by IBM in the early 80’s

Named after cleanrooms used in Semiconductor Industry

What is CleanRoom SE?
what is cleanroom se cont
What is Cleanroom SE? (cont.)
  • Iterative 14 step process
  • Goal of 0 or near 0 errors
  • All errors account for by compile time
  • No Unit testing
  • Developers don’t compile the system.
4 teams of cleanroom se

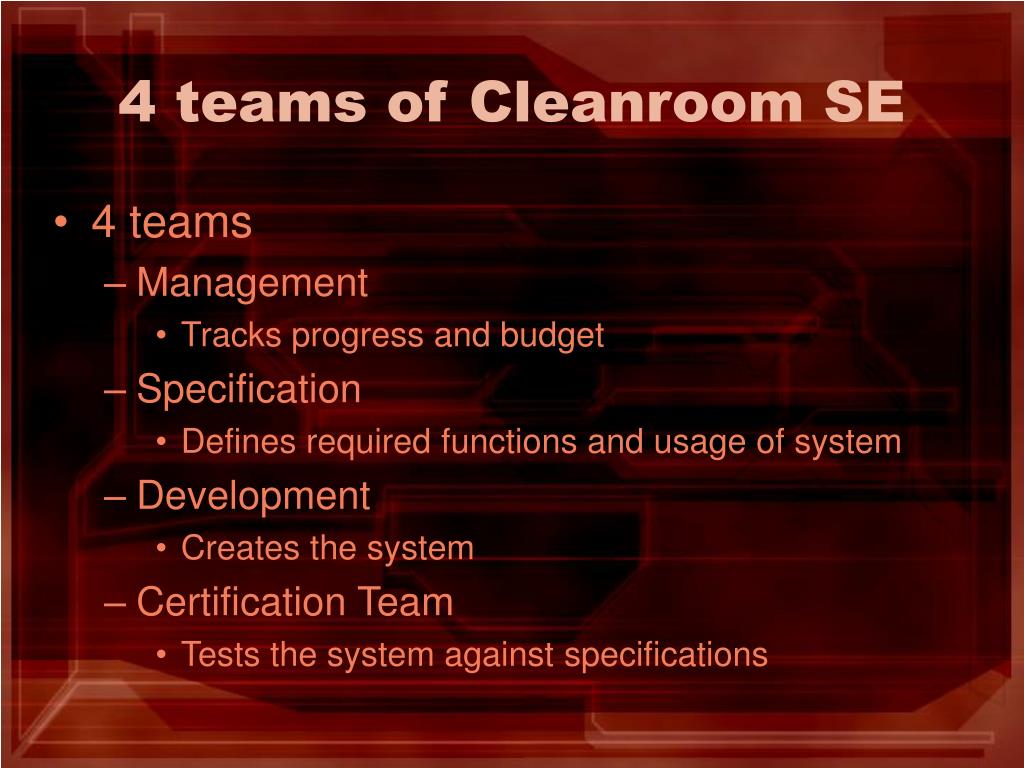

4 teams of Cleanroom SE
  • 4 teams
    • Management
      • Tracks progress and budget
    • Specification
      • Defines required functions and usage of system
    • Development
      • Creates the system
    • Certification Team
      • Tests the system against specifications
project planning process
Project Planning Process
  • Adapt process model to project
    • Cleanroom Engineering Guide
  • Create project Plan
    • Software Development Plan
  • Review Plan with customer and team members
project management process
Project Management Process
  • Begins the Cleanroom process
  • Defines incremental development and certification
  • Measures for correctness testing defined
project improvement process

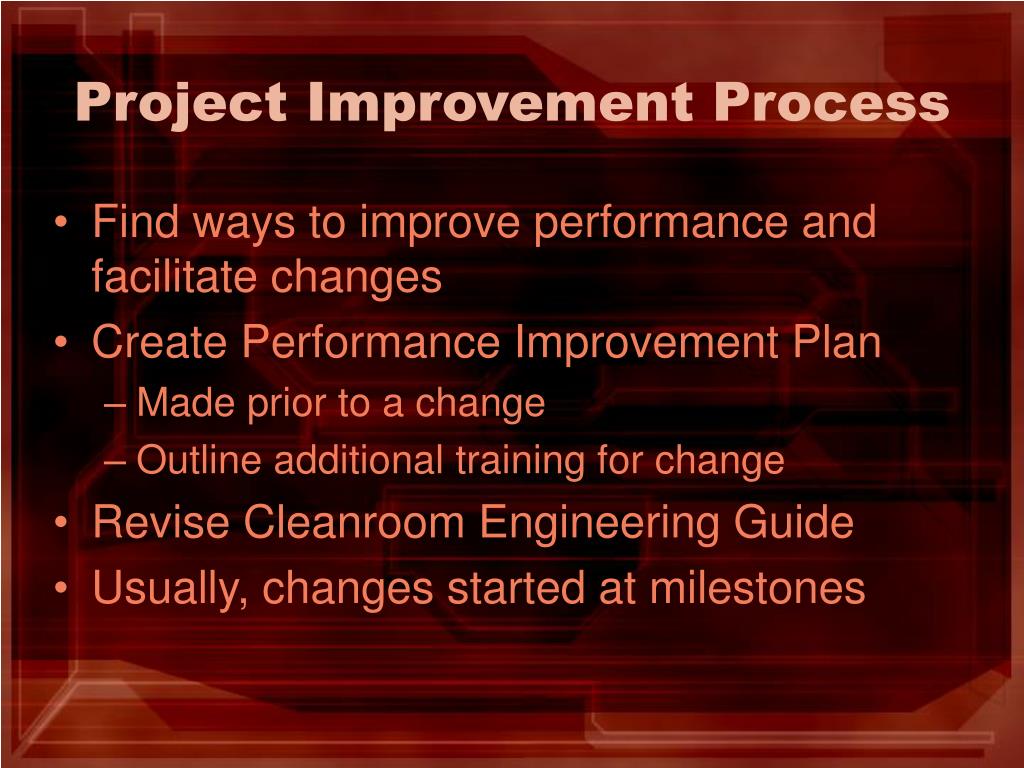

Project Improvement Process
  • Find ways to improve performance and facilitate changes
  • Create Performance Improvement Plan
    • Made prior to a change
    • Outline additional training for change
  • Revise Cleanroom Engineering Guide
  • Usually, changes started at milestones
engineering change process

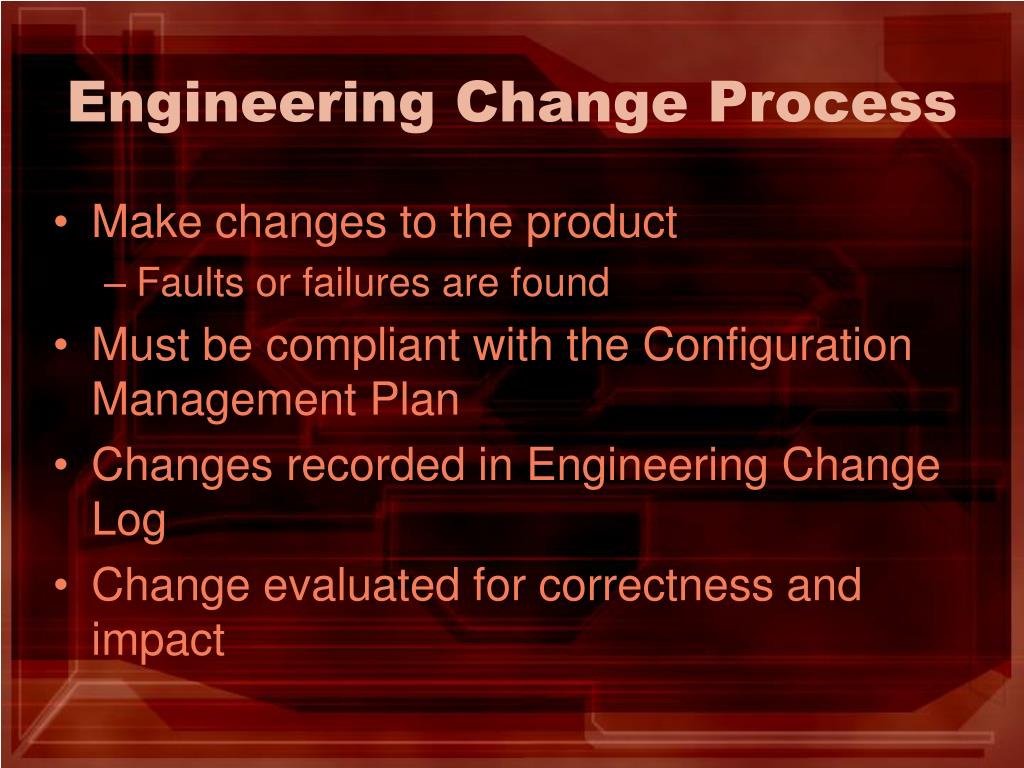

Engineering Change Process
  • Make changes to the product
    • Faults or failures are found
  • Must be compliant with the Configuration Management Plan
  • Changes recorded in Engineering Change Log
  • Change evaluated for correctness and impact
architecture specification process
Architecture Specification Process
  • Decomposes the project
  • Requirements and Specifications must be partially complete
  • Start at high level of abstraction and go lower
    • “Black box” to “Clear box”
  • Generate analysis models
requirements analysis process
Requirements Analysis Process
  • Started immediately after work order is received
  • Work with customers to determine
    • What the system does
    • How it will be used
    • Preferred Environment
  • Repeated each iteration or if requirements added
  • Most stable requirements implemented first
function specification process

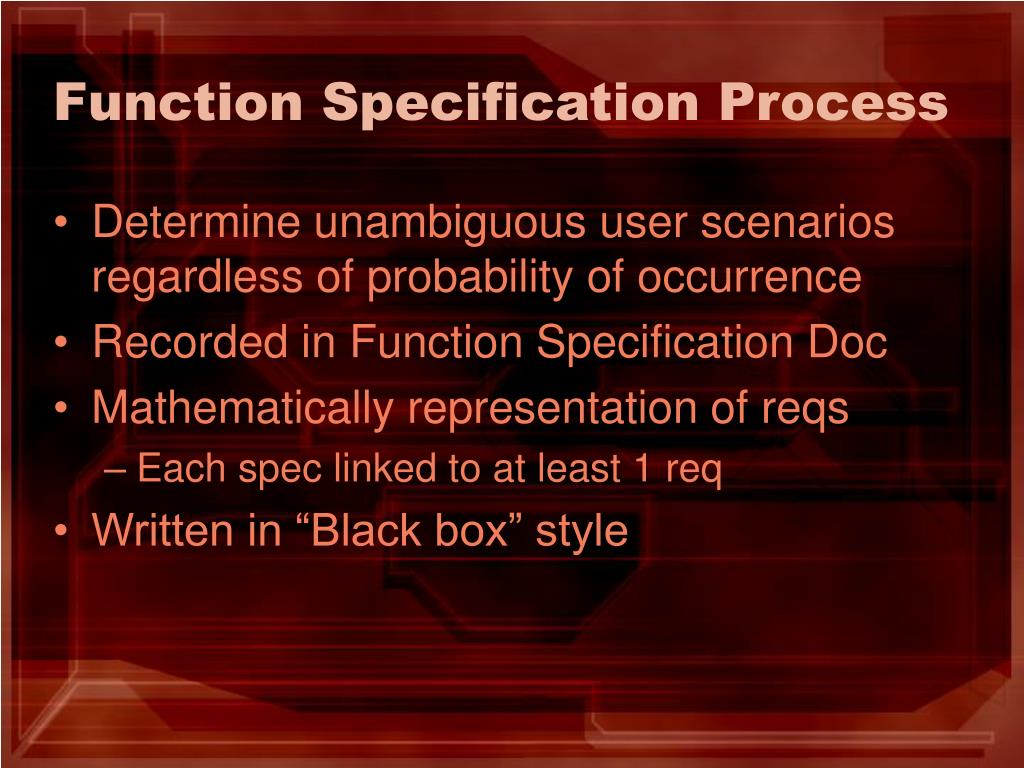

Function Specification Process
  • Determine unambiguous user scenarios regardless of probability of occurrence
  • Recorded in Function Specification Doc
  • Mathematically representation of reqs
    • Each spec linked to at least 1 req
  • Written in “Black box” style
usage specification process
Usage Specification Process
  • Determine info about the users
    • Type of user
    • User environment
  • Started when Functions Specifications is partially complete.
  • Provides a way to effectively allocate resources
  • Helps to complete and validate Function Specs.
increment planning process

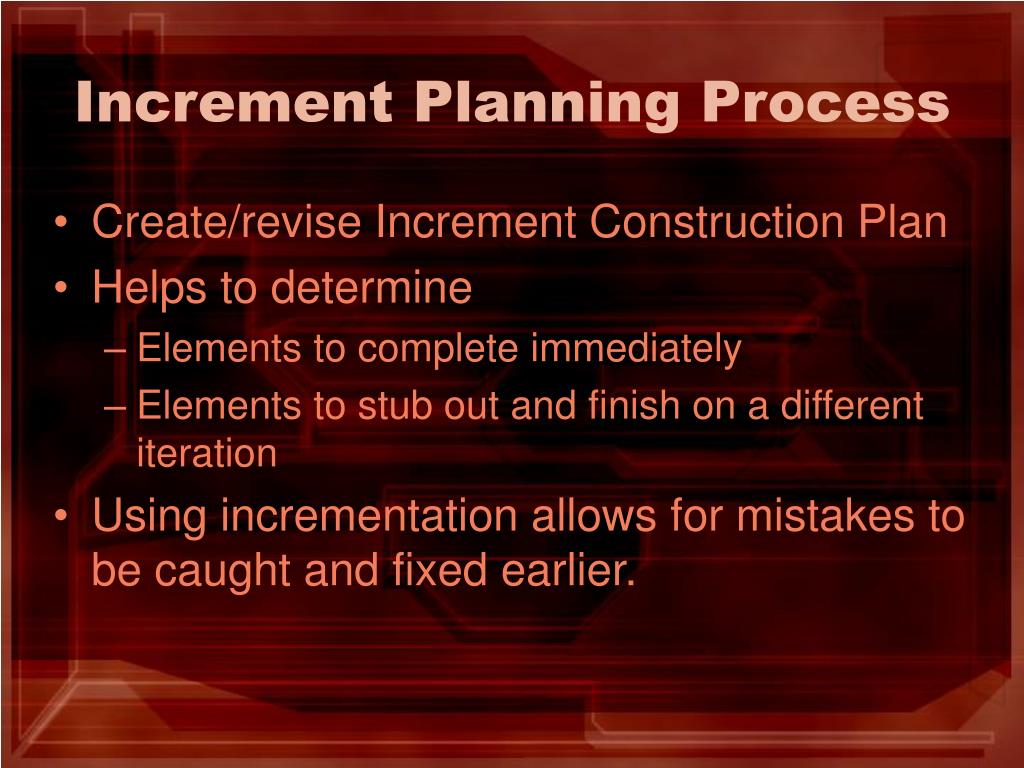

Increment Planning Process
  • Create/revise Increment Construction Plan
  • Helps to determine
    • Elements to complete immediately
    • Elements to stub out and finish on a different iteration
  • Using incrementation allows for mistakes to be caught and fixed earlier.
software reengineering process

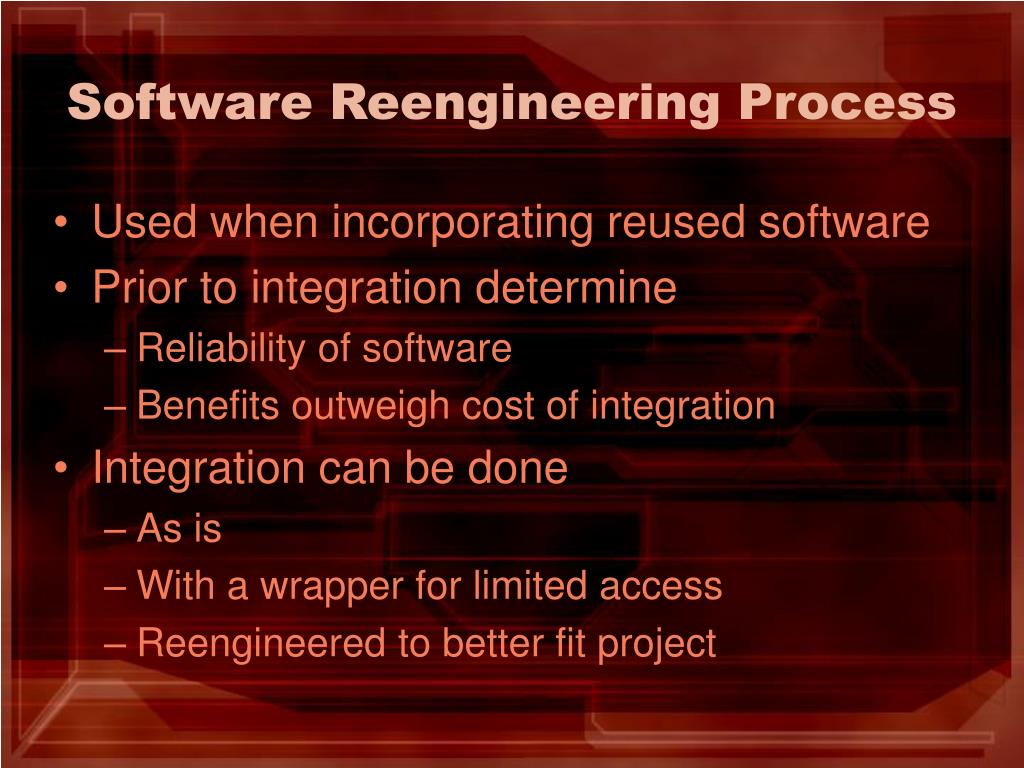

Software Reengineering Process
  • Used when incorporating reused software
  • Prior to integration determine
    • Reliability of software
    • Benefits outweigh cost of integration
  • Integration can be done
    • As is
    • With a wrapper for limited access
    • Reengineered to better fit project
incremental design process
Incremental Design Process
  • Implements Incremental Construction Plan
  • Input code here!
  • Multiple reviews
    • Assess progress of current increment
    • Determine changes to keep verification and project maintainability
  • Goal: few faults as possible before Correctness Verification
correctness verification process
Correctness Verification Process
  • Verifies the program will work to specifications without running the system
  • Uses proofs and mathematical methods for verification
  • Program structures broken down to mathematic equivalence
  • Correctness Verification is more effective and efficient than Unit testing
    • Can accurately predict almost infinite number of execution paths
    • Unit testing can only do so much
usage model and test planning process
Usage Model and Test Planning Process
  • Usage model created from refined specs
    • Cover a broad range of modules
    • Especially ones where failure is unacceptable
    • Shows each state and transitions
  • Create Incremental Test Plan
  • Models and test Plan determine
    • Test cases
    • Testing environment
statistical testing and certification process

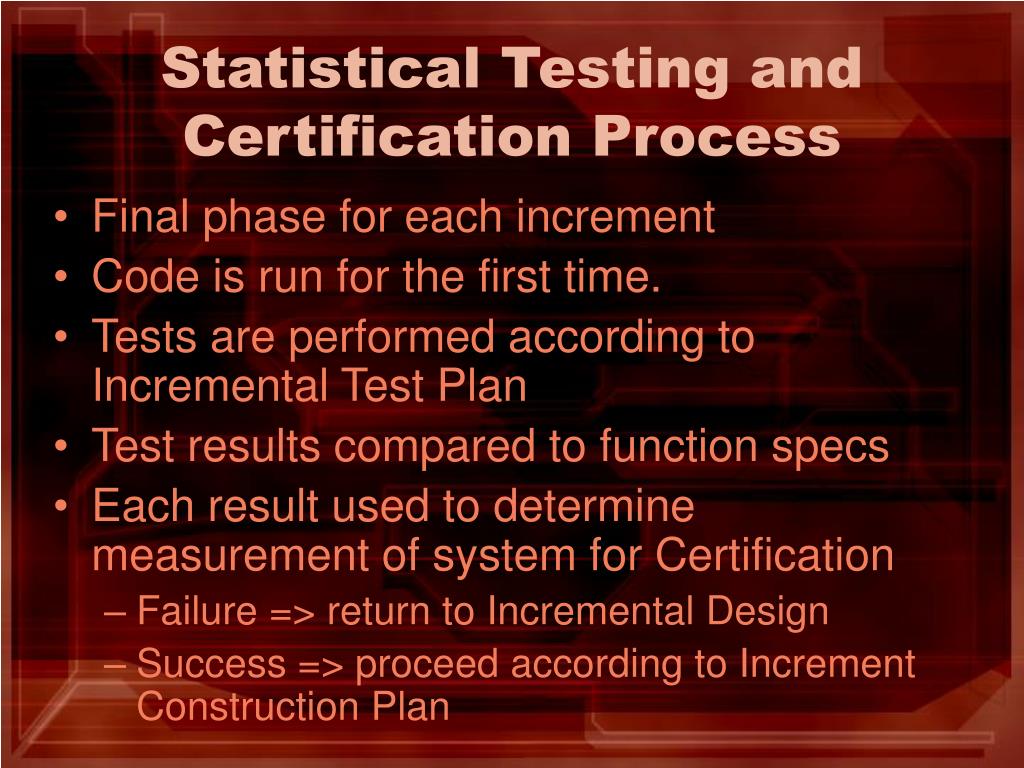

Statistical Testing and Certification Process
  • Final phase for each increment
  • Code is run for the first time.
  • Tests are performed according to Incremental Test Plan
  • Test results compared to function specs
  • Each result used to determine measurement of system for Certification
    • Failure => return to Incremental Design
    • Success => proceed according to Increment Construction Plan
first cleanroom project
First Cleanroom Project
  • IBM 1988
  • Program automatically restructured COBOL code
  • Contained 33 KLOC
  • In first 3 years of use
    • 7 errors found
    • All were easy fixes.
nasa and cleanroom se
NASA and Cleanroom SE
  • 1989: FORTRAN satellite controller
  • 40 KLOC, only 4.5 errors / 1KLOC
  • 40% increase in quality
  • 80% increase In productivity
  • 780 LOC per person month!!
  • Ave. embedded system 40 – 160 LOC/pm
  • Ave. commercial system 200 – 800 LOC/pm
review
Review
  • 14 step iterative process
  • Goal of 0 or near 0 errors
  • No Unit testing
  • Seems difficult, but can have amazing results
sources
Sources
  • Hausler, P. A., & Linger, R. C. (1994). Adopting Cleanroom Software Engineering With a Phased Approach. IBM Systems Journal, Volume 33, Issue 1, p89. EBSCOhost.
  • Linger, R. C., & Trammell, C. J. (November 1996). Cleanroom Software Engineering Reference Model, Verison 1.0. found at:

http://www.sei.cmu.edu/pub/documents/96.reports/pdf/tr022.96.pdf

  • Oshana, R. Quality Software Via a CleanRoom Methodology. Embedded Systems Programming. Found at: http://www.embedded.com/97/feat9609.htm
  • Steward, Donald V. (1987). Software Engineering with Systems Analysis and Design.Monterey, CA, Brooks/Cole Publishing Company.
  • Uta.edu. Cleanroom Sotware Engineering. Found at: http://www.uta.edu/cse/levine/fall99/cse5324/cr/clean/page.html
