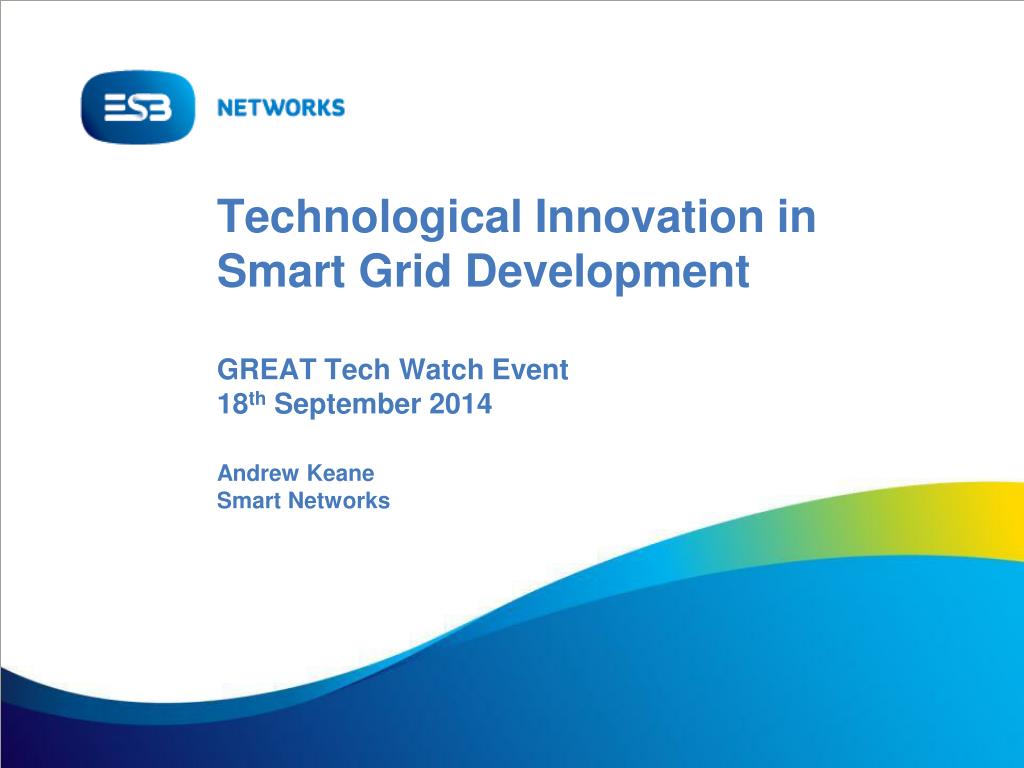

Technological Innovation in Smart Grid Development GREAT Tech Watch Event18th September 2014

Andrew Keane

Smart Networks

technical innovation is transforming every element of the electricity value chain
Technical innovation is transforming every element of the electricity value chain

Ecars

Automation

Renewables

Distributed

Generation

Comms & ICT

Smart Metering

Energy

Efficiency/Usage

Smart Grids

CCS

Networks

Customer

Generation

evolution of dso model
Evolution of DSO Model

Pro-active System Management

Reactive Technology Integration

RES penetration level

Passive Networks

Evolution of Regulatory frameworks and market architectures

Technology

  • Low observability & control at MV&LV
  • Insufficient data exchange
  • Missing rules for RES contribution to security and quality of supply
  • Future Regulatory uncertainty
  • DSO controls voltage, active & reactive power to solve constraints
  • Large increase in devices
  • IT & comms infrastructure build
  • Increased data availability
  • Active Network Management
  • Efficient real-time data exchange
  • Flexibility provided to TSO for frequency & voltage issues
  • Greater customer involvement
  • Market reform
esb networks vision for an integrated grid
ESB Networks’ vision for an Integrated Grid

Information Flow

Smart

Metering

Smart

Networks

Connected

Home

Distributed

Generation &

Electric Vehicles

Renewables

& Clean Generation

Energy Flow

The Integration of resilient Energy Infrastructure, Communication Networks & Information Technology

integrating renewables
By 2020, Ireland will have the largest penetration of renewable generation in the EU

Wind is the abundant renewable resource but volume of PV enquiries & connections increasing

Facilitate the delivery of Ocean & Tidal energy projects

By 2027 ESB Networks will:

Minimise connection costs through innovative but secure connections

Dynamically manage networks, realising the potential of DER to minimise losses

Have a fully active network – matching flexible customer loads to variable generation

Integrating Renewables
smart network innovation
Smart Network Innovation
  • 13,000 remotely operable devices will be deployed on the Network
  • Increased visibility & control of LV networks
  • Through innovation and excellence in operations, electricity distribution efficiency will be substantially improved
  • Active Network Management will be implemented – development of Servo system to manage Demand Response
research development demonstration
Research, Development & Demonstration
  • ESB Networks is the ‘Exemplar International Utility’
  • MoUin place with EirGrid, NIE and SONI to establish test-bed & facilitate optimal Smart Grid development on the island of Ireland
  • Strategic Partnership Programme focusing on Energy Systems Integration
  • RD&D Priorities:
    • Improved Continuity and Security
    • Increased Operational Efficiency
    • Facilitation of Demand Response
    • EU FP7 & Horizon 2020
industry partnerships collaborations
IndustryPartnerships & Collaborations

FINESCE

Urban Automation

Servo

EnerNet

Real-time Condition Assessment

Smart Metering

evolvDSO

WF Reactive Control

Data Analytics

NAGZ

4SmartLV

Amorphous Core Trafos

Demand Response

PlanGridEV

Variable Access

EVs

telecoms technologies
Telecoms Technologies
  • Provide thousands of secure circuits to HV stations via Fibre & Radio
  • Enables Central Control, Operation & Protection of the Transmission & Distribution Networks
  • Fibre, wireless mesh & WiMax 4G trials for LV applications
  • IP protocols capable of supporting a huge increase in number of devices connected
  • Utilise dedicated fibre-optic technology secured on the electricity networks
slide10

North Atlantic Green Zone

  • Collaborative Project between ESB Networks, Northern Ireland Electricity, EirGrid & SONI
  • Characteristics of Region:
    • Large natural renewable resource
    • Geographically isolated
    • Worst Quality of Supply standards
    • Continuity >200% worse than average
  • Full scale implementation of a Smart Grid
  • Deployment of proven technologies
slide11

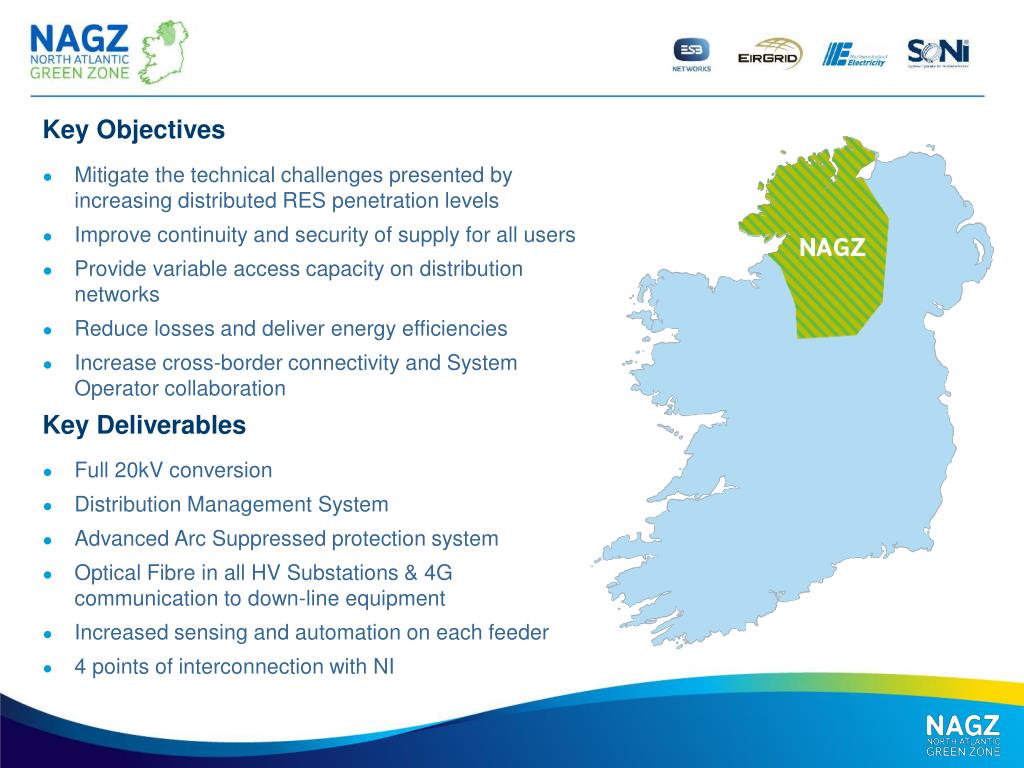

Key Objectives

Mitigate the technical challenges presented by increasing distributed RES penetration levels

Improve continuity and security of supply for all users

Provide variable access capacity on distribution networks

Reduce losses and deliver energy efficiencies

Increase cross-border connectivity and System Operator collaboration

Key Deliverables

Full 20kV conversion

Distribution Management System

Advanced Arc Suppressed protection system

Optical Fibrein all HV Substations & 4G communication to down-line equipment

Increased sensing and automation on each feeder

4 points of interconnection with NI

summary
Summary
  • Ireland is uniquely positioned for future Smart Grid development
  • ESB Networks will invest up to €10bn in further developing the electricity system
  • ESB Networks will keep Ireland competitive through:
    • Innovation in network management
    • Improved network resilience and quality of supply
    • Deliver the systems to enable active customer participation
    • Maximising renewable generation to reduce dependency on imported fuels
    • Meeting challenging regulatory targets
