  1. MB L1 Training Materials VER 2.0

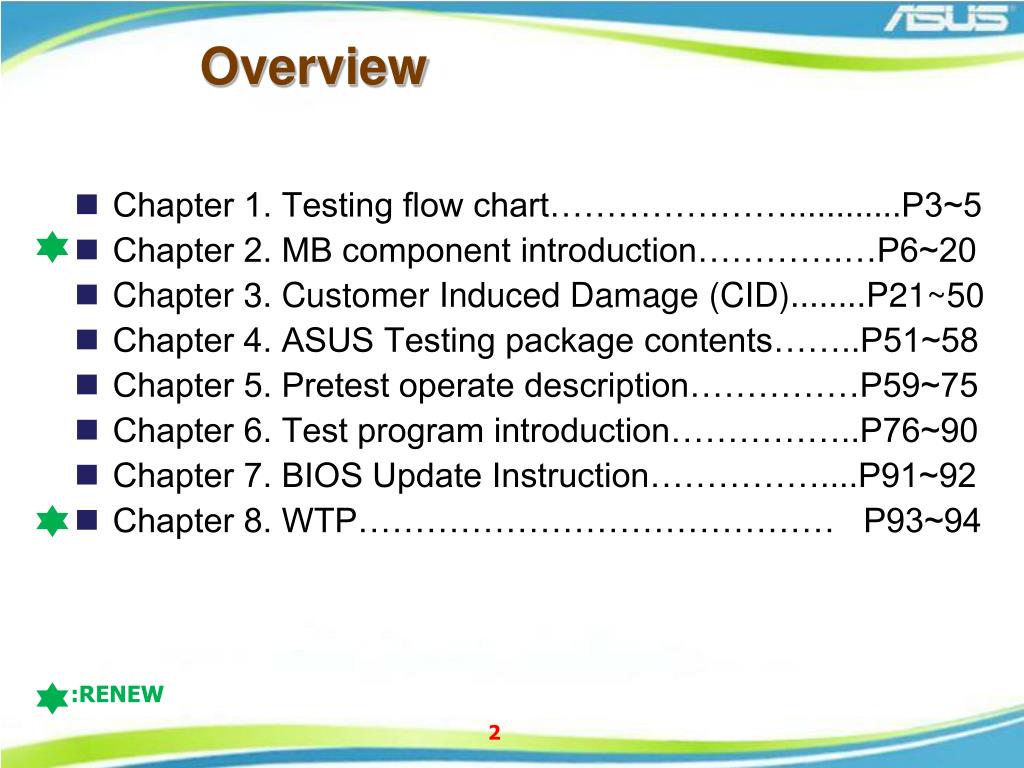

  2. Overview • Chapter 1. Testing flow chart…………………............P3~5 • Chapter 2. MB component introduction………….…P6~20 • Chapter 3. Customer Induced Damage (CID)........P21~50 • Chapter 4. ASUS Testing package contents……..P51~58 • Chapter 5. Pretest operate description……………P59~75 • Chapter 6. Test program introduction……………..P76~90 • Chapter 7. BIOS Update Instruction……………....P91~92 • Chapter 8. WTP…………………………………… P93~94 :RENEW

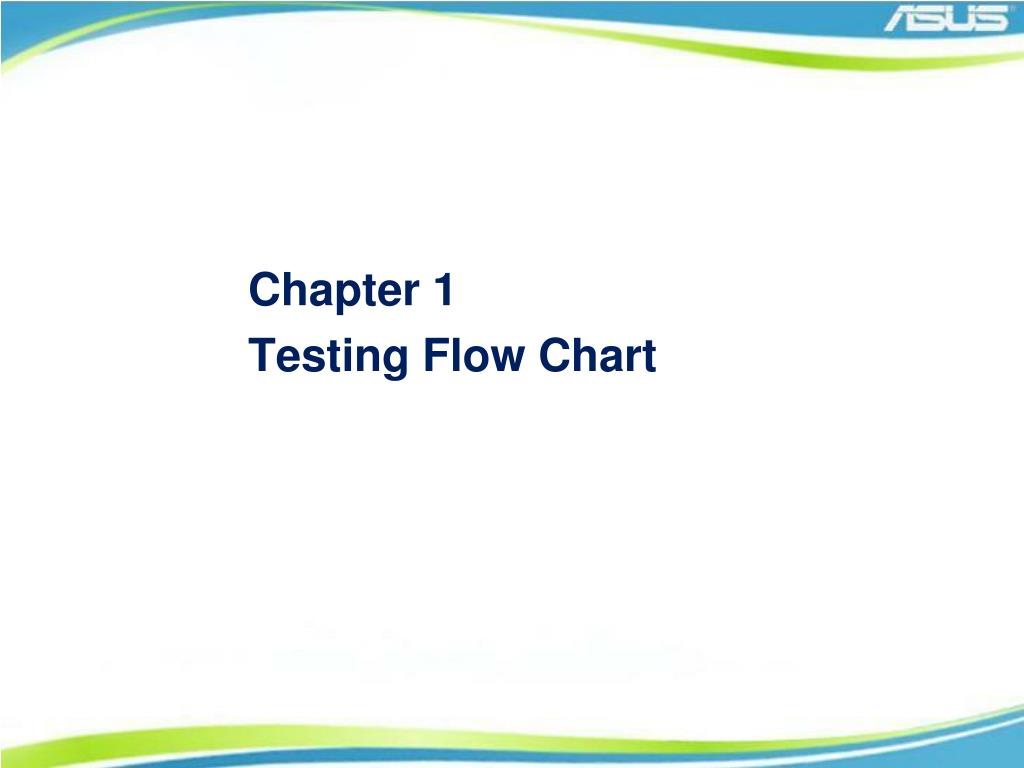

  3. Chapter 1Testing Flow Chart

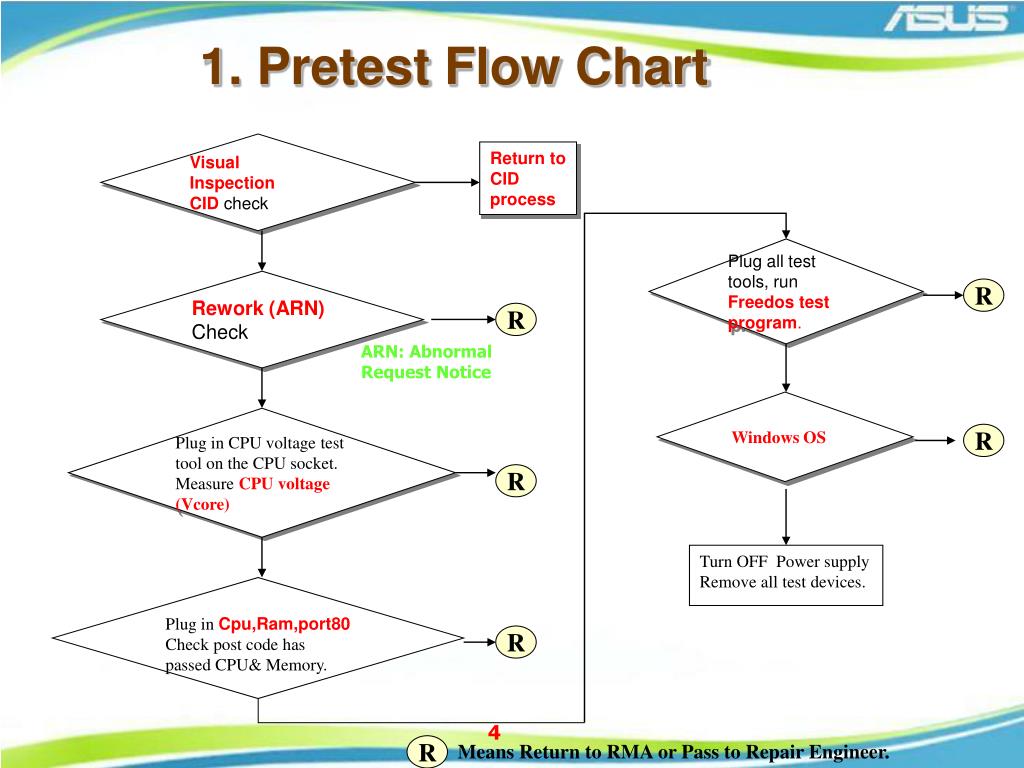

  4. 1. Pretest Flow Chart Visual Inspection CIDcheck Return to CID process Plug all test tools, run Freedos test program. Rework (ARN) Check R R ARN: Abnormal Request Notice Windows OS Plug in CPU voltage test tool on the CPU socket. Measure CPU voltage (Vcore) R R Turn OFF Power supply Remove all test devices. Plug in Cpu,Ram,port80 Check post code has passed CPU& Memory. R Means Return to RMA or Pass to Repair Engineer. R

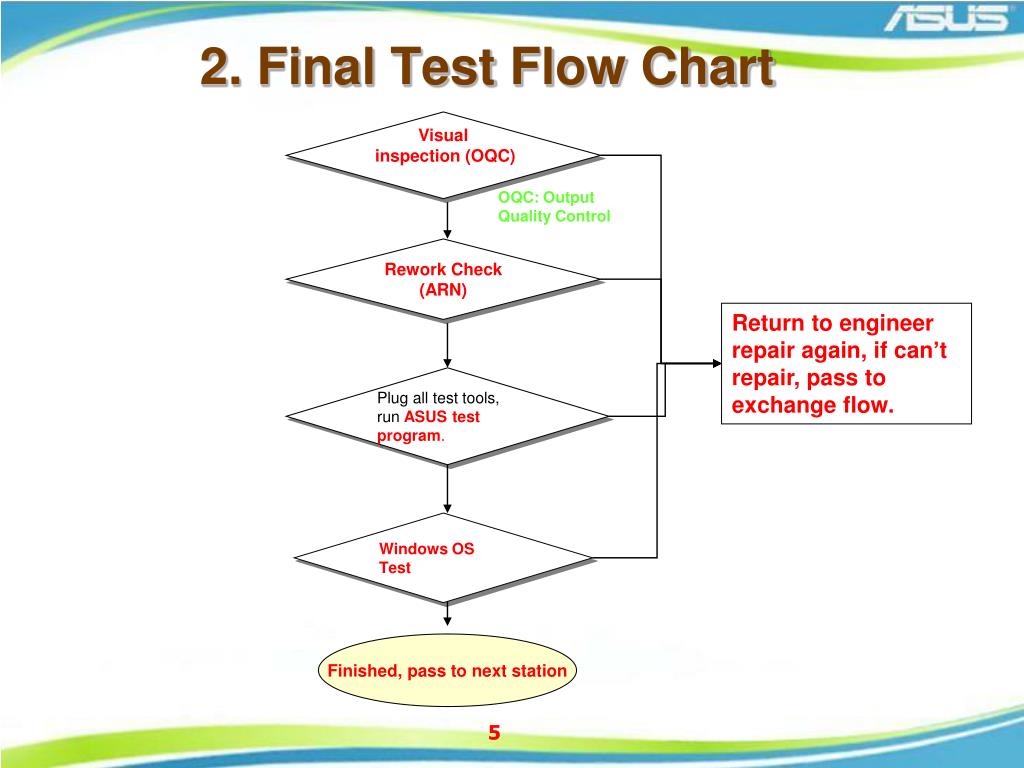

  5. 2. Final Test Flow Chart Visual inspection (OQC) OQC: Output Quality Control Rework Check (ARN) Return to engineer repair again, if can’t repair, pass to exchange flow. Plug all test tools, run ASUS test program. Windows OS Test Finished, pass to next station

  6. Chapter 2MB Component Introduction

  7. Input / Output Devices

  8. Get familiar with PC • PC consists of: • Input/Output Devices • PC System • Motherboard • CPU • CPU cooler • DIMM (memory) • Cables (IDE, SATA, floppy, COM, etc.) • PSU (switching power supply) • Add-on cards (VGA, audio, LAN, modem, SCSI, TV-Tuner, video capture, etc.) • System fans • Storage Devices • Externally-accessible (External SATA, USB) • Internal

  9. Inside the PC Case Power Supply DVD/CD/RW System Fans CPU Memory Cables Motherboard Add-on cards Hard Disk

  10. MB Socket type Different socket type

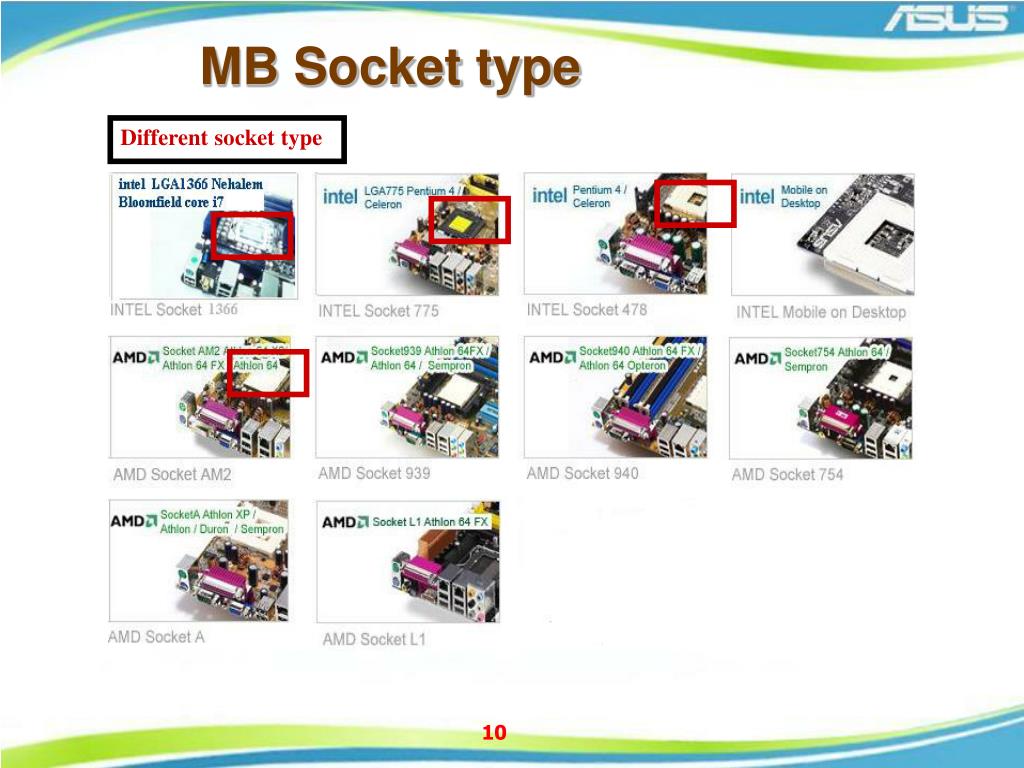

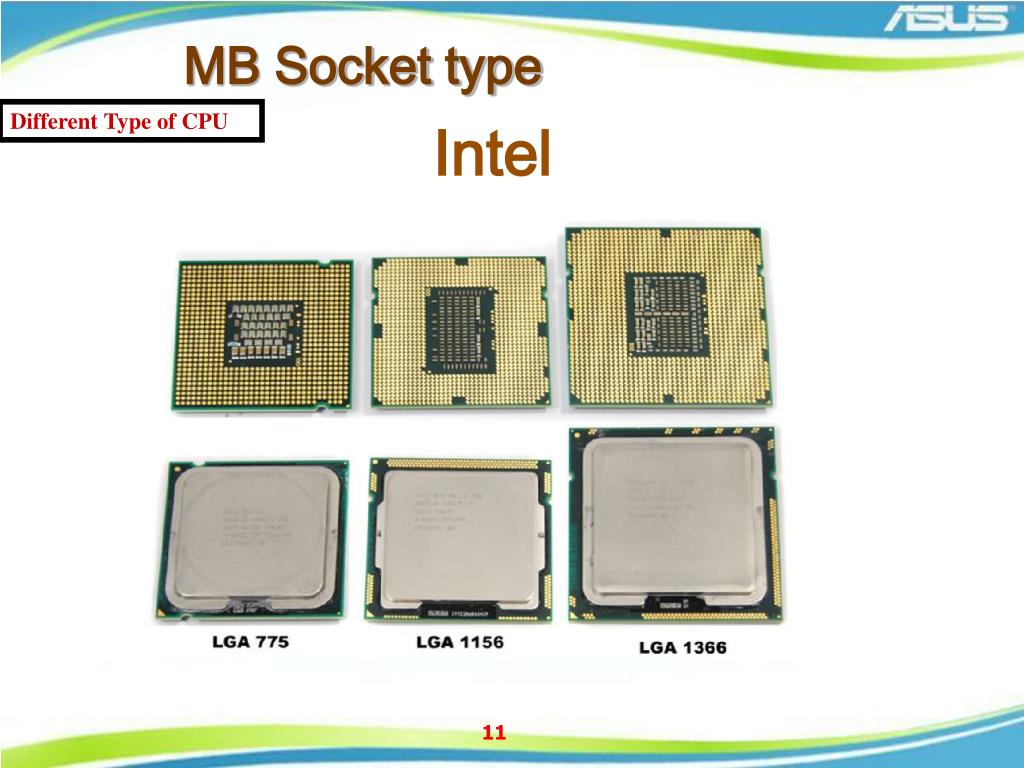

  11. MB Socket type Different Type of CPU Intel

  12. MB Socket type Different Type of CPU Intel Socket 478

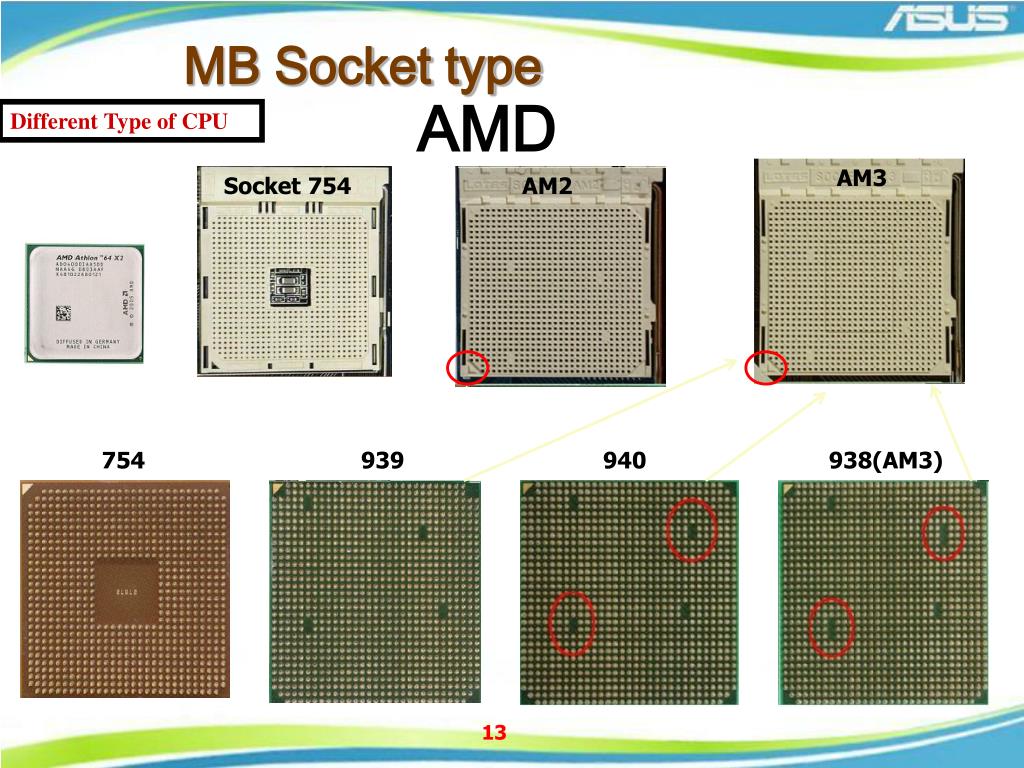

  13. MB Socket type AMD Different Type of CPU AM3 Socket 754 AM2 754 939 940 938(AM3)

  14. Motherboard Components • Motherboard is composed of: • PCB : printed circuit board • chipsets : North bridge + South bridge • internal connectors(CPU, memory, floppy, IDE, power, add-on cards, etc.) • external connectors(USB, PS/2 keyboard & mouse, RJ-45 LAN, parallel (line printer), serial (COM), game/MIDI, audio I/O, etc) • headers(fans, audio input, LED, switch, USB, WOL, WOR, thermal sensor, etc) • BIOS(Basic Input/Output System) • ICs, Resistors, Capacitors, Inductors, MOSFET, Battery • jumpers / DIP switches(host-bus frequency, CPU multiplier, etc.) • Others • All these on-board components could be split into two categories: • SMT (surface mount technology, or SMD – surface mount device) • DIP (dual in-line pin) packages

  15. Introductions • High-speed • North-Bridge: • CPU • Memory • AGP/PCIe • Mid-speed • South-Bridge: • PCI, PCIe • IDE/SATA • USB NB SB • Low-speed • LPC Super I/O: • KB/MS/FDD • COM/LPT • ROM BIOS SIO

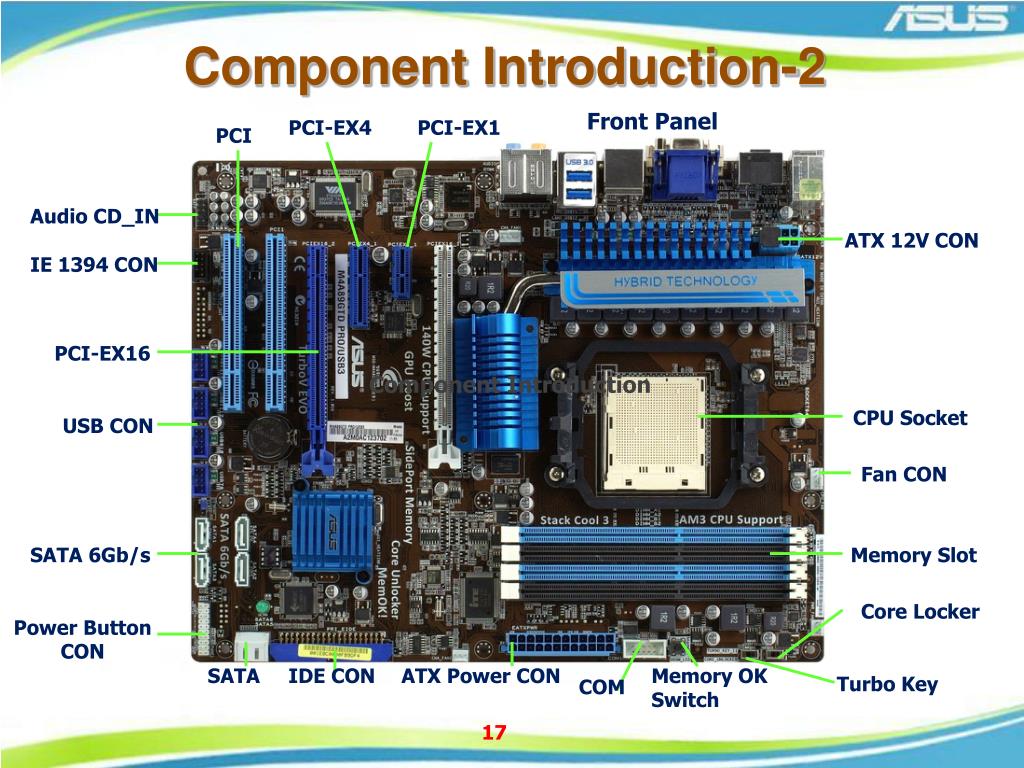

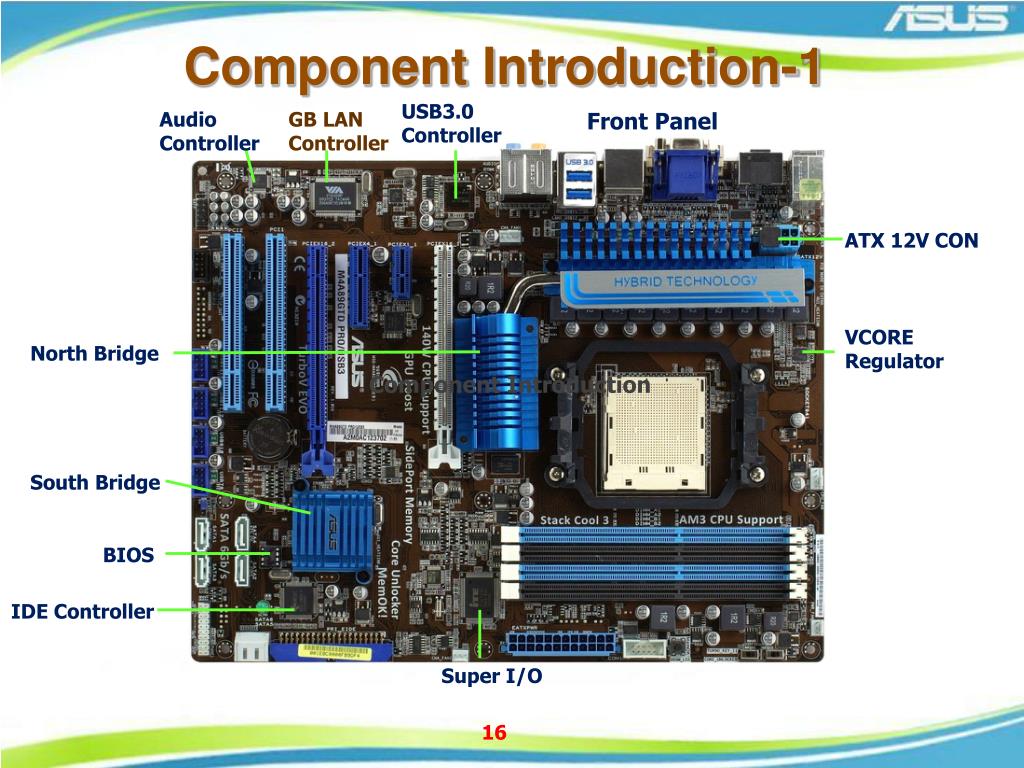

  16. Component Introduction-1 USB3.0 Controller Audio Controller GB LAN Controller Front Panel ATX 12V CON VCORE Regulator North Bridge Component Introduction South Bridge BIOS IDE Controller Super I/O

  17. Component Introduction-2 Front Panel PCI-EX4 PCI-EX1 PCI Audio CD_IN ATX 12V CON IE 1394 CON PCI-EX16 Component Introduction CPU Socket USB CON Fan CON SATA 6Gb/s Memory Slot Core Locker Power Button CON SATA IDE CON ATX Power CON Memory OK Switch COM Turbo Key

  18. Component Introduction-3 • 10.Microphone port (Pink) • 11.Center/Subwoofer port (Yellow/Orange) • 12.USB2.0 port 3&4 • 13.USB2.0 port 1&2 • 14.Optical S/PDIF out port • 15.Coaxal S/PDIF out port • 16.PS/2 Keyboard port (Purple) • 17. PS/2 Keyboard port (Green) • 1.Parallel port • 2.IEEE 1394a port • 3.LAN(RJ45) port • 4.Rear speaker out port (Gray) • 5.Side speaker out port (Black) • 6.Line in port (Light blue) • 7.Line out port (Lime) • 8.Wireless Lan antenna port • 9.Wireless Lan led

  19. Component Introduction-4 • 1.PS/2 keyboard/mouse combo port • 2.Video Graphics adapter (VGA) Port • 3.USB2.0 port 3&4 • 4.LAN port • 5.Rear speaker out port (Black) • 6.Center/Subwoofer port • 7.Line in port (Light blue) • 8.Line out port (Lime) • 9.Microphone port (pink) • 10.Side Speaker out port(gray) • 11.USB 2.0 port 1 & 2 • 12.IEEE 1394a port • 13.External SATA port • 14.DVI port • 15.HDMI port • 16.Optical S/PDIF Out port • 17.USB 2.0 port 5&6

  20. Component Introduction-5 18 17 16 15 14 13 12 11 10 1 2 3 4 5 6 7 8 9 • 10.Line out port (Lime) • 11.Line in port (Light blue) • 12.Side speaker out port (black) • 13.Center/Subwoofer port(Orange) • 14.LAN (RJ45) port • 15.USB2.0 port 3&4 • 16.DVI transmission port • 17. DP transmission port • 18. PS/2 Keyboard/Mouse combo port • 1.USB2.0 port 1&2 • 2.Optical S/PDIF out port • 3.HDMI transmission port • 4.VGA transmission port • 5.External SATA port • 6.IEEE 1394a port • 7.USB3.0 port • 8.Rear speaker out port (Gray) • 9.Microphone port (Pink)

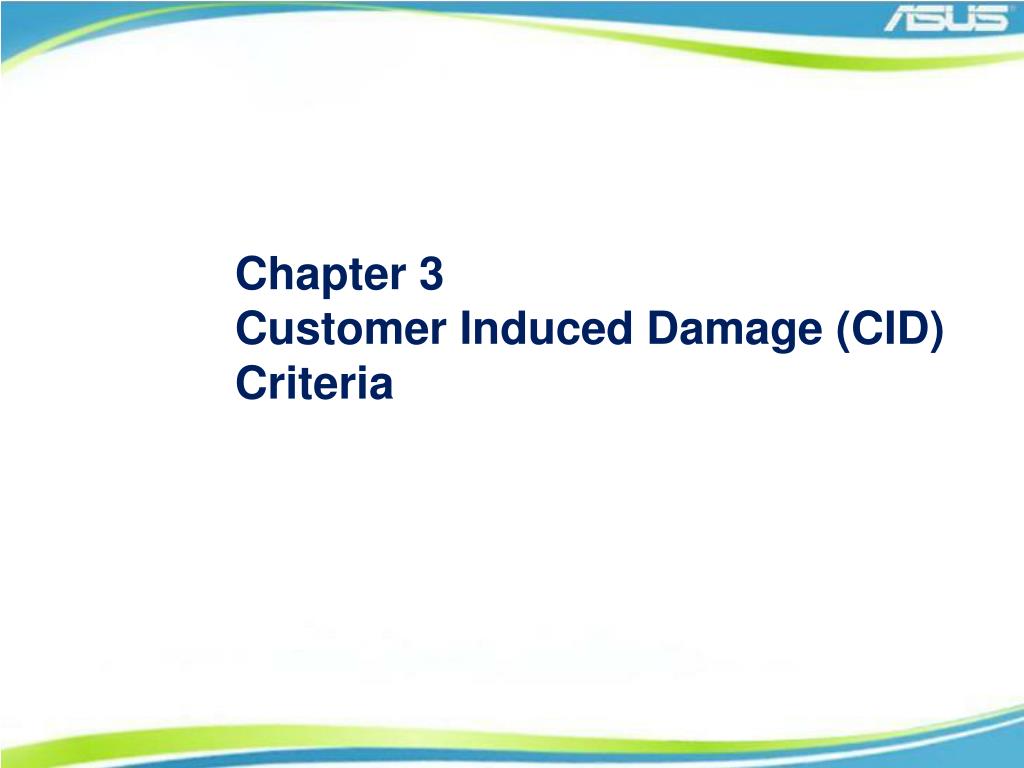

  21. Chapter 3Customer Induced Damage (CID) Criteria

  22. CID Outline 1. PCB Trace Scratched 2. PCB Broken 3. Damaged capacitors, resistors, inductors, small passive components, socket, etc. 4. PCB & Component Oxidation 5. PCB Burned 6. Component Burned 7. Missing Component 8. Dirt 9. S/N Label Damaged 10. CID & O.O.W. service process flow chart

  23. 1-1 PCB Trace Scratched Figure 1. Figure 2. Figure 3. Figure 4.

  24. 1-2 PCB Trace Scratched Figure 5. Figure 6.

  25. 1-3 PCB Trace Scratched Figure 7. Figure 8.

  26. 2-1 PCB Broken Figure 9. Figure 10.

  27. 2-2 PCB Broken Figure 11. Figure 12. Figure 13. Figure 14.

  28. 2-2 PCB Broken Figure 15. Figure 16.

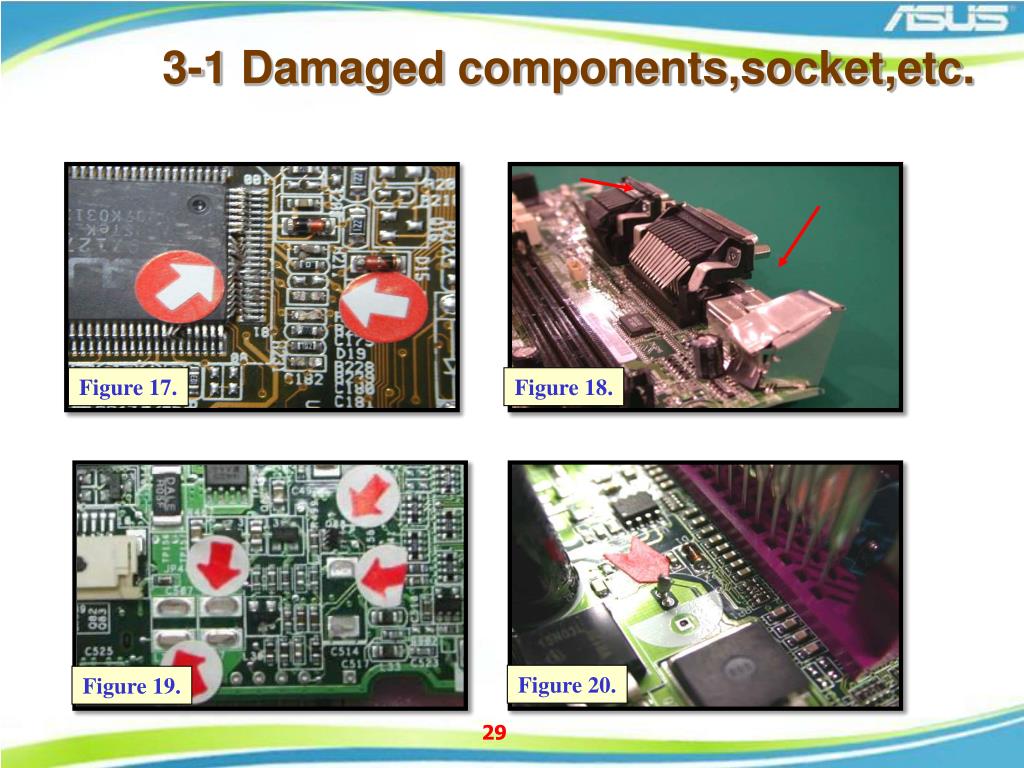

  29. 3-1 Damaged components,socket,etc. Figure 17. Figure 18. Figure 20. Figure 19.

  30. 3-2 Damaged components,socket,etc. Figure 21. Figure 22. Figure 23. Figure 24.

  31. 3-3 Damaged components,socket,etc. Figure 25. Figure 26.

  32. 3-4 Damaged components,socket,etc. Socket 478, 940, 939, 754, 478, 604, 462, etc. Figure 27.

  33. 3-5 Damaged components,socket,etc. LGA775, 771 Socket F etc. Figure 28. Figure 29.

  34. 4-1 PCB & Component Oxidation Figure 30. Figure 31. Figure 32. Figure 33.

  35. 4-2 PCB & Component Oxidation Figure 34. Figure 35. Figure 36. Figure 37.

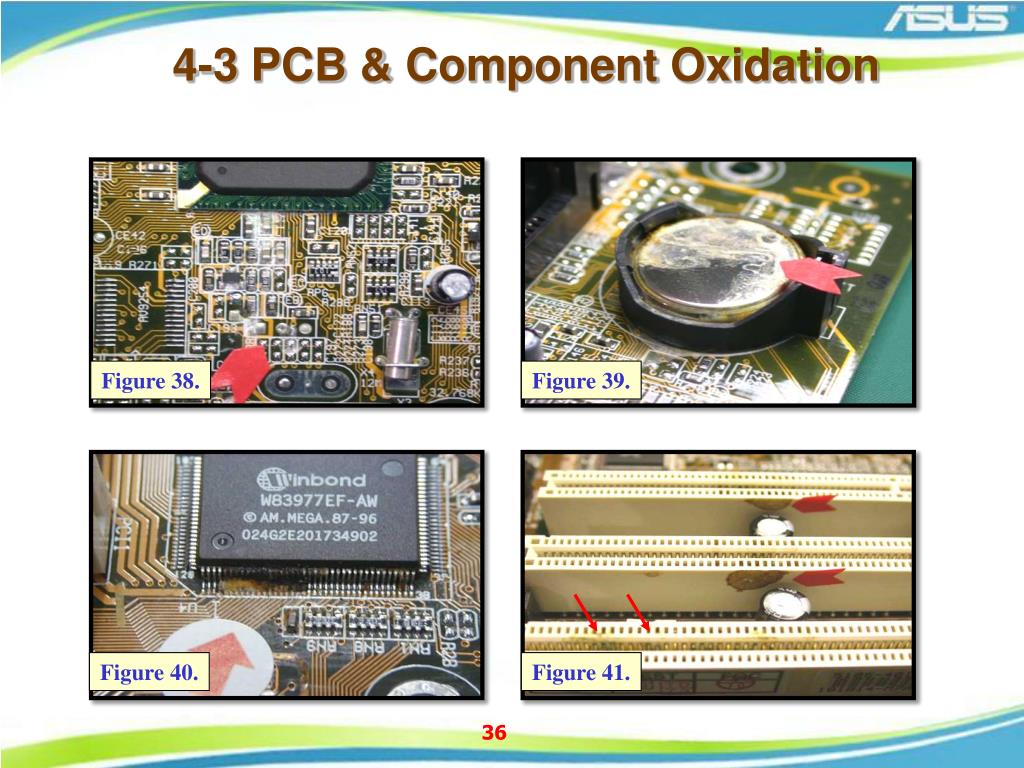

  36. 4-3 PCB & Component Oxidation Figure 38. Figure 39. Figure 40. Figure 41.

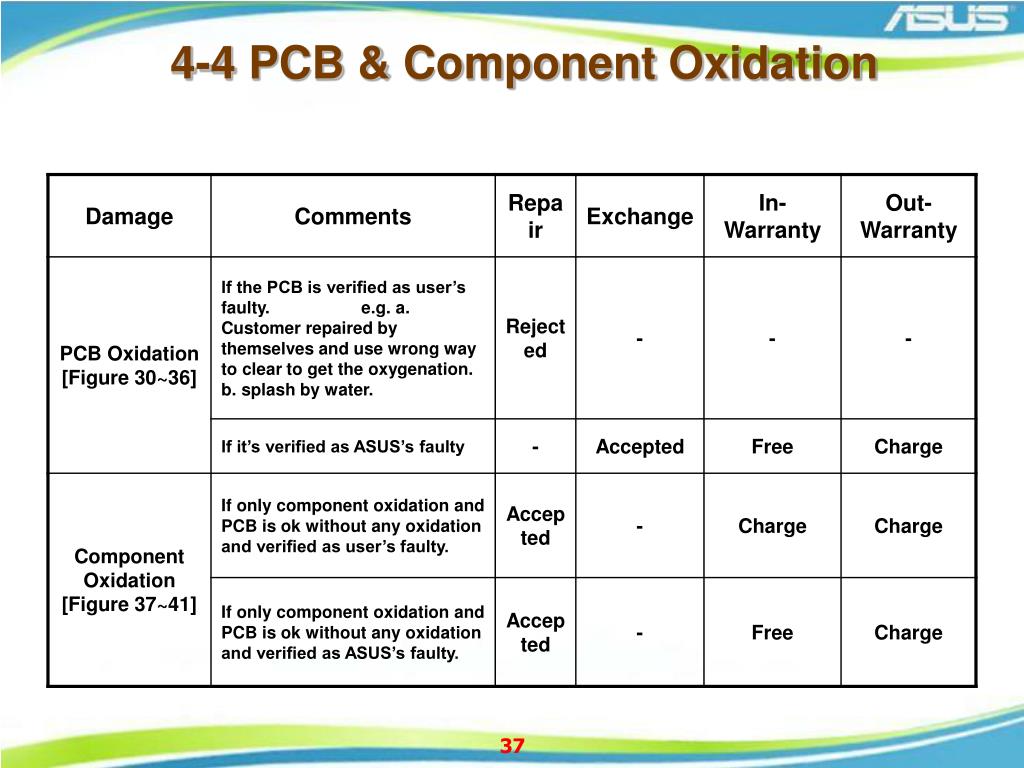

  37. 4-4 PCB & Component Oxidation

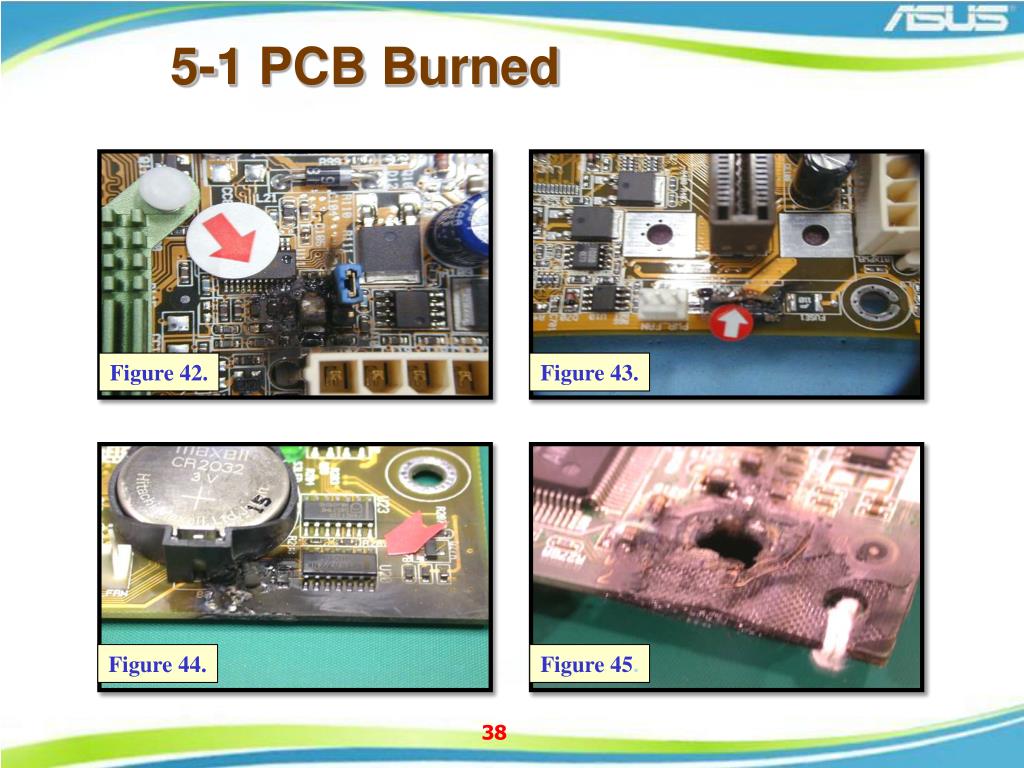

  38. 5-1 PCB Burned Figure 42. Figure 43. Figure 44. Figure 45.

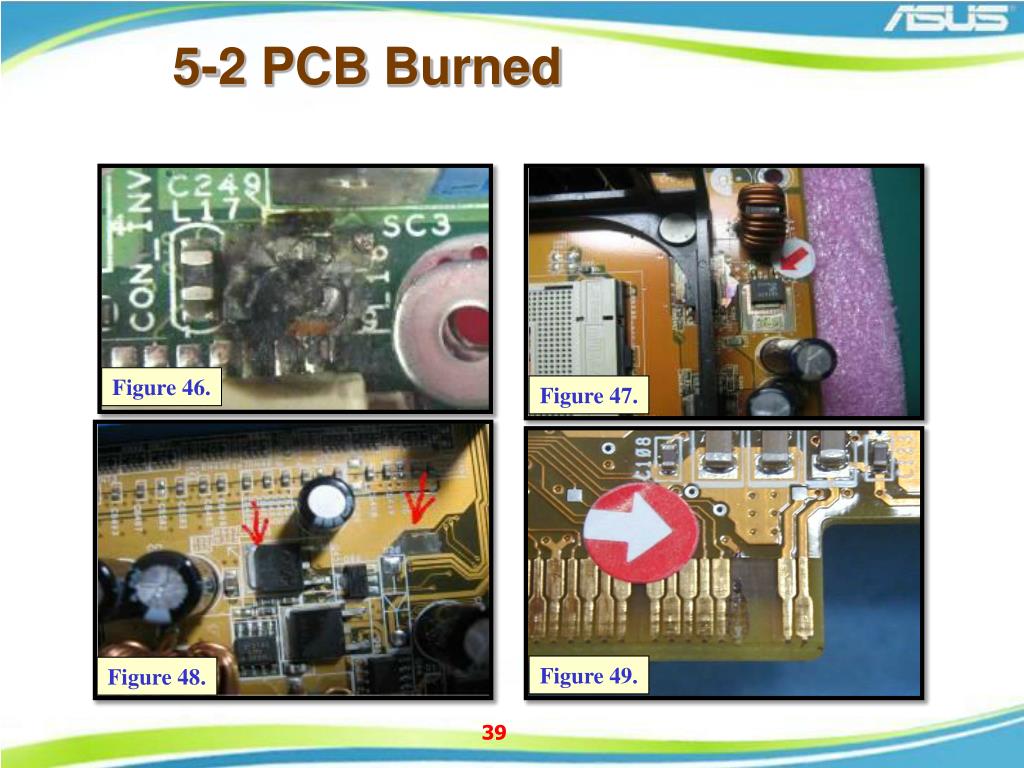

  39. 5-2 PCB Burned Figure 46. Figure 47. Figure 49. Figure 48.

  40. 5-3 PCB Burned

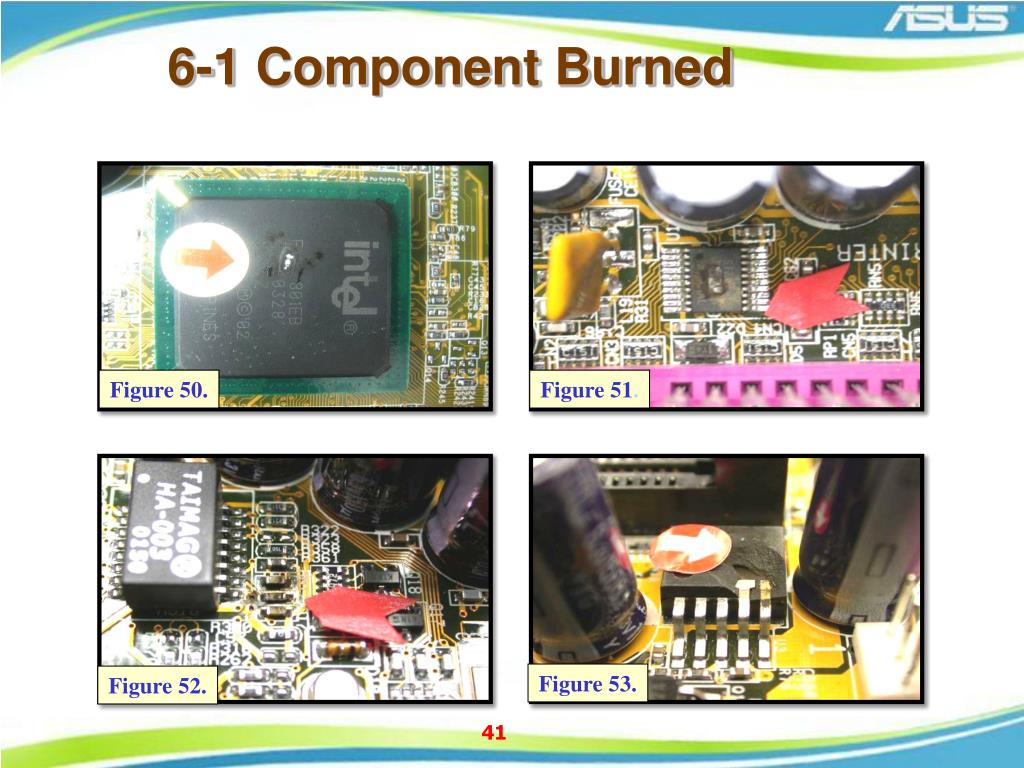

  41. 6-1 Component Burned Figure 50. Figure 51. Figure 53. Figure 52.

  42. 6-2 Component Burned Figure 54. Figure 55.

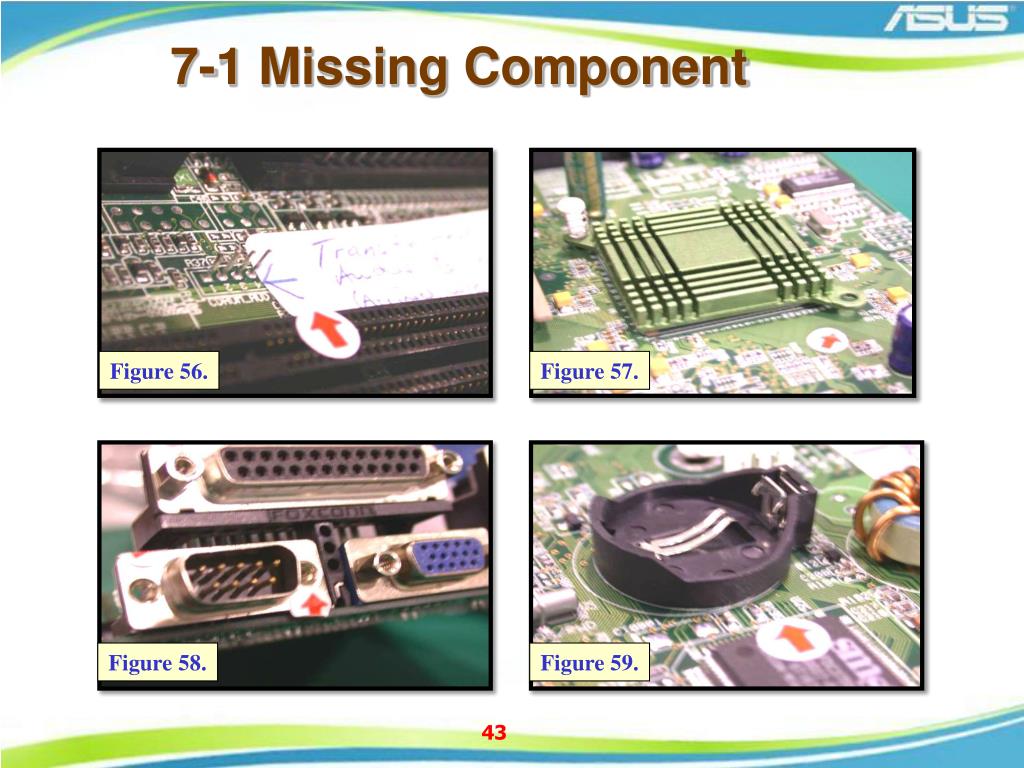

  43. 7-1 Missing Component Figure 56. Figure 57. Figure 58. Figure 59.

  44. 7-2 Missing Component Figure 60. Figure 61. Figure 62. Figure 63.

  45. 7-3 Missing Component Figure 64.

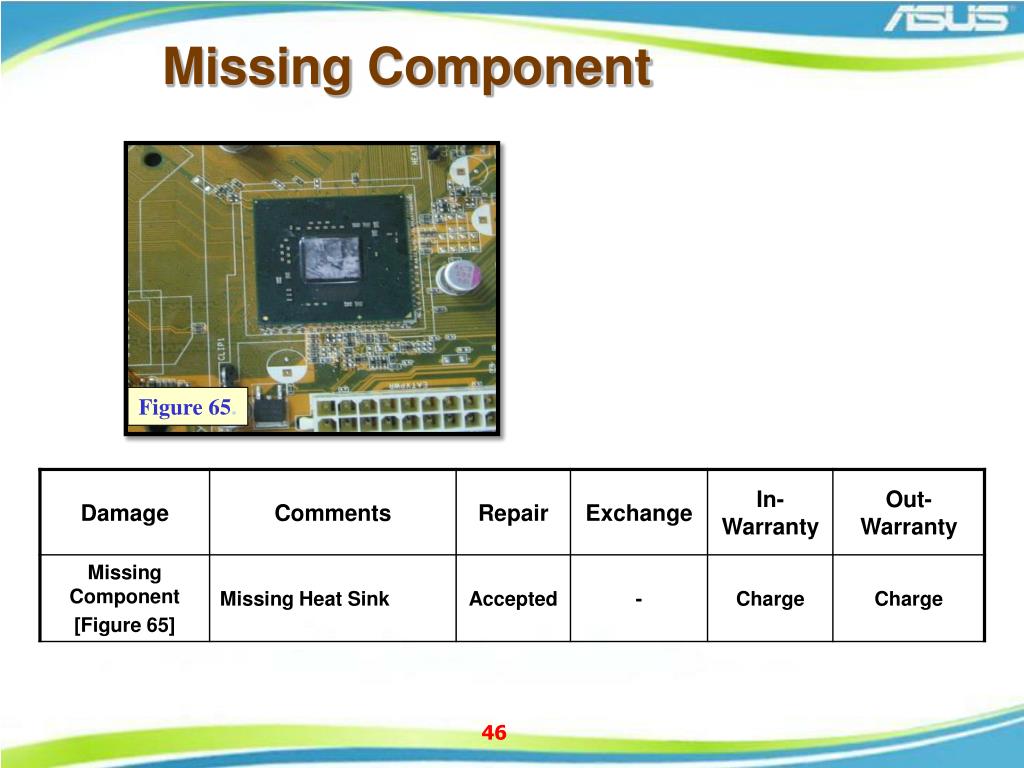

  46. Missing Component Figure 65.

  47. 8-1 Dirty Figure 66. Figure 67.

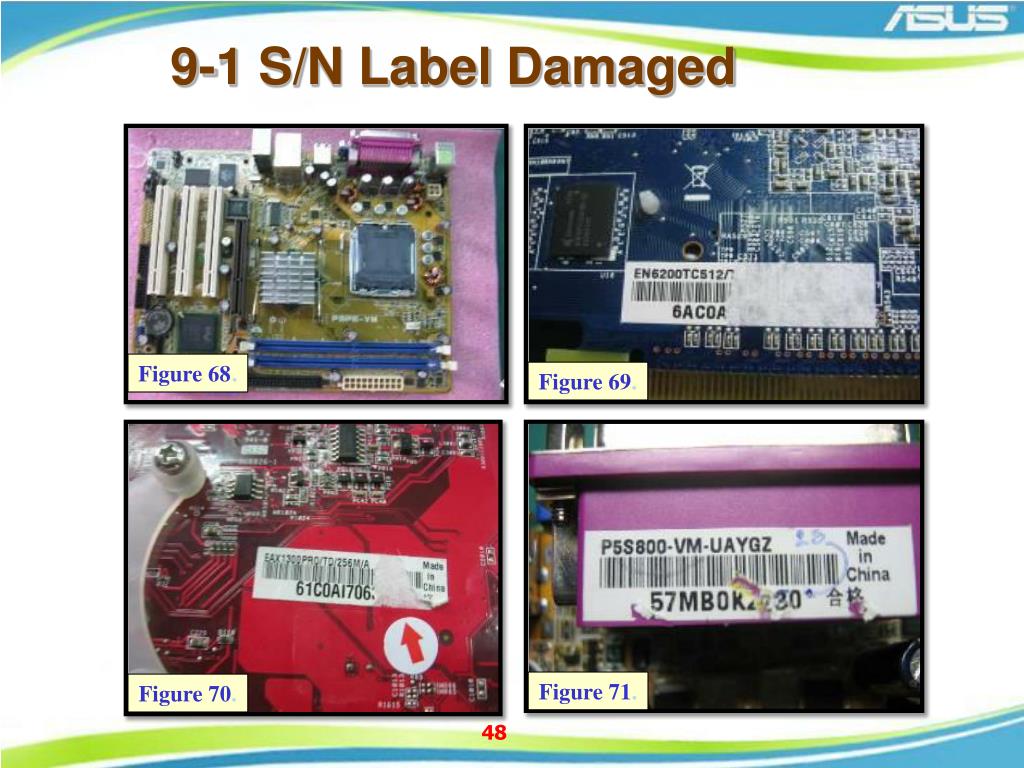

  48. 9-1 S/N Label Damaged Figure 68 . Figure 69. Figure 71. Figure 70.

  49. 9-2 S/N Label Damaged

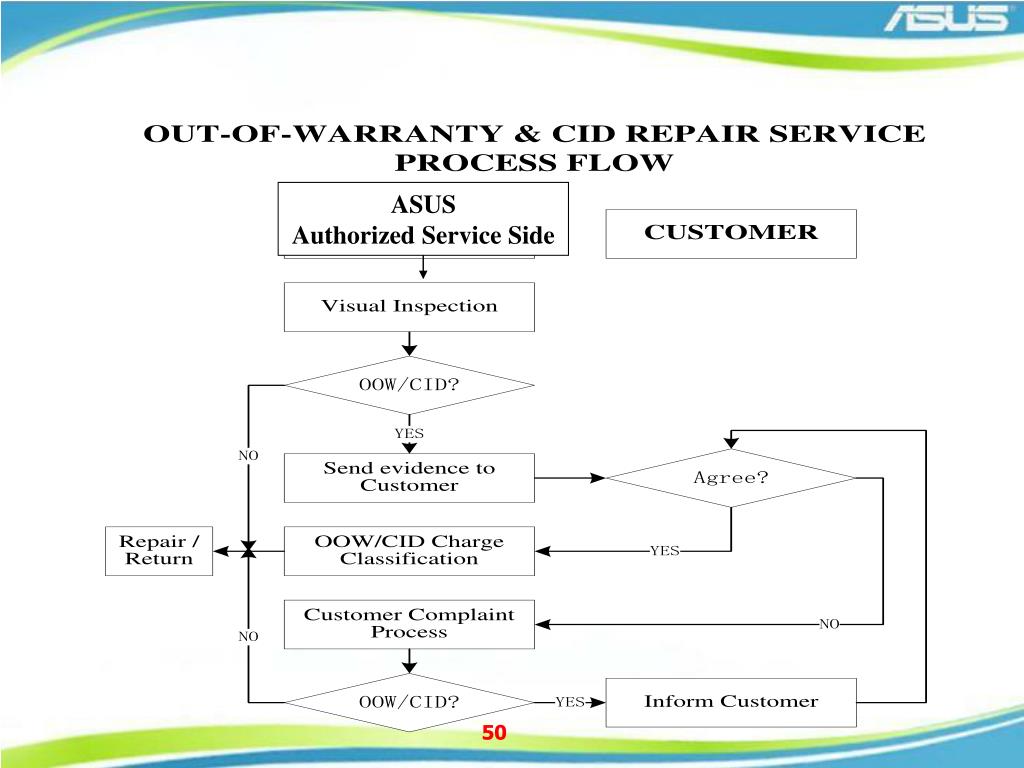

  50. ASUS Authorized Service Side
