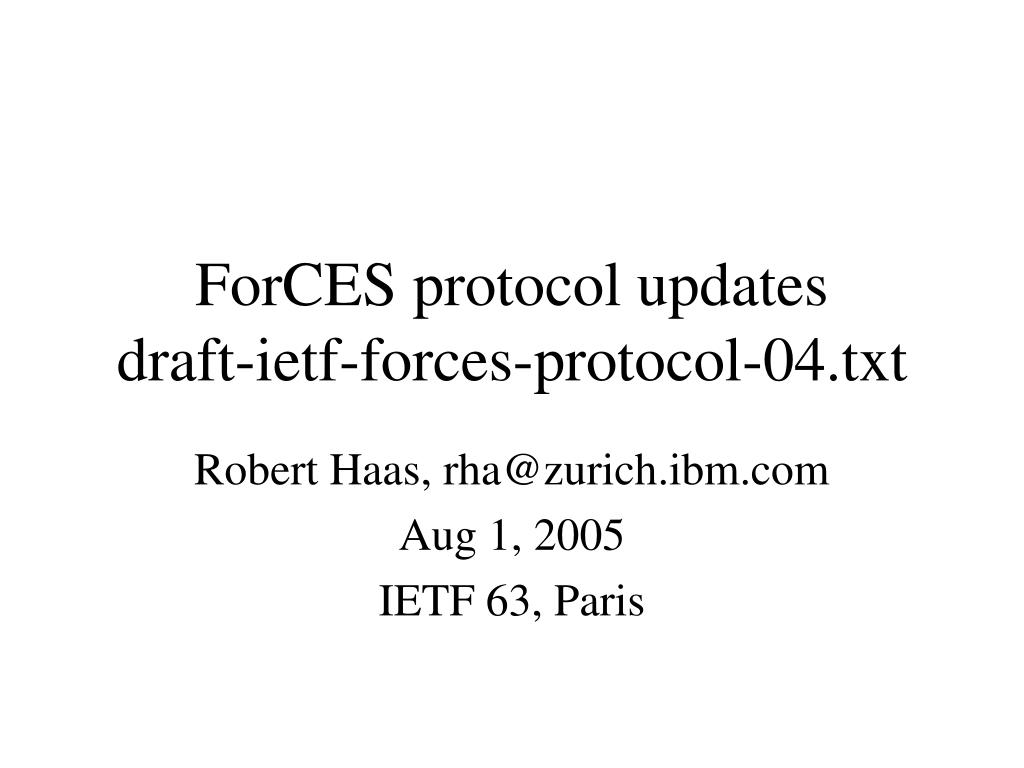

  1. ForCES protocol updatesdraft-ietf-forces-protocol-04.txt Robert Haas, rha@zurich.ibm.com Aug 1, 2005 IETF 63, Paris

  2. Technical issues in the tracker • http://www.mip4.org/issues/tracker/forces/

  3. Issue 6: Data encapsulation • Idea: Two types of DATA TLV: DATARAW or PACKED-DATARAW. DATARAW contains ILVs for each element. Suitable when optional elements are encapsulated. • Discussion: ILV with 32-bit Index and 32-bit Length • TBD debate on using ILV vs PATH • Status: Accept

  4. Issue 11: heartbeat piggy-backing • Idea: skip heartbeats as long as there is protocol activity • Should be controllable via a flag in the FE Protocol LFB • Status: Accept

  5. Issue 12: TML support for message obsolescing • Idea: include support for letting the PL layer indicate to the TML if some messages queued for sending may be cancelled. • Discussion: most transports do not support this • Status: Reject

  6. Issue 22: Response formatting • Idea: provide various level of information via Result TLV in all PL response messages • Discussion: • If successful, a GET-RESPONSE contains DATARAW TLVs, otherwise a RESULT TLV • SET-RESPONSE contain RESULT TLVs in place of the DATARAW TLVs of the SET message. • RESULT TLV:  • 0 = success • 1 = no such object • 2 = permission denied • 3 = invalid value (the dataraw could not validly be stored in the field) • 4 = invalid array creation (when the subscript in an array create is not allowed) • 255 = unspecified error (for when the FE can not decide what went wrong) • If there are multiple fields set in a DATARAW, once causes an error, then the whole operation returns an error • If there are multiple field errors, the FE chooses which error to return. • Status: pending • Proposal: accept

  7. Issue 23: Common Header issues • Ideas: • Windowing at the PL layer • CE-FE master-slave relationship or peer-to-peer ? • Atomicity and batching flags in the PATH ? • Discussion • No requirements to wait for PL ACKs before sending next PL message. • CE-FE are master-slave, • replies and events notifs only go FE->CE • Flags belong to the Common Header • Status: closed

  8. Issue 24 (and 41): CE LFB • Idea: use of a CE LFB to originate events sent from the CE to the FE (for instance) • Discussion: no real need for this, remove it. • Status: closed

  9. Issue 25: Associations • Problem: Leaving src ID to 0 when setting up the association (message from FE to CE) and using a dest mcast ID • Discussion: does not pose any issue • Status: closed

  10. Issue 26: Teardown reason • Problem: format of the association setup and teardown messages • Discussion: use LFBSelect for Setup, and only a Teardown-Result TLV for Teardown: • 0 - normal teardown by administrator • 1 - error - loss of heart-beat • 2 - error - out of bandwidth resource • 3 - error - out of memory resource • 4 - error - application crash • .. • 255 - error - other or unspecified • Status: closed

  11. Issue 28: LFB Instance Select • Idea: need to address multiple instances simultaneously ? • Discussion: Instance Select TLV proposed • Status: Pending • Proposal: ?

  12. Issue 30: Event subscription • Problem: should all events be subscrib-able ? • Discussion: yes • Status: closed

  13. Issue 31: Notification Response Message • Problem: Is a special “Notification Response” message needed ? • Discussion: use the ACK flags in the common header • Status: closed

  14. Issue 32: Packet redirects • Problem: LFB(s) and format of packet redirection • Discussion: Move definition of Redirect LFB to another doc. Use a special TLV (no need of LFB-select TLV) for redirected packets. Include metadata (see next slides) • static metadata ID assignment, may require metadata transcoding • Status: Pending

  15. Meta Data TLV: This is a TLV that specifies meta-data associated with followed redirected data. The TLV is as follows: +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Type = META-DATA | Length | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Meta Data ILV | . . +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ ~ ... ~ +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Meta Data ILV | . . +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ Meta Data ILV: This is an Identifier-Length-Value format that is used to describe one meta data. The ILV has the format as: +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Meta Data ID | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Length | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Meta Data Value | . . +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ Where, Meta Data ID is an identifier for the meta data, which is usually defined by FE-Model[FE-MODEL]. Message Body: Consists of one or more TLVs, with every TLV having the following data format: 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Type = Redirect | Length | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | LFB Class ID | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | LFB Instance ID | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Meta Data TLV | . . +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Redirect Data TLV | . . +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ LFB class ID: There are only two possible LFB classes here, the 'RedirectSink' LFB or the 'RedirectSource' LFB[FE-MODEL]. If the message is from FE to CE, the LFB class should be 'RedirectSink'. If the message is from CE to FE, the LFB class should be 'RedirectSource'. Instance ID: Instance ID for the 'RedirectSink' LFB or 'RedirectSource' LFB.

  16. Usually there are two meta data that are necessary for CE-FE redirect operation. One is the redirected data type (e.g., IP packet, TCP packet, or UDP Packet). For an FE->CE redirect operation, redirected packet type meta data is usually a meta data specified by a Classifier LFB that filter out redirected packets from packet stream and sends the packets to Redirect Sink LFB. For an CE->FE redirect operation, the redirected packet type meta data is usually directly generated by CE. Another meta data that should be associated with redirected data is the port number in a redirect LFB. For a RedirectSink LFB, the port number meta data tells CE from which port in the lFB the redirected data come. For a RedriectSource LFB, via the meta data, CE tells FE which port in the LFB the redirected data should go out. Redirect Data TLV: This is a TLV describing one packet of data to be directed via the redirect operation. The TLV format is as follows: +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Type = REDIRECTDATA | Length | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | Redirected Data | . . +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ Redirected Data: This field presents the whole packet that is to be redirected. Obviously, the packet should be 32bits aligned.

  17. Issue 33: Command Pipelining • Idea: send multiple messages to the FE without waiting for the ACKS • Discussion: Protocol FSM allows sending PL messages without waiting for previous ACKs. Correlators allow to match ACKs.Throttle bits ? • Status: Pending

  18. Issue 34: Header flags • Problem: Definition of ACK, Priority, Throttle flags in the Common Header • Discussion: TBD • Status: Pending

  19. Issue 36: FE/CE Failover • Problem: Clarify FE/CE failover • Discussion: TBD • Status: Pending

  20. Issue 37: FE Protocol LFB • Problem: Definition of the attributes in the FE Protocol LFB • Discussion: remove requirement for the FE Protocol LFB. But global default values MUST be assigned to parameters such as timer interval, etc. FE Protocol LFB described in a separate doc. • default value for the heartbeat interval is 300 milliseconds. • default value for the Association Expiry timer is 900 milliseconds, i.e. an association expires after 3 missing heartbeats. • Status: closed

  21. Issue 40: BLOCK operations • Idea: Have block allocations • Discussion: optimization that can be added later. Maybe a capability of the FE to advertise. • Status: Pending • Proposal: Reject

  22. Issue 47: PL sequence number and correlator • Problem: Clarify use of sequence number. Add a correlator field to be returned by the FE as is in its responses • Discussion: sequence number now real sequence number. Add 32-bit correlator. Need to state how FE must treat the correlator. • Status: Accepted

  23. Issue 52: Association Setup • Problem: allow FE to advertise unsolicited information in the Association Setup message. Allow the CE to set attributes in the Association Setup Response message. • Discussion: May use GET-RESPONSE for unsolicited info, and SET. • Status: Pending • Proposal: Accept

  24. Issue 55: Execution, recovery of transactions in intermediate state • Problem: how to recover after association is lost and back ? What about transactions that were interrupted ? • Discussion: Cannot assume what happens to the FE while it is unassociated, so the CE must reload all the FE state once the FE is associated again. • Status: Pending • Proposal: Reject

  25. Issue 56: Association Setup Results • Issue: define the error codes for the Association Setup Response: • Discussion: An Association-Setup-Resp-TLV: • 0 = success • 1 = FE ID invalid • 2 = too many associations • 3 = permission denied • Status: Pending

  26. Issue 57: Operation types • Discussion: CONFIG message: Set (also for event subscription), delete (?), add (?), update (?), replace (?), del-all (?), cancel (?) CONFIGURATION-RESPONSE message: Same as above with *-response QUERY message: Get QUERY-RESPONSE message: Get-response EVENT-NOTIFICATION message: Report EVENT-NOTIFICATION-RESPONSE message: Report-response ASSOCIATION-SETUP message: Get-response (optional, used to advertise fields from the FE LFB and/or FE Protocol LFB in an unsolicited manner) ASSOCIATION-SETUP-RESPONSE message: Set (optional, only to set fields in the FE LFB and/or FE Protocol LFB) PACKET REDIR, HEARTBEAT do not have operations. • Status: Pending
