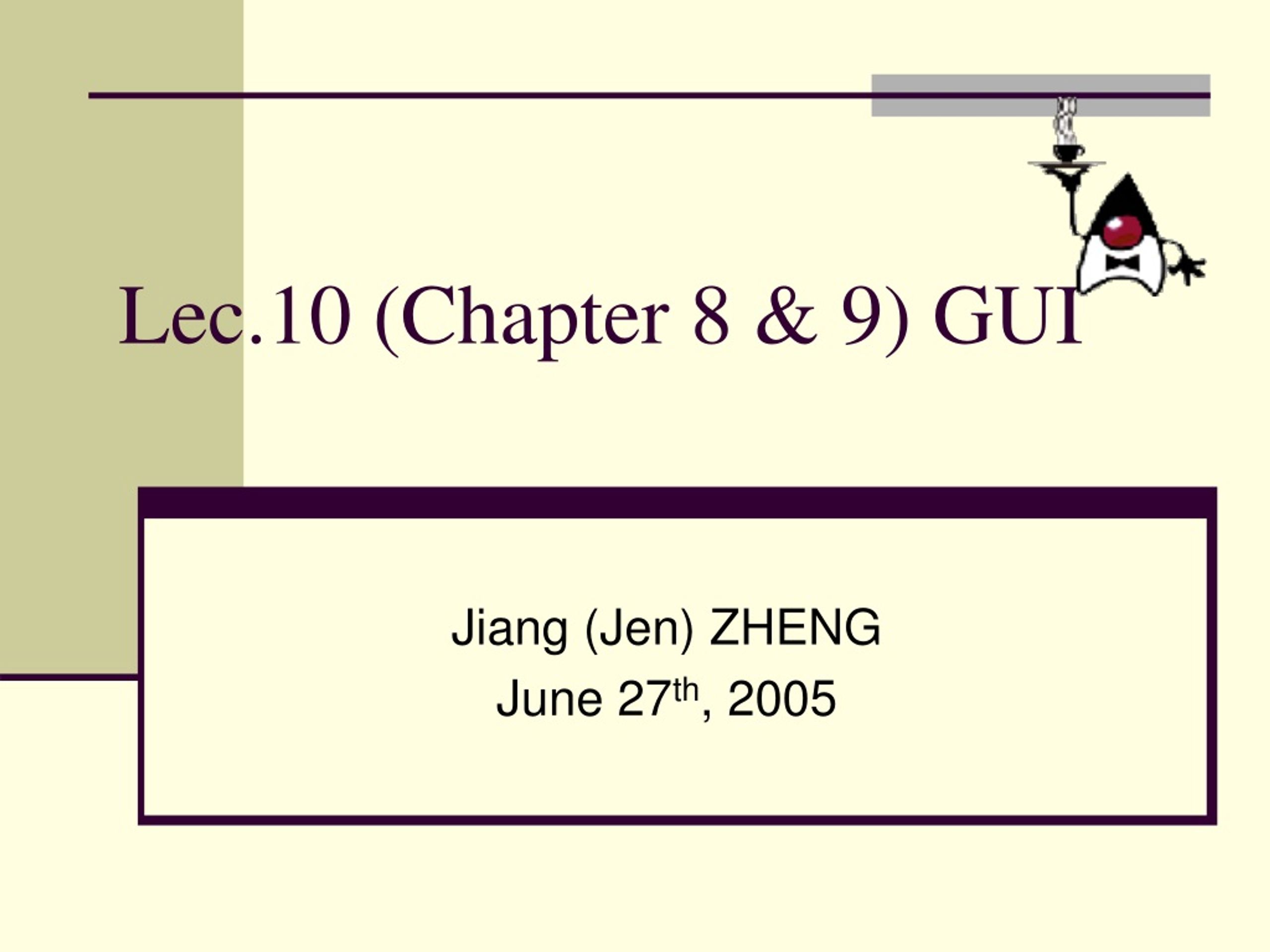

  1. Lec.10 (Chapter 8 & 9) GUI Jiang (Jen) ZHENG June 27th, 2005

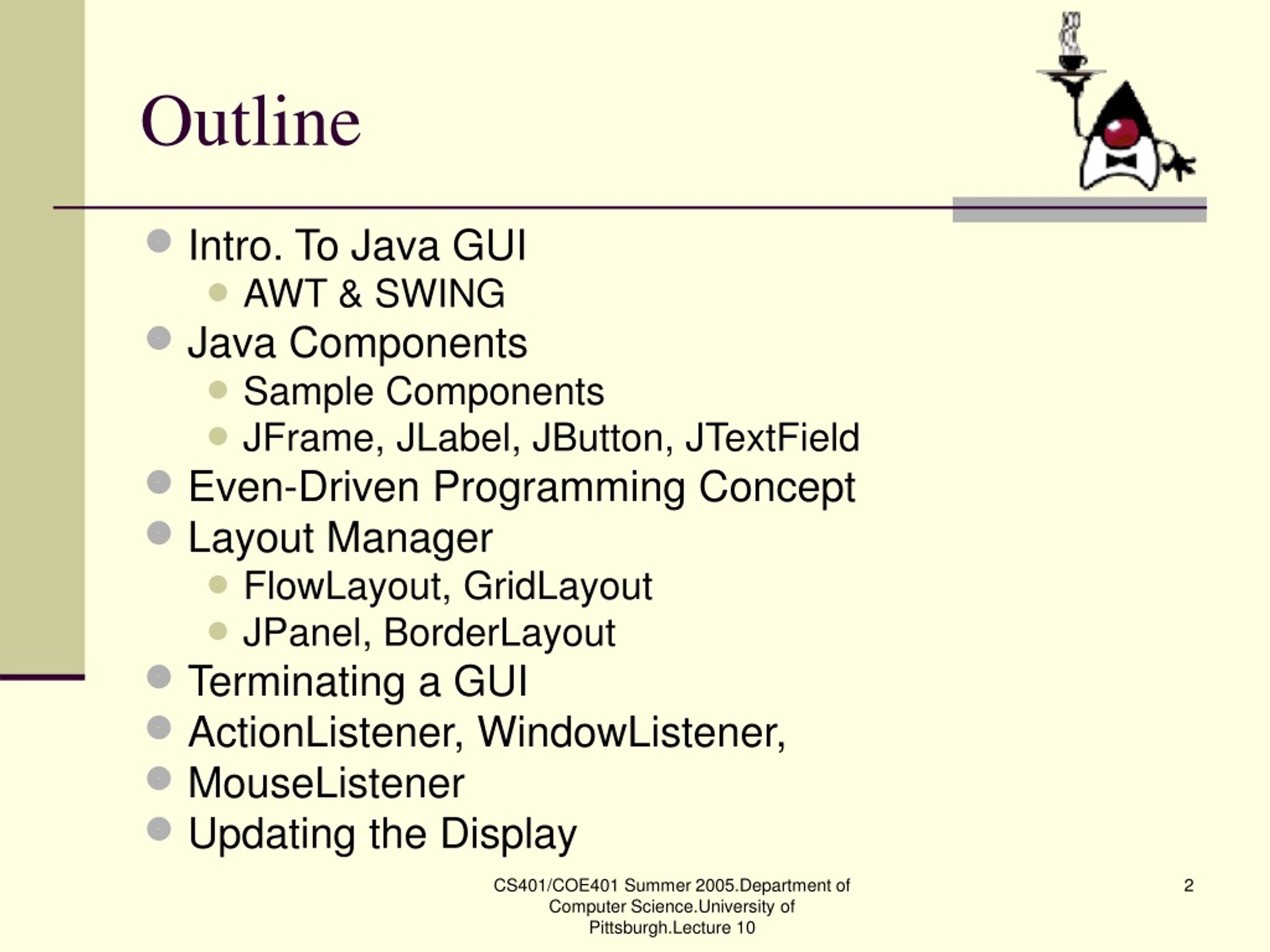

  2. Outline • Intro. To Java GUI • AWT & SWING • Java Components • Sample Components • JFrame, JLabel, JButton, JTextField • Even-Driven Programming Concept • Layout Manager • FlowLayout, GridLayout • JPanel, BorderLayout • Terminating a GUI • ActionListener, WindowListener, • MouseListener • Updating the Display CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

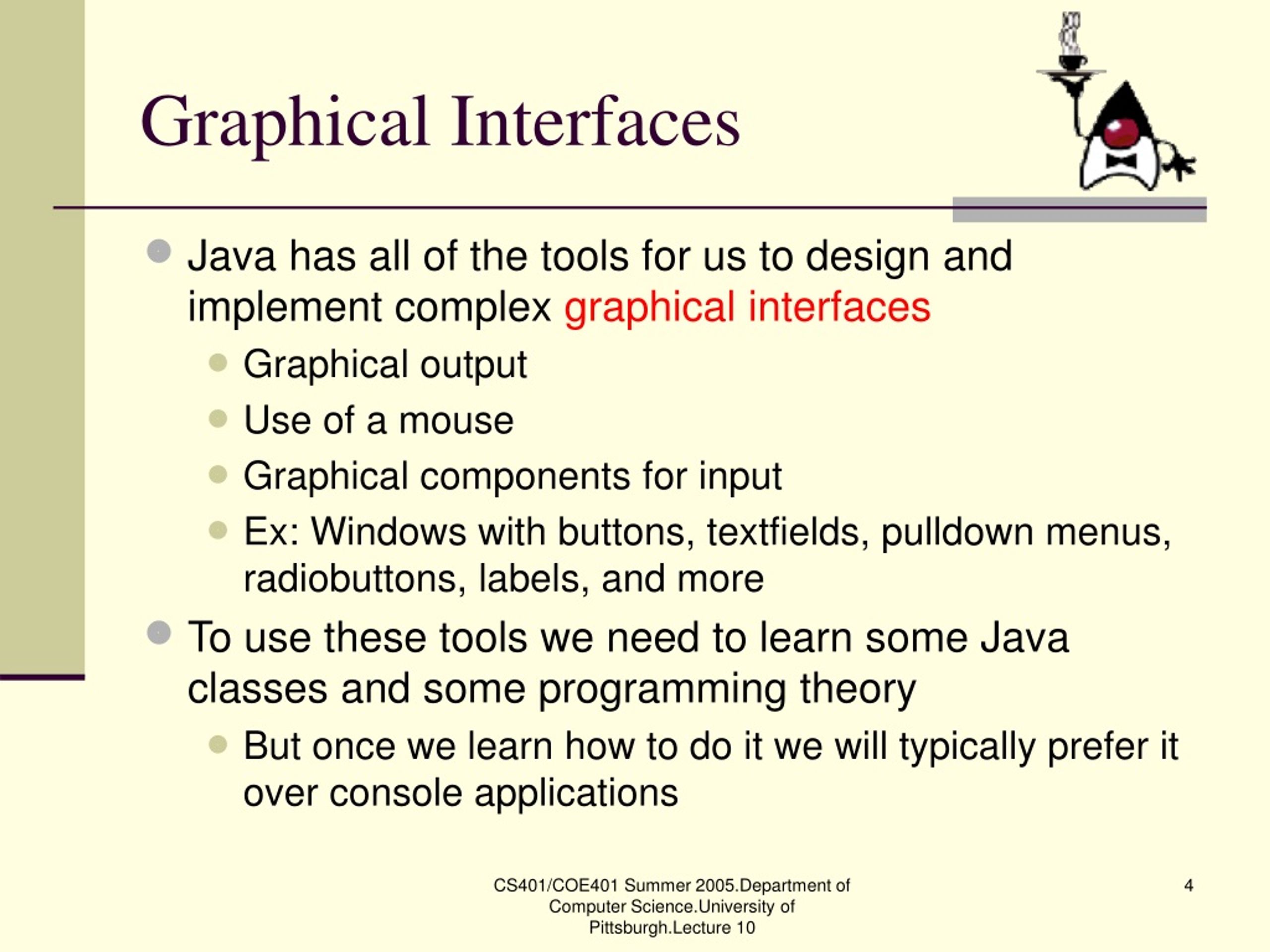

  3. Graphical Interfaces • So far all of our programs have used • Input from the keyboard • Output to the console • This is effective but in today’s world is not so user-friendly • Users want to use the mouse • Users want windows with dialog boxes and buttons • Users need maximum guidance with minimum room for error CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  4. Graphical Interfaces • Java has all of the tools for us to design and implement complex graphical interfaces • Graphical output • Use of a mouse • Graphical components for input • Ex: Windows with buttons, textfields, pulldown menus, radiobuttons, labels, and more • To use these tools we need to learn some Java classes and some programming theory • But once we learn how to do it we will typically prefer it over console applications CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  5. AWT and Swing • The AWT (Abstract Windowing Toolkit) was developed for the first versions of Java • Created components such as Frame, Panel, Button, TextField, Label • However, the look and feel of the AWT varied on different windowing systems • The same AWT Java program looks different when run on MS Windows machines, MACs and Sun Workstations • This is because the underlying windowing systems on those machines differ CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

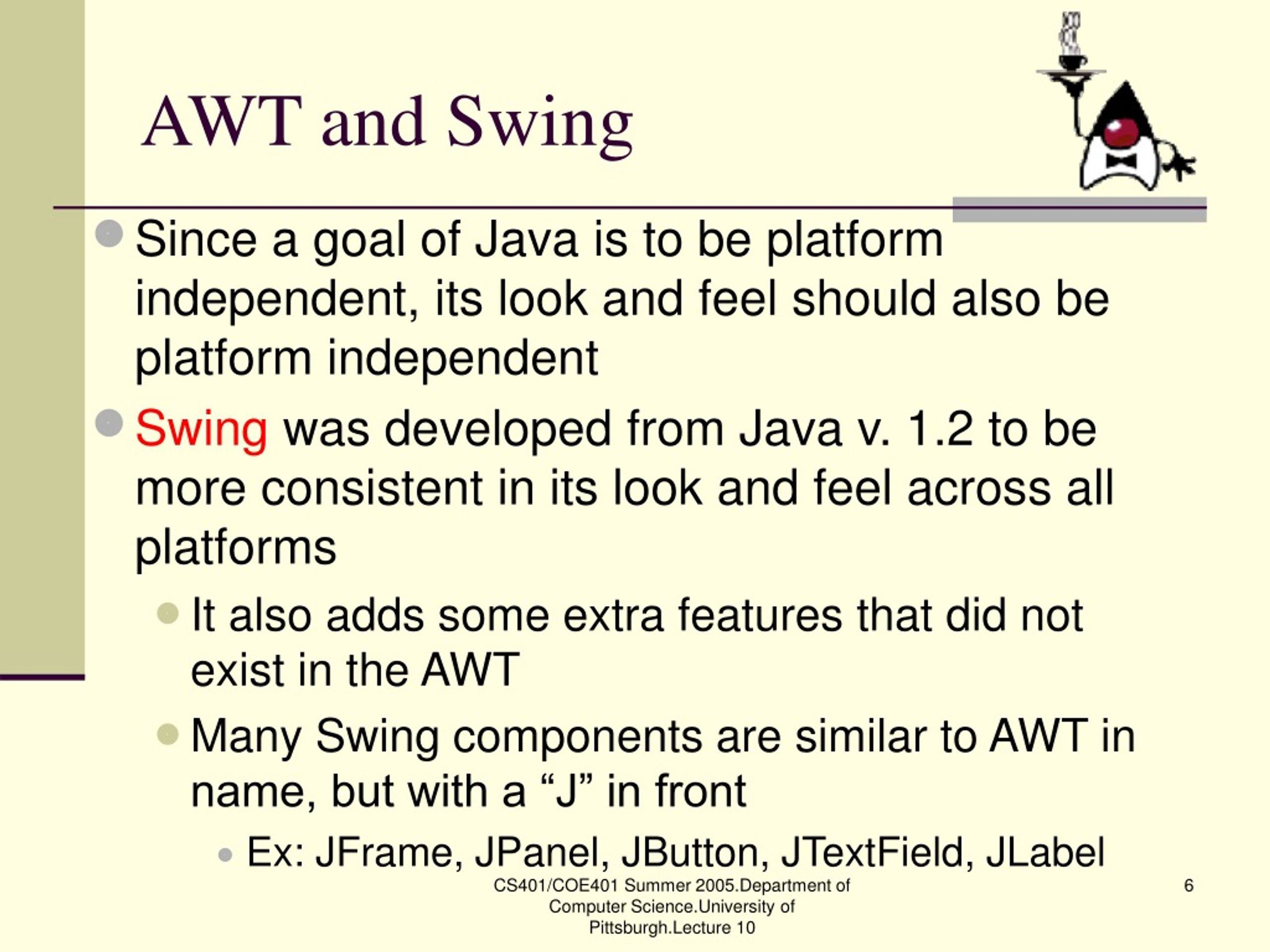

  6. AWT and Swing • Since a goal of Java is to be platform independent, its look and feel should also be platform independent • Swing was developed from Java v. 1.2 to be more consistent in its look and feel across all platforms • It also adds some extra features that did not exist in the AWT • Many Swing components are similar to AWT in name, but with a “J” in front • Ex: JFrame, JPanel, JButton, JTextField, JLabel CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

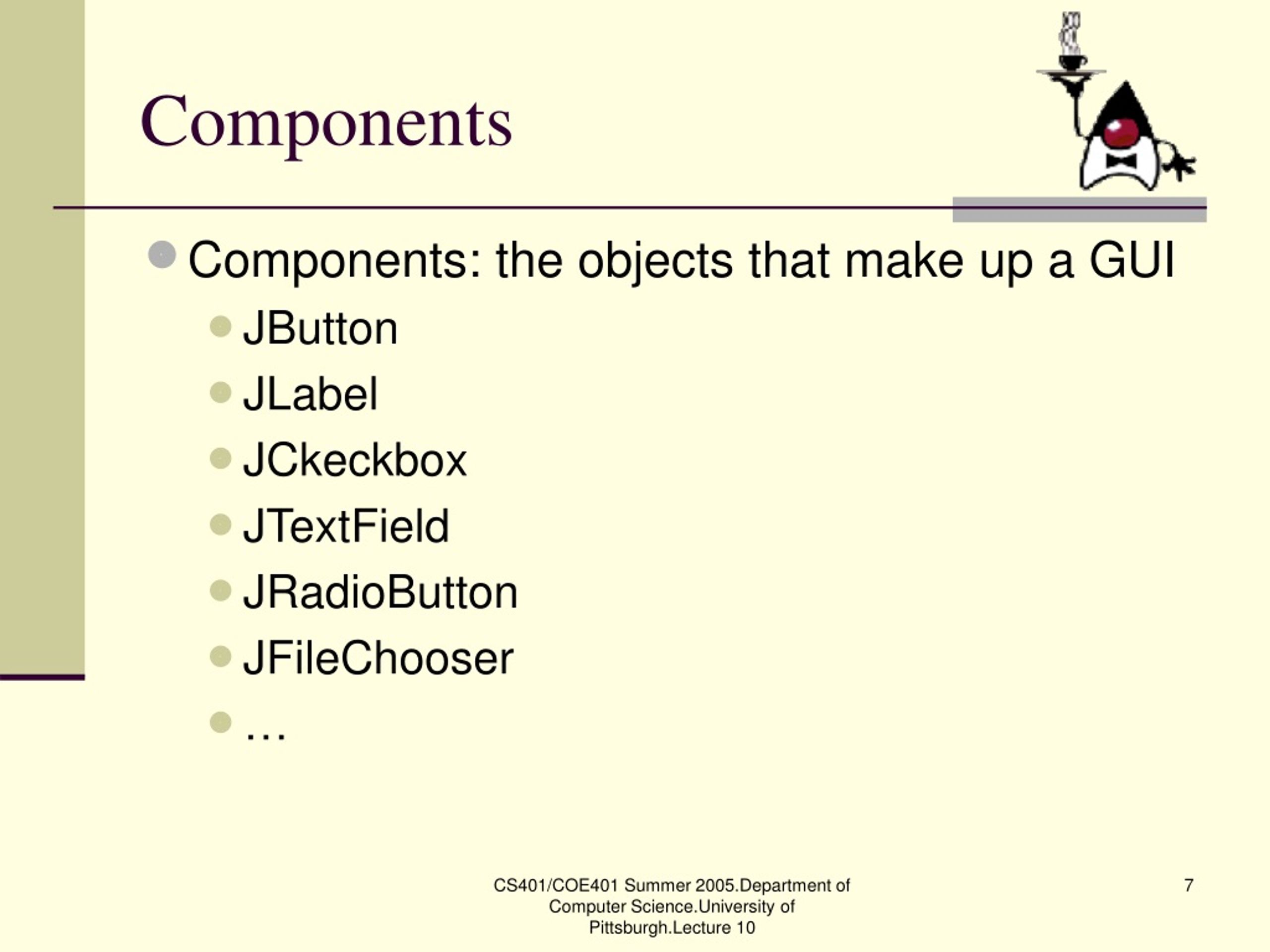

  7. Components • Components: the objects that make up a GUI • JButton • JLabel • JCkeckbox • JTextField • JRadioButton • JFileChooser • … CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  8. Sample Components JRadioButton JCheckBox JButton JComboBox JList JButton CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  9. Sample Components JMenu Different Borders CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  10. Sample Components JScroll Bar JSlider Dialog (JOptionPane) CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  11. Sample Components File Selection Dialog (JFileChooser) CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

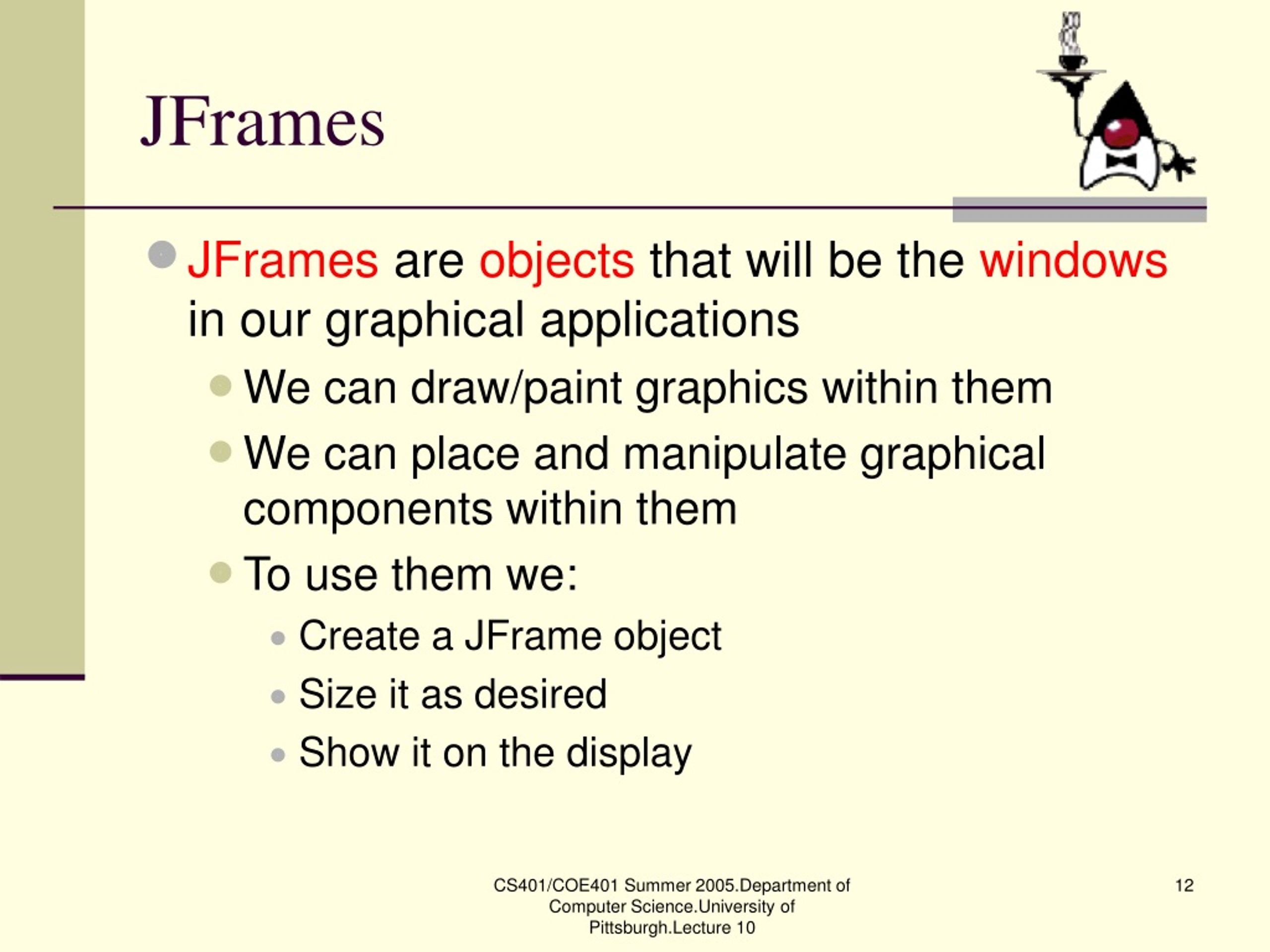

  12. JFrames • JFrames are objects that will be the windows in our graphical applications • We can draw/paint graphics within them • We can place and manipulate graphical components within them • To use them we: • Create a JFrame object • Size it as desired • Show it on the display CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

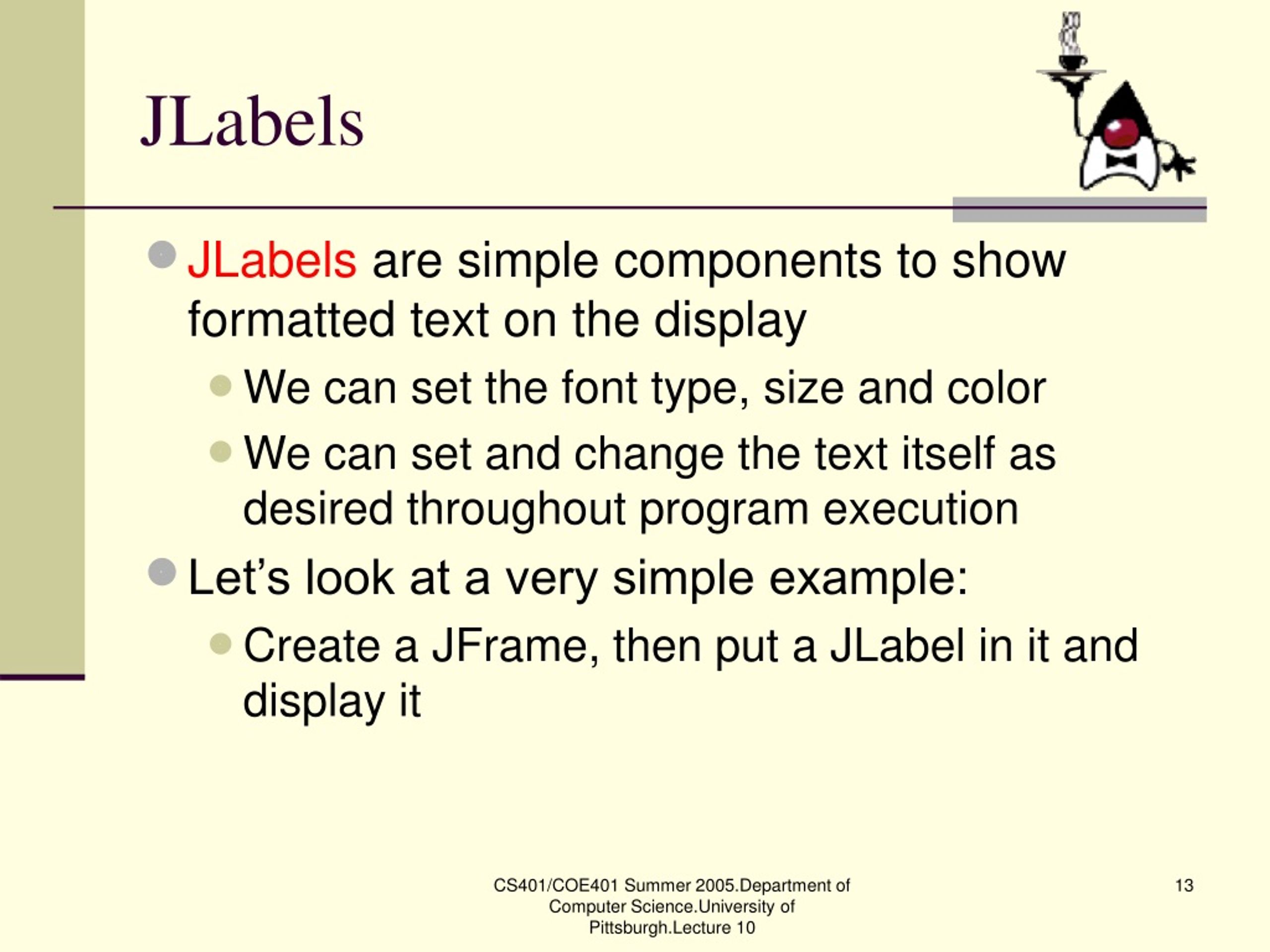

  13. JLabels • JLabels are simple components to show formatted text on the display • We can set the font type, size and color • We can set and change the text itself as desired throughout program execution • Let’s look at a very simple example: • Create a JFrame, then put a JLabel in it and display it CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

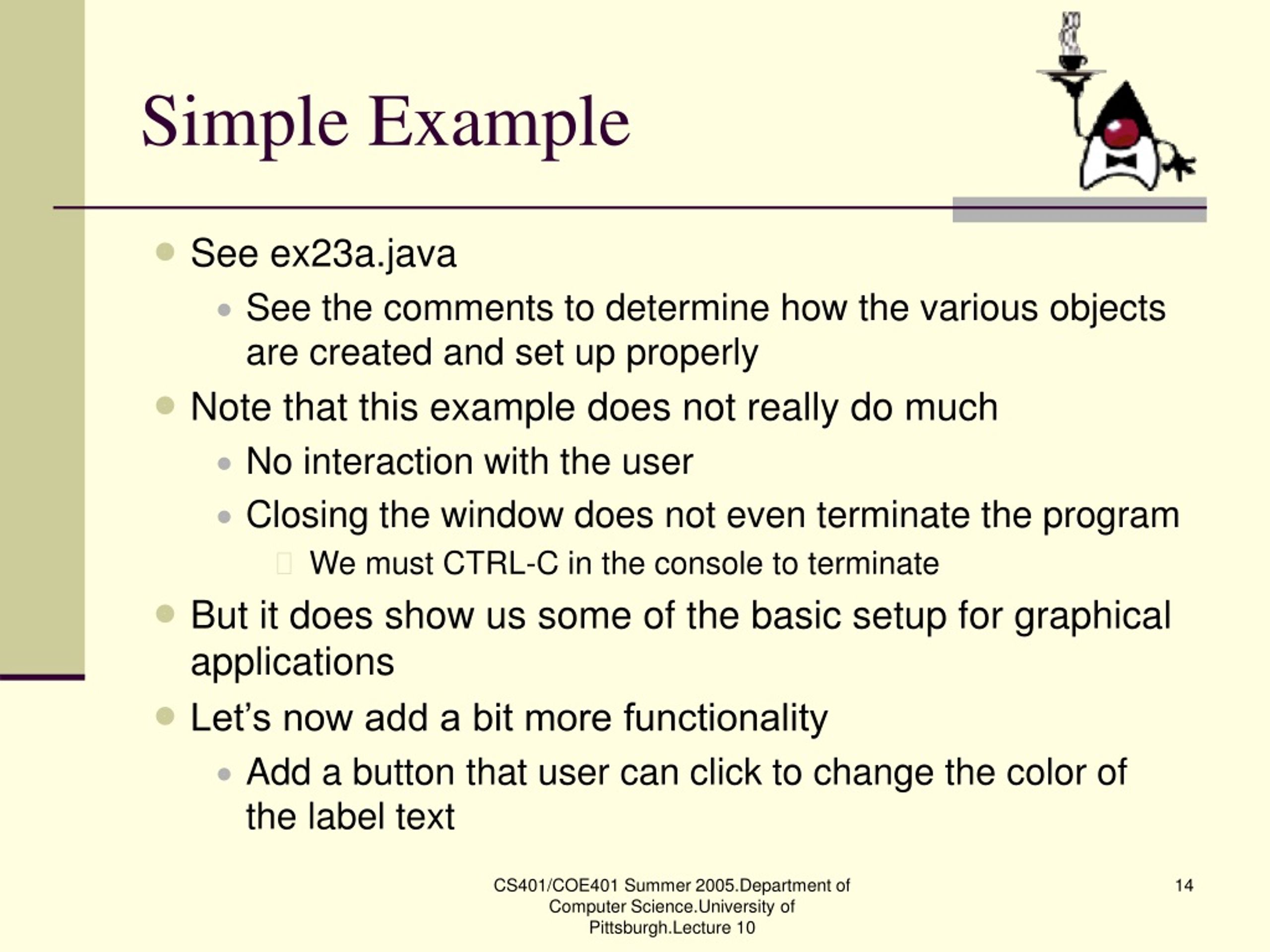

  14. Simple Example • See ex23a.java • See the comments to determine how the various objects are created and set up properly • Note that this example does not really do much • No interaction with the user • Closing the window does not even terminate the program • We must CTRL-C in the console to terminate • But it does show us some of the basic setup for graphical applications • Let’s now add a bit more functionality • Add a button that user can click to change the color of the label text CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

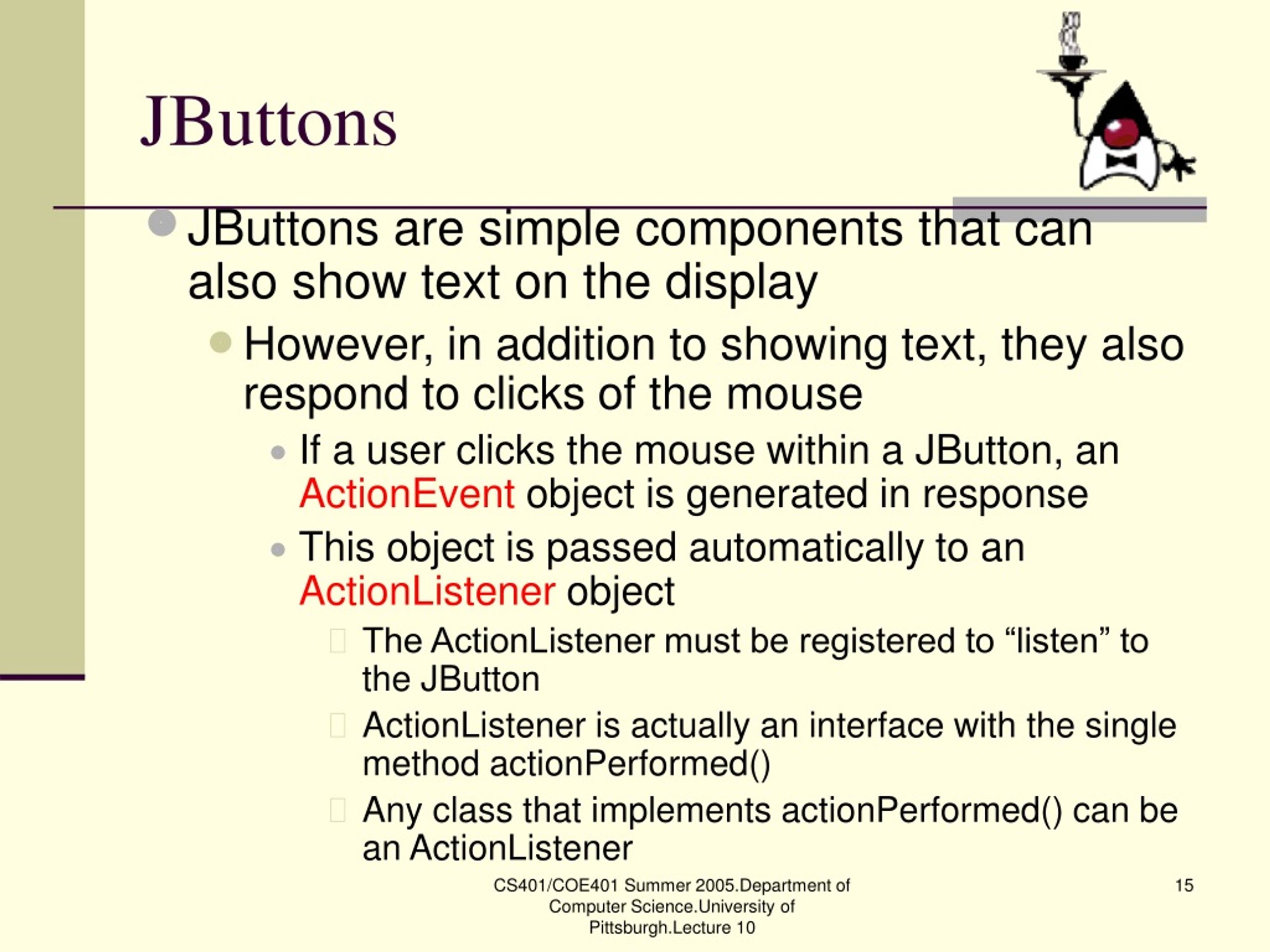

  15. JButtons • JButtons are simple components that can also show text on the display • However, in addition to showing text, they also respond to clicks of the mouse • If a user clicks the mouse within a JButton, an ActionEvent object is generated in response • This object is passed automatically to an ActionListener object • The ActionListener must be registered to “listen” to the JButton • ActionListener is actually an interface with the single method actionPerformed() • Any class that implements actionPerformed() can be an ActionListener CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  16. Event-Driven Programming • This causes the actionPerformed method within the ActionListener to execute • It is the actionPerformed method that is doing the actual response to the button click • This idea is called event-driven programming • As program executes, user generates events in various ways • Ex: click a button, move the mouse, edit text • Programmer writes code to respond to the various events that may occur • There are many different types of events in Java programs, but the basic idea for all of them is similar: CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

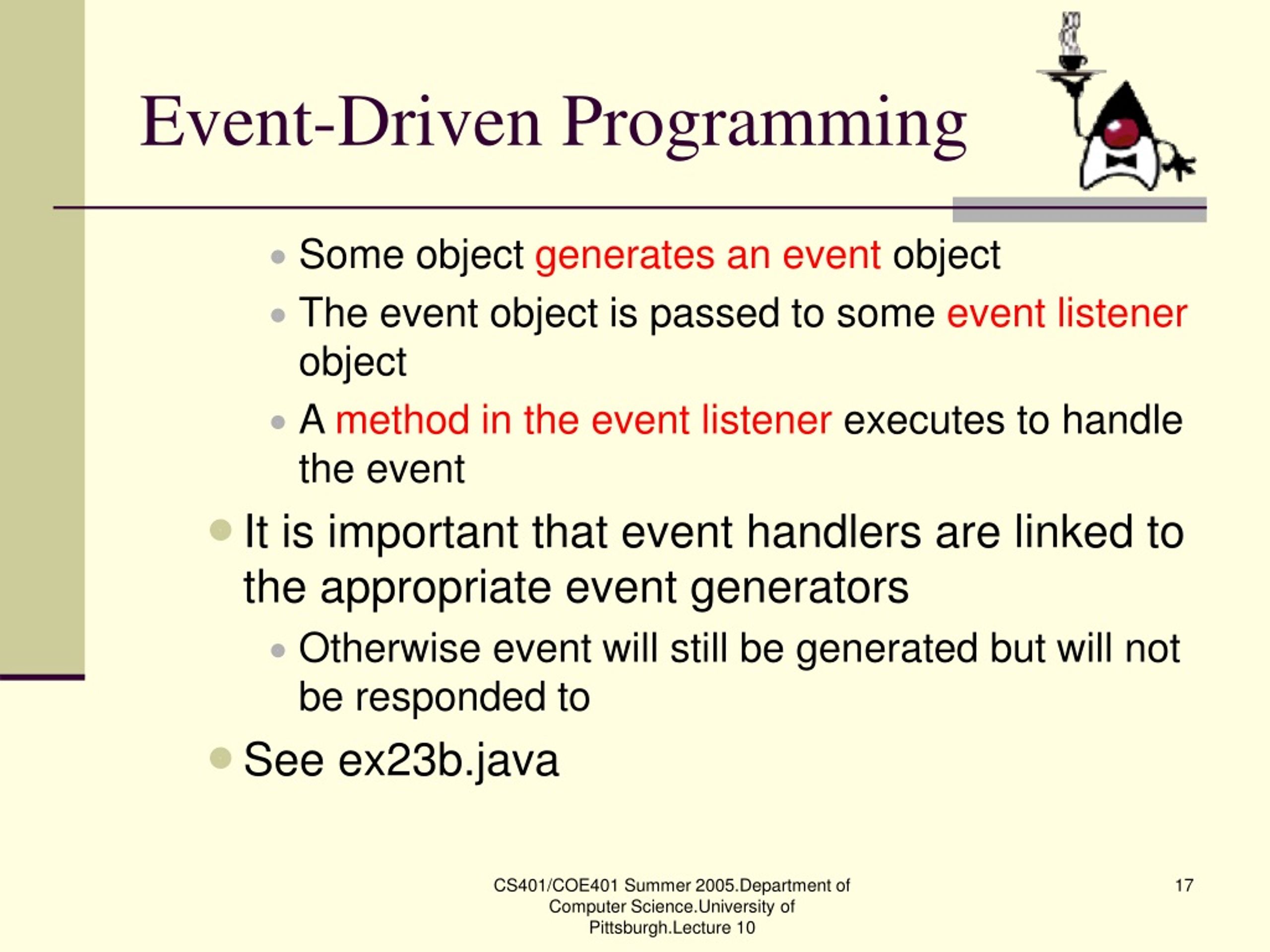

  17. Event-Driven Programming • Some object generates an event object • The event object is passed to some event listener object • A method in the event listener executes to handle the event • It is important that event handlers are linked to the appropriate event generators • Otherwise event will still be generated but will not be responded to • See ex23b.java CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

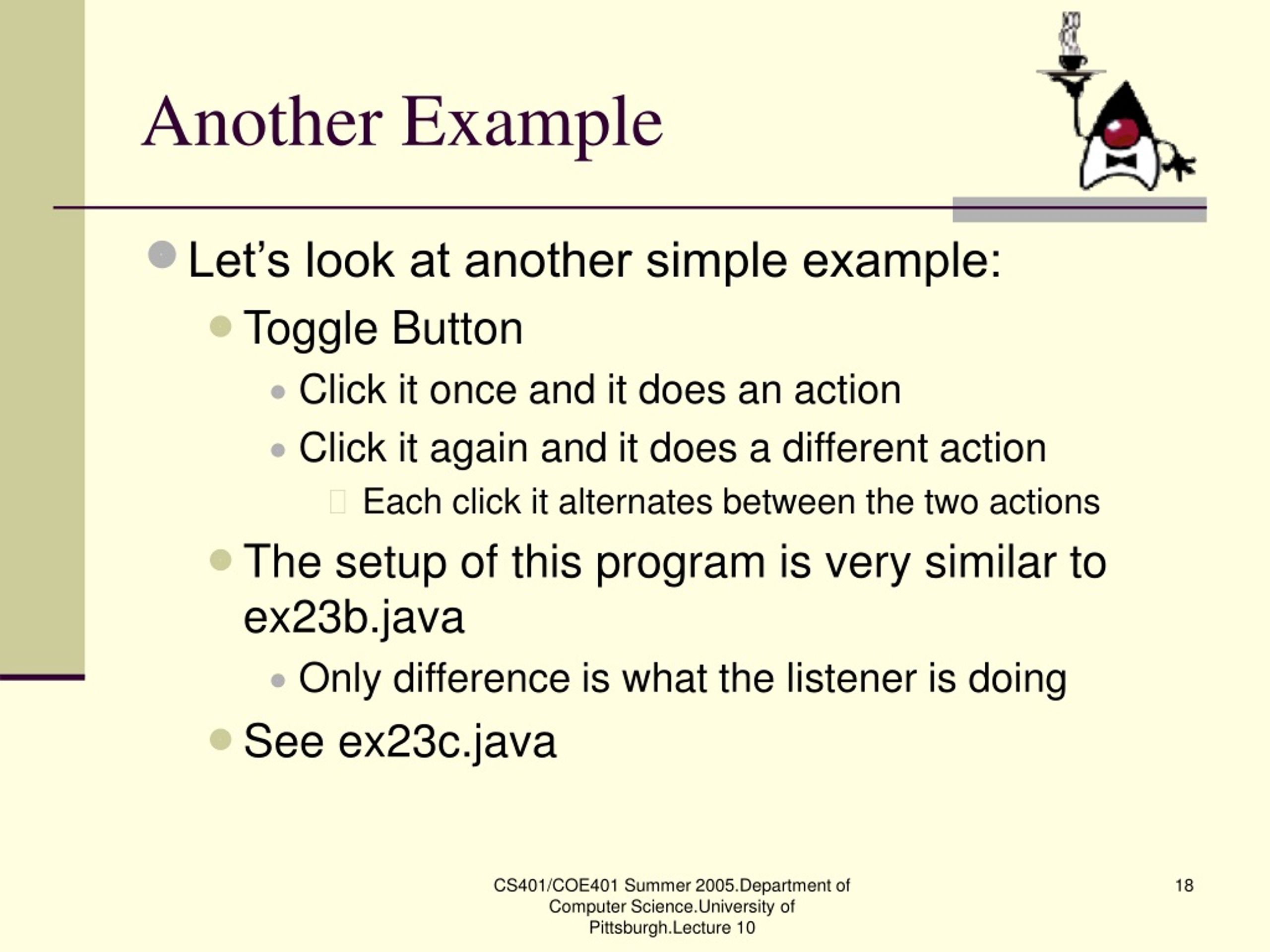

  18. Another Example • Let’s look at another simple example: • Toggle Button • Click it once and it does an action • Click it again and it does a different action • Each click it alternates between the two actions • The setup of this program is very similar to ex23b.java • Only difference is what the listener is doing • See ex23c.java CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  19. Multiple Components • If we want to have multiple components, we need to determine how to lay them out • To do this we use a layout manager • These determine how components appear in a window and how much space is allocate for them • There are many layout managers in Java • Two simple ones are: • FlowLayout • Places components as we read a book – left to right top to bottom • GridLayout • Places components in an equally sized 2-dimensional rectangular grid CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  20. Multiple Components • Multiple components may also need to interact with each other • Listener for one component may need to access the other component • In this case we must allow the listener access to all components involved -- so it must be different from how we did it in ex23b.java and ex23c.java • Ex: Consider a JTextField • This is a component in which the user can enter text • Once user hits “Enter”, the component generates an ActionEvent • Same event generated by a JButton CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

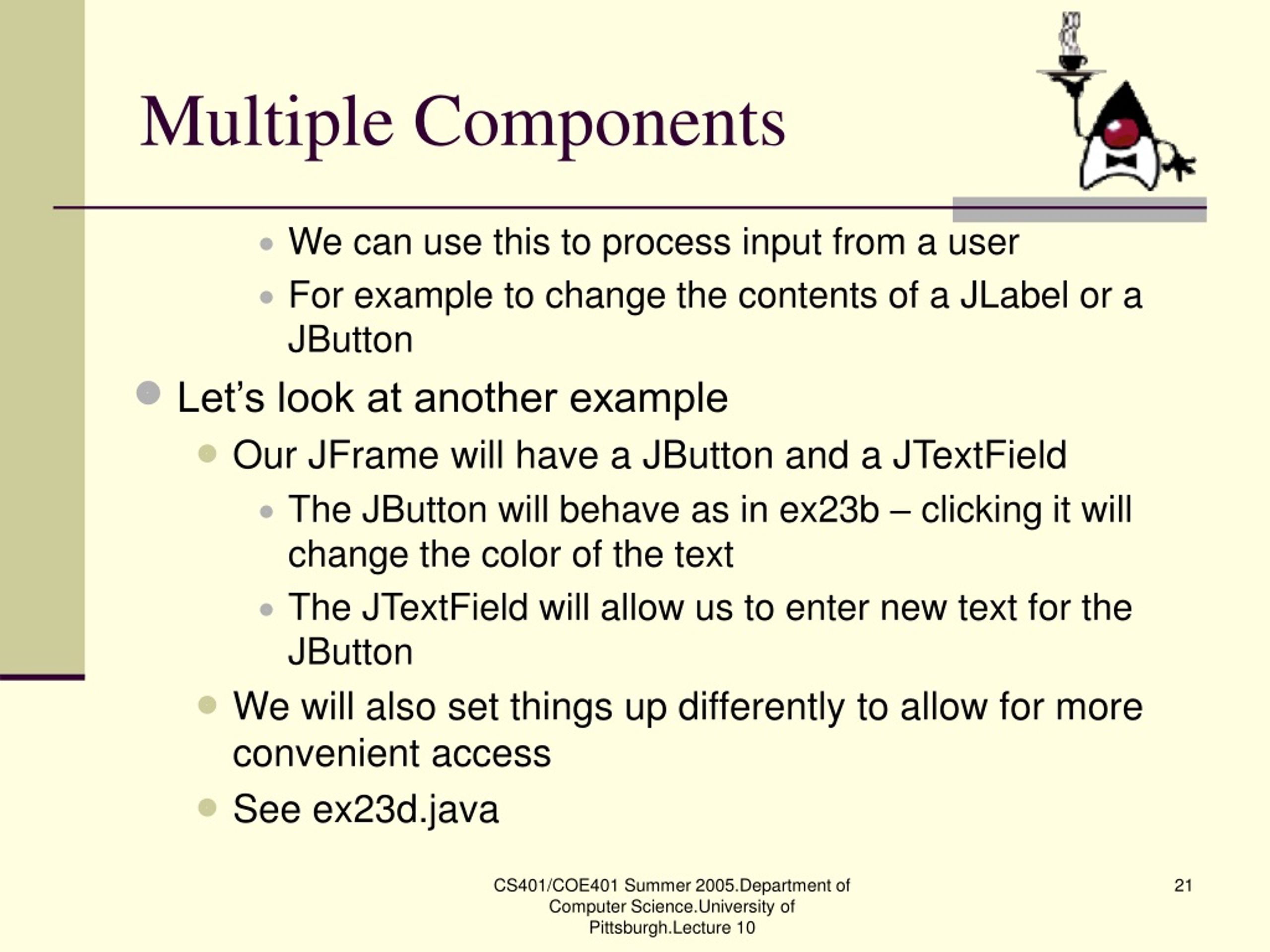

  21. Multiple Components • We can use this to process input from a user • For example to change the contents of a JLabel or a JButton • Let’s look at another example • Our JFrame will have a JButton and a JTextField • The JButton will behave as in ex23b – clicking it will change the color of the text • The JTextField will allow us to enter new text for the JButton • We will also set things up differently to allow for more convenient access • See ex23d.java CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

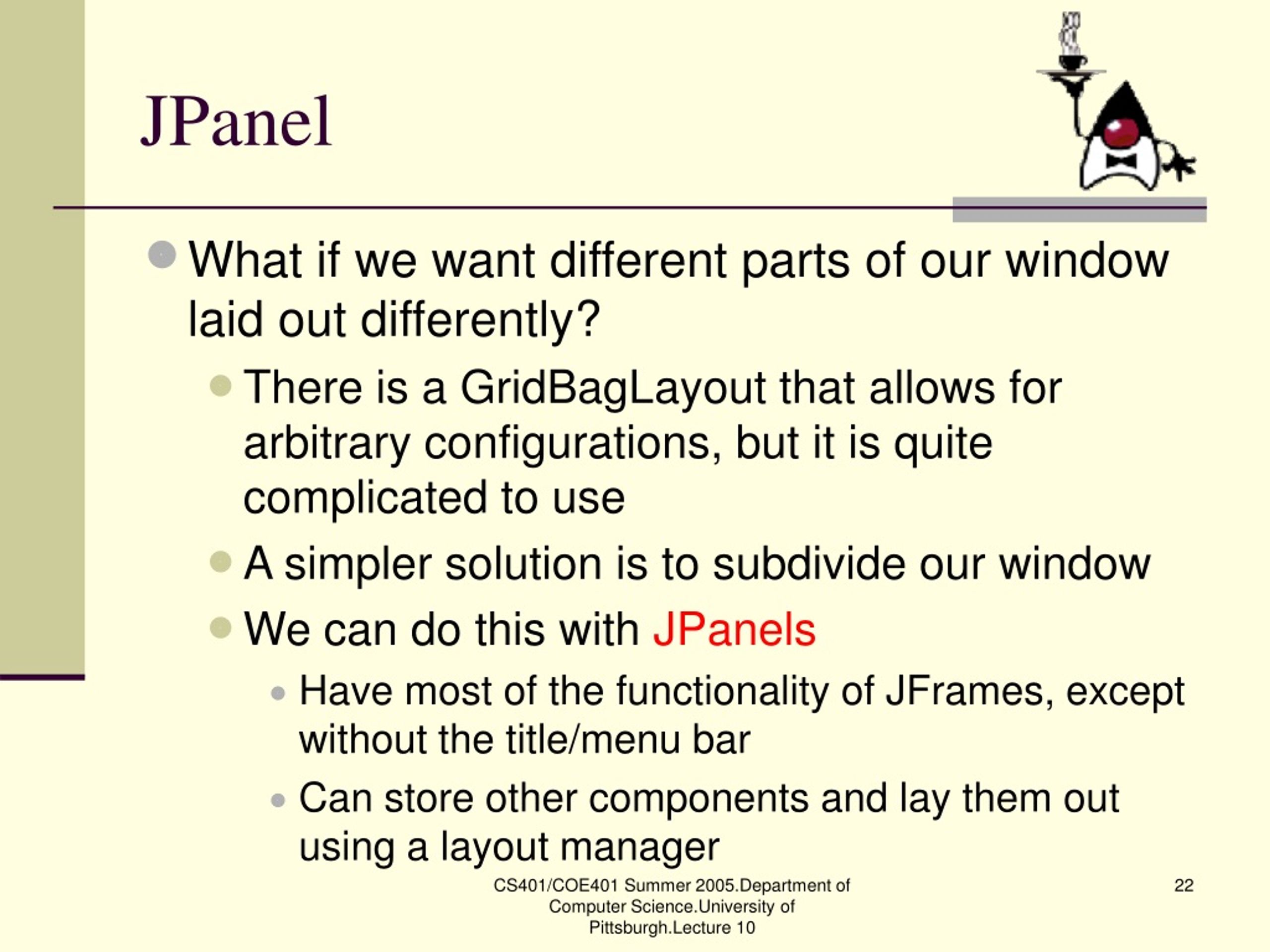

  22. JPanel • What if we want different parts of our window laid out differently? • There is a GridBagLayout that allows for arbitrary configurations, but it is quite complicated to use • A simpler solution is to subdivide our window • We can do this with JPanels • Have most of the functionality of JFrames, except without the title/menu bar • Can store other components and lay them out using a layout manager CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

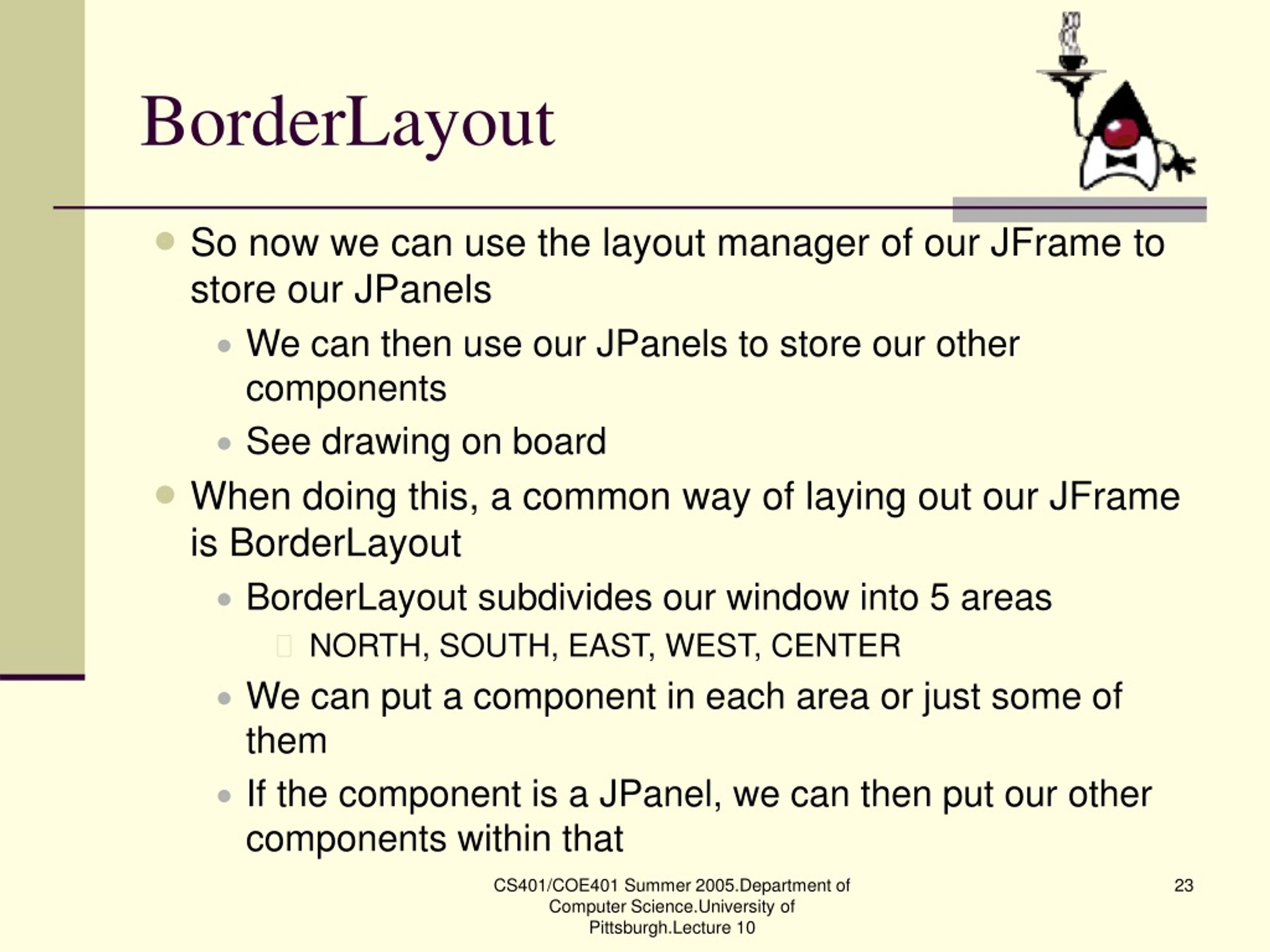

  23. BorderLayout • So now we can use the layout manager of our JFrame to store our JPanels • We can then use our JPanels to store our other components • See drawing on board • When doing this, a common way of laying out our JFrame is BorderLayout • BorderLayout subdivides our window into 5 areas • NORTH, SOUTH, EAST, WEST, CENTER • We can put a component in each area or just some of them • If the component is a JPanel, we can then put our other components within that CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

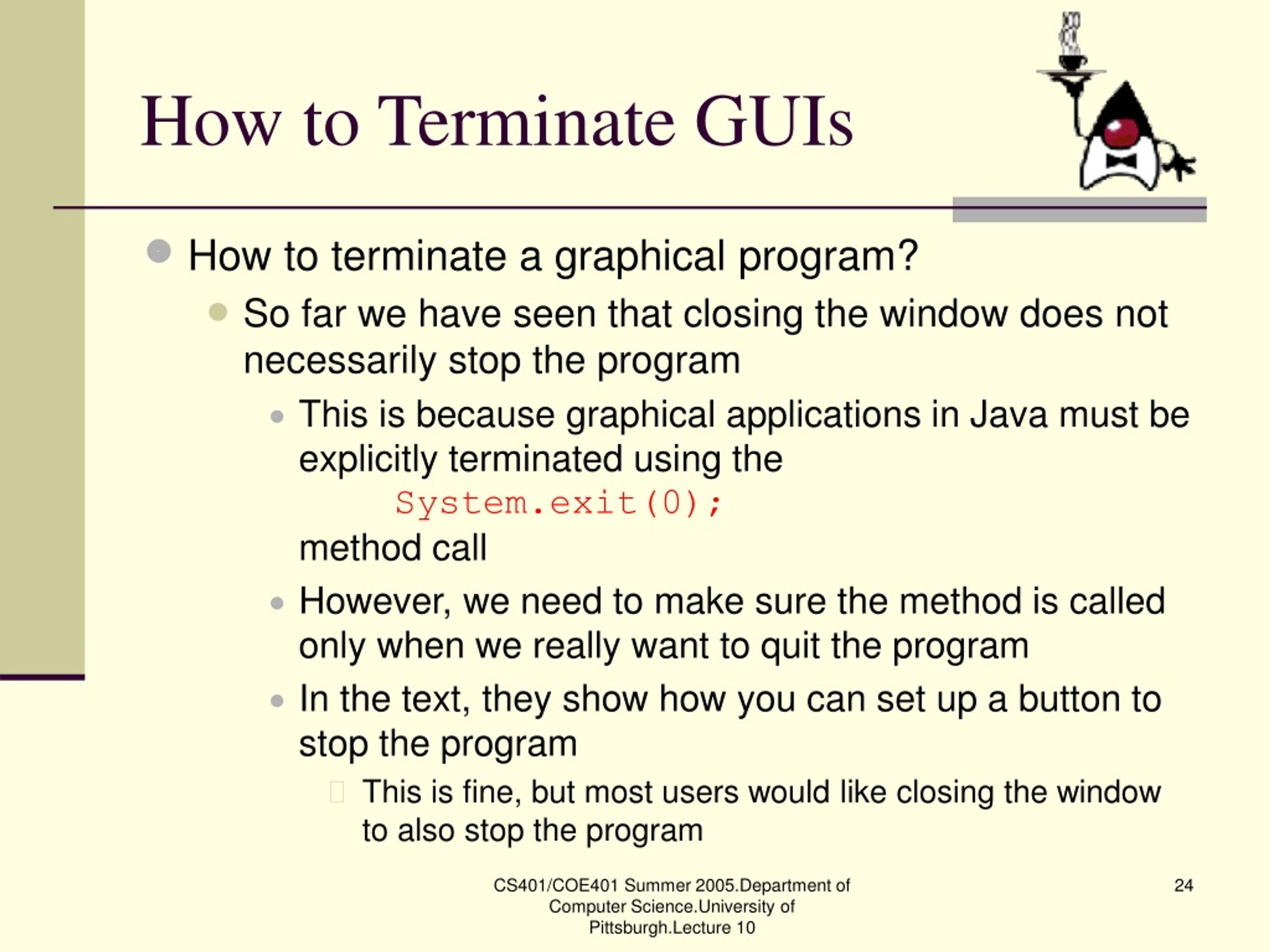

  24. How to Terminate GUIs • How to terminate a graphical program? • So far we have seen that closing the window does not necessarily stop the program • This is because graphical applications in Java must be explicitly terminated using the System.exit(0);method call • However, we need to make sure the method is called only when we really want to quit the program • In the text, they show how you can set up a button to stop the program • This is fine, but most users would like closing the window to also stop the program CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

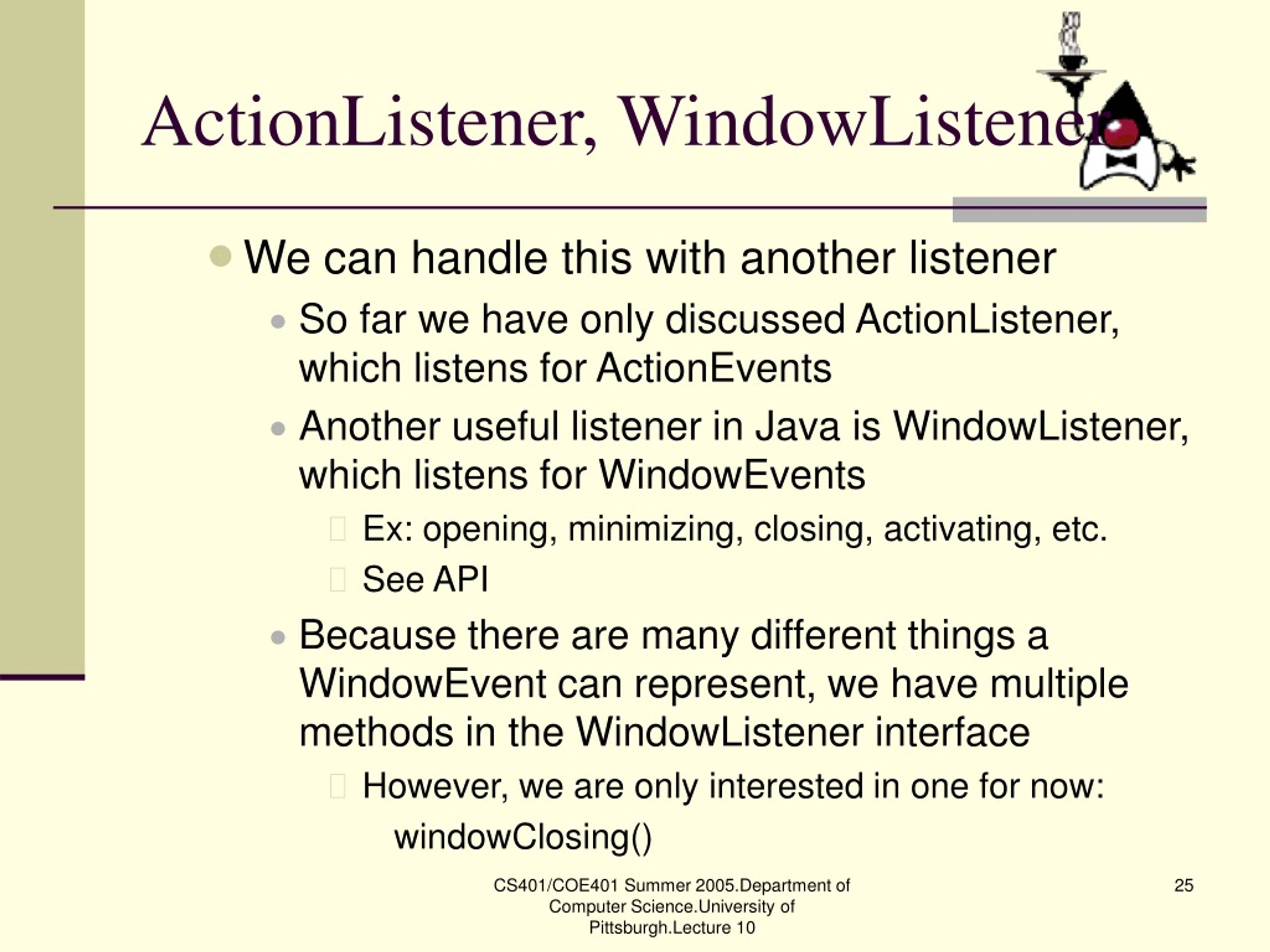

  25. ActionListener, WindowListener • We can handle this with another listener • So far we have only discussed ActionListener, which listens for ActionEvents • Another useful listener in Java is WindowListener, which listens for WindowEvents • Ex: opening, minimizing, closing, activating, etc. • See API • Because there are many different things a WindowEvent can represent, we have multiple methods in the WindowListener interface • However, we are only interested in one for now: windowClosing() CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

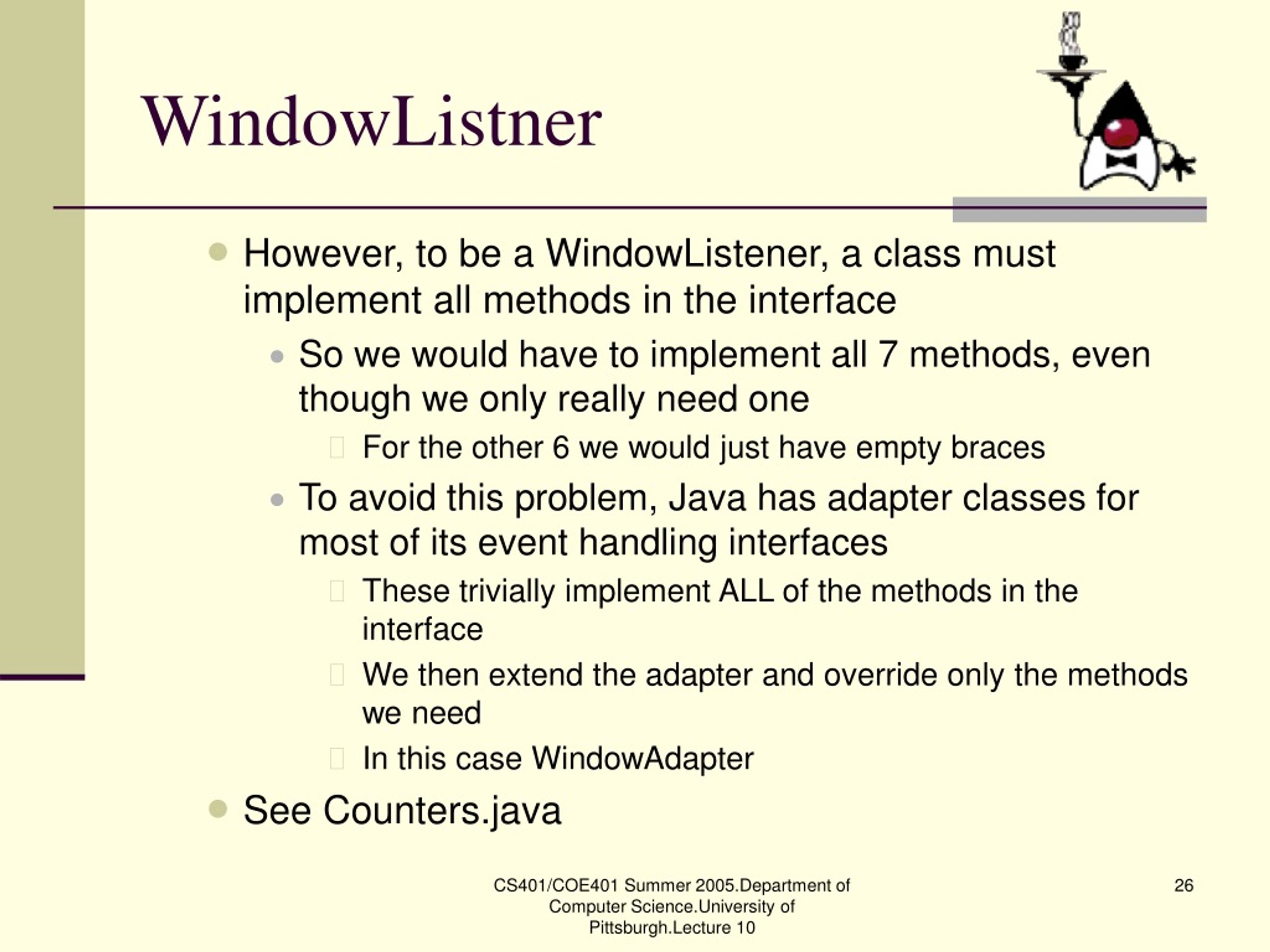

  26. WindowListner • However, to be a WindowListener, a class must implement all methods in the interface • So we would have to implement all 7 methods, even though we only really need one • For the other 6 we would just have empty braces • To avoid this problem, Java has adapter classes for most of its event handling interfaces • These trivially implement ALL of the methods in the interface • We then extend the adapter and override only the methods we need • In this case WindowAdapter • See Counters.java CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

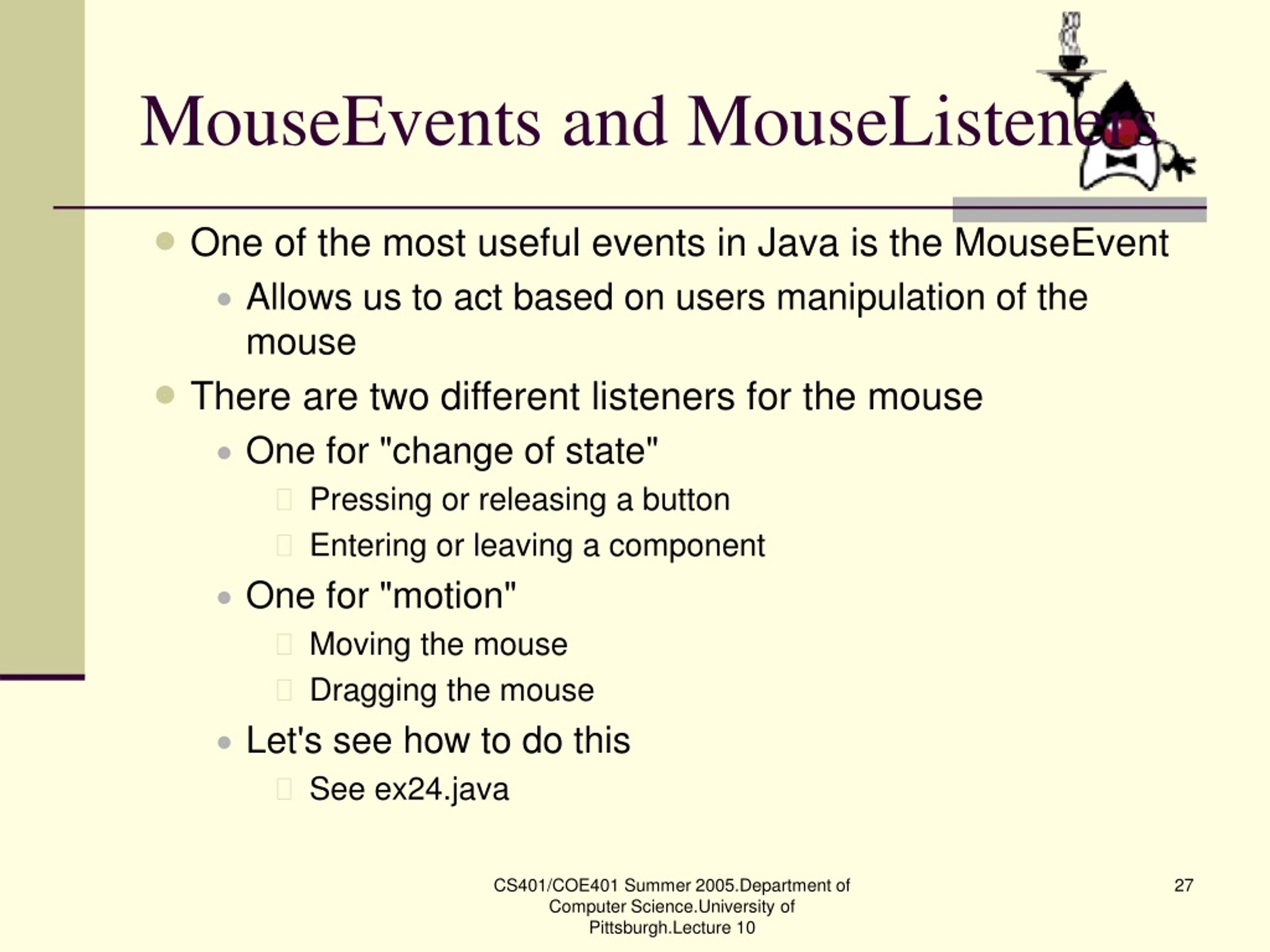

  27. MouseEvents and MouseListeners • One of the most useful events in Java is the MouseEvent • Allows us to act based on users manipulation of the mouse • There are two different listeners for the mouse • One for "change of state" • Pressing or releasing a button • Entering or leaving a component • One for "motion" • Moving the mouse • Dragging the mouse • Let's see how to do this • See ex24.java CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  28. Updating the Display • Often an event will cause some change on the display • A JLabel or JButton will be changed • These are updated on the display automatically, so we don't have to take any extra action • Some graphics are drawn • In this case we DO have to take action • Components have a Graphics context that allows graphics to be painted on the screen • Graphics are drawn through execution of the method paint() or paintComponent() CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

  29. Updating the Display • Note that there are a LOT of different ways of drawing and updating the display in Java, using JFrames, JPanels, JComponents, JCanvas, etc. • However, they all have one important requirement: • By default graphics are only drawn when "necessary" • Ex: If the window is covered and then uncovered, or minimized and then restored • If we want them to be drawn at other times, we must request this via the method repaint() • This asks the window to be redrawn when it otherwise would not have been CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10

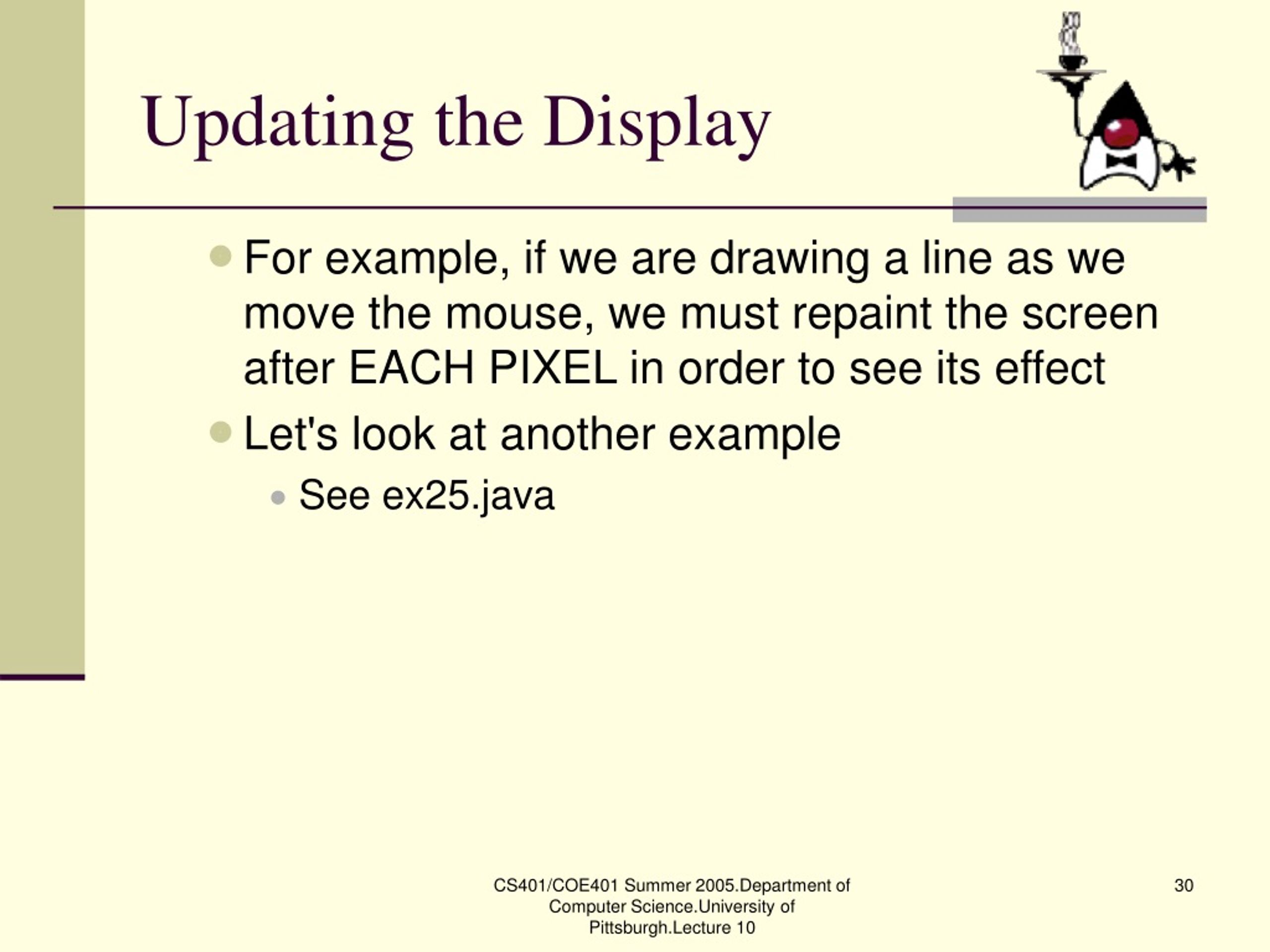

  30. Updating the Display • For example, if we are drawing a line as we move the mouse, we must repaint the screen after EACH PIXEL in order to see its effect • Let's look at another example • See ex25.java CS401/COE401 Summer 2005.Department of Computer Science.University of Pittsburgh.Lecture 10
