Tools for TEIN2 operation

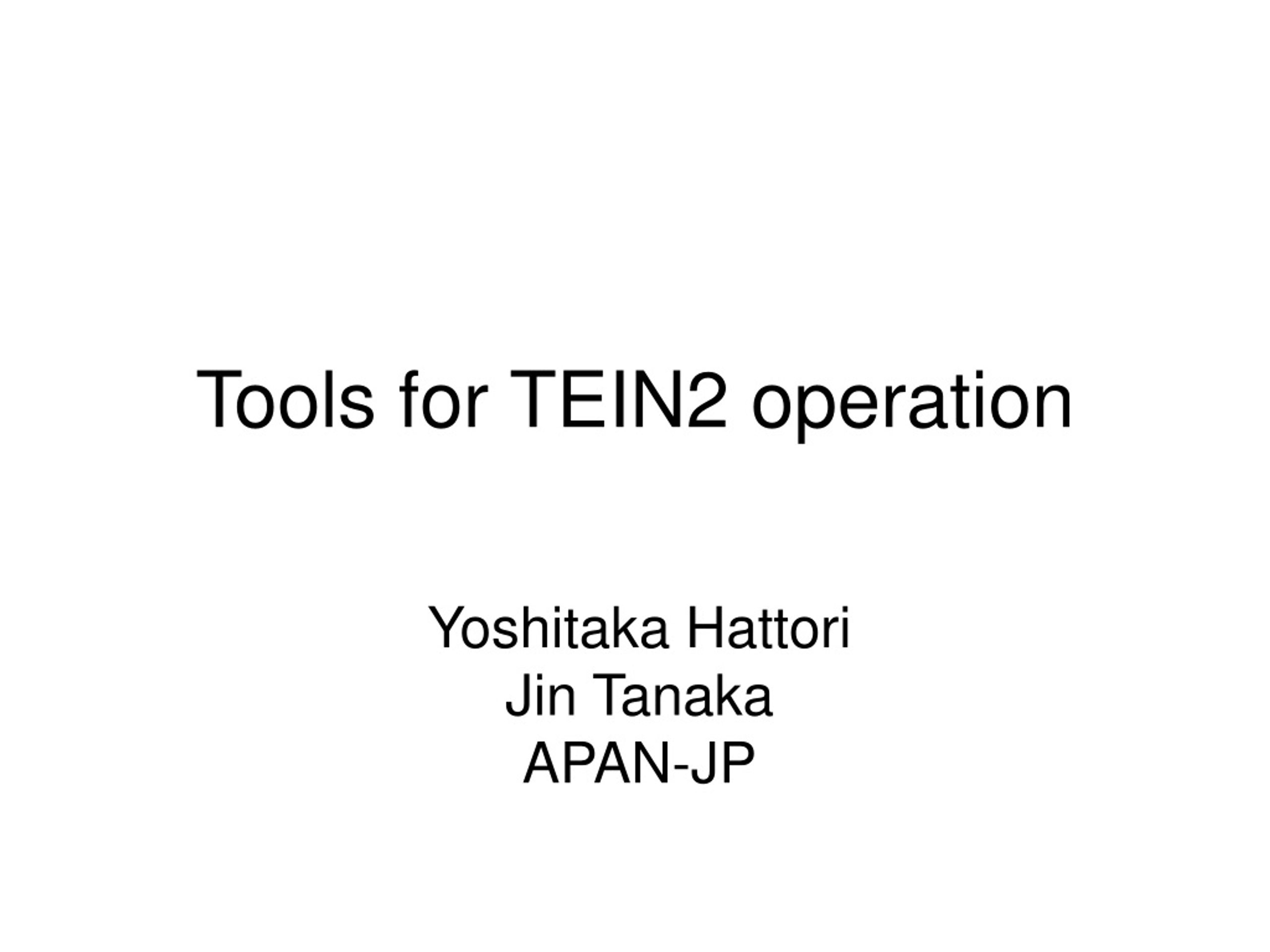

1. Tools for TEIN2 operation Yoshitaka HattoriJin TanakaAPAN-JP

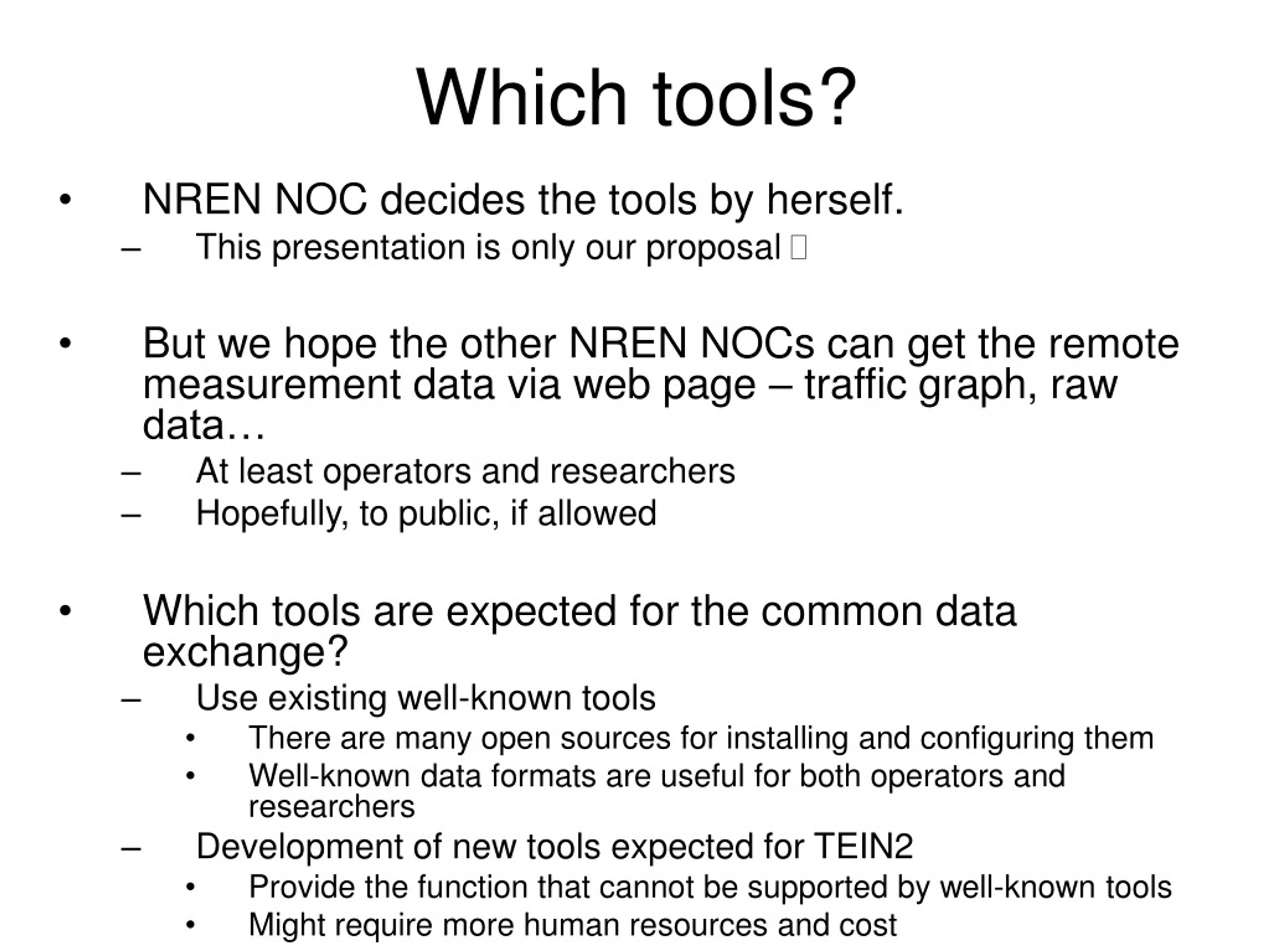

2. Which tools? • NREN NOC decides the tools by herself. • This presentation is only our proposal  • But we hope the other NREN NOCs can get the remote measurement data via web page – traffic graph, raw data… • At least operators and researchers • Hopefully, to public, if allowed • Which tools are expected for the common data exchange? • Use existing well-known tools • There are many open sources for installing and configuring them • Well-known data formats are useful for both operators and researchers • Development of new tools expected for TEIN2 • Provide the function that cannot be supported by well-known tools • Might require more human resources and cost

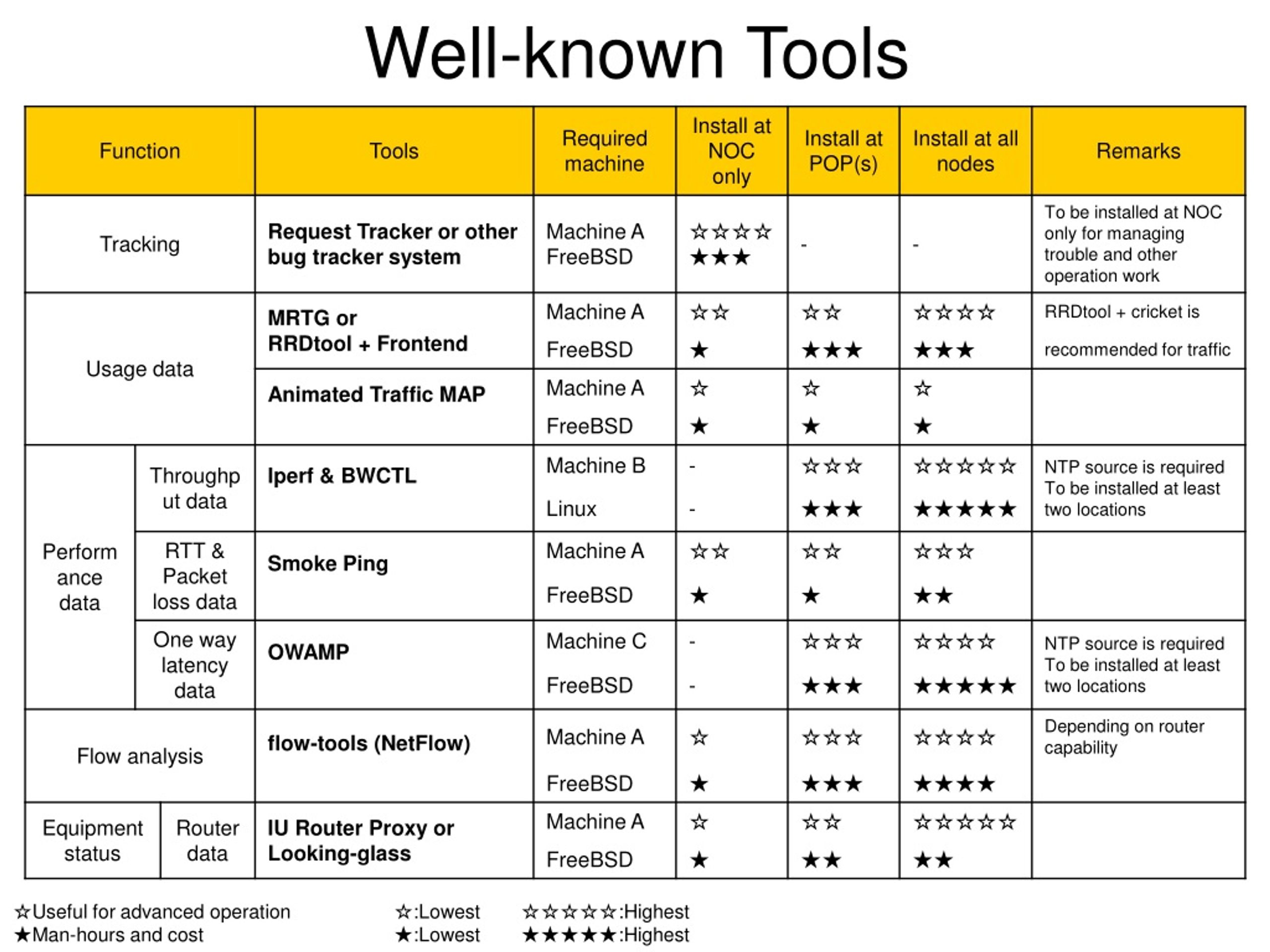

3. Well-known Tools ☆Useful for advanced operation ☆:Lowest ☆☆☆☆☆:Highest ★Man-hours and cost ★:Lowest ★★★★★:Highest

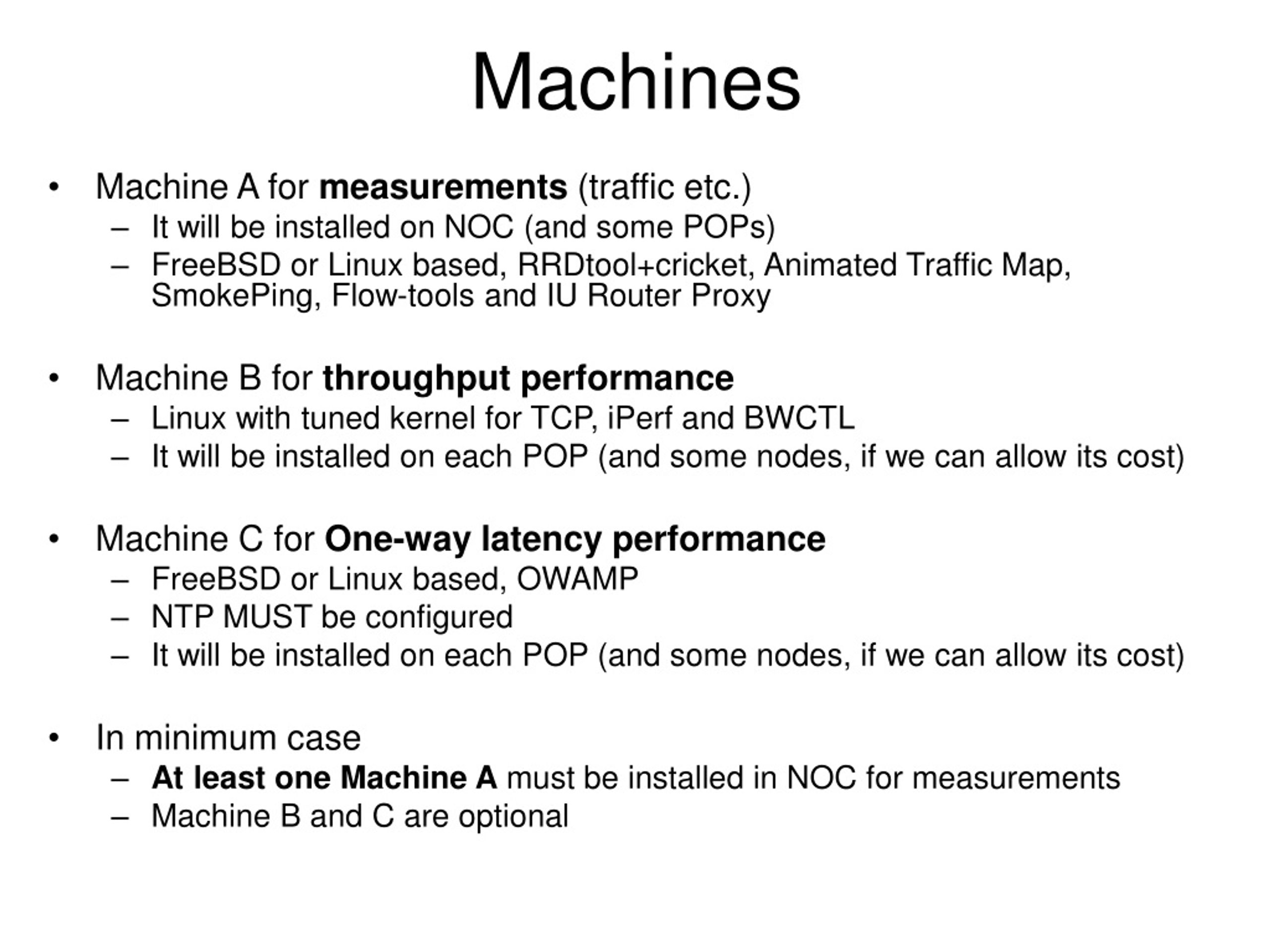

4. Machines • Machine A for measurements (traffic etc.) • It will be installed on NOC (and some POPs) • FreeBSD or Linux based, RRDtool+cricket, Animated Traffic Map, SmokePing, Flow-tools and IU Router Proxy • Machine B for throughput performance • Linux with tuned kernel for TCP, iPerf and BWCTL • It will be installed on each POP (and some nodes, if we can allow its cost) • Machine C for One-way latency performance • FreeBSD or Linux based, OWAMP • NTP MUST be configured • It will be installed on each POP (and some nodes, if we can allow its cost) • In minimum case • At least one Machine A must be installed in NOC for measurements • Machine B and C are optional

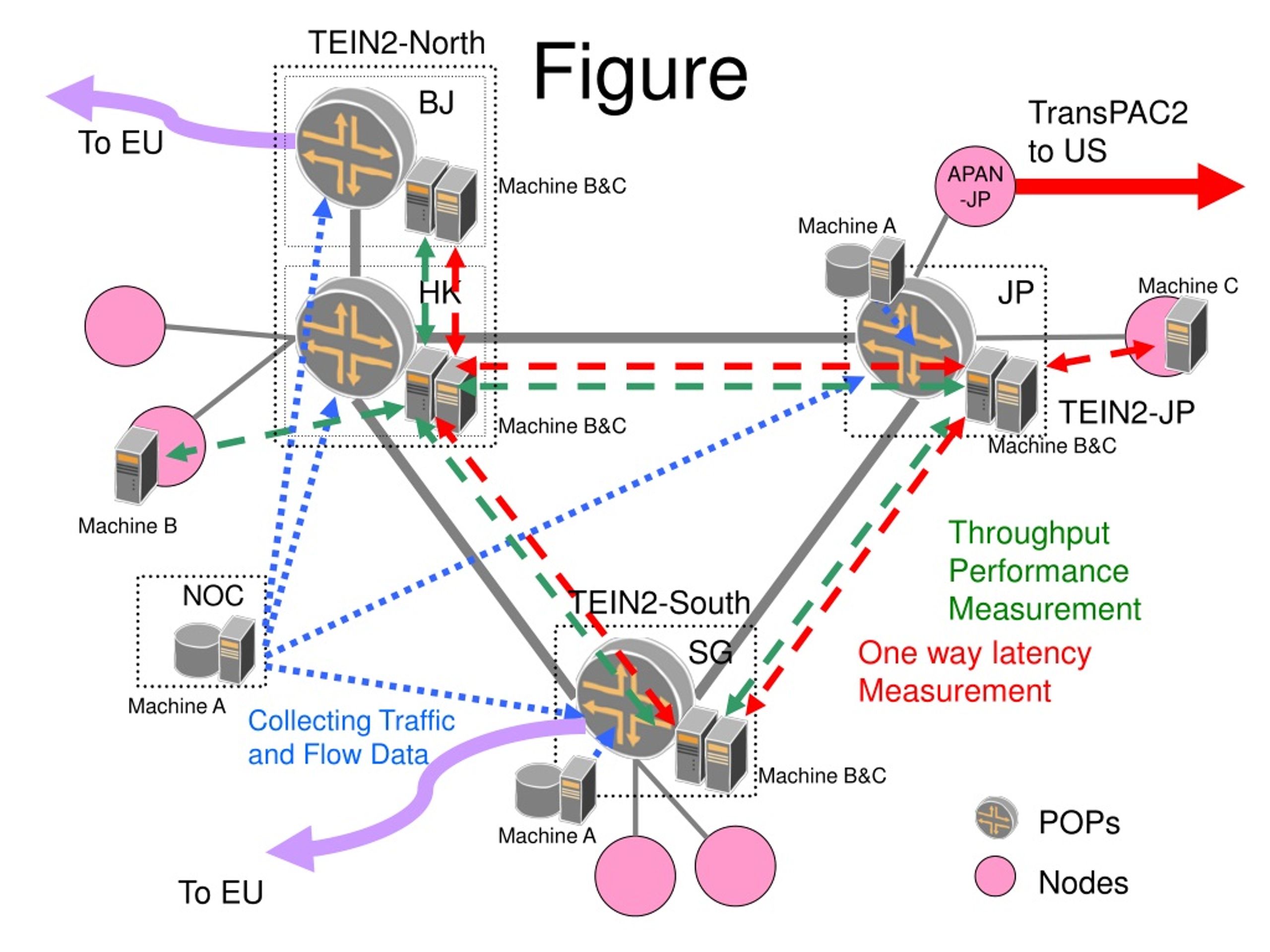

5. TEIN2-North Figure BJ TransPAC2 to US To EU APAN-JP Machine B&C Machine A HK JP Machine C TEIN2-JP Machine B&C Machine B&C Machine B ThroughputPerformance Measurement NOC TEIN2-South SG One way latency Measurement Machine A Collecting Traffic and Flow Data Machine B&C POPs Machine A Nodes To EU

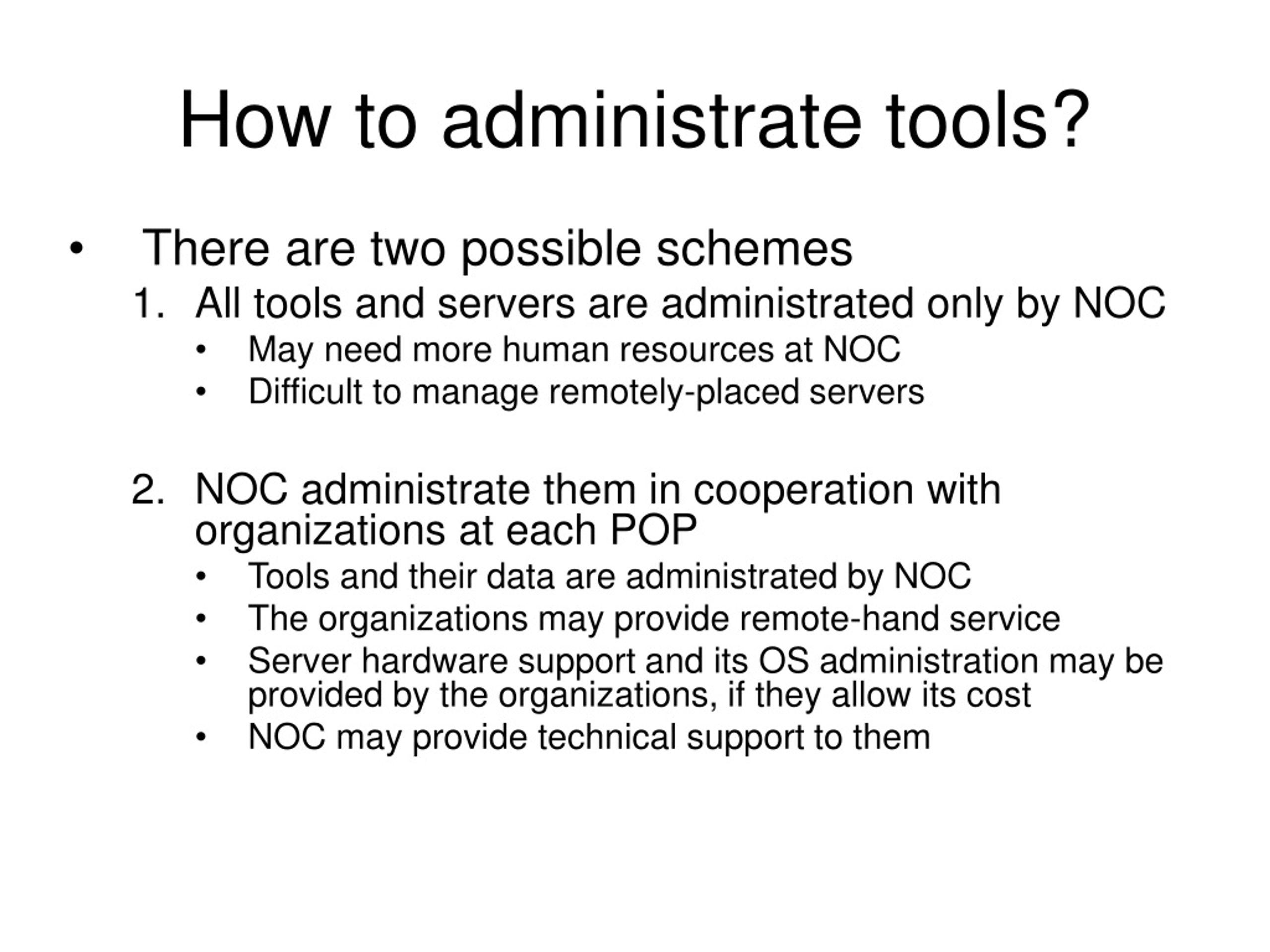

6. How to administrate tools? • There are two possible schemes • All tools and servers are administrated only by NOC • May need more human resources at NOC • Difficult to manage remotely-placed servers • NOC administrate them in cooperation with organizations at each POP • Tools and their data are administrated by NOC • The organizations may provide remote-hand service • Server hardware support and its OS administration may be provided by the organizations, if they allow its cost • NOC may provide technical support to them

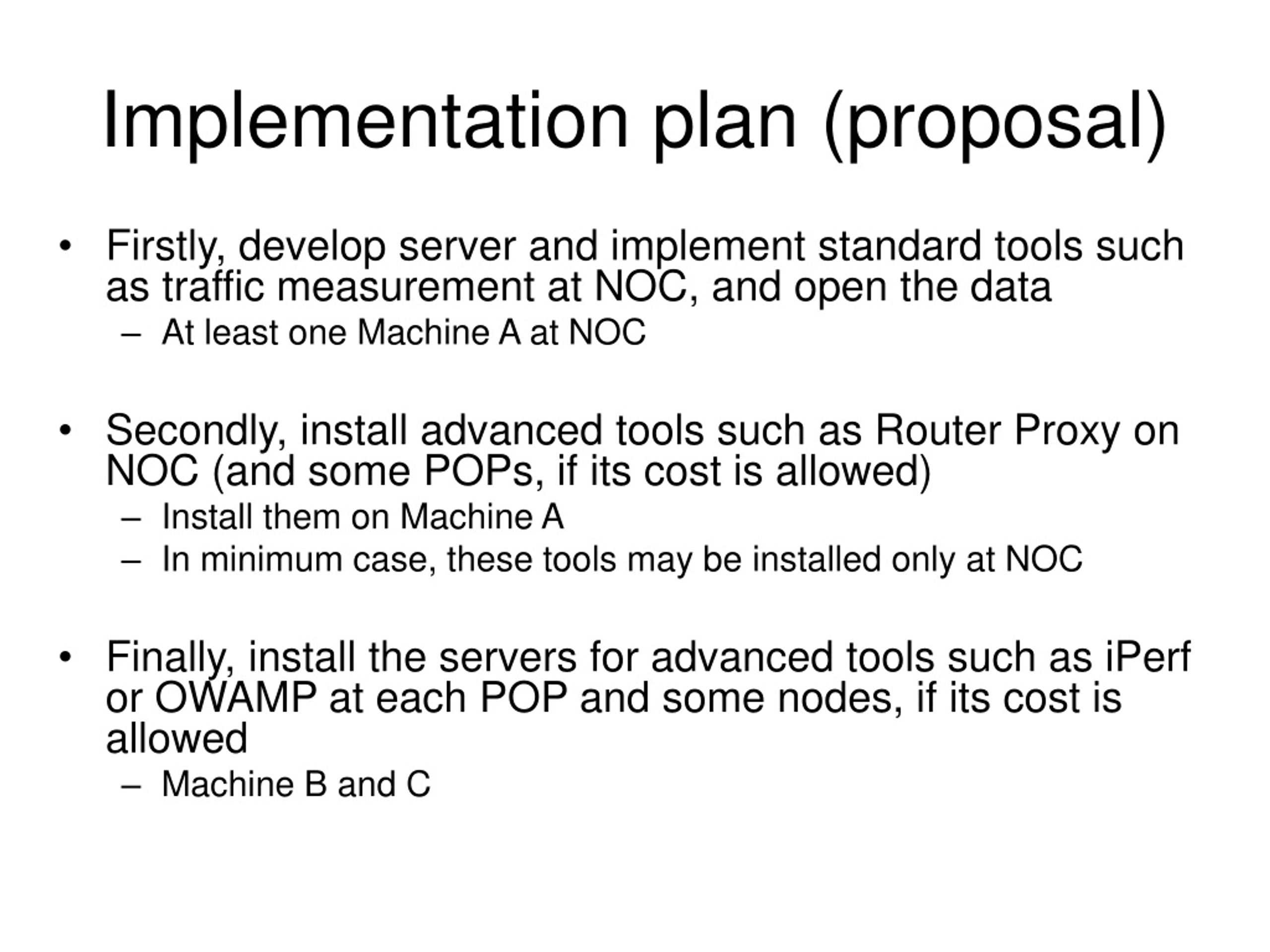

7. Implementation plan (proposal) • Firstly, develop server and implement standard tools such as traffic measurement at NOC, and open the data • At least one Machine A at NOC • Secondly, install advanced tools such as Router Proxy on NOC (and some POPs, if its cost is allowed) • Install them on Machine A • In minimum case, these tools may be installed only at NOC • Finally, install the servers for advanced tools such as iPerf or OWAMP at each POP and some nodes, if its cost is allowed • Machine B and C

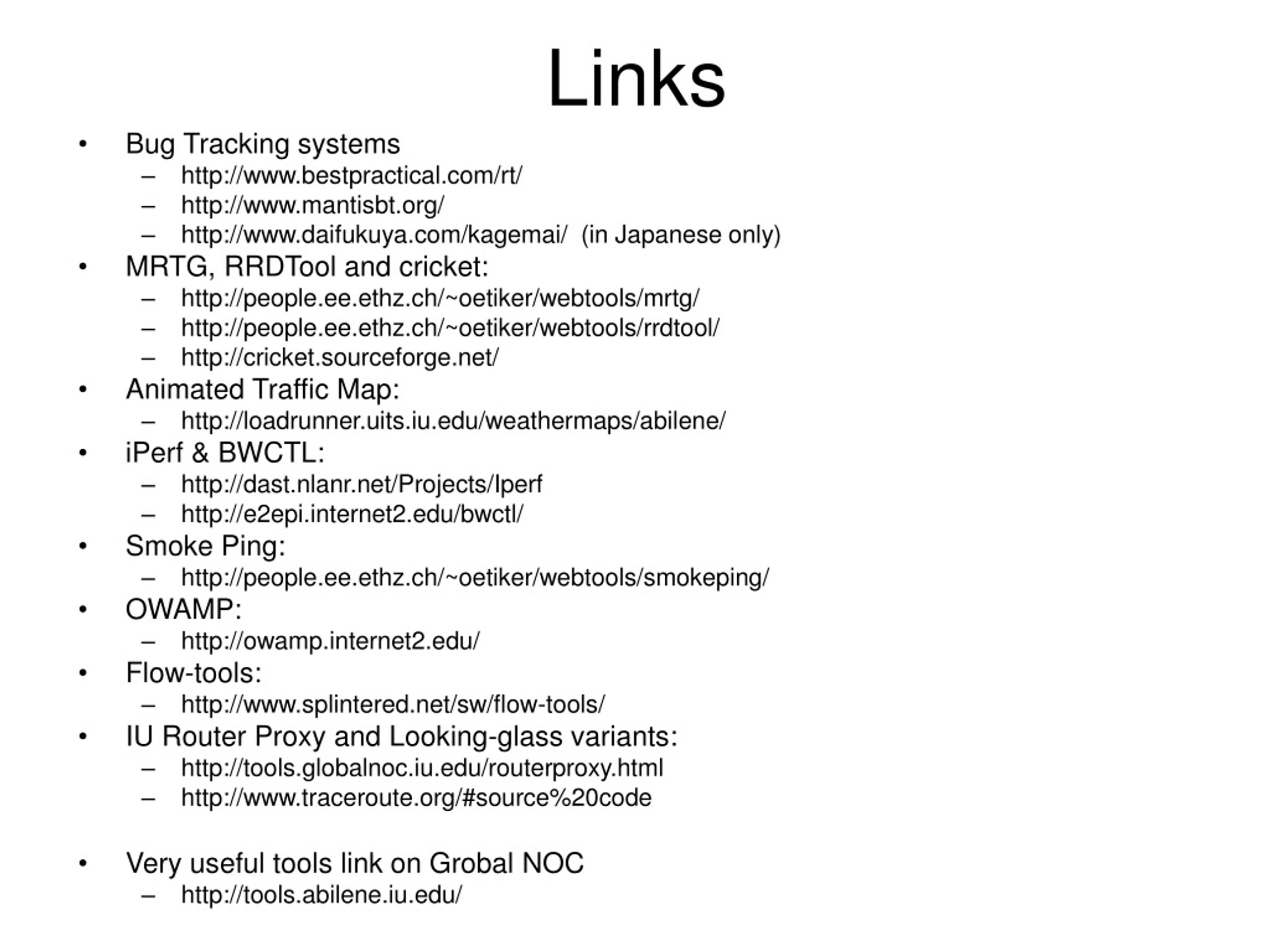

8. Links • Bug Tracking systems • http://www.bestpractical.com/rt/ • http://www.mantisbt.org/ • http://www.daifukuya.com/kagemai/ (in Japanese only) • MRTG, RRDTool and cricket: • http://people.ee.ethz.ch/~oetiker/webtools/mrtg/ • http://people.ee.ethz.ch/~oetiker/webtools/rrdtool/ • http://cricket.sourceforge.net/ • Animated Traffic Map: • http://loadrunner.uits.iu.edu/weathermaps/abilene/ • iPerf & BWCTL: • http://dast.nlanr.net/Projects/Iperf • http://e2epi.internet2.edu/bwctl/ • Smoke Ping: • http://people.ee.ethz.ch/~oetiker/webtools/smokeping/ • OWAMP: • http://owamp.internet2.edu/ • Flow-tools: • http://www.splintered.net/sw/flow-tools/ • IU Router Proxy and Looking-glass variants: • http://tools.globalnoc.iu.edu/routerproxy.html • http://www.traceroute.org/#source%20code • Very useful tools link on Grobal NOC • http://tools.abilene.iu.edu/

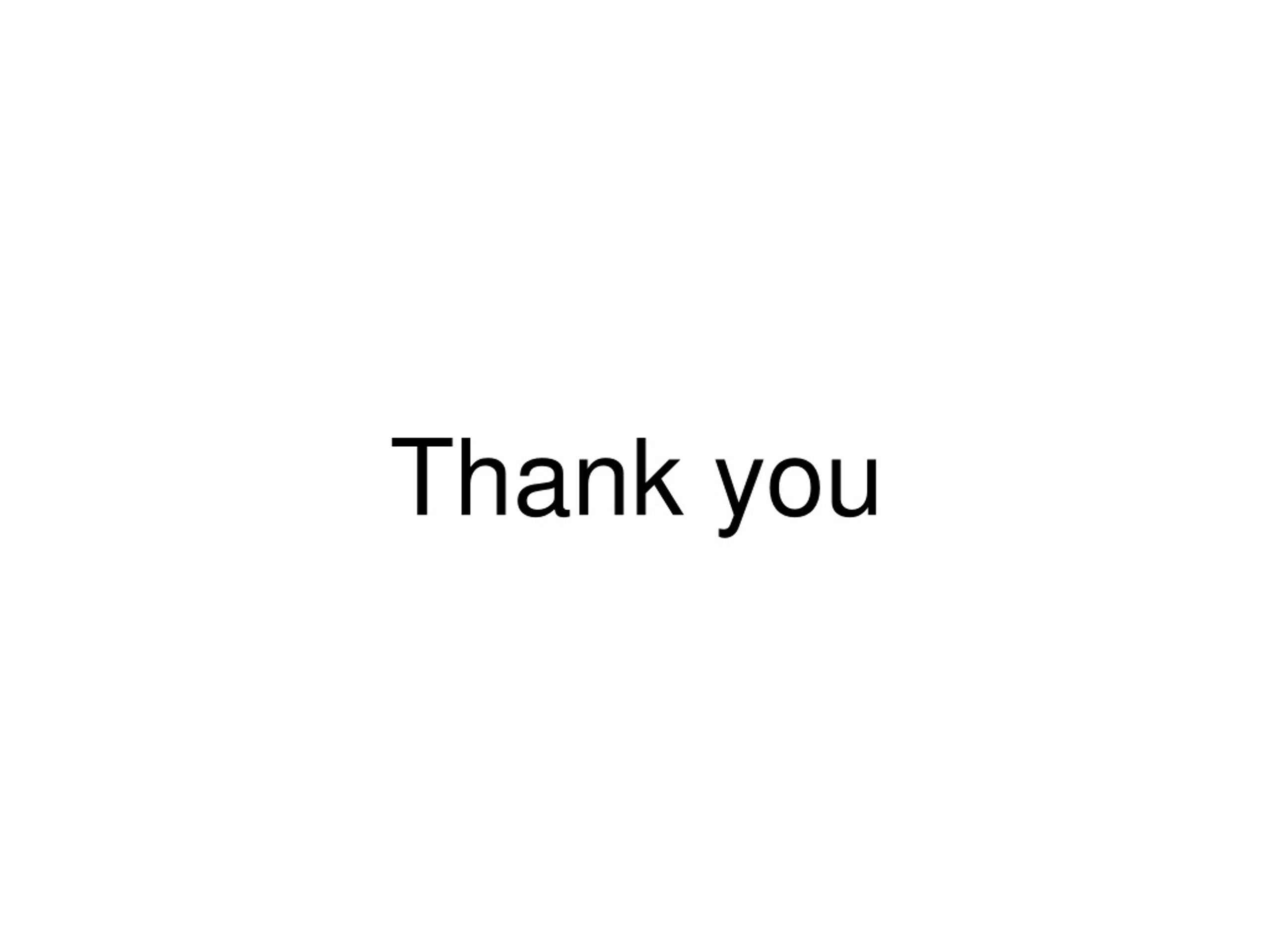

9. Thank you

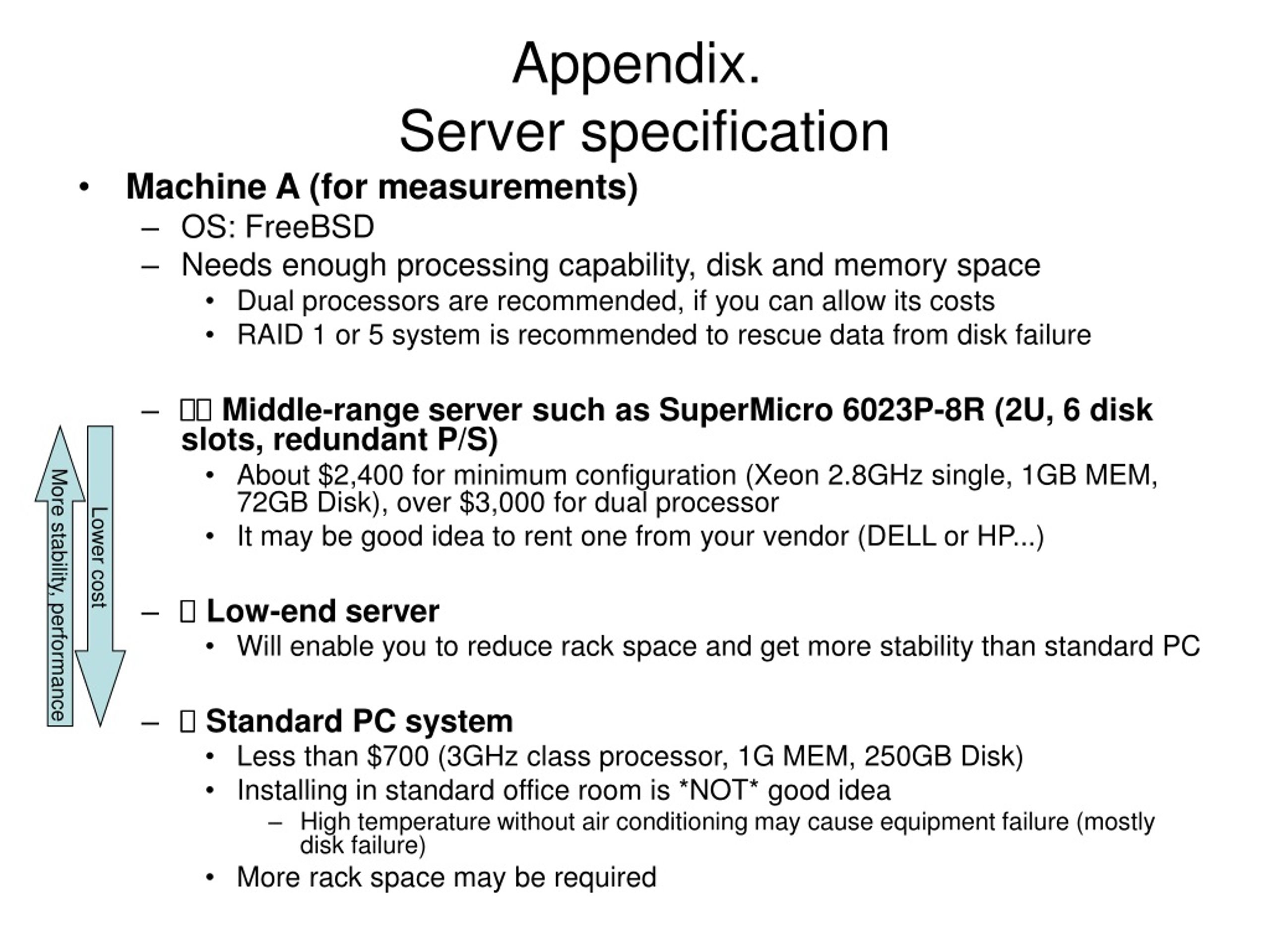

10. Appendix. Server specification • Machine A (for measurements) • OS: FreeBSD • Needs enough processing capability, disk and memory space • Dual processors are recommended, if you can allow its costs • RAID 1 or 5 system is recommended to rescue data from disk failure •  Middle-range server such as SuperMicro 6023P-8R (2U, 6 disk slots, redundant P/S) • About $2,400 for minimum configuration (Xeon 2.8GHz single, 1GB MEM, 72GB Disk), over $3,000 for dual processor • It may be good idea to rent one from your vendor (DELL or HP...) •  Low-end server • Will enable you to reduce rack space and get more stability than standard PC •  Standard PC system • Less than $700 (3GHz class processor, 1G MEM, 250GB Disk) • Installing in standard office room is *NOT* good idea • High temperature without air conditioning may cause equipment failure (mostly disk failure) • More rack space may be required More stability, performance Lower cost

11. Appendix.Server specification (cont.) • Machine B (for throughput performance) • OS: Linux with tuned kernel (web100) • Needs enough processing capability, memory and I/O bandwidth • Processing capability may be enough with single processor, I/O bandwidth is important • Intel or Broadcom Gigabit NIC connected via PCI-X or PCI-Express bus • Onboard or additional card • Legacy 32bits 33MHz PCI bus can’t provide enough bandwidth for 1Gbps • We can use cheap IDE disk, because disk speed is not significant •  Middle-range server such as SuperMicro 6013P-8 (1U, 3 disk slots) • Onboard dual Intel PCI-X based Gigabit NIC (1000Base-T) • It costs about $2,000 for minimum configuration (Xeon 2.8GHz single, 1GB MEM, 72GB Disk) • It may be good idea to rent one from your vendor (DELL or HP...) •  Low-end server with PCI-X or PCI-Express based onboard Gigabit NIC • Will enable you to reduce rack space and get more stability than standard PC •  PCI-Express based standard PC system • Only less than $800, good for minimizing cost but certain rack space may be required • Carefully select the main board, when using onboard Gigabit NIC • Some onboard Gigabit NIC may provide poor performance and stability • Intel or Broadcom connected via PCI-Express will be nice More stability, performance Lower cost

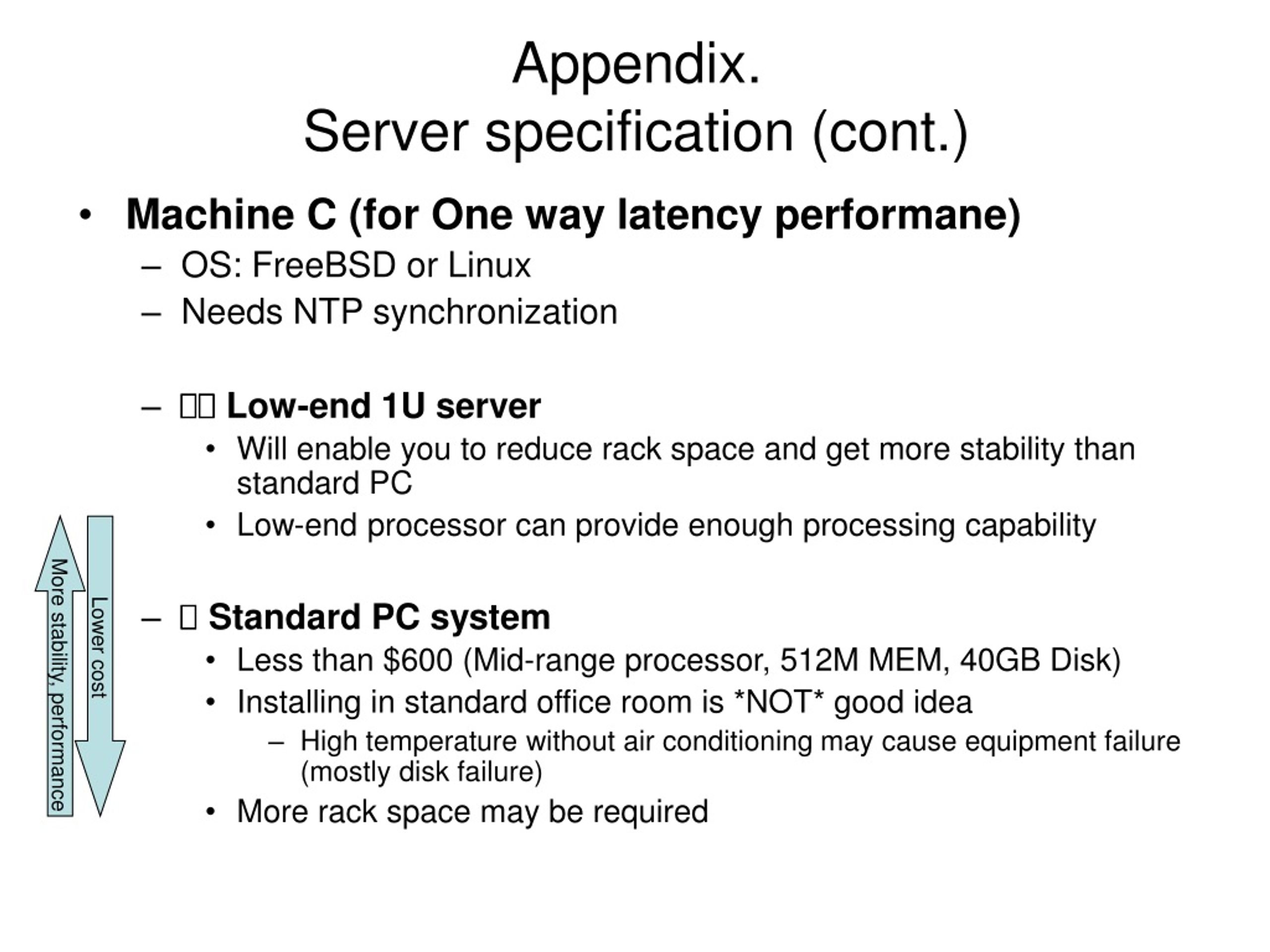

12. Appendix.Server specification (cont.) • Machine C (for One way latency performane) • OS: FreeBSD or Linux • Needs NTP synchronization •  Low-end 1U server • Will enable you to reduce rack space and get more stability than standard PC • Low-end processor can provide enough processing capability •  Standard PC system • Less than $600 (Mid-range processor, 512M MEM, 40GB Disk) • Installing in standard office room is *NOT* good idea • High temperature without air conditioning may cause equipment failure (mostly disk failure) • More rack space may be required More stability, performance Lower cost
