1. Web Tap: Intelligent Intrusion Detection Kevin Borders EECS 598-2 Presentation

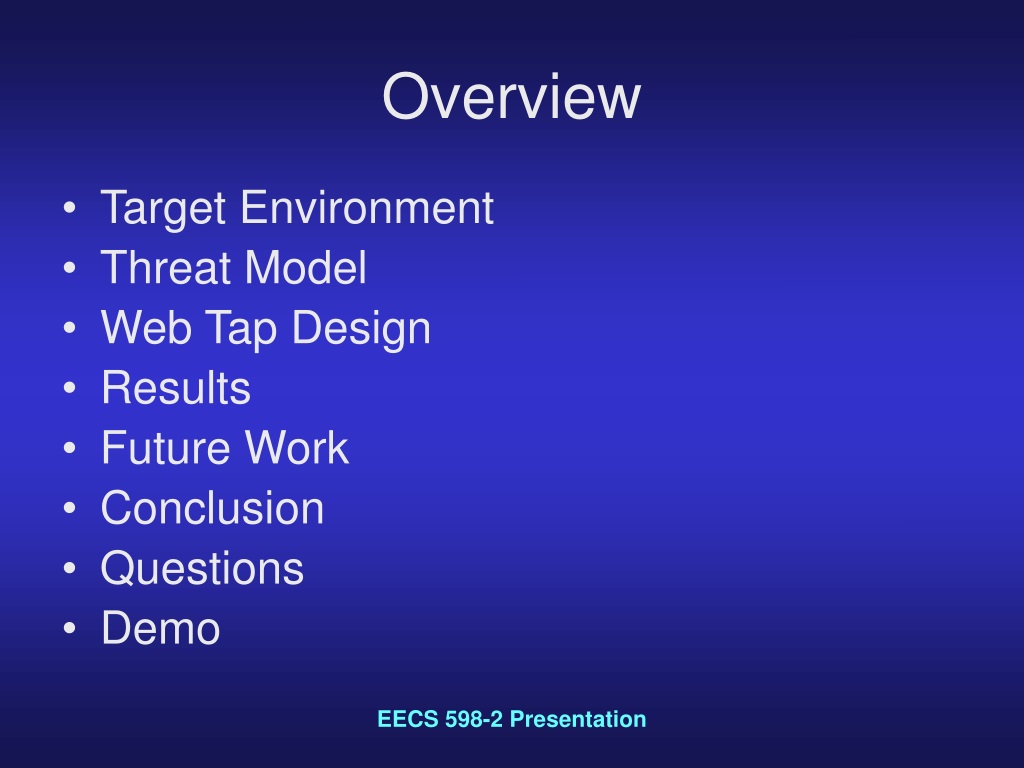

2. Overview • Target Environment • Threat Model • Web Tap Design • Results • Future Work • Conclusion • Questions • Demo EECS 598-2 Presentation

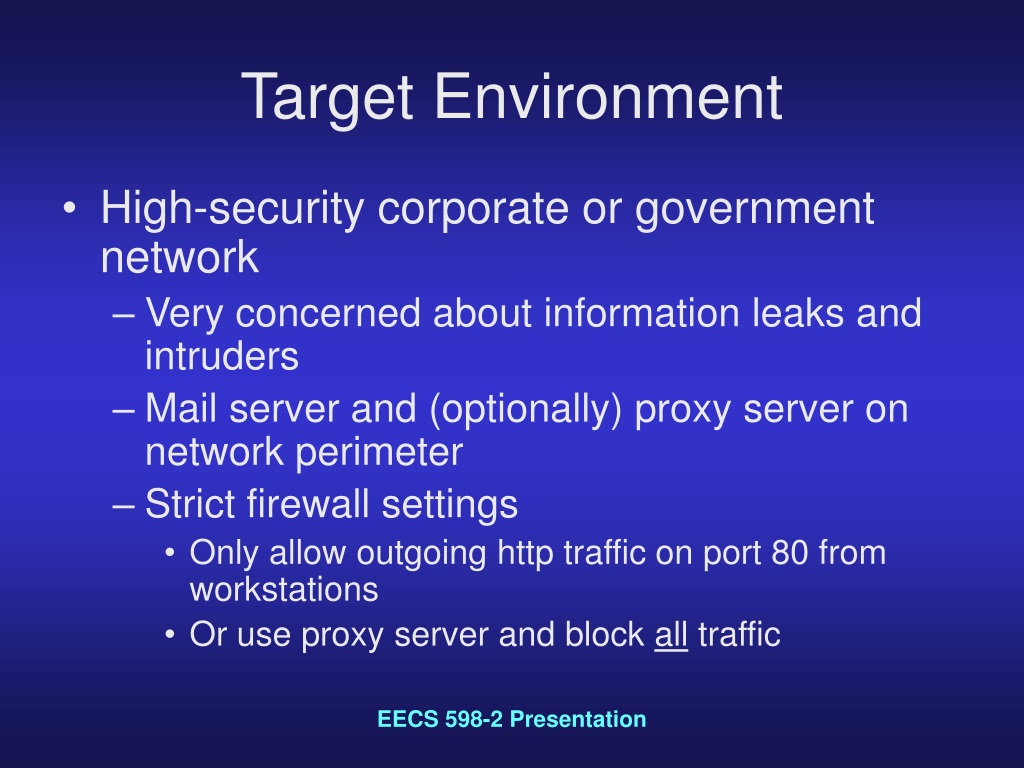

3. Target Environment • High-security corporate or government network • Very concerned about information leaks and intruders • Mail server and (optionally) proxy server on network perimeter • Strict firewall settings • Only allow outgoing http traffic on port 80 from workstations • Or use proxy server and block all traffic EECS 598-2 Presentation

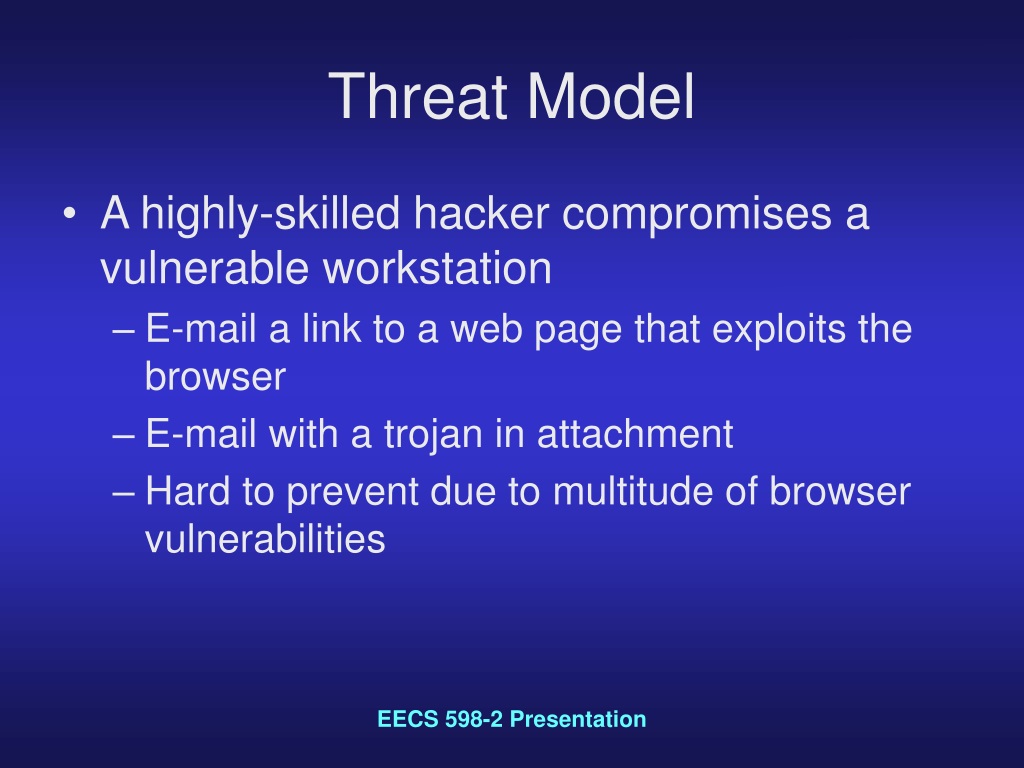

4. Threat Model • A highly-skilled hacker compromises a vulnerable workstation • E-mail a link to a web page that exploits the browser • E-mail with a trojan in attachment • Hard to prevent due to multitude of browser vulnerabilities EECS 598-2 Presentation

5. Threat Model (Part Two) • Hacker needs to communicate with the compromised machine • Traditional Trojans do not work (Back Orifice, etc.) • Incoming TCP requests blocked • Only two paths available: E-mail and Web (http) • E-mail is risky • Logged • Rapid two-way communication from remote shell can be easily detected • Web is a better way of communicating with machine • Hard to detect • Significantly more bandwidth is available (Without being detected) EECS 598-2 Presentation

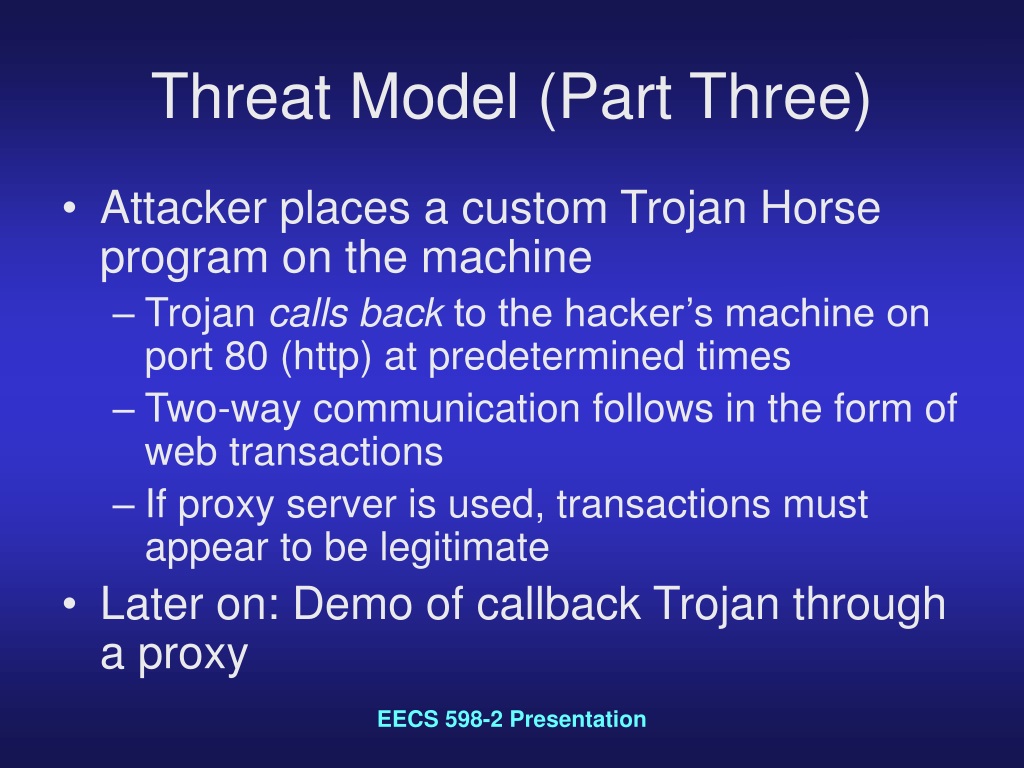

6. Threat Model (Part Three) • Attacker places a custom Trojan Horse program on the machine • Trojan calls back to the hacker’s machine on port 80 (http) at predetermined times • Two-way communication follows in the form of web transactions • If proxy server is used, transactions must appear to be legitimate • Later on: Demo of callback Trojan through a proxy EECS 598-2 Presentation

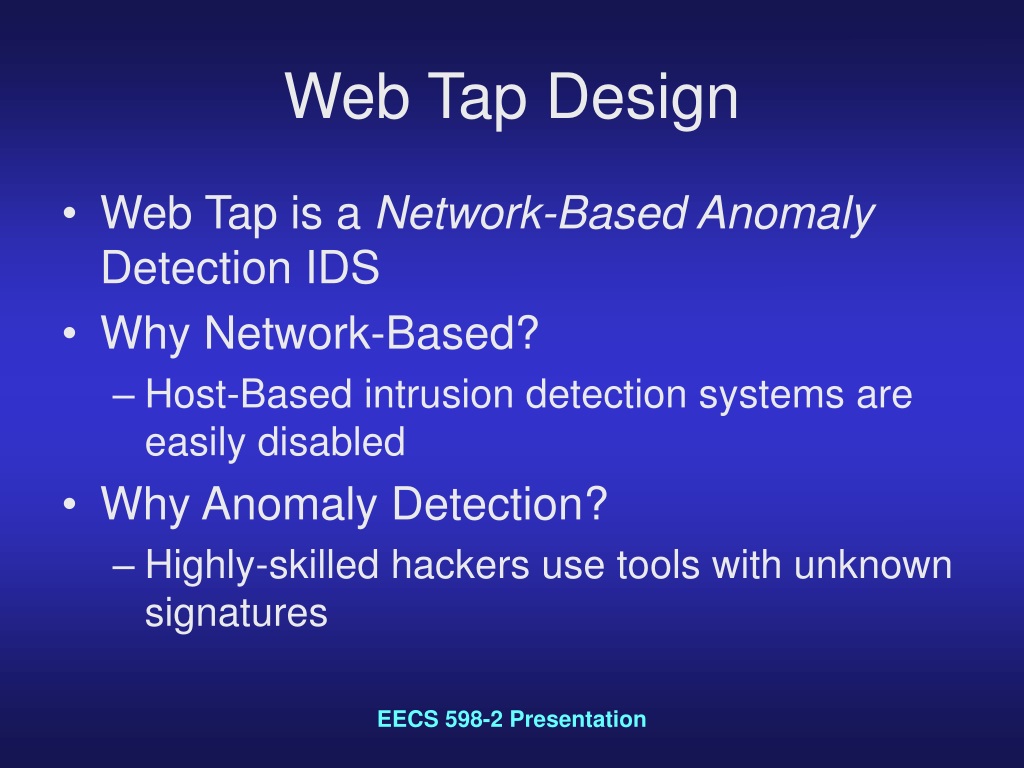

7. Web Tap Design • Web Tap is a Network-Based Anomaly Detection IDS • Why Network-Based? • Host-Based intrusion detection systems are easily disabled • Why Anomaly Detection? • Highly-skilled hackers use tools with unknown signatures EECS 598-2 Presentation

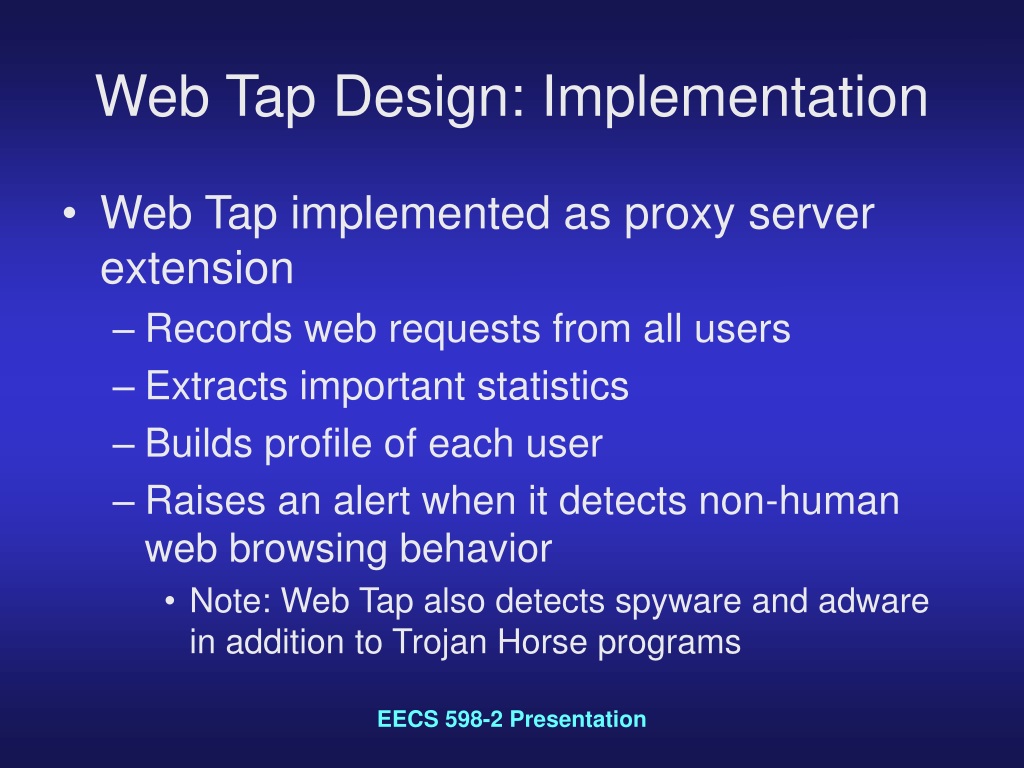

8. Web Tap Design: Implementation • Web Tap implemented as proxy server extension • Records web requests from all users • Extracts important statistics • Builds profile of each user • Raises an alert when it detects non-human web browsing behavior • Note: Web Tap also detects spyware and adware in addition to Trojan Horse programs EECS 598-2 Presentation

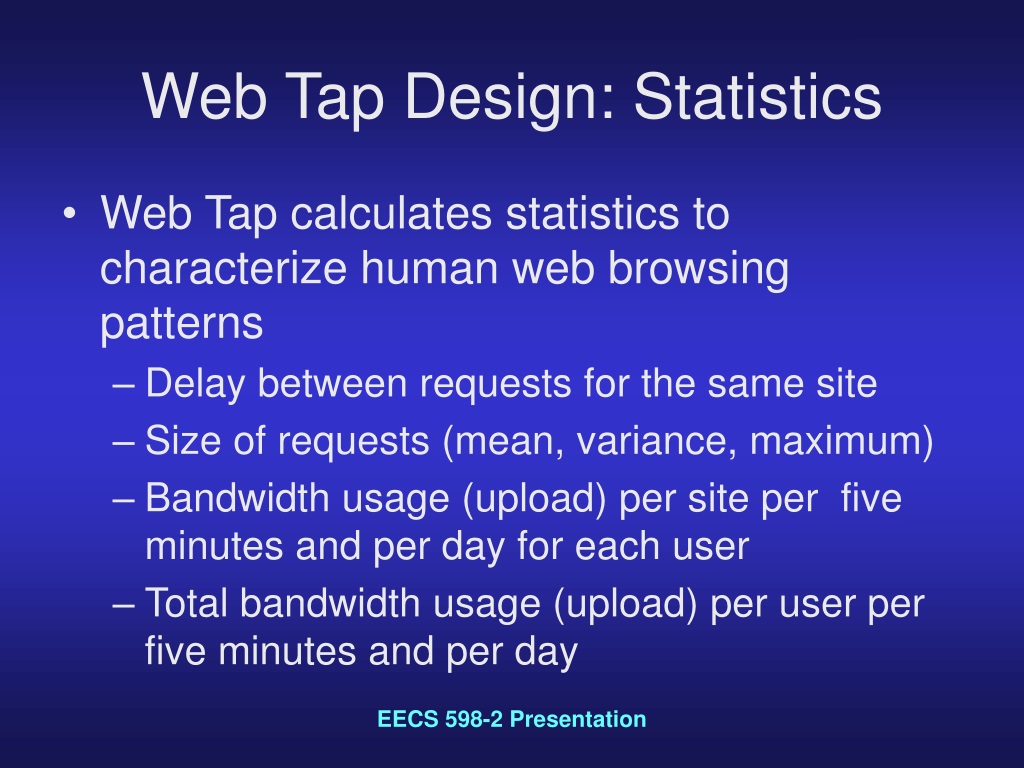

9. Web Tap Design: Statistics • Web Tap calculates statistics to characterize human web browsing patterns • Delay between requests for the same site • Size of requests (mean, variance, maximum) • Bandwidth usage (upload) per site per five minutes and per day for each user • Total bandwidth usage (upload) per user per five minutes and per day EECS 598-2 Presentation

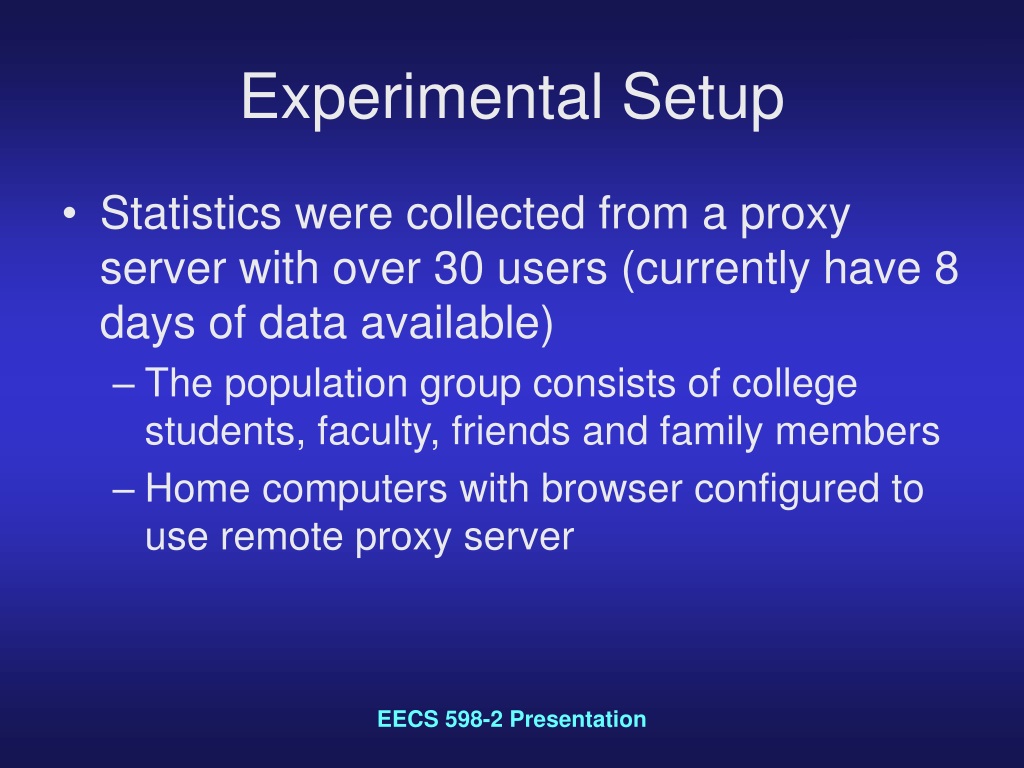

10. Experimental Setup • Statistics were collected from a proxy server with over 30 users (currently have 8 days of data available) • The population group consists of college students, faculty, friends and family members • Home computers with browser configured to use remote proxy server EECS 598-2 Presentation

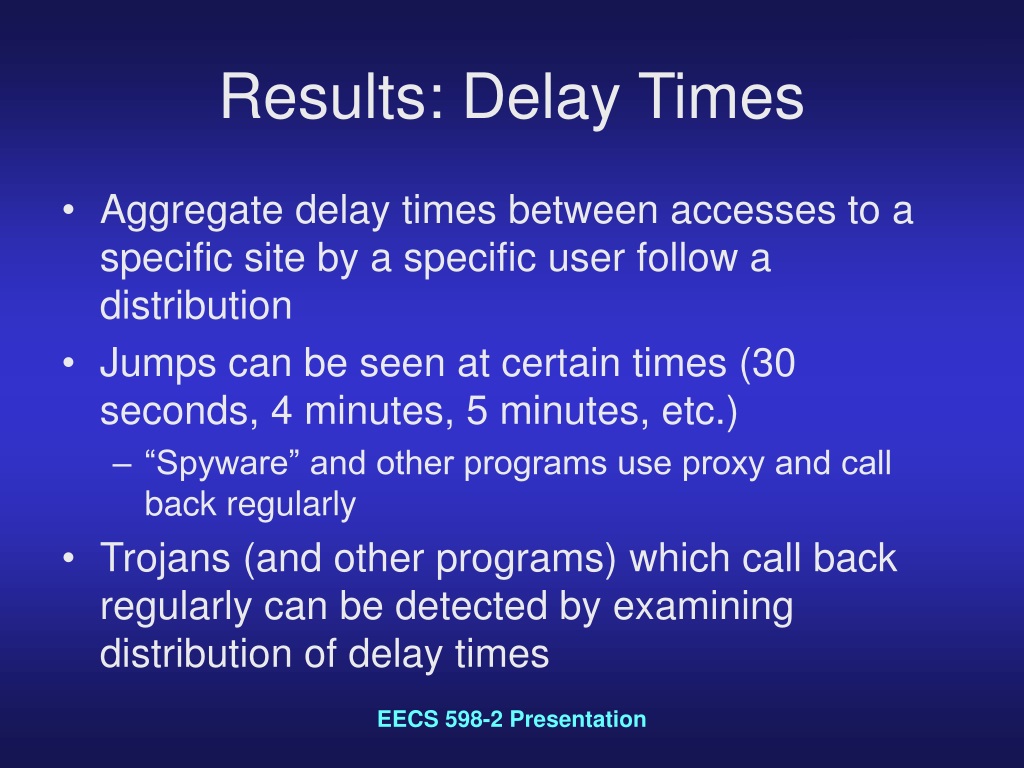

11. Results: Delay Times • Aggregate delay times between accesses to a specific site by a specific user follow a distribution • Jumps can be seen at certain times (30 seconds, 4 minutes, 5 minutes, etc.) • “Spyware” and other programs use proxy and call back regularly • Trojans (and other programs) which call back regularly can be detected by examining distribution of delay times EECS 598-2 Presentation

12. EECS 598-2 Presentation

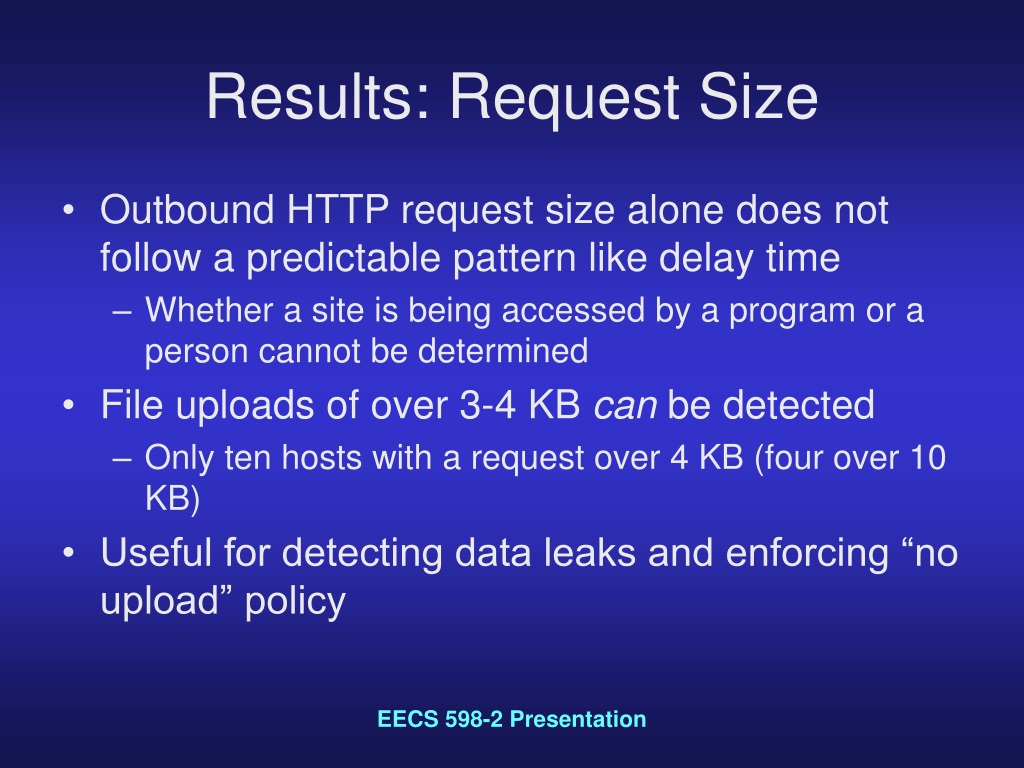

13. Results: Request Size • Outbound HTTP request size alone does not follow a predictable pattern like delay time • Whether a site is being accessed by a program or a person cannot be determined • File uploads of over 3-4 KB can be detected • Only ten hosts with a request over 4 KB (four over 10 KB) • Useful for detecting data leaks and enforcing “no upload” policy EECS 598-2 Presentation

14. EECS 598-2 Presentation

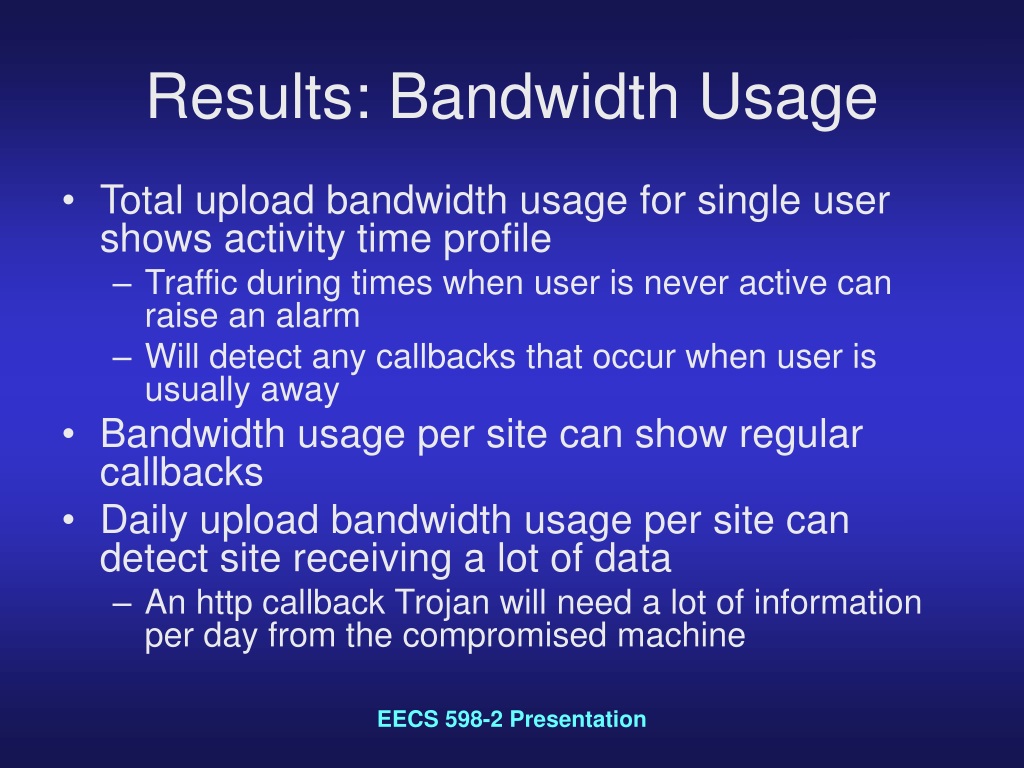

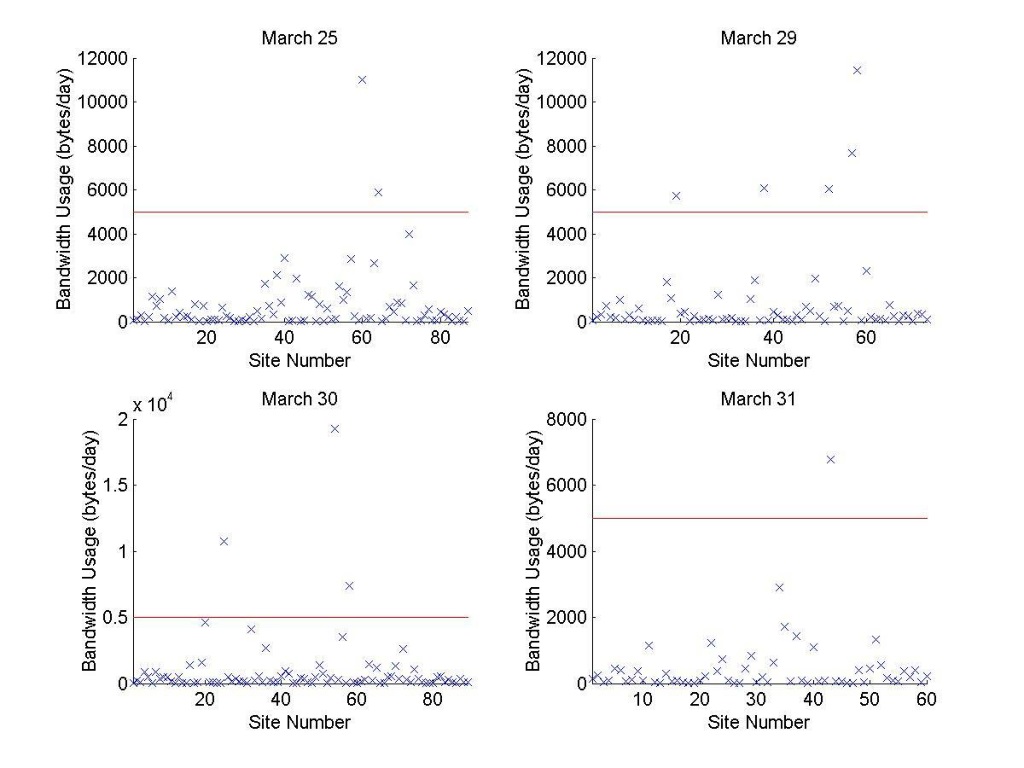

15. Results: Bandwidth Usage • Total upload bandwidth usage for single user shows activity time profile • Traffic during times when user is never active can raise an alarm • Will detect any callbacks that occur when user is usually away • Bandwidth usage per site can show regular callbacks • Daily upload bandwidth usage per site can detect site receiving a lot of data • An http callback Trojan will need a lot of information per day from the compromised machine EECS 598-2 Presentation

16. EECS 598-2 Presentation

17. EECS 598-2 Presentation

18. EECS 598-2 Presentation

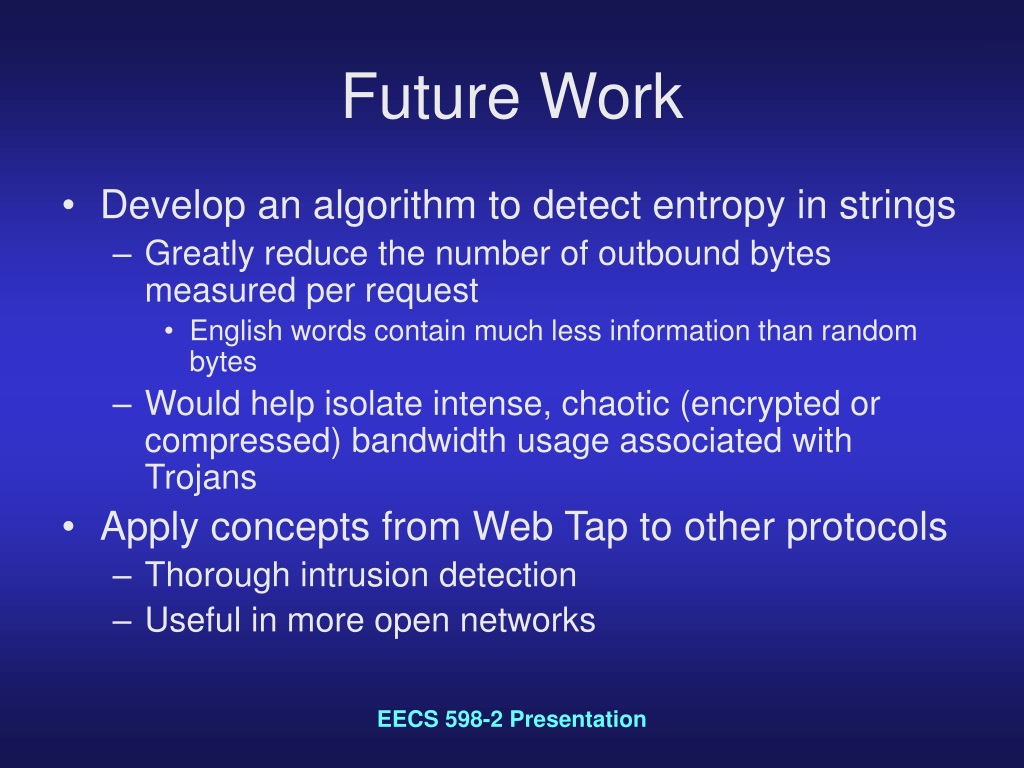

19. Future Work • Develop an algorithm to detect entropy in strings • Greatly reduce the number of outbound bytes measured per request • English words contain much less information than random bytes • Would help isolate intense, chaotic (encrypted or compressed) bandwidth usage associated with Trojans • Apply concepts from Web Tap to other protocols • Thorough intrusion detection • Useful in more open networks EECS 598-2 Presentation

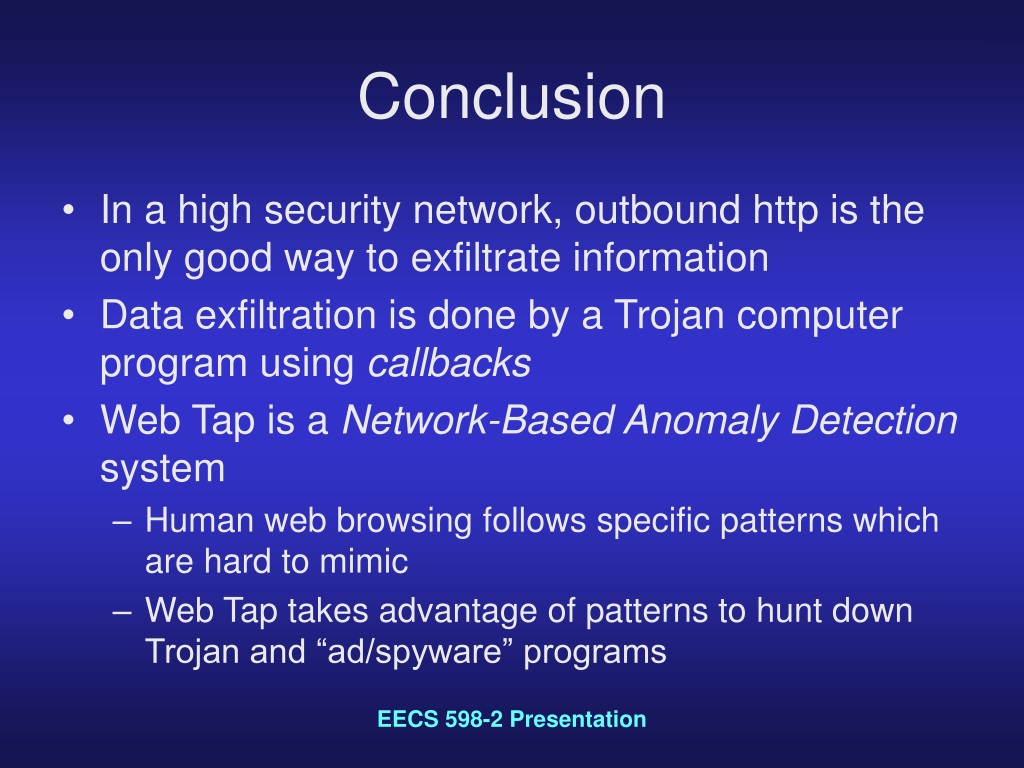

20. Conclusion • In a high security network, outbound http is the only good way to exfiltrate information • Data exfiltration is done by a Trojan computer program using callbacks • Web Tap is a Network-Based Anomaly Detection system • Human web browsing follows specific patterns which are hard to mimic • Web Tap takes advantage of patterns to hunt down Trojan and “ad/spyware” programs EECS 598-2 Presentation

21. Questions? EECS 598-2 Presentation

22. It’s Demo Time! EECS 598-2 Presentation
