How to Install B46 BMW Billet Intake_

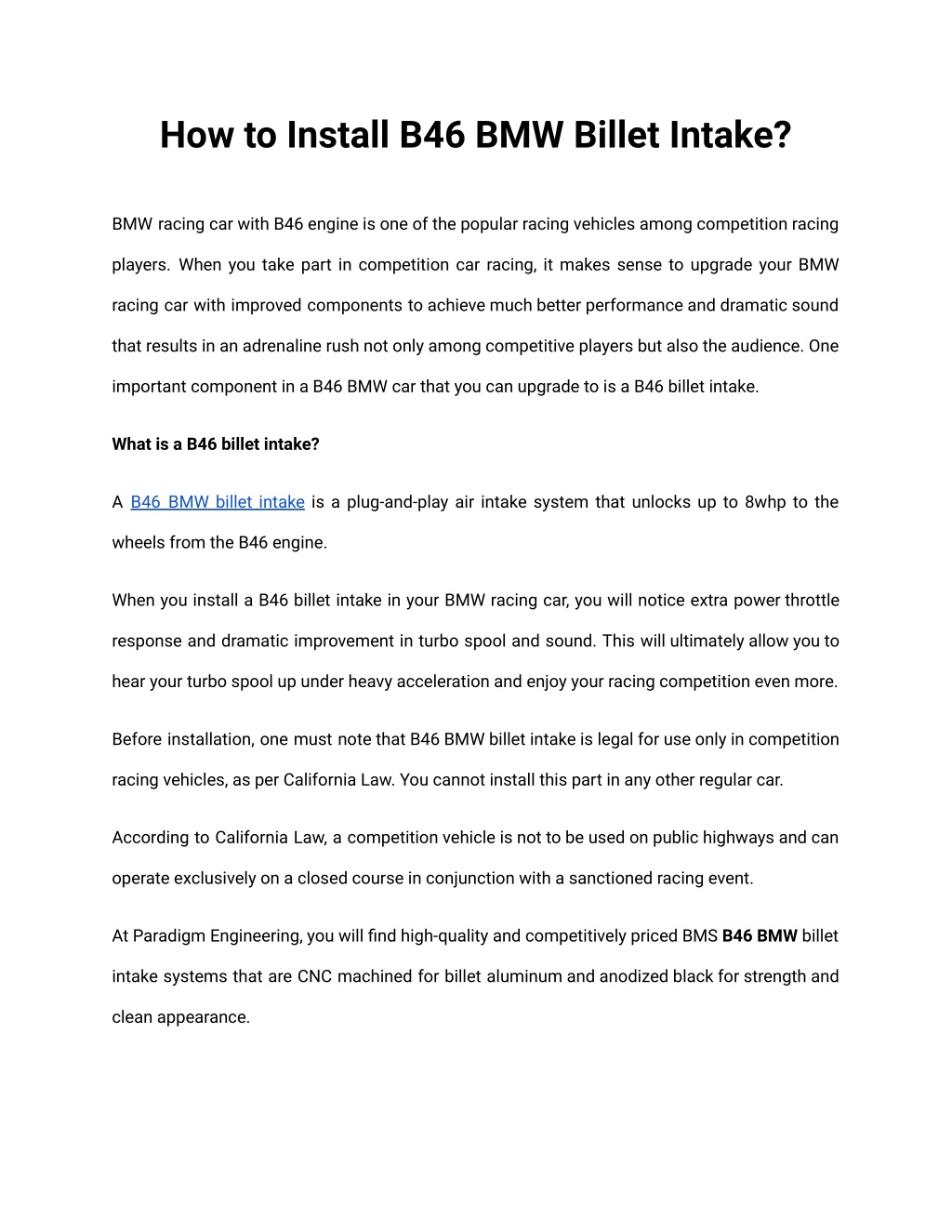

1. How to Install B46 BMW Billet Intake? BMW racing car with B46 engine is one of the popular racing vehicles among competition racing players. When you take part in competition car racing, it makes sense to upgrade your BMW racing car with improved components to achieve much better performance and dramatic sound that results in an adrenaline rush not only among competitive players but also the audience. One important component in a B46 BMW car that you can upgrade to is a B46 billet intake. What is a B46 billet intake? A B46 BMW billet intake is a plug-and-play air intake system that unlocks up to 8whp to the wheels from the B46 engine. When you install a B46 billet intake in your BMW racing car, you will notice extra power throttle response and dramatic improvement in turbo spool and sound. This will ultimately allow you to hear your turbo spool up under heavy acceleration and enjoy your racing competition even more. Before installation, one must note that B46 BMW billet intake is legal for use only in competition racing vehicles, as per California Law. You cannot install this part in any other regular car. According to California Law, a competition vehicle is not to be used on public highways and can operate exclusively on a closed course in conjunction with a sanctioned racing event. At Paradigm Engineering, you will find high-quality and competitively priced BMS B46 BMW billet intake systems that are CNC machined for billet aluminum and anodized black for strength and clean appearance.

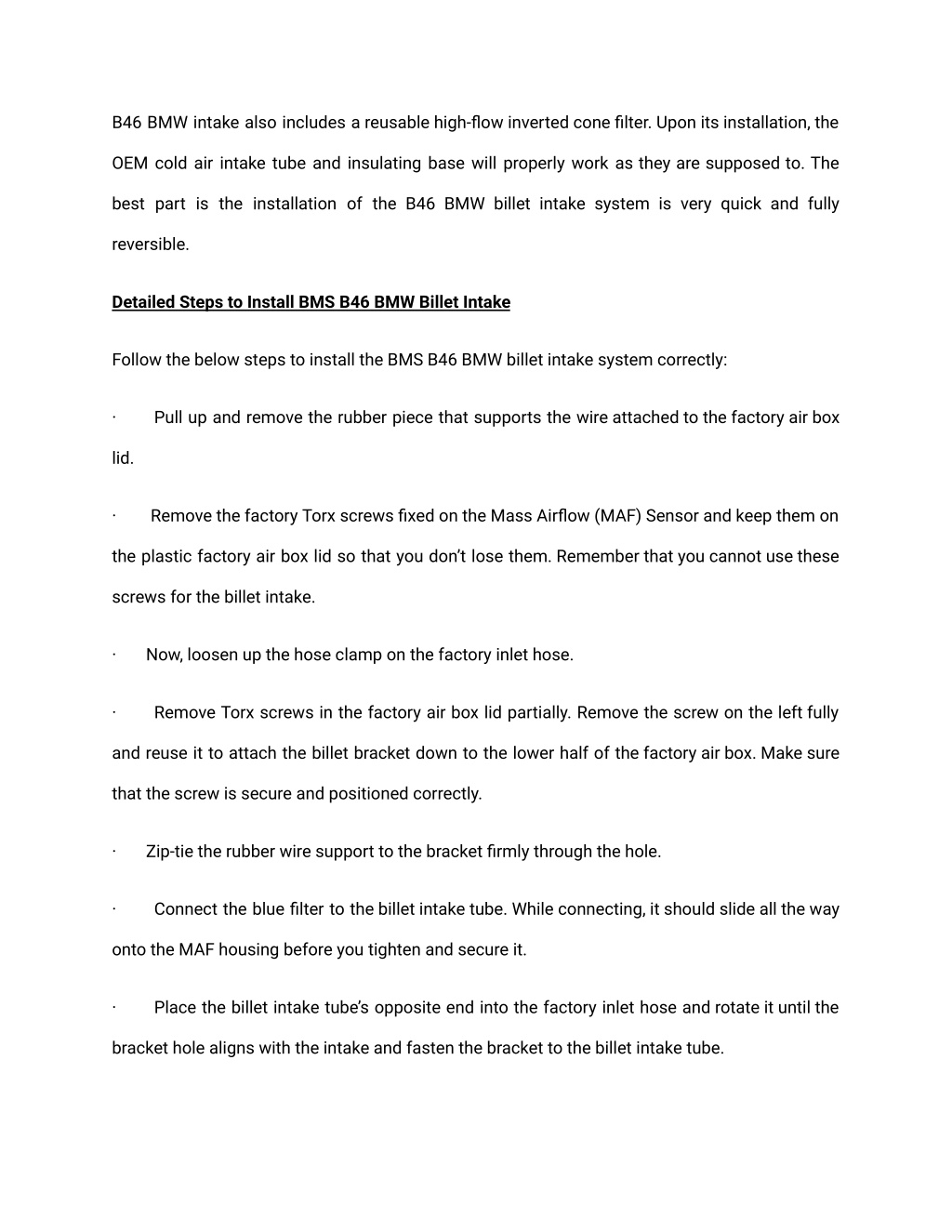

2. B46 BMW intake also includes a reusable high-flow inverted cone filter. Upon its installation, the OEM cold air intake tube and insulating base will properly work as they are supposed to. The best part is the installation of the B46 BMW billet intake system is very quick and fully reversible. Detailed Steps to Install BMS B46 BMW Billet Intake Follow the below steps to install the BMS B46 BMW billet intake system correctly: · Pull up and remove the rubber piece that supports the wire attached to the factory air box lid. · Remove the factory Torx screws fixed on the Mass Airflow (MAF) Sensor and keep them on the plastic factory air box lid so that you don’t lose them. Remember that you cannot use these screws for the billet intake. · Now, loosen up the hose clamp on the factory inlet hose. · Remove Torx screws in the factory air box lid partially. Remove the screw on the left fully and reuse it to attach the billet bracket down to the lower half of the factory air box. Make sure that the screw is secure and positioned correctly. · Zip-tie the rubber wire support to the bracket firmly through the hole. · Connect the blue filter to the billet intake tube. While connecting, it should slide all the way onto the MAF housing before you tighten and secure it. · Place the billet intake tube’s opposite end into the factory inlet hose and rotate it until the bracket hole aligns with the intake and fasten the bracket to the billet intake tube.

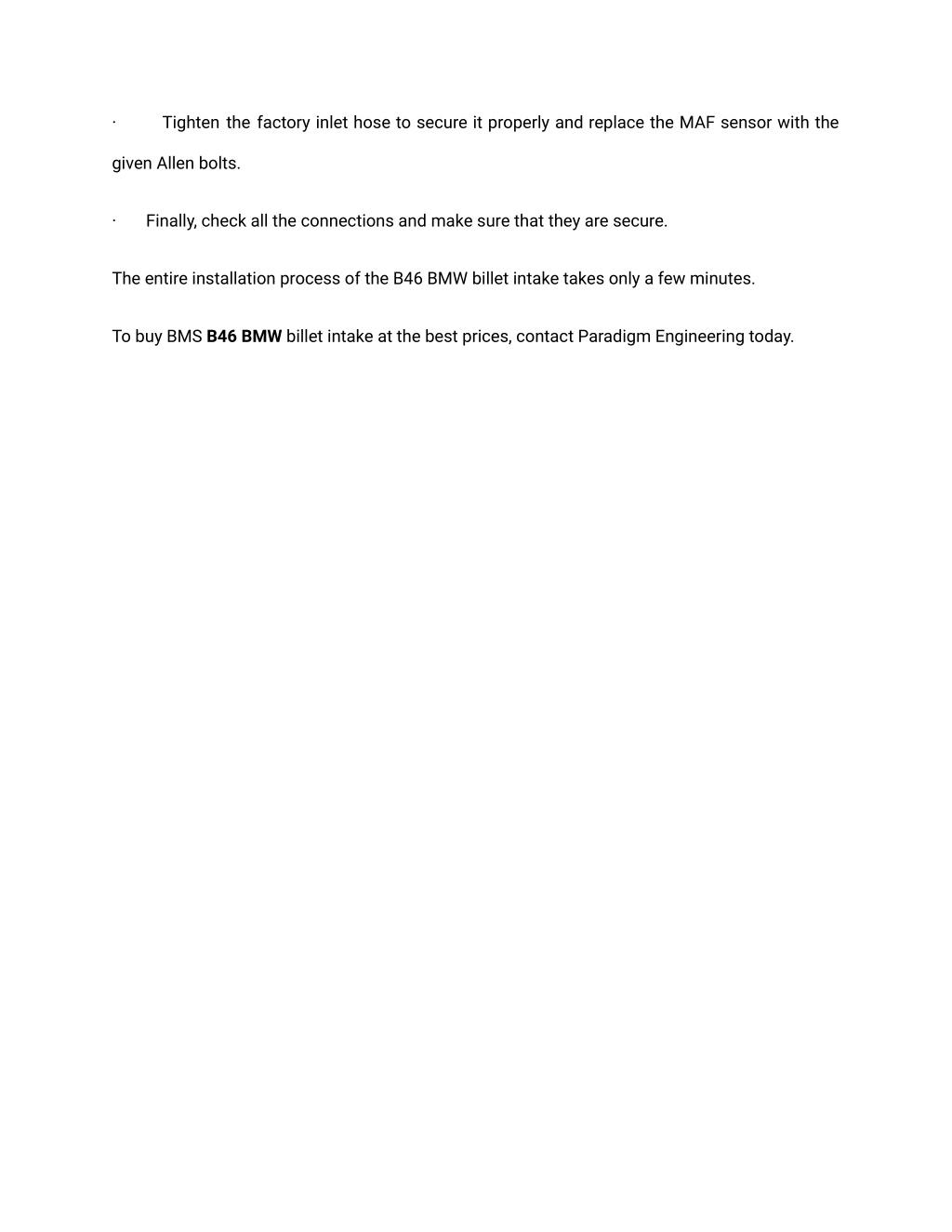

3. · Tighten the factory inlet hose to secure it properly and replace the MAF sensor with the given Allen bolts. · Finally, check all the connections and make sure that they are secure. The entire installation process of the B46 BMW billet intake takes only a few minutes. To buy BMS B46 BMW billet intake at the best prices, contact Paradigm Engineering today.
