  1. 5 PCIDM

  2. Joint STARS transmits up to 256 MTI and/or FTI returns _____.

  3. Closest to the center of the Priority Fire Zone (PFZ) (p.5)

  4. What can PCIDM provide?

  5. A digital data link for passing near real-time targeting data to AH-64Ds (p.4)

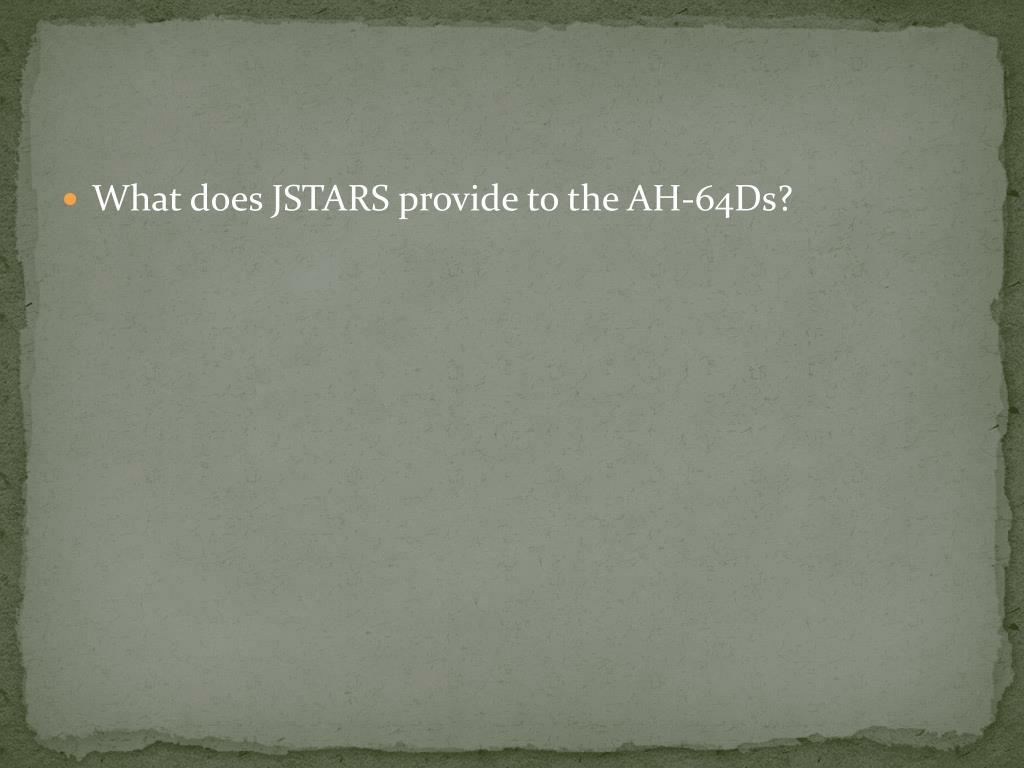

  6. What does JSTARS provide to the AH-64Ds?

  7. Provides surveillance of NAI/TAIs prior to takeoff via SCDL • Provides route screening of Ingress/Egress to AH-64Ds • Responds to PFZ (Priority Fire Zone) requests • Objective location updates to Ahs (IDM)

  8. How many geographic points and what’s the max size of a PFZ?

  9. 4 • 32 km x 32 km

  10. What’s the max number of PFZs that can be in the system at one time?

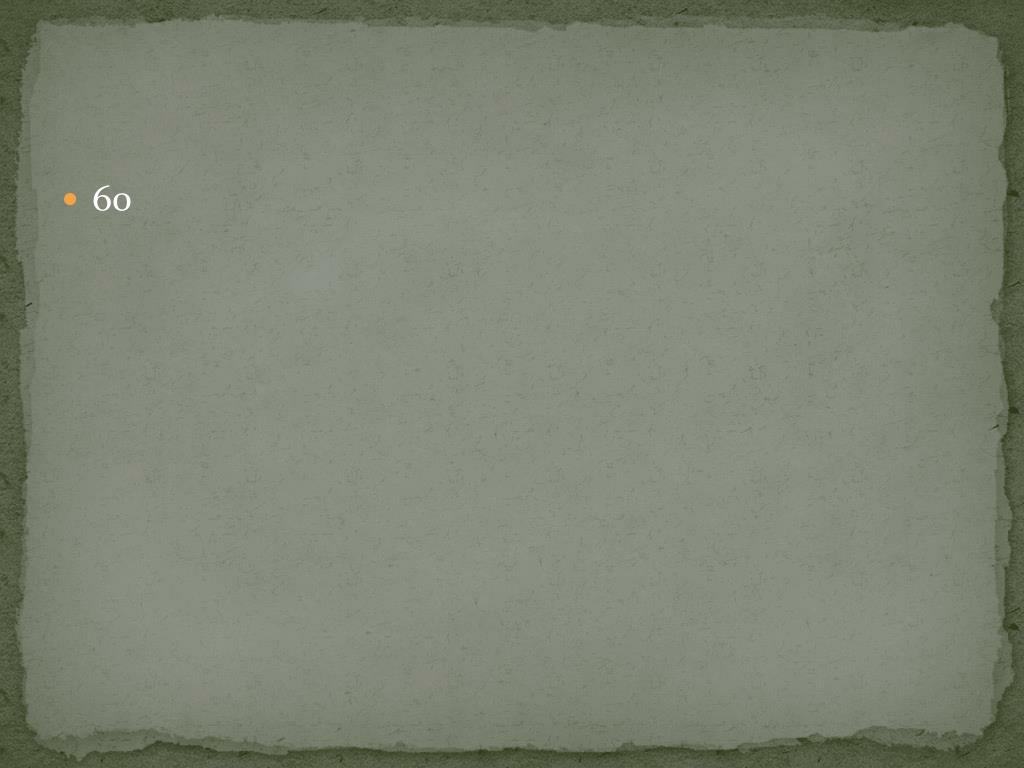

  11. 60

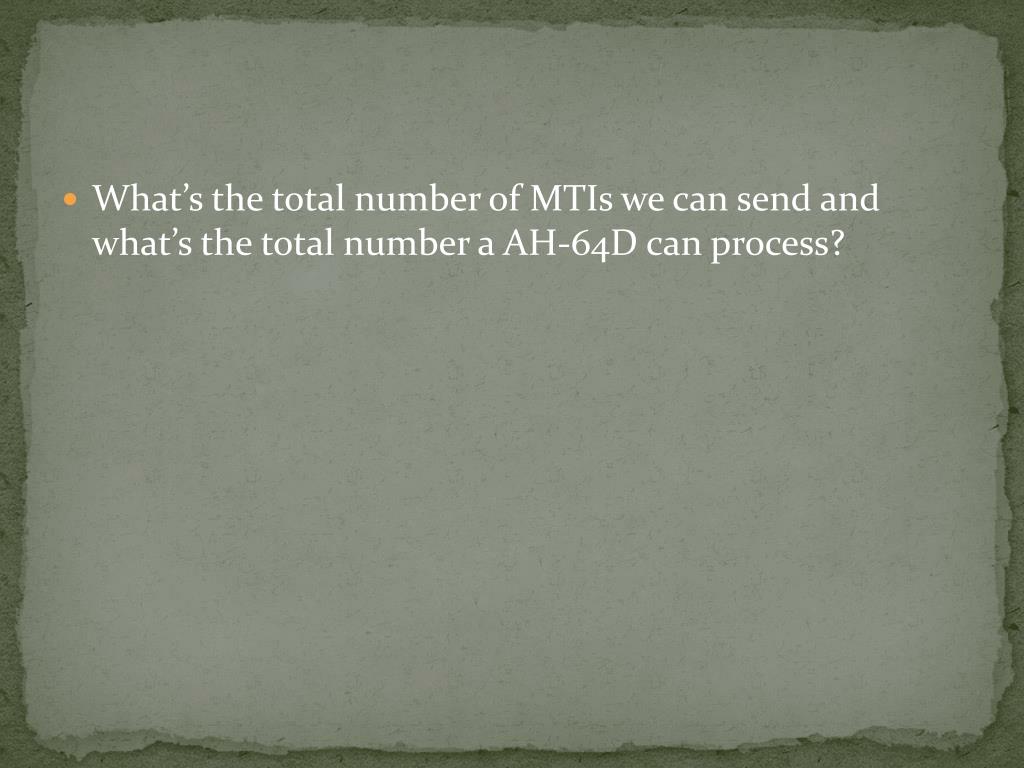

  12. What’s the total number of MTIs we can send and what’s the total number a AH-64D can process?

  13. 256 • 128

  14. What’ s the total number of Priority Targets (and what are Priority Targets) we can send to a AH-64D?

  15. 16 • Points and tracks

  16. Fill in the blanks with a R (receive) or a T (transmit) with JSTARS on the left and AH-64D on the right. • _/_ Priority Fire Zone Message • _/_ Fire Control Radar Targets • _/_ Present Position Query • _/_ Present Position Response • _/_ Present Position Report

  17. R/T Priority Fire Zone Message • T/R Fire Control Radar Targets • T/R Present Position Query • R/T Present Position Response • R/T Present Position Report both can R/T for Free Text Messages

  18. How many laptops and what are their associated radios?

  19. 2 • 1-VHF 4 & UHF 10 • 2-VHF 3 & UHF 12

  20. How do you access IDM PROC?

  21. PROC MSG

  22. What’s the max number of lines/messages the FCR ISR (Fire Control Radar Information Service Request) can display?

  23. 60

  24. How many characters are in the label for an IDM TEXT LIST?

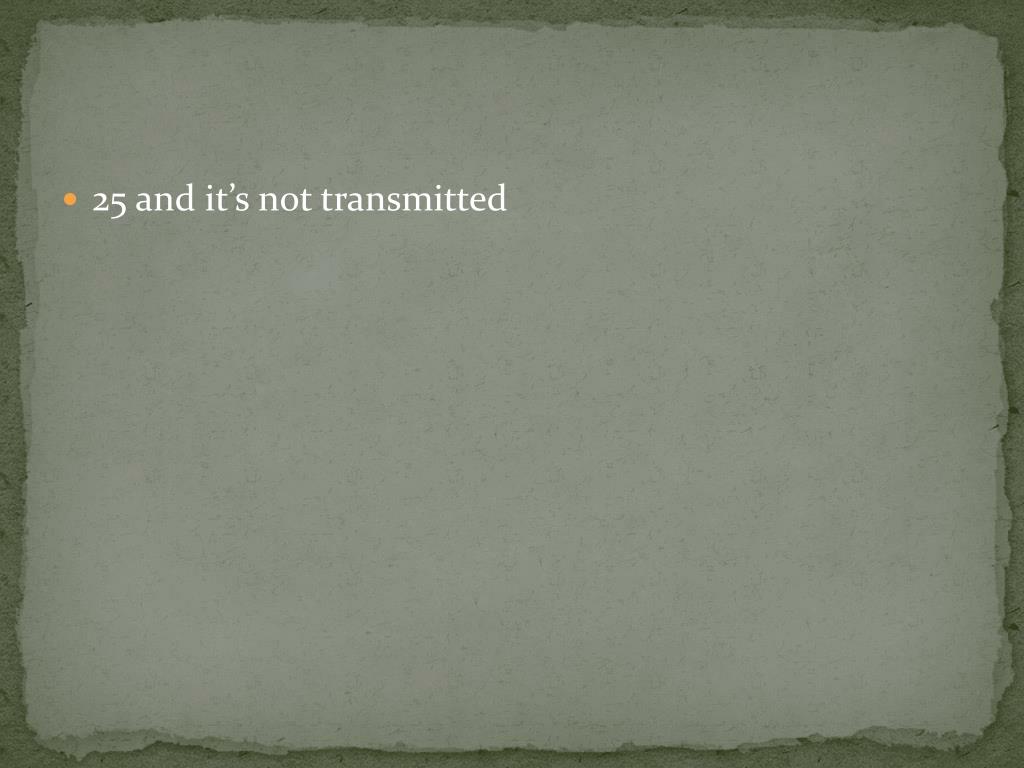

  25. 25 and it’s not transmitted

  26. What is the total number of IDM TEXT messages that can be in the DB?

  27. 100

  28. What’s the number of characters in each line of the IDM TEXT and how many lines are there?

  29. 44 • 4

  30. Does IDM default to ON in the TRK DISP SEL?

  31. Yes
