  1. ZIG TutorialSan Antonio TX ZETA Perl ModuleLuca Lelli January 19, 2000 l.lelli@finsiel.it

  2. Summary • ZETA Suite by Finsiel S.p.A. • Perl Module description • Available Methods • Perl Module installation

  3. Finsiel Zeta SuiteComponents • Zeta Development ToolkitA Z39.50 development toolkit including ANSI C libraries, Perl Module, command line Client for testing • Zeta TargetA powerful Z39.50 server able to interface a large set of commercial DBMS/IRS with the catalogues. It supports Z39.50 V3 functionalities like: init, search, present, delete, close, scan, sort and item order • Zeta Proxya fast and efficient intermediary between Z39.50 compliant clients and the Z39.50 Servers. It allows to perform parallel queries on multi-profiles targets • HTTP/Z39.50 GatewayA lot of perl scripts able to tranform stateless http sessions in stateful z39.50 sessions • Z39.50 Client A standalone Z39.50 Client for Windows environment

  4. Finsiel Zeta SuiteServices Client HTTP Gateway HTTP-Z39.50 Client Z39.50 Z39.50 extended services search & retrieval access control resource control Z39.50 OPAC holding profile Explain union catalog profile electronic document delivery Inter library loan TCP/IP Existing On development Integration

  5. Finsiel Zeta SuiteHw/Sw Platforms • Hardware/Operating System • Un*x (Solaris, Linux, HP-UX, AIX, IRIX, OSF) • Microsoft Windows 95, 98, NT-4.0 • DBMS/IRS ZETA Target Drivers • Basis Plus 8.2 • MySQL 3.22 & Postgres 6.2 • Informix Dynamic Server (IDS) 9.13 • Fulcrum Search Server 7.x • Any ODBC Compliant DBMS

  6. Zeta on the Public Domain Available ... • Zeta Perl: a module to facilitate implementation of Z39.50 client applications using the Perl language (i.e. Web Gateways, robots, …) • Ziffy: Z39.50 APDUs sniffer. It can be used to ‘sniff’ the communication between Z39.50 peers and make human-readable the exchanged information Coming soon ... • Zeta Robot: a Perl application for testing and inspecting Z39.50 server on the network. Particularly useful to check the conformance to the standard • Zeta Gateway Generator: based on the Zeta Perl it facilitates creation and customization of HTTP/Z39.50 gateways

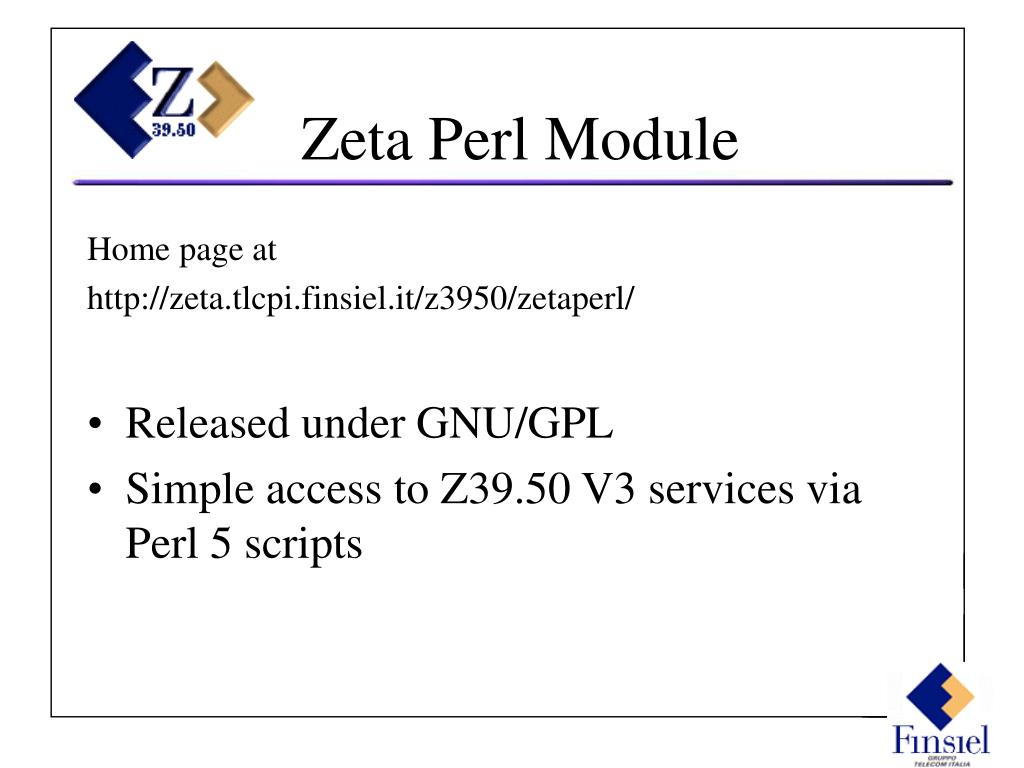

  7. Zeta Perl Module Home page at http://zeta.tlcpi.finsiel.it/z3950/zetaperl/ • Released under GNU/GPL • Simple access to Z39.50 V3 services via Perl 5 scripts

  8. Functionalities • It implements a client interface to Z39.50 V3 protocol, enabling perl applications to easily talk to Z39.50 servers • Basic Z39.50 operations are offered to the perl programmers through an object oriented interface • All operations are currently synchronous • It supports multi-associations at the same time • The primary object is Zeta::Connection which is implemented as a blessed hash reference

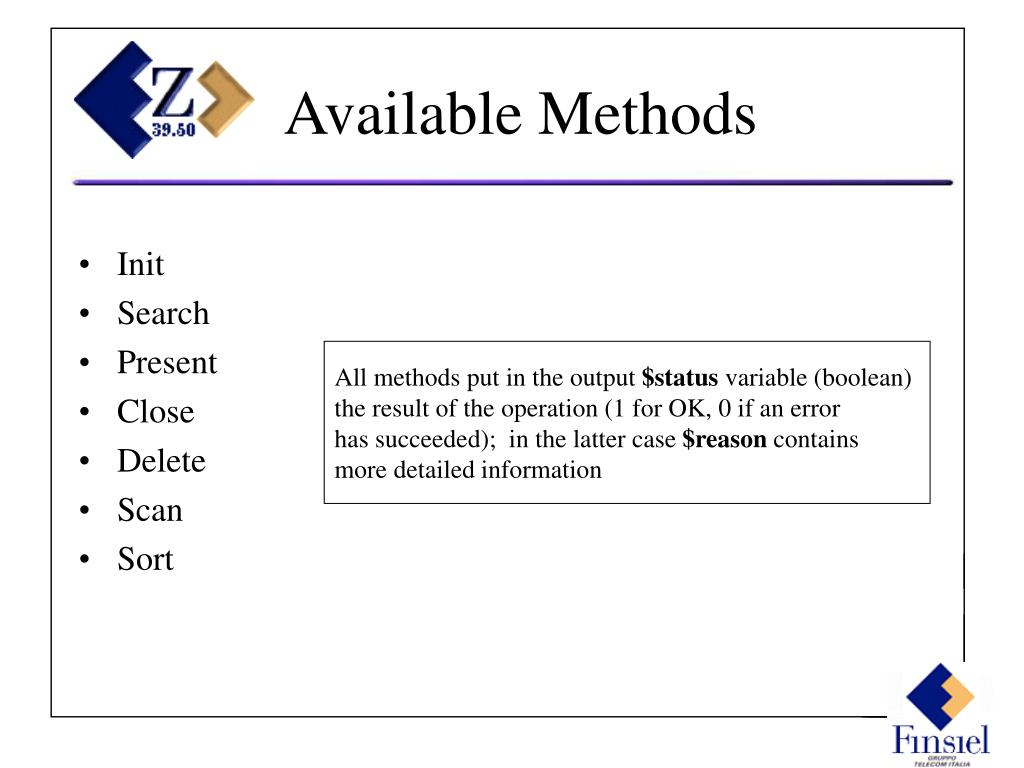

  9. Available Methods • Init • Search • Present • Close • Delete • Scan • Sort All methods put in the output $status variable (boolean) the result of the operation (1 for OK, 0 if an error has succeeded); in the latter case $reason contains more detailed information

  10. Simple Connection $Host = ”somehost.your.domain"; $Port = 210; # NISO Z39.50 database $zc = Zeta::Connection::New ($Host, $Port); if ($zc) { print "Connection established"; } else { print "Connection failed"; }

  11. Init $user = ‘’; $passwd=“”; $refid = “”; ($status, $reason, $result, $newid) = $zc->Init ($user, $passwd, $refid); It sends a request to the server to initialize the previously established connection identified by $zc. The first two parameters are optional and they can be used to transmit authentication information in case the target applies. The optional parameter $refid can be used to reference the association

  12. Search $database=“opac”; $resultset=“zeta”; $query=“1=4 dante @or@ 1=4 manzoni”; $attrid=“BIB1”; ($status, $reason, $found, $info) = $zc->Search ($database, $resultset, $query, $attrid); It sends a request to the server to perform the Z39.50 Type 1 query specified by $query. $database identifies the name of database. $resultset indicates the name to give to the query result, while $query is the query string (see below.) The last parameter $attrid indicates an attribute set identifier associated to thequery. Upon successful completion $found contains the number of hits of the created resultset

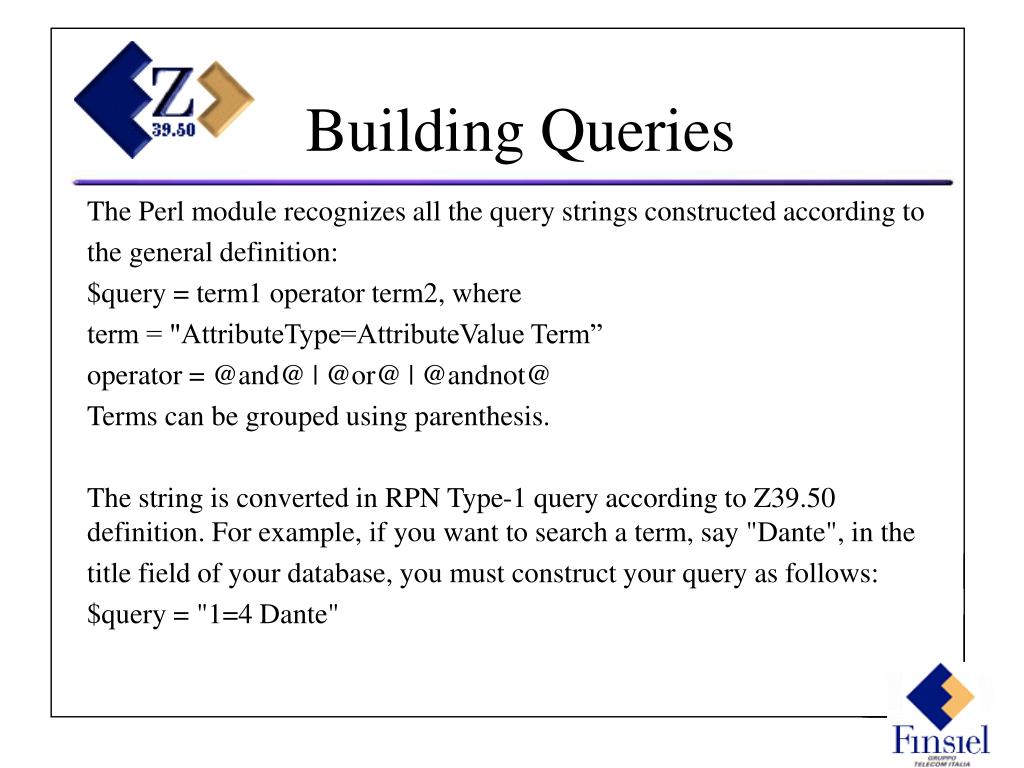

  13. Building Queries The Perl module recognizes all the query strings constructed according to the general definition: $query = term1 operator term2, where term = "AttributeType=AttributeValue Term” operator = @and@ | @or@ | @andnot@ Terms can be grouped using parenthesis. The string is converted in RPN Type-1 query according to Z39.50 definition. For example, if you want to search a term, say "Dante", in the title field of your database, you must construct your query as follows: $query = "1=4 Dante"

  14. Present $resultset=“zeta”; $howmany=33; $start=4; $format=“b”; $syntax=“grs1”; ($status, $reason, $returned, @records) = $zc->Present ($resultset, $howmany, $start, $format, $syntax); It tries to retrieve records from a previously created resultset. $howmany is the number of records to be retrieved, while $start is the start point. $format indicates the Element Set Name (`b' for brief, `mb' for museum brief, `f' for full, etc.), and $syntax indicates the preferred record syntax (MARC, GRS-1). Upon successful completion @records contains the array of records returned.

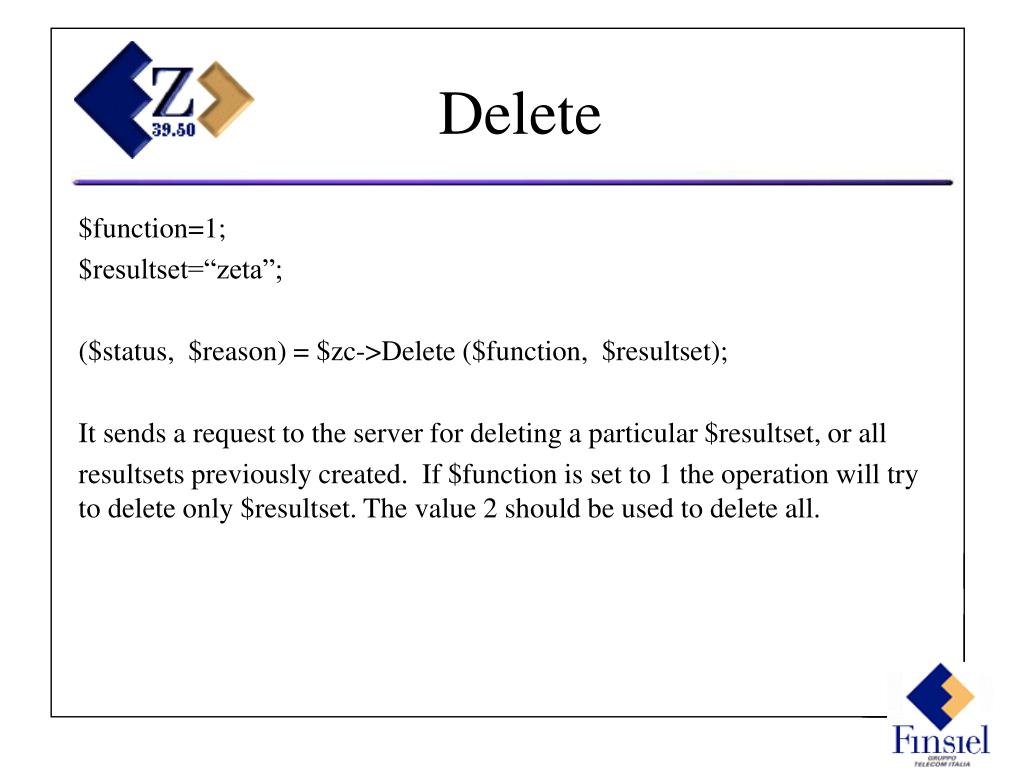

  15. Delete $function=1; $resultset=“zeta”; ($status, $reason) = $zc->Delete ($function, $resultset); It sends a request to the server for deleting a particular $resultset, or all resultsets previously created. If $function is set to 1 the operation will try to delete only $resultset. The value 2 should be used to delete all.

  16. Close $code=1; ($status, $reason) = $zc->Close ($code); It sends a request to the server in order to close a previously established association. It does not check for any state information, therefore it may be called at any time to communicate that the user is finished with the Z39.50 association. $code is the reason code of the disconnection.

  17. Scan $database=“opac”; $term=“1=4 dan”; $itemsno=50; $start=3; ($status, $reason, $returned, @entries) = $zc->Scan ($database, $term, $itemsno, $start) It sends a request to the server to scan an ordered term-list. $database is the name of database and $term is the scan term with the same syntax of the Search method. $itemsno is the maximum number of items to retrieve and $start is the start point. Upon successful completion @entries contains the array of entries returned.

  18. Sort $resultset=“zeta”; $criteria=“1=4”; ($status, $reason) = $zc->Sort ($resultset, $criteria) It sends a request to the server for sorting a previously created $resultset. $criteria indicates the sort sequences criteria.

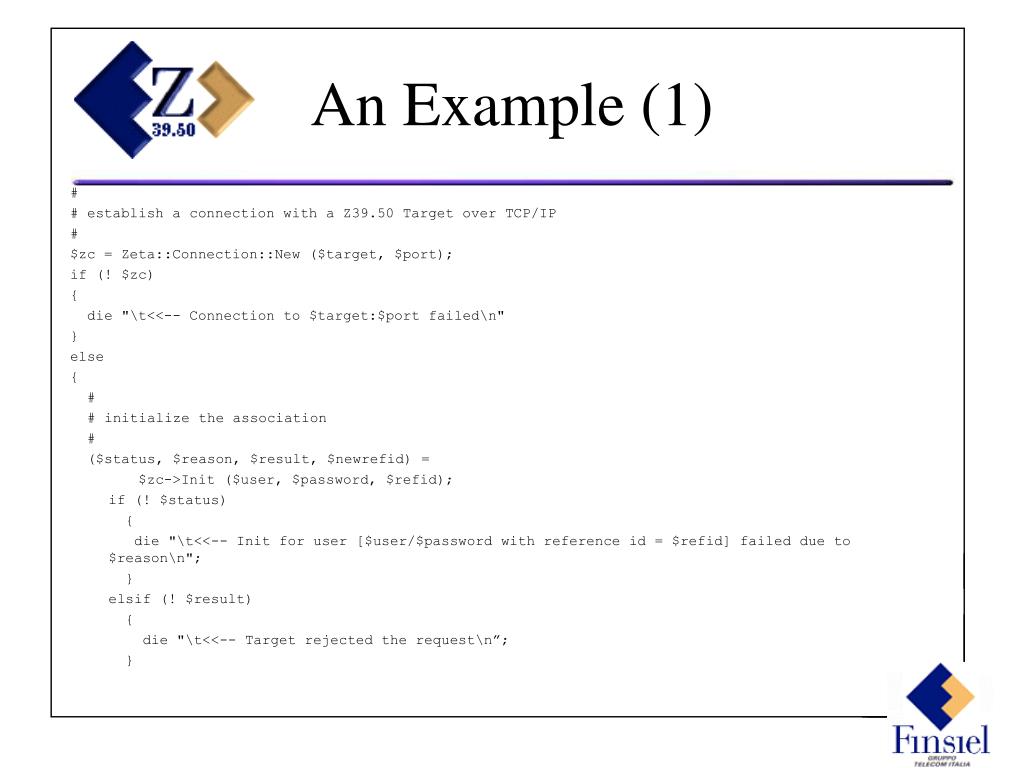

  19. An Example (1) # # establish a connection with a Z39.50 Target over TCP/IP # $zc = Zeta::Connection::New ($target, $port); if (! $zc) { die "\t<<-- Connection to $target:$port failed\n" } else { # # initialize the association # ($status, $reason, $result, $newrefid) = $zc->Init ($user, $password, $refid); if (! $status) { die "\t<<-- Init for user [$user/$password with reference id = $refid] failed due to $reason\n"; } elsif (! $result) { die "\t<<-- Target rejected the request\n”; }

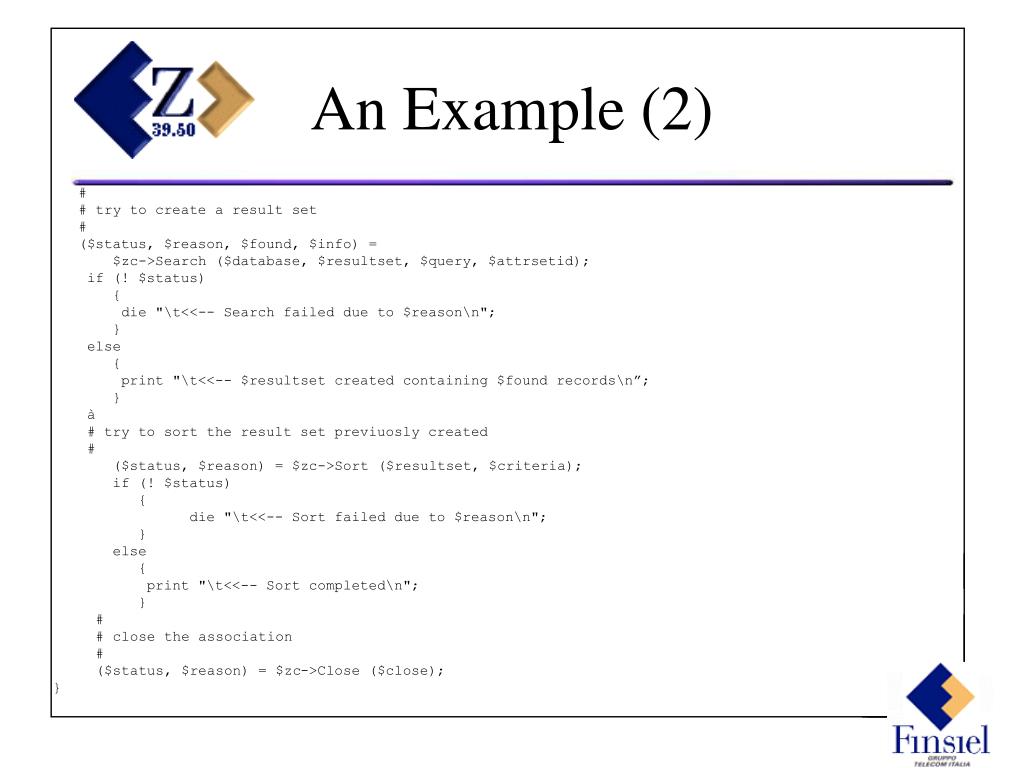

  20. An Example (2) # # try to create a result set # ($status, $reason, $found, $info) = $zc->Search ($database, $resultset, $query, $attrsetid); if (! $status) { die "\t<<-- Search failed due to $reason\n"; } else { print "\t<<-- $resultset created containing $found records\n”; } à # try to sort the result set previuosly created # ($status, $reason) = $zc->Sort ($resultset, $criteria); if (! $status) { die "\t<<-- Sort failed due to $reason\n"; } else { print "\t<<-- Sort completed\n"; } # # close the association # ($status, $reason) = $zc->Close ($close); }

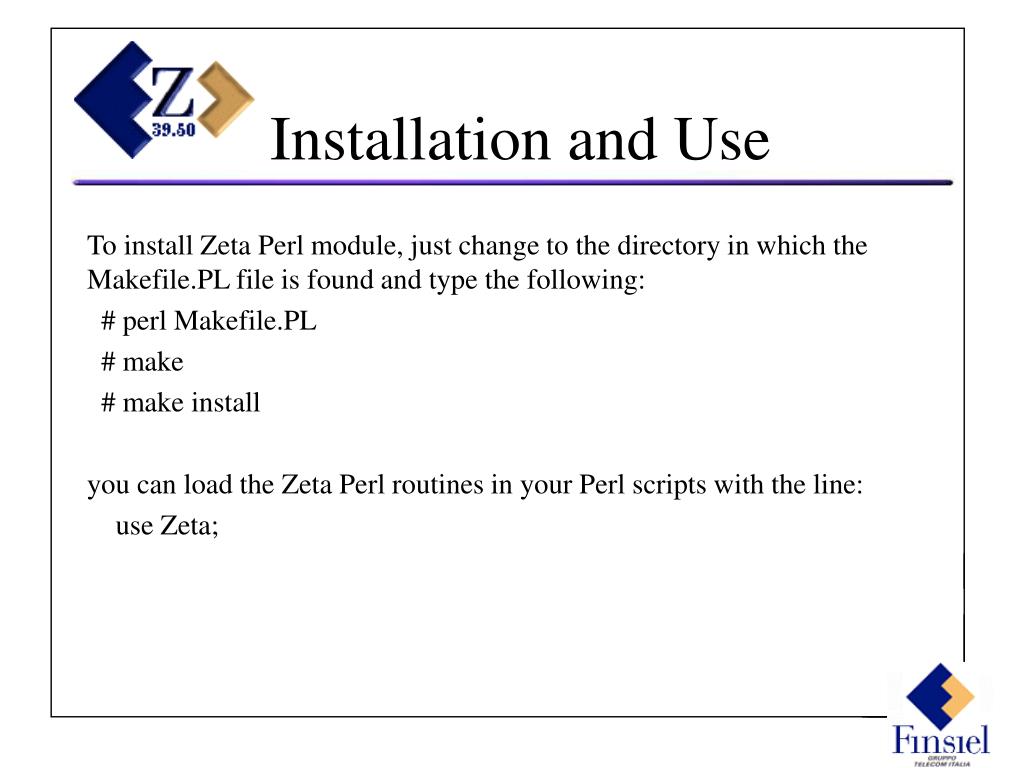

  21. Installation and Use To install Zeta Perl module, just change to the directory in which the Makefile.PL file is found and type the following: # perl Makefile.PL # make # make install you can load the Zeta Perl routines in your Perl scripts with the line: use Zeta;

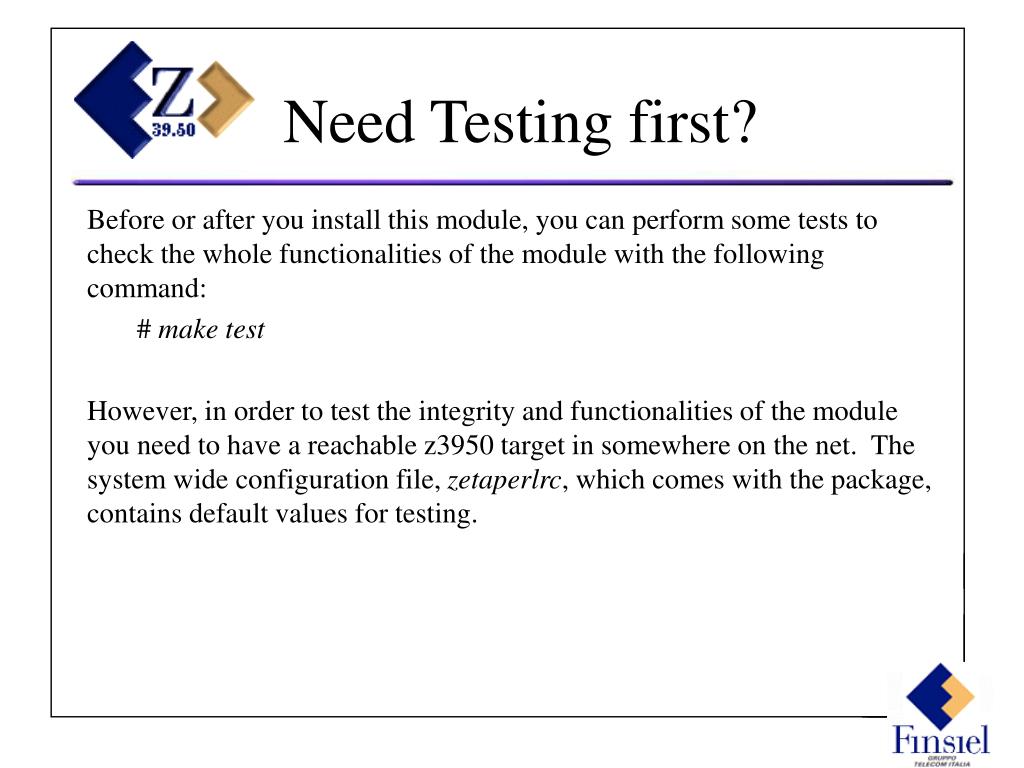

  22. Need Testing first? Before or after you install this module, you can perform some tests to check the whole functionalities of the module with the following command: # make test However, in order to test the integrity and functionalities of the module you need to have a reachable z3950 target in somewhere on the net. The system wide configuration file, zetaperlrc, which comes with the package, contains default values for testing.

  23. zetaperlrc • # • # You need to provide a reachable z39.50 target. • # Its name can be provided as a valid hostname or its IP address. • # • $target = "www.promemoria.net"; • # • # Give here the port number of the target • # • $port = "2222"; • # • # Database name • # • $database = "test"; • # • # Resultset name • # • $resultset = "zeta"; • # • # You need to provide a simple query in order to test • # the search and present methods. • # Your query must create a non empty result set. • # • $query = "1=1016 legno"; • ………………………..
