Presentation Transcript

  1. Rise and ShineQuiz 3 Meteorology 415

  2. What are the ‘probable’ causes of the two boundaries seen on this visible satellite picture from last Thursday?

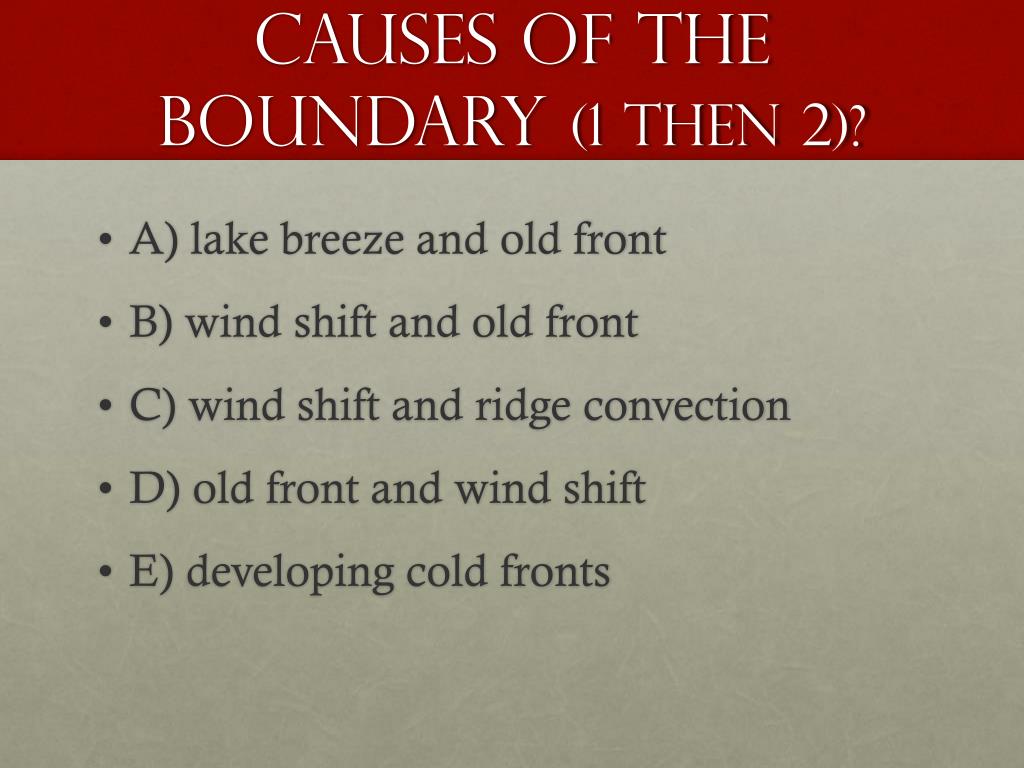

  3. Causes of the boundary (1 then 2)? • A) lake breeze and old front • B) wind shift and old front • C) wind shift and ridge convection • D) old front and wind shift • E) developing cold fronts

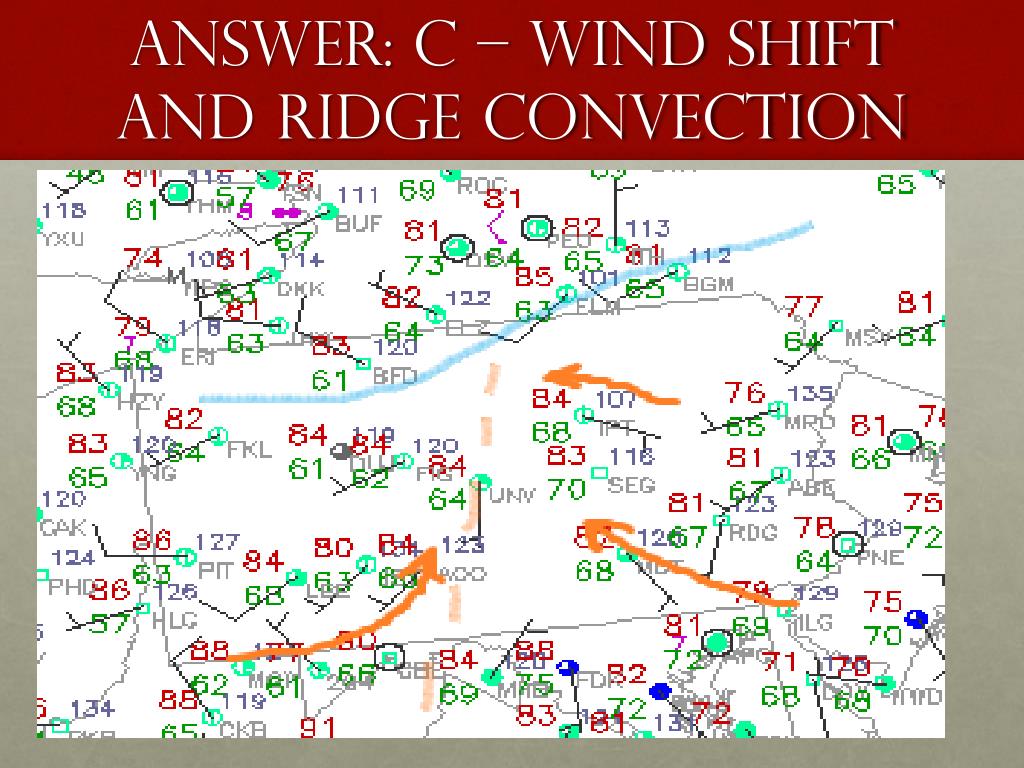

  4. Answer: C – wind shift and ridge convection

  5. williamsport Meteorology 415 – Fall 2012 Third Forecast Review

  6. Williamsport

  7. Williamsport - OBS • KIPT 061754Z 13003KT 10SM CLR 27/19 A2988 RMK AO2 SLP114 T02720189 10278 20178 58010= • KIPT 061854Z 11005KT 10SM FEW040 29/20 A2986 RMK AO2 SLP107 MDT CU N T02890200= • KIPT 061954Z VRB04KT 10SM FEW040 28/20 A2984 RMK AO2 SLP101 MDT CU N T02780200= • KIPT 062022Z 15005KT 10SM TS SCT040 27/20 A2984 RMK AO2 TSB20 FQT LGTICCCCG NW= • KIPT 062054Z 19007G15KT 10SM TS BKN040 28/20 A2984 RMK AO2 TSB20 SLP102 FQT LGTICCCCG NW T02830200 55012= • KIPT 062154Z 18006KT 10SM BKN043 BKN050 OVC100 28/20 A2984 RMK AO2 TSE50RAB31E50 SLP101 MDT CU ALQDS P0000 T02830200= • KIPT 062204Z 16006KT 10SM TS BKN045 28/20 A2984 RMK AO2 TSB03= • KIPT 062254Z VRB06KT 10SM TS BKN042 27/20 A2985 RMK AO2 TSB03 SLP105 T02670200= • KIPT 062354Z 21005KT 10SM -TSRA SCT050 BKN075 BKN100 23/19 A2986 RMK AO2 RAB44 SLP110 FQT LTGICCCCG NW P0000 60000 T02280189 10289 20228 53006= • KIPT 070015Z 35004KT 8SM TSRA BKN020 BKN065 BKN090 23/19 A2989 RMK AO2 FQT LTGICCCCG P0002= • KIPT 070027Z 16007KT 10SM TSRA BKN020 BKN065 BKN090 22/19 A2988 RMK AO2 TSE25B27 P0002=

  8. Williamsport - OBS • KIPT 062354Z 21005KT 10SM -TSRA SCT050 BKN075 BKN100 23/19 A2986 RMK AO2 RAB44 SLP110 FQT LTGICCCCG NW P0000 60000 T02280189 10289 20228 53006= • KIPT 070015Z 35004KT 8SM TSRA BKN020 BKN065 BKN090 23/19 A2989 RMK AO2 FQT LTGICCCCG P0002= • KIPT 070027Z 16007KT 10SM TSRA BKN020 BKN065 BKN090 22/19 A2988 RMK AO2 TSE25B27 P0002= • KIPT 070054Z 00000KT 10SM TSRA BKN020 BKN065 BKN090 22/19 A2989 RMK AO2 TSE25B27 SLP119 FQT LTGICCCCG N-E P0002 T02220194= • KIPT 070101Z 00000KT 10SM OVC055 21/20 A2990 RMK AO2 TSE0055RAE0055 LTG DSNT N-E= • KIPT 070054Z 00000KT 10SM TSRA BKN020 BKN065 BKN090 22/19 A2989= • KIPT 070101Z 00000KT 10SM OVC055 21/20 A2990= • KIPT 070130Z 00000KT 10SM BKN027 OVC050 22/20 A2991 RMK AO2 TSE0055RAE0055 LTG DSNT N-E= • KIPT 070154Z 00000KT 10SM OVC027 22/20 A2990 RMK AO2 TSE0055RAE0055 SLP122 LTG DSNT N-E T02220200= • KIPT 070247Z AUTO 34004G14KT 10SM BKN030 21/17 A2994 RMK AO2 LTG DSNT N-SE PRESRR= • KIPT 070254Z AUTO 05006KT 10SM BKN032 21/17 A2993 RMK AO2 LTG DSNT N-SE SLP133 60002 T02060167 53024= • KIPT 070354Z AUTO 36003KT 10SM TS SCT038 BKN050 BKN080 21/16 A2992 RMK AO2 LTG DSNT NE AND E AND SW TSB52RAB36E47 SLP128 P0000 T02060161= • KIPT 070454Z AUTO 27007KT 2SM +TSRA FEW023 BKN045 OVC060 19/17 A2995 RMK AO2 LTG DSNT SE AND S RAB48 SLP139 P0013 T01940167 402890167= • KIPT 070505Z AUTO 09009KT 10SM -TSRA FEW023 BKN045 BKN060 19/17 A2991 RMK AO2 LTG DSNT ALQDS PRESFR P0001= • KIPT 070505Z AUTO 09009KT 10SM -TSRA FEW023 BKN045 BKN060 19/17A2991= • KIPT 070554Z AUTO 03004KT 10SM CLR 19/17 A2991 RMK AO2 LTG DSNT ALQDS TSE42RAE08 SLP125 P0001 60016 T01890167 10222 20189 58008= • KIPT 070625Z AUTO 00000KT 10SM VCTS SCT041 18/17 A2991 RMK AO2 LTG DSNT ALQDS TSB19= • KIPT 070642Z AUTO VRB03KT 10SM VCTS BKN043 19/17 A2993 RMK AO2 LTG DSNT ALQDS TSB19E36B42=

  9. Williamsport - obs • KIPT 070654Z AUTO 16003KT 10SM VCTS OVC045 19/17 A2993 RMK AO2 LTG DSNT ALQDS TSB19E36B42 SLP131 T01890172= • KIPT 070754Z AUTO 00000KT 10SM SCT060 SCT075 19/18 A2990 RMK AO2 LTG DSNT NE AND NW TSE53 SLP123 T01890178= • KIPT 070854Z AUTO 00000KT 8SM CLR 18/17 A2991 RMK AO2 SLP126 T01780167 51001= • KIPT 070954Z AUTO 00000KT 10SM CLR 18/17 A2991 RMK AO2 SLP125 T01780167= • KIPT 071054Z 00000KT 5SM BR FEW005 17/17 A2993 RMK AO2 SLP131 T01720167= • KIPT 071154Z 00000KT 7SM SCT005 18/17 A2995 RMK AO2 SLP140 70016 T01780167 10189 20172 53014 $=

  10. Williamsport– surface map

  11. Williamsport – upper air

  12. williampsort - satellite

  13. Williamsport - satellite

  14. Willamsport – anticipated radar

  15. williamsport -radar

  16. williamsport - radar

  17. Williamsport radar

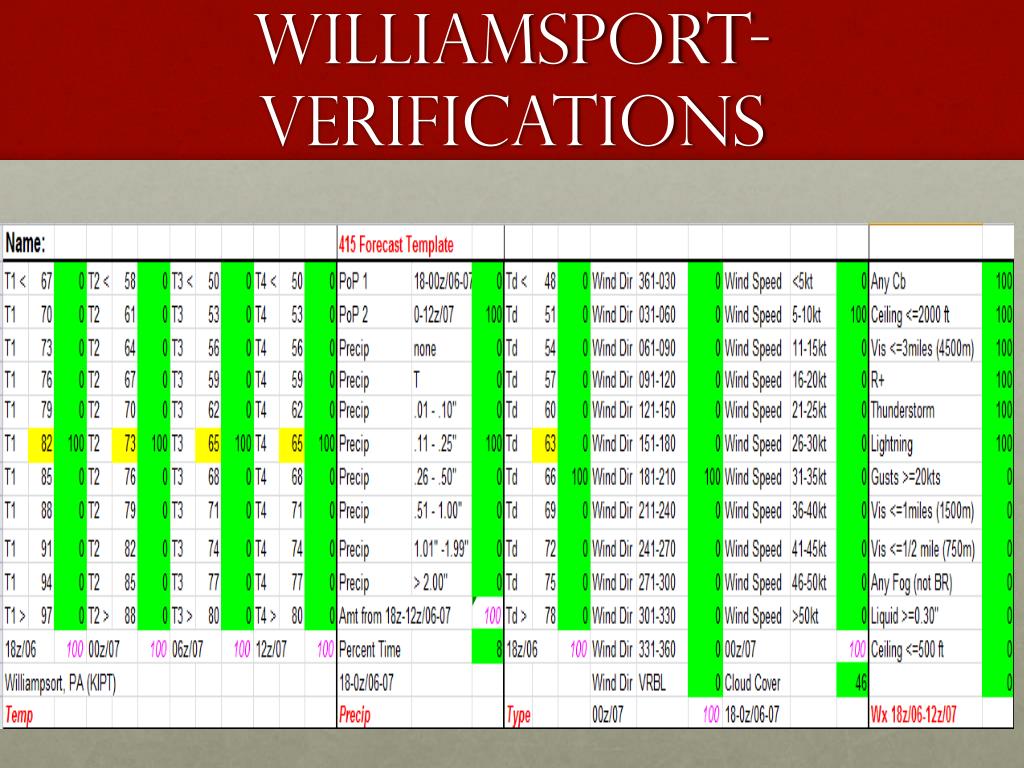

  18. williamsport- verifications

  19. Williamsport- scores

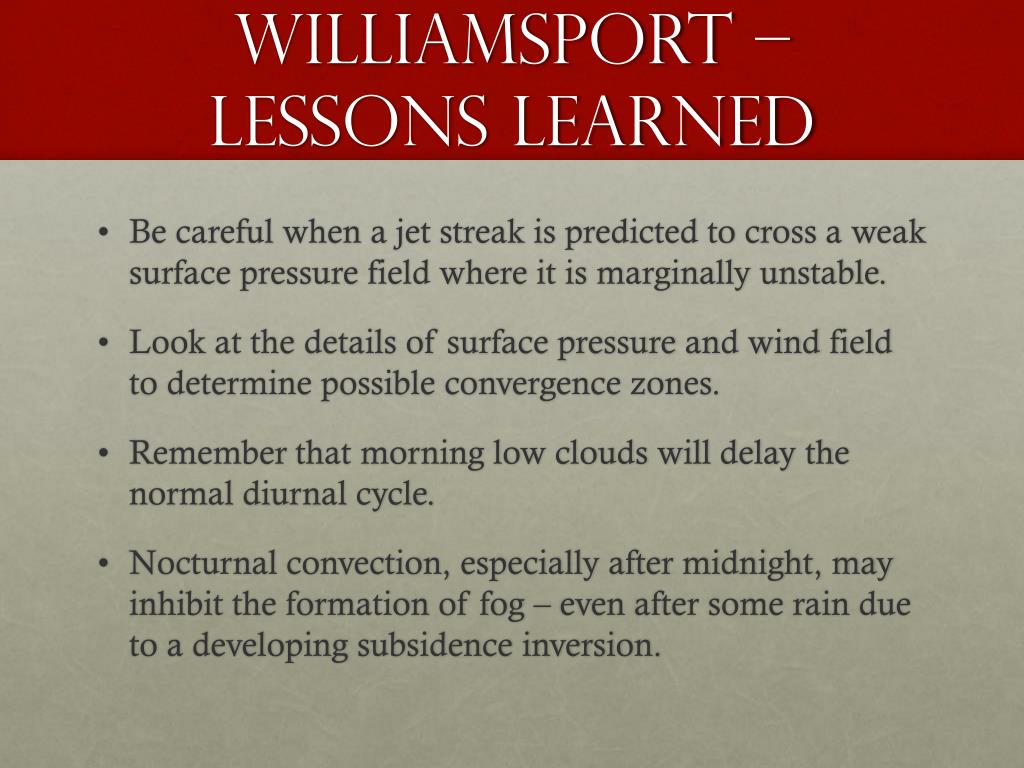

  20. williamsport – lessons learned • Be careful when a jet streak is predicted to cross a weak surface pressure field where it is marginally unstable. • Look at the details of surface pressure and wind field to determine possible convergence zones. • Remember that morning low clouds will delay the normal diurnal cycle. • Nocturnal convection, especially after midnight, may inhibit the formation of fog – even after some rain due to a developing subsidence inversion.

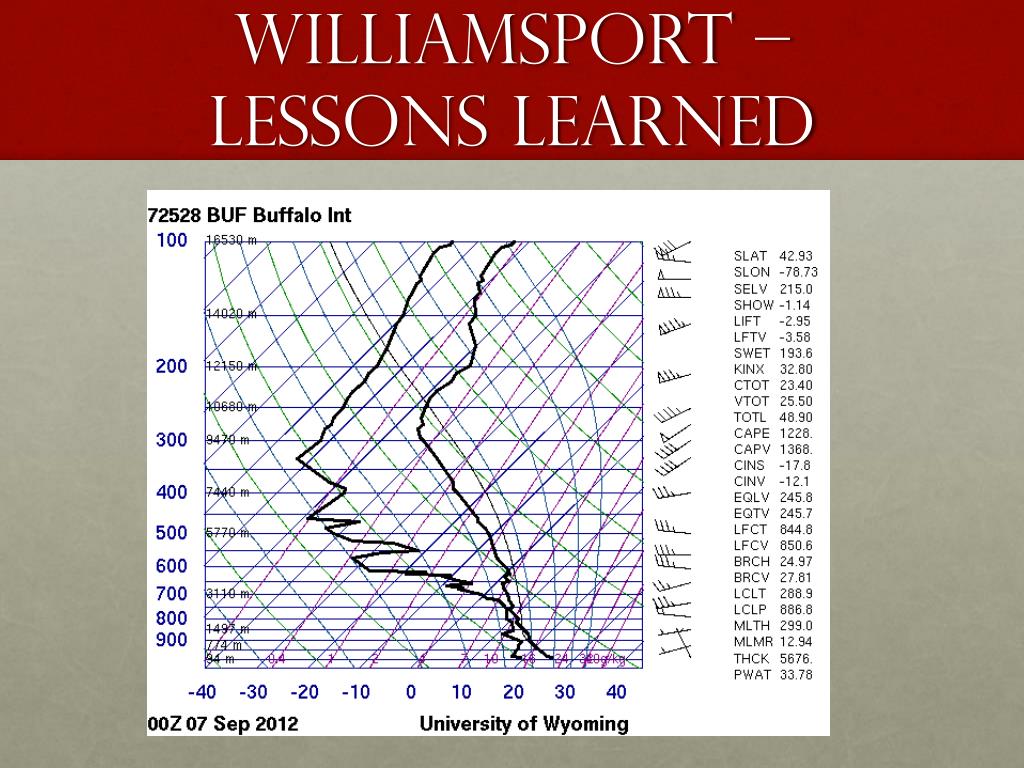

  21. williamsport – lessons learned

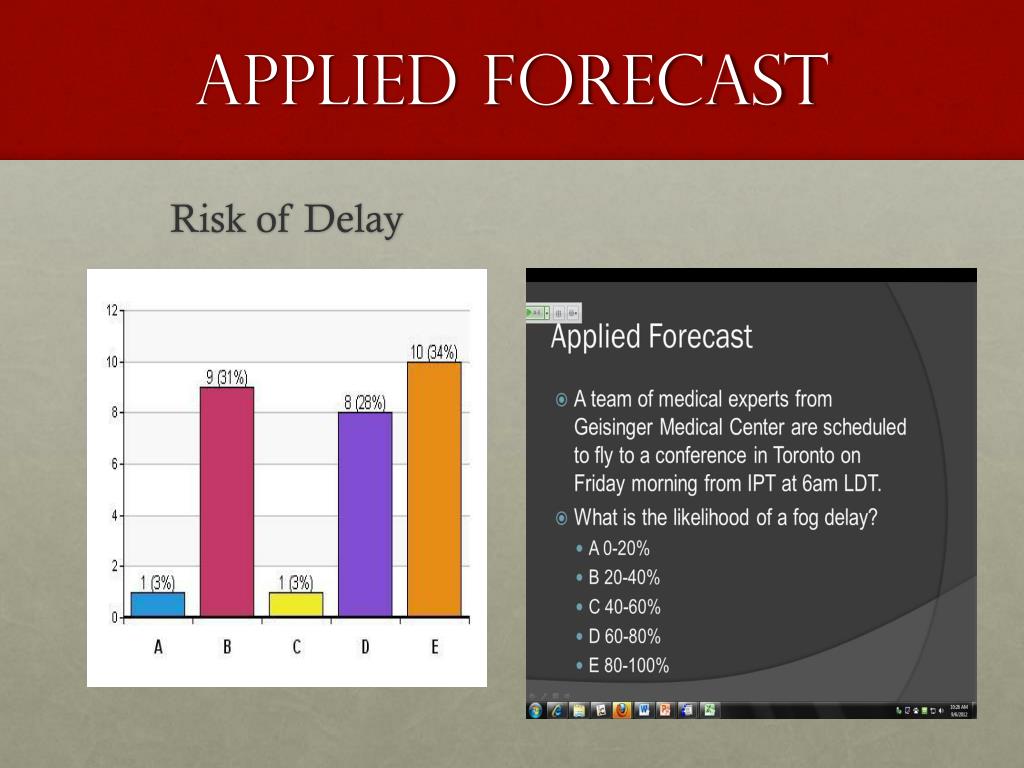

  22. Applied forecast Risk of Delay

  23. Applied forecast If delayed – for how long?

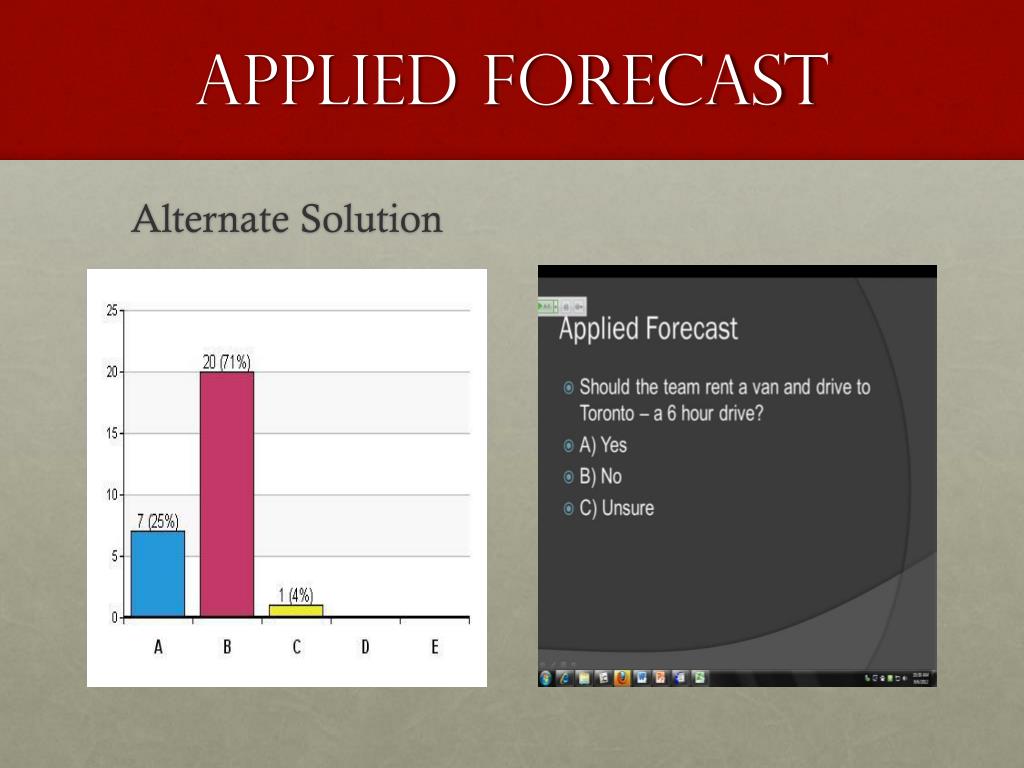

  24. Applied forecast Alternate Solution

  25. View at 9am

  26. Weekly winners

  27. Applied forecast • The Minnesota Twins are hosting the Kansas City Royals at 8:05pm LDT. The teams’ PR department is planning to give away a helium filled balloon to all attendees to be released simultaneously after the national anthem provided that the wind is not from the south-southwest at more than 10mph as this would carry the balloons into the path of helicopters spraying at Columbia Park.

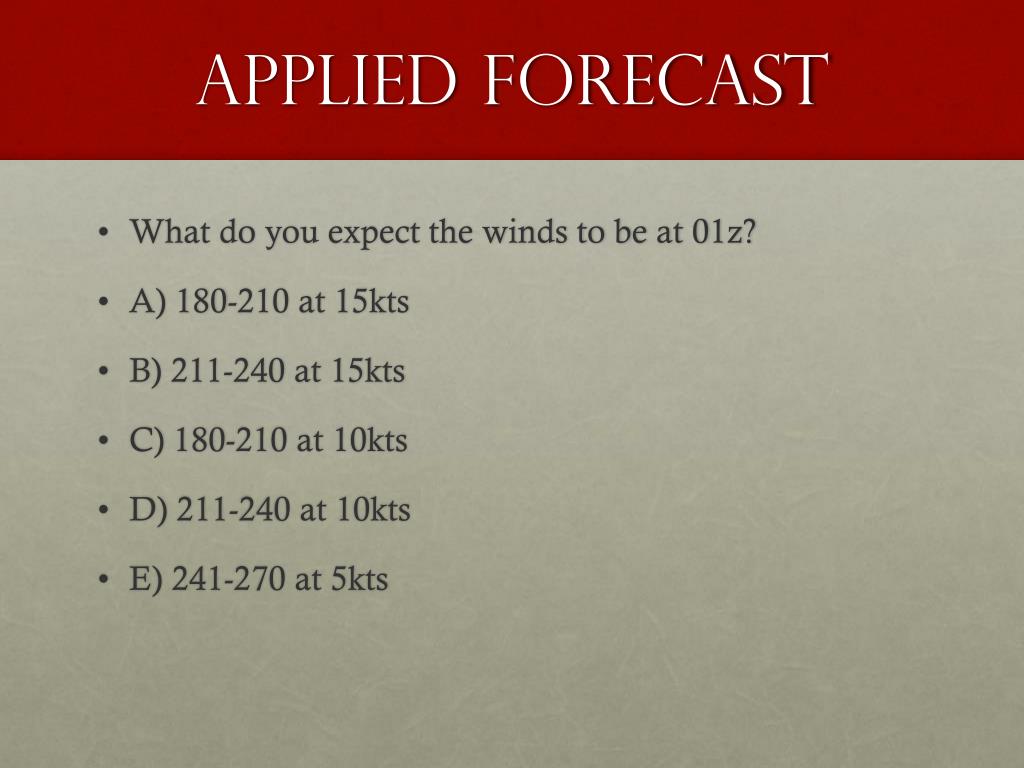

  28. Applied forecast • What do you expect the winds to be at 01z? • A) 180-210 at 15kts • B) 211-240 at 15kts • C) 180-210 at 10kts • D) 211-240 at 10kts • E) 241-270 at 5kts
