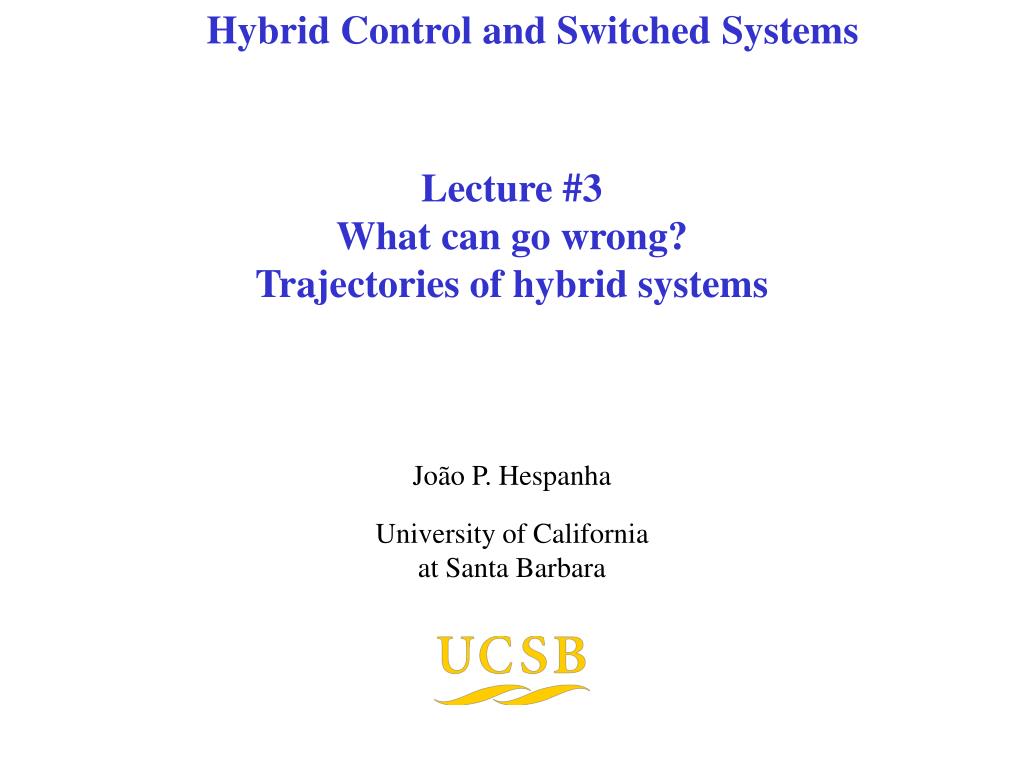

  1. Hybrid Control and Switched Systems Lecture #3What can go wrong?Trajectories of hybrid systems João P. Hespanha University of Californiaat Santa Barbara

  2. Summary • Trajectories of hybrid systems: • Solution to a hybrid system • Execution of a hybrid system • Degeneracies • Finite escape time • Chattering • Zeno trajectories • Non-continuous dependency on initial conditions

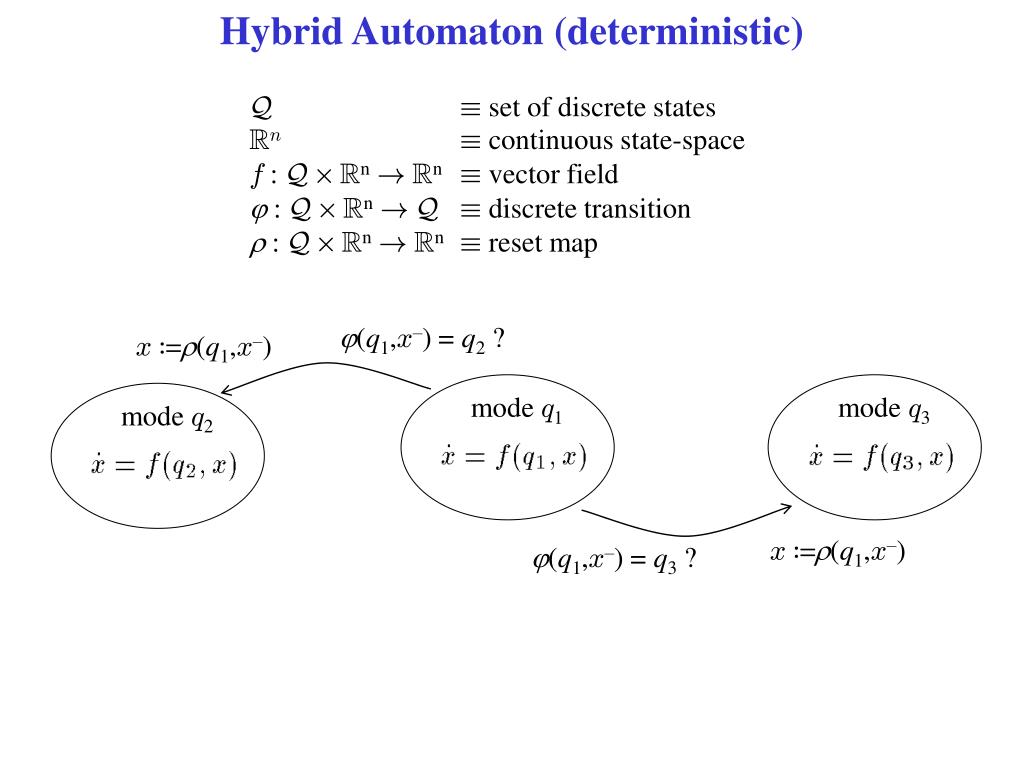

  3. Hybrid Automaton (deterministic) Q ´ set of discrete states Rn´ continuous state-space f : Q£Rn!Rn´ vector field  : Q£Rn!Q´ discrete transition r : Q£Rn!Rn´ reset map j(q1,x–) = q2 ? x›r(q1,x–) mode q1 mode q3 mode q2 x›r(q1,x–) j(q1,x–) = q3 ?

  4. Hybrid Automaton Q ´ set of discrete states Rn´ continuous state-space f : Q£Rn!Rn´ vector field F : Q£Rn!Q£Rn´ discrete transition (& reset map) F1(q1,x–) = q2 ? x› F2(q1,x–) mode q1 mode q3 mode q2 x› F2(q1,x–) F1(q1,x–) = q3 ? Compact representation of a hybrid automaton

  5. Solution to a hybrid automaton mode q1 mode q2 F1(q1,x–) = q2 ? x› F2(q1,x–) Definition: A solution to the hybrid automaton is a pair of right-continuous signals x : [0,1) !Rnq : [0,1) !Qsuch that 1. x is piecewise differentiable & q is piecewise constant 2. on any interval (t1,t2) on which q is constant and x continuous 3. continuous evolution discrete transitions

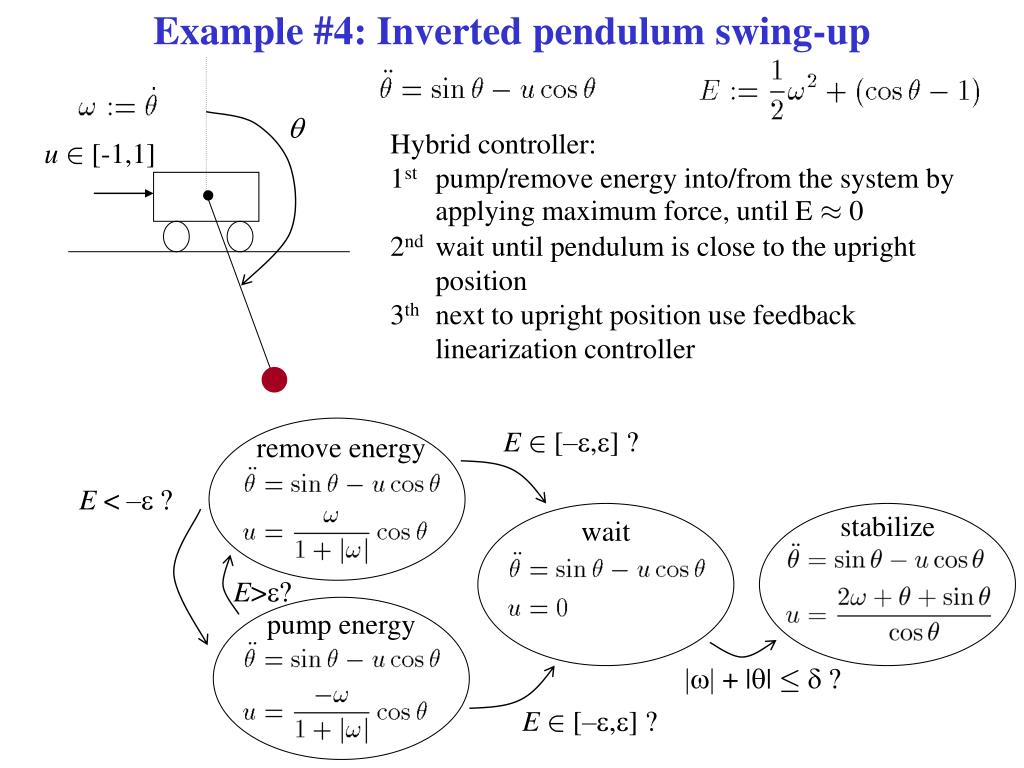

  6. Example #4: Inverted pendulum swing-up q Hybrid controller: 1st pump/remove energy into/from the system by applying maximum force, until E ¼ 0 2nd wait until pendulum is close to the upright position 3th next to upright position use feedback linearization controller u2 [-1,1] E2 [–e,e] ? remove energy E < –e ? stabilize wait E>e? pump energy |w| + |q| ·d ? E2 [–e,e] ?

  7. Example #4: Inverted pendulum swing-up stabilize wait pump energy E¸ – e ? |w| + |q| ·d ? Q = { pump, wait, stab } R2 = continuous state-space

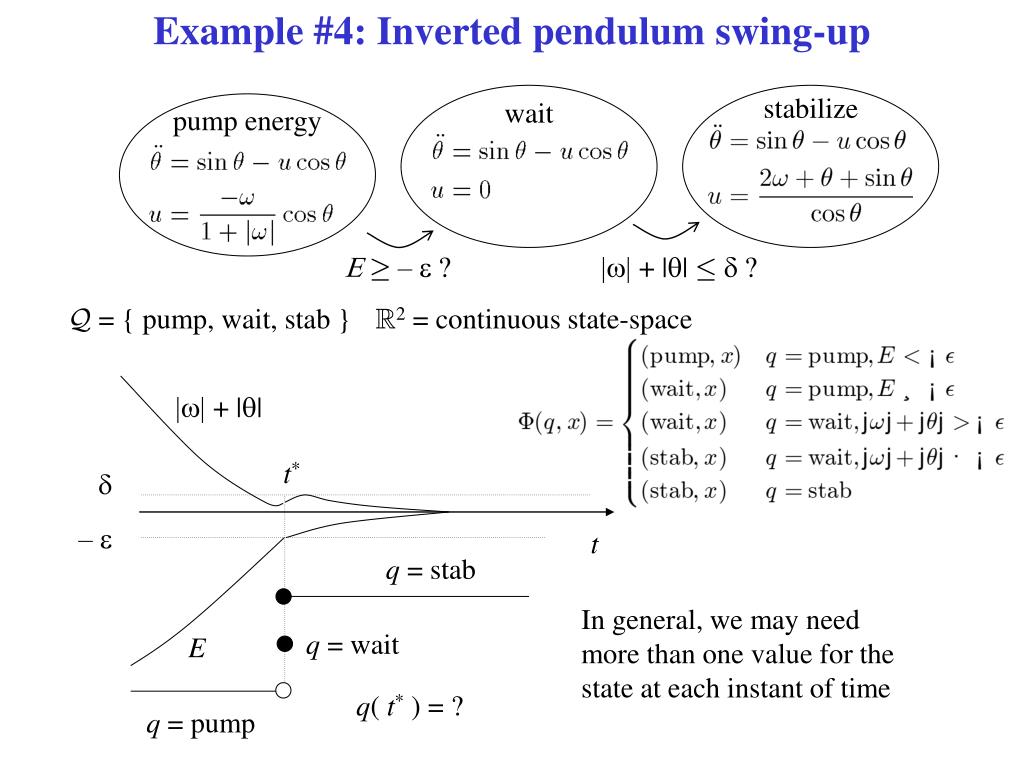

  8. Example #4: Inverted pendulum swing-up stabilize wait pump energy E¸ – e ? |w| + |q| ·d ? Q = { pump, wait, stab } R2 = continuous state-space |w| + |q| d – e t q = wait q = stab E q = pump What if we already have |w| + |q| ·d when E reaches – e?

  9. Example #4: Inverted pendulum swing-up stabilize wait pump energy E¸ – e ? |w| + |q| ·d ? Q = { pump, wait, stab } R2 = continuous state-space |w| + |q| t* d – e t q = stab In general, we may need more than one value for the state at each instant of time q = wait E q( t* ) = ? q = pump

  10. Hybrid signals Definition: A hybrid time trajectory is a (finite or infinite) sequence of closed intervals t = { [ti,t'i] : ti·t'i, t'i = ti+1 , i =1,2, … } (if t is finite the last interval may by open on the right) T´ set of hybrid time trajectories Definition: For a given t = { [ti,t'i] : ti·t'i, ti+1 = t'i, i =1,2, … } 2 T a hybrid signal defined on t with values on X is a sequence of functions x = {xi : [ti,t'i]!X i =1,2, … } x : t!X´ hybrid signal defined on t with values on X E.g., t› { [0,1], [1,1], [1,1], [1,+1) }, x› { t/2 , 1/4 , 3/4, 1/t } 3/4 1/t t/2 1/4 t A hybrid signal can take multiple values for the same time-instant [1,1] [0,1] [1,1] [1,+1)

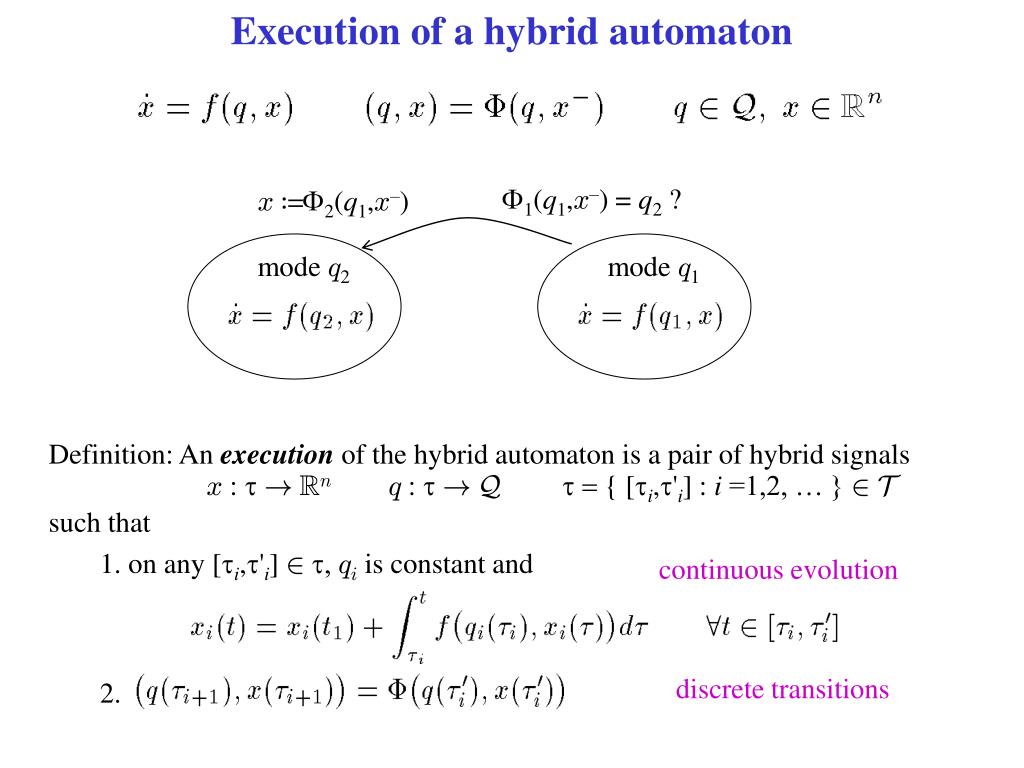

  11. Execution of a hybrid automaton mode q1 mode q2 F1(q1,x–) = q2 ? x› F2(q1,x–) Definition: An execution of the hybrid automaton is a pair of hybrid signals x : t!Rnq : t!Q t = { [ti,t'i] : i =1,2, … } 2 Tsuch that 1. on any [ti,t'i] 2t, qi is constant and 2. continuous evolution discrete transitions

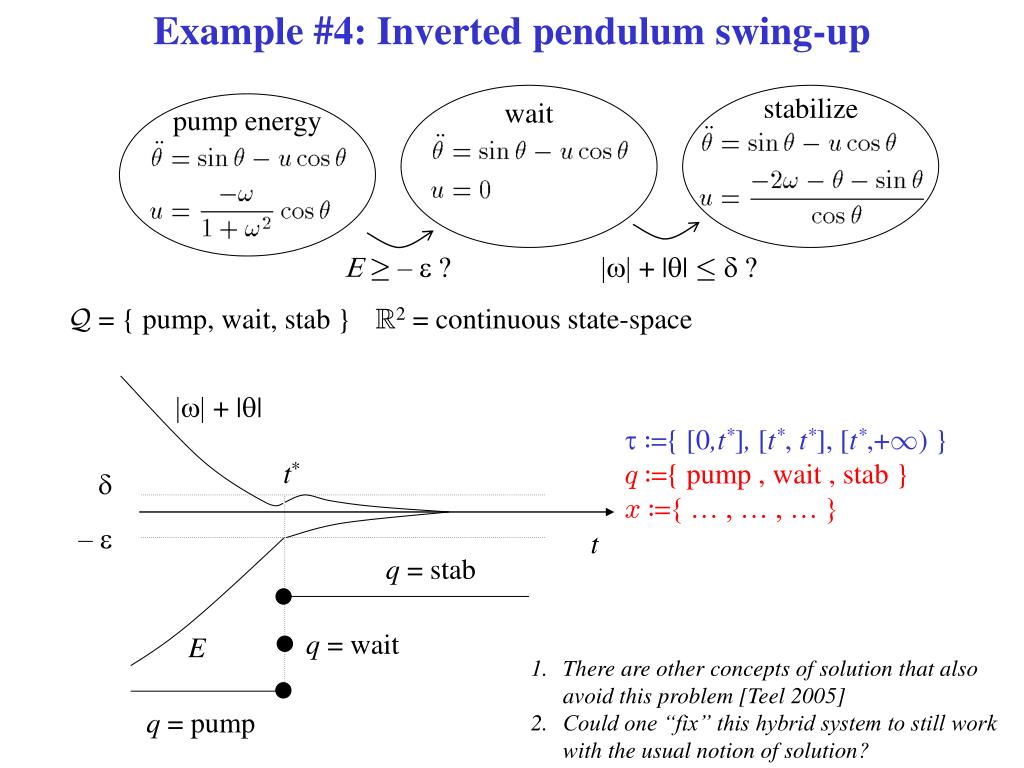

  12. Example #4: Inverted pendulum swing-up stabilize wait pump energy E¸ – e ? |w| + |q| ·d ? Q = { pump, wait, stab } R2 = continuous state-space |w| + |q| t› { [0,t*], [t*, t*], [t*,+1) } q› { pump , wait , stab } x› { … , … , … } t* d – e t q = stab q = wait E • There are other concepts of solution that also avoid this problem [Teel 2005] • Could one “fix” this hybrid system to still work with the usual notion of solution? q = pump

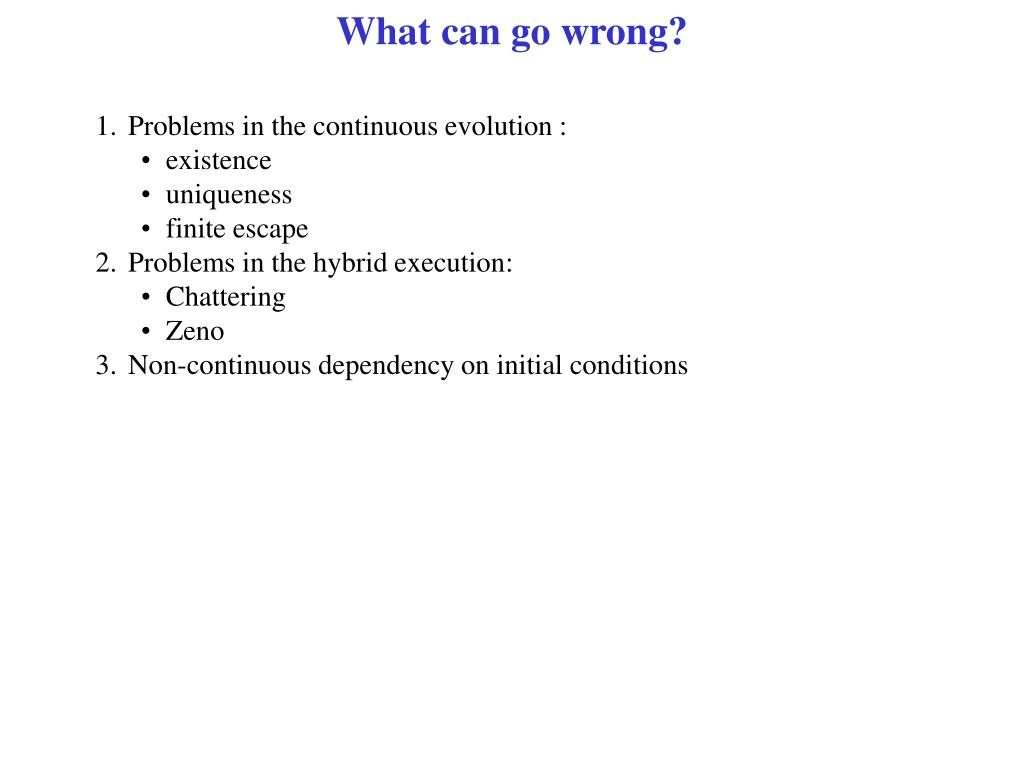

  13. What can go wrong? • Problems in the continuous evolution: • existence • uniqueness • finite escape • Problems in the hybrid execution: • Chattering • Zeno • Non-continuous dependency on initial conditions

  14. Existence f(x) discontinuous x There is no solution to this differential equation that starts with x(0) = 0 Why? one any interval [0,e) x cannot: remain zero, become positive, or become negative. (x = 0 would make some sense) Theorem [Existence of solution] If f : Rn!Rn is continuous, then 8x0 2 Rn there exists at least one solution with x(0) = x0, defined on some interval [0,e)

  15. Uniqueness f(x) 1 derivative at 0 There are multiple solutions that start at x(0) = 0, e.g., x x t t Definitions: A function f : Rn!Rn is Lipschitz continuous if in any bounded subset of S of Rn there exists a constant c such that (f is differentiable almost everywhere and the derivative is bounded on any bounded set) Theorem [Uniqueness of solution] If f : Rn!Rn is Lipschitz continuous, then 8x0 2 Rn there a single solution with x(0) = x0, defined on some interval [0,e)

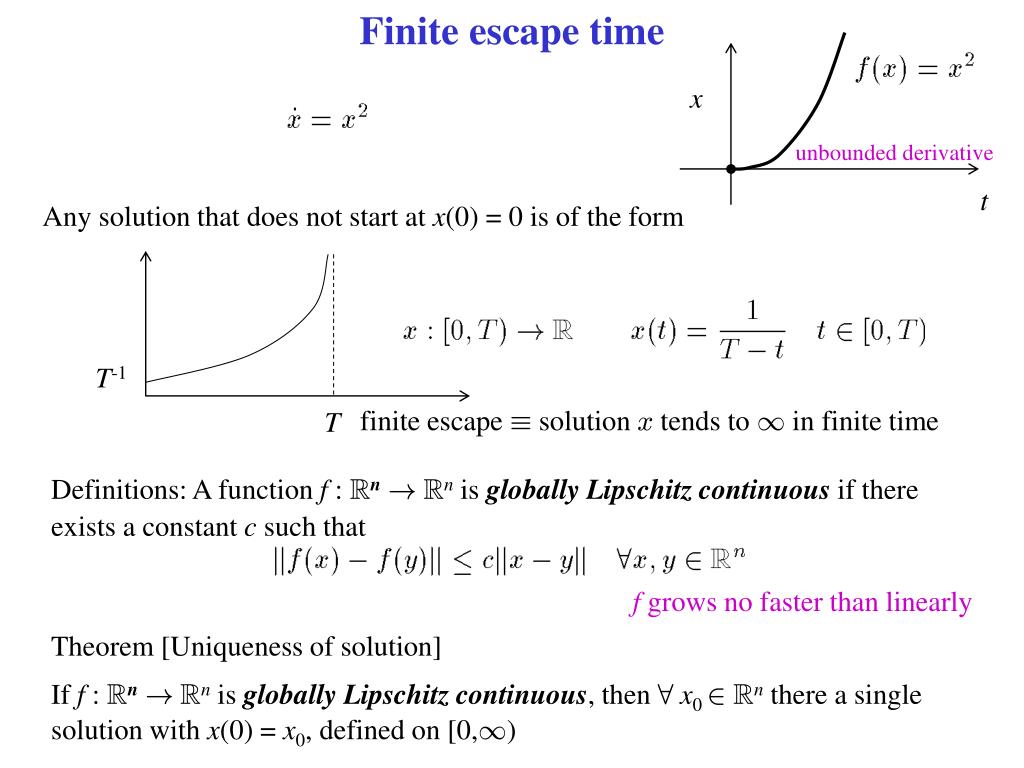

  16. Finite escape time x unbounded derivative t Any solution that does not start at x(0) = 0 is of the form T-1 T finite escape ´ solution x tends to 1 in finite time Definitions: A function f : Rn!Rn is globally Lipschitz continuous if there exists a constant c such that f grows no faster than linearly Theorem [Uniqueness of solution] If f : Rn!Rn is globally Lipschitz continuous, then 8x0 2 Rn there a single solution with x(0) = x0, defined on [0,1)

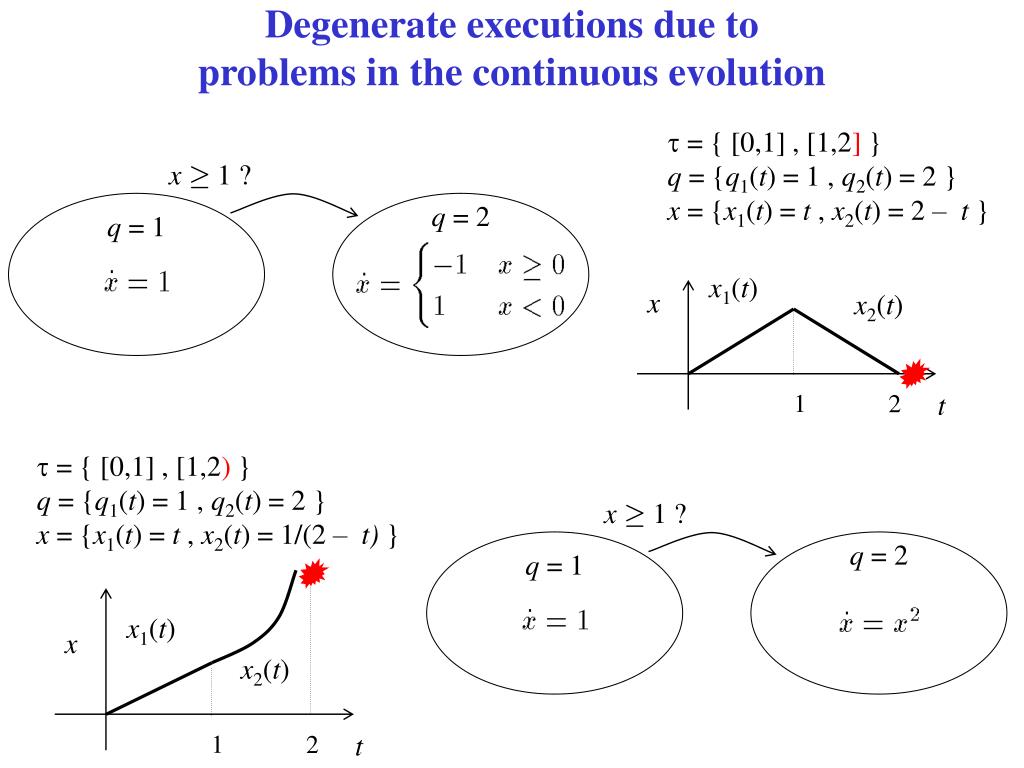

  17. Degenerate executions due to problems in the continuous evolution t = { [0,1] , [1,2] } q = {q1(t) = 1 , q2(t) = 2 } x = {x1(t) = t , x2(t) = 2 – t } x¸ 1 ? q = 2 q = 1 x1(t) x x2(t) 1 t 2 t = { [0,1] , [1,2) } q = {q1(t) = 1 , q2(t) = 2 } x = {x1(t) = t , x2(t) = 1/(2 – t) } x¸ 1 ? q = 2 q = 1 x1(t) x x2(t) 1 t 2

  18. Chattering q = 2 q = 1 There is no solution past x = 0 x(t) t 1 x¸ 0 ? but there is an execution x < 0 ? t = { [0,1] , [1], [1], [1], … } q = {q1(t) = 2 , q2(t) = 1, q1(t) = 2, …} x = {x1(t) = 1 – t , x2(t) = 0, x2(t) = 0, …} q2k+1 (t)k¸ 1 q1 (t) q2k(t)k¸ 1 x1 (t) Chattering execution ´t is infinite but after some time, all intervals are singletons xk(t)k¸ 2 t 1

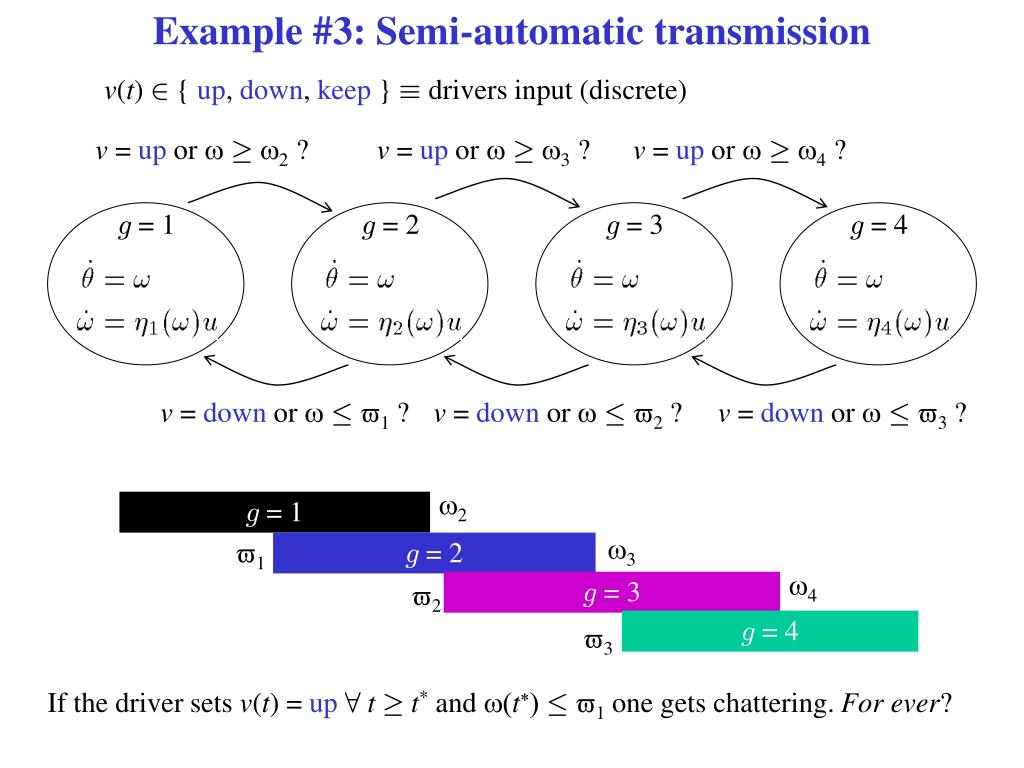

  19. Example #3: Semi-automatic transmission g = 1 g = 2 g = 3 g = 4 v(t) 2 { up, down, keep } ´ drivers input (discrete) v = up or w¸w2 ? v = up or w¸w3 ? v = up or w¸w4 ? v = down or w·1 ? v = down or w·2 ? v = down or w·3 ? w2 g = 1 w3 1 g = 2 w4 2 g = 3 g = 4 3 If the driver sets v(t) = up8t¸t* and w(t*)·1 one gets chattering. For ever?

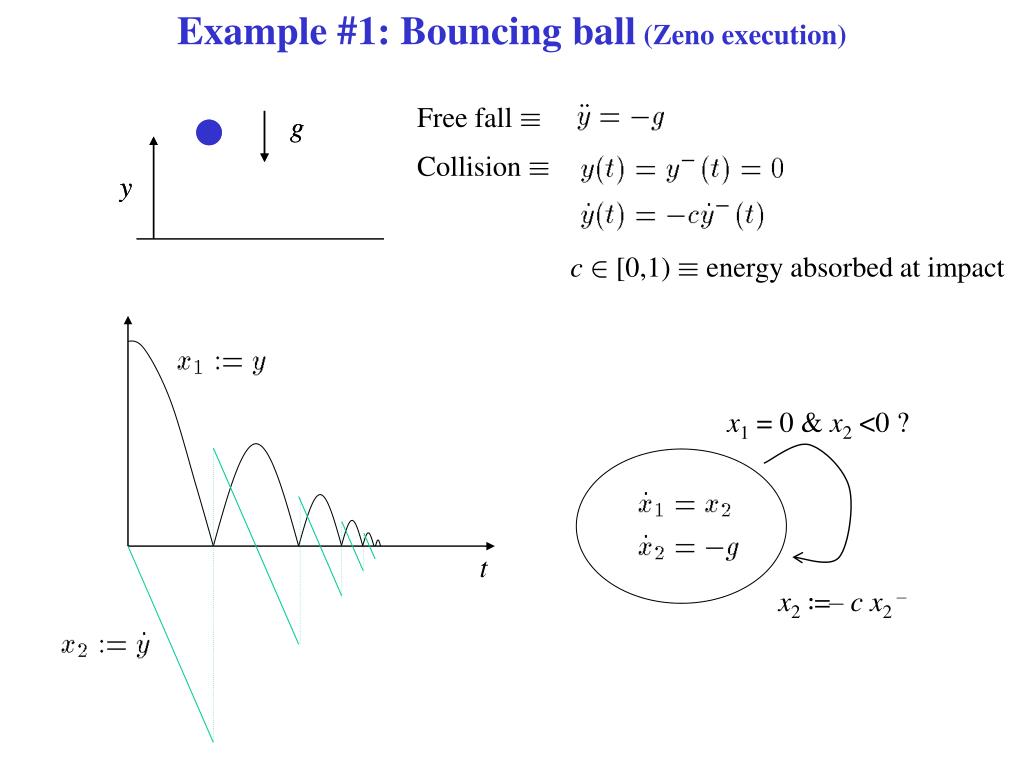

  20. Example #1: Bouncing ball (Zeno execution) Free fall ´ g g Collision ´ y y c2 [0,1) ´ energy absorbed at impact x1 = 0 & x2 <0 ? t x2› – c x2 –

  21. Zeno solution x1 = 0 & x2 <0 ? t1 t2 t3 t x2› – c x2 –

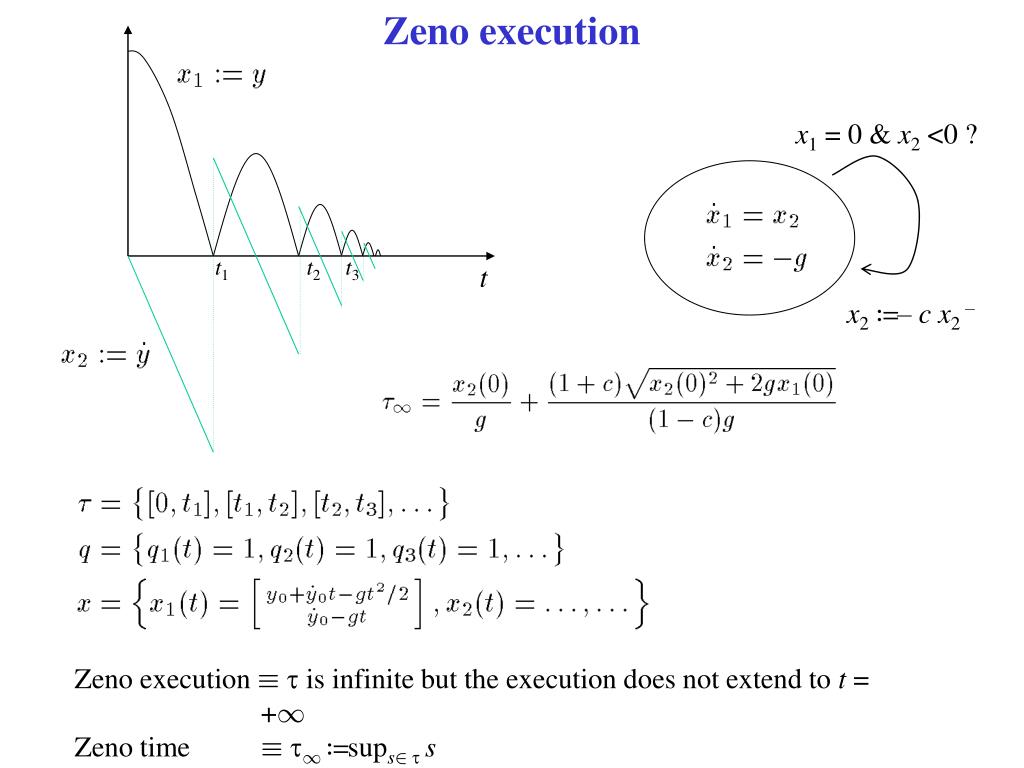

  22. Zeno execution x1 = 0 & x2 <0 ? t1 t2 t3 t x2› – c x2 – Zeno execution ´t is infinite but the execution does not extend to t = +1 Zeno time´ t1 › sups2t s

  23. Example #9: Water tank system (regularization) inflow ´l goal ´ prevent both tanks from becoming emptying x2 · h2 ? q = 2 q = 1 x1 h2 h1 x2 outflow ´m1 outflow ´m2 x1 · h1 ? x2 x1 h1 = h2 q = 1 q = 2 q = 1

  24. Temporal regularizationExample #9: Water tank system inflow ´l x2 · h2 ? q = 2 x1 h2 h1 x2 x1 · h1 ? outflow ´m1 outflow ´m2 x2 · h2, t > e ? t › 0 q = 2 q = 1 only jump after a minimum time has elapsed t › 0 x1 · h1, t > e ?

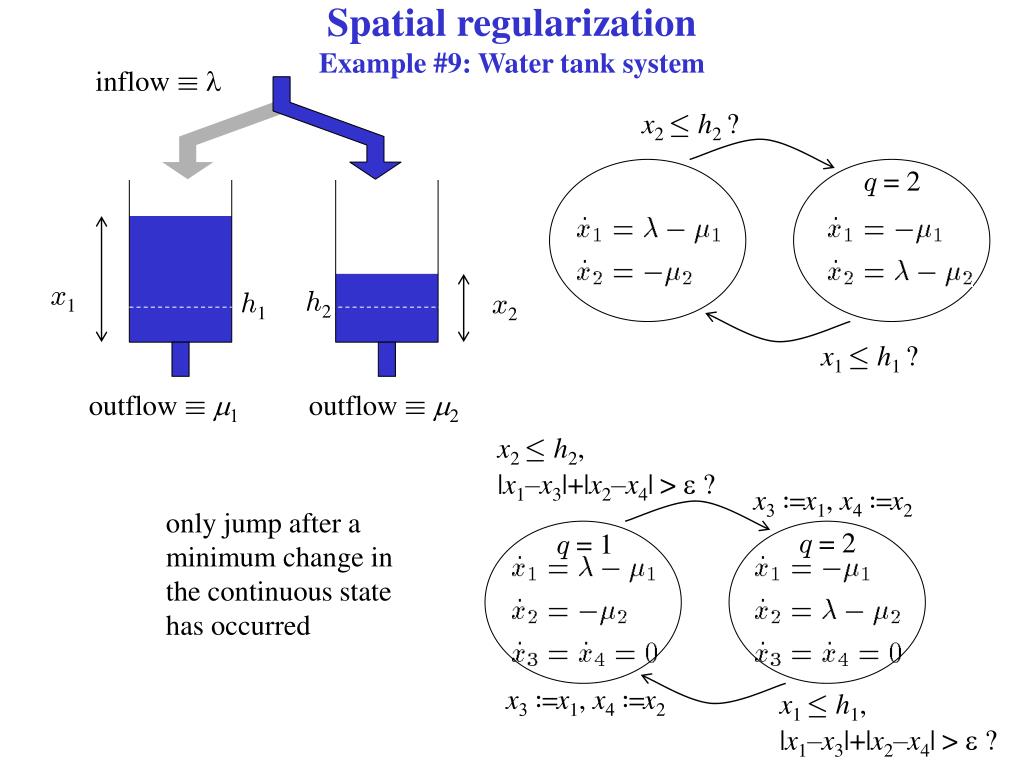

  25. Spatial regularizationExample #9: Water tank system inflow ´l x2 · h2 ? q = 2 x1 h2 h1 x2 x1 · h1 ? outflow ´m1 outflow ´m2 x2 · h2, |x1–x3|+|x2–x4|> e ? x3›x1, x4›x2 only jump after a minimum change in the continuous state has occurred q = 2 q = 1 x3›x1, x4›x2 x1 · h1, |x1–x3|+|x2–x4|> e ?

  26. Continuity with respect to initial conditions Theorem [Uniqueness & continuity of solution] If f : Rn!Rn is Lipschitz continuous, then 8x0 2 Rn there a single solution with x(0) = x0, defined on some interval [0,e) Moreover, given any T < 1, and two solutions x1, x2 that exist on [0,T]: 8e > 0 9d > 0 : ||x1(0) – x2(0)|| ·d) ||x1(t) – x2(t)|| ·e8t2 [0,T] value of the solution on the interval [0,T] is continuous with respect to the initial conditions

  27. Discontinuity with respect to initial conditions x1 ¸ 0 & x2 > 0 ? x1 ¸ 0 & x2 · 0 ? mode q1 mode q2 mode q3 1 x2 x2 e x1 e – 1 x1 no matter how close to zero x2(0) = e > 0 is, x2(2) = e – 1 if x2(0) = 0 then x2(2) = 1 problem arises from discontinuity of the transition function

  28. Next class… • Numerical simulation of hybrid automata • simulations of ODEs • zero-crossing detection • Simulators • Simulink • Stateflow • SHIFT • Modelica • Follow-up homework • Find conditions for the existence of solution to a hybrid system
