Presentation Transcript

  1. Hard Water & Soft Water

  2. First Things First What is Water Hardness?

  3. Hard water Groundwater dissolves rocks and minerals releasing calcium, magnesium, and other ions that cause water to be hard. These dissolved ions give hard water its characteristics.

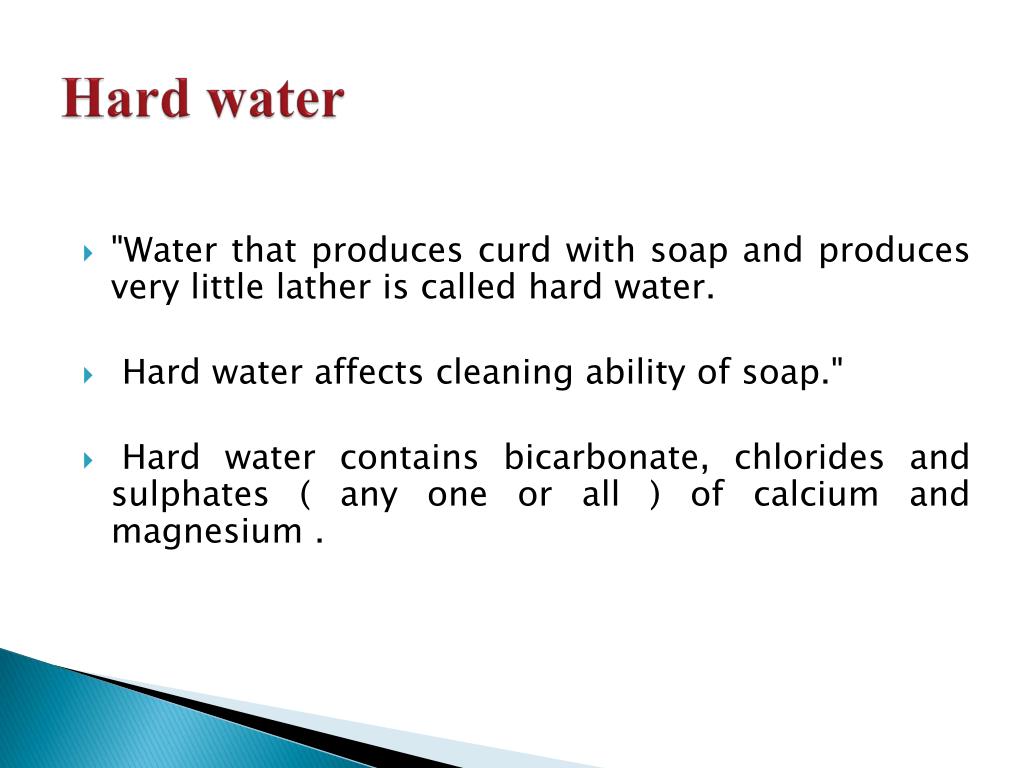

  4. Hard water • "Water that produces curd with soap and produces very little lather is called hard water. • Hard water affects cleaning ability of soap." • Hard water contains bicarbonate, chlorides and sulphates ( any one or all ) of calcium and magnesium .

  5. Soft water • "Water that produces lather with soap easily is called soft water. • Soft water does not affect cleaning action of soap"

  6. Types of hard water?

  7. Temporary hard water • Permanent hard water

  8. TEMPORARY HARD WATER • Water that contains bicarbonate of calcium and magnesium or of both is called temporary hard water." • These bicarbonate are soluble in water and produce corresponding ions. Mg(HCO3)2 è Mg+2 +2HCO3-1 Ca(HCO3)2 è Ca+2 + 2HCO3-1

  9. PERMANENT HARD WATER • Water that contains chlorides or sulphates of calcium or magnesium or of both is called Permanent water. CaCl2è Ca+2 + 2Cl-1 MgSO4 è Mg+2 + SO4-2 • These compounds are soluble in water and produce corresponding ions.

  10. How to remove hardness of water?

  11. There are two methods to remove hardness of water • CLARK'S METHOD. • ION-EXCHANGE METHOD.

  12. CLARK'S METHOD • In Clark’s method a calculated amount of calcium hydroxide Ca (OH)2 is added to hard water. Due to reaction, insoluble carbonates are obtained which are separated by filtration. Ca(HCO3)2 + Ca(OH)2 è 2CaCO3 + 2H2O Mg(HCO3)2 + Ca(OH)2 è CaCO3 + MgCO3 + 2H2O

  13. ION-EXCHANGE METHOD • In this method sodium zeolite is used as ion-exchanger. Na-zeolite is passed through the pipes containing hard water. Sodium zeolite is converted into calcium-zeolite or magnesium-zeolite. These are insoluble in water and are separated from water by filtration. Ca+2 + Na2-zeolite è Ca-zeolite + 2Na+1 Mg+2 +Na2-zeolite è Mg-zeolite + 2Na+1


  15. Disadvantages of hard water

  16. It costs you MONEY !!

  17. General • Hardness minerals precipitate out of the water and form energy robbing scale.

  18. Domestic • Hard water affect cleaning ability of soap. • When hard water is used for washing, large amount of soap is consumed.

  19. Industrial • Hard water can cause "Scaling" inside the pipes that transport water . Therefore if we use hard water in turbines and heat exchangers, their pipes will be corroded

  20. Health • Hard water when used for drinking for long period can lead to stomach disorders. Especially hard water contains magnesium sulphate can weaken the stomach permanently.

  21. Advantages of Hard Water

  22. Some people prefer the taste. • Calcium ions in the water are good for children's teeth and bones. • It helps to reduce heart disease. • Some brewers prefer using hard water for making beer. • A coating of limescale inside copper pipes, or especially old lead pipes, stops poisonous salts dissolving into water.

  23. summary • Hard water contains calcium ions, Ca2+(aq), or magnesium ions, Mg2+(aq).These ions react with soap, making it difficult to form a lather and producing scum.Hard water can be softened by adding calcium hydroxide which makes insoluble carbonates which are separated by filtration .Alternatively, the hard water can be passed through an ion-exchange resin in a column. Sodium ions replace the calcium ions in the water as it passes through the column.

  24. Resources • • • • • • Text books by sindh text book board
