  1. The Access GridWhat Is it and What Can it do? Alexander Terzian and Zachary WrightUniversity of MichiganMichigan Center for Biological InformationVirtual Soldier Project

  2. What is the Access Grid? • From the Access Grid website: • The Access Grid™ is an ensemble of resources including multimedia large-format displays, presentation and interactive environments, and interfaces to Grid middleware and to visualization environments. These resources are used to support group-to-group interactions across the Grid. For example, the Access Grid (AG) is used for large-scale distributed meetings, collaborative work sessions, seminars, lectures, tutorials, and training. The Access Grid thus differs from desktop-to-desktop tools that focus on individual communication. The promise: The Access Grid is next-generation collaborative technology. The reality so far: The Access Grid is high-end videoconferencing How does the Access Grid differ from traditional videoconferencing? • Multiple video/audio streams and unlimited number of participants (in theory) • Open source software • Centralized and (mostly) public meeting “locations” • Uses multicast-enabled networks

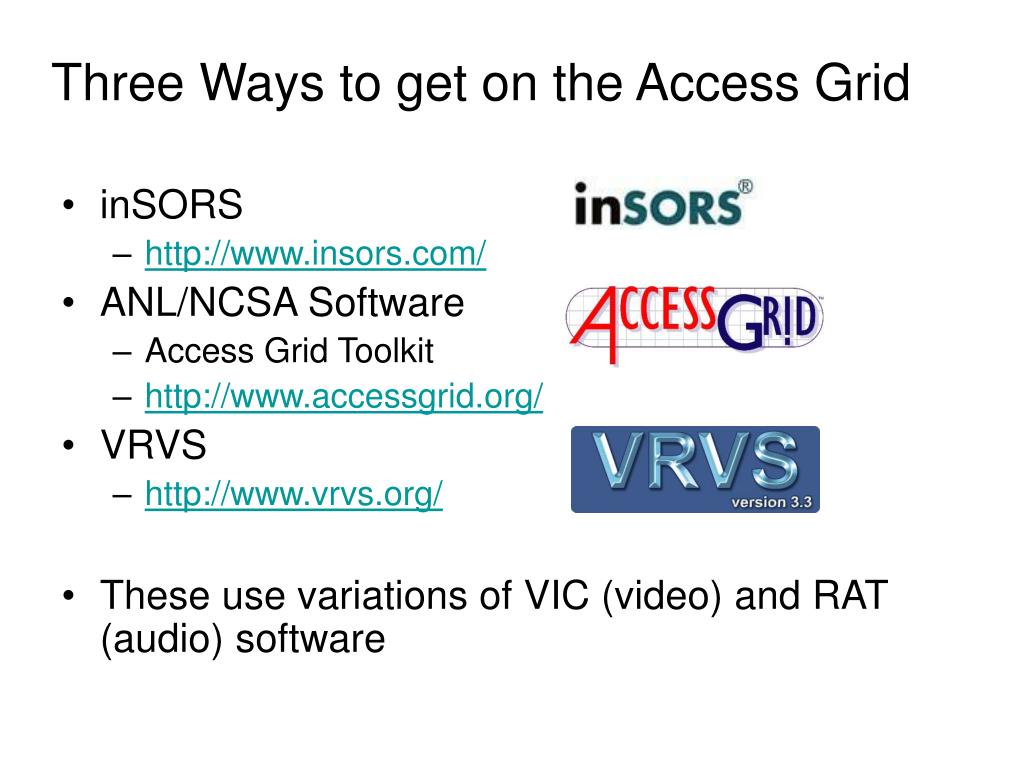

  3. Three Ways to get on the Access Grid • inSORS • http://www.insors.com/ • ANL/NCSA Software • Access Grid Toolkit • http://www.accessgrid.org/ • VRVS • http://www.vrvs.org/ • These use variations of VIC (video) and RAT (audio) software

  4. VRVS • “VRVS is a web oriented system for videoconferencing and collaborative work over IP networks. The Virtual Room Videoconferencing System (http://www.vrvs.org) provides a low cost, bandwidth-efficient, extensible means of videoconferencing and remote collaboration”

  5. AccessGrid.org • AG Software • Virtual Rooms • Community Support “The AG technology was developed by the Futures Laboratory at Argonne National Laboratory and is deployed by the NCSA PACI Alliance”

  6. inSors Grid (IG) • Commercial all-in-one solution • “One Box” • Easy to use • Installation • Desktop Version • Tech Support

  7. What is needed to get on the Access Grid?

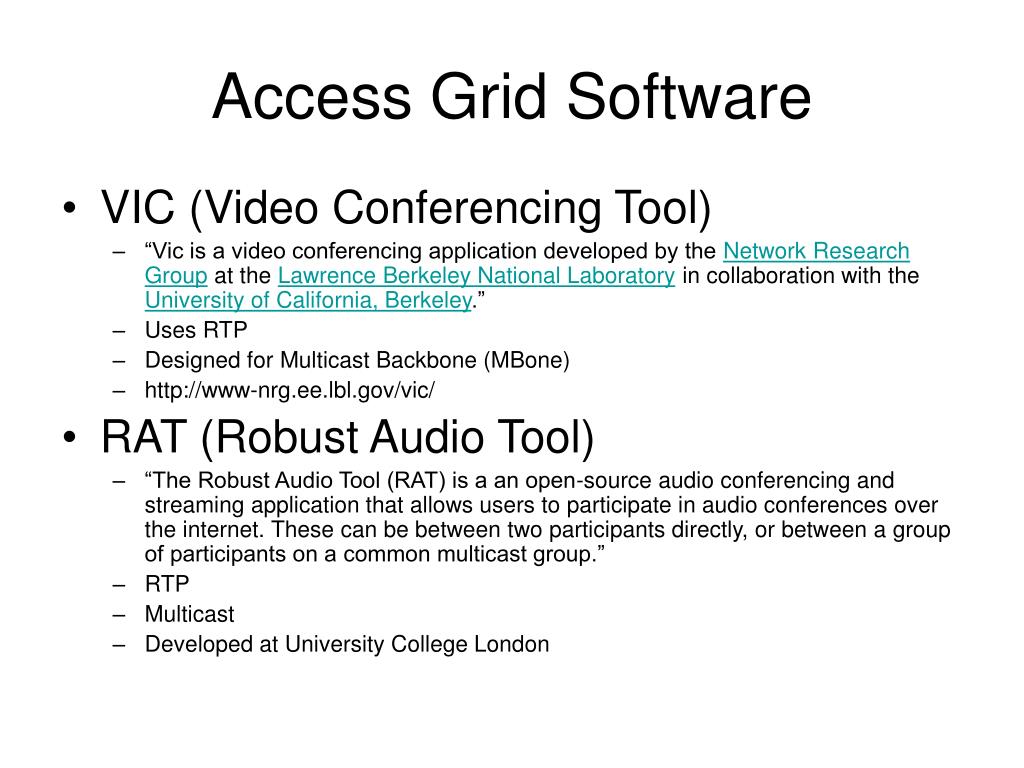

  8. Access Grid Software • VIC (Video Conferencing Tool) • “Vic is a video conferencing application developed by the Network Research Group at the Lawrence Berkeley National Laboratory in collaboration with the University of California, Berkeley.” • Uses RTP • Designed for Multicast Backbone (MBone) • http://www-nrg.ee.lbl.gov/vic/ • RAT (Robust Audio Tool) • “The Robust Audio Tool (RAT) is a an open-source audio conferencing and streaming application that allows users to participate in audio conferences over the internet. These can be between two participants directly, or between a group of participants on a common multicast group.” • RTP • Multicast • Developed at University College London

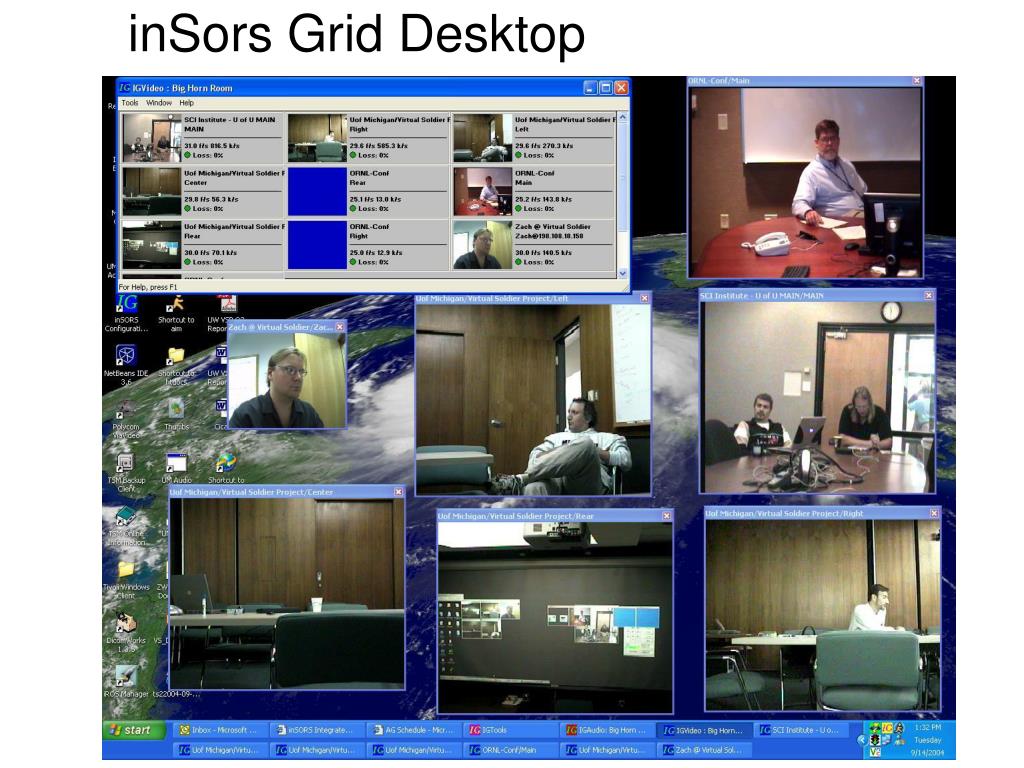

  9. inSors Grid Desktop

  10. Unicast vs.Multicast (M-bone)

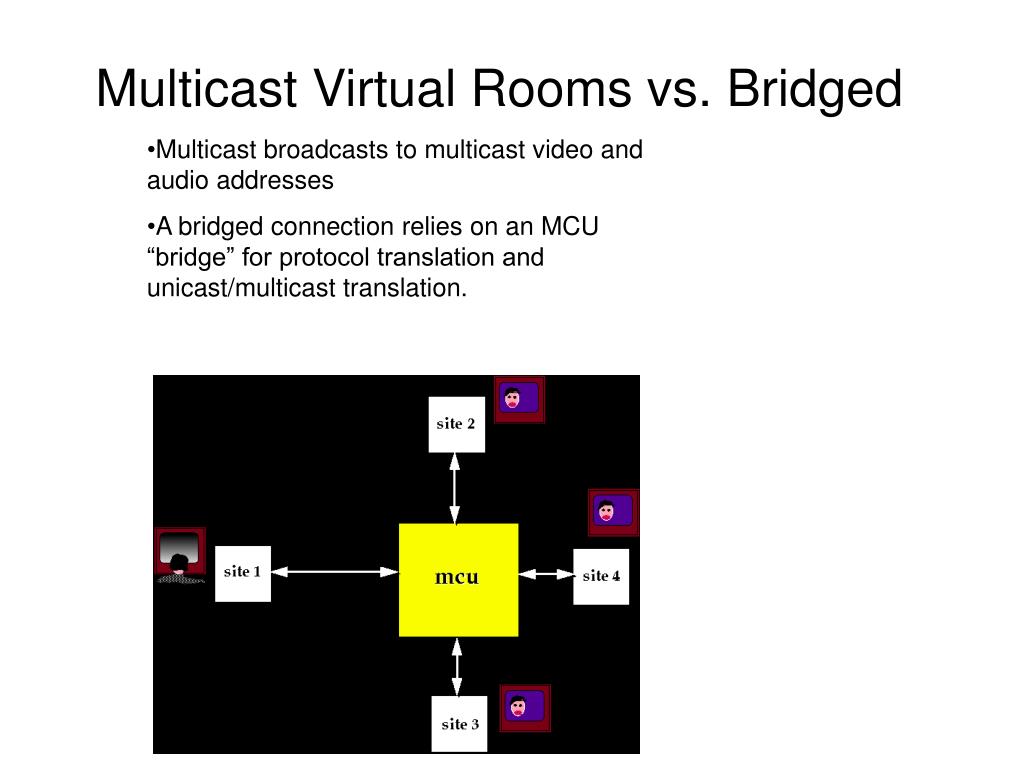

  11. Multicast Virtual Rooms vs. Bridged • Multicast broadcasts to multicast video and audio addresses • A bridged connection relies on an MCU “bridge” for protocol translation and unicast/multicast translation.

  12. Our System • Dell Precision 450 Xeon dual-processor 2.66 GHz, 512MB RAM, Windows XP Professional • Xentera 4-output video card w/3 NEC Vt 660 Projectors • Gentner AP 400 echo-cancellation device • 4 Canon VC-C4 Cameras • 4 audio-technica table microphones • 2 projection screens • 4 ceiling-mounted speakers • Wireless keyboard and gyroscopic mouse • 4 track-mounted spotlights • inSORS Grid software • inSORS Grid Recorder server

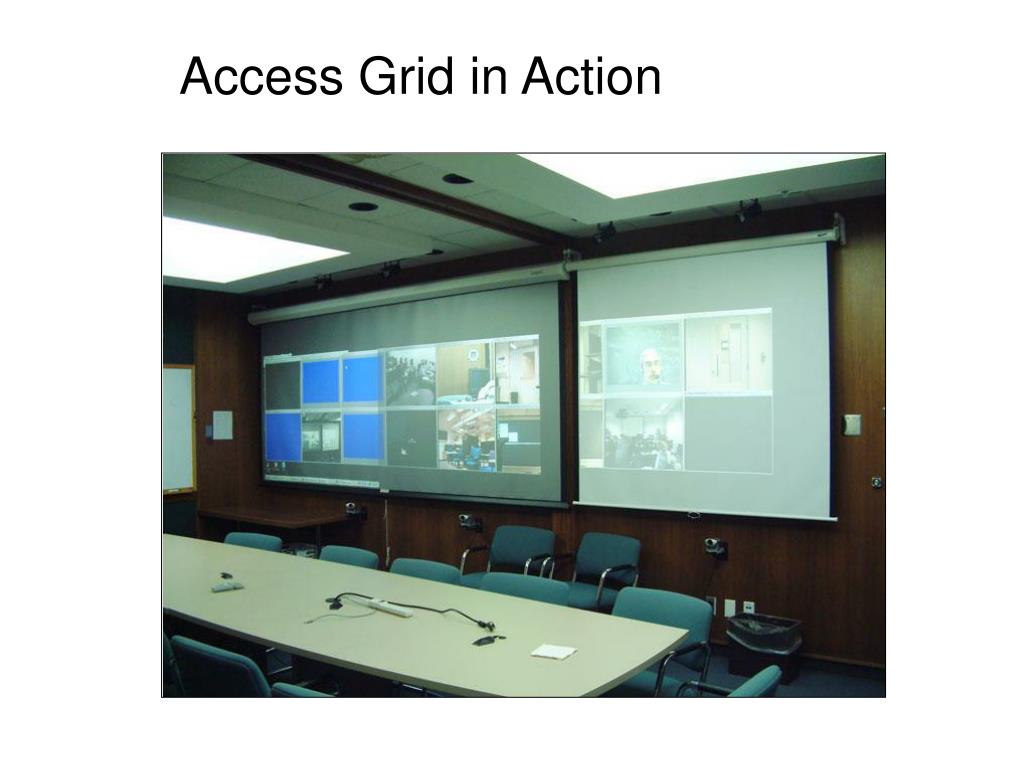

  13. Access Grid in Action

  14. inSors Interface

  15. Multiple Video Streams

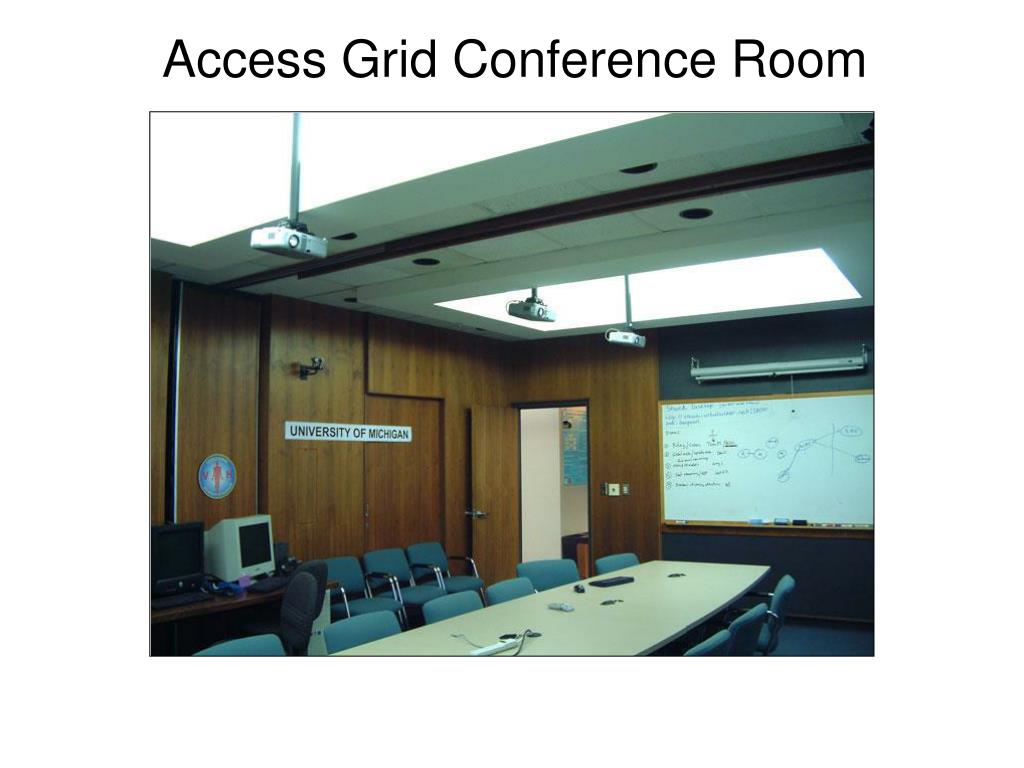

  16. Access Grid Conference Room

  17. inSors IG Cube

  18. What we’ve found • There is no substitute for: • Good phone line and speakerphone • Preferably connected to AG • Shared-desktop system (e.g. VNC) • Teleconference bridges • Many users, especially traveling users, do not have access to a computer

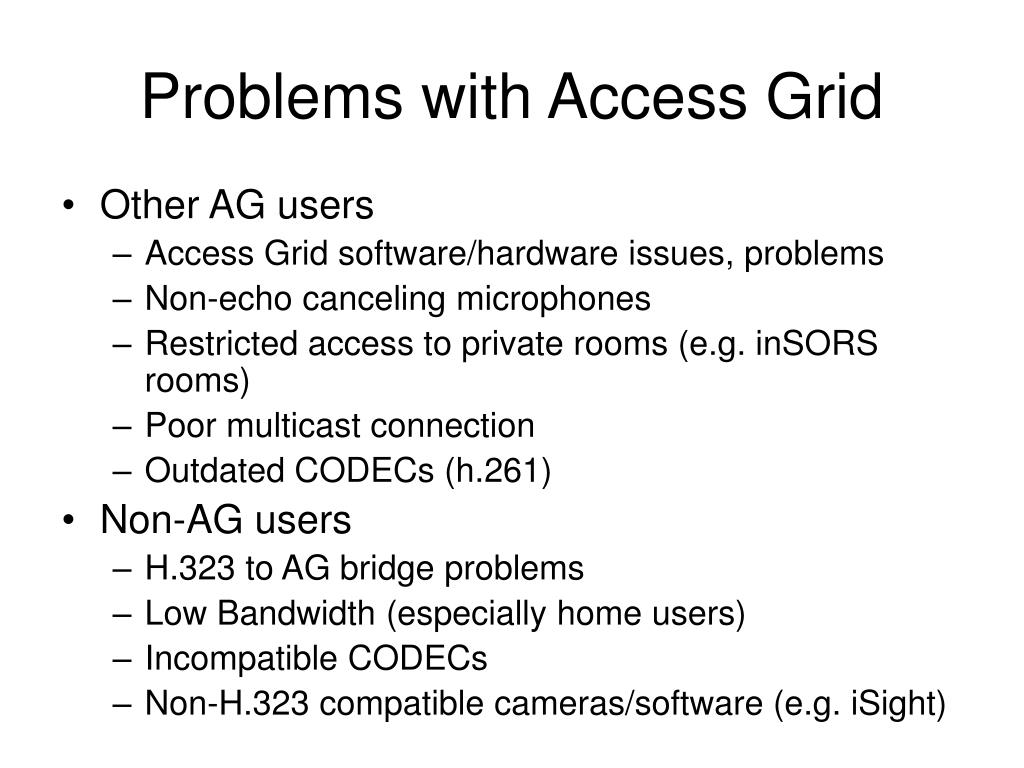

  19. Problems with Access Grid • Other AG users • Access Grid software/hardware issues, problems • Non-echo canceling microphones • Restricted access to private rooms (e.g. inSORS rooms) • Poor multicast connection • Outdated CODECs (h.261) • Non-AG users • H.323 to AG bridge problems • Low Bandwidth (especially home users) • Incompatible CODECs • Non-H.323 compatible cameras/software (e.g. iSight)

  20. Keys to Future Success • Improved CODECs • More multicast-enabled networks • Less expensive echo-canceling microphones and hardware • Low-cost packages • Better documentation and support • More users on the Access Grid!

  21. Complex Multisite Visual Collaboration Art on the Grid

  22. Distance Learning on the Grid
