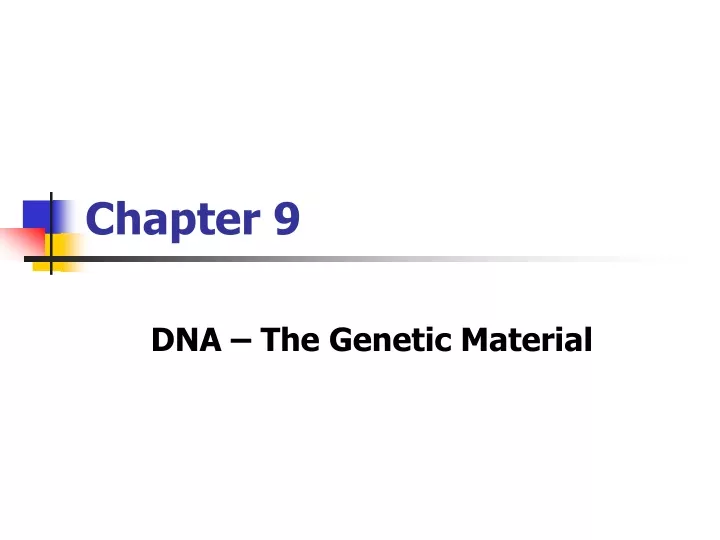

  1. Chapter 9 DNA – The Genetic Material

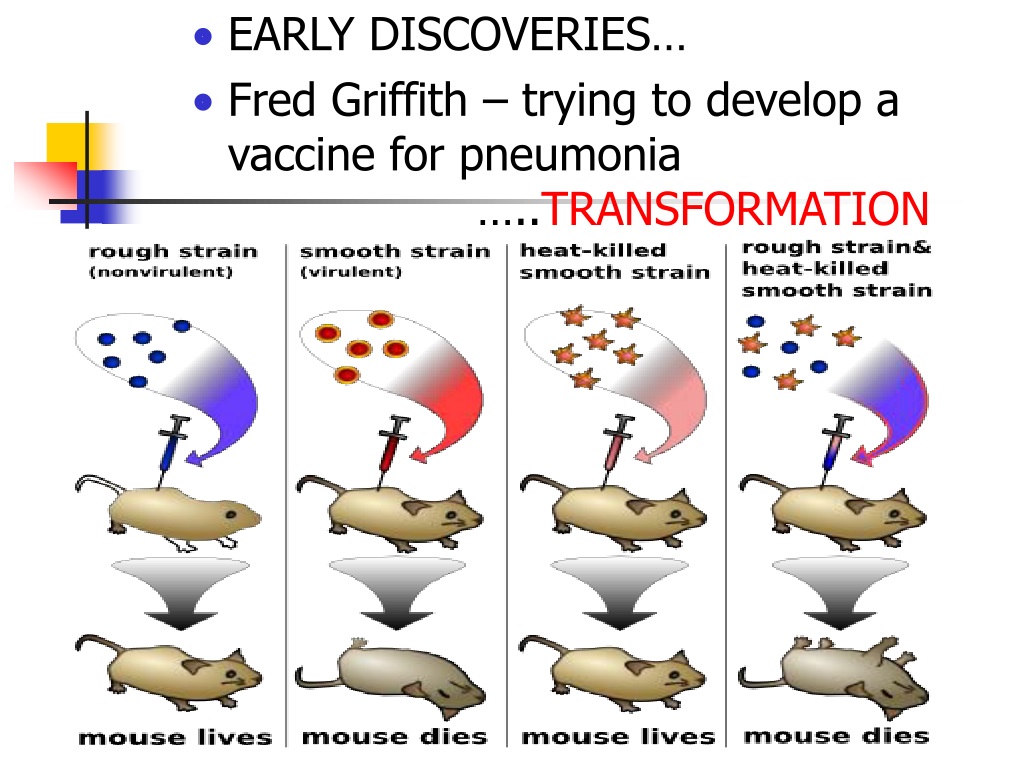

  2. EARLY DISCOVERIES… • Fred Griffith – trying to develop a vaccine for pneumonia …..TRANSFORMATION

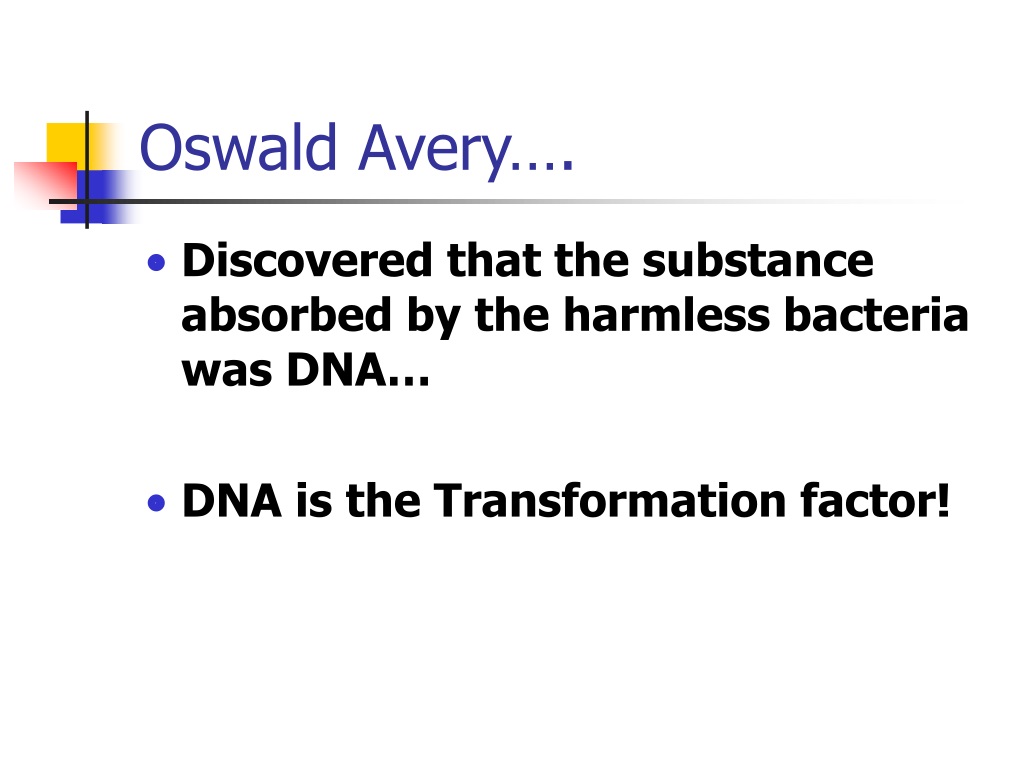

  3. Oswald Avery…. • Discovered that the substance absorbed by the harmless bacteria was DNA… • DNA is the Transformation factor!

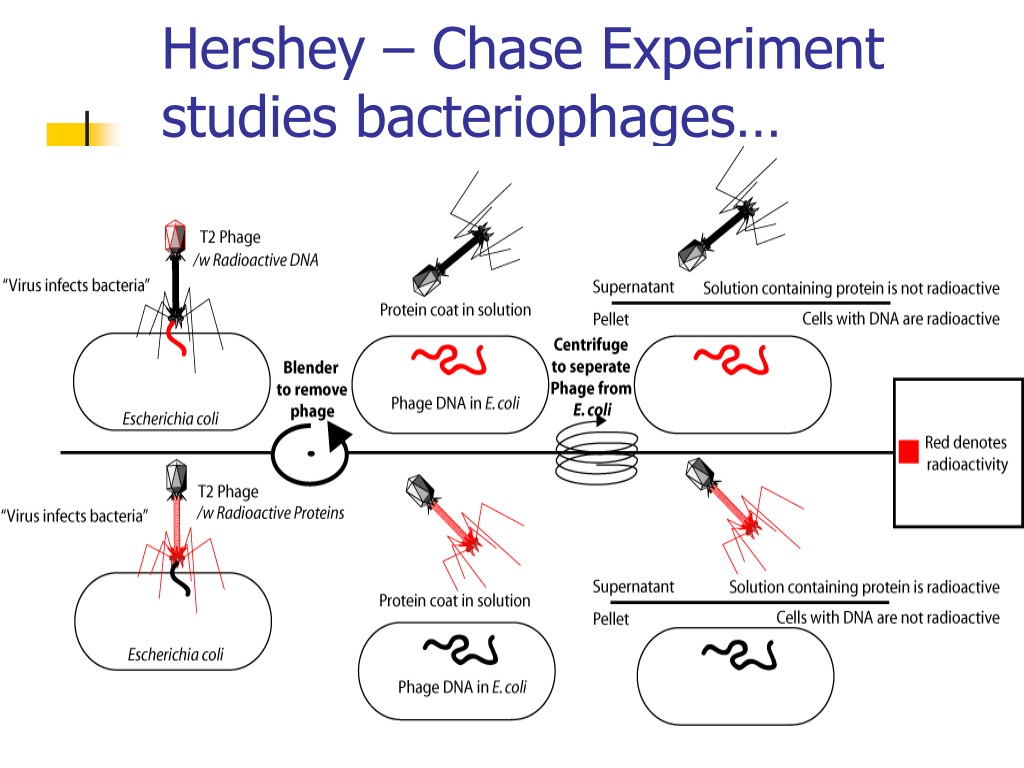

  4. Hershey – Chase Experimentstudies bacteriophages…

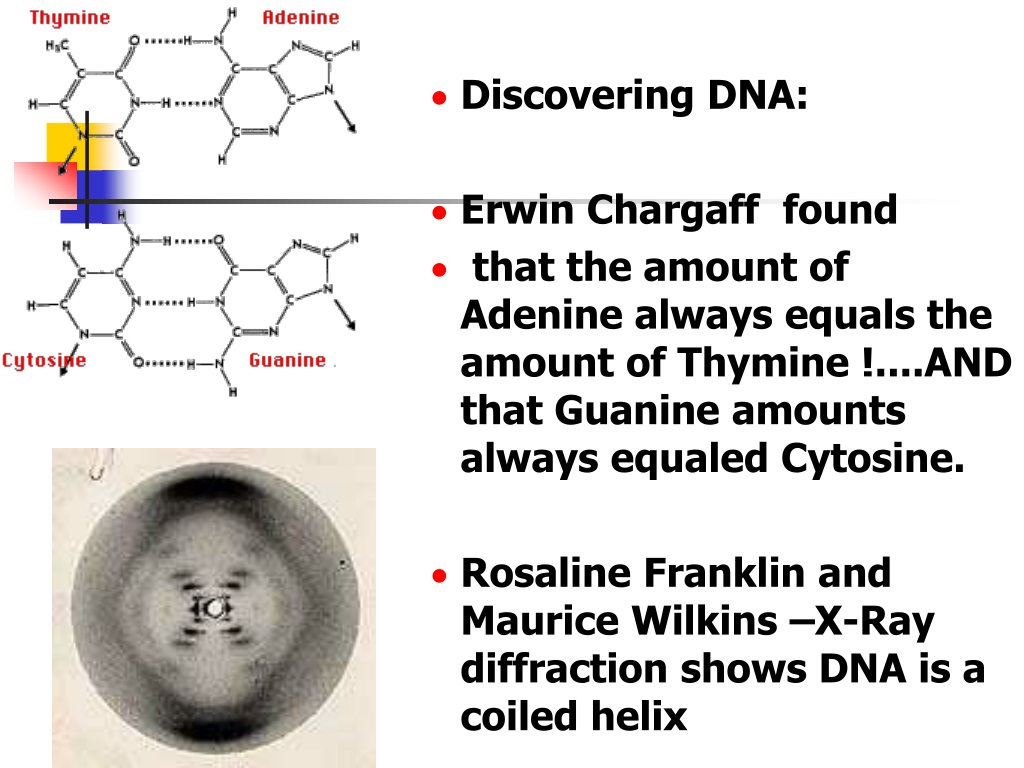

  5. Discovering DNA: • Erwin Chargaff found • that the amount of Adenine always equals the amount of Thymine !....AND that Guanine amounts always equaled Cytosine. • Rosaline Franklin and Maurice Wilkins –X-Ray diffraction shows DNA is a coiled helix

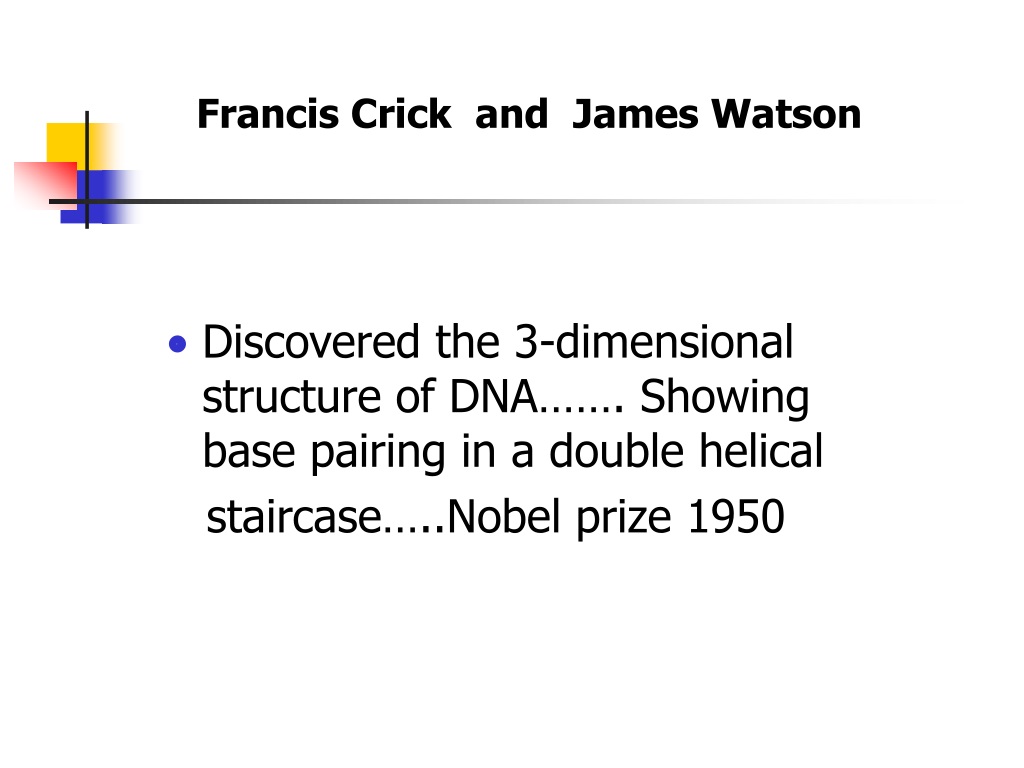

  6. Francis Crick and James Watson • Discovered the 3-dimensional structure of DNA……. Showing base pairing in a double helical staircase…..Nobel prize 1950

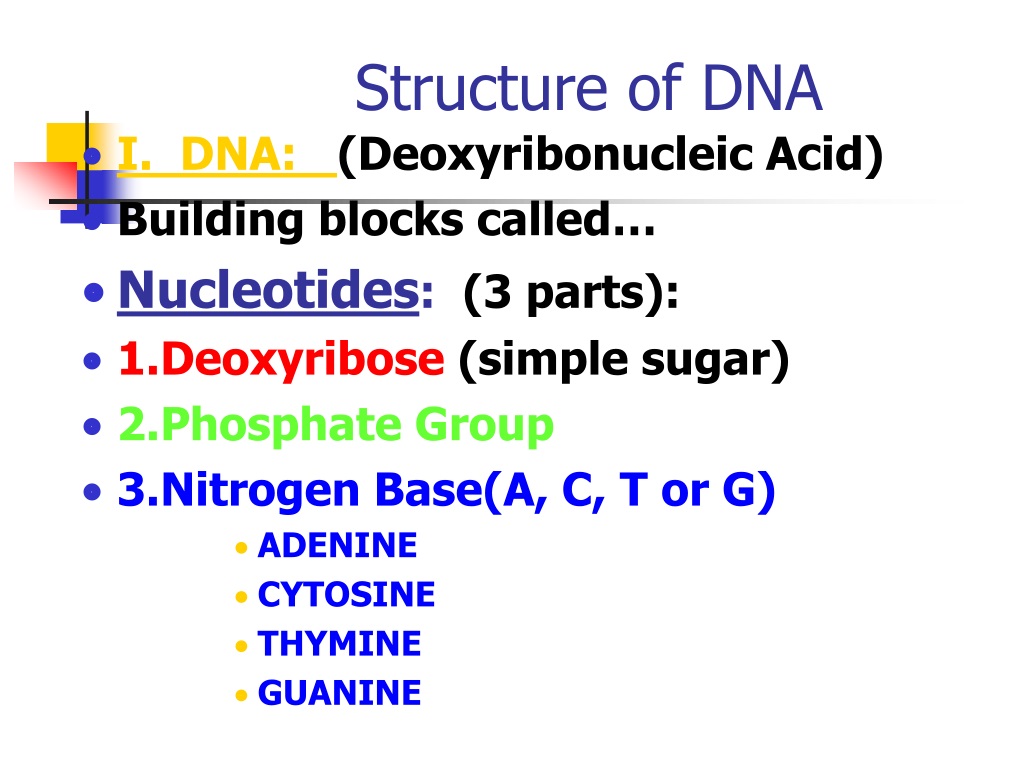

  7. Structure of DNA • I. DNA: (Deoxyribonucleic Acid) • Building blocks called… • Nucleotides: (3 parts): • 1.Deoxyribose (simple sugar) • 2.Phosphate Group • 3.Nitrogen Base(A, C, T or G) • ADENINE • CYTOSINE • THYMINE • GUANINE

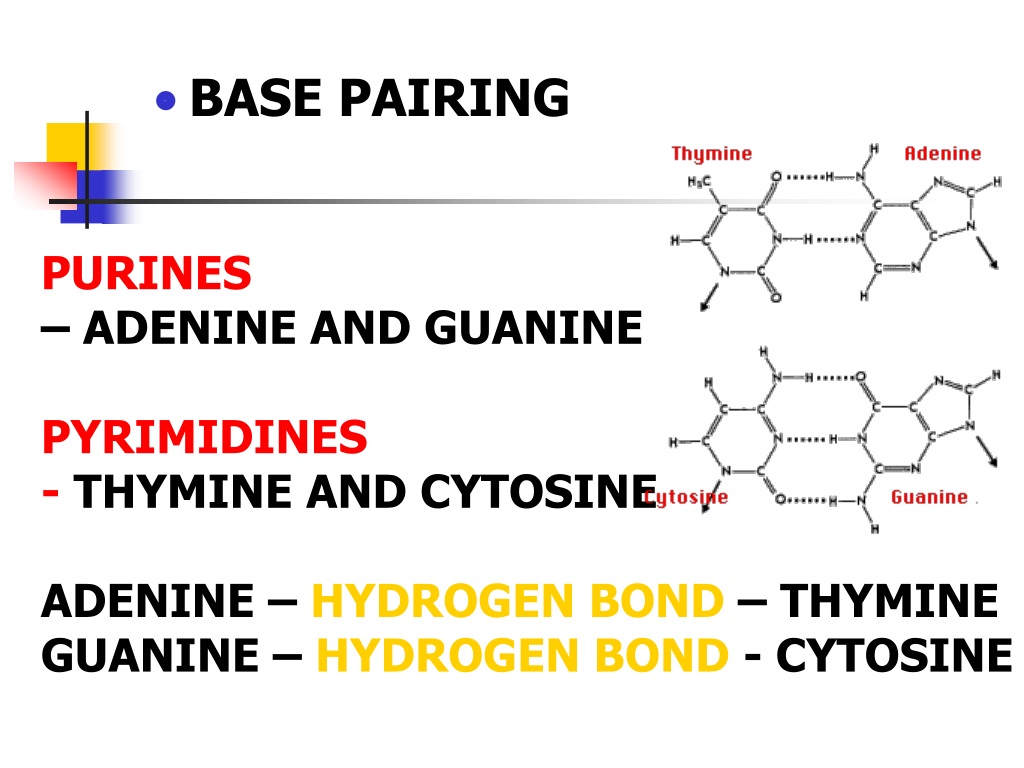

  8. BASE PAIRING PURINES – ADENINE AND GUANINE PYRIMIDINES - THYMINE AND CYTOSINE ADENINE – HYDROGEN BOND – THYMINE GUANINE – HYDROGEN BOND - CYTOSINE

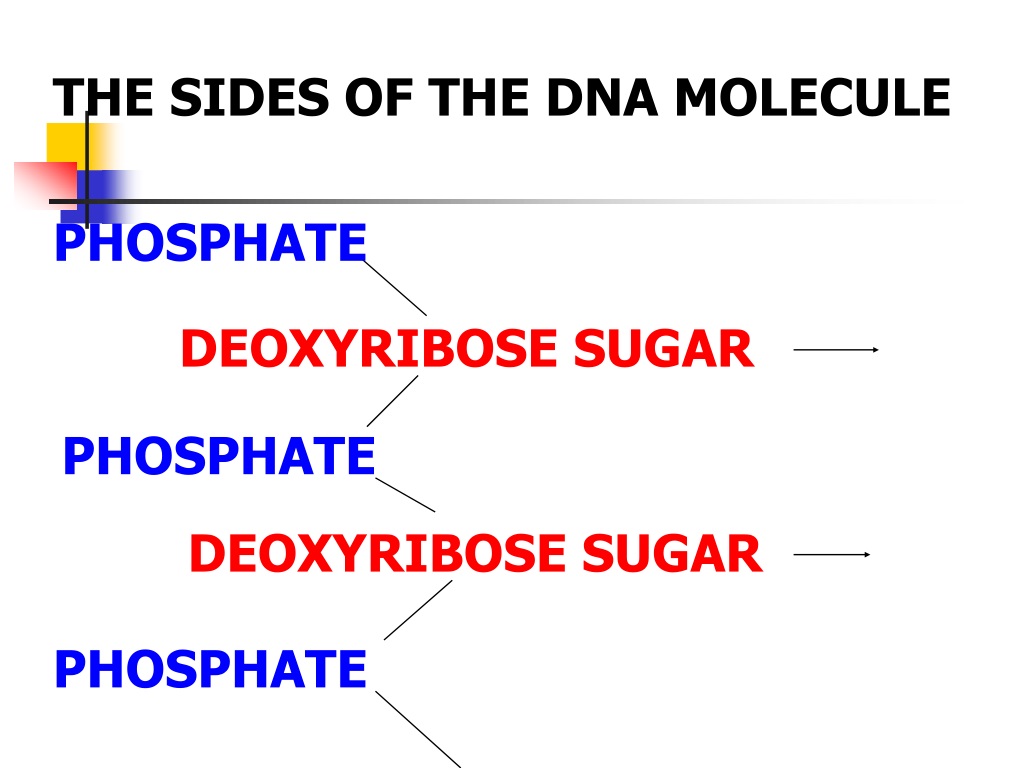

  9. THE SIDES OF THE DNA MOLECULE PHOSPHATE DEOXYRIBOSE SUGAR PHOSPHATE DEOXYRIBOSE SUGAR PHOSPHATE

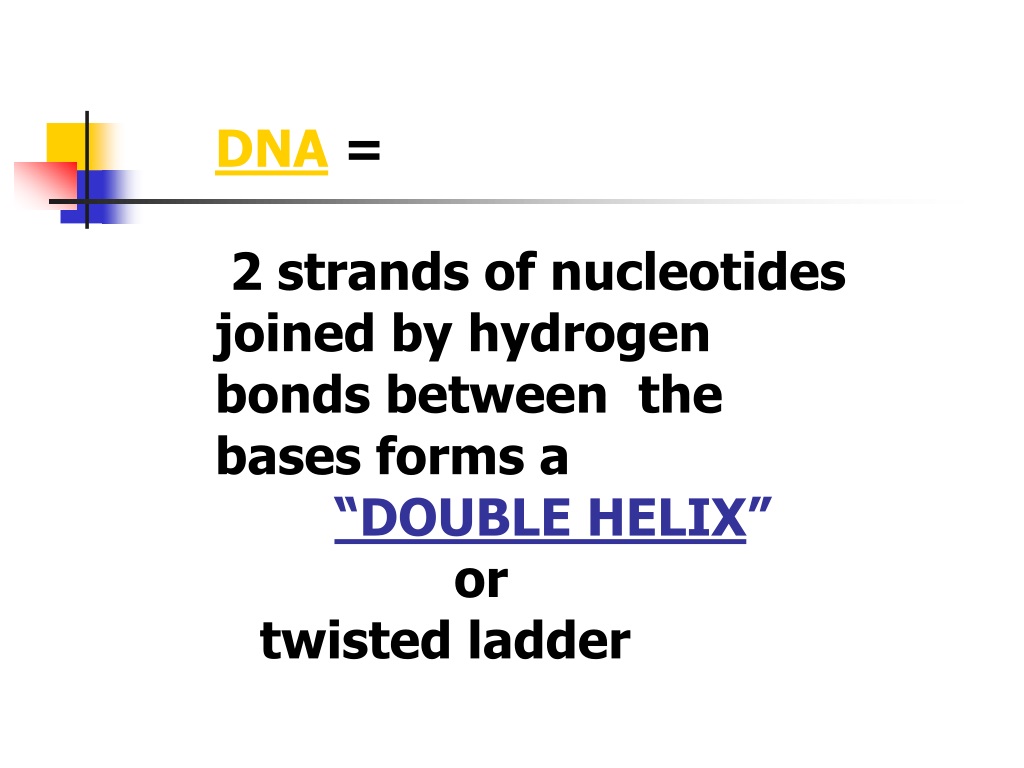

  10. DNA = 2 strands of nucleotides joined by hydrogen bonds between the bases forms a “DOUBLE HELIX” or twisted ladder

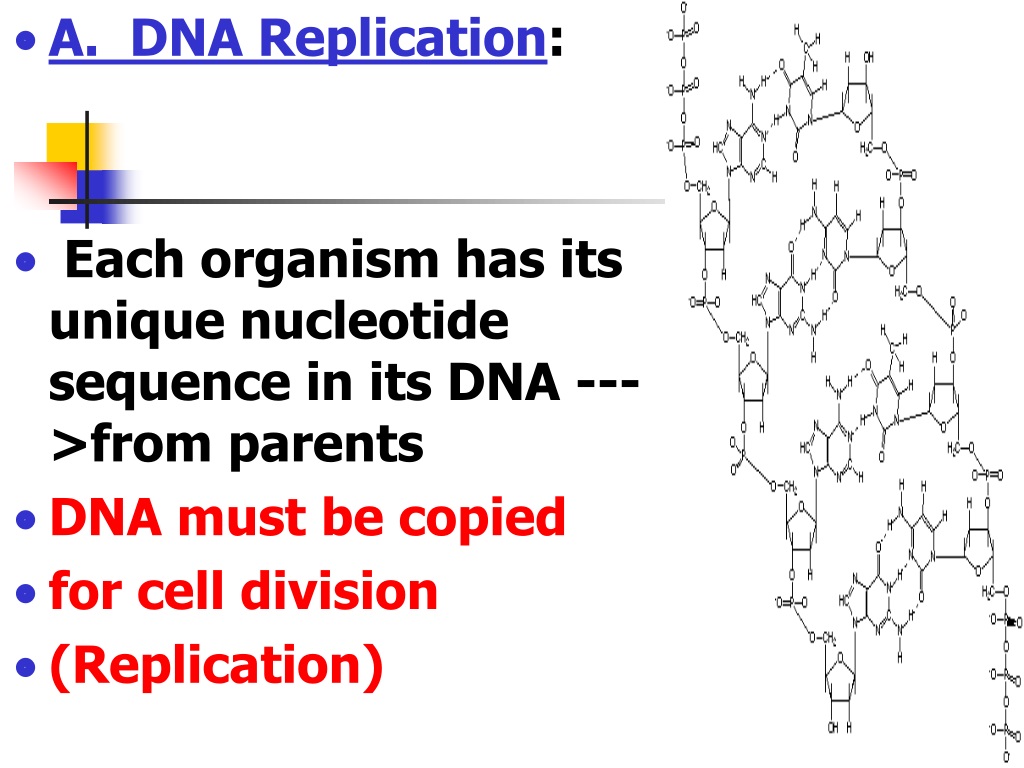

  11. A. DNA Replication: • Each organism has its unique nucleotide sequence in its DNA --->from parents • DNA must be copied • for cell division • (Replication)

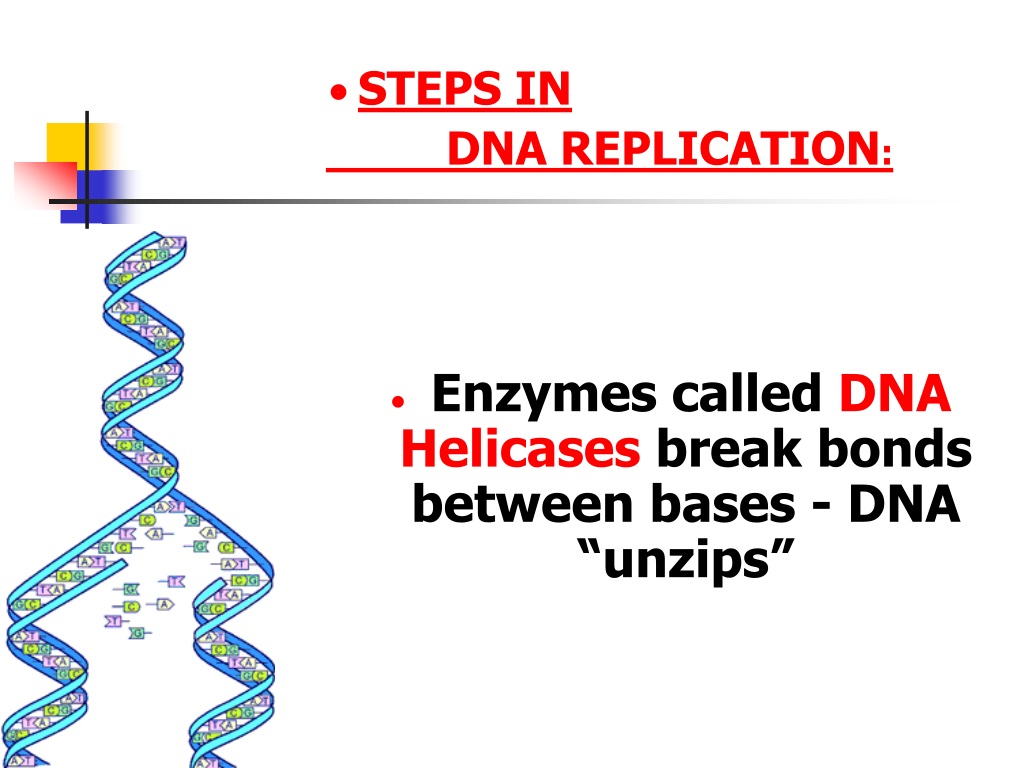

  12. STEPS IN DNA REPLICATION: • Enzymes called DNA Helicases break bonds between bases - DNA “unzips”

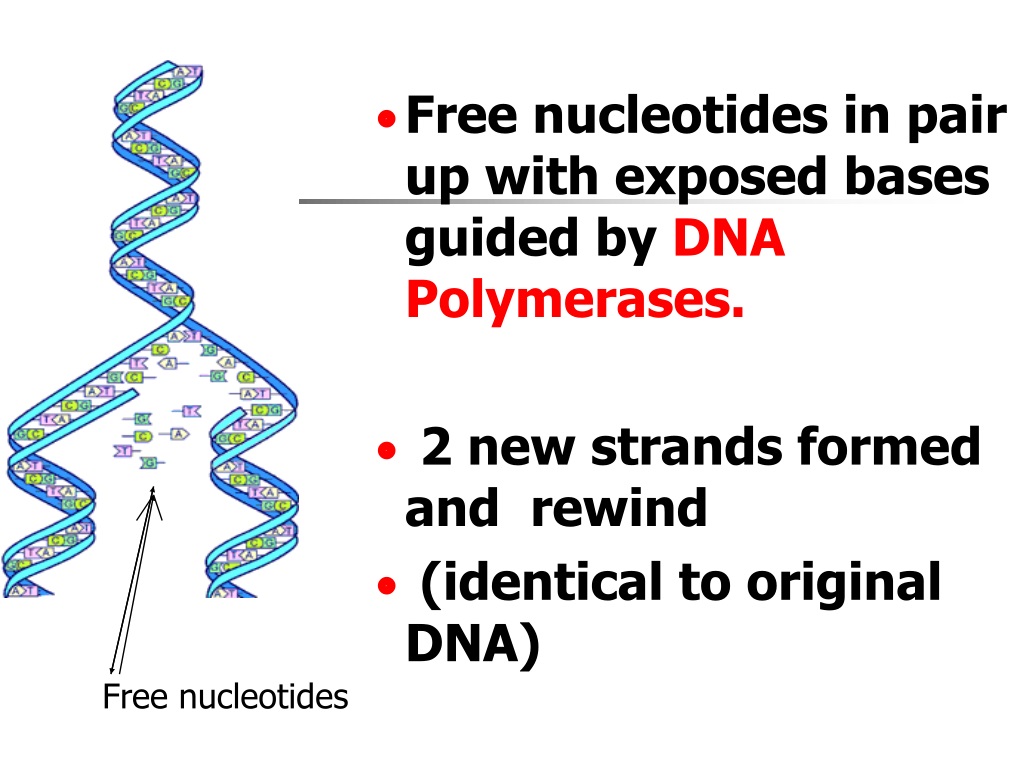

  13. Free nucleotides in pair up with exposed bases guided by DNA Polymerases. • 2 new strands formed and rewind • (identical to original DNA) Free nucleotides

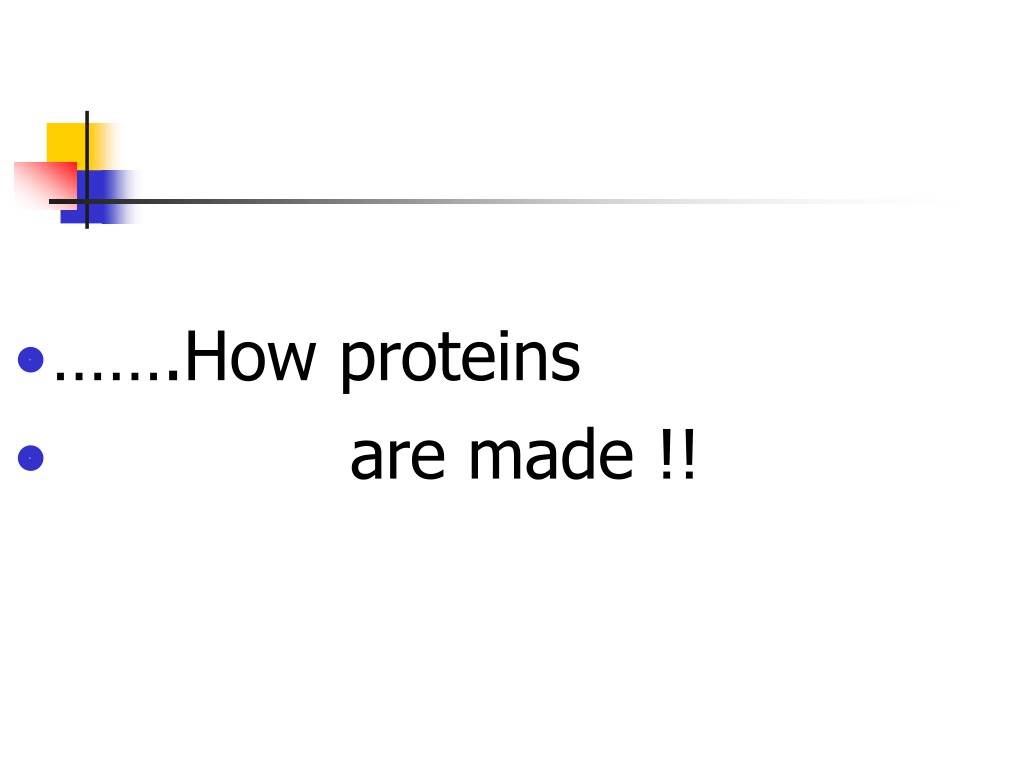

  14. …….How proteins • are made !!

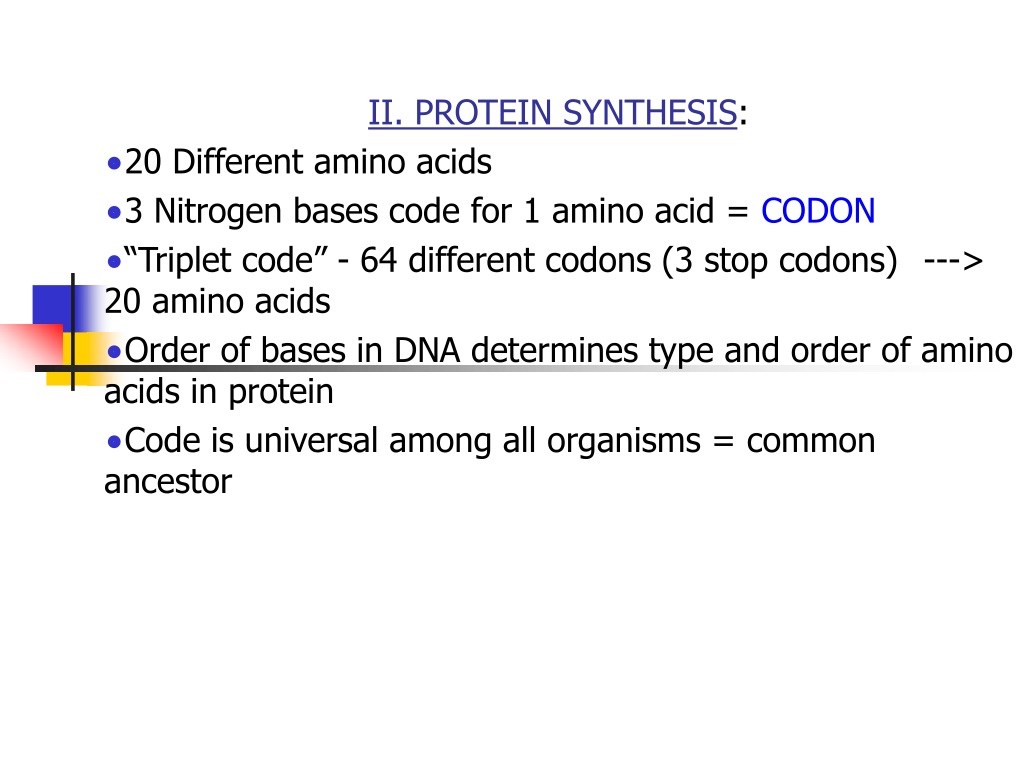

  15. II. PROTEIN SYNTHESIS: 20 Different amino acids 3 Nitrogen bases code for 1 amino acid = CODON “Triplet code” - 64 different codons (3 stop codons) ---> 20 amino acids Order of bases in DNA determines type and order of amino acids in protein Code is universal among all organisms = common ancestor

  16. A. TRANSCRIPTION: Getting DNA to make a m RNA ….which carries the sequence for a particular polypeptide chain! • DNA IS IN THE NUCLEUS • Transcription takes place in the nucleus! • RNA structure differs from DNA: • Single strand of nucleotides • Ribose - simple sugar • Bases - uracil instead of thymine U -- A A, U, C, G

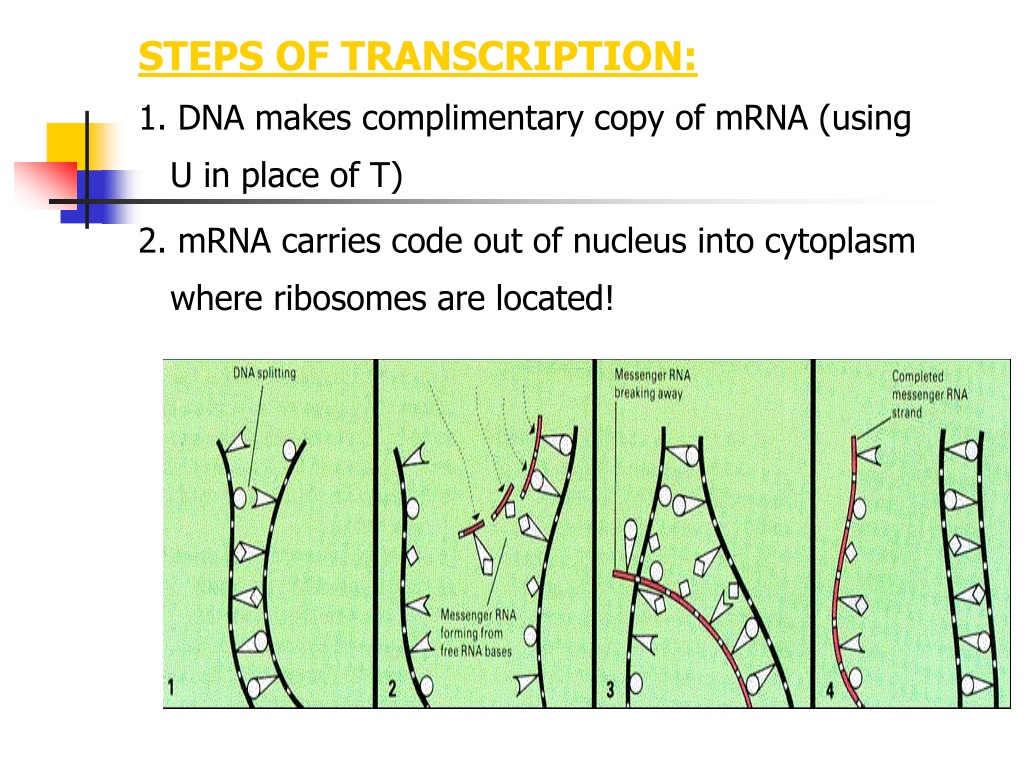

  17. STEPS OF TRANSCRIPTION: 1. DNA makes complimentary copy of mRNA (using U in place of T) 2. mRNA carries code out of nucleus into cytoplasm where ribosomes are located!

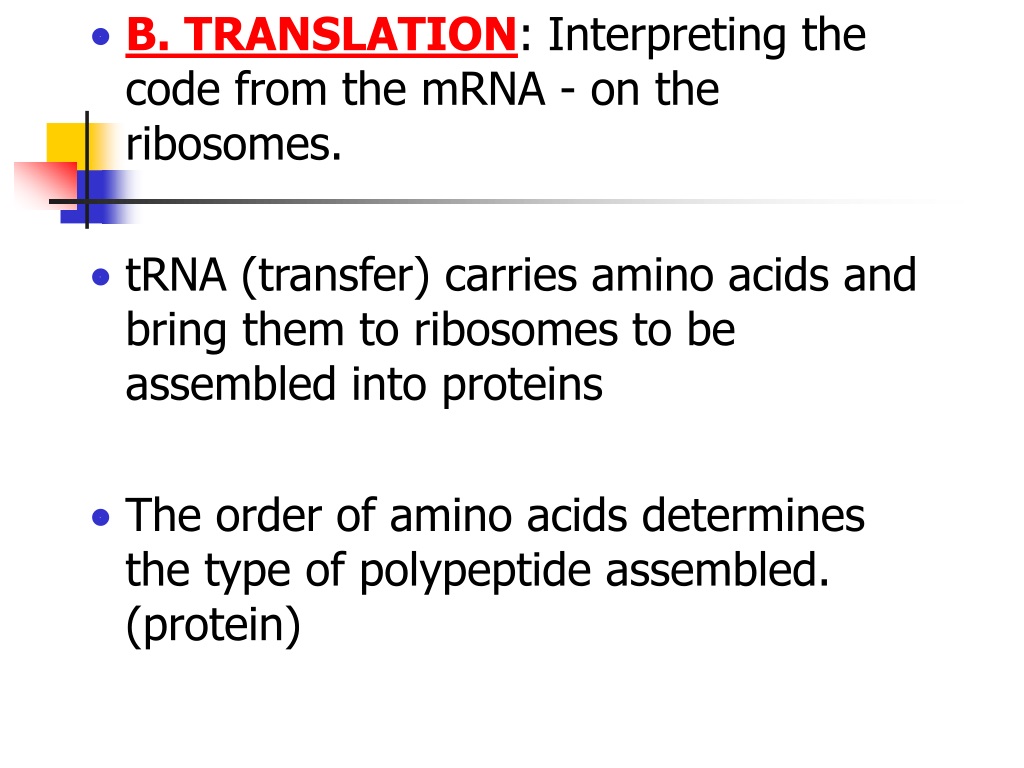

  18. B. TRANSLATION: Interpreting the code from the mRNA - on the ribosomes. • tRNA (transfer) carries amino acids and bring them to ribosomes to be assembled into proteins • The order of amino acids determines the type of polypeptide assembled. (protein)

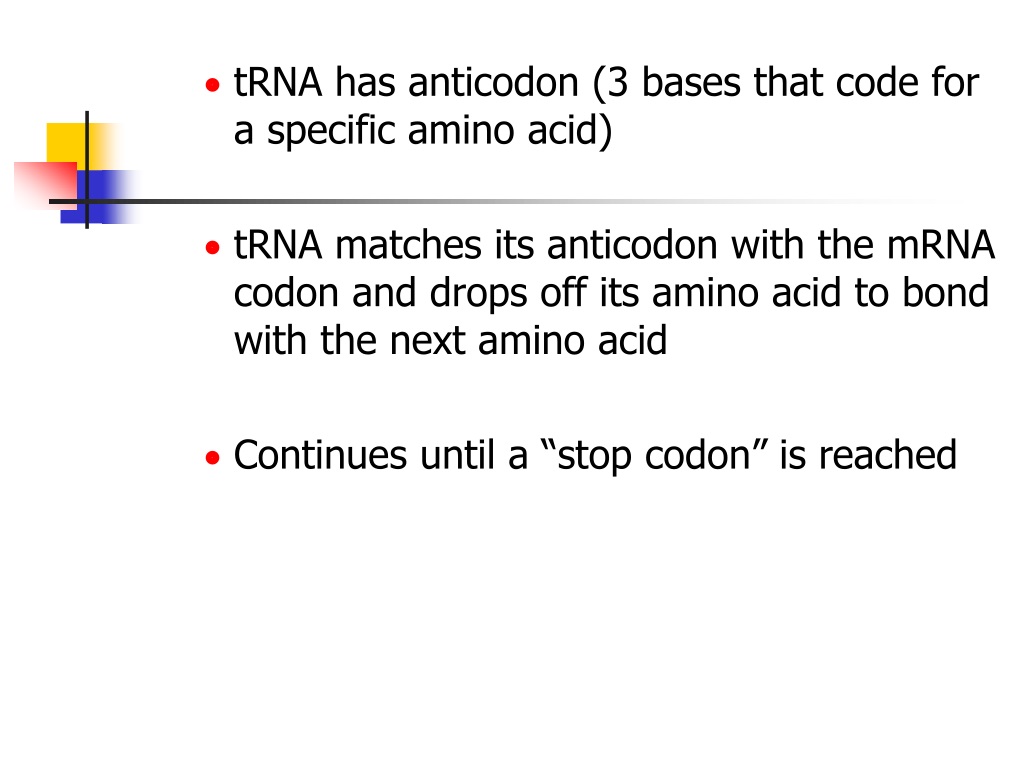

  19. tRNA has anticodon (3 bases that code for a specific amino acid) • tRNA matches its anticodon with the mRNA codon and drops off its amino acid to bond with the next amino acid • Continues until a “stop codon” is reached
