  1. CSL718 : Superscalar Processors Handling Data Dependencies 24th Jan, 2006 Anshul Kumar, CSE IITD

  2. Illustration 1 CDC6600 : score-boarding scheme • Dispatch bound fetch • FUs : INT, MUL1, MUL2, ADD/SUB, DIV • 1 RS per FU • 1 RF • In order issue, dispatch order trivial, out of order execution Anshul Kumar, CSE IITD

  3. Checking in dispatch bound fetch decoded instruction check V bits of sources Reservation station update Rd set V bit Rs1,Rs2,Rd reset V bit of Rd OC Rs1 Rs2 Rd Register File Os1 OC (opcode) Os2 (operand value) EU result, Rd Anshul Kumar, CSE IITD

  4. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2) LF F2, 45(R3) Instruction status MUL F0,F2,F4 SUB F8,F6,F2 DIVF10,F0,F6 ADD F6,F8,F2 No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT 2 MUL1 Functional Units 3 MUL2 4 ADD 5 DIV F0 F2 F4 F6 F8 F10 F12 F14 RF FU No

  5. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2 No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT Y LF 2 MUL1 Y MUL Functional Units 3 MUL2 N 4 ADD Y SUB 5 DIV Y DIV F0 F2 F4 F6 F8 F10 F12 F14 RF FU No

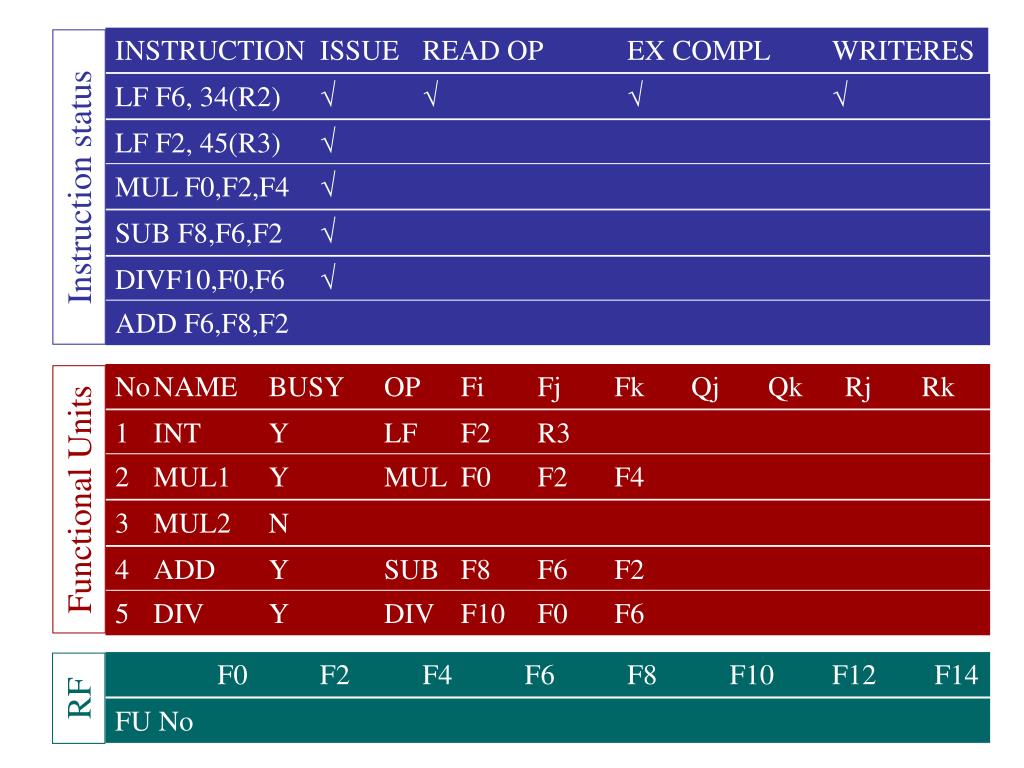

  6. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2 No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT Y LF F2 R3 2 MUL1 Y MUL F0 F2 F4 Functional Units 3 MUL2 N 4 ADD Y SUB F8 F6 F2 5 DIV Y DIV F10 F0 F6 F0 F2 F4 F6 F8 F10 F12 F14 RF FU No

  7. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2 No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT Y LF F2 R3 Y Y 2 MUL1 Y MUL F0 F2 F4 1 N Y Functional Units 3 MUL2 N 4 ADD Y SUB F8 F6 F2 1 Y N 5 DIV Y DIV F10 F0 F6 2 N Y F0 F2 F4 F6 F8 F10 F12 F14 RF FU No 2 1 4 5

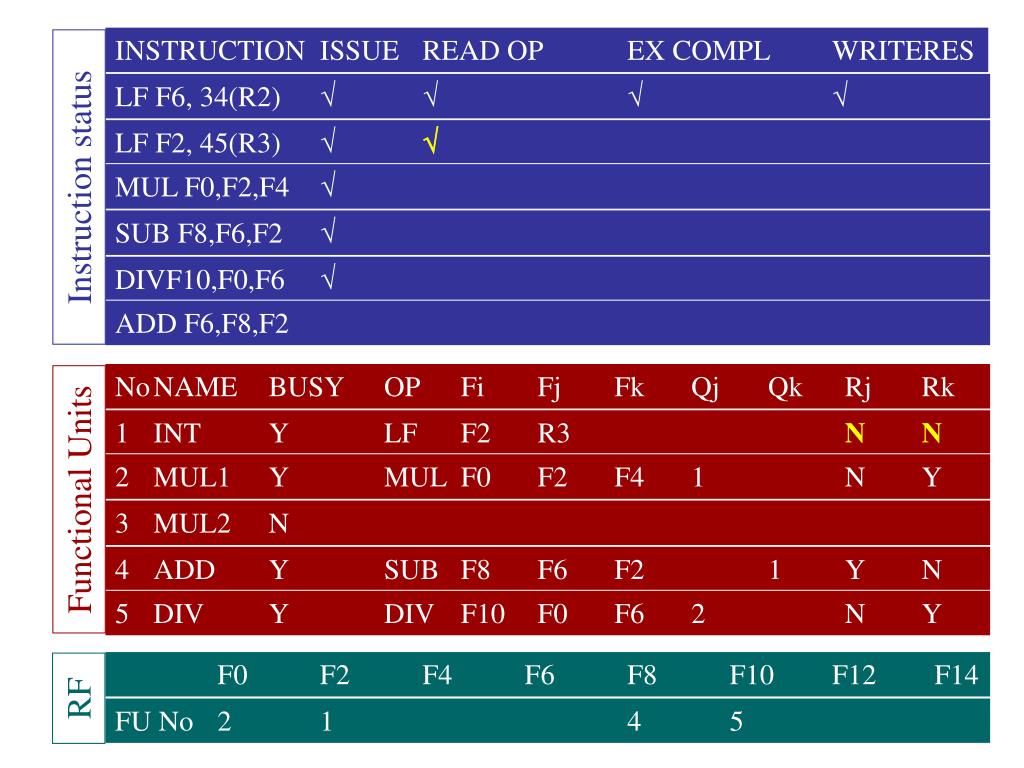

  8. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2 No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT Y LF F2 R3 N N 2 MUL1 Y MUL F0 F2 F4 1 N Y Functional Units 3 MUL2 N 4 ADD Y SUB F8 F6 F2 1 Y N 5 DIV Y DIV F10 F0 F6 2 N Y F0 F2 F4 F6 F8 F10 F12 F14 RF FU No 2 1 4 5

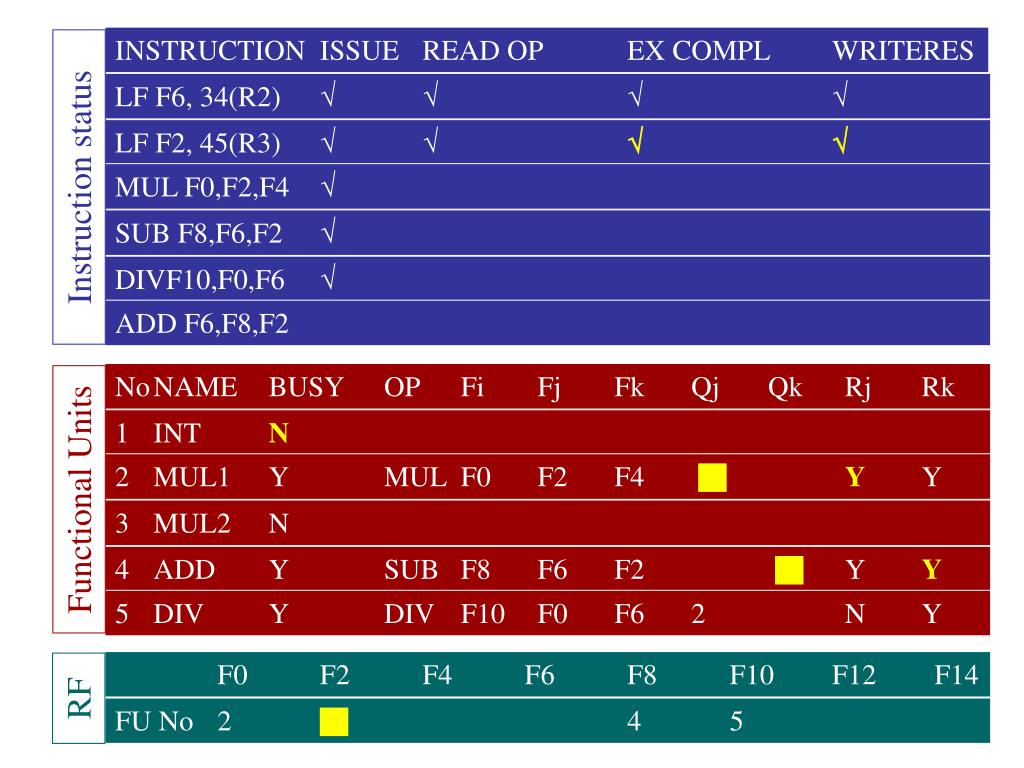

  9. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2 No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT N 2 MUL1 Y MUL F0 F2 F4 Y Y Functional Units 3 MUL2 N 4 ADD Y SUB F8 F6 F2  Y Y 5 DIV Y DIV F10 F0 F6 2 N Y F0 F2 F4 F6 F8 F10 F12 F14 RF FU No 2  4 5

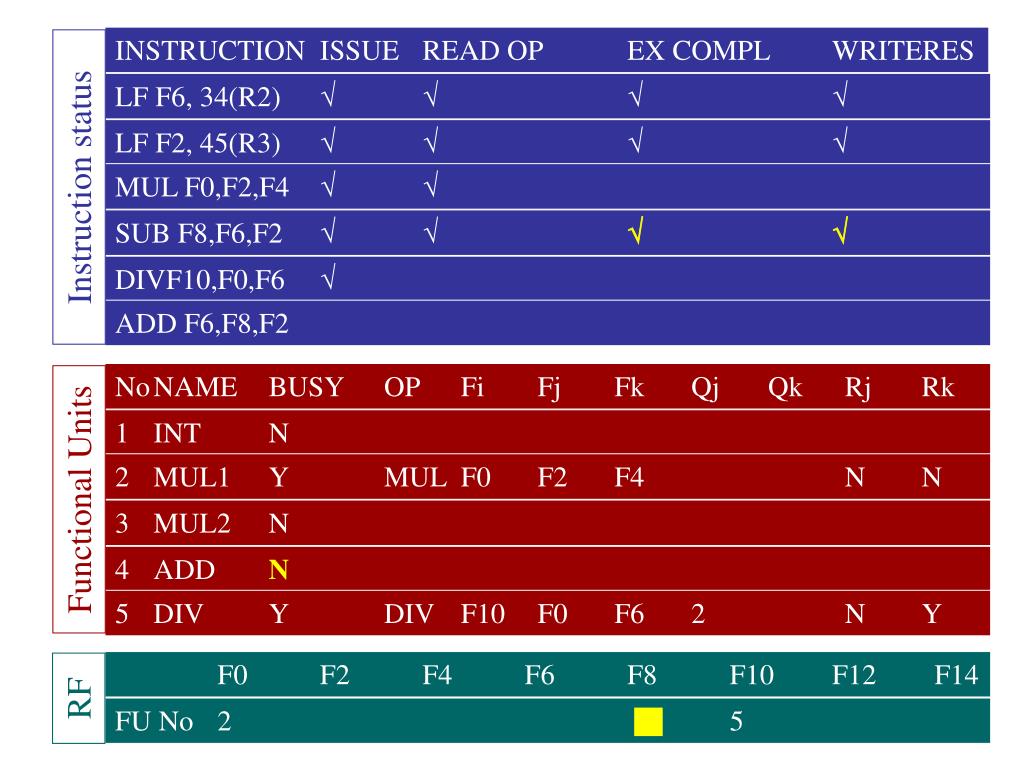

  10. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2 No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT N 2 MUL1 Y MUL F0 F2 F4 N N Functional Units 3 MUL2 N 4 ADD N 5 DIV Y DIV F10 F0 F6 2 N Y F0 F2 F4 F6 F8 F10 F12 F14 RF FU No 2  5

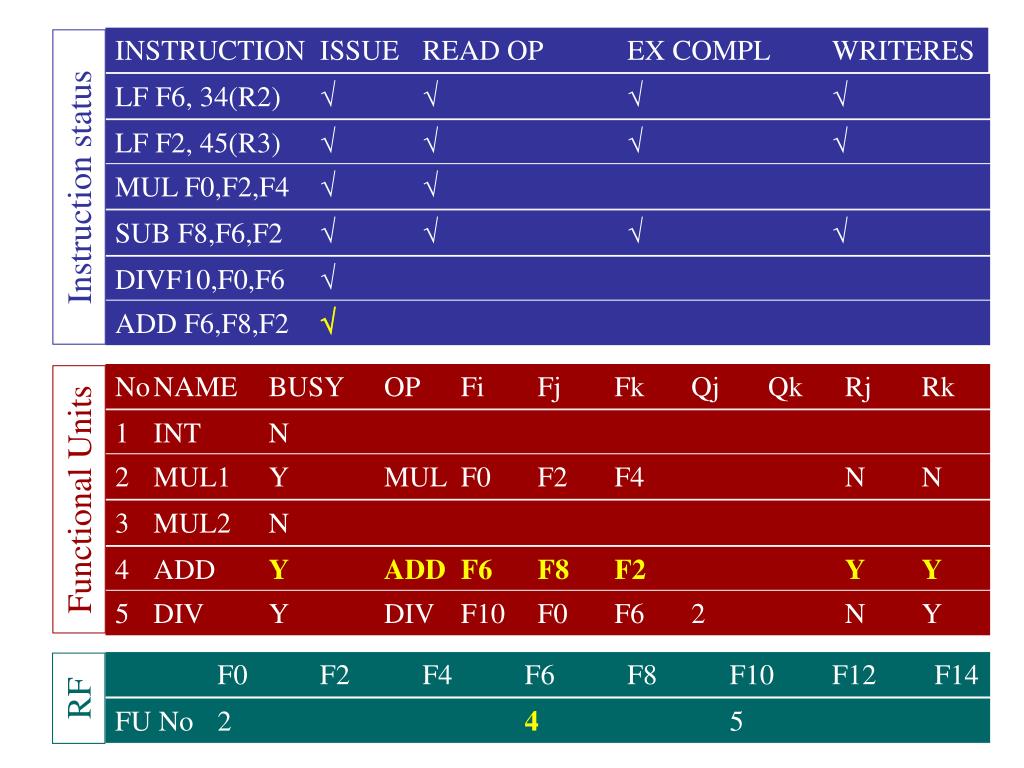

  11. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT N 2 MUL1 Y MUL F0 F2 F4 N N Functional Units 3 MUL2 N 4 ADD Y ADD F6 F8 F2 Y Y 5 DIV Y DIV F10 F0 F6 2 N Y F0 F2 F4 F6 F8 F10 F12 F14 RF FU No 2 4 5

  12. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT N 2 MUL1 Y MUL F0 F2 F4 N N Functional Units 3 MUL2 N 4 ADD Y ADD F6 F8 F2 N N 5 DIV Y DIV F10 F0 F6 2 N Y F0 F2 F4 F6 F8 F10 F12 F14 RF FU No 2 4 5

  13. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT N 2 MUL1 Y MUL F0 F2 F4 N N Functional Units 3 MUL2 N 4 ADD Y ADD F6 F8 F2 N N 5 DIV Y DIV F10 F0 F6 2 N Y F0 F2 F4 F6 F8 F10 F12 F14 RF FU No 2 4 5

  14. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT N 2 MUL1 N Functional Units 3 MUL2 N 4 ADD Y ADD F6 F8 F2 N N 5 DIV Y DIV F10 F0 F6 Y Y F0 F2 F4 F6 F8 F10 F12 F14 RF FU No  4 5

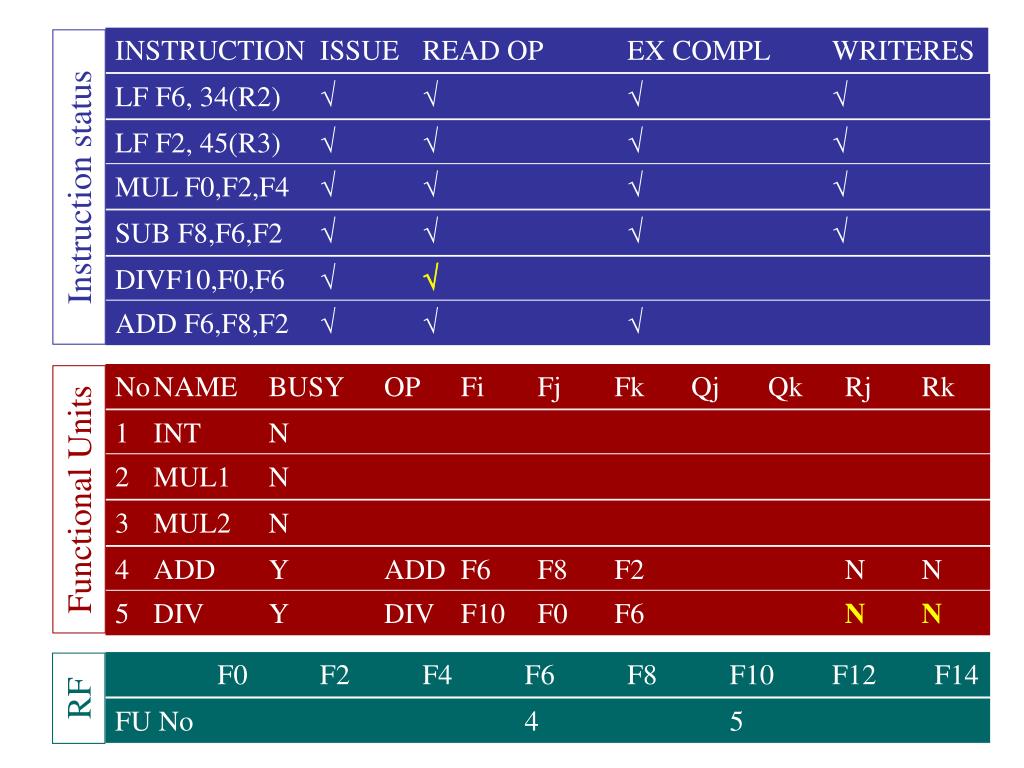

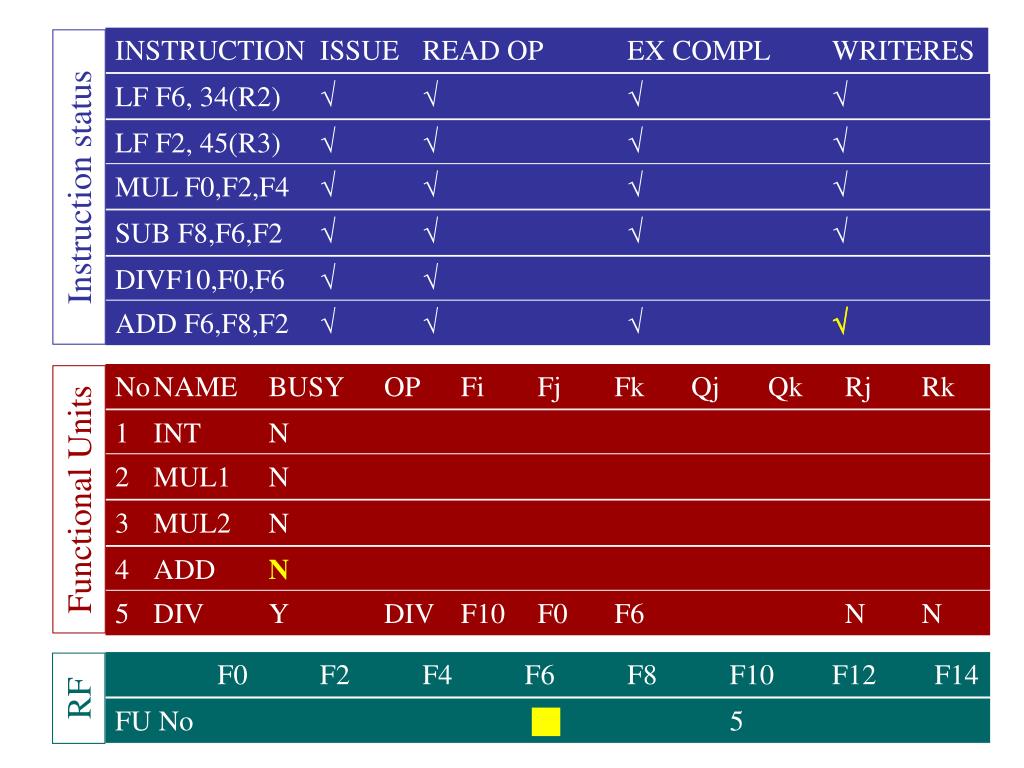

  15. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT N 2 MUL1 N Functional Units 3 MUL2 N 4 ADD Y ADD F6 F8 F2 N N 5 DIV Y DIV F10 F0 F6 NN F0 F2 F4 F6 F8 F10 F12 F14 RF FU No 4 5

  16. INSTRUCTION ISSUE READ OP EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  No NAME BUSY OP Fi Fj Fk Qj Qk Rj Rk 1 INT N 2 MUL1 N Functional Units 3 MUL2 N 4 ADD N 5 DIV Y DIV F10 F0 F6 N N F0 F2 F4 F6 F8 F10 F12 F14 RF FU No  5

  17. Illustration 2 IBM 360/91 - Tomasulo’s scheme • Issue bound fetch • FUs : LOAD, STORE, 3 x ADD/SUB, 2 x MUL/DIV • Group RS’s with 1 slot per FU • 1 RF • In order issue, out of order execution Anshul Kumar, CSE IITD

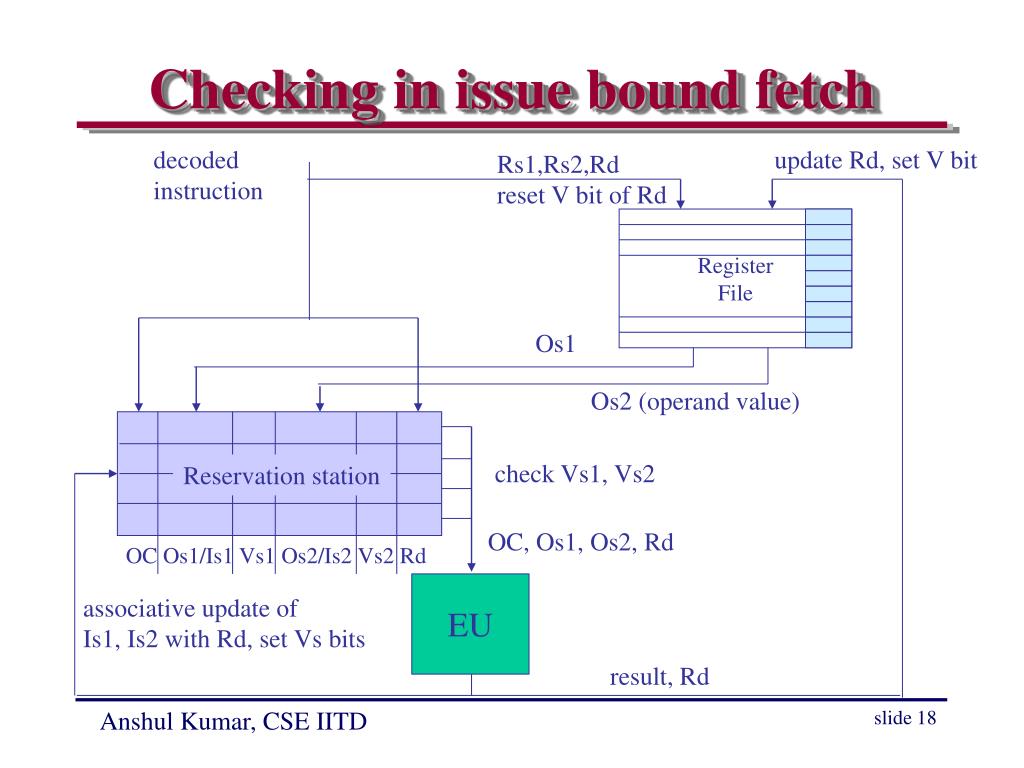

  18. Checking in issue bound fetch decoded instruction update Rd, set V bit Rs1,Rs2,Rd reset V bit of Rd Register File Os1 Os2 (operand value) check Vs1, Vs2 Reservation station OC, Os1, Os2, Rd OC Os1/Is1 Vs1 Os2/Is2 Vs2 Rd EU associative update of Is1, Is2 with Rd, set Vs bits result, Rd Anshul Kumar, CSE IITD

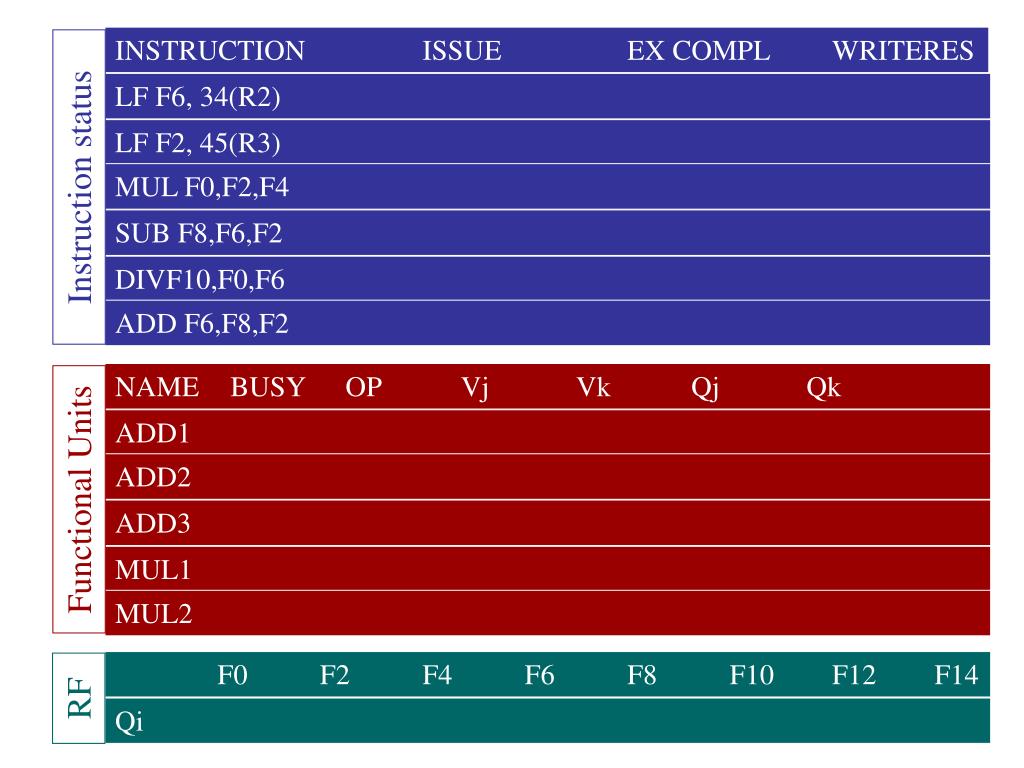

  19. INSTRUCTION ISSUE EX COMPL WRITERES LF F6, 34(R2) LF F2, 45(R3) Instruction status MUL F0,F2,F4 SUB F8,F6,F2 DIVF10,F0,F6 ADD F6,F8,F2 NAME BUSY OP Vj Vk Qj Qk ADD1 ADD2 Functional Units ADD3 MUL1 MUL2 F0 F2 F4 F6 F8 F10 F12 F14 RF Qi

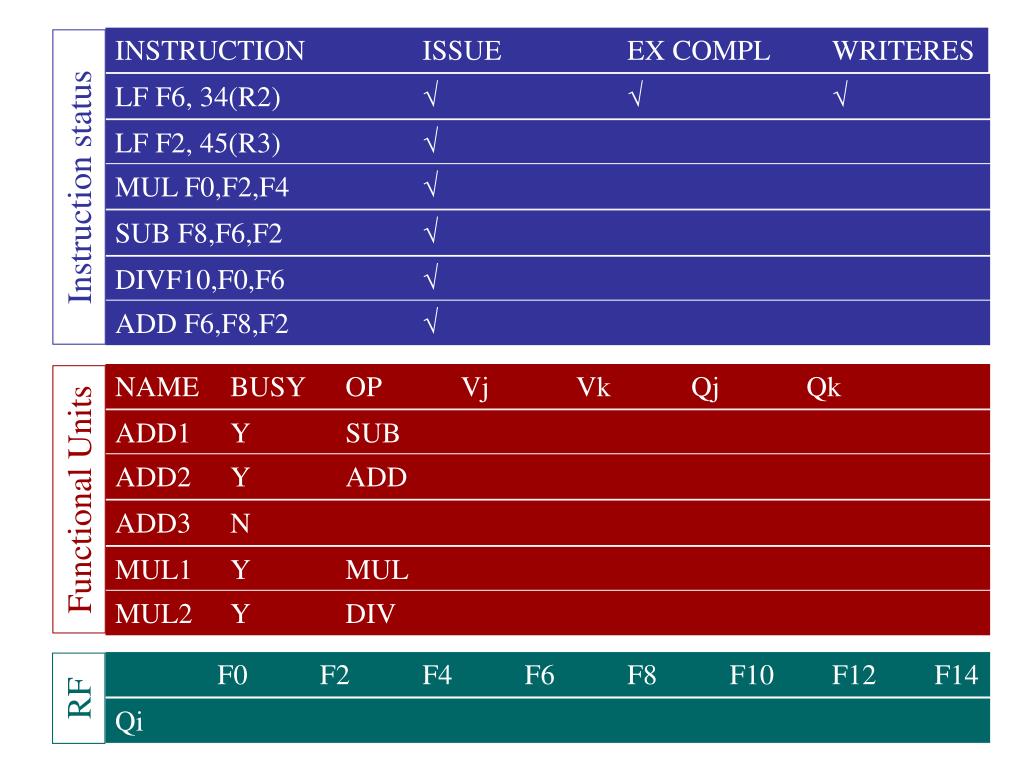

  20. INSTRUCTION ISSUE EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  NAME BUSY OP Vj Vk Qj Qk ADD1 Y SUB ADD2 Y ADD Functional Units ADD3 N MUL1 Y MUL MUL2 Y DIV F0 F2 F4 F6 F8 F10 F12 F14 RF Qi

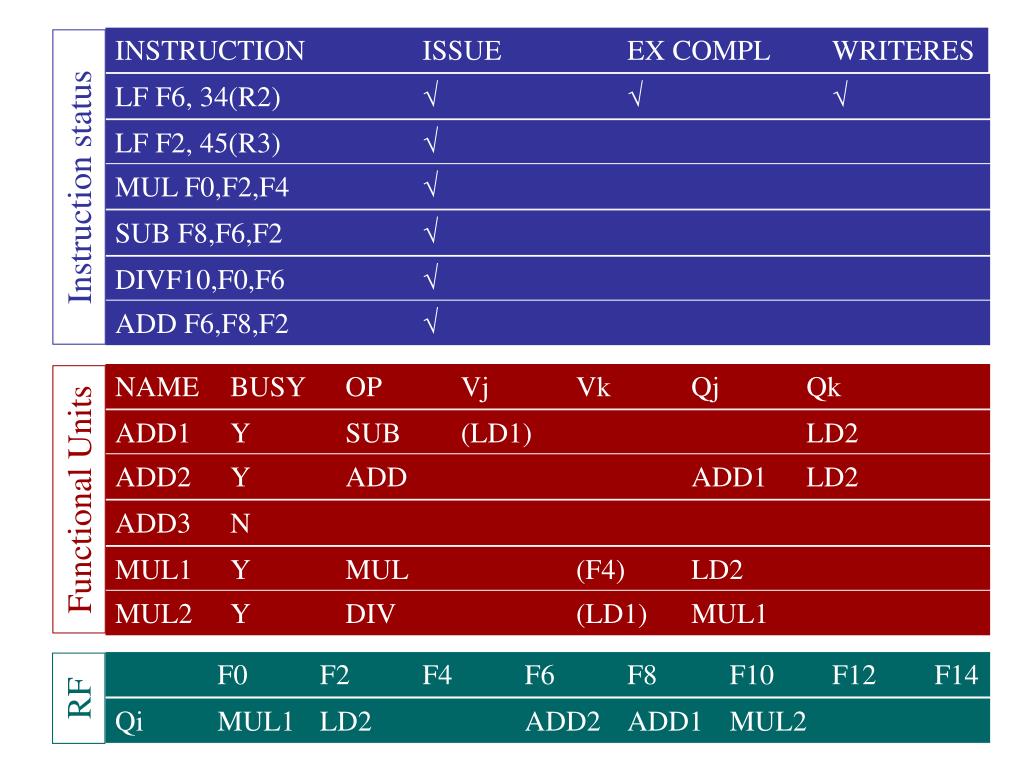

  21. INSTRUCTION ISSUE EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  NAME BUSY OP Vj Vk Qj Qk ADD1 Y SUB (LD1) LD2 ADD2 Y ADD ADD1 LD2 Functional Units ADD3 N MUL1 Y MUL (F4) LD2 MUL2 Y DIV (LD1) MUL1 F0 F2 F4 F6 F8 F10 F12 F14 RF Qi MUL1 LD2 ADD2 ADD1 MUL2

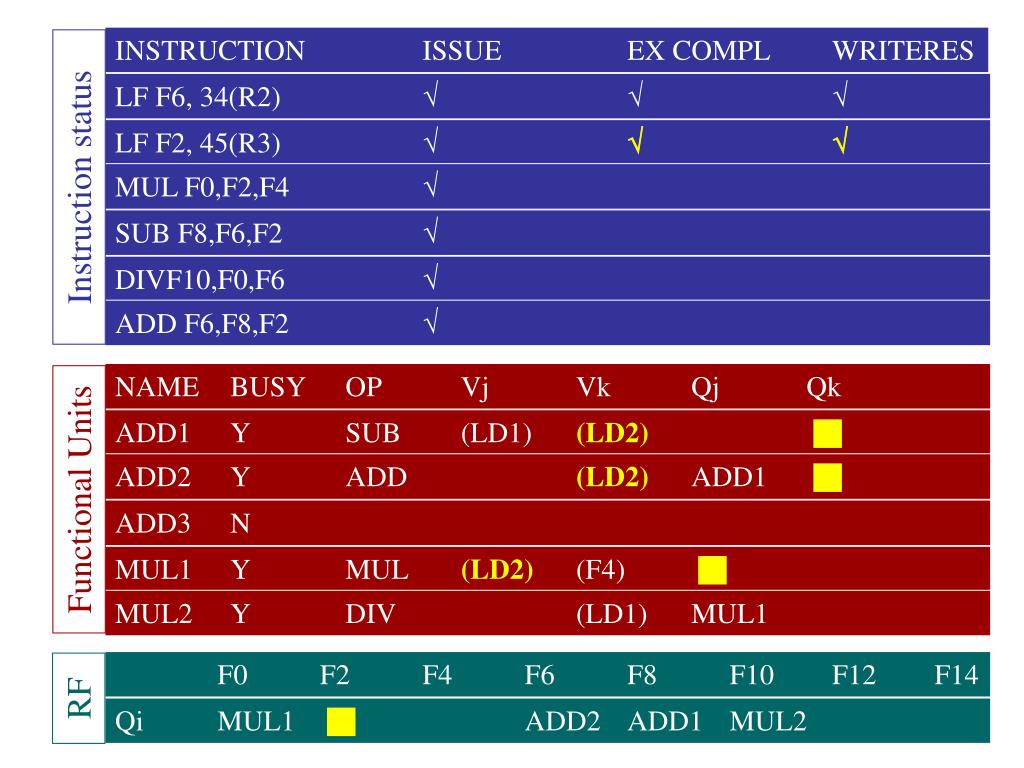

  22. INSTRUCTION ISSUE EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  NAME BUSY OP Vj Vk Qj Qk ADD1 Y SUB (LD1) (LD2) ADD2 Y ADD (LD2) ADD1  Functional Units ADD3 N MUL1 Y MUL (LD2) (F4)  MUL2 Y DIV (LD1) MUL1 F0 F2 F4 F6 F8 F10 F12 F14 RF Qi MUL1  ADD2 ADD1 MUL2

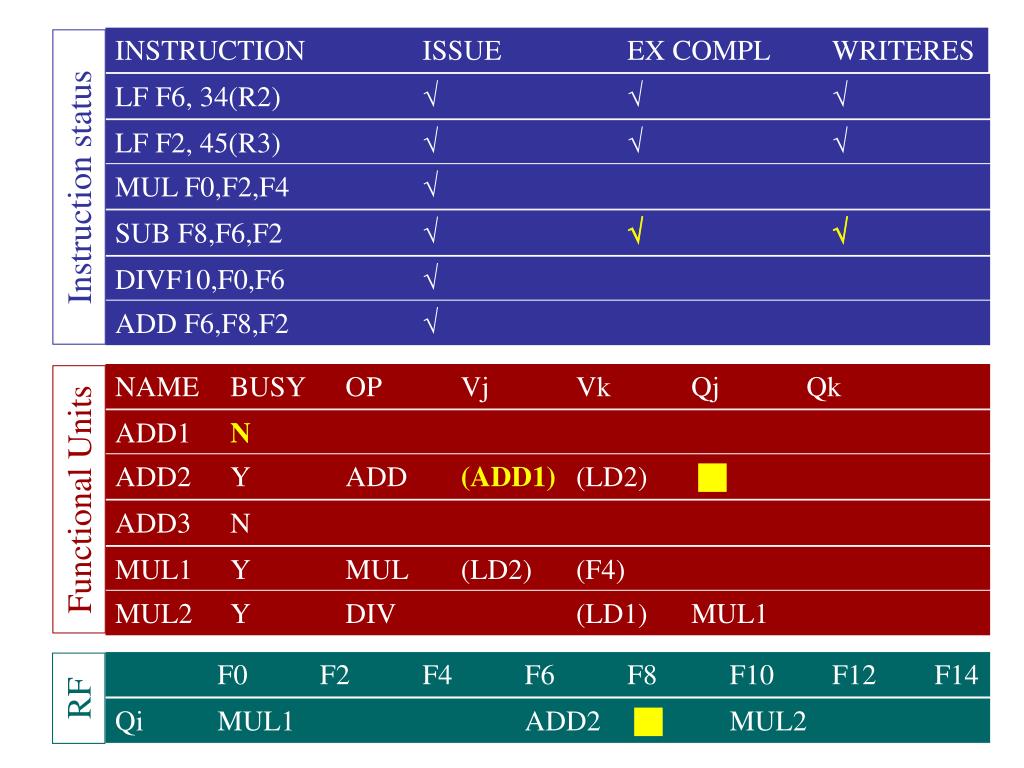

  23. INSTRUCTION ISSUE EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  NAME BUSY OP Vj Vk Qj Qk ADD1 N ADD2 Y ADD (ADD1) (LD2)  Functional Units ADD3 N MUL1 Y MUL (LD2) (F4) MUL2 Y DIV (LD1) MUL1 F0 F2 F4 F6 F8 F10 F12 F14 RF Qi MUL1 ADD2  MUL2

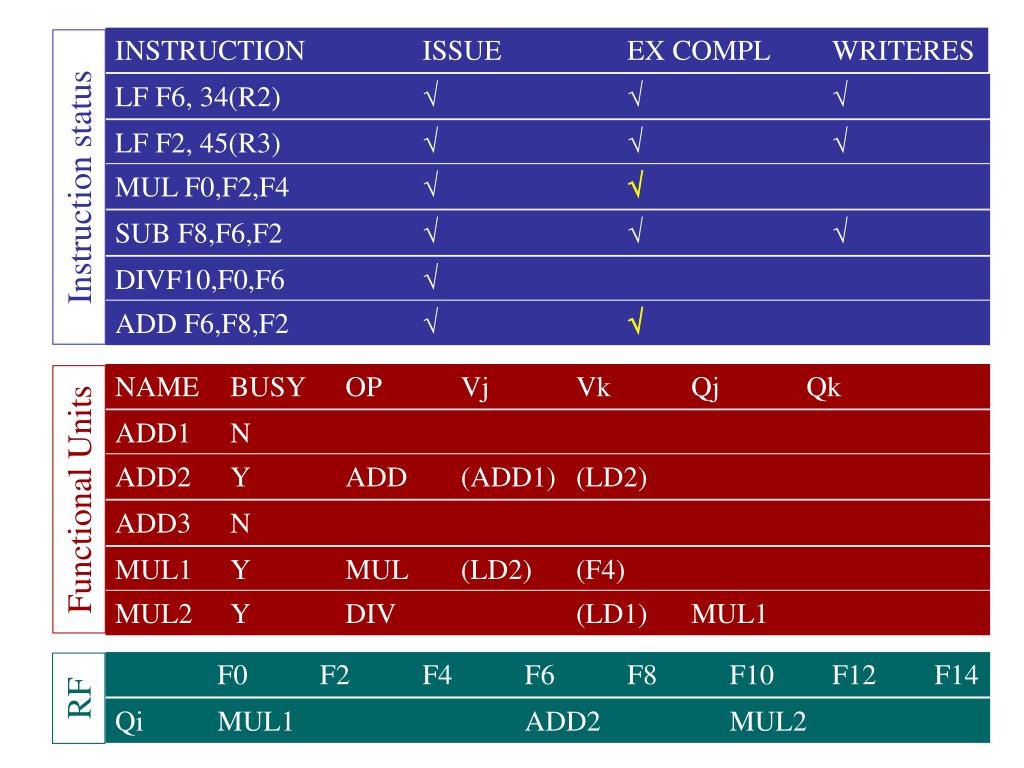

  24. INSTRUCTION ISSUE EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  NAME BUSY OP Vj Vk Qj Qk ADD1 N ADD2 Y ADD (ADD1) (LD2) Functional Units ADD3 N MUL1 Y MUL (LD2) (F4) MUL2 Y DIV (LD1) MUL1 F0 F2 F4 F6 F8 F10 F12 F14 RF Qi MUL1 ADD2 MUL2

  25. INSTRUCTION ISSUE EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  NAME BUSY OP Vj Vk Qj Qk ADD1 N ADD2 N Functional Units ADD3 N MUL1 Y MUL (LD2) (F4) MUL2 Y DIV (LD1) MUL1 F0 F2 F4 F6 F8 F10 F12 F14 RF Qi MUL1  MUL2

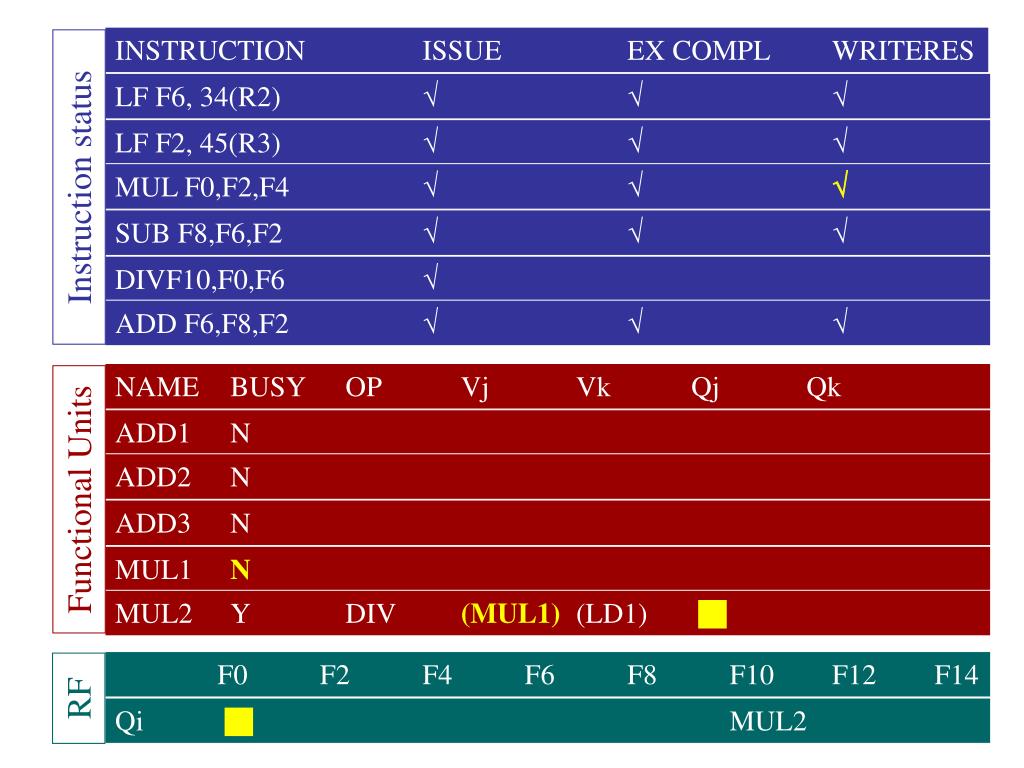

  26. INSTRUCTION ISSUE EX COMPL WRITERES LF F6, 34(R2)  LF F2, 45(R3)  Instruction status MUL F0,F2,F4  SUB F8,F6,F2  DIVF10,F0,F6  ADD F6,F8,F2  NAME BUSY OP Vj Vk Qj Qk ADD1 N ADD2 N Functional Units ADD3 N MUL1 N MUL2 Y DIV (MUL1) (LD1)  F0 F2 F4 F6 F8 F10 F12 F14 RF Qi  MUL2

  27. End of IllustrationRef: Hennesy & Patterson’s Book [Ch. 4] Anshul Kumar, CSE IITD

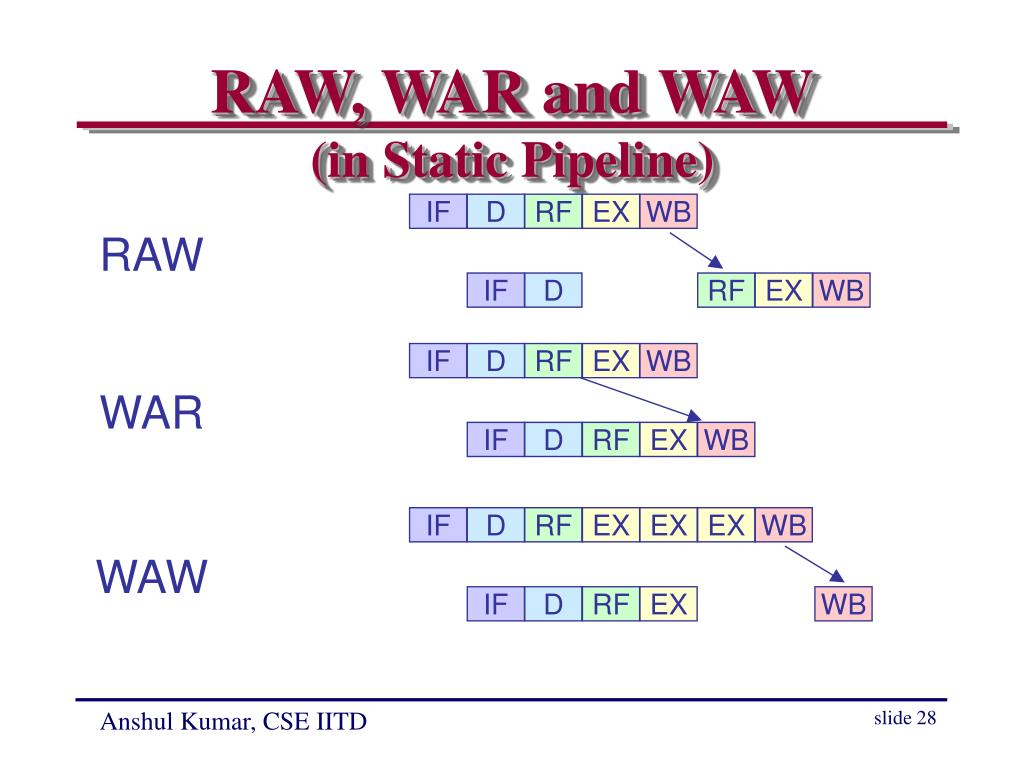

  28. RAW, WAR and WAW(in Static Pipeline) IF D RF EX WB RAW IF D RF EX WB IF D RF EX WB WAR IF D RF EX WB IF D RF EX EX EX WB WAW IF D RF EX WB Anshul Kumar, CSE IITD

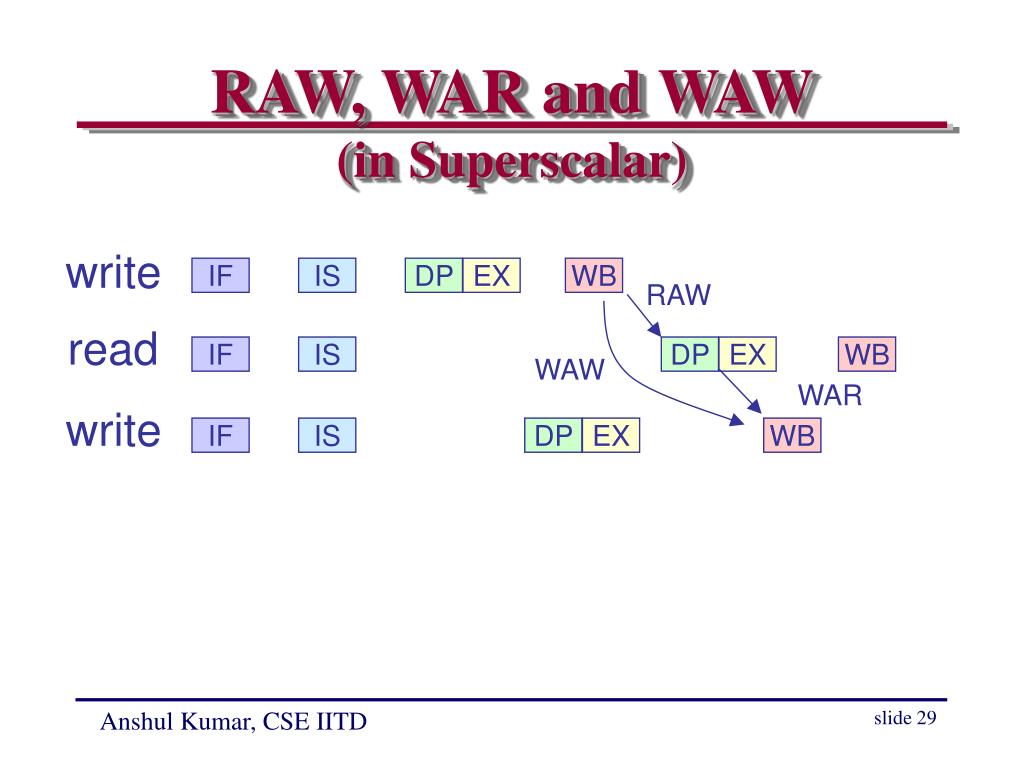

  29. RAW, WAR and WAW(in Superscalar) write IF IS DP EX WB RAW read IF IS DP EX WB WAW WAR write IF IS DP EX WB Anshul Kumar, CSE IITD

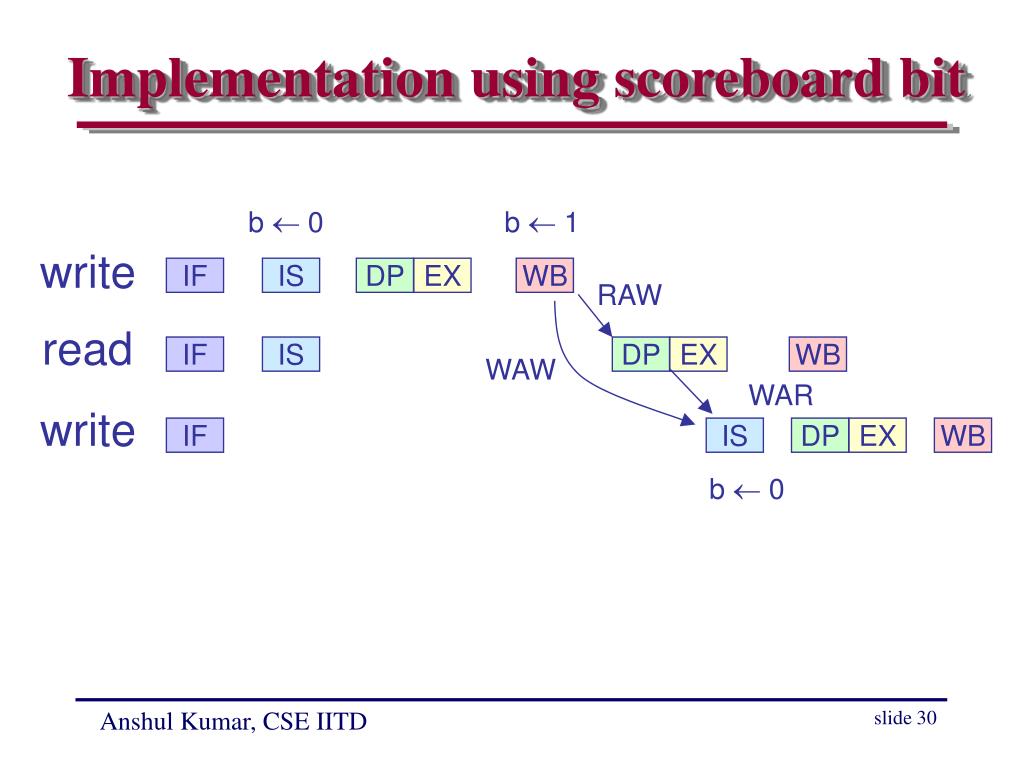

  30. Implementation using scoreboard bit b  0 b  1 write IF IS DP EX WB RAW read IF IS DP EX WB WAW WAR write IF IS DP EX WB b  0 Anshul Kumar, CSE IITD

  31. CDC 6600 like Implementation b  0 b  1 write IF IS DP EX WB RAW read IF IS DP EX WB WAW WAR write IF IS DP EX WB b  0 Anshul Kumar, CSE IITD

  32. IBM 360 like Implementation b  0 b  1 write IF IS DP EX WB RAW read IF IS DP EX WB WAW WAR write IF IS DP EX WB b  0 Anshul Kumar, CSE IITD

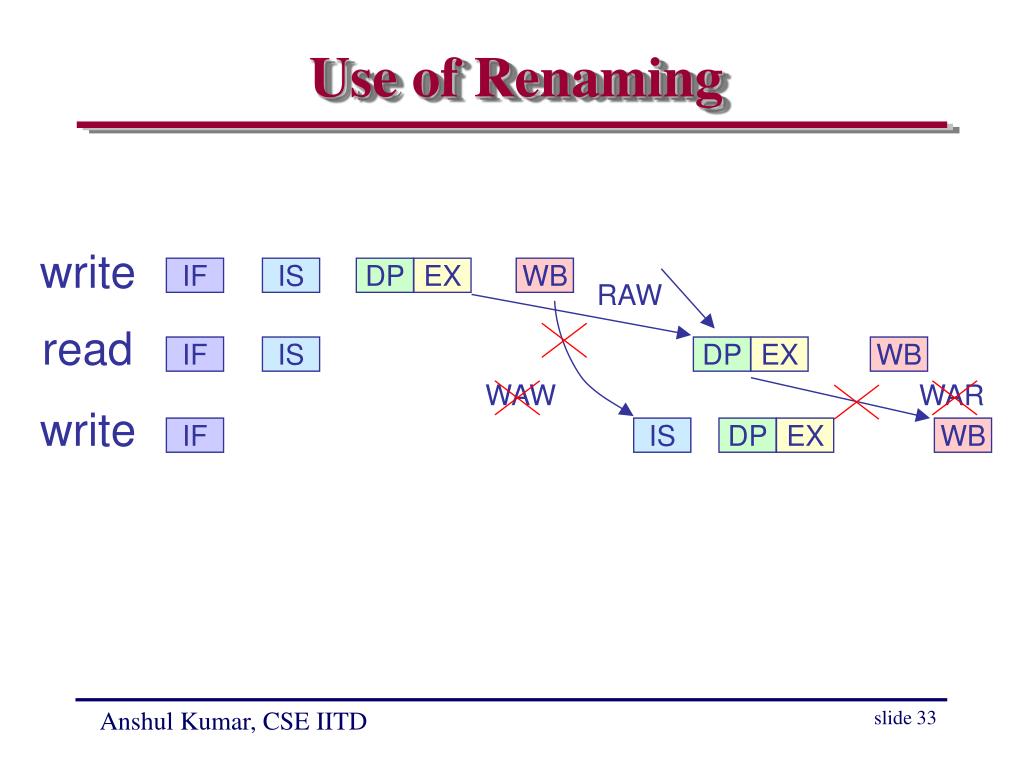

  33. Use of Renaming write IF IS DP EX WB RAW read IF IS DP EX WB WAW WAR write IF IS DP EX WB Anshul Kumar, CSE IITD
