  1. Chapter 12Cisco’s WirelessTechnologies

  2. WLAN Frequencies • 900MHz and 2.4GHz bands are referred to as the Industrial, Scientific, and Medical (ISM) bands. • 5.7GHz band is known as the Unlicensed National Information Infrastructure (UNII) band.

  3. The 802.11 Standards

  4. 2.4GHz (802.11b): (11, 5.5, 2, and 1Mbps), Direct Sequence Spread Spectrum (DSSS) • 2.4GHz (802.11g): 54Mbps, Orthogonal Frequency Division Multiplexing (OFDM) • 5GHz (802.11a ): (54, 48, 36, 24, 18, 12, and 6Mbps) • 5GHz (802.11h): Dynamic Frequency Selection (DFS), Transmit Power Control (TPC) & additional 11 channels • 2.4GHz/5GHz (802.11n): Using MIMO • 5GHz affecting with interference is less than that of 2.4GHz, reasons for interference are: • Cordless phones • Metal cabinets • Microwaves ovens • Antenna type & direction • Bluetooth devices

  5. CSMA/CA Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) is also called a Request To Send, Clear To Send (RTS/CTS)

  6. Classification of Wireless Networks

  7. Connecting APs (Cisco’s Unified Wireless Solution) • If the APs weren’t root, they could only connect to a root device as a repeater. Nonroot devices include clients, bridges, repeater access points, and work group bridges. • Cisco WLAN controllers (come with gigabit interfaces). • Controllers decide the packet’s destiny based on the Lightweight Access Point Protocol (LWAPP) information that’s encapsulated on it. • Split-MAC Architecture is the splitting the processing of the 802.11 protocol between two devices, the AP and a centralized Cisco WLAN controller. • The controller is managed either through the controller web interface, from the controller itself, or from Cisco’s Wireless Control System (WCS)

  8. APs Functions • The frame exchange handshake between a client and AP when transferring a frame over the air • Transmitting beacon frames • Buffering and transmitting frames for clients in power save operations • Responding to probe request frames from clients • Forwarding notification of received probe requests to the controller • Providing real-time signal quality information to the controller with every received frame • Monitoring each of the radio channels for noise, interference, and other WLANs • Monitoring for the presence of other APs • Encryption and decryption except in the case of VPN/IPSec clients Controller Functions • 802.11 authentication • 802.11 association and reassociation (mobility) • 802.11 frame translation and bridging • Cisco Wireless Controller can do its job with more facilities using the GUI Wirelss Control System (WCS)

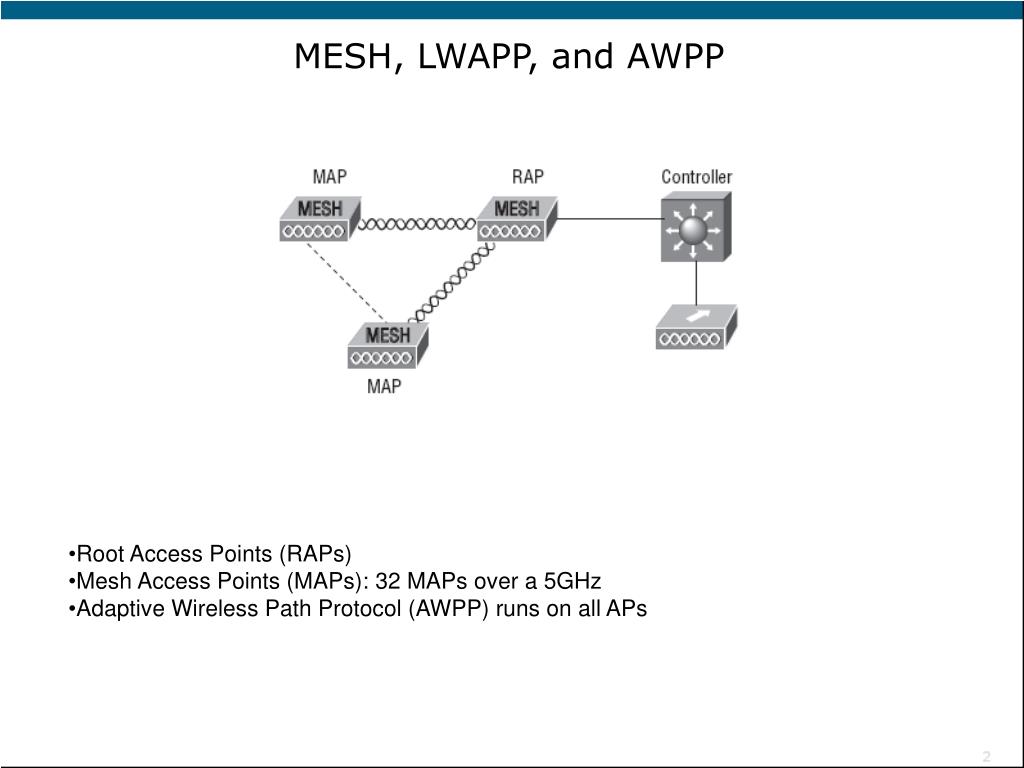

  9. MESH, LWAPP, and AWPP • Root Access Points (RAPs) • Mesh Access Points (MAPs): 32 MAPs over a 5GHz • Adaptive Wireless Path Protocol (AWPP) runs on all APs

  10. Wireless Security • Open Access • Service Set Identifier (SSID): Open authentication and shared-key authentication • Wired Equivalency Protocol (WEP): 40 or 128 bits • Media Access Control (MAC) authentication • Wi-Fi Protected Access (WPA) & (WPA2) Pre-Shared Key (PSK) (using password or passphrase) Cisco Unified Wireless Network Security • Secure Connectivity for WLANs: using strong dynamic encryption keys (WPA) & (WPA2) • Trust and Identity for WLANs: using IEEE 802.1X:EAP, RADIUS, & AAA server • Threat Defense for WLANs: using intrusion Prevention System (IPS), WLAN NAC, and advanced location services

  11. Configuring WLAN Router(config)#int dot11radio 0/3/0 Router(config-if)#ip address 10.1.8.1 255.255.255.0 Router(config-if)#description Admin WLAN Router(config-if)#ssid ADMIN Router(config-if-ssid)#guest-mode Router(config-if-ssid)#authentication open Router(config-if-ssid)#infrastructure-ssid Router(config-if-ssid)#no shut
