  1. Identification Guide Builder Identification Guides that are comprehensive and detailed at design improves the data quality of the item catalogued while the time required to catalog the item is reduced. Presenter : Wynand Nortje

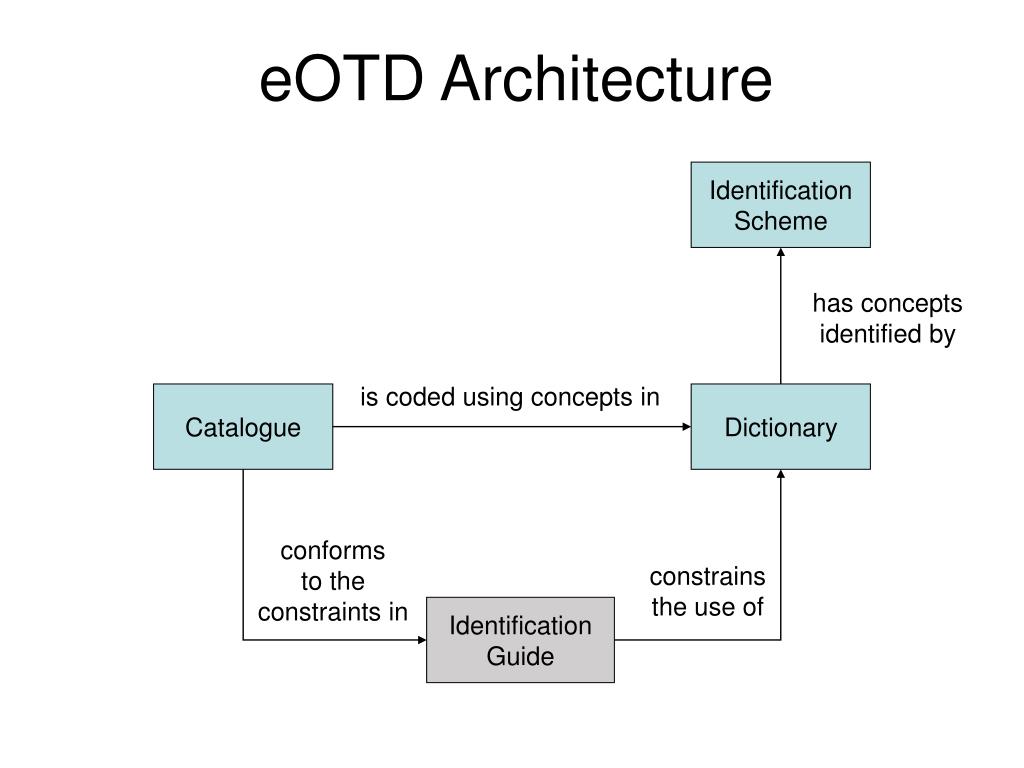

  2. eOTD Architecture Identification Scheme has conceptsidentified by is coded using concepts in Catalogue Dictionary conformsto theconstraints in constrains the use of Identification Guide

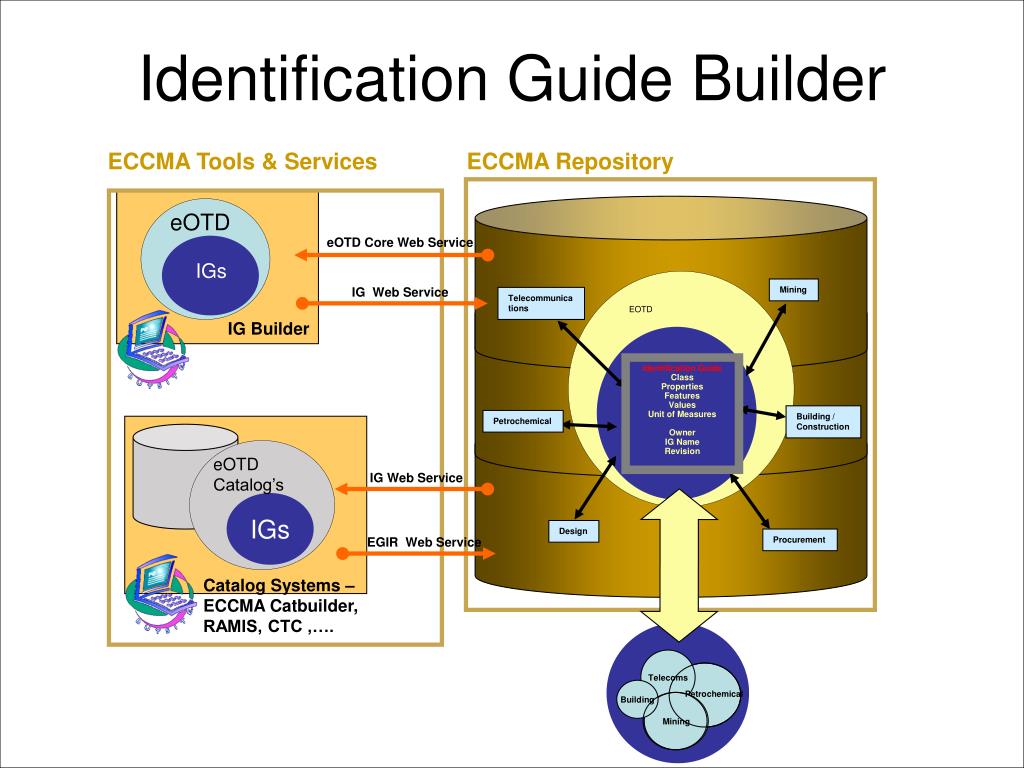

  3. Identification Guide Builder ECCMA Tools & Services ECCMA Repository eOTD eOTD Core Web Service eOTD IGs IG Web Service Mining Telecommunications EOTD IGBuilder Identification Guide Class Properties Features Values Unit of Measures Owner IG Name Revision eOTD Building / Construction Petrochemical eOTD Catalog’s IG Web Service IGs Design EGIR Web Service Procurement Catalog Systems – ECCMA Catbuilder, RAMIS, CTC ,…. Telecoms Building Petrochemical Mining

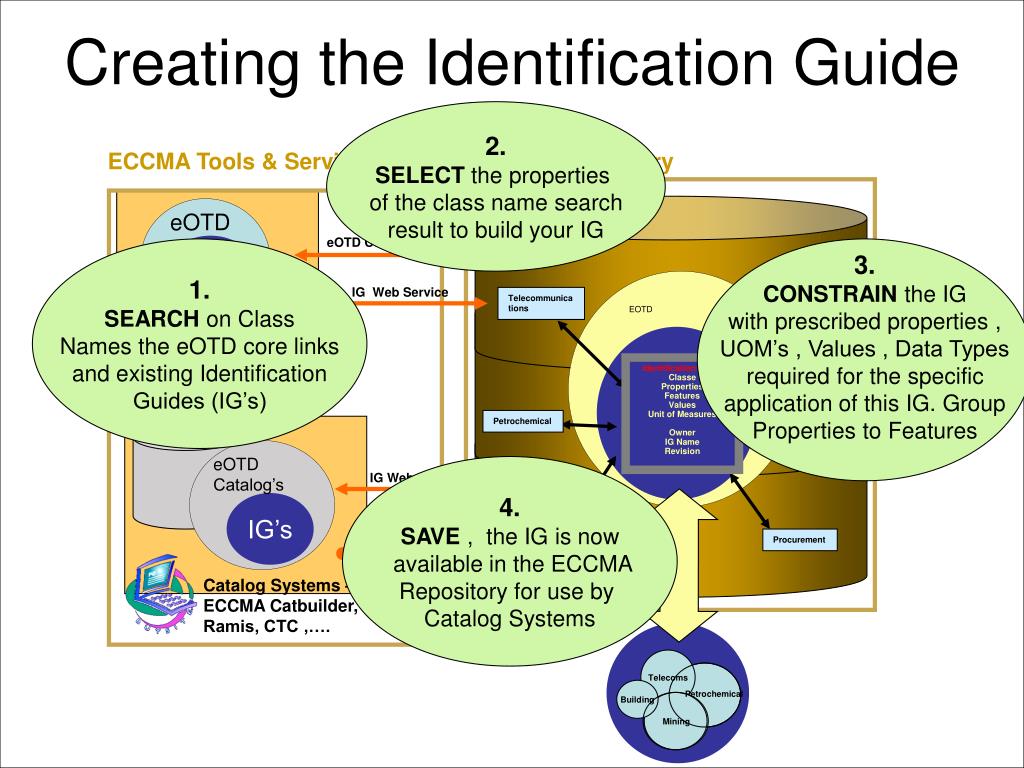

  4. Creating the Identification Guide 2. SELECT the properties of the class name search result to build your IG ECCMA Tools & Services ECCMA Repository eOTD eOTD Core Web Service 1. SEARCH on Class Names the eOTD core links and existing Identification Guides (IG’s) 3. CONSTRAIN the IG with prescribed properties , UOM’s , Values , Data Types required for the specific application of this IG. Group Properties to Features eOTD IGs IG Web Service Mining Telecommunications EOTD IGBuilder Identification Guide Classe Properties Features Values Unit of Measures Owner IG Name Revision eOTD Building / Construction Petrochemical eOTD Catalog’s 4. SAVE , the IG is now available in the ECCMA Repository for use by Catalog Systems IG Web Service IG’s Design EGIR Web Service Procurement Catalog Systems – ECCMA Catbuilder, Ramis, CTC ,…. Telecoms Building Petrochemical Mining

  5. Standardisation of values and unit of measure data is implied by adding constraints to the prescribed property Only relevant properties are included for the catalog purpose of the Identification Guide , e.g. Procurement Indentification Guide (Template) in the Petrochemical Industry Data type validations are included in the Identification Guide – Catalog System leverage the meta data of the IG to provide validations Data Integrity is improved by adding constraints to IG’s Process automation in Catalog systems made possible Time to catalog drastically reduced e.g. only specific UOM’s valid for the specific property will be listed in the UOM drop down list box in Catalog systems that incorporates the ECCMA IG’s Benefits of Identification Guides

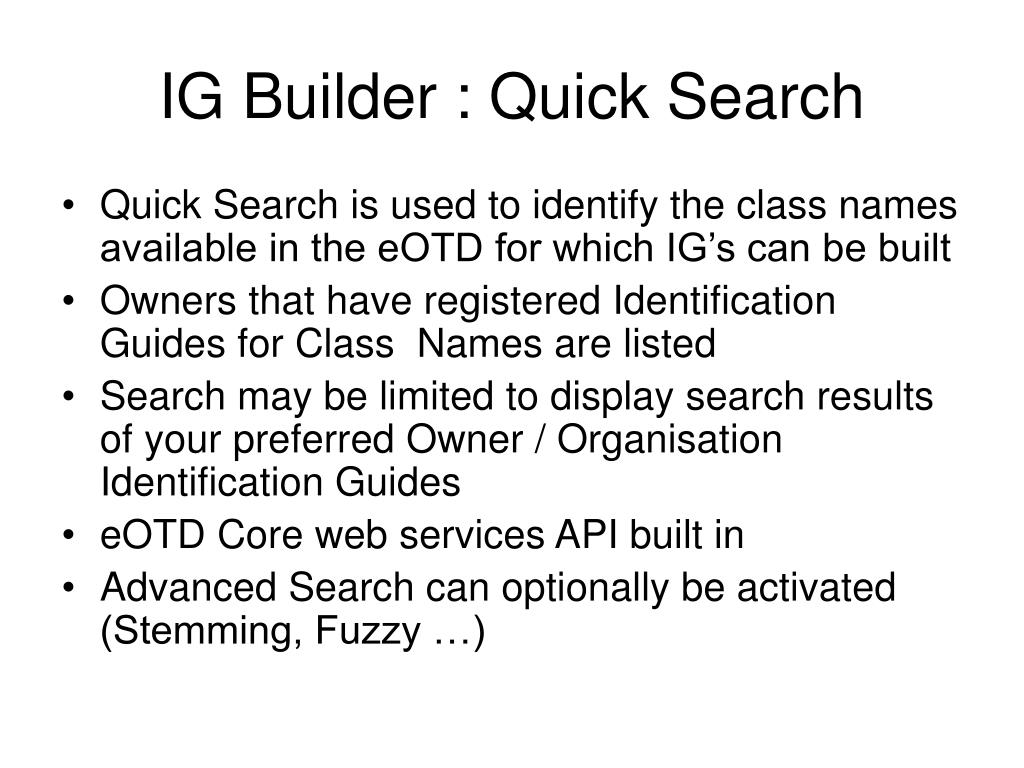

  6. IG Builder : Quick Search • Quick Search is used to identify the class names available in the eOTD for which IG’s can be built • Owners that have registered Identification Guides for Class Names are listed • Search may be limited to display search results of your preferred Owner / Organisation Identification Guides • eOTD Core web services API built in • Advanced Search can optionally be activated (Stemming, Fuzzy …)

  7. Class Name Search Results • Two Class Name result sets are available • eOTD Core Search Result list classes of the eOTD • IG Classes Search Result list Identification Guides per Owner , IG Header information is displayed e.g. Title , Version , Owner Reference • Tooltips on mouse over fields to indicate the appropriate action “Double Click to ….”

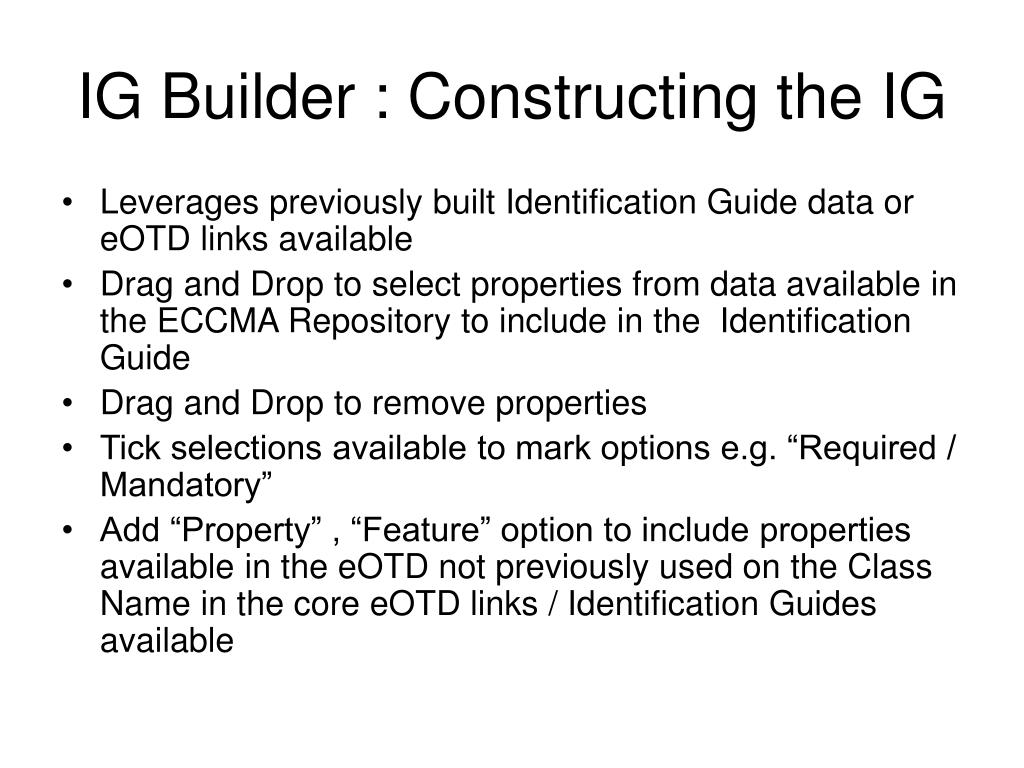

  8. IG Builder : Constructing the IG • Leverages previously built Identification Guide data or eOTD links available • Drag and Drop to select properties from data available in the ECCMA Repository to include in the Identification Guide • Drag and Drop to remove properties • Tick selections available to mark options e.g. “Required / Mandatory” • Add “Property” , “Feature” option to include properties available in the eOTD not previously used on the Class Name in the core eOTD links / Identification Guides available

  9. IG Builder : Adding Constraints • Multiple Constraints can be added to a property of the Identification Guide • All eOTD data is available for inclusion as constraints • Language selection as filter option • Popup Data Selection listboxes include search functionality built that includes the core eOTD web services API • Concept Types available in listbox as option for filtering on the eOTD (ie UOM , Value…)

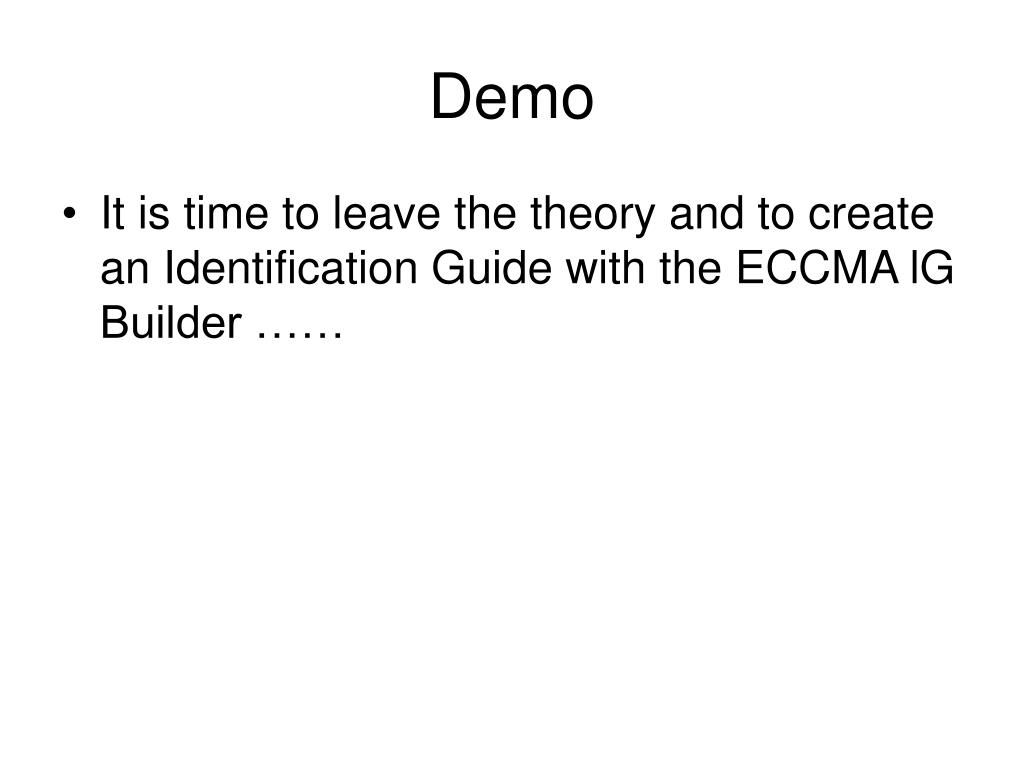

  10. Demo • It is time to leave the theory and to create an Identification Guide with the ECCMA lG Builder ……
