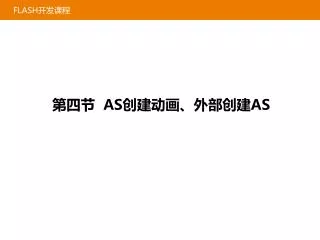

第四节 AS 创建动画、外部创建 AS

第四节 AS创建动画、外部创建AS

FLASH最新消息： Flash Player 10.1 很多新特性比如： Http协议的视频流（HTTP video streaming）,内容保护（ content protection）,全局错误处理（ global error handling）, 还有就是多点触摸支持（ multi-touch）.目前支持的手机系统包括Symbian S60,Android,Palm和Windows Mobile 6.5,采用H.264标准,支持高通的SnapDragon和NVIDIA GeForce,Atom和Tegra,支持多触摸和加速计以及视频硬件加速. Flash to iphone的发布 Adobe公司日前宣布了将大举挺进智能手机市场的Flash Player 10.1，其面向Windows、Mac OS、Linux以及Windows Mobile和Palm WebOS的Beta版本将于年内问世，明年则提供对Google Android和Symbian的支持，此后还有黑莓，却独缺iPhone。在日前召开的Adobe MAX 2009展会上，Adobe展示了Flash Professional CS5软件，它可以直接编译iPhone原生应用软件。开发者在Flash Professional CS5中完成所有Flash制作工作后，不需要经过iPhone SDK，就可以直接选择输出为.ipa格式。 AMD/ATI GPU 加速支持lash Player 10.1 Flash将支持多点触摸

据Adobe统计,Flash运用在网络75%的视频和70%的游戏上,普及率高达93%,而Flash Player 10也高达81%,远超对手Silverlight和Sun. Adobe在下一个版本的Flash也就是 Flash 10.1中就会完全支持GPU，GPU将完全替代CPU的角色，全程负责Flash的处理以及渲染。

4.1 控制MC的属性 MC的常用属性： X、y、rotation、alpha、scaleX、scaleY、visible 改变属性： MC.属性 = 值；增加和减少属性： star_mc.addEventListener(MouseEvent.CLICK,rotateStar); function rotateStar(e:MouseEvent):void { star_mc.rotation += 5; }

4.1 控制MC的属性 • 使用ENTER_FRAME控制影片属性创建动画 addEventListener(Event.ENTER_FRAME, starMove); function starMove(e:Event):void { if (star_mc.x < stage.stageWidth) { star_mc.x += 2; } else { star_mc.x = 0; } } • 取消ENTER_FRAME事件： removeEventListener(Event.ENTER_FRAME, starMove);

4.1 控制MC的属性 • 保存影片剪辑的引用 var instrument:MovieClip = banjo; instrument_txt.text = "The Banjo has been selected."; violin.addEventListener(MouseEvent.CLICK,onViolin); banjo.addEventListener(MouseEvent.CLICK,onBanjo); trumpet.addEventListener(MouseEvent.CLICK,onTrumpet); glock.addEventListener(MouseEvent.CLICK,onGlock); function onViolin(e:MouseEvent):void { instrument = violin; instrument_txt.text = "The Violin has been selected."; } function onTrumpet(e:MouseEvent):void { instrument = trumpet; instrument_txt.text = "The Trumpet has been selected."; } function onBanjo(e:MouseEvent):void { instrument = banjo; instrument_txt.text = "The Banjo has been selected."; } function onGlock(e:MouseEvent):void { instrument = glock; instrument_txt.text = "The Glockenspiel has been selected."; }

使用按钮更改MC属性 grow_btn.addEventListener(MouseEvent.CLICK, grow); shrink_btn.addEventListener(MouseEvent.CLICK, shrink); rotate_btn.addEventListener(MouseEvent.CLICK, rotate); hide_btn.addEventListener(MouseEvent.CLICK, hideClip); show_btn.addEventListener(MouseEvent.CLICK,showClip); fadeOut_btn.addEventListener(MouseEvent.CLICK,fadeOut); fadeIn_btn.addEventListener(MouseEvent.CLICK,fadeIn); function grow(e:MouseEvent):void { Instrument.scaleX += .1; Instrument.scaleY += .1; } function shrink(e:MouseEvent):void { Instrument.scaleX -= .1; Instrument.scaleY -= .1; } function rotate(e:MouseEvent):void { Instrument.rotation += 5; } function hideClip(e:MouseEvent):void { instrument.visible = false; } function showClip(e:MouseEvent):void { instrument.visible = true; } function fadeOut(e:MouseEvent):void { instrument.alpha = .5; } function fadeIn(e:MouseEvent):void { instrument.alpha = 1; } 4.1 控制MC的属性

4.2 使用AS补间和缓动类创建动画 • 创建Tween类的实例 var growX:Tween = new Tween(instrument, "scaleX", Elastic.easeOut, .2, 2, 3, true); • 导入补间和缓动类 import fl.transitions.Tween; import fl.transitions.easing.*;

function grow(e:MouseEvent):void { var growX:Tween = new Tween(instrument, "scaleX", Elastic.easeOut, .2, 2, 3, true); var growY:Tween = new Tween(instrument, "scaleY", Elastic.easeOut, .2, 2, 3, true); } function shrink(e:MouseEvent):void { var shrinkX:Tween = new Tween(instrument, "scaleX", Elastic.easeOut, 2, .5, 3, true); var shrinkY:Tween = new Tween(instrument, "scaleY", Elastic.easeOut, 2, .5, 3, true); } function rotate(e:MouseEvent):void { var spin:Tween = new Tween(instrument, "rotation", Elastic.easeOut, 0, 360, 5, true) } function hideClip(e:MouseEvent):void { instrument.visible = false; } function showClip(e:MouseEvent):void { instrument.visible = true; } function fadeOut(e:MouseEvent):void { var tweenfadeOut:Tween = new Tween(instrument, "alpha", None.easeOut, 1, 0, 3, true); } function fadeIn(e:MouseEvent):void { var tweenfadeIn:Tween = new Tween(instrument, "alpha", None.easeIn, instrument.alpha, 1, 3, true); } 4.2 使用AS补间和缓动类创建动画

4.3 创建独立AS文件 • 菜单：新建，ActionScript文件，与fla文件放到一起。 • 类的创建：类名、as文件名、构造函数名必须一致。 • package 、public、class、extends • 类、构造函数必须是public package { import flash.display.MovieClip; public class Ellipse extends MovieClip { public function Ellipse(w:Number=40,h:Number=40, color:uint=0xff0000) { graphics.beginFill(color); graphics.drawEllipse(0, 0, w, h); graphics.endFill(); } } }

4.3 创建独立AS文件 • 函数的参数：可选参数和必要参数 • public function Ellipse(w:Number=40,h:Number=40, color:uint=0xff0000) • 绘制椭圆 • graphics.beginFill(color); • graphics.drawEllipse(0, 0, w, h); • graphics.endFill(); • 颜色值：16进制，0xFFFFFF （0xRGB）

4.4 FLASH中创建类文件实例 • var ellipse:Ellipse = new Ellipse(10, 10, color); • addChild(ellipse); • New关键字 • addChild() • removeChild()

4.4 FLASH中创建类文件实例 • 复杂效果：涂鸦 • var color:Number; • stage.addEventListener(MouseEvent.MOUSE_DOWN, startDrawing); • function startDrawing(e:MouseEvent):void { • var ellipse:Ellipse = new Ellipse(); • addChild(ellipse); • ellipse.x = mouseX; • ellipse.y = mouseY; • }

4.4 FLASH中创建类文件实例 • 复杂效果：涂鸦 • var color:Number; • stage.addEventListener(MouseEvent.MOUSE_DOWN, startDrawing); • stage.addEventListener(MouseEvent.MOUSE_UP, stopDrawing); • function startDrawing(e:MouseEvent):void { • stage.addEventListener(MouseEvent.MOUSE_MOVE, makeShapes); • color = Math.random() * 0xFFFFFF; • } • function stopDrawing(e:MouseEvent):void { • stage.removeEventListener(MouseEvent.MOUSE_MOVE, makeShapes) • } • function makeShapes(e:MouseEvent):void { • var ellipse:Ellipse = new Ellipse(10, 10, color); • addChild(ellipse); • ellipse.x = mouseX; • ellipse.y = mouseY; • }

本节作业：

See you
