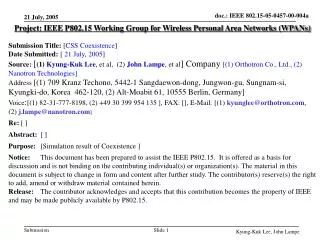

  1. Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [CSS Coexistence] Date Submitted: [21 July, 2005] Source:[(1) Kyung-Kuk Lee, et al, (2)John Lampe, et al] Company [(1) Orthotron Co., Ltd., (2) Nanotron Technologies] Address [(1) 709 Kranz Techono, 5442-1 Sangdaewon-dong, Jungwon-gu, Sungnam-si, Kyungki-do, Korea 462-120, (2) Alt-Moabit 61, 10555 Berlin, Germany] Voice:[(1) 82-31-777-8198, (2) +49 30 399 954 135 ], FAX: [], E-Mail: [(1) kyunglee@orthotron.com, (2) j.lampe@nanotron.com] Re: [ ] Abstract: [ ] Purpose: [Simulation result of Coexistence ] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15. Kyung-Kuk Lee, John Lampe

  2. CSS-Coexistence by Kyung-Kuk Lee / Jong-Wha Chong, Sang-Hun Yoon, Jin-Doo Jung, Sang-Dong Kim Orthotron Co., Ltd. / Hanyang Univ., Korea kyunglee@orthotron.com John Lampe, Rainer Hach, and Lars Menzer Nanotron Technologies GmbH, Germany j.lampe@nanotron.com Kyung-Kuk Lee, John Lampe

  3. CSS interfered with 15.1 • Tx Power of interferer: 0dBm • Rx Sensitivity of CSS: -80dBm • Tx Data Packet Size : 32 Byte Tx MASK of 15.1 Rx MASK of CSS Kyung-Kuk Lee, John Lampe

  4. CSS interfered with 15.1 Kyung-Kuk Lee, John Lampe

  5. CSS interfered with 15.1 Kyung-Kuk Lee, John Lampe

  6. 15.1 interfered with CSS • Tx Power of interferer: 0 dBm • Rx Sensitivity of CSS: -70dBm • Tx Data Packet Size : 1024 Byte Tx MASK of CSS Rx MASK of 15.1 Kyung-Kuk Lee, John Lampe

  7. 15.1 interfered with CSS Kyung-Kuk Lee, John Lampe

  8. CSS interfered with 11b • Tx Power of interferer: 14dBm • Rx Sensitivity of CSS: -80dBm • Tx Data Packet Size : 32 Byte Tx MASK of 11b Rx MASK of CSS Kyung-Kuk Lee, John Lampe

  9. CSS interfered with 11b Kyung-Kuk Lee, John Lampe

  10. 11B interfered with CSS • Tx Power of interferer: 0 dBm • Rx Sensitivity of CSS: -76dBm • Tx Data Packet Size : 1024 Byte Tx MASK of CSS Rx MASK of 11b Kyung-Kuk Lee, John Lampe

  11. 11B interfered with CSS Kyung-Kuk Lee, John Lampe

  12. 11B interfered with CSS Kyung-Kuk Lee, John Lampe
