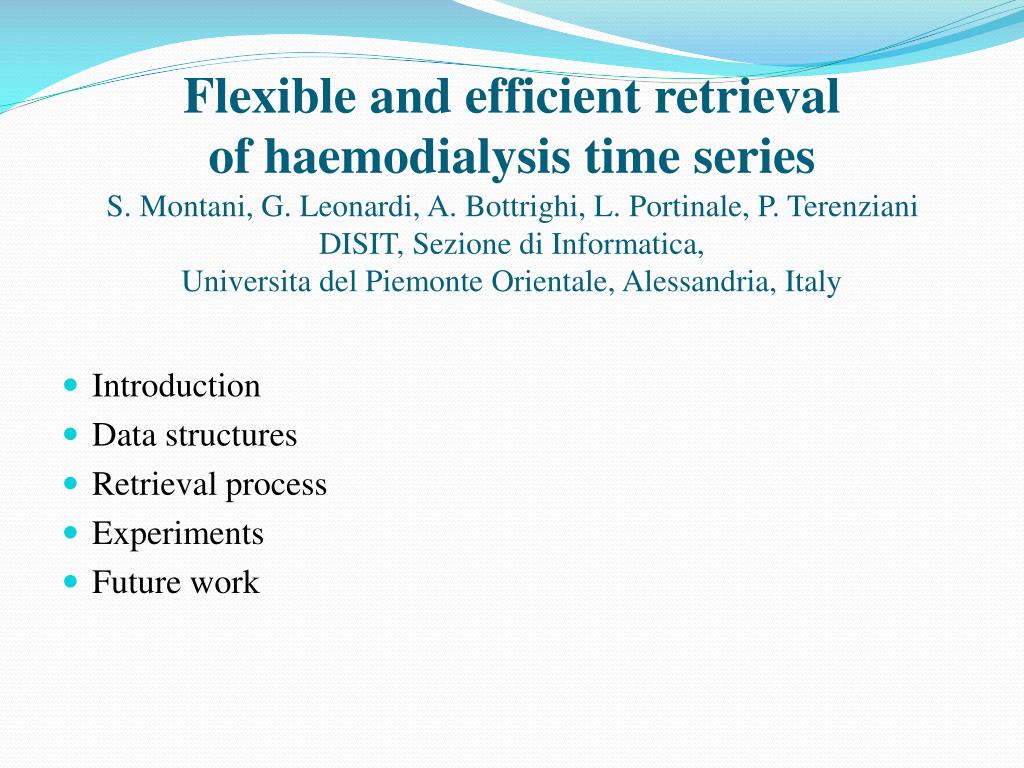

  1. Flexible and efficient retrieval of haemodialysis time seriesS. Montani, G. Leonardi, A. Bottrighi, L. Portinale, P. TerenzianiDISIT, Sezione di Informatica, Universita del Piemonte Orientale, Alessandria, Italy • Introduction • Data structures • Retrieval process • Experiments • Future work

  2. Introduction: Time Series - evolution of a phenomenon over time, to understand its behavior for future problem solving • TIME SERIES • Medical domain: continuous monitoring, control instruments (e.g., ICU, homodialysis) • State variables (e.g, distolic pressure value) vstrend variables (e.g., increasing, decreasing) • PROBLEM: difficult interpretation and retrieval – e.g. - find similar cases, - find “abstract” cases, - understand results to interactively refine\relax search

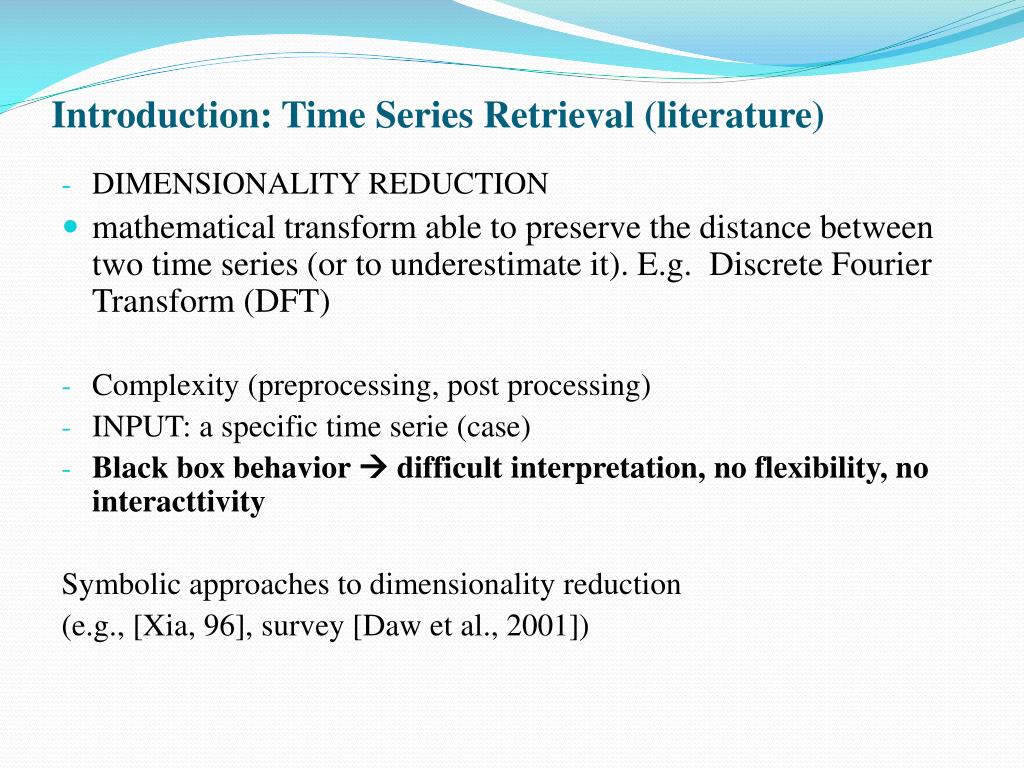

  3. Introduction: Time Series Retrieval (literature) • DIMENSIONALITY REDUCTION • mathematical transform able to preserve the distance between two time series (or to underestimate it). E.g. Discrete Fourier Transform (DFT) • Complexity (preprocessing, post processing) • INPUT: a specific time serie (case) • Black box behavior  difficult interpretation, no flexibility, no interacttivity Symbolic approaches to dimensionality reduction (e.g., [Xia, 96], survey [Daw et al., 2001])

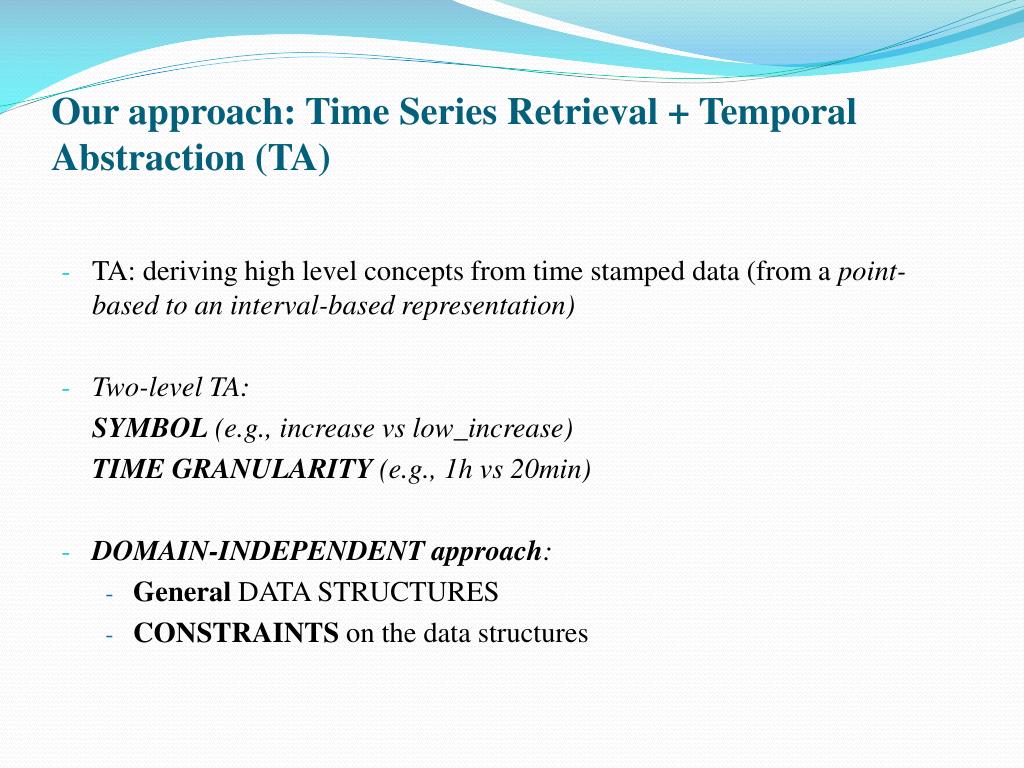

  4. Our approach: Time Series Retrieval + Temporal Abstraction (TA) • TA: deriving high level concepts from time stamped data (from a point-based to an interval-based representation) • Two-level TA: SYMBOL (e.g., increase vslow_increase) TIME GRANULARITY (e.g., 1h vs 20min) • DOMAIN-INDEPENDENT approach: • General DATA STRUCTURES • CONSTRAINTS on the data structures

  5. DATA STRUCTURES: SYMBOL TAXONOMY Example!! • SYMBOL ORDERING naturally emerges from the domain dependent interpretation (e.g., Ds may abstract slopes from −90 to −45 degrees, thus preceding Ds (slopes from −44 to −10 degrees) - Domain-independent general constraint: symbol taxonomy must respect the ordering ∀x; y; x′; y′ ∈ isa(x; x′) ∧ isa(y; y′) ∧ x′  y′ ∧ x < y → x′ < y′

  6. DATA STRUCTURES: SYMBOL DISTANCE • ANY DISTANCE function is admitted (domain independent) - However, the DISTANCE function must be CONSISTENT with the SYMBOL ORDERING (if any) ∀x, y, z  x < y < z → d(x, y) < d(x, z)

  7. DATA STRUCTURES: TIME GRANULARITY TAXONOMY • ANY taxonomy of time granularities (to describe the episodes at increasingly more abstract levels of temporal aggregation) e.g. 10 min  30 min  1 h  2 h  4 h • HOMOGENEITY: aggregation must be “homogeneous” at every given level, in the sense that each granule at a given level must be an aggregation of exactly the same number of consecutive granules at the lower level  IMPLICIT information about DURATION of (sub)episodes • “up” function, to aggregate from each level to the upper one e.g. UP(<I,I,S>, 10 min, 30 min)  <I, 30 min>

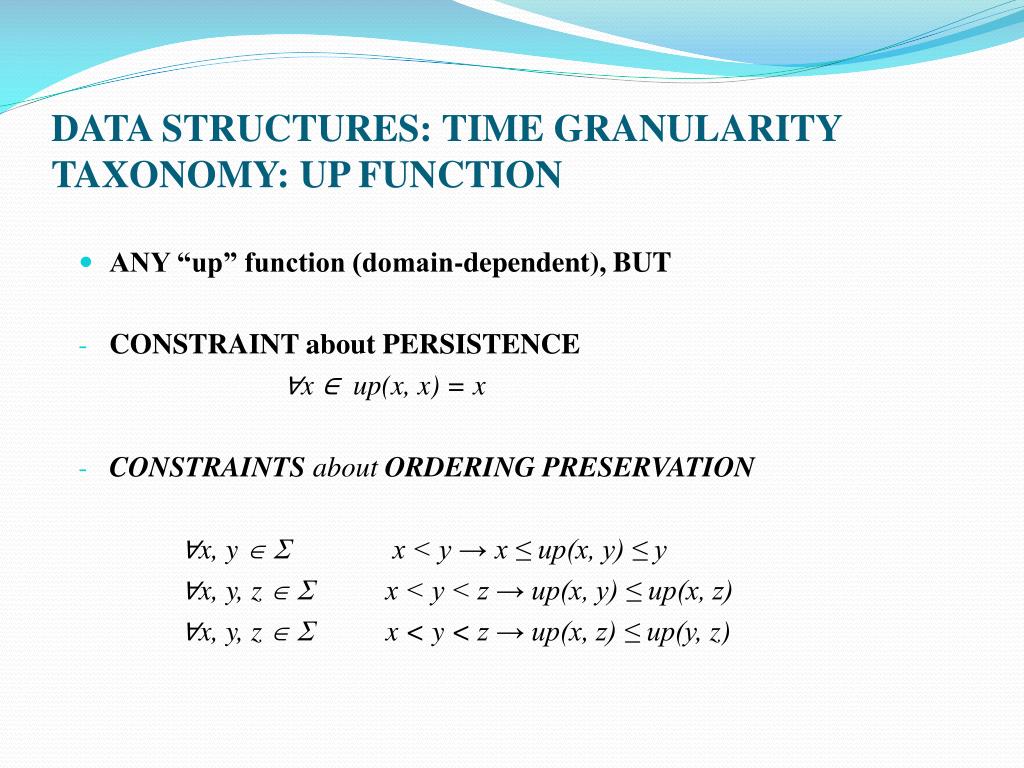

  8. DATA STRUCTURES: TIME GRANULARITY TAXONOMY: UP FUNCTION • ANY “up” function (domain-dependent), BUT • CONSTRAINT about PERSISTENCE ∀x ∈ up(x, x) = x • CONSTRAINTS about ORDERING PRESERVATION ∀x, y  x < y → x ≤ up(x, y) ≤ y ∀x, y, z  x < y < z → up(x, y) ≤ up(x, z) ∀x, y, z x <y <z → up(x, z) ≤ up(y, z)

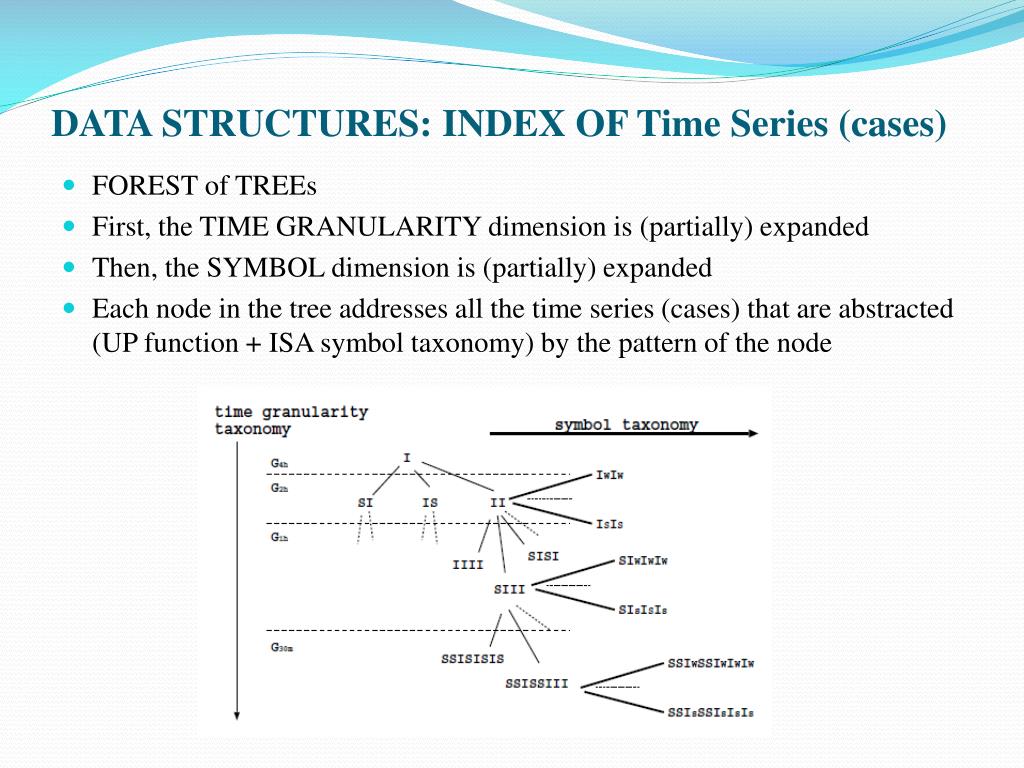

  9. DATA STRUCTURES: INDEX OF Time Series (cases) • FOREST of TREEs • First, the TIME GRANULARITY dimension is (partially) expanded • Then, the SYMBOL dimension is (partially) expanded • Each node in the tree addresses all the time series (cases) that are abstracted (UP function + ISA symbol taxonomy) by the pattern of the node

  10. BUILDING\MAINTAINING THE INDEX

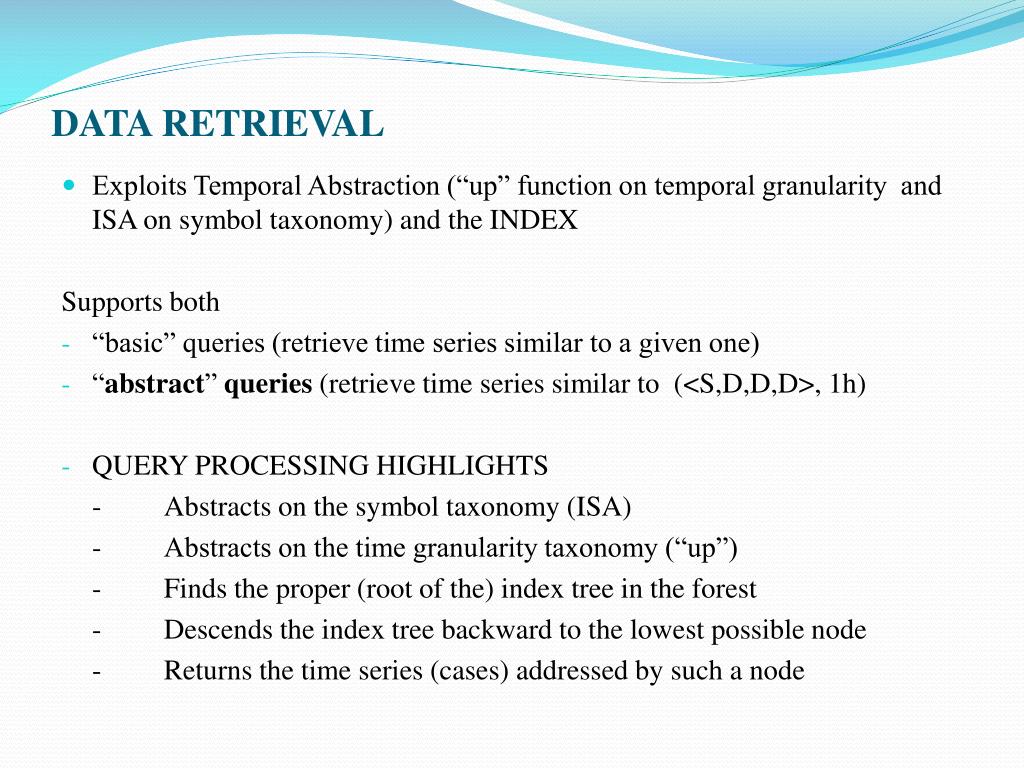

  11. DATA RETRIEVAL • Exploits Temporal Abstraction (“up” function on temporal granularity and ISA on symbol taxonomy) and the INDEX Supports both • “basic” queries (retrieve time series similar to a given one) • “abstract” queries (retrieve time series similar to (<S,D,D,D>, 1h) • QUERY PROCESSING HIGHLIGHTS - Abstracts on the symbol taxonomy (ISA) - Abstracts on the time granularity taxonomy (“up”) - Finds the proper (root of the) index tree in the forest - Descends the index tree backward to the lowest possible node - Returns the time series (cases) addressed by such a node

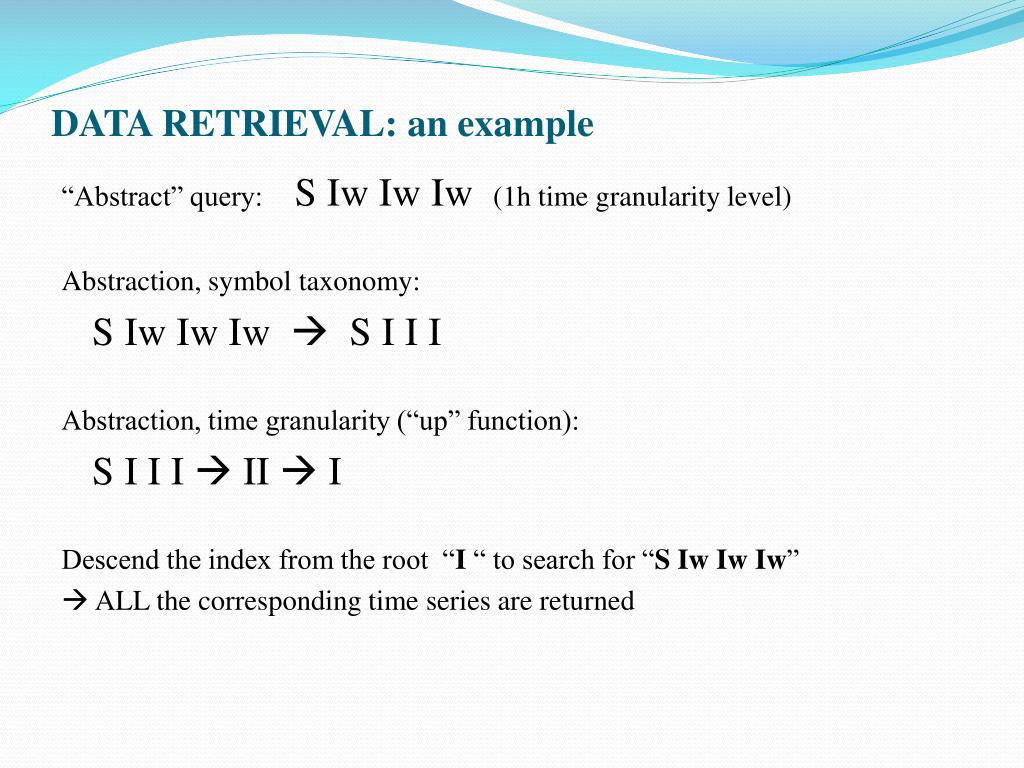

  12. DATA RETRIEVAL: an example “Abstract” query: S IwIwIw(1h time granularity level) Abstraction, symbol taxonomy: S IwIwIw S I II Abstraction, time granularity (“up” function): S I II  II  I Descend the index from the root “I “ to search for “S IwIwIw”  ALL the corresponding time series are returned

  13. DATA RETRIEVAL: advantages FLEXIBLE and UNDERSTANDABLE - “Abstract” query: S IwIwIw (1h time granularity level) • Understandable query, process and output all time series that can be abstracted as dictated by the “abstract” query are returned • Support for INTERCACTIVITY E.g., depending on the output of the query, the user may • Relax the query, eg., by asking “S I II” • Refine the query, e.g., by asking “S SIwIwIwIwIw S “

  14. DATA RETRIEVAL: Experimental Results • Dataset of 10388hemodialysissessions (i.e. cases), collected at the Vigevano hospital, Italy. • Comparisons with RHENE, an approach was based on DFT for dimensionality reduction, and on spatial indexing (through TV-trees) for further improving retrieval performances ADVANTAGES • Efficiency • Flexibility (“abstract” queries vs. specific time series) • Interactivity * Trends vs, state abstractions

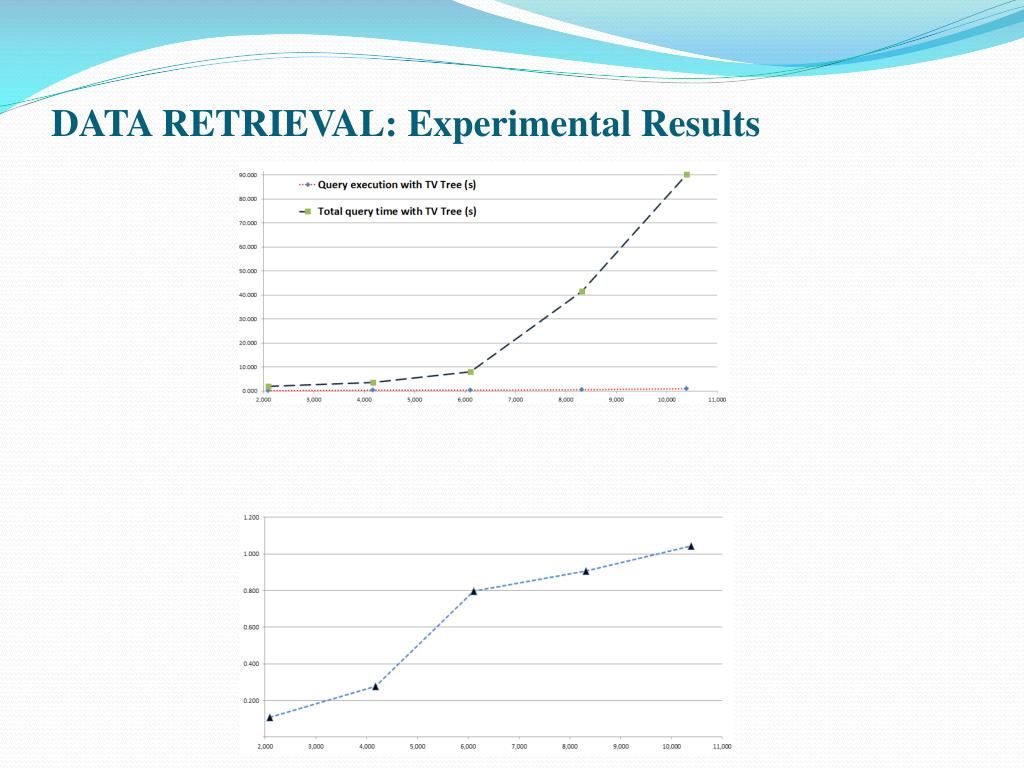

  15. DATA RETRIEVAL: Experimental Results

  16. FUTURE WORK • Queries about SUBpattrerns • Higher level queries (e.g., regular expressions)
