Calvin Hua & Lily Tian Computer Science Dep, HKUST

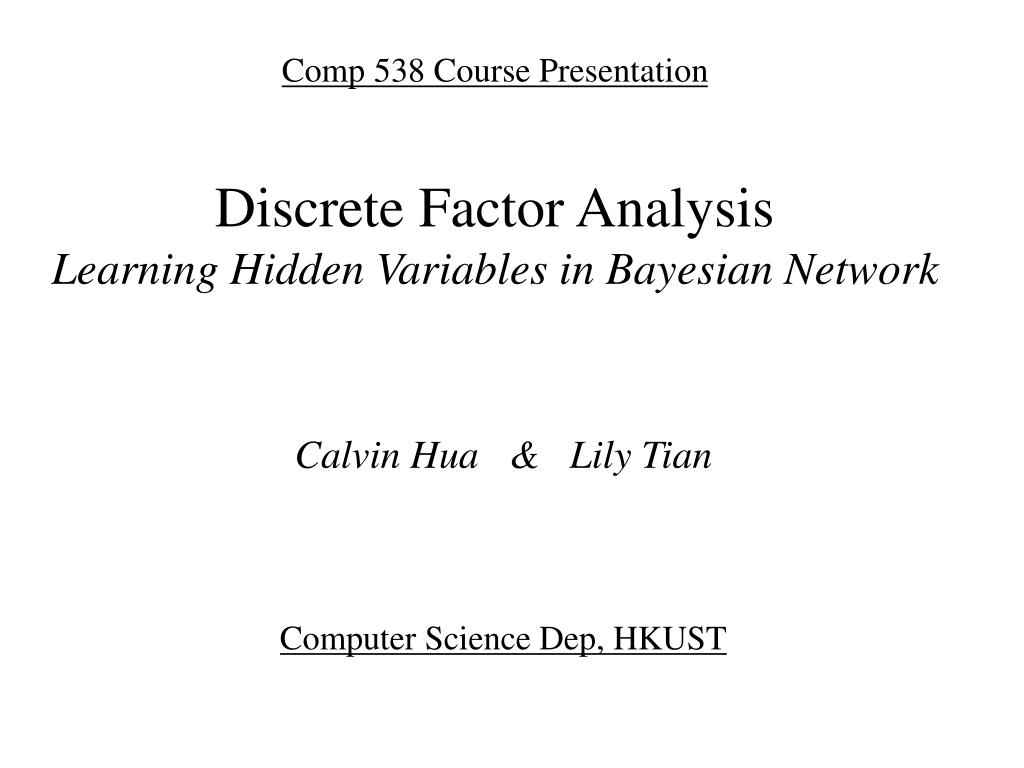

1. Comp 538 Course PresentationDiscrete Factor AnalysisLearning Hidden Variables in Bayesian Network Calvin Hua & Lily Tian Computer Science Dep, HKUST

2. Objectives and Outlines • Objective: - Present a space of BN topologies with hidden variables(or factors) and a method for rapidly learning an appropriate topology from data. • Outline: -Motivating example -Methodology * Finding the topology * Constructing the factors - Some Results & Evaluation • Q&A

3. Motivating Example • Observable Variables: • H- Hives • N-Nasal Congestion • C-Cough • S-Sore Throat N S H • Question: • What independencies are encoded? • Is the direction of each edge unique? C

4. Motivating Example (Cond.) • More compact • Inference easier • Hidden variables used to explain dependencies and independencies V A H S N C

5. Our Work DATA SET MODEL DO INFERENCE OUR WORK • Task: • How to find the topology given data(structure)? • How to construct the factors(parameters)?

6. Learning Factor Structure • Finding the topology • Decide which observable variables each factor should cover • Decide what factors to use • Constructing the factors • Determine highly probable number of values per factor • Determine highly probable conditional dependencies between factors and observable variables

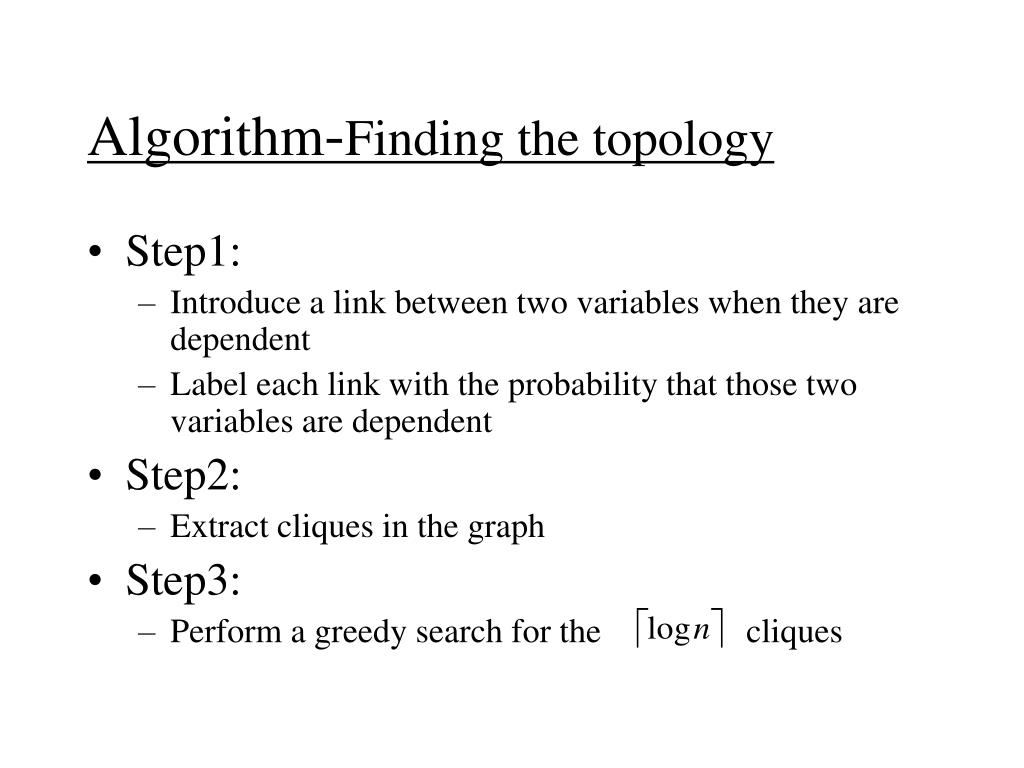

7. Algorithm-Finding the topology • Step1: • Introduce a link between two variables when they are dependent • Label each link with the probability that those two variables are dependent • Step2: • Extract cliques in the graph • Step3: • Perform a greedy search for the cliques

8. Algorithm-Step1 (Cond.) • How to test whether two variables are dependent or not? • Using Chi-Squared Test

9. Algorithm-Step2(Cond.) • Principles of extracting cliques Iterating through the variables, in each iteration we do the following : • Adding a variable to an existing clique if the variable is dependent on all other variables in that clique.

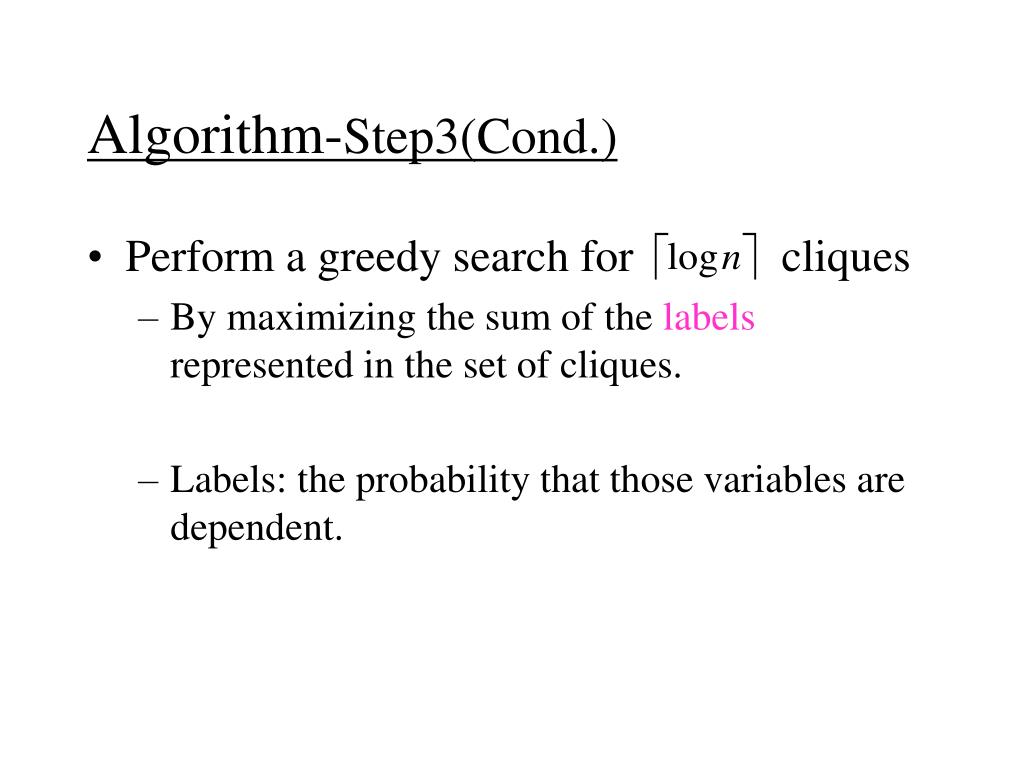

10. Algorithm-Step3(Cond.) • Perform a greedy search for cliques • By maximizing the sum of the labels represented in the set of cliques. • Labels: the probability that those variables are dependent.

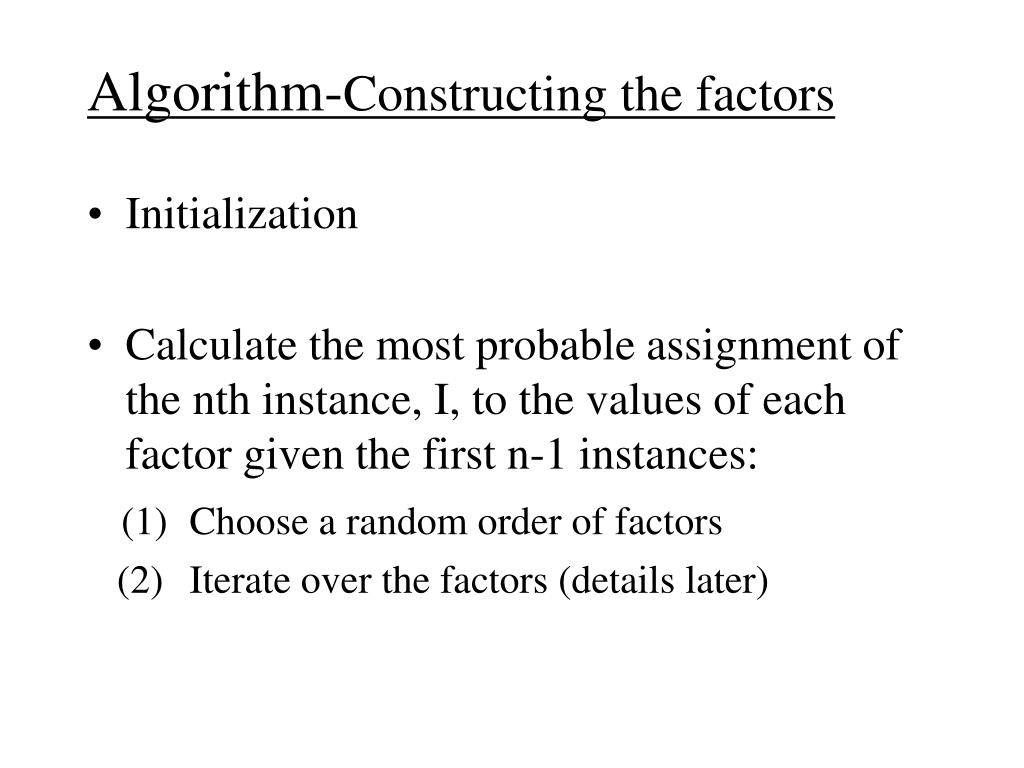

11. Algorithm-Constructing the factors • Initialization • Calculate the most probable assignment of the nth instance, I, to the values of each factor given the first n-1 instances: (1) Choose a random order of factors (2) Iterate over the factors (details later)

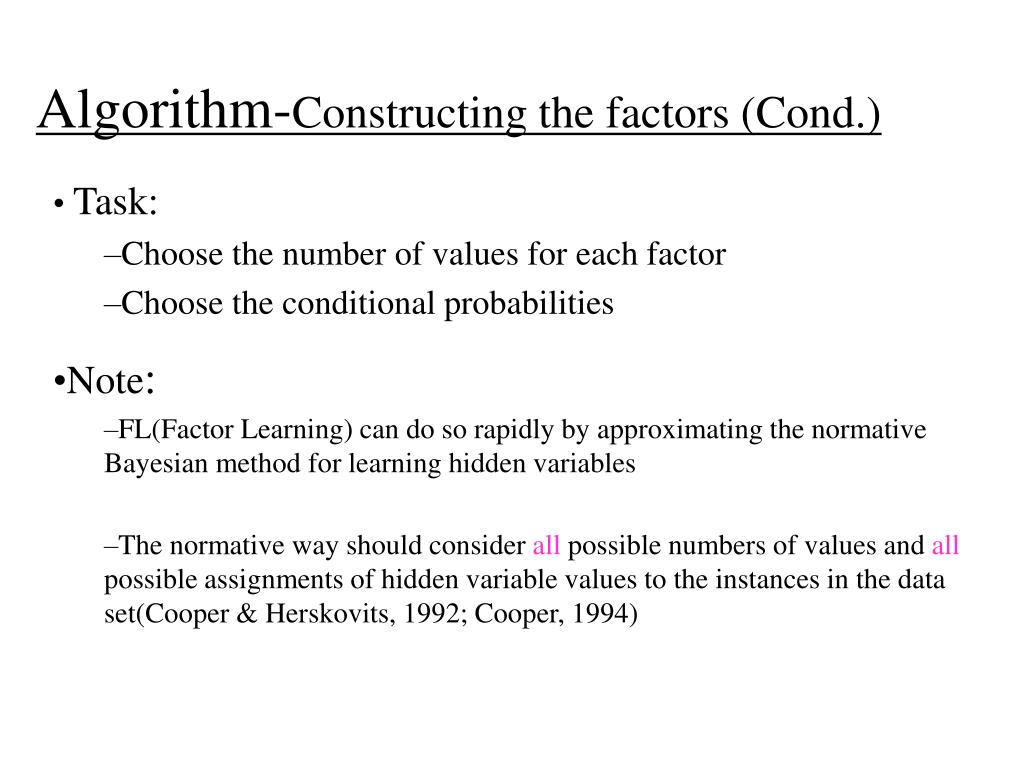

12. Algorithm-Constructing the factors (Cond.) • Task: • Choose the number of values for each factor • Choose the conditional probabilities • Note: • FL(Factor Learning) can do so rapidly by approximating the normative Bayesian method for learning hidden variables • The normative way should consider all possible numbers of values and all possible assignments of hidden variable values to the instances in the data set(Cooper & Herskovits, 1992; Cooper, 1994)

13. Algorithm-Step 2 (Cond.) • Compute for each value, , of the ith factor • Calculate the probability of a new value for the ith factor, • - Label the instance with the factor value with the maximum probability - Update the estimated prior probabilities of the ith factor’s values and the estimated conditional probabilities of the observable values given the factor’s value Note: In all cases where probabilities must be estimated from frequencies we use the following formula:

14. Some Results and Evaluation Association tested by FL M-Math P-Physics C-Chemistry G-Geology Note: In this figure, the arc’s denote the dependencies between any pair of variables M G P C

15. Some Results and Evaluation A-Analytic ability M2-Memory M-Math P-Physics C-Chemistry G-Geology A M2 C G M P

16. Some Results and Evaluation • Characteristics of factor structure • There are hidden variables, called factors. • Hidden variables can interact to influence observable variables. • It can support polynomial time probabilistic inference. • The resulting network captures conditional independencies among the observable variables.
