PHP: SimpleXML

2. PHP: SimpleXML • Read or write XML objects • …just reading XML today • Help: http://php.net/manual/en/book.simplexml.php

3. PHP: SimpleXML • Step 1: Get some XML $xmldata = simplexml_load_file(‘stuff.xml‘); (can open a file over HTTP or the local FS) $ xmldata = simplexml_load_string($mystring); • Both functions return an Object • Both functions require a well formed XML input

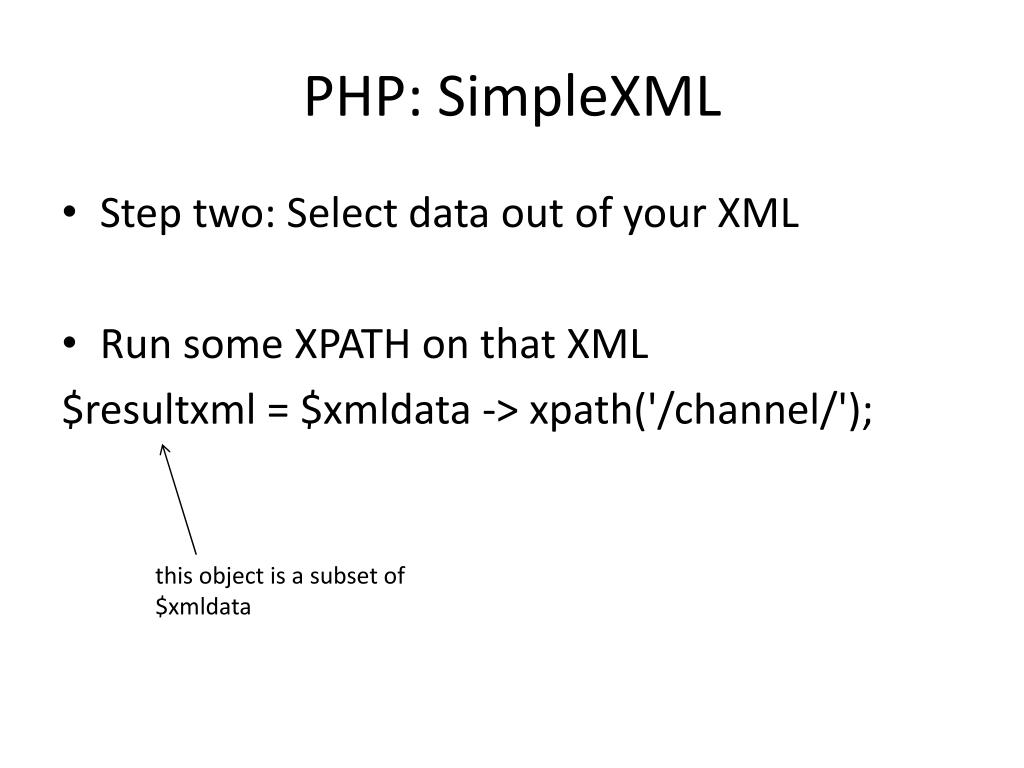

4. PHP: SimpleXML • Step two: Select data out of your XML • Run some XPATH on that XML $resultxml = $xmldata -> xpath('/channel/'); this object is a subset of $xmldata

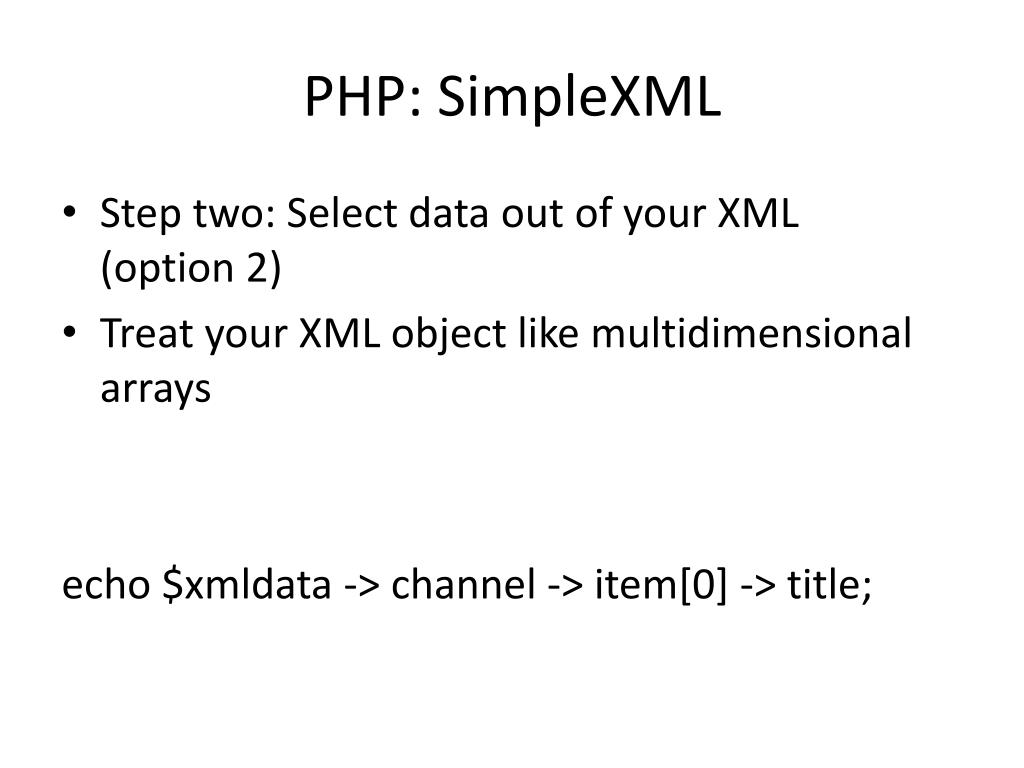

5. PHP: SimpleXML • Step two: Select data out of your XML(option 2) • Treat your XML object like multidimensional arrays echo $xmldata -> channel -> item[0] -> title;

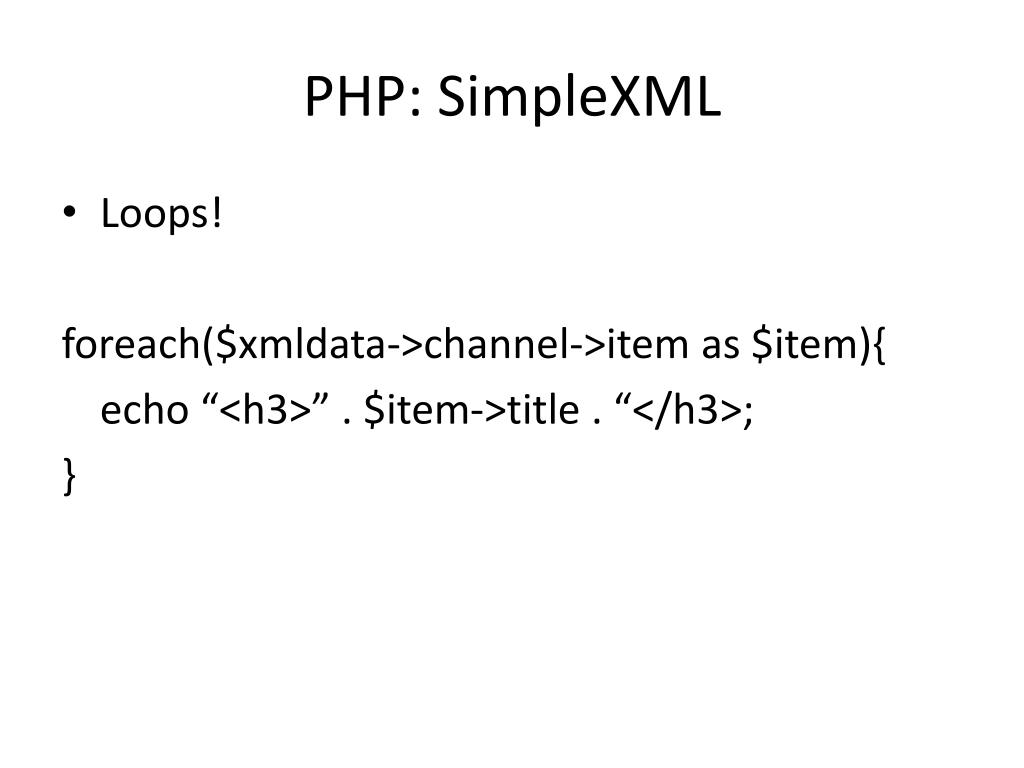

6. PHP: SimpleXML • Loops! foreach($xmldata->channel->item as $item){ echo “<h3>” . $item->title . “</h3>; }

7. PHP: SimpleXML • Attributes! $value = $xmldata->attributes()->myattribute;

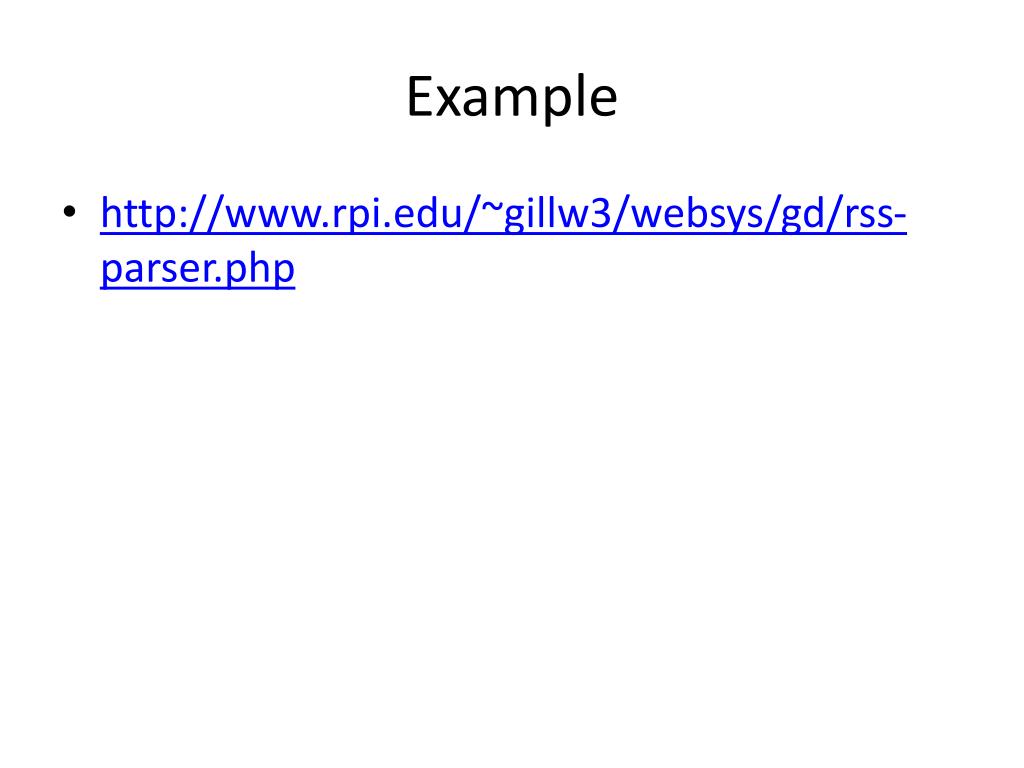

8. Example • http://www.rpi.edu/~gillw3/websys/gd/rss-parser.php

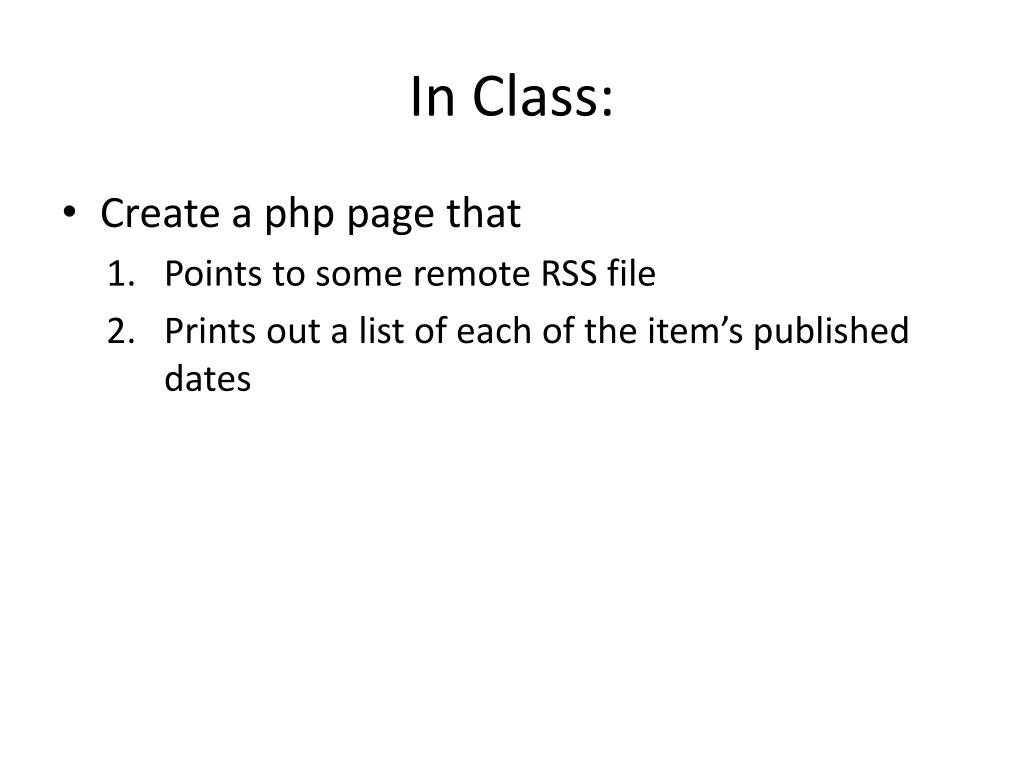

9. In Class: • Create a php page that • Points to some remote RSS file • Prints out a list of each of the item’s published dates

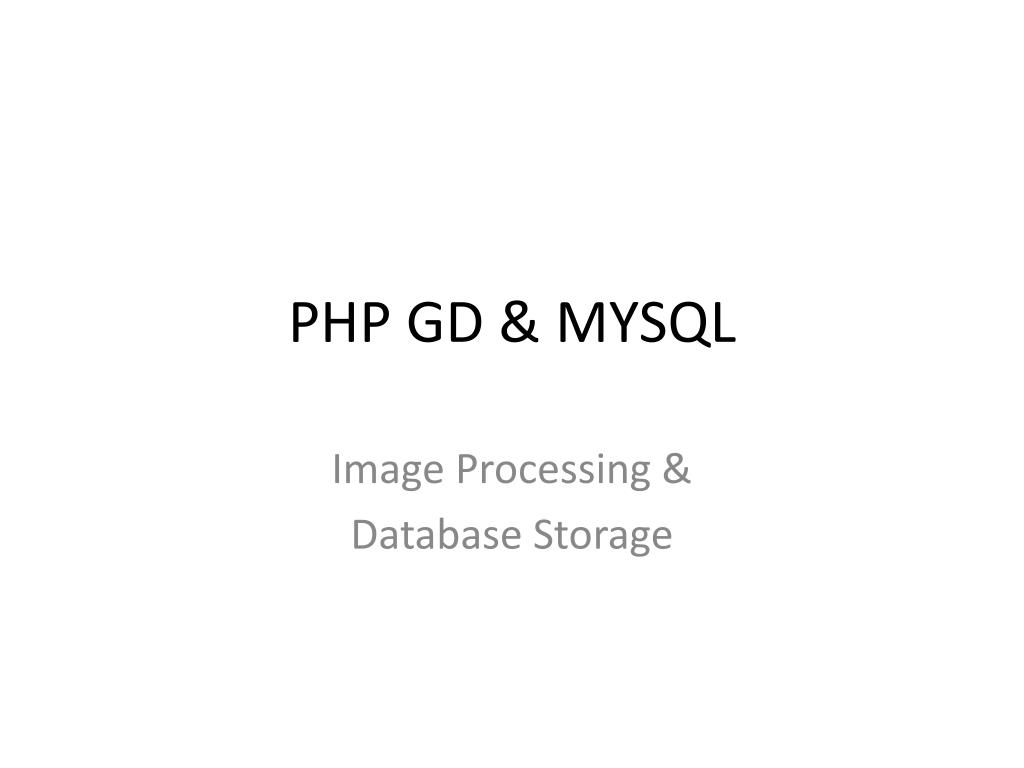

10. PHP GD & MYSQL Image Processing & Database Storage

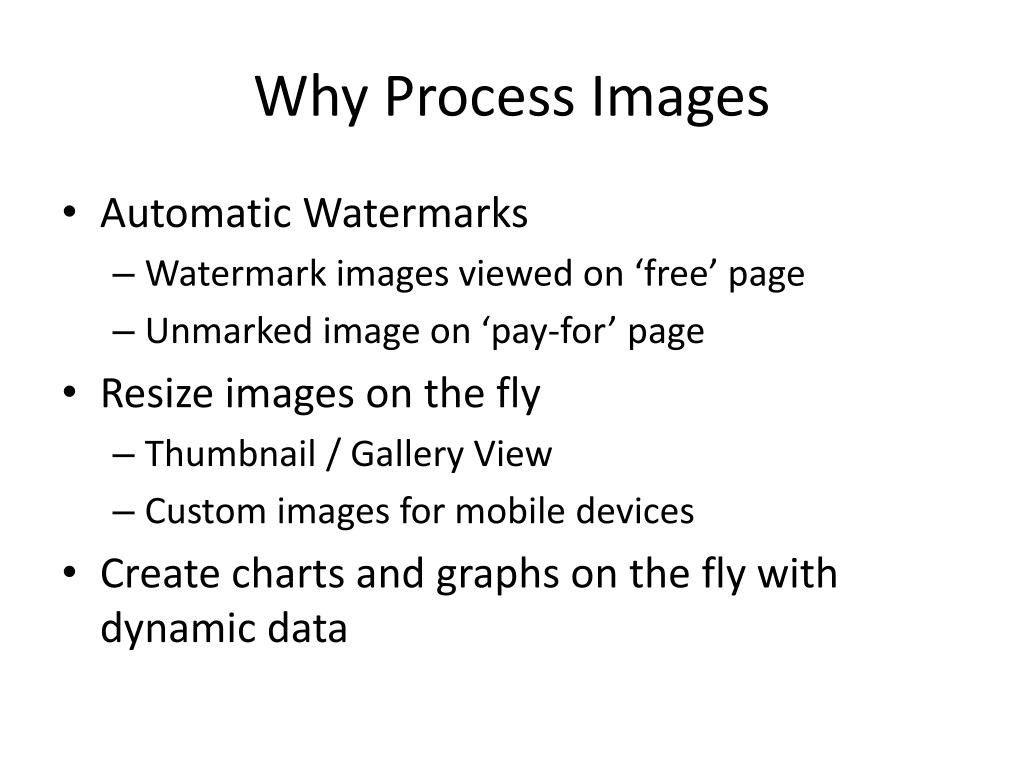

11. Why Process Images • Automatic Watermarks • Watermark images viewed on ‘free’ page • Unmarked image on ‘pay-for’ page • Resize images on the fly • Thumbnail / Gallery View • Custom images for mobile devices • Create charts and graphs on the fly with dynamic data

12. Process Once or at Every Request • Blogger, Flickr, &c all make thumbnails at the point of upload. • For high volume operations, disk space is always cheaper than processor time • Processing Requests on the fly necessary if you are customizing images every time they are loaded • Charts are updated after a set duration

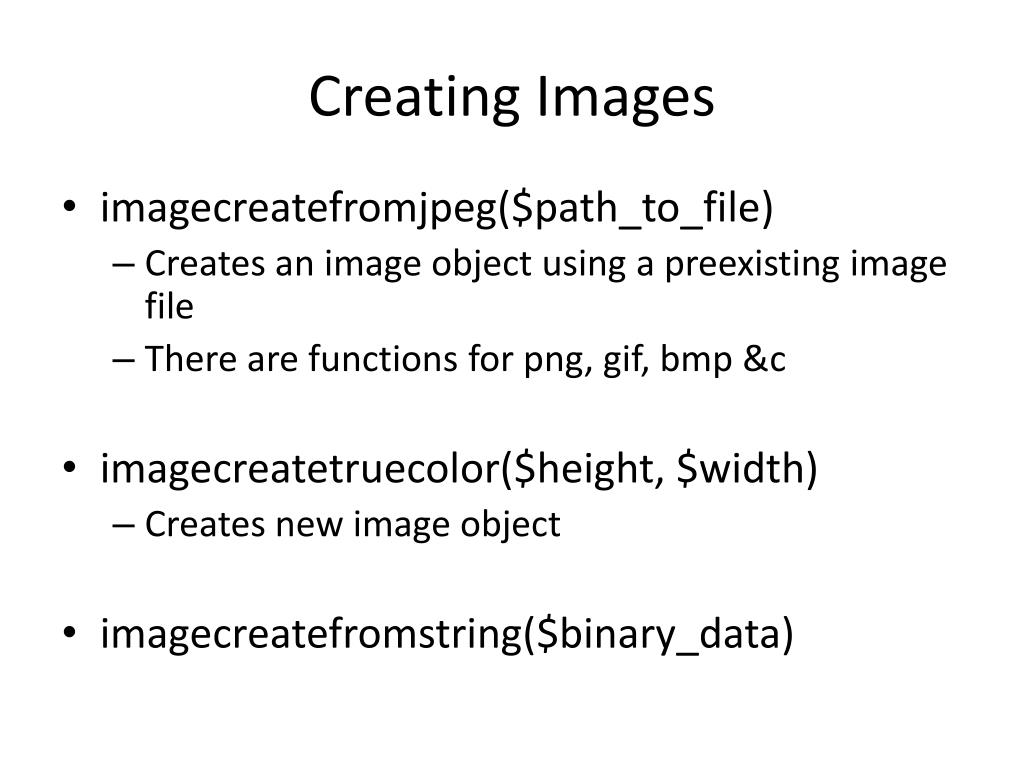

13. Creating Images • imagecreatefromjpeg($path_to_file) • Creates an image object using a preexisting image file • There are functions for png, gif, bmp &c • imagecreatetruecolor($height, $width) • Creates new image object • imagecreatefromstring($binary_data)

14. Image Properties • imagesx($image_resource) • Returns the width (in pixels) of an image object • imagesy($image_resource) • Returns the height of an image object Aspect Ratio = x/y or w/h • When resizing images, aspect ratio must be maintained

15. Outputting Images • imagejpeg($image_resource) • Outputs a jpeg format image to the browser • Other functions for png, gif, bmp &c • imagejpeg($image_resource, $path_to_file) • Saves image to the server

16. A Lame Example http://www.rpi.edu/~gillw3/websys/gd/lame.php

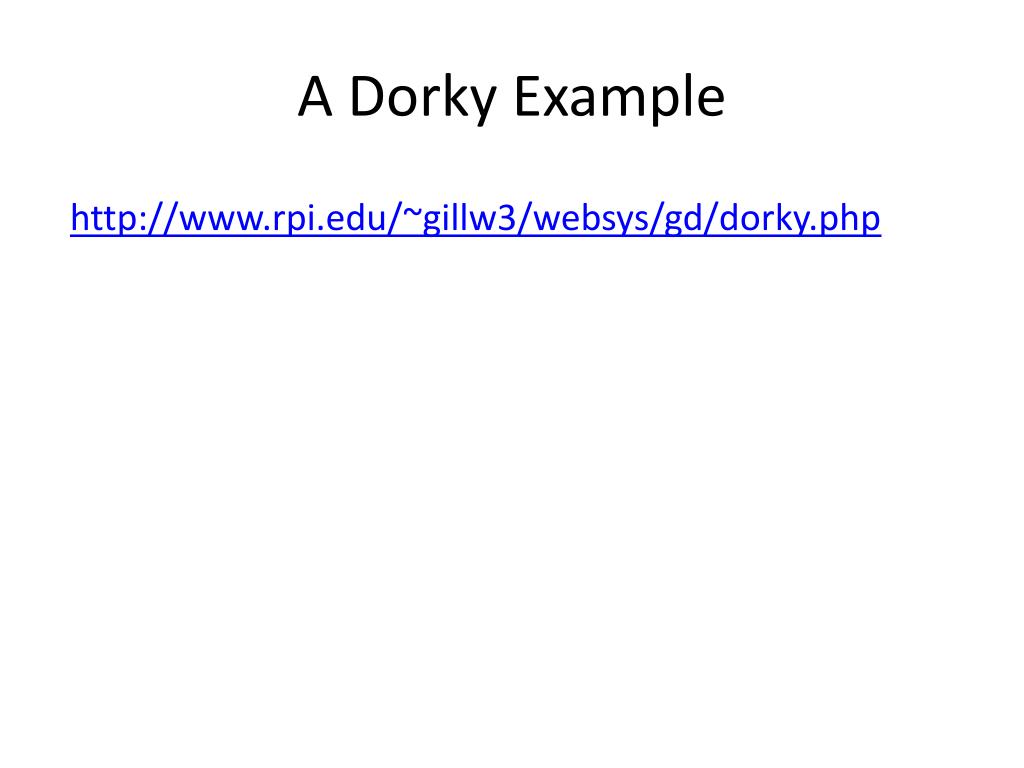

17. A Dorky Example http://www.rpi.edu/~gillw3/websys/gd/dorky.php

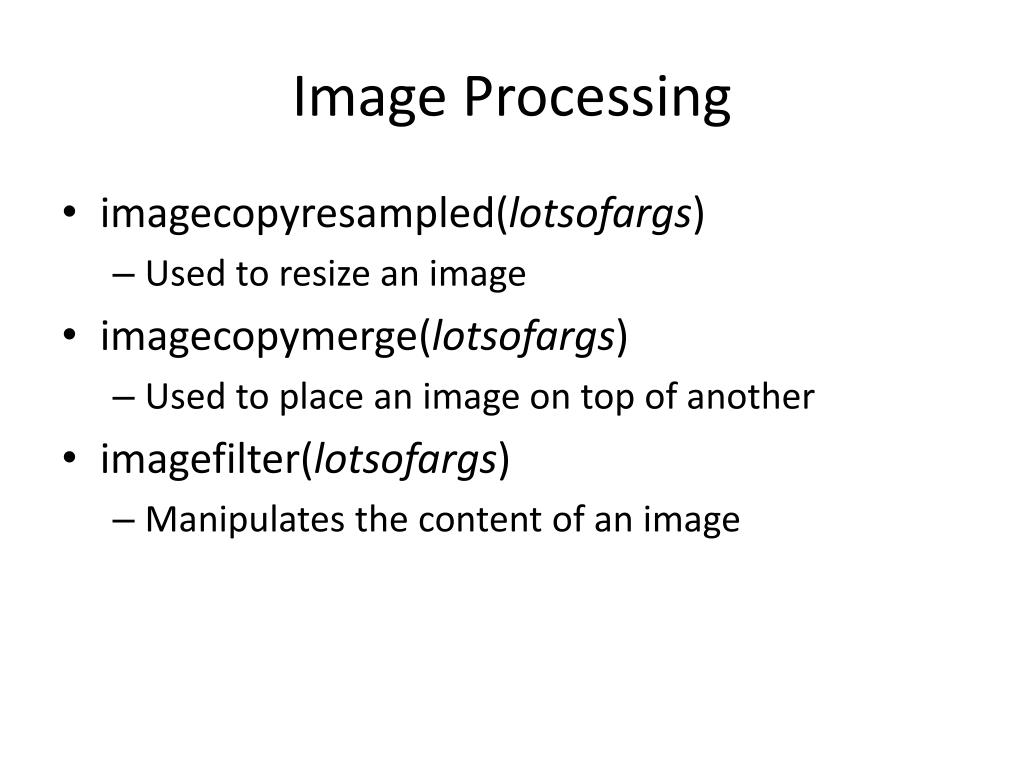

18. Image Processing • imagecopyresampled(lotsofargs) • Used to resize an image • imagecopymerge(lotsofargs) • Used to place an image on top of another • imagefilter(lotsofargs) • Manipulates the content of an image

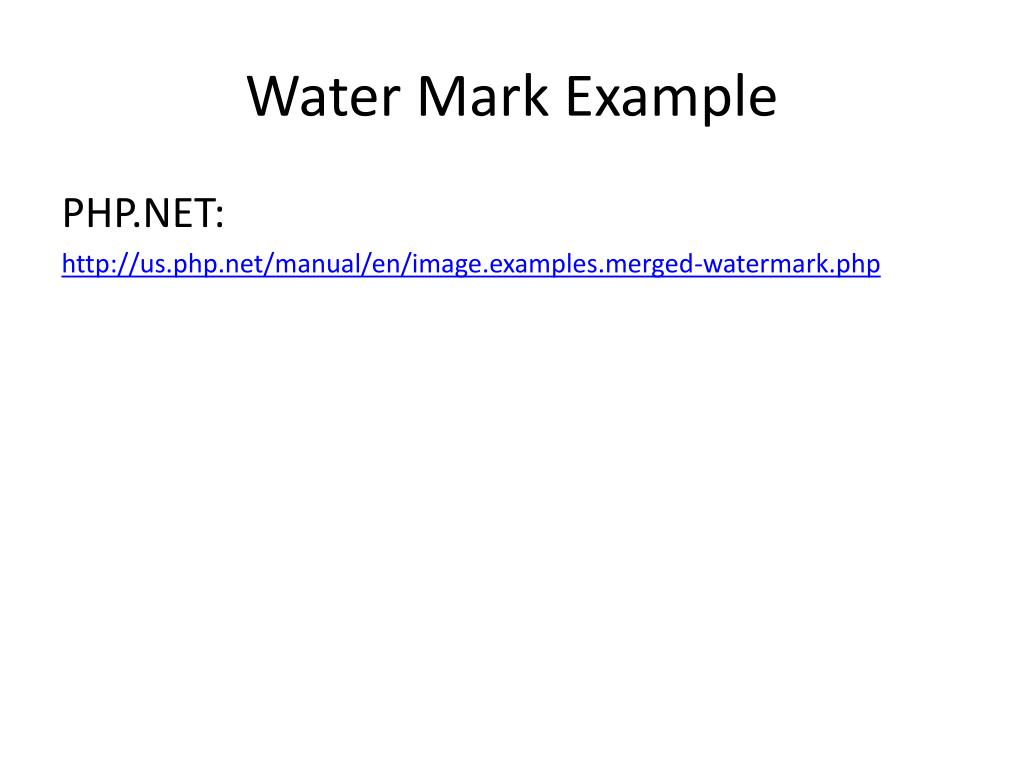

19. Water Mark Example PHP.NET: http://us.php.net/manual/en/image.examples.merged-watermark.php

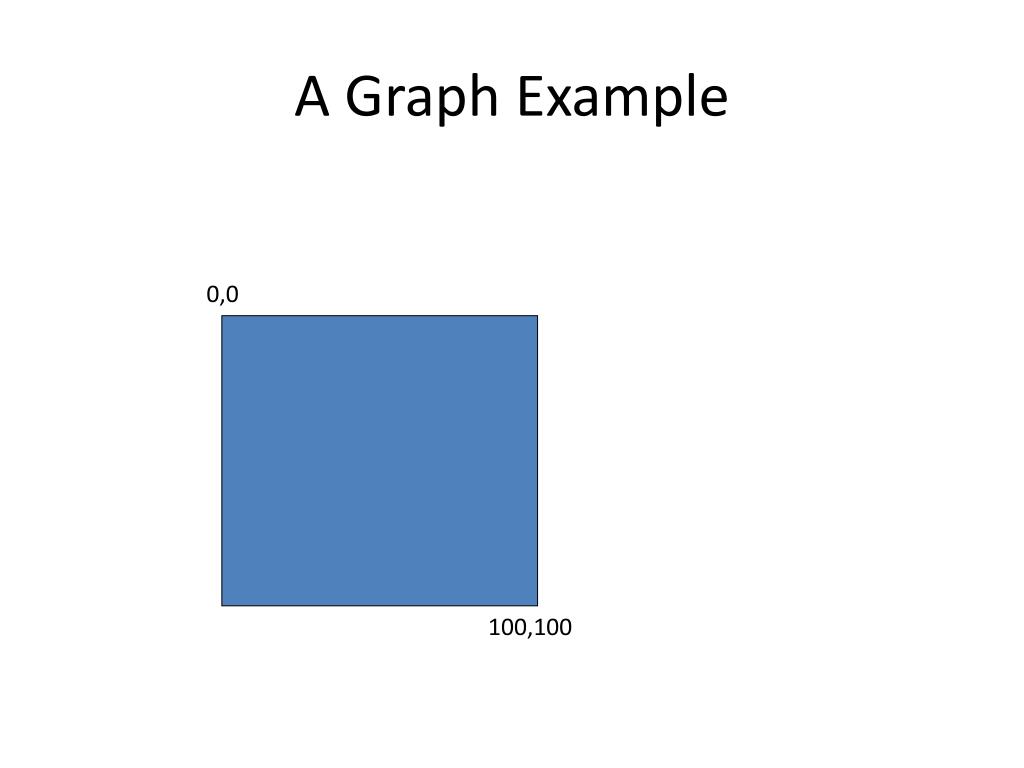

20. A Graph Example 0,0 100,100

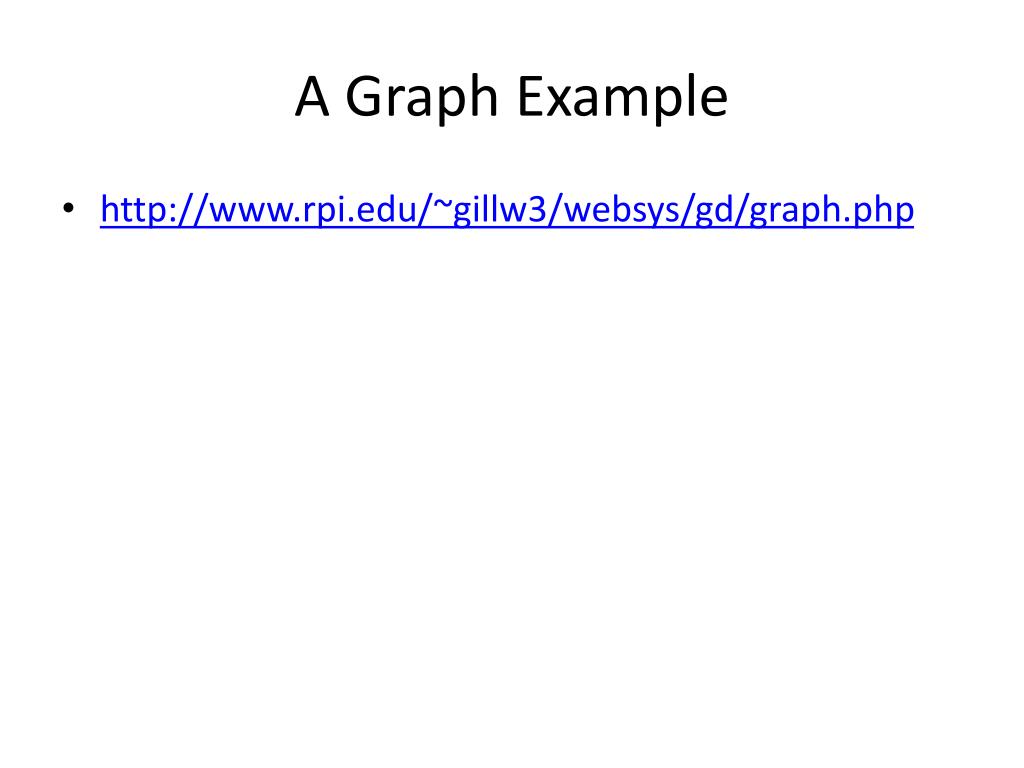

21. A Graph Example • http://www.rpi.edu/~gillw3/websys/gd/graph.php

22. Storing Images in Databases • Binary Data can be stored in fields with a ‘blob’ type • Other data to store • File type (.jpg, png…) • File size • Original file name • EXIF data • This data can be lost after GD functions are run

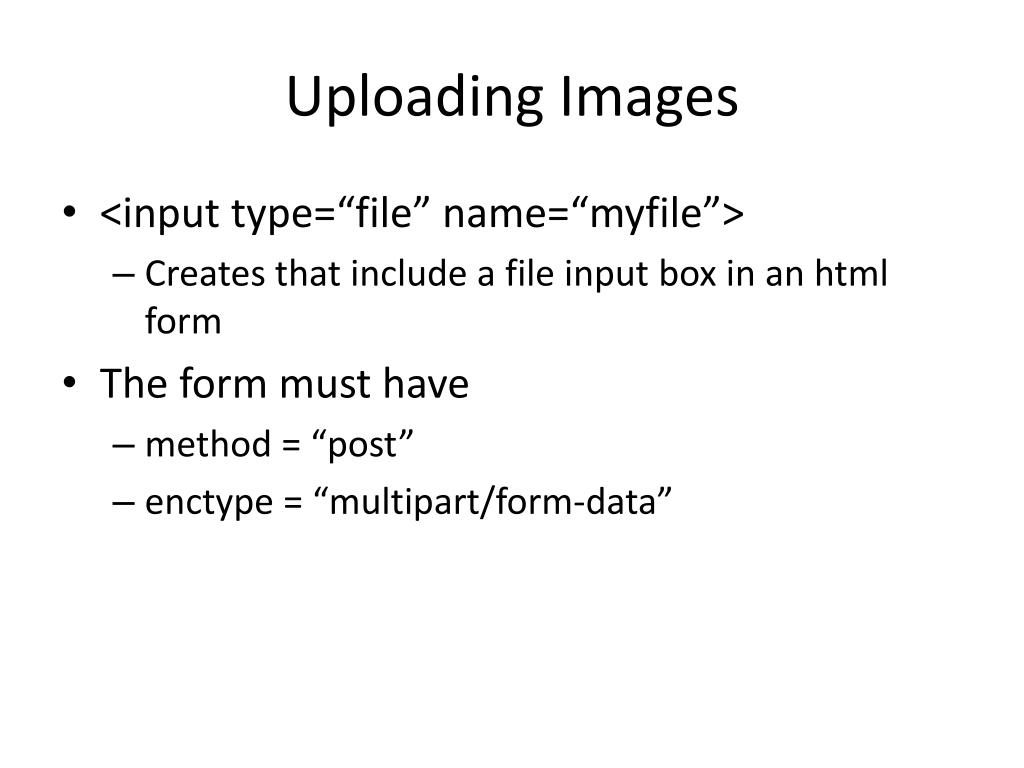

23. Uploading Images • <input type=“file” name=“myfile”> • Creates that include a file input box in an html form • The form must have • method = “post” • enctype = “multipart/form-data”

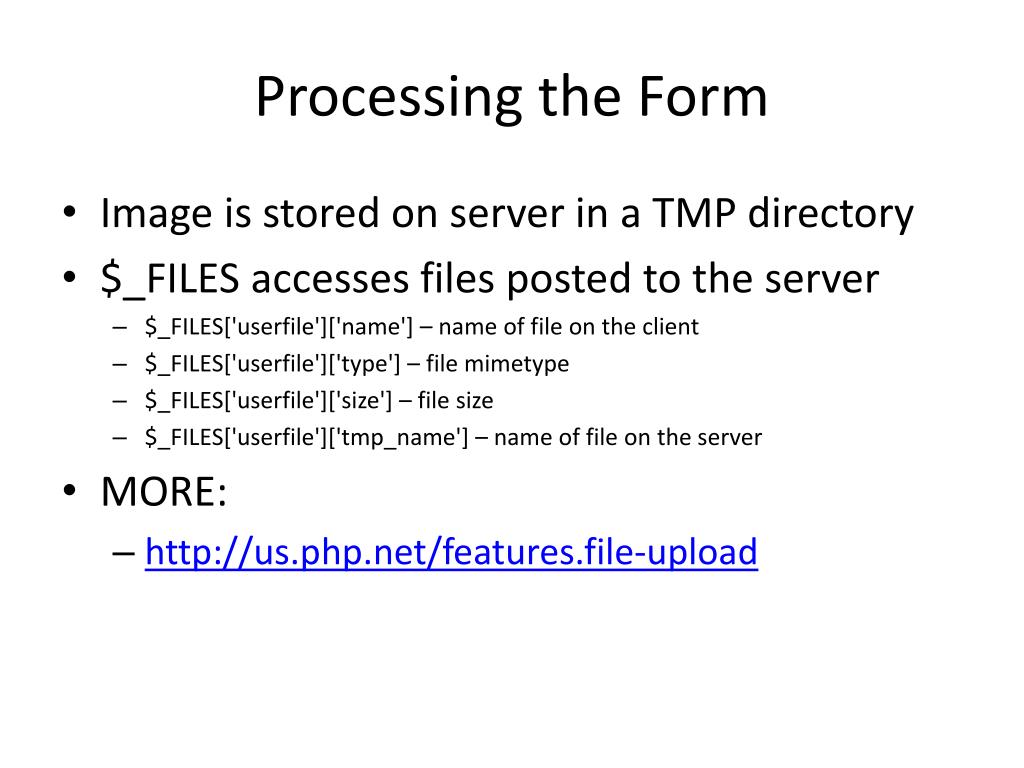

24. Processing the Form • Image is stored on server in a TMP directory • $_FILES accesses files posted to the server • $_FILES['userfile']['name'] – name of file on the client • $_FILES['userfile']['type'] – file mimetype • $_FILES['userfile']['size'] – file size • $_FILES['userfile']['tmp_name'] – name of file on the server • MORE: • http://us.php.net/features.file-upload

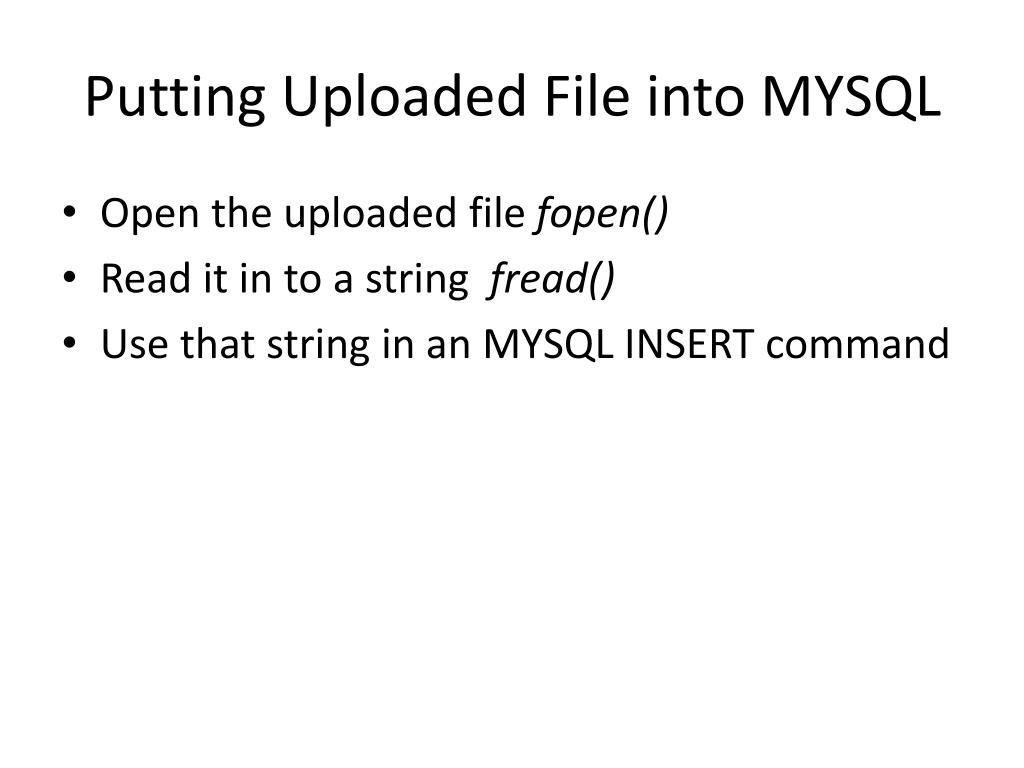

25. Putting Uploaded File into MYSQL • Open the uploaded file fopen() • Read it in to a string fread() • Use that string in an MYSQL INSERT command

26. Getting Images Out of MYSQL • Create a PHP image object from DB output • Imagecreatefromstring($row[‘img’]) • Unlike other Imagecreate functions, it auto-detects the image encoding type

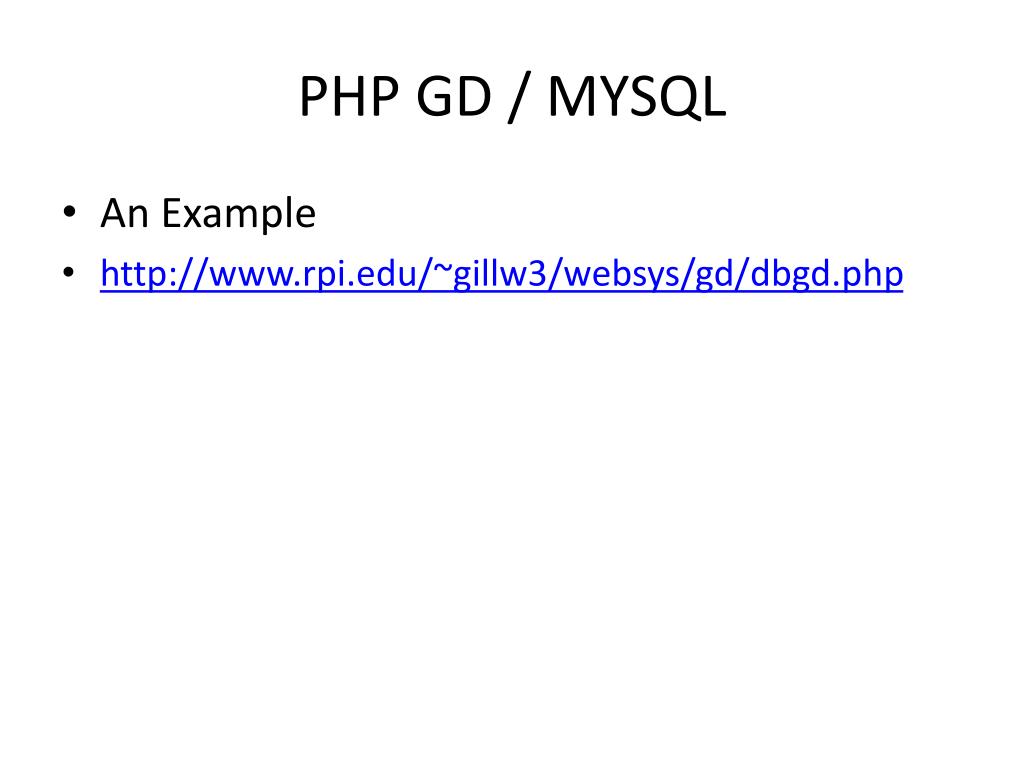

27. PHP GD / MYSQL • An Example • http://www.rpi.edu/~gillw3/websys/gd/dbgd.php

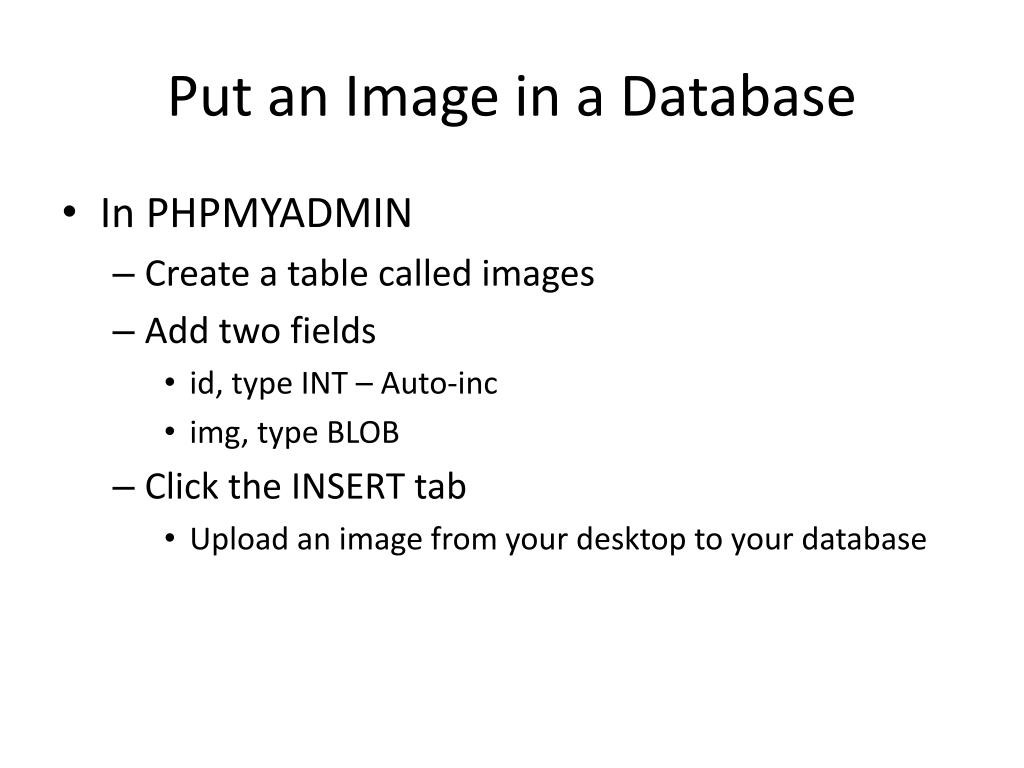

28. Put an Image in a Database • In PHPMYADMIN • Create a table called images • Add two fields • id, type INT – Auto-inc • img, type BLOB • Click the INSERT tab • Upload an image from your desktop to your database

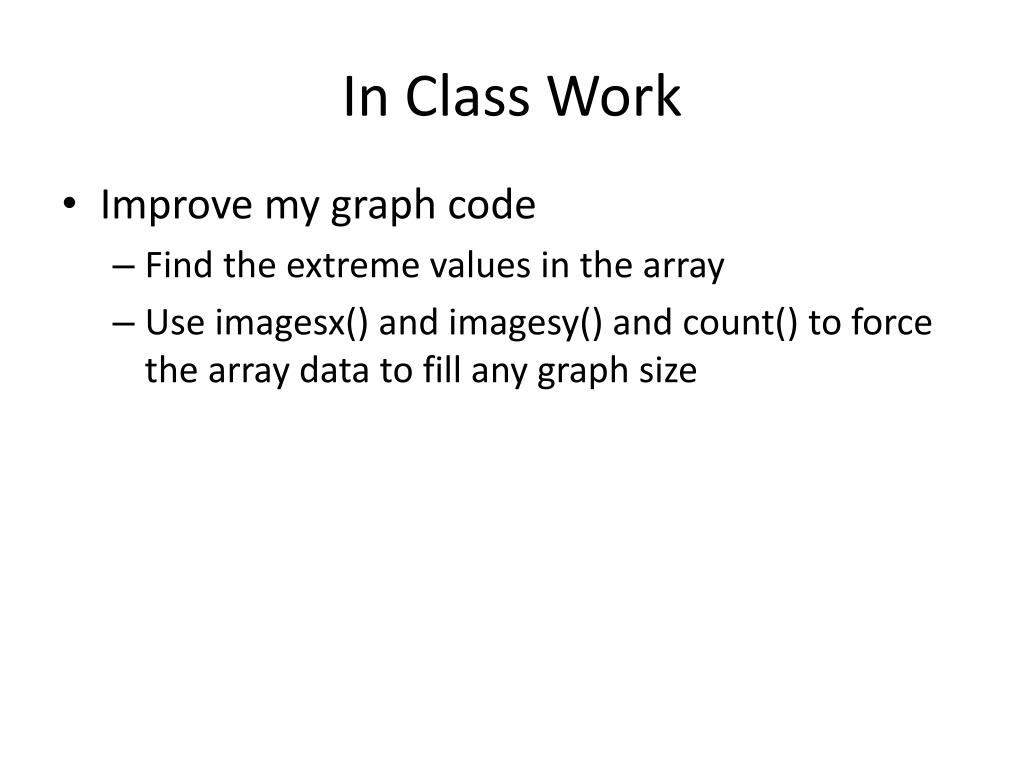

29. Improve my graph code Find the extreme values in the array Use imagesx() and imagesy() and count() to force the array data to fill any graph size In Class Work
