Chapter 9 – Trace Evidence Analysis

Trace evidence is physical evidence found in small amounts at a crime scene. Common examples would be hair, fiber, paint chips, body fluids, stains, powders, explosive residue, glass particles, vegetative matter, metal particles, and soil. It may also include more unusual types of evidence.

dagmar
Download Presentation

Chapter 9 – Trace Evidence Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Trace evidence is physical evidence found in small amounts at a crime scene. Common examples would be hair, fiber, paint chips, body fluids, stains, powders, explosive residue, glass particles, vegetative matter, metal particles, and soil. It may also include more unusual types of evidence. Unusual Types of Trace Evidence A torn piece of paper Itching powder Ashes A spider A match Grease Linoleum Chapter 9 – Trace Evidence Analysis

  2. Physical and Chemical Properties Metal Analysis Bits of metal can be identified from their physical and chemical properties. Solid particles—microscopic examination, magnetism, malleability, density, color, solubility, reactivity Dissolved metals—separation by chromatography with comparison of Rfvalues to known metals, specific reactions, and color tests Physical property: A characteristic that does not involve a change in the identity of a substance, such as odor, color, boiling point, density, refractive index Chemical property: A characteristic that determines how a substance will change into another substance with different physical properties

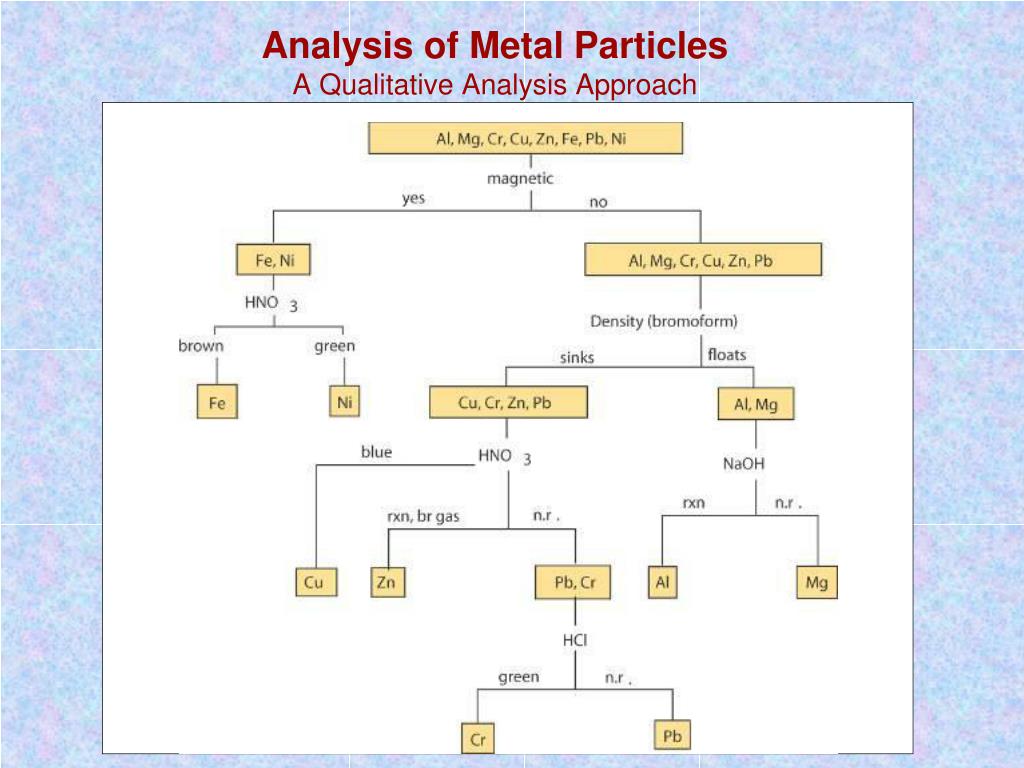

  3. Analysis of Metal ParticlesA Qualitative Analysis Approach

  4. Product Liability Solid metal particles are found in a loaf of bread. Were they in the flour from the manufacturer? Or were they introduced by the plaintiff for personal gain? Their identity answers these questions. • Environmental Contamination/Pollution Seasonal flooding caused crop failure and livestock sickness. The water was tested using chromatography. The separated metals had to be located on the chromatogram with UV light. The spots were developed chemically and compared to standards to determine the identity of the metals.The metals were identified, but where did they come from? A magnet manufacturer? A maker of brass hardware? A rechargeable battery company?

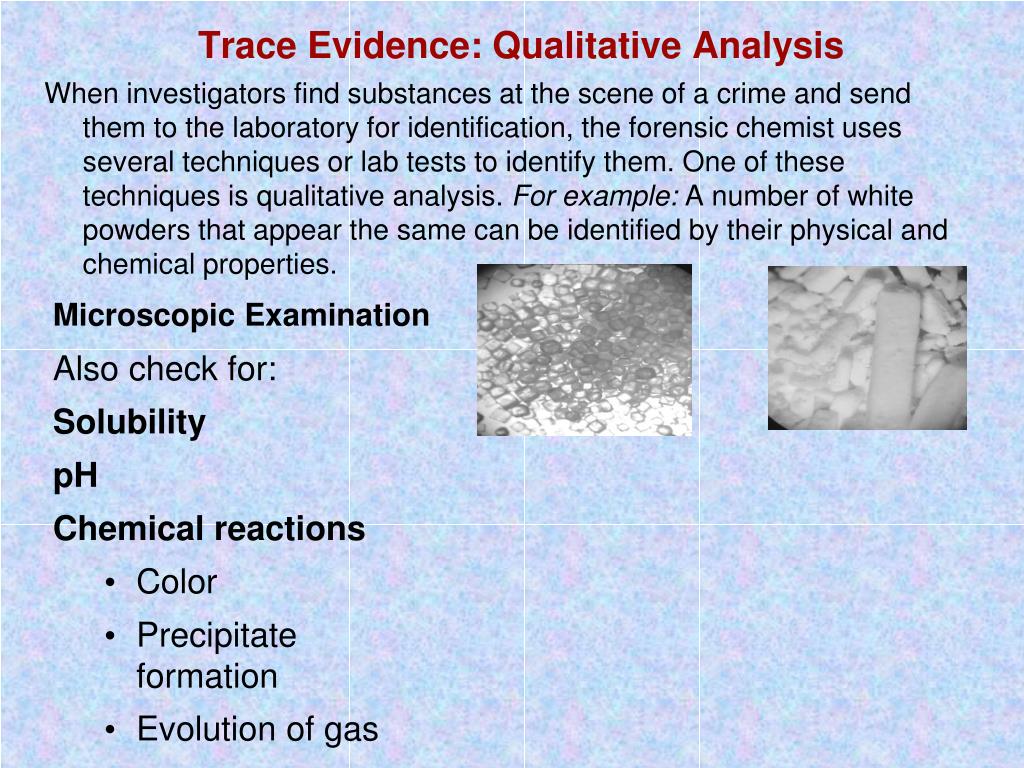

  5. Trace Evidence: Qualitative Analysis Microscopic Examination Also check for: Solubility pH Chemical reactions • Color • Precipitate formation • Evolution of gas When investigators find substances at the scene of a crime and send them to the laboratory for identification, the forensic chemist uses several techniques or lab tests to identify them. One of these techniques is qualitative analysis. For example: A number of white powders that appear the same can be identified by their physical and chemical properties.

  6. Many metal salts show a distinct color when heated. Sometimes this property can be used in an analysis. Flame Colors Lip prints are different and can be used to identify suspects. There are several general patterns: Chromatography of Lipsticks The lipstick used by the suspect could also have been compared to the residue on the door. Thin-layer chromatography (TLC) can be used to separate the components of a lipstick. The chromatograms can then be compared for a possible match. Paint can be used as evidence in hit-and-run cases. The layers of different paints in a cross section may be unique.
