Presentation Transcript
deterministic selection and sorting

Deterministic Selection and Sorting

Analysis of Algorithms

Prepared by

John Reif, Ph.D.

readings
Readings
  • Main Reading Selections:
    • CLR, Chapters 2, 8, 9
deterministic selection and sorting3
Deterministic Selection and Sorting:
  • Selection Algorithms and Lower Bounds
  • Sorting Algorithms and Lower Bounds
problem p size n
Problem P size n
  • Divide into sub problems size n1, …, nk solve these and “glue” together solutions

Time to combine solutions

examples
Examples
  • 1st lecture’s mult
  • Fast fourier transform
  • Binary search
  • Merge sorting
slide7
Time
  • Time = (# comparisons on longest path)
  • Binary tree with L Leaves
    • Facts:
        • (1) has = L – 1 internal nodes
        • (2) max height
merging
Merging
  • 2 lists with total of n keys
  • Input
    • X1 < X2 < … < Xk

and

    • Y1 < Y2 < … < Yn-k
  • Output
    • Ordered merge of two key lists
slide9
Goal
  • Provably asymptotically optimal algorithm in Decision Tree Model
  • Use this Model because it
    • Allows simple proofs of lower bounds
    • time = # comparisons so easy to bound time costs

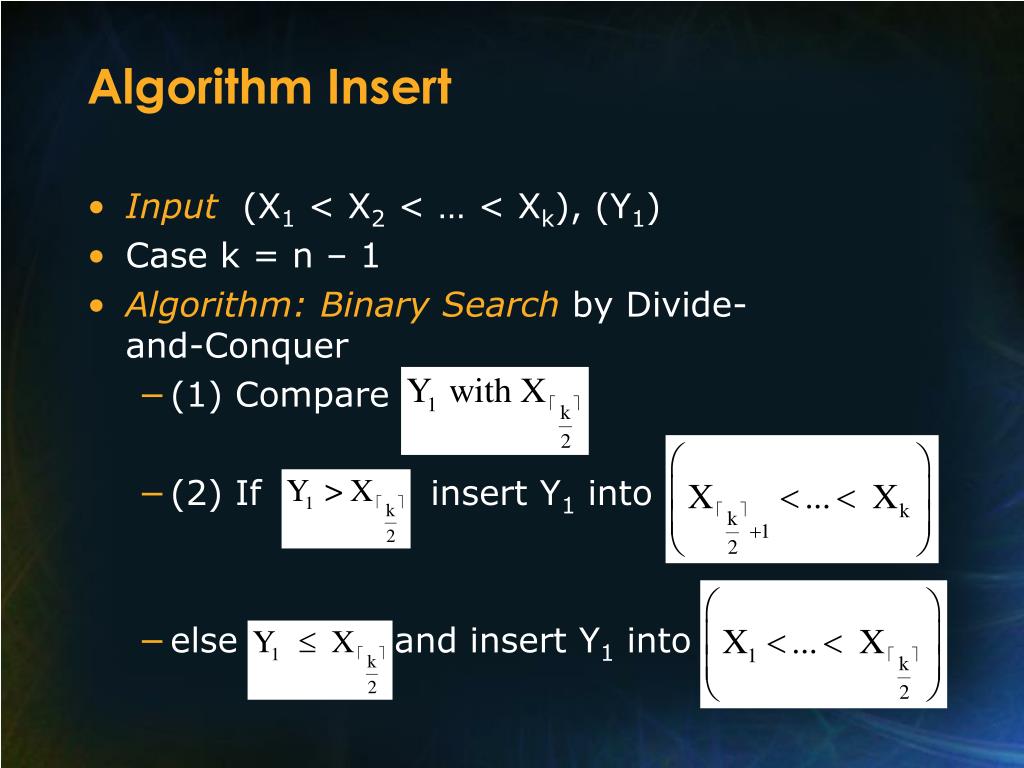

algorithm insert
Algorithm Insert
  • Input (X1 < X2 < … < Xk), (Y1)
  • Case k = n – 1
  • Algorithm: Binary Search by Divide-and-Conquer
    • (1) Compare
    • (2) If insert Y1 into
    • else and insert Y1 into
total comparison cost
Total Comparison Cost:
  • Since a binary tree with n = k + 1 leaves has depth > , this is optimal!
case merging equal length lists
Case: Merging equal length lists
  • Input
    • (X1 < X2 < … < Xk)
    • (Y1 < Y2 < … < Yn-k)
  • Where

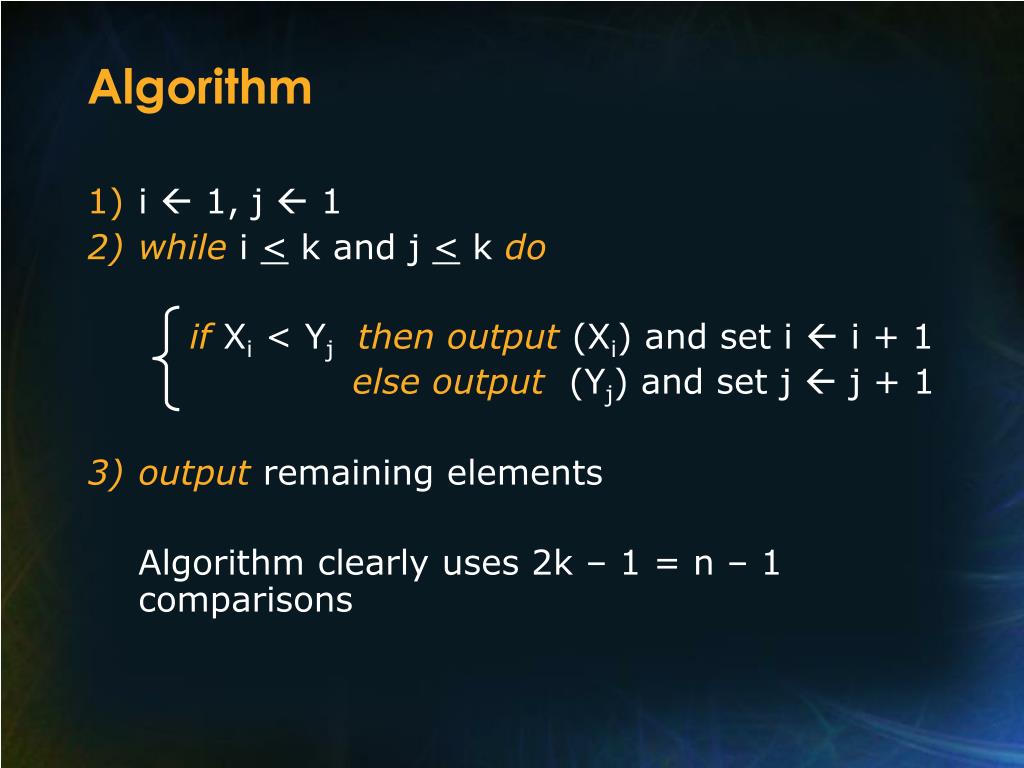

algorithm
Algorithm
  • i  1, j  1
  • while i < k and j < k do

if Xi < Yj then output(Xi) and set i  i + 1

else output (Yj) and set j  j + 1

  • output remaining elements

Algorithm clearly uses 2k – 1 = n – 1 comparisons

lower bound
Lower Bound:
  • Consider case X1 < Y1 < X2 < Y2 < …< Xk < Yk
  • any merge algorithm must compare

Claim:

Xi with Yi for i = 1,…, k

Yi with Xi+1 for j = 1,…, k-1

Otherwise we could flip Yi < Xi with no change)

 so requires > 2k-1 = n-1 comparisons!

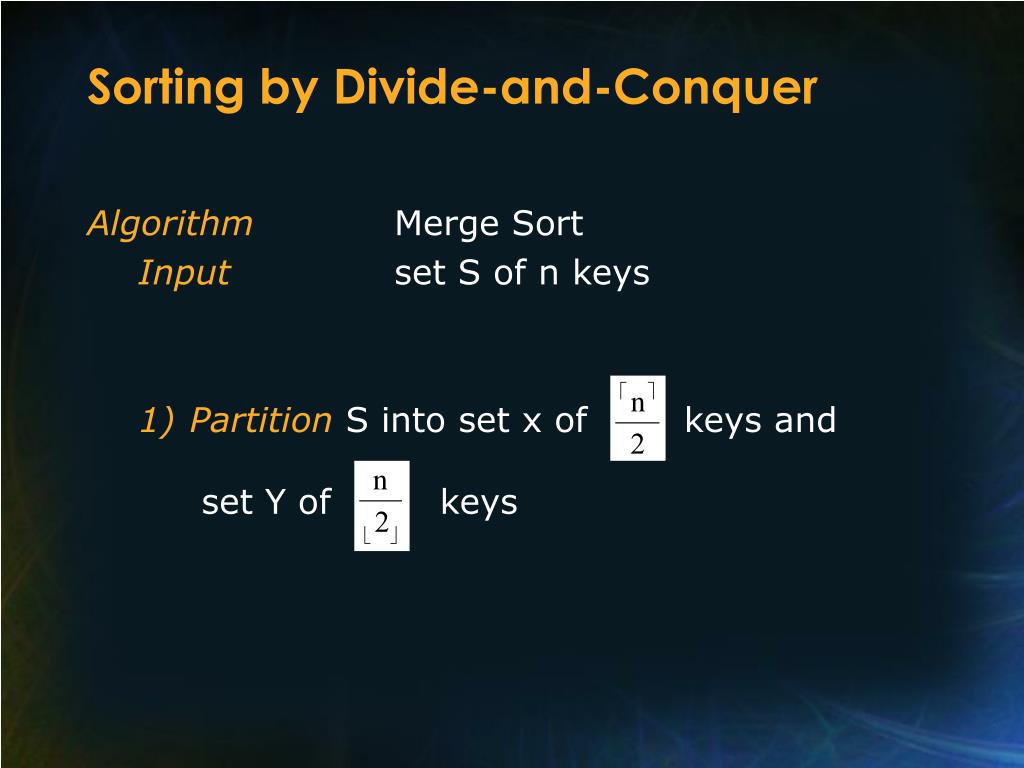

sorting by divide and conquer
Sorting by Divide-and-Conquer

Algorithm Merge Sort

Input set S of n keys

  • Partition S into set x of keys and set Y of keys
sorting by divide and conquer cont d
Sorting by Divide-and-Conquer (cont’d)
  • Recursively compute

Merge Sort

Merge Sort

  • Merge above sequences

using n-1 comparisons

  • Output merged sequence

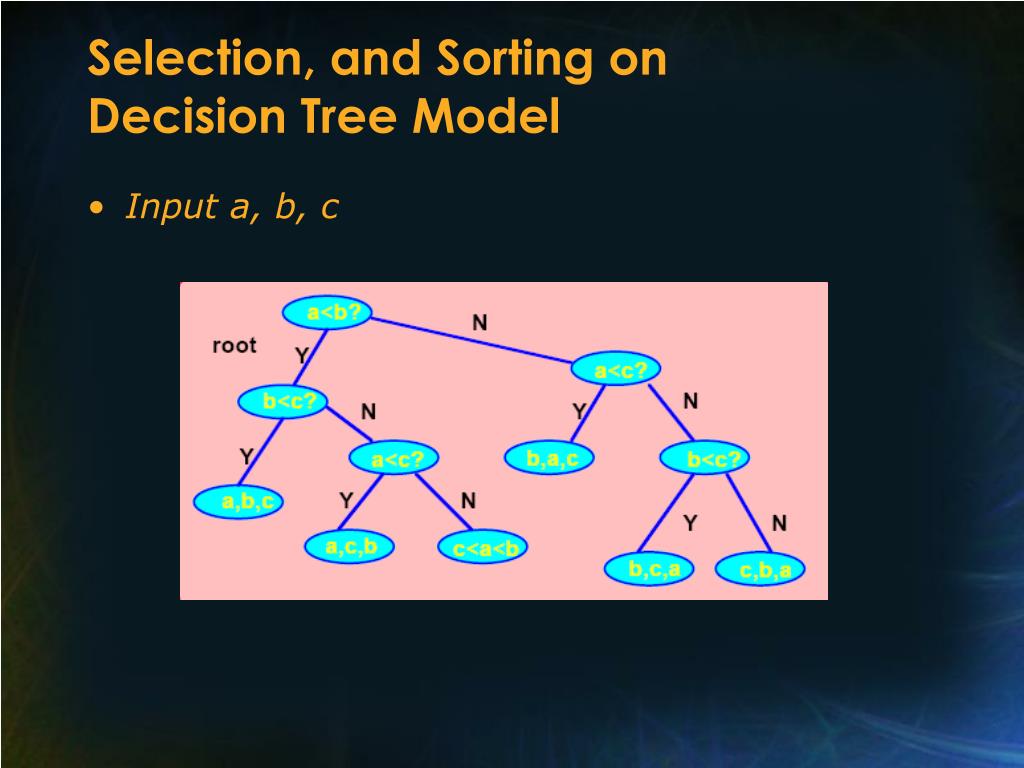

lower bounds on sorting
Lower Bounds on Sorting
  • (on decision tree model)

n! distinct leaves

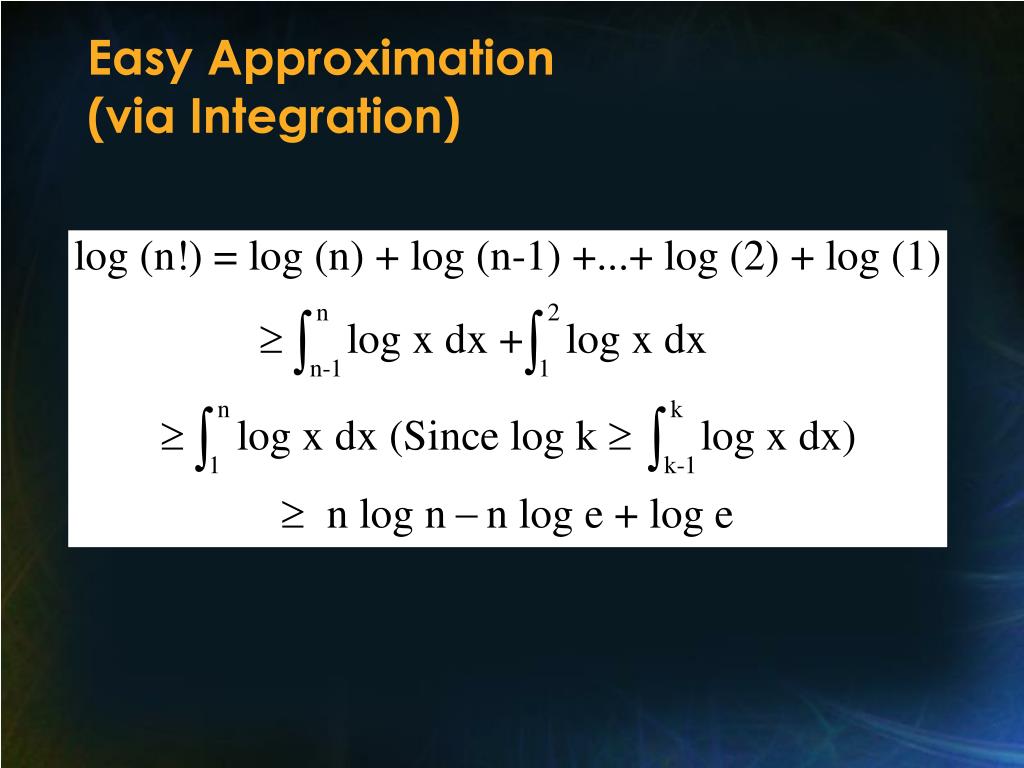

a better bound
A Better Bound
  • Using Sterling Approximation
selection problems
Selection Problems
  • Input X1 , X2 , … , Xn

and index k  {1, …, n}

  • Output X(k) = the k’th best
history
History
  • Rev C. L. Dodge (Lewis Carol) wrote article on lawn tennis tournament in James Gazett, 1883
  • Felt prizes unjust because
    • although winner X(1) always gets 1st prize
    • second X(2) may not get 2nd prize
history cont d
History (cont’d)
  • Carol proposed his own (nonoptimal) tournament…
selection of the champion x 1
Selection of the Champion X(1)
  • X(1) is easily determined in n-1 comparison
  • X(1) requires n-1 comparisons

x1

selection of the champion x 1 cont d
Selection of the Champion X(1) (cont’d)
  • Proof
    • Everyone except the champion X(1) must lose at least once!
selection of the second best x 2
Selection of the Second Best X(2)
  • Using comparisons
  • Algorithm
    • form a balanced binary tree for tournament to find X(1) using n-1 comparisons
selection of the second best x 2 cont d28
Selection of the Second Best X(2) (cont’d)
  • Let Y be the set of players knocked out by champion X(1)
  • Play a tournament among the Y’s
  • output X(2) = champion of the Y’s using more comparisons
lower bounds on finding x 2
Lower Bounds on Finding X(2)
  • Requires comparisons
  • Proof
    • # comparisons > m1 + m2 + …
    • Where mi = # players who lost i or more matches
lower bounds on finding x 2 cont d
Lower Bounds on Finding X(2) (cont’d)
  • Claim
    • m1> n -1, since at end we must know X(1) as well as X(2)
  • Claim
    • m2> (# who lost to X(1)) -1, since everyone (except X(2)) who lost to X(1) must also have lost one more time.
lower bounds on finding x 2 cont d31
Lower Bounds on Finding X(2) (cont’d)
  • lemma

(# who lost to X(1)) > in worst case

  • proof
    • Use oracle who “fixes” results of games so that champion X(1) plays > matches
lower bounds on finding x 2 cont d32
Lower Bounds on Finding X(2) (cont’d)
  • Declare Xi > Xj if
    • Xi previously undefeated and Xj lost at least once
    • Both undefeated but Xi played more matches
    • Otherwise, decide consistently with previous decisions
selection by divide and conquer
Selection by Divide-and-Conquer
  • Algorithm
    • Select k (X)
  • Input
    • set X of n keys and index k
deriving recurrence for time bounds
Deriving Recurrence for Time Bounds
  • Use a sufficiently large constant c1 (assuming d is constant)
  • If say d = 5,

T(n) < 20 c1 n = O(n)

lower bounds for selecting x k
Lower Bounds for Selecting X(k)
  • Input
    • X = {x1, …, xn}, index k
  • Theorem
    • Every leaf of Decision Tree has depth > n - 1
proof of lower bound for selecting x k
Proof of Lower Bound for Selecting X(k)
  • Fix a path p from root to leaf
  • The comparisons done on p define a relation Rp
  • Let Rp+ = transitive closure of Rp
lemma
Lemma
  • If path p determines Xm = X(k) then for all im either xi Rp+ xm or xmRp+xi
  • Proof
    • Suppose xi is unrelated to xm by Rp+
    • They can replace xi in linear order either before or after xm to violate xm=x(k)
slide40
Let the “key” comparison for xi be when xi is compared with xj where either
      • j=m
      • xiRpxj and xjRp+ xm, or
      • xjRpxi and xmRp+ xj
  • Fact
    • Xi has unique “key” comparison determining either xiRp+ xm or xmRp+ xi

 So there are n-1 “key” comparisons, each distinct!

radixsort linear time sort for ram
RADIXSORT: Linear Time Sort for RAM
  • Assume keys over integers 1,…,n
  • Costs O(n) time on unit cost RAM
  • Avoids (n log n) lower bound on SORT by avoiding comparisons instead uses indexing of RAM
  • Generalizes (in c passes) to key domains {1, …, nc}
procedure radixsort
Procedure RADIXSORT
  • Input
    • for j = 1, …, n doinitialize B[j] to be the empty list
    • for I=1, …, n doadd I to B[xi]
    • Let L = (i1, i2, …, in) be the concatenation of B[1],…,B[n]
    • output

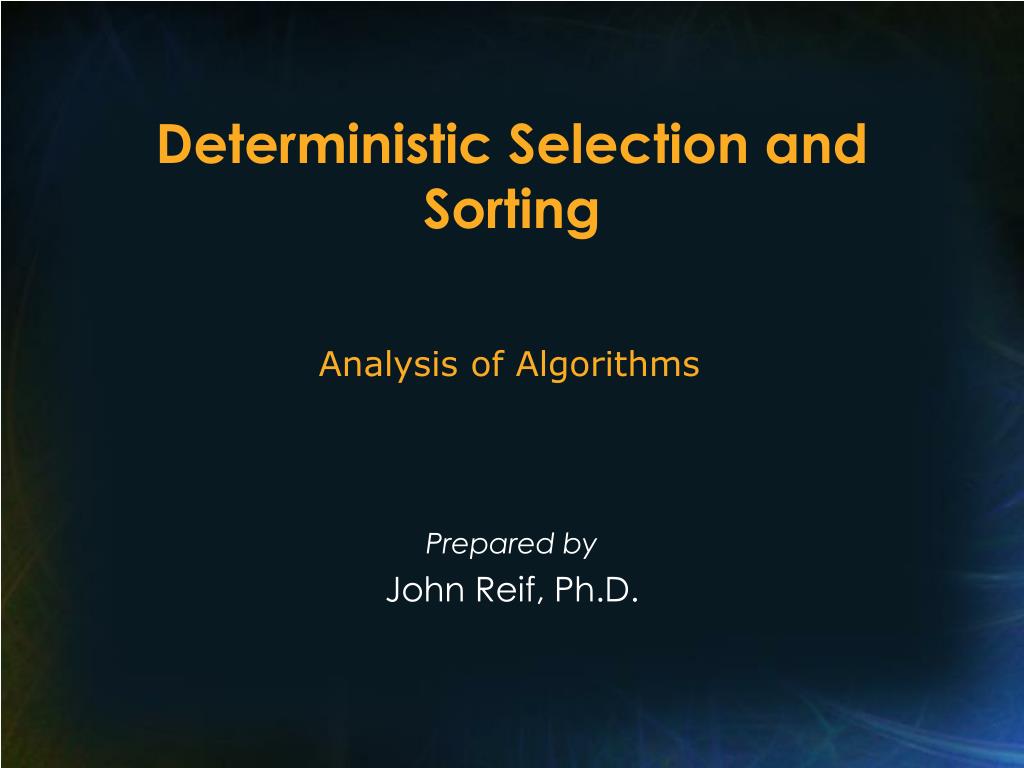

deterministic selection and sorting43

Deterministic Selection and Sorting

Analysis of Algorithms

Prepared by

John Reif, Ph.D.
