  1. Assignments L13Assg

  2. l-value vs. r-value • Pascal/Ada: x := x + 1 • C/Java: x = x + 1 l-value = location, address, reference, … r-value = int, real, (sometimes even) address, … Environment binds an identifier to a location. env : ids -> locations Store binds a location to a value. store : locations -> values assign-op :location x value x store -> store L13Assg

  3. Sharing • For functional subset, it is sufficient to model env as a function from ids to values. • For imperative programming that has both assignment and sharing, separating env and store is necessary. • E.g., sharing/aliasing Point p = new Point(); Point q = p; • E.g., call by reference void f(Point p){}; f(q); L13Assg

  4. Side-effect causing Scheme primitives • Initialize variable: (define <var> <exp>) • Update variable: (set! <var> <exp>) • Other ops: display, write, set-car!, set-cdr!,... (set! x y) denotes location denotes value • Sequencing: (begin <exp1> <exp2> … <expn>) L13Assg

  5. Extending object (not meta-) language and the interpreter to support variable assignment L13Assg

  6. Modifying environment and the interpreter • An identifier denotes the address of a mutable data structure that holds a value (that is, it models a memory location). • This address is called a reference, and the contents of these references are modified by a variable assignment. • Variable reference (var-exp (id) (deref (apply-env-ref env id))) L13Assg

  7. Introduction of variable assignment • Syntax <expression> ::= set <identifier> = <expression> • Abstract Syntax varassign-exp (id rhs-exp) • Semantics (varassign-exp (var exp) (set-ref!(apply-env-ref env id) (eval-expression rhs-exp env) ) ) l-value r-value L13Assg

  8. Simulating letrec using let and assignment (letrec ((var1 exp1) (var2 exp2)) exp ) (* exp1 and exp2 are lambda-forms *) (let ((var1 ’*) (var2 ’*)) (set! var1 exp1) (set! var2 exp2) exp ) L13Assg

  9. Simulating Objects and Classes L13Assg

  10. Defining a stack object (define empty? '()) (define push! '()) (define pop! '()) (define top'()) (let ( (stk'()) ) (set! empty? (lambda() (null? stk))) (set! push! (lambda(x) (set! stk (cons x stk)))) (set! pop! (lambda() (set! stk (cdr stk)))) (set! top (lambda() (car stk))) ) L13Assg

  11. > (empty?) #t > (push! 5) > (top) 5 > (pop!) > (empty?) #t Only one stack object. Scope of stk is limited (encapsulation), but its lifetime is not. representation pvt. methods public. Persistent state. Ops. share data and change state. Using the stack object L13Assg

  12. stack object : Message passing style (define stack (let ( (stk '()) ) (lambda (msg) (case msg ((empty?) (lambda () (null? stk)) ) (( push!) (lambda (x) (set! stk (cons x stk))) ) (( pop! ) (lambda () (set! stk (cdr stk))) ) ((top) (lambda () (car stk)) ) (else 'error ) ) ))) L13Assg

  13. > (stack 'empty?) > ((stack 'empty?)) #t > ((stack 'push!) 5) > ((stack 'top)) 5 > ((stack 'empty?)) () or #f > ((stack 'pop!)) > ((stack 'empty?)) #t (define s1 (make-stack)) (define s2 (make-stack)) ((s1 'push!) 1) ((s2 'push!) 2) ( (s1 'top) ) 1 ( (s1 'top) ) 1 ( (s2 'top) ) 2 Object vs. Class L13Assg

  14. (define stack (let ((stk '()) ) (lambda (msg) (case msg ... ) )) ) (define make-stack (lambda() (let ((stk '()) ) (lambda (msg) (case msg ... ) )) )) Instance/Object vs. Class/Type L13Assg

  15. stack class : Message passing style (define make-stack (lambda () (let ( (stk '()) ) (lambda (msg) (case msg ((empty?) (lambda () (null? stk)) ) (( push!) (lambda (x) (set! stk (cons x stk))) ) (( pop! ) (lambda () (set! stk (cdr stk))) ) ((top) (lambda () (car stk)) ) (else 'error ) ))) ) ) L13Assg

  16. Template for class definition (define class-name (let ((class-var val)) (lambda () (let ((inst-var val)) (lambda (msg) (case msg ((m1) code) ((m2) code) ((c3) code) (else ’error) )) )) ) ) L13Assg

  17. (define make-stack (let ((pushed 0)) (lambda () (let ((stk '()) (local-pushed 0) ) (lambda (message) (case message ((empty?) (lambda () (null? stk))) ((push!) (lambda (x) (set! pushed (+ pushed 1)) (set! local-pushed (+ local-pushed 1)) (set! stk (cons x stk)))) ((pop!) (lambda () (if (null? stk) (error "Stack: Underflow") (begin (set! pushed (- pushed 1)) (set! local-pushed (- local-pushed 1)) (set! stk (cdr stk)))))) ((top) (lambda () (if (null? stk) (error "Stack: Underflow") (car stk)))) ((local-pushed) (lambda () local-pushed)) ((pushed) (lambda () pushed)) (else (error "Stack: Invalid message" message)))))))) L13Assg

  18. (lambda () (let (…) … ) ) pushed = 0 (lambda (msg) … ) (lambda (msg) … ) stk = () local-pushed = 0 stk = () local-pushed = 0 make-stack (make-stack)(make-stack) L13Assg

  19. Rewrite in Java publicclass Stackclass { static int pushed; private Vector stk; private int localpushed; static { pushed := 0 } public Stackclass(){ localpushed = 0; stk = new Vector(); } public boolean empty() { return stk.isEmpty() }; publicvoid push(Object x){ pushed++; localpushed++; stk.addElement(x); } ... L13Assg

  20. ... publicvoid pop(){ if (stk.isEmpty()) throw new Exception(“Stack Empty”); else { --pushed; --localpushed; stk.removeElementAt(stk.size()-1); } } public Object top(){ if (empty()) thrownew Exception(“Stack Empty”);elsereturn stk.lastElement(); } public int pushed() { return pushed; } public int localpushed(){ return localpushed; } } L13Assg

  21. Approximate Environment L13Assg

  22. Rewrite in Java public class Test { public static void main(String [] args) { Stackclassstack1 = new Stackclass(); Stackclassstack1 = new Stackclass(); stack1.push(new Integer(7)); stack1.top(); stack2.push(new Integer(6)); stack2.push(new Integer(8)); stack2.top(); stack1.localpushed(); stack2.localpushed(); stack1.pushed(); stack2.pushed(); } } L13Assg

  23. Approximate Environment L13Assg

  24. Inheritance Share and reuse classes with modifications to fields and methods Improve programmer productivity and aid code evolution L13Assg

  25. Inheritance in Java class Boundedstackclass extends Stack { private int bound; Boundedstackclass() { super(); bound = 10; } publicvoid push(Object x) { if (size() < bound) super.push(x); elsenew Exception(“Overflow”); } publicvoid setbound(int x){ bound = x; } } • Specify only incremental changes. • Access parent’s version of a method through super. L13Assg

  26. Composition and Delegation in Java class Boundedstackclass { private int bound; privateStack stk; Boundedstackclass() { stk = new Stack(); bound = 10; } publicvoid push(Object x) { if (size() < bound) stk.push(x); elsenew Exception(”Overflow”); } publicvoid setbound(int x){ bound = x; } public Object top() { returnstk.top(); } ... Explicit list of other delegated stack methods } L13Assg

  27. Delegation (define make-bounded-stack (lambda (n) (let ((bound n) (stk (make-stack))) (lambda (message) (case message ((push!) (if (< ((stk 'local-pushed)) bound) (stk 'push!) (error “Overflow”))) ((set-bound!) (lambda (x) (set! bound x))) ((set-stack!) (lambda (s) (set! stk s))) (else(stk message)) ) )))) L13Assg

  28. Delegation (define stk (make-bounded-stack 24)) ( (stk 'push!) 3) ( (stk 'top) ) (((make-bounded-stack 24) 'push!) 3) ; (((make-bounded-stack 24) 'top)) L13Assg

  29. Code sharing by organization of objects. Delegate message handling. Dynamic and flexible. When and how to delegate can depend on system state. E.g., Java 1.1 Event Model Code sharing by organization of classes. Single vs multiple inheritance. Static but efficient. Type determines message interpretation. E.g., Java 1.0 Event Model Delegation vs Inheritance L13Assg

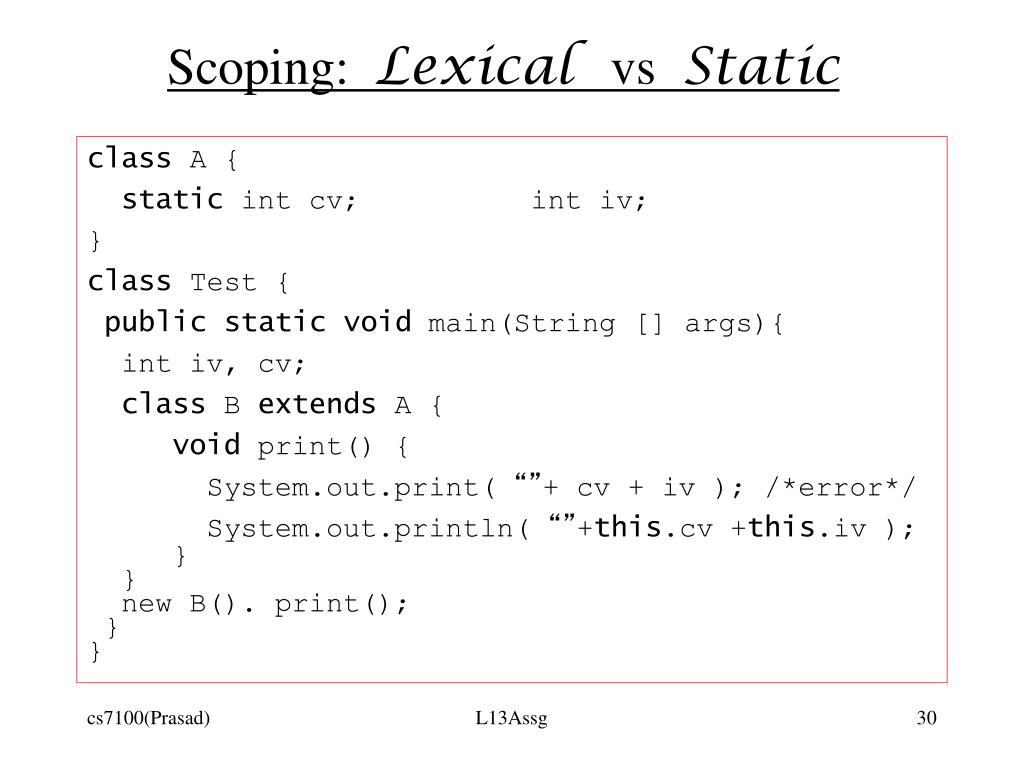

  30. Scoping: Lexical vs Static class A { static int cv; int iv; } class Test { public static void main(String [] args){ int iv, cv; class B extends A { void print() { System.out.print( “”+ cv + iv ); /*error*/ System.out.println( “”+this.cv +this.iv ); } } new B(). print(); } } L13Assg

  31. Binding: Dynamic vs Static class A { static int cv = 10; int iv = 70; int f() {return 40;} void print() { System.out.println( “”+ cv + iv + f()); }} class B extends A { static int cv = 33 ; int iv = 88; int f() {return 55;} } class Test2 { public static void main(String [] args){ new A(). print(); new B(). print(); }} L13Assg

  32. Advanced Topics • Multiple Inheritance • E.g., C++, Eiffel. • Meta-classes • E.g., Smalltalk. • Inner/Nested classes • E.g., Java. • Polymorphic Static Typing • E.g., ML, Haskell. L13Assg
