The Power of Electromagnetic Brakes in Various Applications

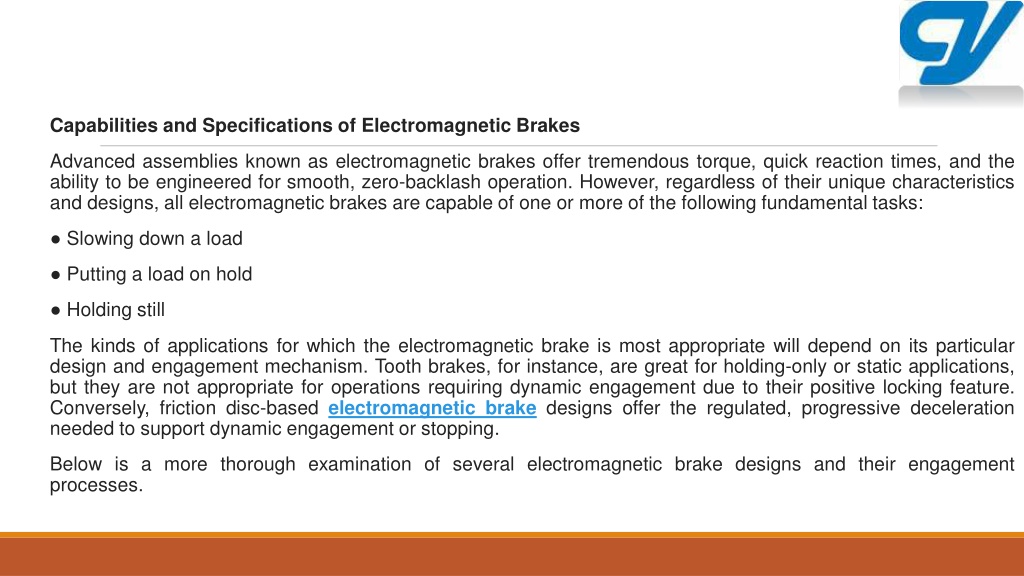

2. Capabilities and Specifications of Electromagnetic Brakes Advanced assemblies known as electromagnetic brakes offer tremendous torque, quick reaction times, and the ability to be engineered for smooth, zero-backlash operation. However, regardless of their unique characteristics and designs, all electromagnetic brakes are capable of one or more of the following fundamental tasks: ● Slowing down a load ● Putting a load on hold ● Holding still The kinds of applications for which the electromagnetic brake is most appropriate will depend on its particular design and engagement mechanism. Tooth brakes, for instance, are great for holding-only or static applications, but they are not appropriate for operations requiring dynamic engagement due to their positive locking feature. Conversely, friction disc-based electromagnetic brake designs offer the regulated, progressive deceleration needed to support dynamic engagement or stopping. Below is a more thorough examination of several electromagnetic brake designs and their engagement processes.

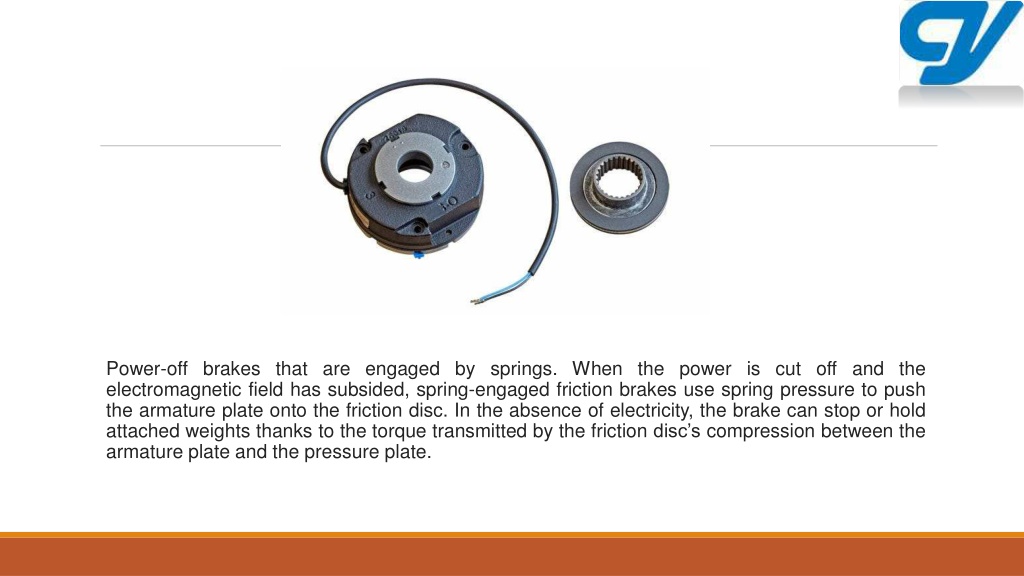

3. Power-off brakes that are engaged by springs. When the power is cut off and the electromagnetic field has subsided, spring-engaged friction brakes use spring pressure to push the armature plate onto the friction disc. In the absence of electricity, the brake can stop or hold attached weights thanks to the torque transmitted by the friction disc’s compression between the armature plate and the pressure plate.

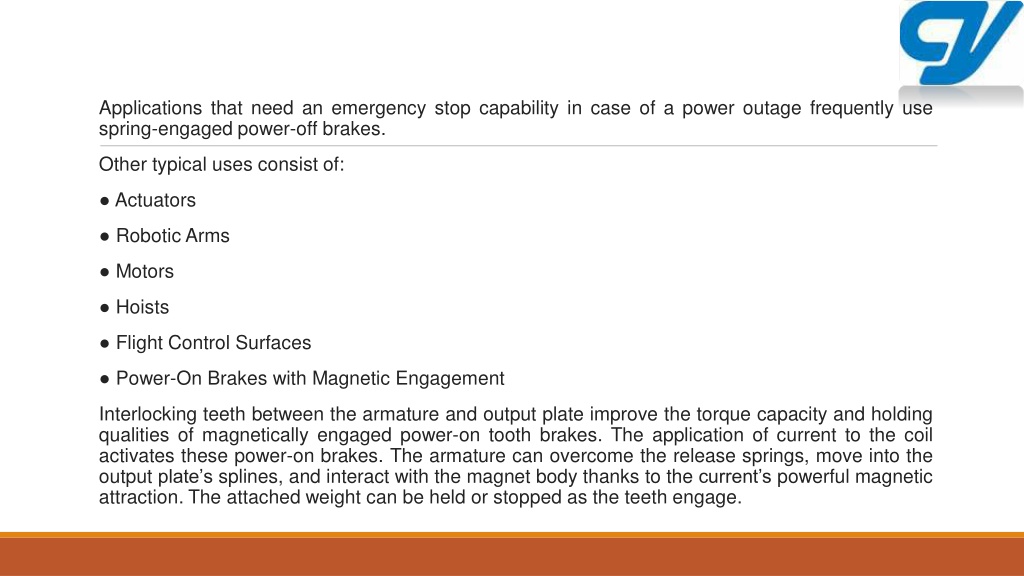

4. Applications that need an emergency stop capability in case of a power outage frequently use spring-engaged power-off brakes. Other typical uses consist of: ● Actuators ● Robotic Arms ● Motors ● Hoists ● Flight Control Surfaces ● Power-On Brakes with Magnetic Engagement Interlocking teeth between the armature and output plate improve the torque capacity and holding qualities of magnetically engaged power-on tooth brakes. The application of current to the coil activates these power-on brakes. The armature can overcome the release springs, move into the output plate’s splines, and interact with the magnet body thanks to the current’s powerful magnetic attraction. The attached weight can be held or stopped as the teeth engage.

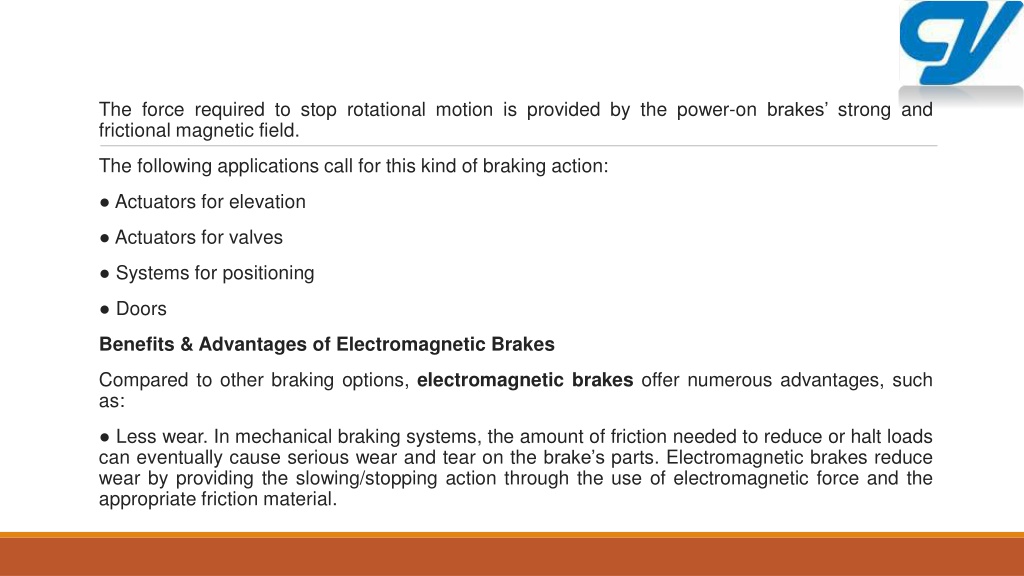

5. The force required to stop rotational motion is provided by the power-on brakes’ strong and frictional magnetic field. The following applications call for this kind of braking action: ● Actuators for elevation ● Actuators for valves ● Systems for positioning ● Doors Benefits & Advantages of Electromagnetic Brakes Compared to other braking options, electromagnetic brakes offer numerous advantages, such as: ● Less wear. In mechanical braking systems, the amount of friction needed to reduce or halt loads can eventually cause serious wear and tear on the brake’s parts. Electromagnetic brakes reduce wear by providing the slowing/stopping action through the use of electromagnetic force and the appropriate friction material.

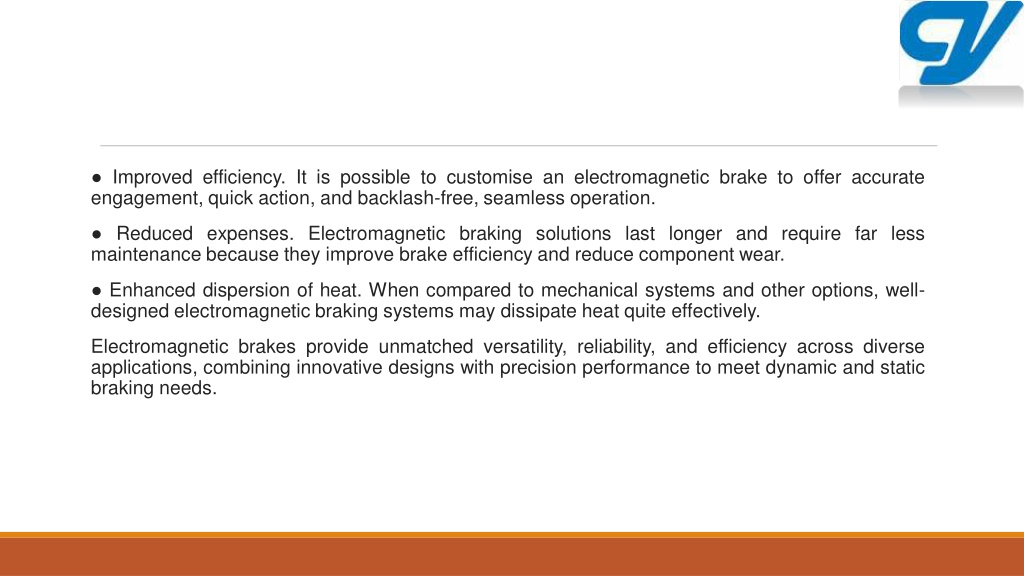

6. ● Improved efficiency. It is possible to customise an electromagnetic brake to offer accurate engagement, quick action, and backlash-free, seamless operation. ● Reduced expenses. Electromagnetic braking solutions last longer and require far less maintenance because they improve brake efficiency and reduce component wear. ● Enhanced dispersion of heat. When compared to mechanical systems and other options, well- designed electromagnetic braking systems may dissipate heat quite effectively. Electromagnetic brakes provide unmatched versatility, reliability, and efficiency across diverse applications, combining innovative designs with precision performance to meet dynamic and static braking needs.
