IP Core Design

Patrick Longa

outline
Outline
  • Intellectual Property (IP) Core: basics
  • IP Core classification
  • IP Core standardization
  • Standard buses/interfaces for IP Cores
  • IP Cores in the market
  • Example with FIR Filter Compiler
ip core basics
IP Core: basics

Intellectual Property (IP) core:

“Macro” structures with specific industrial-standard function that can be

flexibly be adapted and reused in SoC designs.

From “sea of cells” to “sea of hard macros”

* Figures extracted from [2].

ip core classification
IP Core classification

IP Classification: hard cores and soft cores

* Partially extracted from [1].

ip core standardization
IP Core standardization

VSI Alliance (VSIA)

 Open, international organization

 Specify standards for IP and reuse in SoC designs

 Quality IP (QIP) Metric v2.0

Open Measure of Reuse Excellence (OpenMORE) assessment program

 Donated by Mentor Graphics / Synopsys to VSIA

 Evaluate the reusability level of hard/soft IP cores

Open Core Protocol International Partnership (OCP-IP)

 Non-profit organization that promotes the Open Core Protocol (OCP)

 Specify standards for IP cores in SoC designs

 Payment to have access to specifications

Structure for Packaging, Integrating and Re-using IP within Tool-flows (Spirit) Consortium

 Create standards for IP interoperability:

  • Standard for describing IP cores
  • Standard for creating an IP tool integration API
ip core standardization1
IP Core standardization

Technology-dependent company-based certifications:

Altera  SOPC Builder ready

AMPP Approved Stamp

Xilinx  AllianceCore qualification

Lattice  ISPLeverCore Approved

standard bus interface for ip cores
Standard bus/interface for IP Cores

Wishbone: created by Silicore

  • Open bus/interface for IP cores in SoC designs.
  • Supports 8,16, 32 and 64-bit data bus, synchronous.
  • Free of charge.

Advanced Microcontroller Bus Architecture (AMBA): created by ARM

  • Supports 32, 64 and 128-bit data bus with 32-bit address bus.
  • Includes 3 buses:
      • Advanced High-performance Bus (AHB).
      • Advanced System Bus (ASB).
      • Advanced Peripheral Bus (APB).

CoreConnect: created by IBM

  • Supports 32, 64 and 128-bit data bus,

extendable to 256 bits.

  • Includes the next elements:
      • Procesor Local Bus (PLB).
      • On-chip Peripeheral Bus (OPB).
      • A bus bridge.
      • DCR bus.

* Figure extracted from [12].

ip cores in the market
IP Cores in the market
  • ALTERA: Altera MegaCore functions and AMPP Megafunctions
  • Embedded processor cores supported by SOPC Builder
  •  NIOS, NIOS II, several 16, 8, 4-bit microcontrollers.
  • Interfaces and peripherals  SRAM memories, interrupt controllers, UARTs, USB, I2C, DMA controllers, PCI, PCI-X buses, Ethernet controllers, LCD and smart card interfaces, etc.
  • Communications  standard-based communication protocols and interfaces such as UTOPIA, HDLC, Bluetooth, FlexBus, and others.
  • DSP  supported by DSP Builder tool
    • Filtering and modulation: FIR, IIR filters, Up-converters, NCOs.
    • Transforms: FFT, IFFT, DCT and DWT.
    • Error correction: Reed Solomon encoder/decoder, Viterbi encoder/decoder
    • Image and Video processing: color space converter, JPEG and JPEG2000
    • encoder/decoder.
ip cores in the market1
IP Cores in the market

Altera MegaCores and AMPP Megafunctions for DSP

ip cores in the market2
IP Cores in the market

XILINX: Xilinx LogicCORE functions and AllianceCORE IP cores

Similar IP alternatives in interface / peripherals and Communications.

Embedded processor cores supported by Platform Studio

 PicoBlaze, MicroBlaze, 16, 8, 4-bit microcontrollers.

DSP  supported by System Generator for DSP tool

PDSP soft cores

Soft processor cores

example with fir filter compiler
Example with FIR Filter Compiler

Create a new project and open the MegaWizard Plug-In Manager

example with fir filter compiler1
Example with FIR Filter Compiler

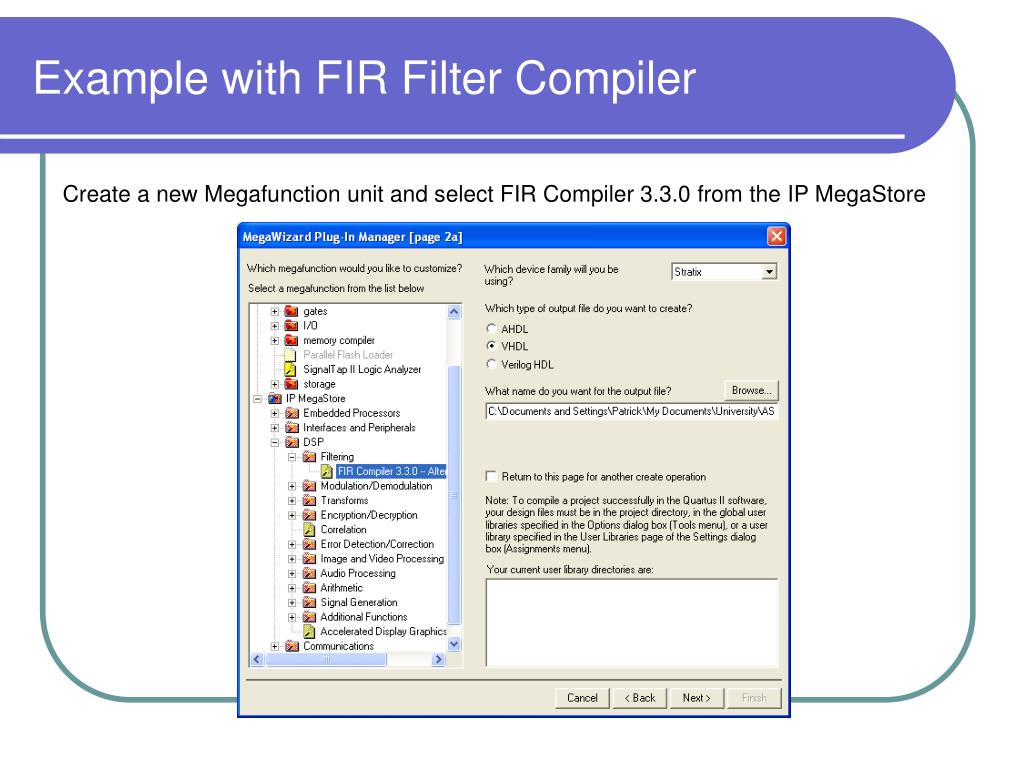

Create a new Megafunction unit and select FIR Compiler 3.3.0 from the IP MegaStore

example with fir filter compiler2
Example with FIR Filter Compiler

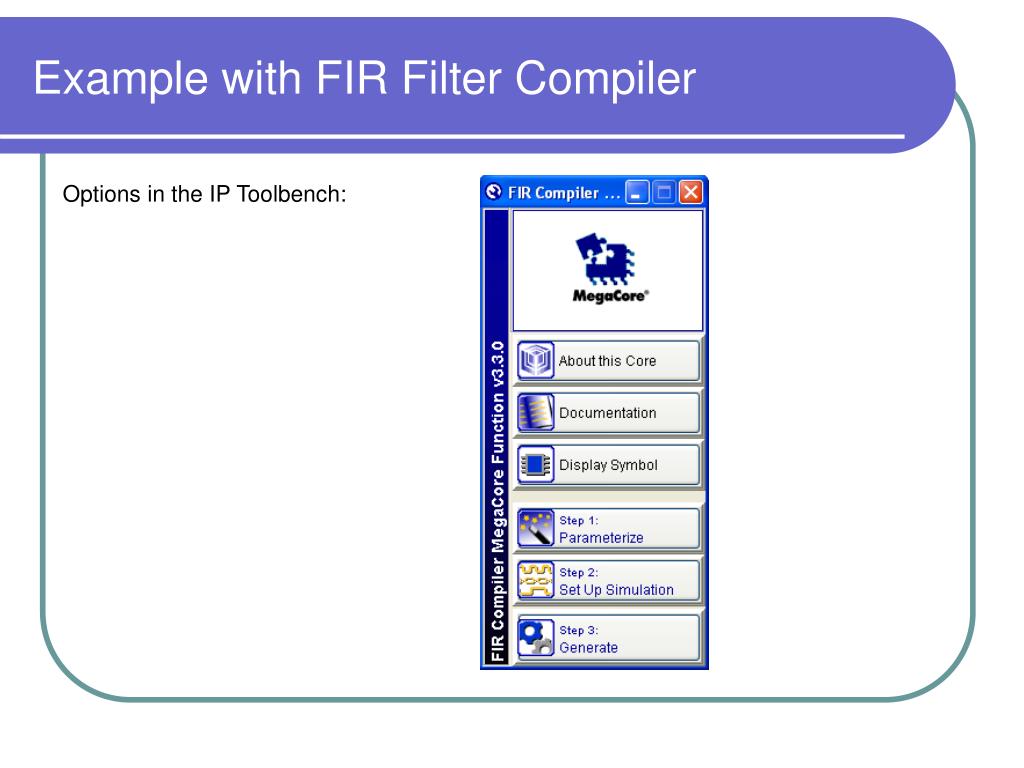

Options in the IP Toolbench:

example with fir filter compiler3
Example with FIR Filter Compiler

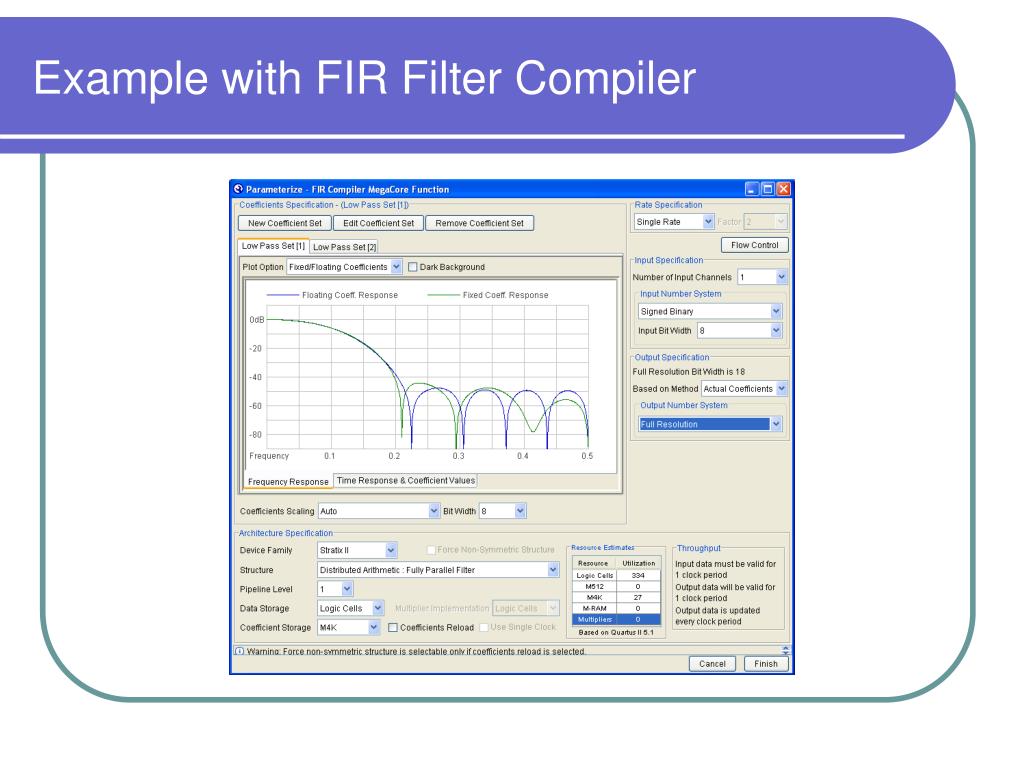

1.- Parameterize step:

New/edit coefficient set

Plot options: fixed / floating coefficients, frequency response / time response and coefficients

Coefficients bitwidth: 2 to 32

Coefficient scaling

Device family

Filter structure: fully-serial, fully parallel, multi-bit serial (DA)

Pipeline level

Data/coefficient storage: logic cells, memory blocks

Output/ Input specifications

example with fir filter compiler4
Example with FIR Filter Compiler

Coefficient generator:

Rate: single, interpolation, decimation

Filter type: low-pass, high-pass, band-pass, band reject.

Number of coeficients.

Cutoff freq.

Sample rate.

Window type: rectangular, Hamming, Hanning, Blackman

example with fir filter compiler6
Example with FIR Filter Compiler
  • 2.- Simulation Step:
  • Simulation model:
  • VHDL and Verilog
  • Quartus II
  • Matlab M-file generation

3.- Generation Step

example with fir filter compiler7
Example with FIR Filter Compiler

Instantiation

Compilation results:

references
References

[1] International Technology Roadmap for Semiconductors (ITRS), 2001.

[2] “Hard Macros will revolutionize SoC Design”, E. Wein, EE Design, 2004.

[3] Virtual Socket Interface Alliance (VSIA), website: www.vsi.org

[4] Open Core Protocol International Partnership (OCP-IP), website: www.ocpip.org

[5] The Structure for Packaging, Integrating and Re-using IP within Tool-flows (Spirit) Consortium, website: www.spiritconsortium.com

[6] Altera Corporation, website: www.altera.com

[7] Xilinx Corporation, website: www.xilinx.com

[8] Lattice Semiconductor Corporation, website: www.latticesemi.com

[9] QuickLogic Corporation, website: www.quicklogic.com

[10] OpenCores Project, website: www.opencores.com

[11] AMBA Home Page, website: www.arm.com/products/solutions/AMBAHomePage.html

[12] CoreConnect Home Page, website: www-03.ibm.com/chips/products/coreconnect/
