Lesson 5: Voltage

Lesson 5: Voltage. Objectives : 1. Describe Voltage (V). Review: Potential difference sources have a ' negative pole' and a 'positive pole'. Current leaves the negative pole and returns to the positive pole.

csilla
Download Presentation

Lesson 5: Voltage

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lesson 5: Voltage Objectives: 1. Describe Voltage (V)

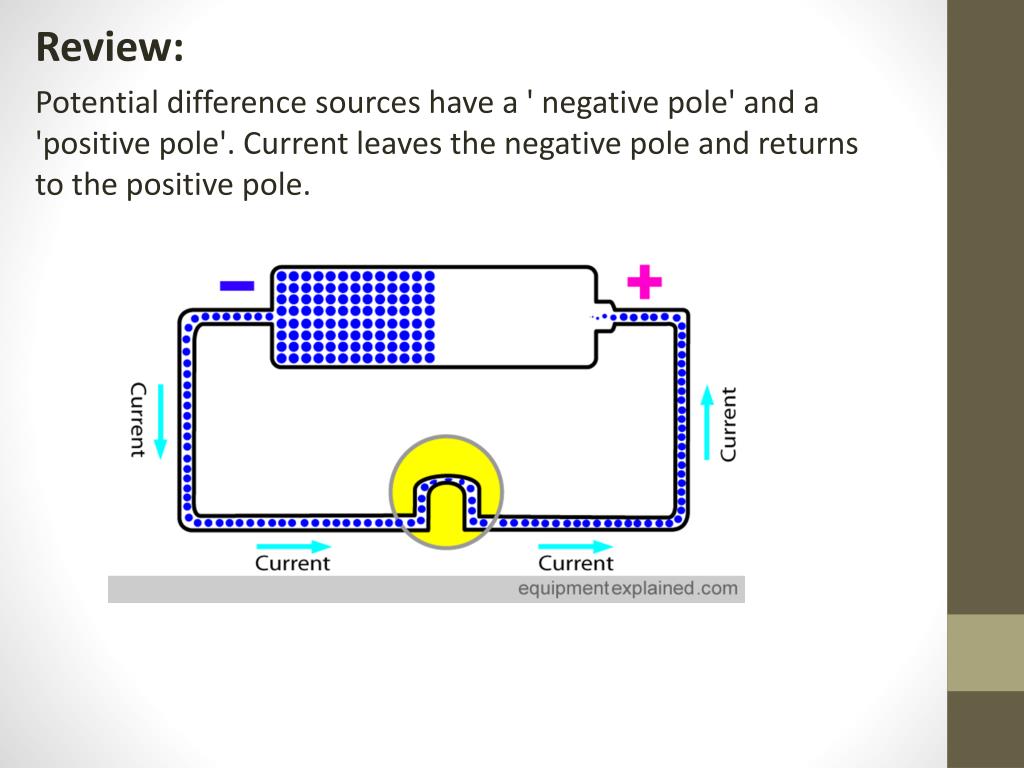

  2. Review: Potential difference sources have a ' negative pole' and a 'positive pole'. Current leaves the negative pole and returns to the positive pole.

  3. Voltage: The potential energy that makes the electrical current flow in a circuit by pushing the electrons around. The unit of voltage is volt shown as 'v'. The larger the push, the bigger the volts.

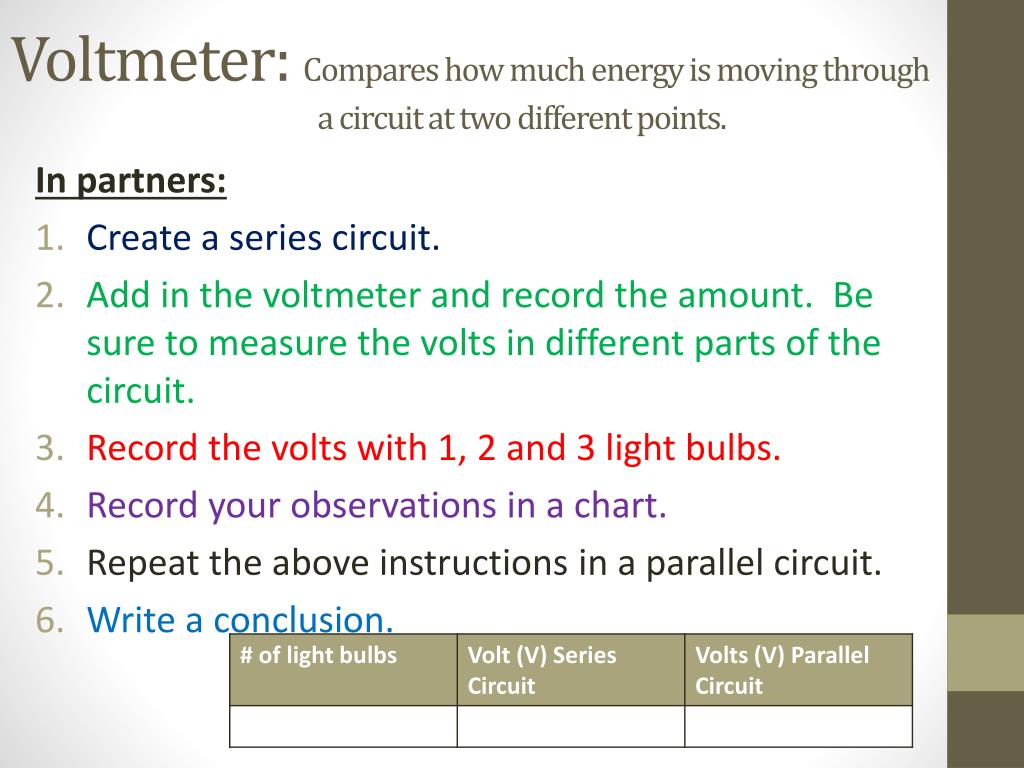

  4. Voltmeter: Compares howmuchenergyismovingthrough a circuit at twodifferentpoints. In partners: • Create a series circuit. • Add in the voltmeter and record the amount. Be sure to measure the volts in different parts of the circuit. • Record the volts with 1, 2 and 3 light bulbs. • Record your observations in a chart. • Repeat the above instructions in a parallel circuit. • Write a conclusion.

  5. Summary: Series circuit: The total voltage is divided by each of the lights. Parallel circuit: The total voltage is the same at any point in the circuit.
