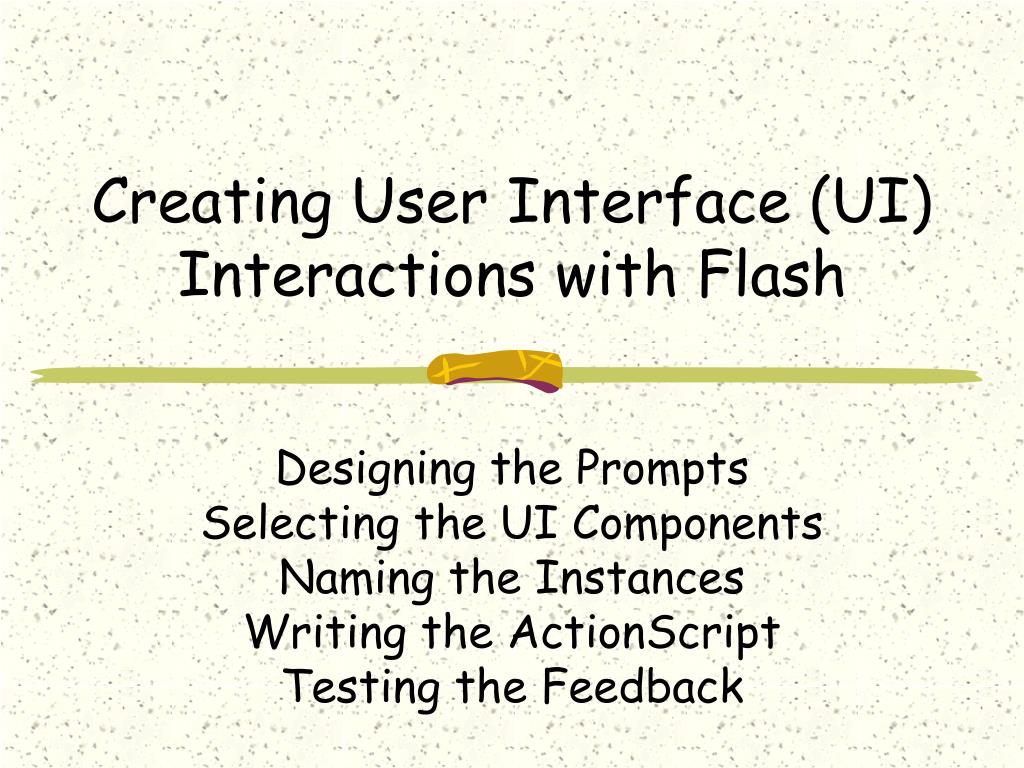

  1. Creating User Interface (UI) Interactions with Flash Designing the PromptsSelecting the UI ComponentsNaming the InstancesWriting the ActionScriptTesting the Feedback

  2. Interacting with Users • Create the frame that will prompt the user for input. • Create any feedback frames that you can anticipate needing. • Give each User Interface (UI) component a logically meaningful instance name. • Use ActionScript for the branching.

  3. Creating the Layers • Create the following three layers: • a “text” layer that will contain the text; • a “buttons” layer to contain the buttons; • an “actions” layer that will contain the ActionScript.

  4. Designing the Prompt • In this example, we create a multiple choice question. • The prompt will include the following UI components: • One radio button for each choice. • A submit button.

  5. The Question FrameMake this be Frame 1: Who is buried in Grant’s tomb? ◦Beethoven ◦Grant ◦Mozart

  6. Feedback for a Wrong AnswerMake this be Frame 3: No, that is not correct. Think about the name onthe tomb, which is Grant.

  7. Feedback for a Correct AnswerMake this be Frame 5: Correct! Grant is indeed buried in Grant’s tomb. Nice work!

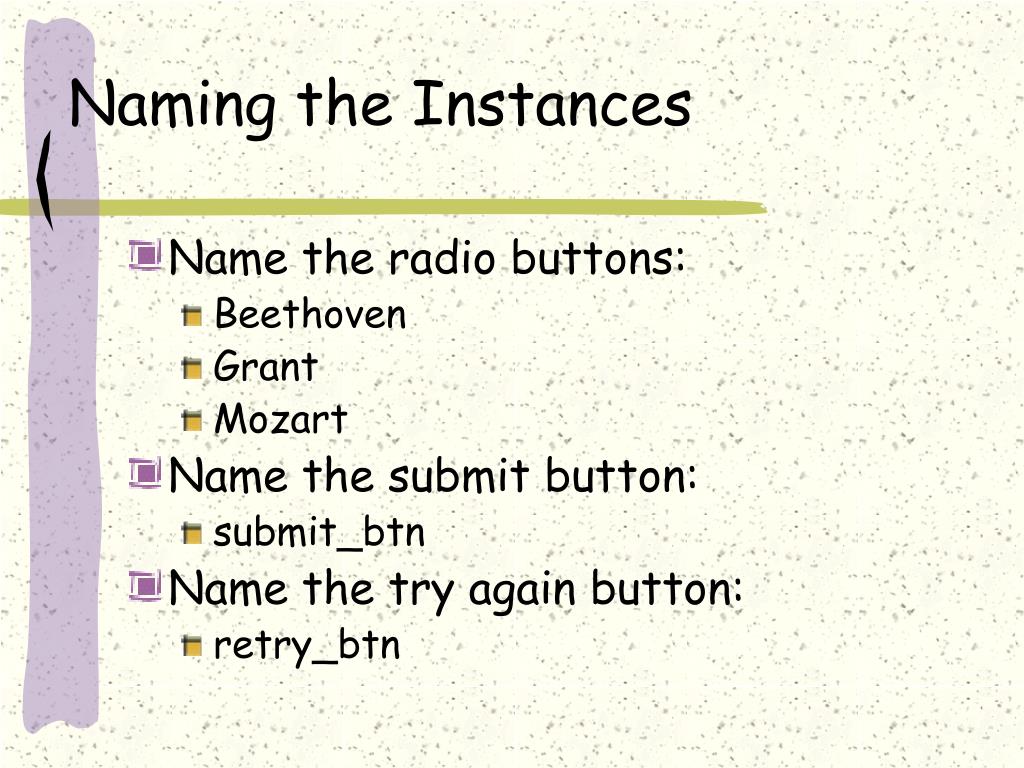

  8. Naming the Instances • Name the radio buttons: • Beethoven • Grant • Mozart • Name the submit button: • submit_btn • Name the try again button: • retry_btn

  9. Submit button ActionScriptPut this in Frame 1: stop(); submit_btn.onRelease = function () { if (Grant.selected) { gotoAndStop(5); } else { gotoAndStop(3); } };

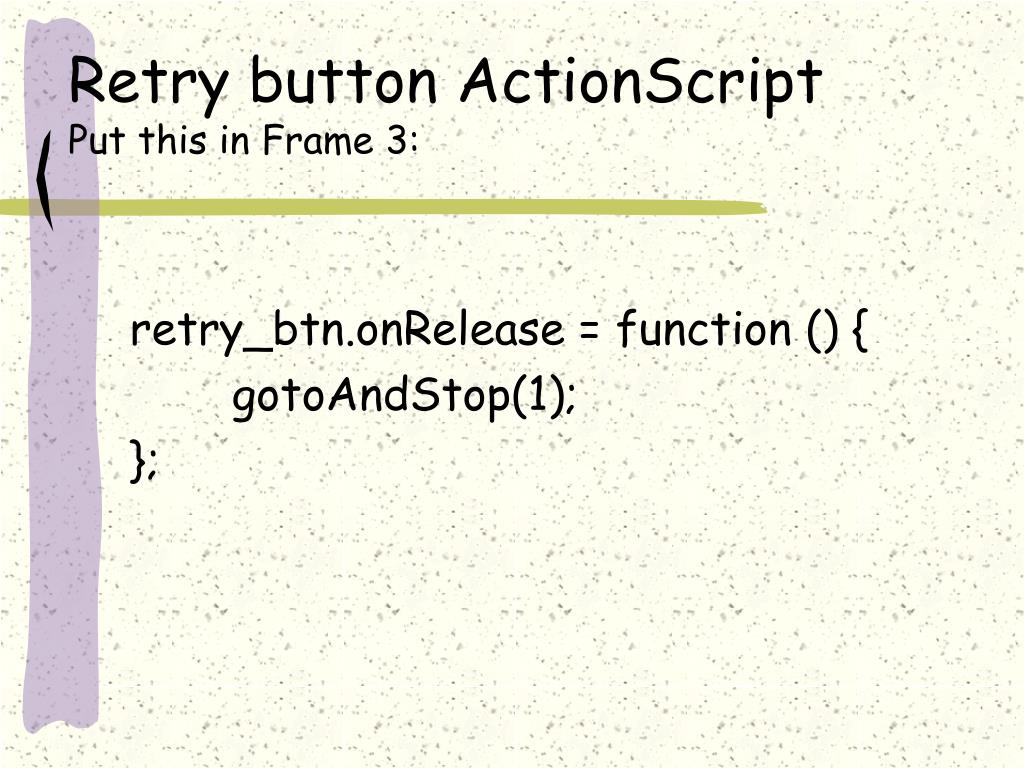

  10. Retry button ActionScriptPut this in Frame 3: retry_btn.onRelease = function () { gotoAndStop(1); };
