Smart Molecular Design for One-Dimensional n -Type Nanostructures: Controlling Electronic Properties and Morphologies Dong-Chan Lee, University of Nevada Las Vegas, DMR 0846479. Pyrazine-Acene Series I.

cree
Download Presentation

-3.43eV

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

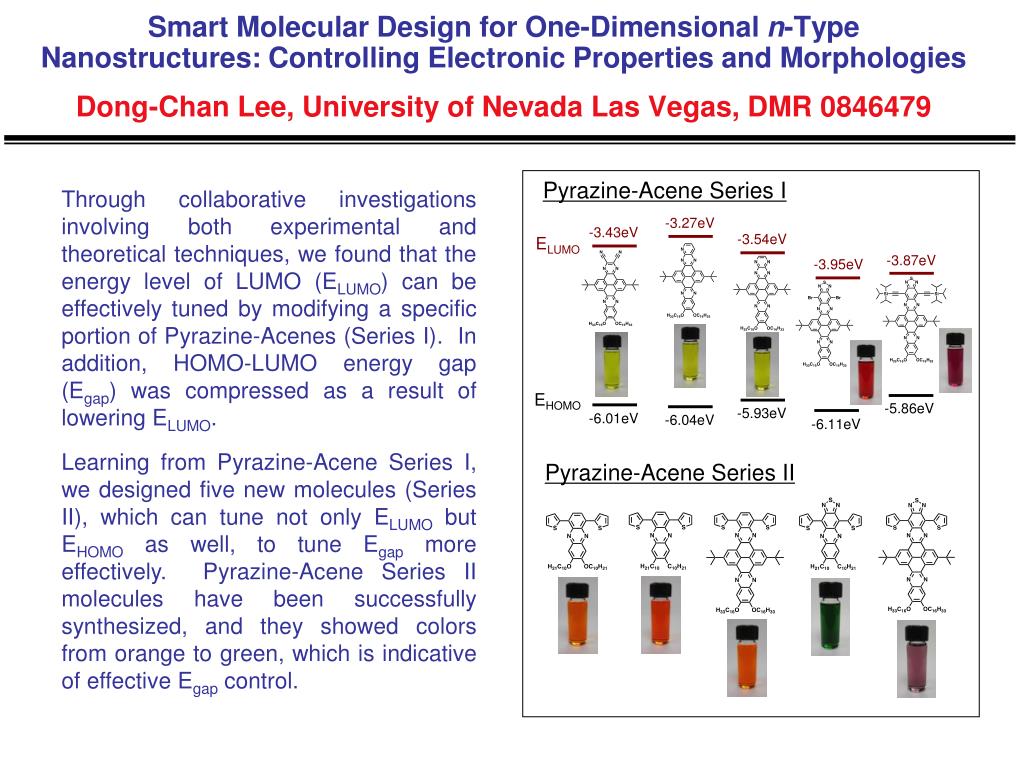

  1. Smart Molecular Design for One-Dimensional n-Type Nanostructures: Controlling Electronic Properties and MorphologiesDong-Chan Lee, University of Nevada Las Vegas, DMR 0846479 Pyrazine-Acene Series I Through collaborative investigations involving both experimental and theoretical techniques, we found that the energy level of LUMO (ELUMO) can be effectively tuned by modifying a specific portion of Pyrazine-Acenes (Series I). In addition, HOMO-LUMO energy gap (Egap) was compressed as a result of lowering ELUMO. Learning from Pyrazine-Acene Series I, we designed five new molecules (Series II), which can tune not only ELUMO but EHOMO as well, to tune Egap more effectively. Pyrazine-Acene Series II molecules have been successfully synthesized, and they showed colors from orange to green, which is indicative of effective Egap control. -3.27eV -3.43eV -3.54eV ELUMO -3.87eV -3.95eV EHOMO -5.86eV -5.93eV -6.01eV -6.04eV -6.11eV Pyrazine-Acene Series II

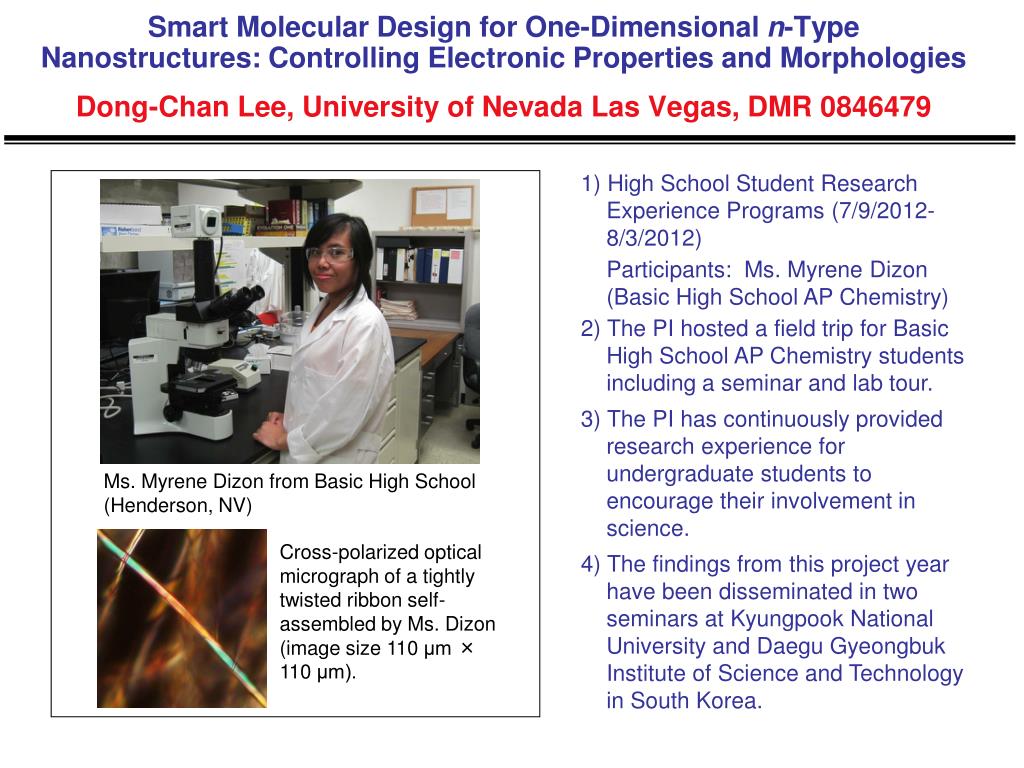

  2. Smart Molecular Design for One-Dimensional n-Type Nanostructures: Controlling Electronic Properties and MorphologiesDong-Chan Lee, University of Nevada Las Vegas, DMR 0846479 1) High School Student Research Experience Programs (7/9/2012-8/3/2012) Participants: Ms. Myrene Dizon (Basic High School AP Chemistry) 2) The PI hosted a field trip for Basic High School AP Chemistry students including a seminar and lab tour. 3) The PI has continuously provided research experience for undergraduate students to encourage their involvement in science. 4) The findings from this project year have been disseminated in two seminars at Kyungpook National University and Daegu Gyeongbuk Institute of Science and Technology in South Korea. Ms. Myrene Dizon from Basic High School (Henderson, NV) Cross-polarized optical micrograph of a tightly twisted ribbon self-assembled by Ms. Dizon (image size 110 μm × 110 μm).
