Introducing CNC's 1000V DC 2P Surge Protection Device (YCS6-C)

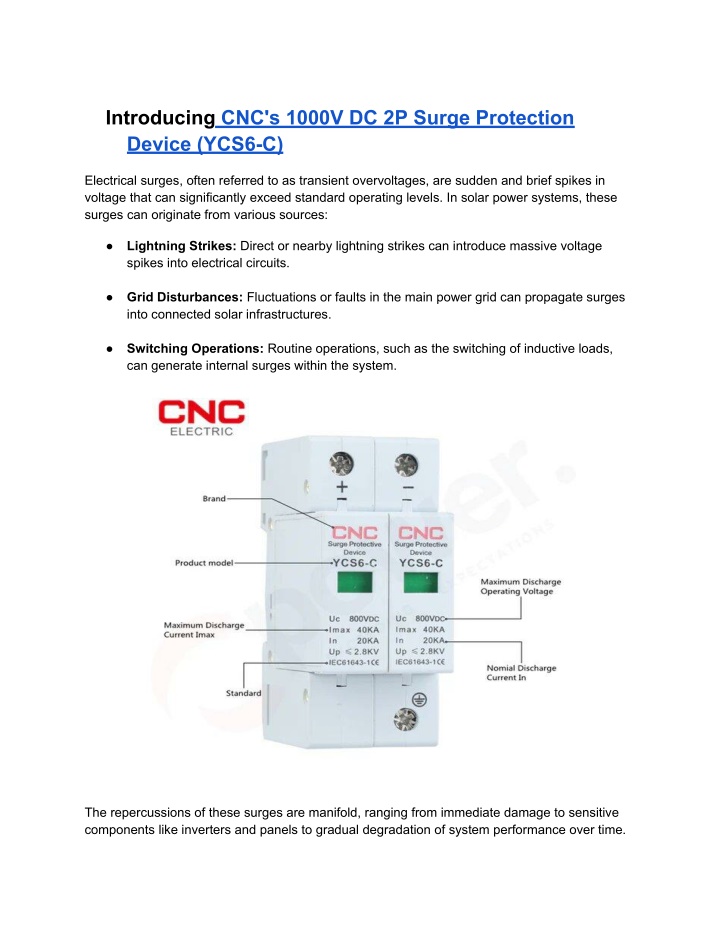

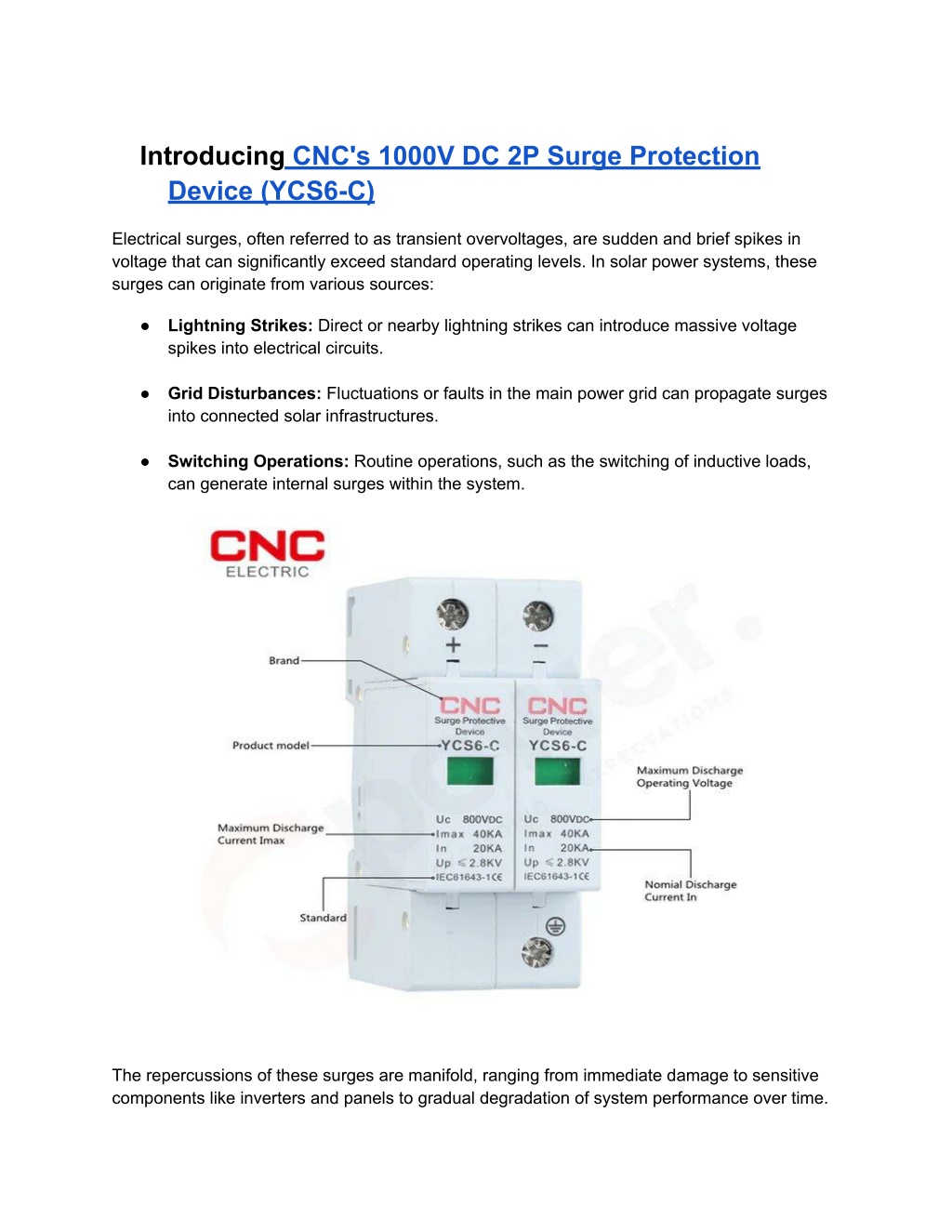

1. Introducing CNC's 1000V DC 2P Surge Protection Device (YCS6-C) Electrical surges, often referred to as transient overvoltages, are sudden and brief spikes in voltage that can significantly exceed standard operating levels. In solar power systems, these surges can originate from various sources: ● Lightning Strikes: Direct or nearby lightning strikes can introduce massive voltage spikes into electrical circuits. ● Grid Disturbances: Fluctuations or faults in the main power grid can propagate surges into connected solar infrastructures. ● Switching Operations: Routine operations, such as the switching of inductive loads, can generate internal surges within the system. The repercussions of these surges are manifold, ranging from immediate damage to sensitive components like inverters and panels to gradual degradation of system performance over time.

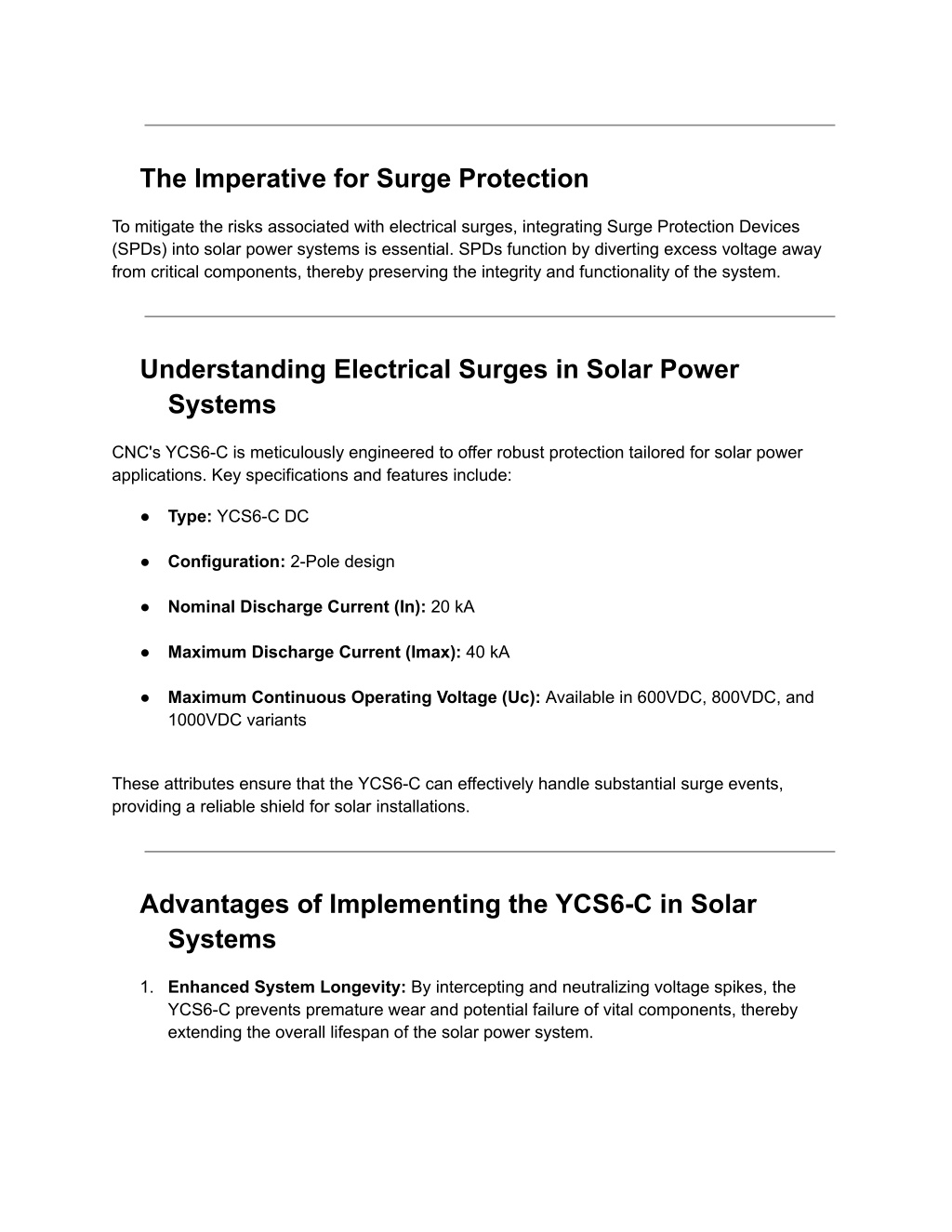

2. The Imperative for Surge Protection To mitigate the risks associated with electrical surges, integrating Surge Protection Devices (SPDs) into solar power systems is essential. SPDs function by diverting excess voltage away from critical components, thereby preserving the integrity and functionality of the system. Understanding Electrical Surges in Solar Power Systems CNC's YCS6-C is meticulously engineered to offer robust protection tailored for solar power applications. Key specifications and features include: ● Type: YCS6-C DC ● Configuration: 2-Pole design ● Nominal Discharge Current (In): 20 kA ● Maximum Discharge Current (Imax): 40 kA ● Maximum Continuous Operating Voltage (Uc): Available in 600VDC, 800VDC, and 1000VDC variants These attributes ensure that the YCS6-C can effectively handle substantial surge events, providing a reliable shield for solar installations. Advantages of Implementing the YCS6-C in Solar Systems 1. Enhanced System Longevity: By intercepting and neutralizing voltage spikes, the YCS6-C prevents premature wear and potential failure of vital components, thereby extending the overall lifespan of the solar power system.

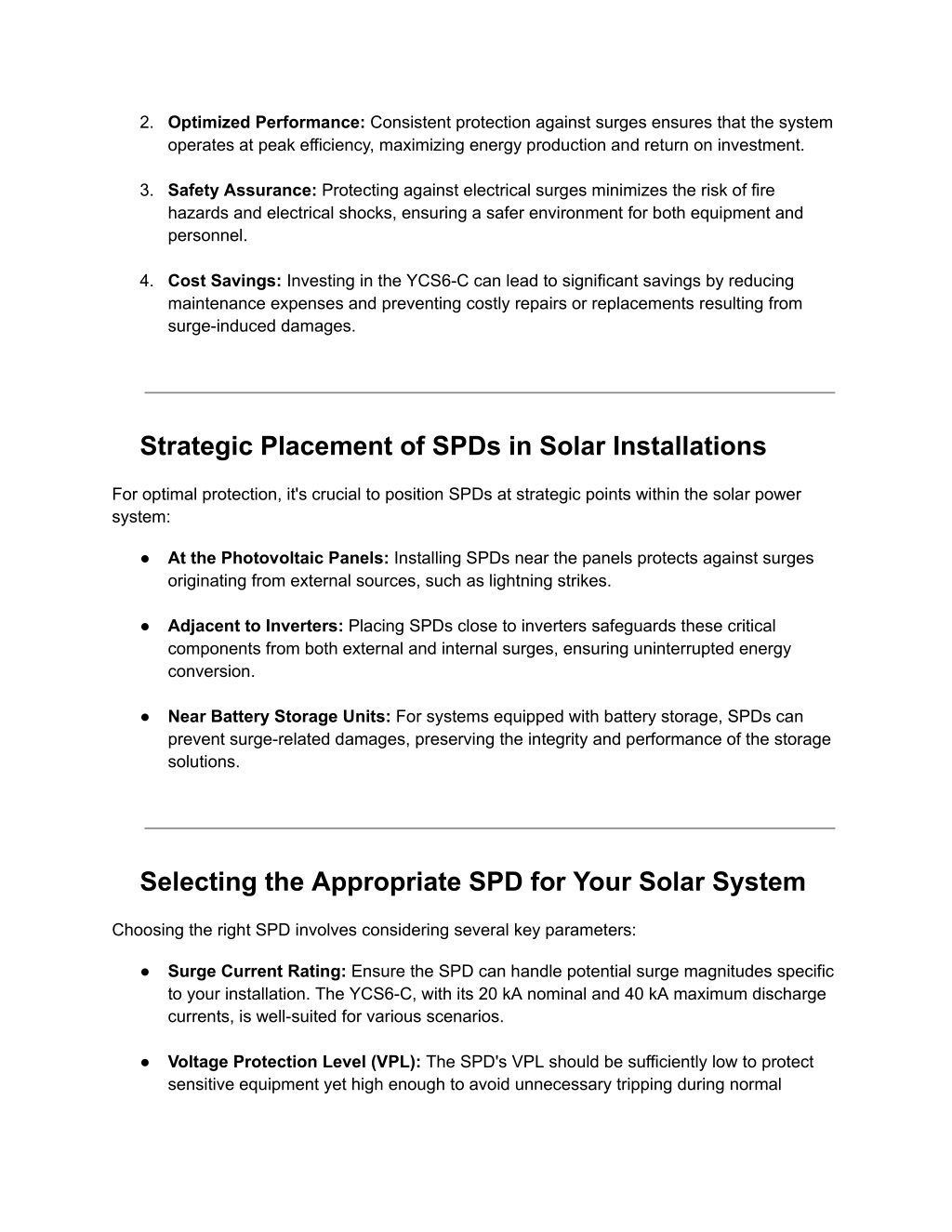

3. 2. Optimized Performance: Consistent protection against surges ensures that the system operates at peak efficiency, maximizing energy production and return on investment. 3. Safety Assurance: Protecting against electrical surges minimizes the risk of fire hazards and electrical shocks, ensuring a safer environment for both equipment and personnel. 4. Cost Savings: Investing in the YCS6-C can lead to significant savings by reducing maintenance expenses and preventing costly repairs or replacements resulting from surge-induced damages. Strategic Placement of SPDs in Solar Installations For optimal protection, it's crucial to position SPDs at strategic points within the solar power system: ● At the Photovoltaic Panels: Installing SPDs near the panels protects against surges originating from external sources, such as lightning strikes. ● Adjacent to Inverters: Placing SPDs close to inverters safeguards these critical components from both external and internal surges, ensuring uninterrupted energy conversion. ● Near Battery Storage Units: For systems equipped with battery storage, SPDs can prevent surge-related damages, preserving the integrity and performance of the storage solutions. Selecting the Appropriate SPD for Your Solar System Choosing the right SPD involves considering several key parameters: ● Surge Current Rating: Ensure the SPD can handle potential surge magnitudes specific to your installation. The YCS6-C, with its 20 kA nominal and 40 kA maximum discharge currents, is well-suited for various scenarios. ● Voltage Protection Level (VPL): The SPD's VPL should be sufficiently low to protect sensitive equipment yet high enough to avoid unnecessary tripping during normal

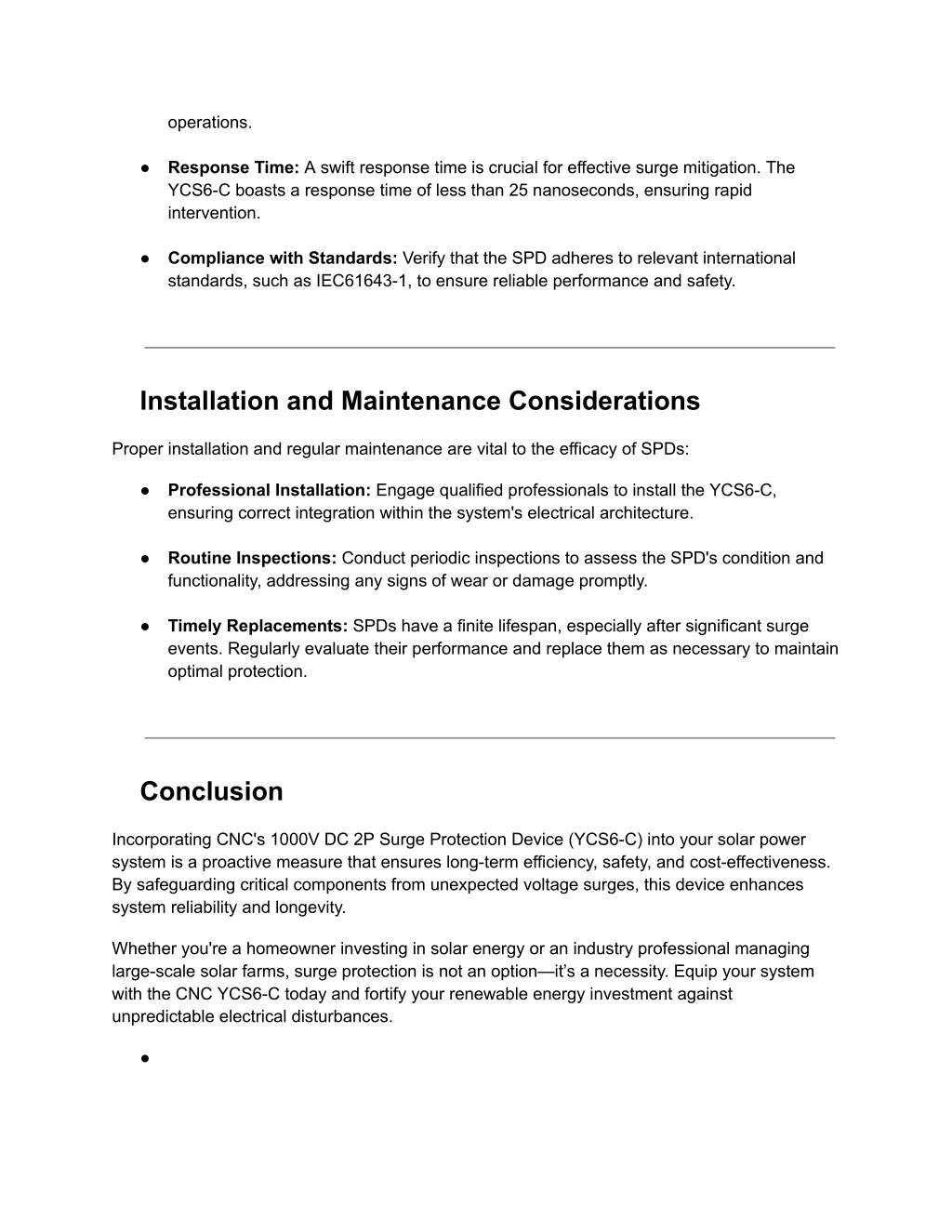

4. operations. ● Response Time: A swift response time is crucial for effective surge mitigation. The YCS6-C boasts a response time of less than 25 nanoseconds, ensuring rapid intervention. ● Compliance with Standards: Verify that the SPD adheres to relevant international standards, such as IEC61643-1, to ensure reliable performance and safety. Installation and Maintenance Considerations Proper installation and regular maintenance are vital to the efficacy of SPDs: ● Professional Installation: Engage qualified professionals to install the YCS6-C, ensuring correct integration within the system's electrical architecture. ● Routine Inspections: Conduct periodic inspections to assess the SPD's condition and functionality, addressing any signs of wear or damage promptly. ● Timely Replacements: SPDs have a finite lifespan, especially after significant surge events. Regularly evaluate their performance and replace them as necessary to maintain optimal protection. Conclusion Incorporating CNC's 1000V DC 2P Surge Protection Device (YCS6-C) into your solar power system is a proactive measure that ensures long-term efficiency, safety, and cost-effectiveness. By safeguarding critical components from unexpected voltage surges, this device enhances system reliability and longevity. Whether you're a homeowner investing in solar energy or an industry professional managing large-scale solar farms, surge protection is not an option—it’s a necessity. Equip your system with the CNC YCS6-C today and fortify your renewable energy investment against unpredictable electrical disturbances. ●
