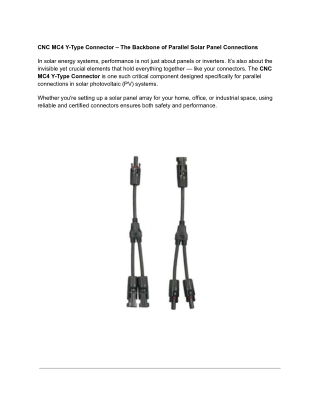

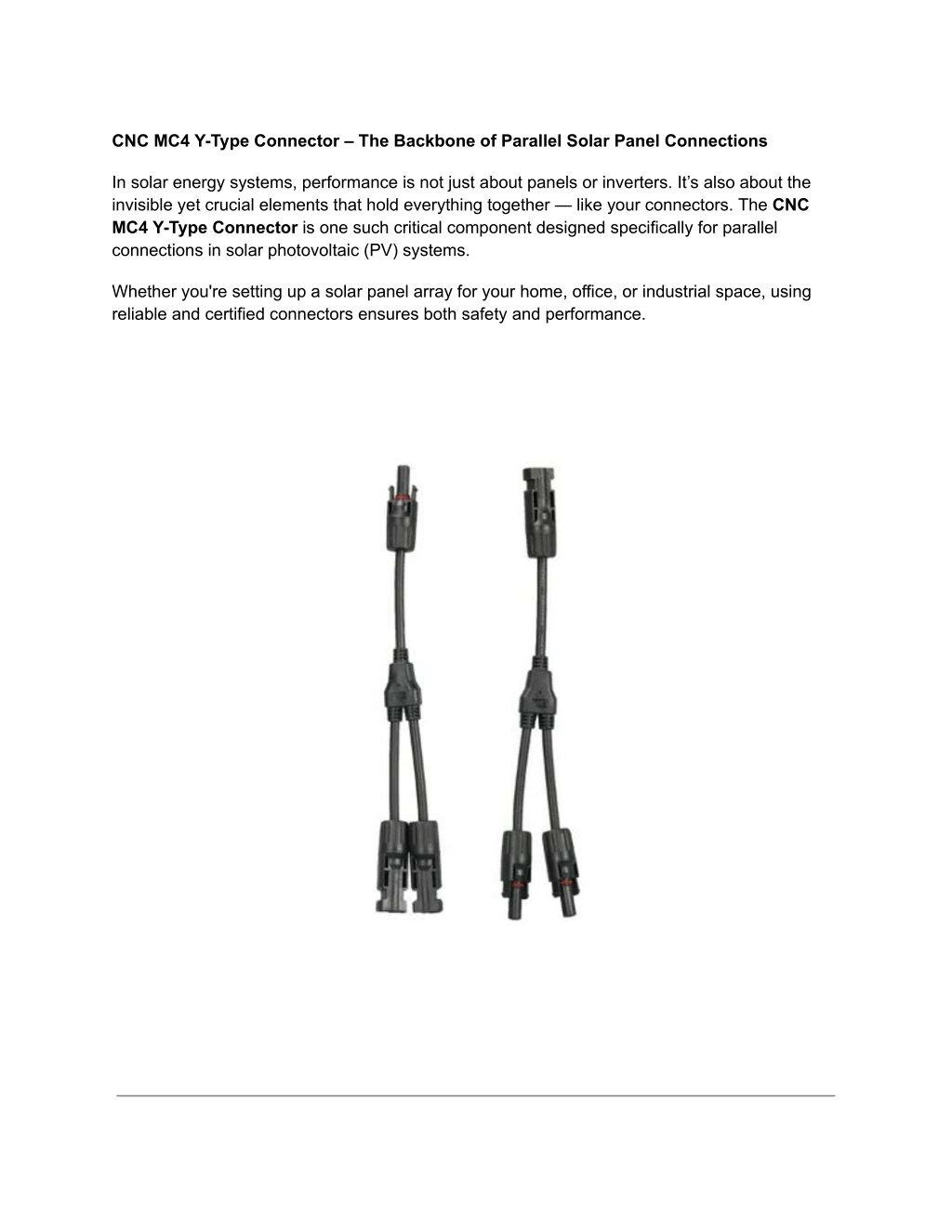

  1. CNC MC4 Y-Type Connector – The Backbone of Parallel Solar Panel Connections In solar energy systems, performance is not just about panels or inverters. It’s also about the invisible yet crucial elements that hold everything together — like your connectors. The CNC MC4 Y-Type Connector is one such critical component designed specifically for parallel connections in solar photovoltaic (PV) systems. Whether you're setting up a solar panel array for your home, office, or industrial space, using reliable and certified connectors ensures both safety and performance.

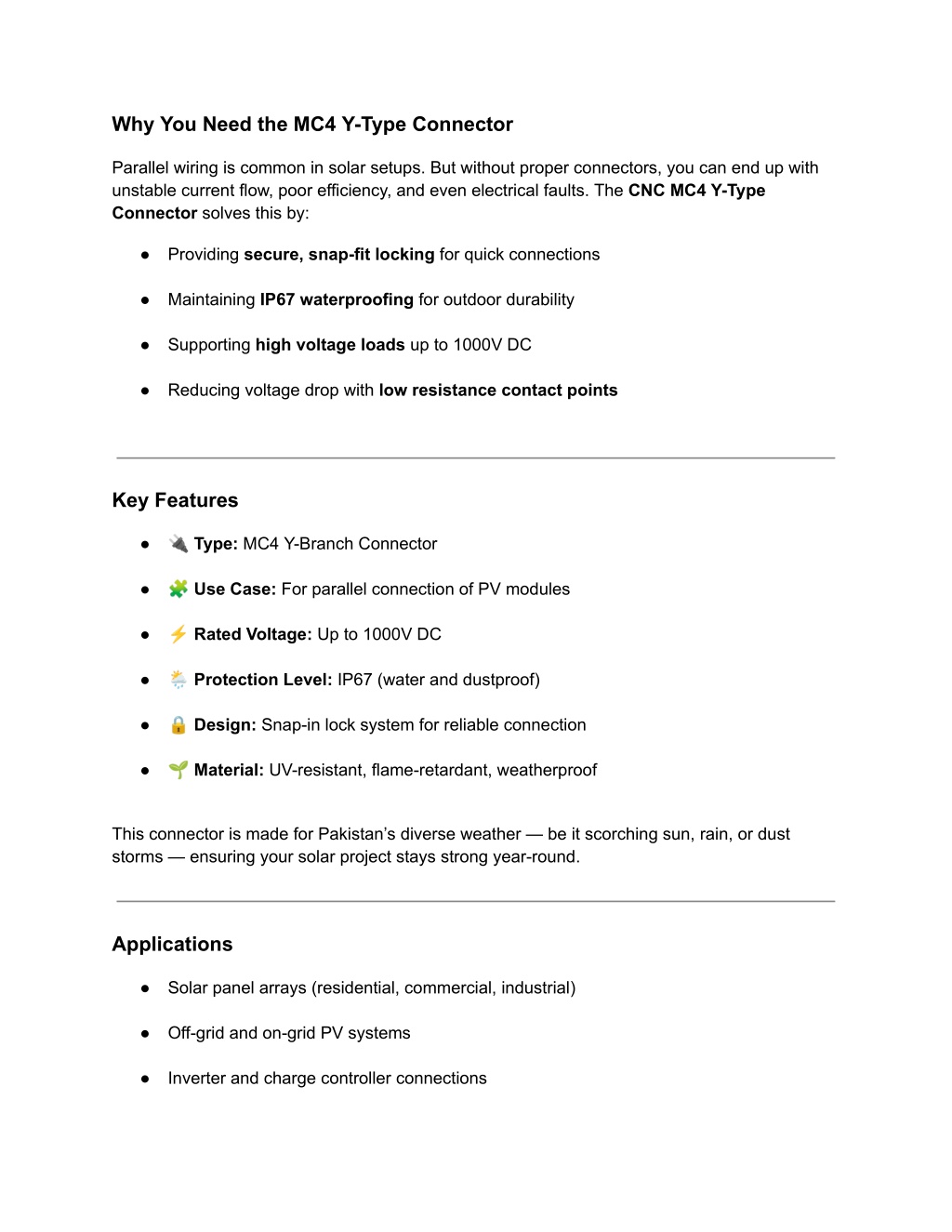

  2. Why You Need the MC4 Y-Type Connector Parallel wiring is common in solar setups. But without proper connectors, you can end up with unstable current flow, poor efficiency, and even electrical faults. The CNC MC4 Y-Type Connector solves this by: ● Providing secure, snap-fit locking for quick connections ● Maintaining IP67 waterproofing for outdoor durability ● Supporting high voltage loads up to 1000V DC ● Reducing voltage drop with low resistance contact points Key Features ● ?Type: MC4 Y-Branch Connector ● ?Use Case: For parallel connection of PV modules ● ⚡Rated Voltage: Up to 1000V DC ● ?Protection Level: IP67 (water and dustproof) ● ?Design: Snap-in lock system for reliable connection ● ?Material: UV-resistant, flame-retardant, weatherproof This connector is made for Pakistan’s diverse weather — be it scorching sun, rain, or dust storms — ensuring your solar project stays strong year-round. Applications ● Solar panel arrays (residential, commercial, industrial) ● Off-grid and on-grid PV systems ● Inverter and charge controller connections

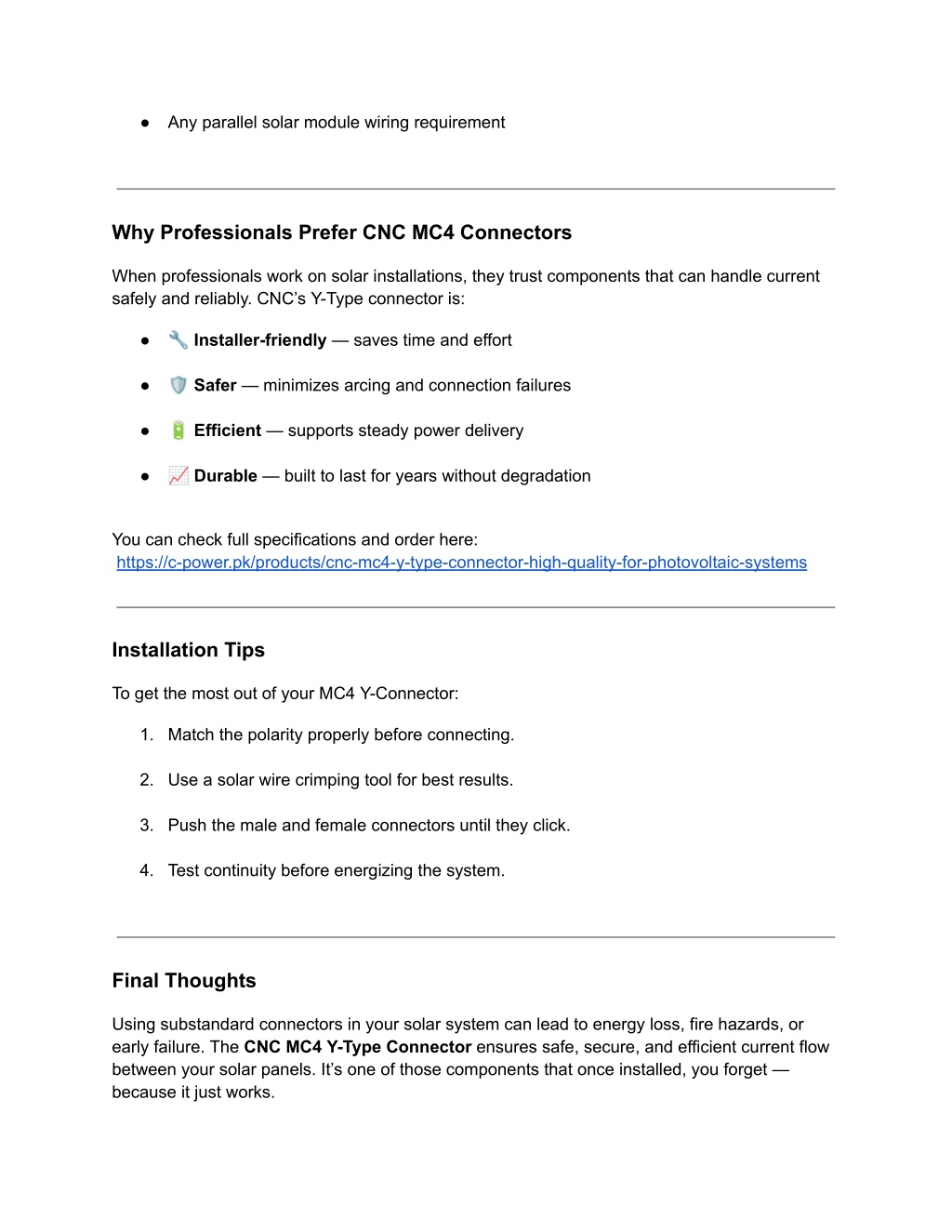

  3. ● Any parallel solar module wiring requirement Why Professionals Prefer CNC MC4 Connectors When professionals work on solar installations, they trust components that can handle current safely and reliably. CNC’s Y-Type connector is: ● ?Installer-friendly — saves time and effort ● ?Safer — minimizes arcing and connection failures ● ?Efficient — supports steady power delivery ● ?Durable — built to last for years without degradation You can check full specifications and order here: https://c-power.pk/products/cnc-mc4-y-type-connector-high-quality-for-photovoltaic-systems Installation Tips To get the most out of your MC4 Y-Connector: 1. Match the polarity properly before connecting. 2. Use a solar wire crimping tool for best results. 3. Push the male and female connectors until they click. 4. Test continuity before energizing the system. Final Thoughts Using substandard connectors in your solar system can lead to energy loss, fire hazards, or early failure. The CNC MC4 Y-Type Connector ensures safe, secure, and efficient current flow between your solar panels. It’s one of those components that once installed, you forget — because it just works.

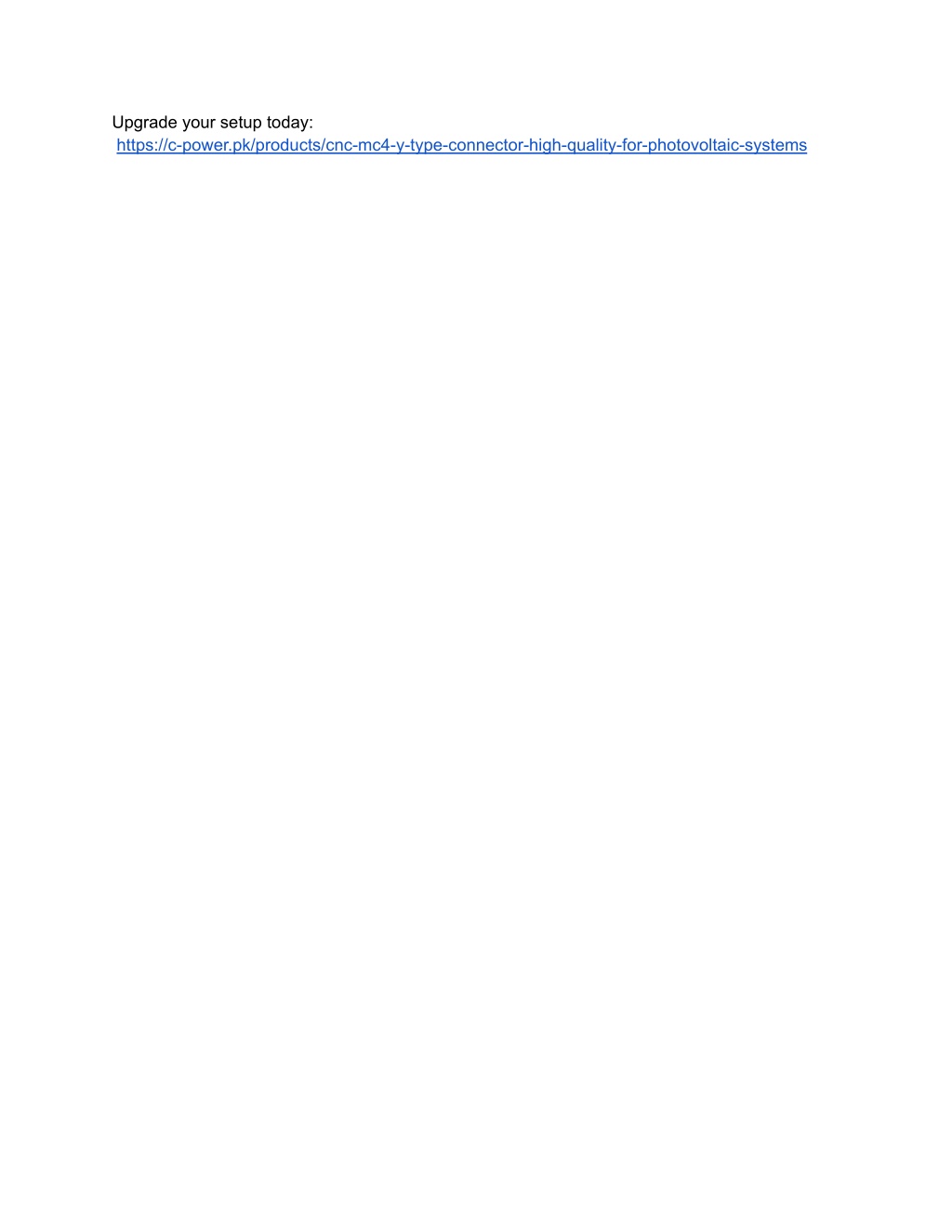

  4. Upgrade your setup today: https://c-power.pk/products/cnc-mc4-y-type-connector-high-quality-for-photovoltaic-systems
