  1. GENERALIZED DISTANCE TRANSFORM A linear time algorithm and its application in fitting articulated body models

  2. OUTLINE • Distance Transform • Generalized Distance Transform • Linear time algorithm for Euclidean distance • Other distances • Application of GDT • Efficient matching of articulated body models

  3. DISTANCE TRANSFORM Defined for a set of points P on a grid G, with P a subset of G G p q

  4. EXAMPLE Example: G p q

  5. EXAMPLES • Chamfer • Hausdorff • Hough • Often used in binary (edge) image matching

  6. GENERALIZED DISTANCE TRANSFORM Instead of binary indicator function 1(q), we can assign a “soft” membership of all grid elements to P f(q) is sampled on the grid G f(q) does not have to be a 2D image, it can represent any D-dimensional, discrete space that encodes spatial relationships through d(p,q)

  7. APPLICATIONS OF GDT • Feature matching / tracking • f(q) can represent a D-dimensional feature vector at location q, and d(p,q) is a displacement in the image space • Dynamic Programming / stereo matching • f(q) can represent the accumulated cost of coming to state p, and d(p,q) is a transition cost to move from state p to state qf’(q) = b(q) + minp(f(p) + d(p,q)) • Belief Propagation / MRFs • Max product (negative log) m’ji(xi) = minxj(’j(xj) + ’ji(xj-xi) + kN(j)\im’kj(xj))

  8. WHY SO SLOW? • Generalized DT computes for each grid point p the distance to all other grid points q • Its complexity is O(n*n) in the number of grid locations n • Intractable for problems with large number of discrete locations

  9. MIN CONVOLUTION Speed-up by seeing DT as Min-Convolution

  10. f(q) f(2) f(1) f(3) f(0) 0 1 2 3 q LOWER ENVELOPE f(q) • Min Convolution is the Lower Envelop of cones placed at each p • Example 1 • One Dimension • Euclidean Distance 0 1 2 3 q Remember: in the case of standard distance transforms all cones would either be rooted at zero (when there is a pixel) or at infinity (when there is no pixel)

  11. LOWER ENVELOPE • Example 2 • One Dimension • Squared Euclidean • Once computed, the distance transform on the grid can be sampled from the lower envelope in linear time

  12. COMPUTING THE LOWER ENVELOPE Add parabola at first grid point q

  13. COMPUTING THE LOWER ENVELOPE Add second parabola at second grid point, and compute intersection with previous parabola v[1] q s

  14. COMPUTING THE LOWER ENVELOPE Insert height and intersection point in arrays v and z v[1] v[2] z[2]

  15. COMPUTING THE LOWER ENVELOPE Add third parabola at third grid point, and compute intersection with previous parabola v[1] v[2] q z[2] s

  16. COMPUTING THE LOWER ENVELOPE Since the new intersection is to the right of the previous intersection, insert height and intersection point in arrays v and z v[1] v[2] v[3] z[2] z[3]

  17. COMPUTING THE LOWER ENVELOPE Now consider the case when the new intersection is to the left of the previous intersection v[1] v[2] q s z[2]

  18. COMPUTING THE LOWER ENVELOPE Delete previous parabola and its intersection from arrays v and z and compute intersection with the last parabola in array v v[1] q s

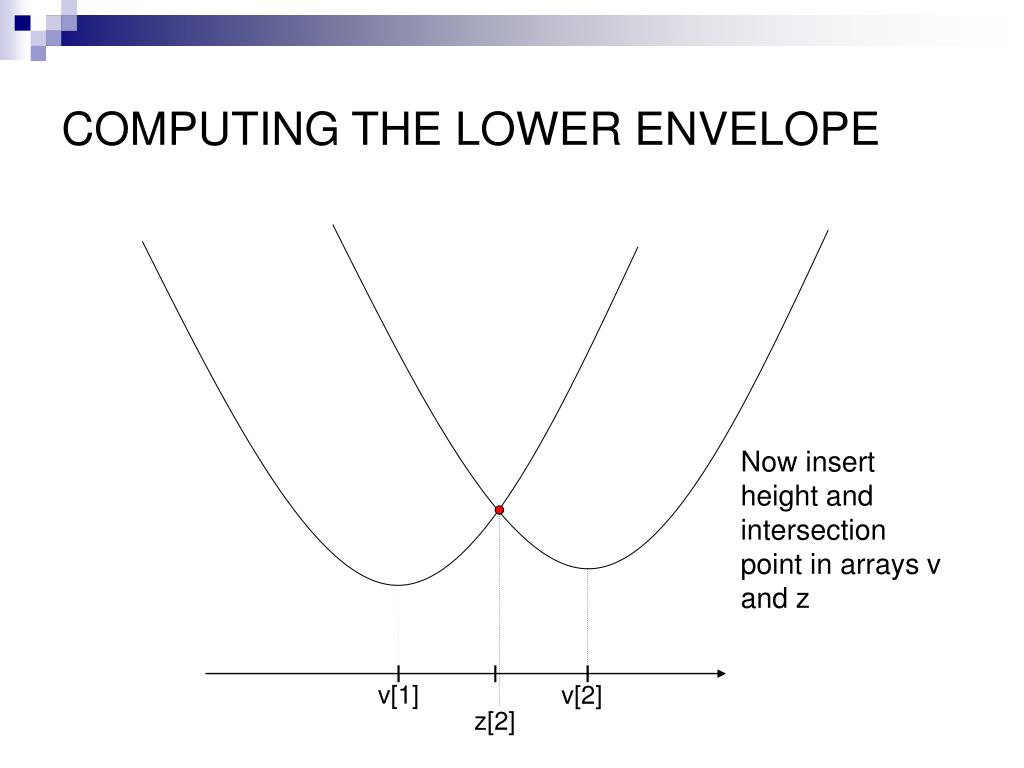

  19. COMPUTING THE LOWER ENVELOPE Now insert height and intersection point in arrays v and z v[1] v[2] z[2]

  20. COMPUTATIONAL COMPLEXITY • The algorithm has two steps • 1) Compute Lower Envelope • For each grid location: • One insertion for parabola and intersection point • At most one deletion of parabola and intersection point • Hence, O(n) for n grid locations • 2) Sample from Lower Envelope • O(n) So, total complexity of O(n) !

  21. ARBITRARY DIMENSIONS • Consider 2D grid: • Any d-dimensional DT can be performed as d one-dimensional distance transforms in O(dn) time is the one-dimensional DT along the column indexed by x’

  22. 2D EXAMPLE

  23. OTHER DISTANCES • So far only Euclidean distances shown • Other distances realized as a combination of linear, quadratic and box distances • Min of any constant number of linear and quadratic functions, with or without truncation • E.g., multiple “segments” • Gaussian approximation with four min convolutions using box distances

  24. ILLUSTRATIVE RESULTS Borrowed from Dan Huttenlocher • Image restoration using MRF formulation with truncated quadratic clique potentials • Simply not practical with conventional techniques, message updates 2562 • Fast quadratic min convolution technique makes feasible • A multi-grid technique can speed up further • Powerful formulationlargely abandonedfor such problems

  25. Illustrative Results Borrowed from Dan Huttenlocher • Pose detection and object recognition • Sites are parts of an articulated object such as limbs of a person • Labels are locations of each part in the image • Millions of labels, conventional quadratic time methods do not apply • Compatibilities are spring-like

  26. FITTING OF HUMAN BODY MODELS

  27. best configuration match cost deformation cost THE GENERAL APPROACH • Body parts model appearance • Graph models deformation of linked limbs G=(V,E) with V set of part vertices, E set of edges connecting vertices • The best fit minimizes the sum of match cost of each limb and deformation cost of body structure

  28. DYNAMIC PROGRAMMING • If Graph has tree-structure we can reformulate in recursive form -> Dynamic Programming (DP) • DP is appealing because it gives a global solution (on a discretized search space) • However, DP runs in polynomial time O(h2n), with n the number of parts and h the number of possible locations for each part • h usually is huge, often hundreds of thousands (x,y,s,θ) If each of (x,y,s,θ) has 20 discreet states, then we have h=160000 !!!

  29. DP FOR TREE-STRUCTURED MODELS • Match quality for leaf nodes • Match quality for other nodes • Best location for root node

  30. Need to transform lj into regular grid for which dij serves as distance measure MATCH COST AS DISTANCE TRANSFORM • Recall Generalized Distance Transform • Compare to match cost function

  31. ORIGINAL BODY CONFIGURATION • Locations of two connected parts • Joint probability of both parts given deformation constraints

  32. TRANSFORMED BODY CONFIGURATION • Project distribution over angles onto 2D unit vector representation • Now all parameters are in a grid and modeled as multivariate Gaussian with zero mean and variances specified in diagonal covariance matrix Dij • Distance in grid is given as Mahalanobis distance Dij over transformed joint locations Tij(li) and Tji(lj)

  33. SUMMARY • Now linear instead of quadratic time to compute match costs between child and parent limbs • Did not prune away search space (still global solution!) • Search space only got a little bigger (about four times) due to unit vector representation of limb orientation • 32 discreet angles represented in 11x11 grid

  34. REFERENCES • Daniel Huttenlocher • http://www.cs.cornell.edu/~dph/ • Pedro Felzenszwalb • http://people.cs.uchicago.edu/~pff/ • Distance Transforms of Sampled Functions. Pedro F. Felzenszwalb and Daniel P. Huttenlocher. Cornell Computing and Information Science TR2004-1963. • Pictorial Structures for Object Recognition, Intl. Journal of Computer Vision, 61(1), pp. 55-79, January 2005 (Daniel P. Huttenlocher, P. Felzenszwalb).

  35. OTHER REFERENCES • Stereo & Image Restoration • Efficient Belief Propagation for Early Vision.Pedro F. Felzenszwalb and Daniel P. Huttenlocher. International Journal of Computer Vision, Vol. 70, No. 1, October 2006. • Higher Order Markov Random Fields • Efficient Belief Propagation with Learned Higher-Order Markov Random Fields, Proceedings of ECCV, 2006 (D. Huttenlocher, X. Lan, S. Roth and M. Black). • www.cs.ubc.ca/~nando/nipsfast/slides/dt-nips04.pdf • Image Segmentation • Efficient Graph-Based Image Segmentation. Pedro F. Felzenszwalb and Daniel P. Huttenlocher. International Journal of Computer Vision, Volume 59, Number 2, September 2004.

  36. Thanks!

  37. MATCH COST AS DISTANCE TRANSFORM • Distance p(x,y) in grid is given as Mahalanobis distance Mij over model deformation parameters lj=(x,y,s,θ)T
