cctv over twisted pair gem baluns benefits to dealer using cat5 gem baluns

CCTV Over Twisted Pair & GEM BalunsBenefits to Dealer Using CAT5 & GEM Baluns

or TRB-4BNCPT

They use 1 pair per camera of 1 coax per camera.

That means 4 cameras on 1 CAT5 cable

They can have longer runs, Gem’s Passive Balun

goes 2,000 feet

The cable may already be there

Sets the installation up for future IP

  • No AC power batteries needed
  • Bi-directional signal conversion
  • Ultra-miniature enclosure

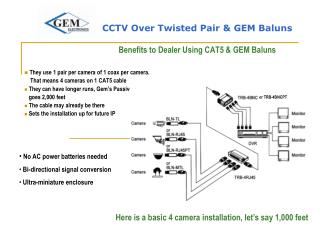

Here is a basic 4 camera installation, let’s say 1,000 feet

slide2

CCTV Over Twisted Pair & GEM Baluns

Superior Picture Up To 2,000 Feet

ACTUAL PHOTOS

slide3

CCTV Over Twisted Pair & GEM Baluns

Dealer Saves 60% in Material Cost Using CAT5 Versus Coax

1,000 feet of coax at $0.30 per foot times 4 equals $1200.00 of just coax cable.

1,000 feet of CAT5 at $0.20 per foot equals $200.00

PLUS REQUIRED BALUNS

1 TRB-4BNCPT……..$260.00

1 TRB-4RJ45………..$40.00

4 BLN-TL…………….$175.00

CAT5 plus Baluns total: $475.00

Savings - $1200.00 minus $675.00 equals $525.00 in material costs not to mention labor.

slide4

CCTV Over Twisted Pair & GEM Baluns

Typical Baluns Used

  • CCTV Balun Toolless – Part Number: BLN-TL
  • 2,000 feet with passive balun
  • No tools required to install
  • May be used on CAT3, 5, or 6
  • Very cost effective – reduces CCTV installation
  • Sets up cable architecture for future IP
  • CCTV Balun with 4 Pigtails – Part Number: TRB-4BNCPT
  • 4 cameras on 1 CAT5
  • 2,000 feet
  • Ease of installation onto DVR
  • Very cost effective – reduces CCTV installation
  • Sets up cable architecture for future IP
  • CCTV CAT5 – Part Number: TRB-4RJ45
  • Splits one CAT5 trunk line into 4 separate cameras
  • Simple RJ45 connections
  • All video pinouts – 7 & 8
  • Very cost effective – reduces CCTV installation
  • Sets up cable architecture for future IP
slide5

CCTV Over Twisted Pair & GEM Baluns

  • For larger camera installation GEM has 16 & 32 position hubs, both active & passive
  • CCTV 19 Inch Rack Mount Hub
  • Part Numbers: H16P-RJ45BNC –without separate power/data connections
  • H16P-RJ45BNC-1 – with separate power/data connections
  • as pictured
  • Passive 16 position video balun/hub
  • Video good for 2,000 feet
  • Power and/or data option
  • Very cost effective for larger CCTV installations
  • Sets up cable architecture for future IP

Plus a vast array of other Balun configurations including – Additional Passive and Active video designs, Audio, CATV, Component and HDMI, S-Video, VGA and HDMI Transceivers – Transcoders

Providing Different Options For Every Job
