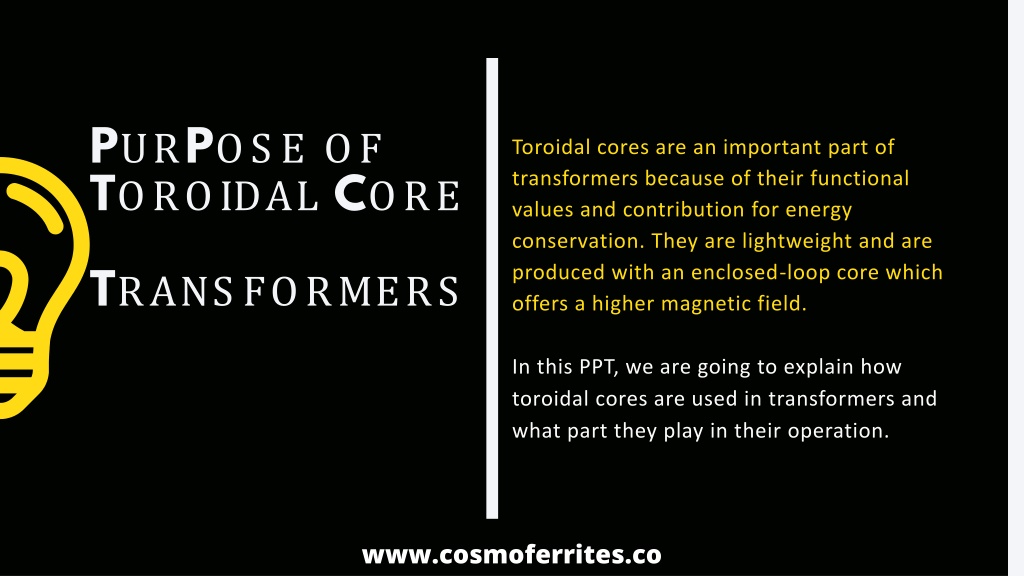

3. PURPOSE OF TOROIDAL CORE IN TRANSFORMERS Toroidal cores are an important part of transformers because of their functional values and contribution for energy conservation. They are lightweight and are produced with an enclosed-loop core which offers a higher magnetic field. In this PPT, we are going to explain how toroidal cores are used in transformers and what part they play in their operation. www.cosmoferrites.com

4. SIZES OF TOROIDAL CORES These include T0904, T1003, T1004, T1005, T1005A, T1808, T1810, T2007, T2206, and more. THE TOROIDAL CORES ARE AVAILABLE IN SEVERAL SIZES TO SUIT DIFFERENT TRANSFORMER DESIGNS. www.cosmoferrites.com

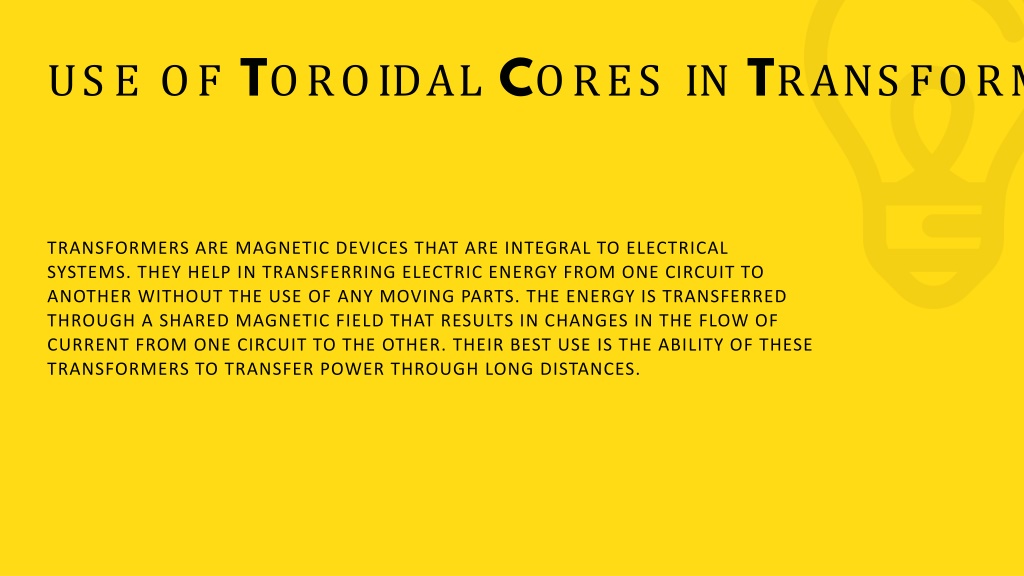

5. USE OF TOROIDAL CORES IN TRANSFORMERS TRANSFORMERS ARE MAGNETIC DEVICES THAT ARE INTEGRAL TO ELECTRICAL SYSTEMS. THEY HELP IN TRANSFERRING ELECTRIC ENERGY FROM ONE CIRCUIT TO ANOTHER WITHOUT THE USE OF ANY MOVING PARTS. THE ENERGY IS TRANSFERRED THROUGH A SHARED MAGNETIC FIELD THAT RESULTS IN CHANGES IN THE FLOW OF CURRENT FROM ONE CIRCUIT TO THE OTHER. THEIR BEST USE IS THE ABILITY OF THESE TRANSFORMERS TO TRANSFER POWER THROUGH LONG DISTANCES.

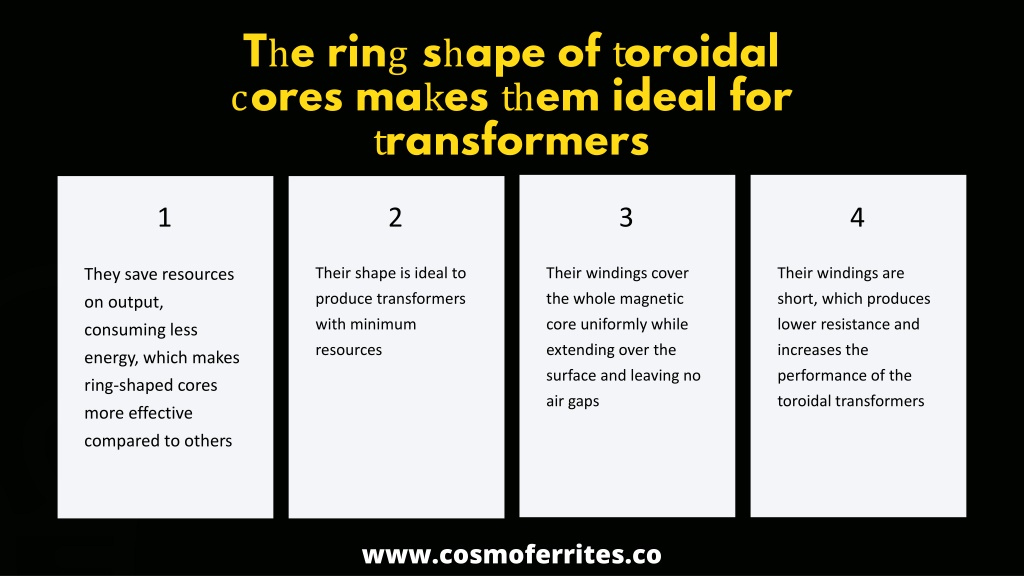

6. 2 3 1 4 The ring shape of toroidal cores makes them ideal for transformers Their shape is ideal to produce transformers with minimum resources Their windings cover the whole magnetic core uniformly while extending over the surface and leaving no air gaps They save resources on output, consuming less energy, which makes ring-shaped cores more effective compared to others Their windings are short, which produces lower resistance and increases the performance of the toroidal transformers www.cosmoferrites.com

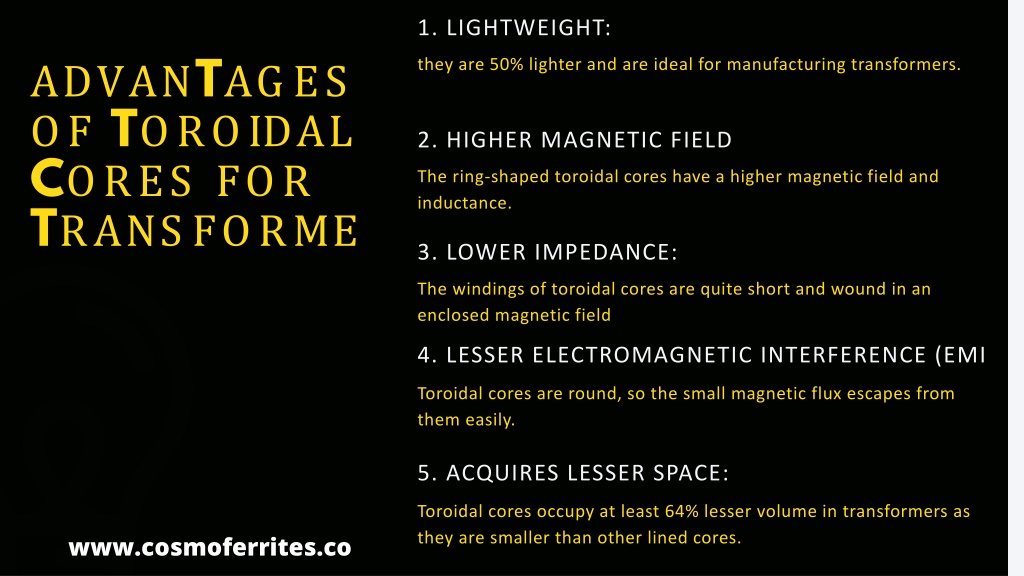

7. 1. LIGHTWEIGHT: 4. LESSER ELECTROMAGNETIC INTERFERENCE (EMI they are 50% lighter and are ideal for manufacturing transformers. Toroidal cores are round, so the small magnetic flux escapes from them easily. ADVANTAGES OF TOROIDAL CORES FOR TRANSFORMERS 2. HIGHER MAGNETIC FIELD 5. ACQUIRES LESSER SPACE: The ring-shaped toroidal cores have a higher magnetic field and inductance. Toroidal cores occupy at least 64% lesser volume in transformers as they are smaller than other lined cores. 3. LOWER IMPEDANCE: The windings of toroidal cores are quite short and wound in an enclosed magnetic field www.cosmoferrites.com

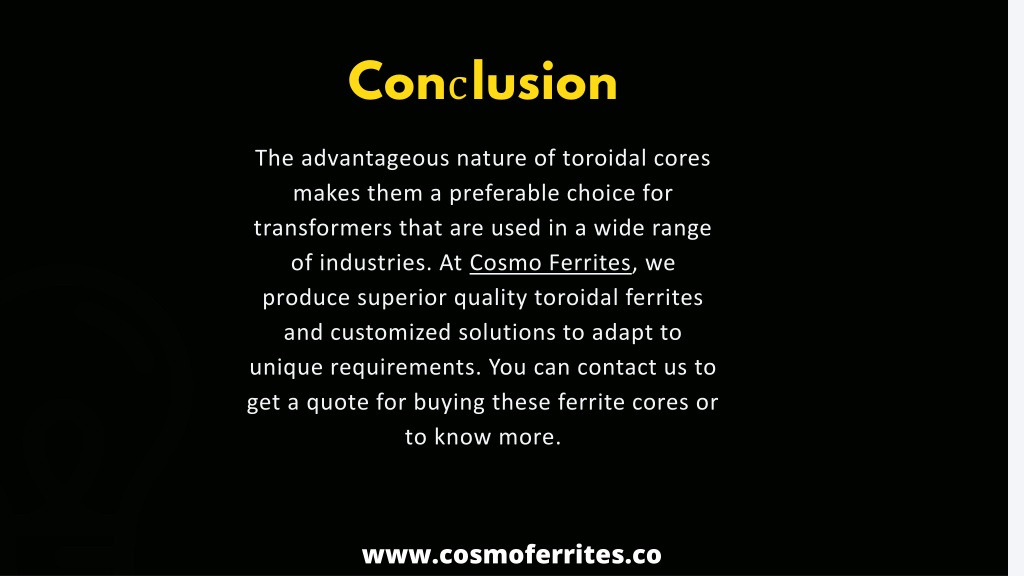

8. Conclusion The advantageous nature of toroidal cores makes them a preferable choice for transformers that are used in a wide range of industries. At Cosmo Ferrites, we produce superior quality toroidal ferrites and customized solutions to adapt to unique requirements. You can contact us to get a quote for buying these ferrite cores or to know more. www.cosmoferrites.com
