Learn More about Ferrite Pot Cores

Ferrite cores are dense, homogeneous ceramic structures composed of iron oxide (Fe2O3) mixed with oxides or carbonates of one or more metals such as manganese, zinc, nickel, or magnesium.<br>

cosmoferrites121
Download Presentation

Learn More about Ferrite Pot Cores

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Learn More about Ferrite Pot Cores www.cosmoferrites.com

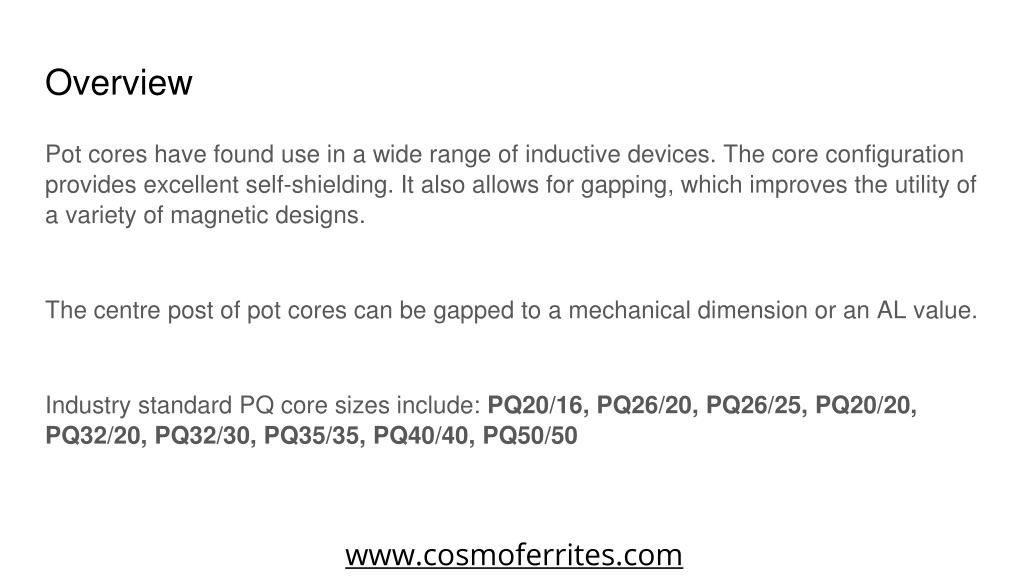

  2. Overview Pot cores have found use in a wide range of inductive devices. The core configuration provides excellent self-shielding. It also allows for gapping, which improves the utility of a variety of magnetic designs. The centre post of pot cores can be gapped to a mechanical dimension or an AL value. Industry standard PQ core sizes include: PQ20/16, PQ26/20, PQ26/25, PQ20/20, PQ32/20, PQ32/30, PQ35/35, PQ40/40, PQ50/50 www.cosmoferrites.com

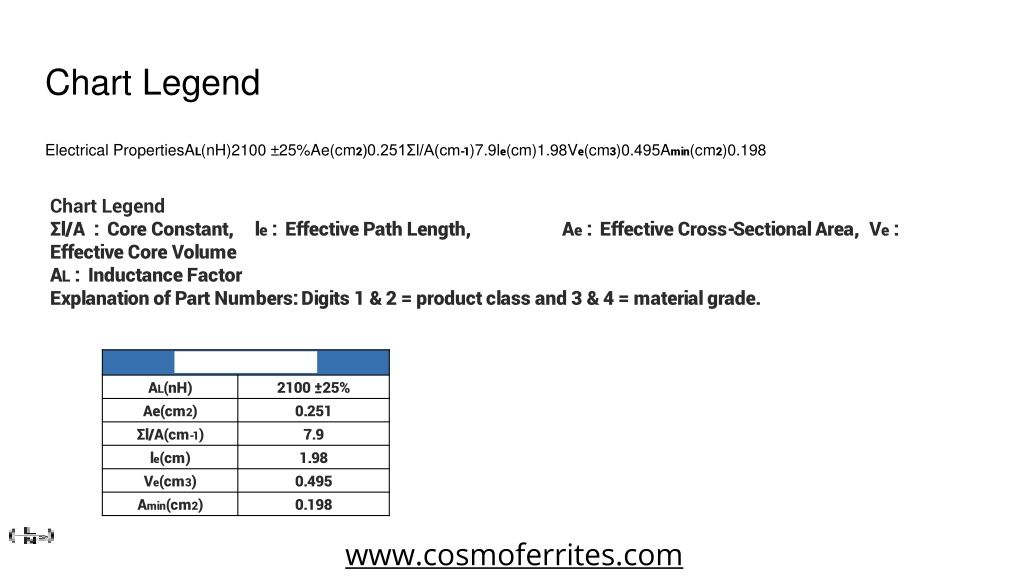

  3. Chart Legend Chart Legend Σl/A : Core Constant, le : Effective Path Length, Ae : Effective Cross-Sectional Area, Ve : Effective Core Volume AL : Inductance Factor Explanation of Part Numbers: Digits 1 & 2 = product class and 3 & 4 = material grade. Electrical PropertiesAL(nH)2100 ±25%Ae(cm2)0.251Σl/A(cm-1)7.9le(cm)1.98Ve(cm3)0.495Amin(cm2)0.198 www.cosmoferrites.com

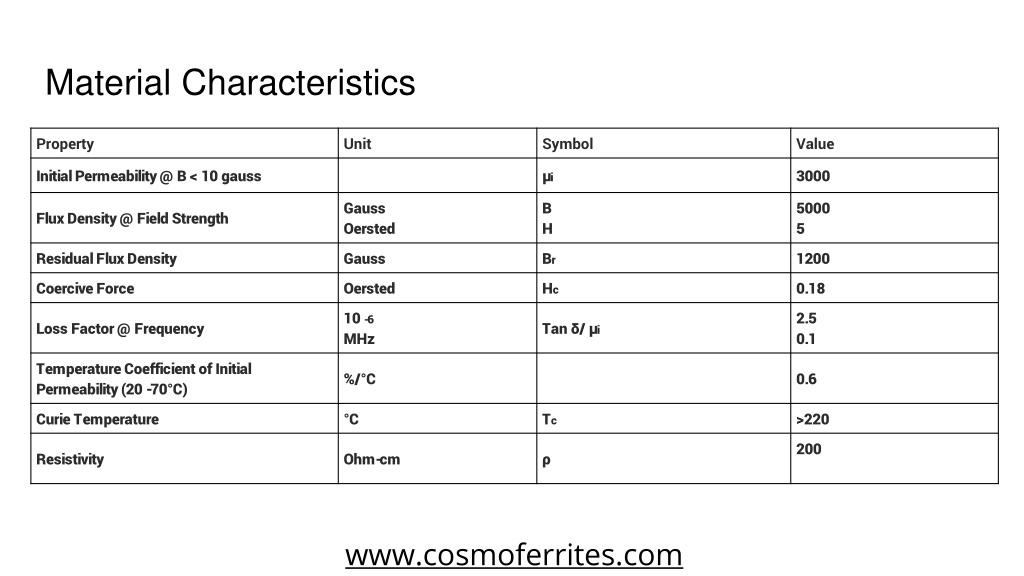

  4. Material Characteristics www.cosmoferrites.com

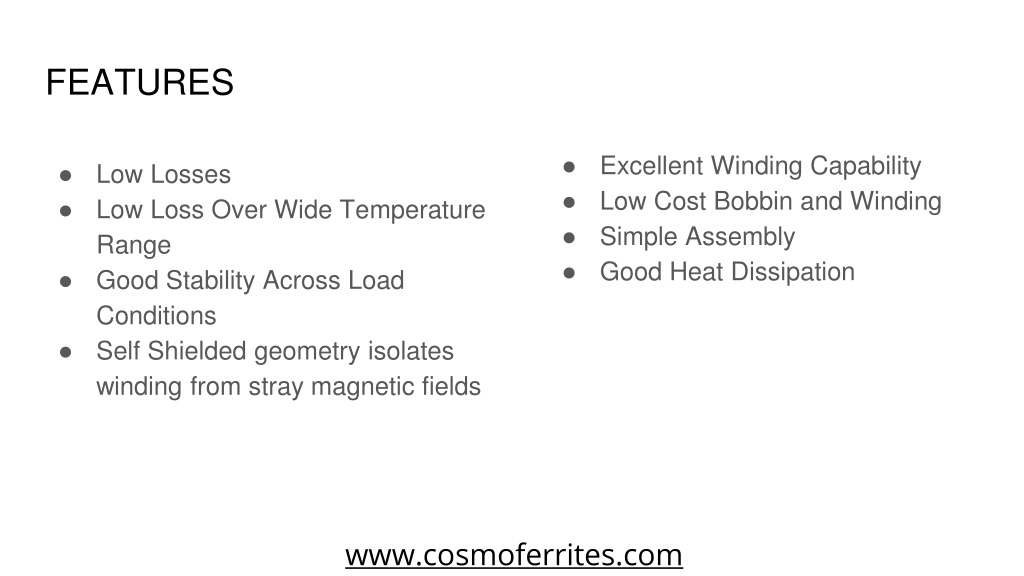

  5. FEATURES • Low Losses • Low Loss Over Wide Temperature Range • Good Stability Across Load Conditions • Self Shielded geometry isolates winding from stray magnetic fields • Excellent Winding Capability • Low Cost Bobbin and Winding • Simple Assembly • Good Heat Dissipation www.cosmoferrites.com

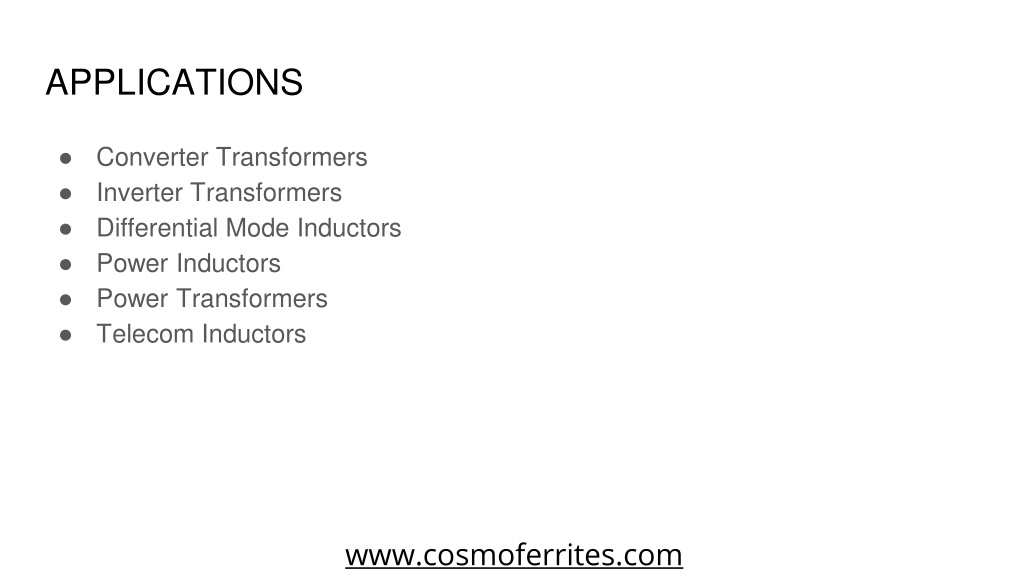

  6. APPLICATIONS • Converter Transformers • Inverter Transformers • Differential Mode Inductors • Power Inductors • Power Transformers • Telecom Inductors www.cosmoferrites.com

  7. Phone Number Email Address Website Contact Us 11493988 sales@cosmoferrites.com www.cosmoferrites.com www.cosmoferrites.com
