  1. FERRITE U FERRITE U CORES CORES By Cosmo Ferrites www.cosmoferrites.com

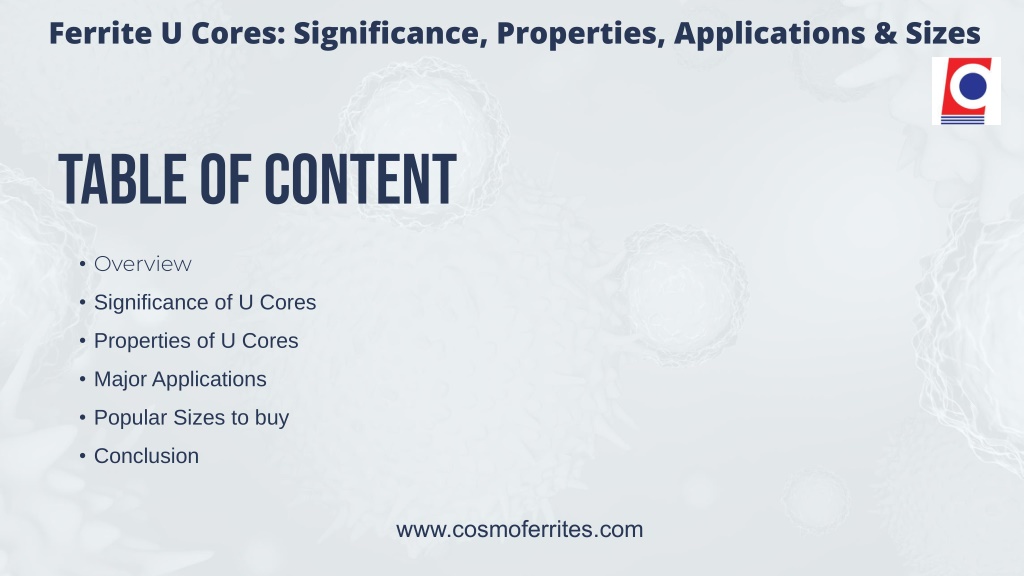

  2. Ferrite U Cores: Significance, Properties, Applications & Sizes TABLE OF CONTENT • Overview • Significance of U Cores • Properties of U Cores • Major Applications • Popular Sizes to buy • Conclusion www.cosmoferrites.com

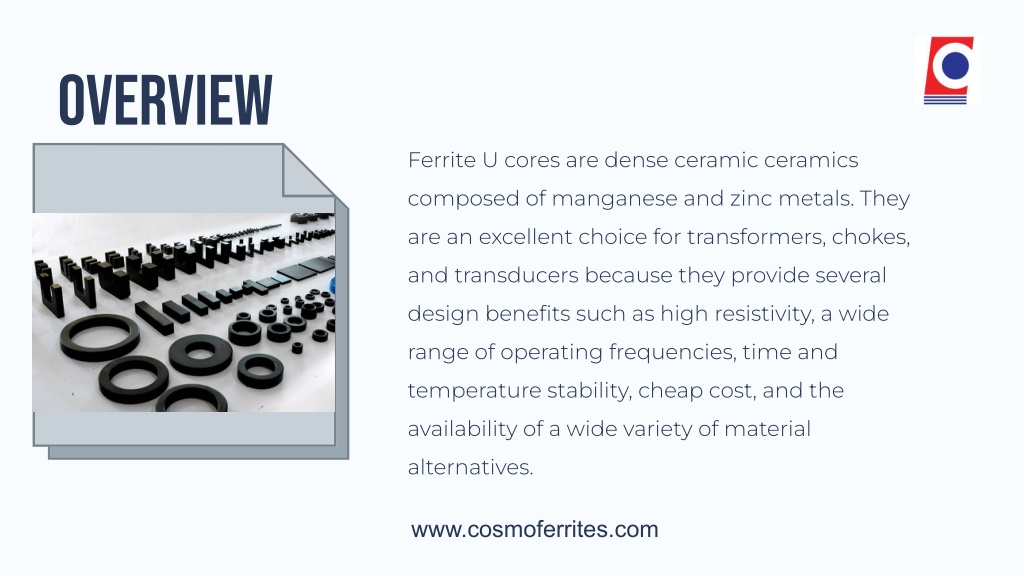

  3. OVERVIEW Ferrite U cores are dense ceramic ceramics composed of manganese and zinc metals. They are an excellent choice for transformers, chokes, and transducers because they provide several design benefits such as high resistivity, a wide range of operating frequencies, time and temperature stability, cheap cost, and the availability of a wide variety of material alternatives. www.cosmoferrites.com

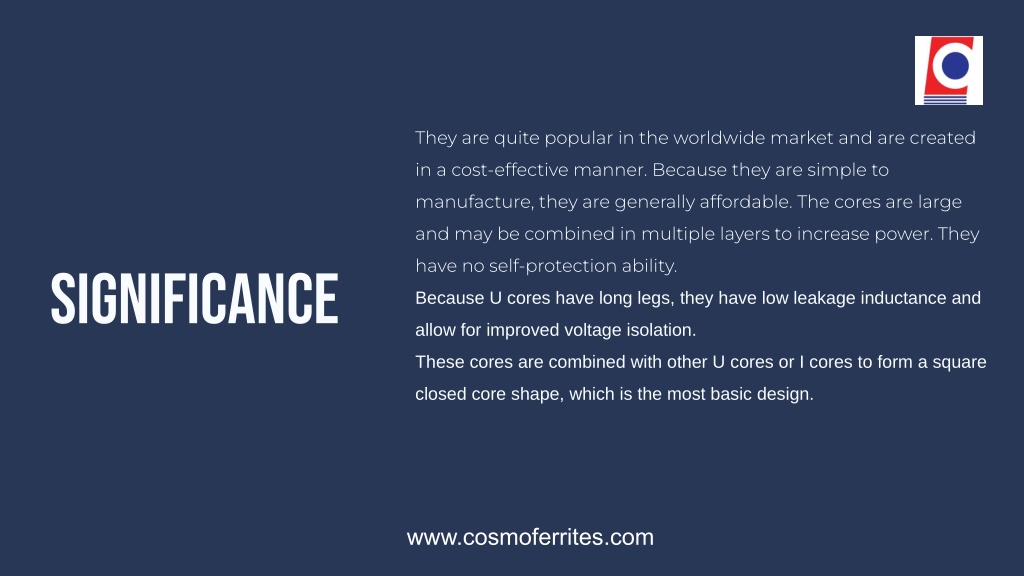

  4. They are quite popular in the worldwide market and are created in a cost-effective manner. Because they are simple to manufacture, they are generally affordable. The cores are large and may be combined in multiple layers to increase power. They have no self-protection ability. SIGNIFICANCE Because U cores have long legs, they have low leakage inductance and allow for improved voltage isolation. These cores are combined with other U cores or I cores to form a square closed core shape, which is the most basic design. www.cosmoferrites.com

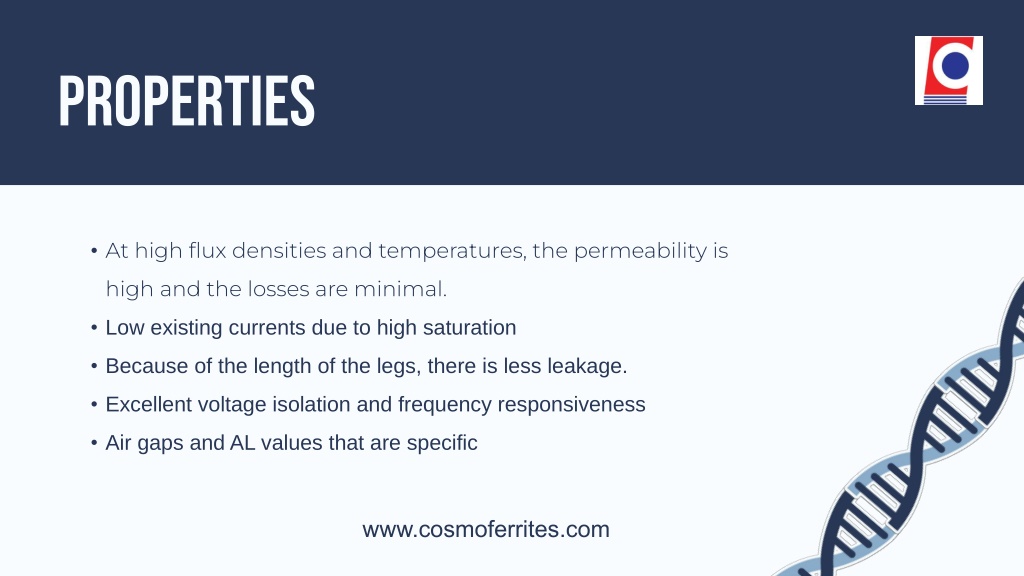

  5. PROPERTIES • At high flux densities and temperatures, the permeability is high and the losses are minimal. • Low existing currents due to high saturation • Because of the length of the legs, there is less leakage. • Excellent voltage isolation and frequency responsiveness • Air gaps and AL values that are specific www.cosmoferrites.com

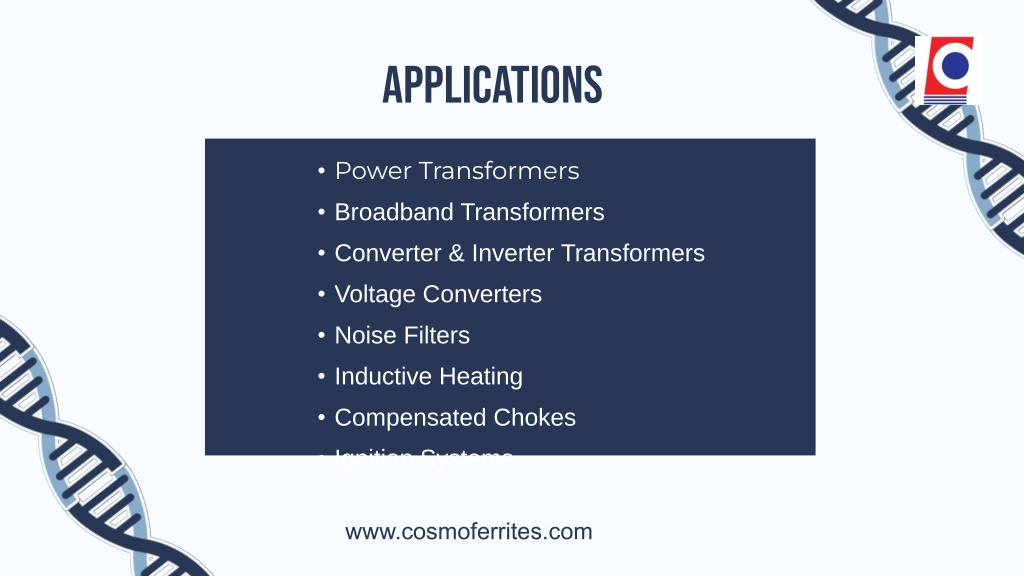

  6. Applications • Power Transformers ANTHONY J. D'ANGELO • Broadband Transformers • Converter & Inverter Transformers • Voltage Converters • Noise Filters • Inductive Heating • Compensated Chokes • Ignition Systems www.cosmoferrites.com

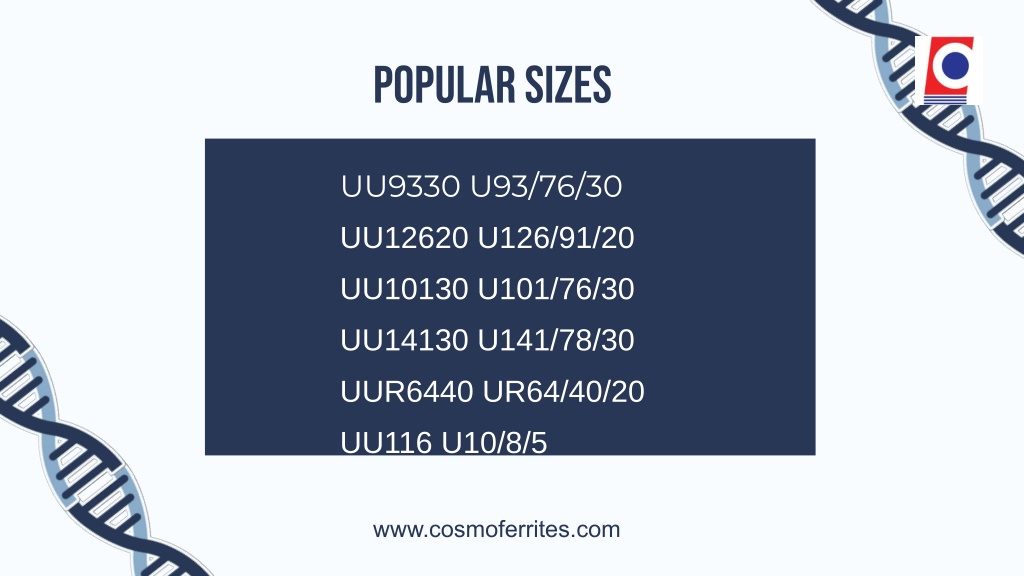

  7. Popular Sizes ANTHONY J. D'ANGELO UU9330 U93/76/30 UU12620 U126/91/20 UU10130 U101/76/30 UU14130 U141/78/30 UUR6440 UR64/40/20 UU116 U10/8/5 www.cosmoferrites.com

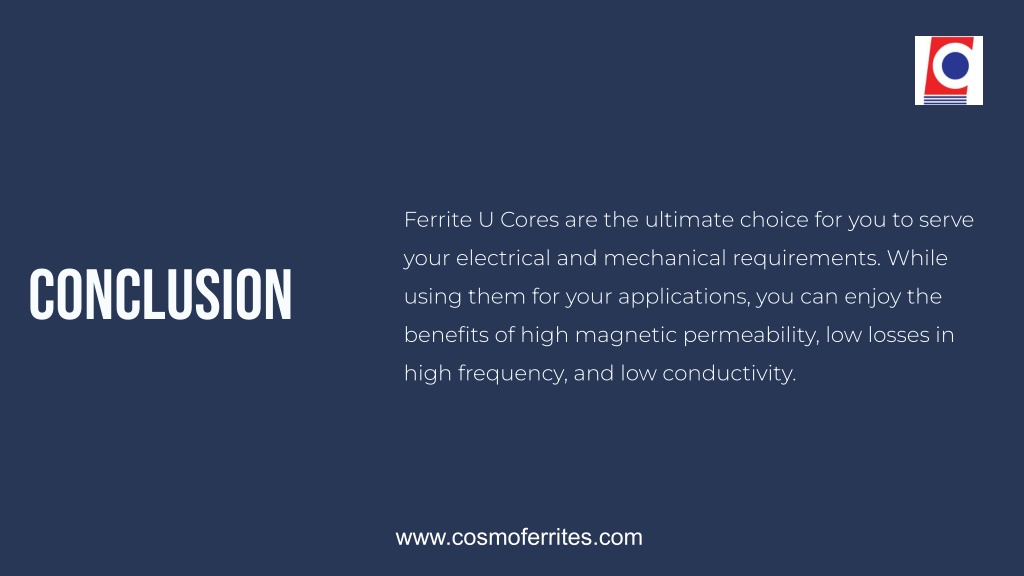

  8. Ferrite U Cores are the ultimate choice for you to serve your electrical and mechanical requirements. While CONCLUSION using them for your applications, you can enjoy the benefits of high magnetic permeability, low losses in high frequency, and low conductivity. www.cosmoferrites.com

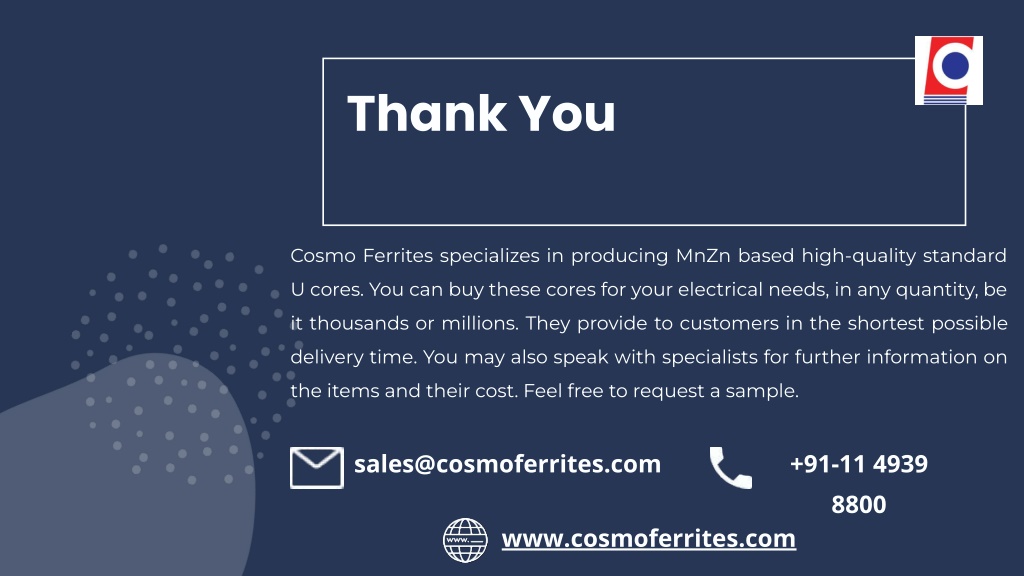

  9. Thank You Cosmo Ferrites specializes in producing MnZn based high-quality standard U cores. You can buy these cores for your electrical needs, in any quantity, be it thousands or millions. They provide to customers in the shortest possible delivery time. You may also speak with specialists for further information on the items and their cost. Feel free to request a sample. sales@cosmoferrites.com +91-11 4939 8800 www.cosmoferrites.com
